GE AJCM08 User manual

GEAppliances.com
E
0
0
m
Safety Instructions ......... 2,3
Operating Instructions ..... 4-6

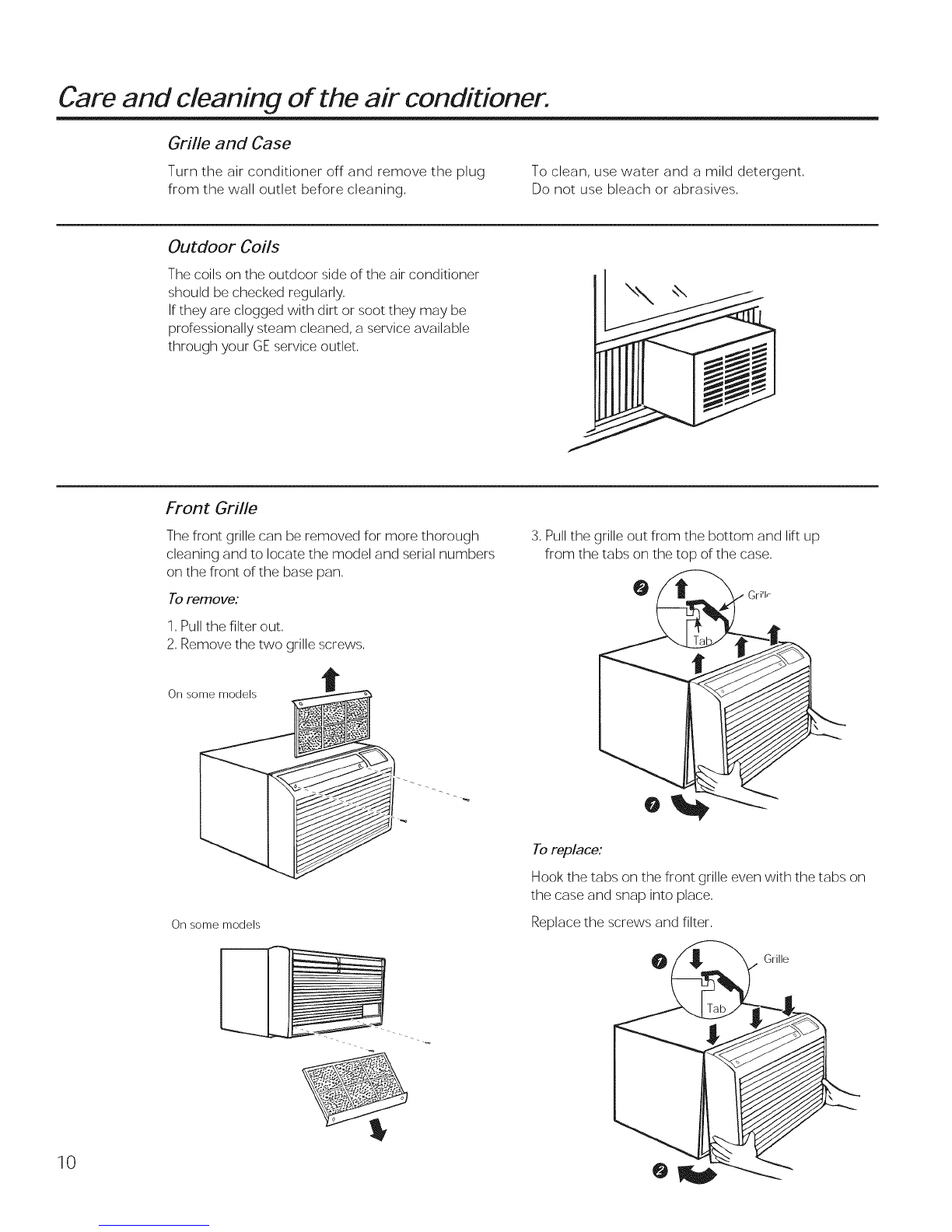

Care and Cleaning
Air Filter ............................ 8
Front Grille ........................ 7,9
Grille and Case ................... 7,9
Outdoor Coils .................... 7,9

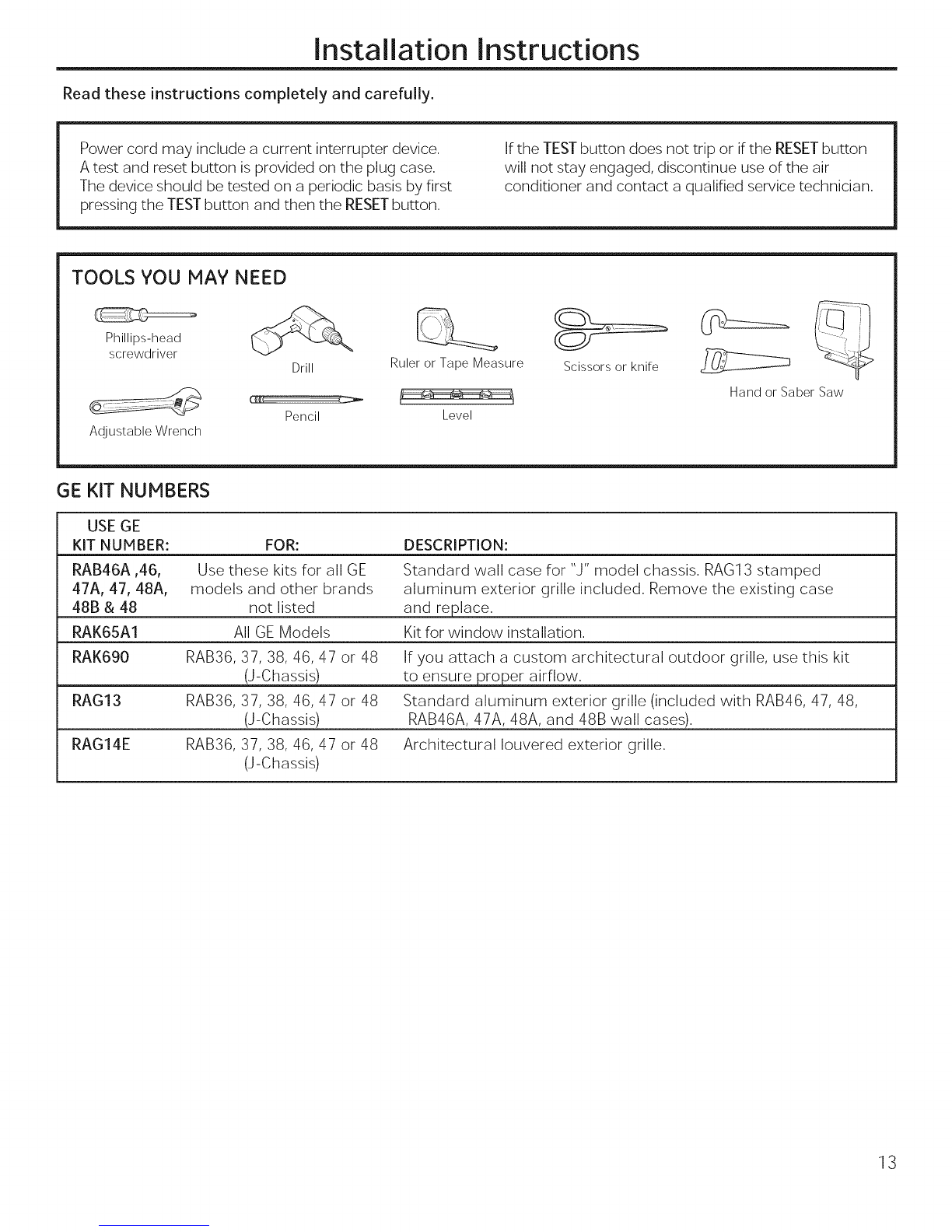

Installation Instructions
Before You Begin ............... 12-13
Installing a J-Model in
an Existing Wall Case ............. 14

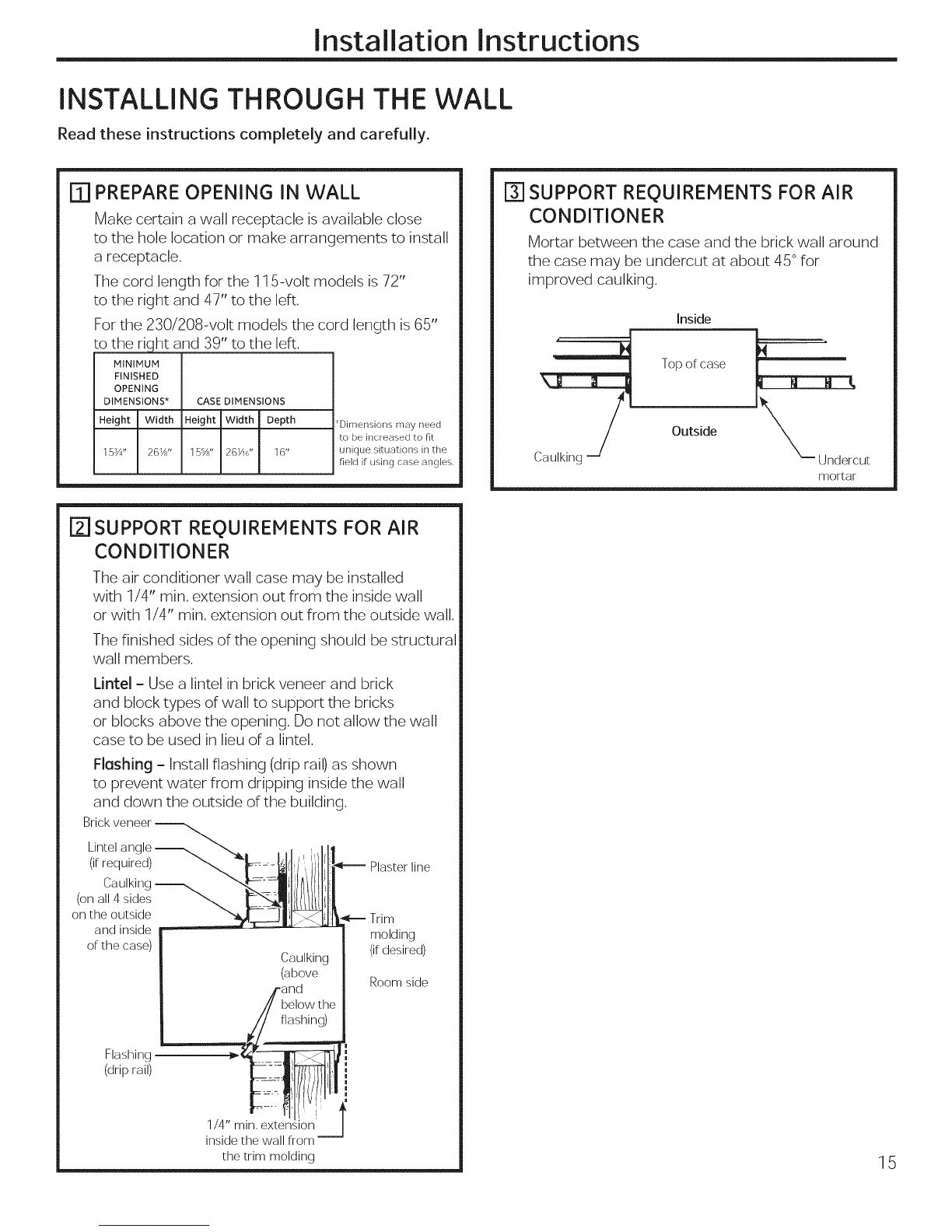

Through-the-Wall
Installation ....................... 15

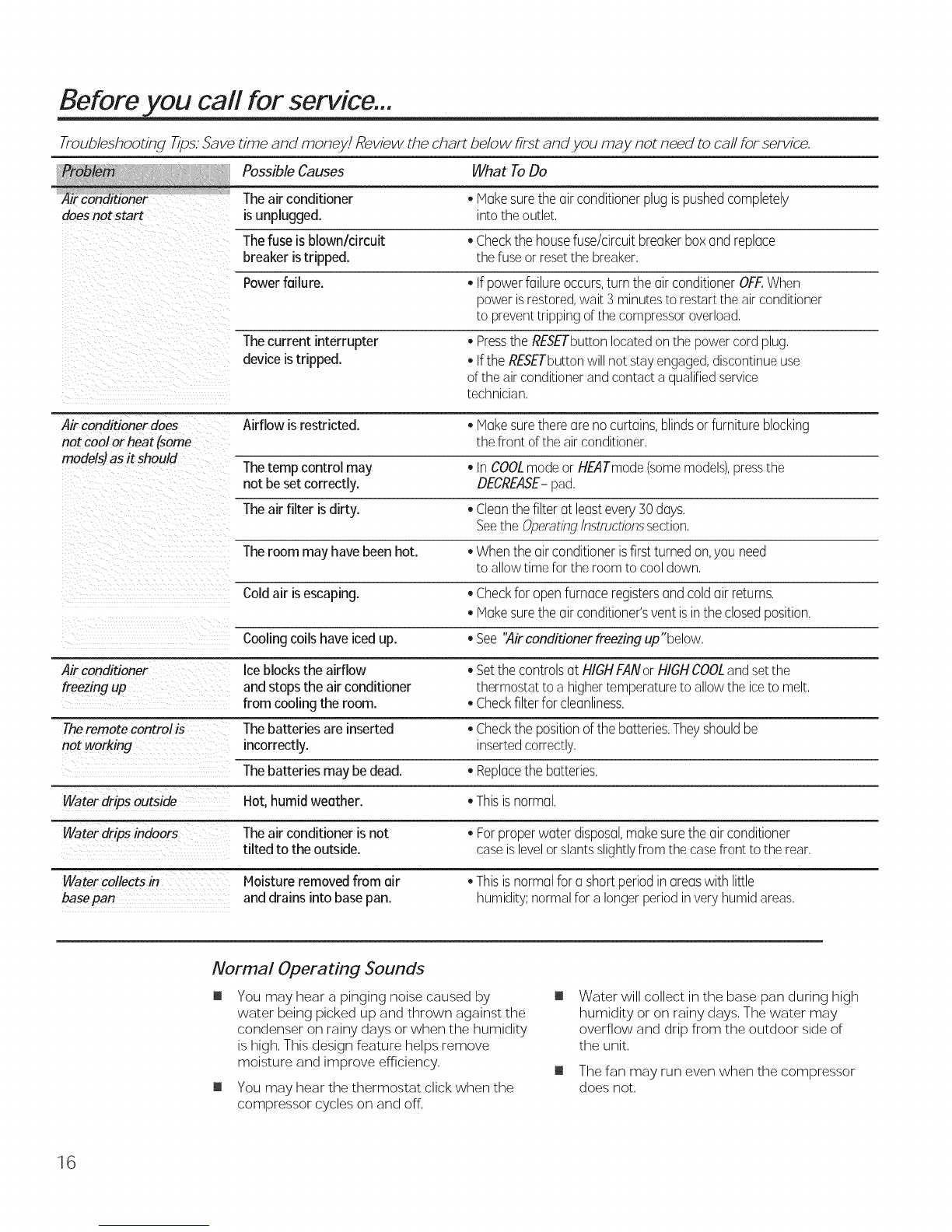

Troubleshooting Tips ....... 16
Normal Operating Sounds ....... 16

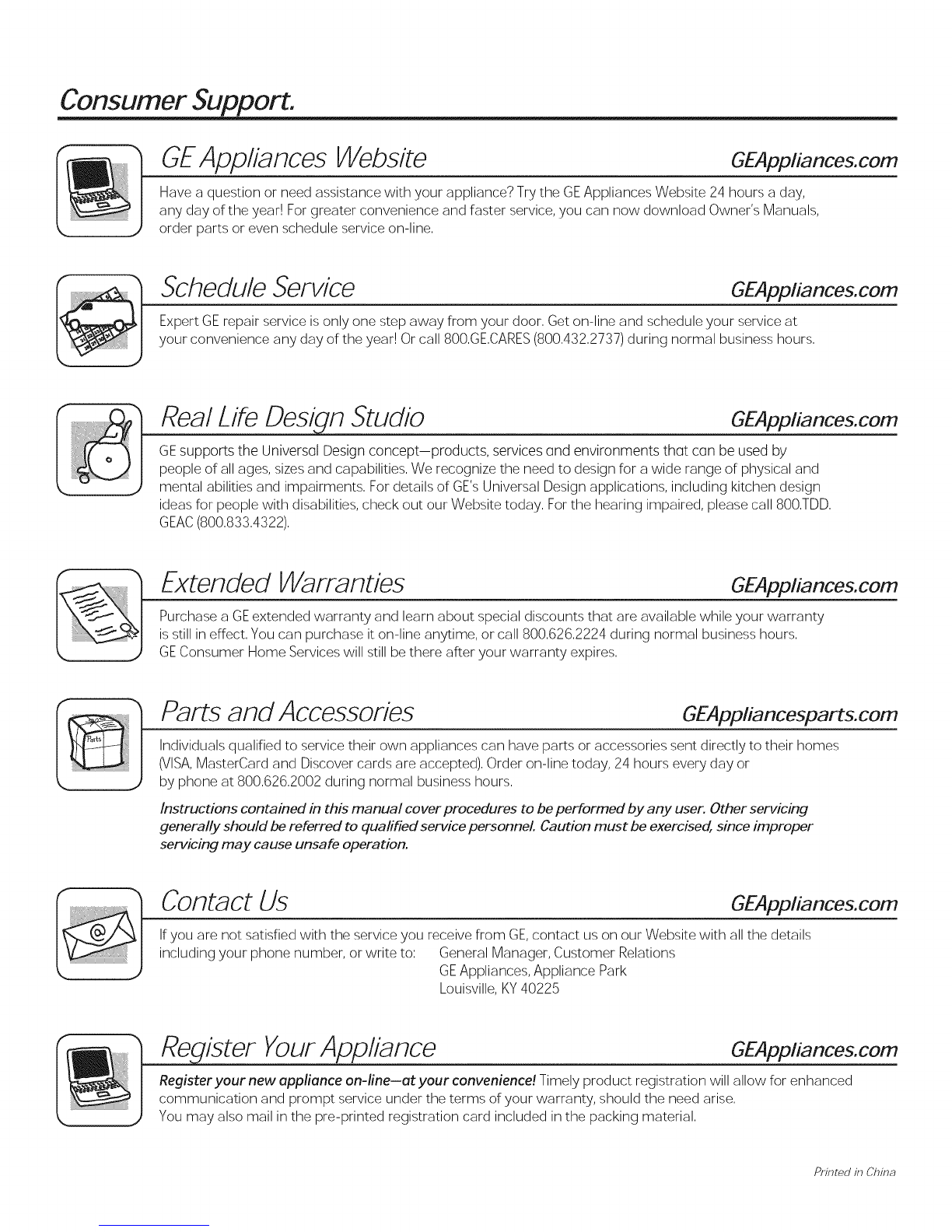

Consumer Support
Consumer Support ...... Back Cover
Warranty ......................... 19
*ENERGY STAR_' labeled product
1
ENERGYSTAR
As an ENERGYSTAR<R_partner, GE has
determined that this product meets the
ENERGYSTAR<R_guidelines for energy efficiency,
Write the model and serial
numbers here:
Model #
Serial #
Find these numbers on a label on the front of
the base pan behind the front grille,
Cool Only:
Heat/Cool:
AJCM 08, 10 ACF*
AJCM 10, 12 DCF*
AJCQ O6 LCF*
AJCQ 08, 1O,12 ACF*
AJCQ 09, 1O,12 DCF*
AJEM 12 DCE/F
AJEQ O6 LCE/F
AJEQ O8 ACE/F
AJEQ 09, 10, 12 DCE/F
Espa#ol
For a Spanish version of this manual, visit
our Website at GEAppliances.com.
Para consultar una version en espahol de
este manual de instrucciones, visite nuestro
sitio de internet GEAppliances.com.
Frangaise
For a French version of this manual, visit
our Website at GEAppliances.com.
Pour une version franqaise de ce manuel
d'utilisation, veuillez visiter notre site web
I'adresse GEAppliances.com.
4,9-7770 5-73 GE

IMPORTANT SAFETYINFORMATION.
READALL INSTRUCTIONSBEFOREUSING.
SAFETYPRECAUTIONS
AWARNING! Riskofelectricshock.Can
cause inJury or death. For your safety,
the information in this manual must be followed to
minimize the risk of fire, electric shock or personal
injury.
Use this appliance only for its intended
purpose as described in this Owner's Manual.
i This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
Replace immediately all electric service
cords that have become frayed or
otherwise damaged. A damaged power
supply cord must be replaced with a new
power supply cord obtained from the
manufacturer and not repaired. Do not
use a cord that shows cracks or abrasion
damage along its length or at either the
plug or connector end.
Turn OFFand unplug your air conditioner
before making any repairs or cleaning.
NOTE."Westrongly recommend that any
servicing be performed by aqualified individual.
For your safety,, ,do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
All air conditioners contain refrigerants,
which under federal law must be removed
prior to product disposal. If you are getting
rid of an old product with refrigerants, check
with the company handling disposal about
what to do.
HOW TOCONNECTELECTRICITY
AWARNING! Riskofelect_icshock.
Can cause injury or death. This appliance
must be properly grounded Do not, under any
circumstances, cut or remove the third (ground)
prong from the power cord For personal safety,
this appliance must be properly grounded
i The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Power cord may include a current interrupter
device. A test and reset button is provided
on the plug case. The device should be
tested on a periodic basis by first pressing
the TESTbutton and then the RESETbutton.
If the TESTbutton does not trip or if the
RESETbutton will not stay engaged,
discontinue use of the air conditioner and
contact a qualified service technician.
Where a 2-prong wall outlet is encountered,
it isyour personal responsibility and
obligation to have it replaced with a properly
grounded 3-prong wall outlet.
,_ WARNING!Riskofelectricshock.Can
cause inJury or death.
The air conditioner should always be plugged
into its own individual electrical outlet which
has a voltage rating that matches the rating
plate. This provides
the best performance and also prevents
overloading house wiring circuits which
could cause a fire hazard from overheated
wires.
i Seethe Installation Instructions, Electrical
Requirements section for specific electrical
connection requirements.
2 SAVE THESEINSTRUCTIONS

GEAppliances.com
A WARNING!
USE OFEXTENSION CORDS
RISK OFFIRE. Could cause serious injury or
death.
i DO NOT use an extension cord with this
Built-in Air Conditioner.
i DO NOT use surge protectors or multi-outlet
adaptors with this Built-in Air Conditioner.
USEOFADAPTERPLUGS
,_ WARNING! RiskoreJect_icshock.C'_,,_
cause inJury or death.
We strongly recommend against the use of
an adapter plug.
Ifyou must use an adapter, where local
codes permit, a temporary connection may
be made to a properly grounded 2-prong
wall outlet by use of a UL-listed adapter
available at most local hardware stores.
The larger slot in the adapter must be
aligned with the larger slot in the wall outlet
to provide proper polarity in the connection
of the power cord.
When disconnecting the power cord from
the adapter, always hold the adapter in
place with one hand while pulling the power
cord plug with the other hand. If this is not
done, the adapter ground terminal is very
likely to break with repeated use.
If the adapter ground terminal breaks, DO
NOTUSEthe air conditioner until a proper
ground has been established.
Attaching the adapter ground terminal to
a wall outlet cover screw does not ground
the appliance unless the cover screw is
metal, not insulated, and the wall outlet
is grounded through the house wiring.
You should have the circuit checked by a
qualified electrician to make sure the outlet
is properly grounded.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVE THESEINSTRUCTIONS

About the controls onthe air conditioner-Cool OnlyModels
[] On
[] Off
Delay Hrs
[] Cool
[] Fan
[] Hi
[] Med
[] Low
[] []
Temp
imDi
Air Conditioner Controls
Lights beside the touch pads on the air conditioner
control panel indicate the selected settings.
Controls
Power
Remote Control
Power On/Off
Turns air conditioner on and off.
Display
Displays the temperature setting. Displays
hours when setting the timer.
Mode
On the remote control, use to set the air
conditioner to Coolor Fan mode.
On the air conditioner controls, use to set
Coolor Fan mode at High, Medor Lowfan
speed. Indicator lights on the air conditioner
controls will show the mode and fan speed
selected.
Temp Increase +/Decrease -Pads
Use to set temperature when in COOL mode.
Fan Speeds (Remote control on/y)
Use to set the fan speed at Low, Medor
High,
Delay Firs
On--When the air conditioner is off, it can
be set to automatically turn on in half an
hour to 24 hours at its previous setting. Each
touch will set the time in half hours up to 10
and then in hours up to 24.
To cancel the Delay Timer, press the On pad until
"CL" appears. Then wait until the display turns off.
Off--When the air conditioner ison, it can be set to
automatically turn off in half an hour to 24 hours.
Each touch will set the time in half hours up to 10
and then in hours up to 24.
To cancel the Delay Timer, press the Offpad until
"CL" appears and wait for the set temperature to
be displayed. The unit will now resume normal
operation.
Reset Filter
LEDwill turn on when fan has accumulated 250
hours of run time as a reminder to clean filter.
Press Reset Filter to turn off the LEDand reset the
accumulated run time.
Remote Control Signal Receiver
NOTE'When the air conditioner is turned on, it will
automatically start in the setting last used.
Remote Control
m
m
To ensure proper operation, aim the remote
control at the signal receiver on the air
conditioner.
The remote control signal has a range of up to
21 feet.
m Make sure nothing is between the air conditioner
and the remote control that could block the
signal.
m Make sure batteries are fresh and installed
correctly--see the Care and Cleaning section.

GEAppliances.com

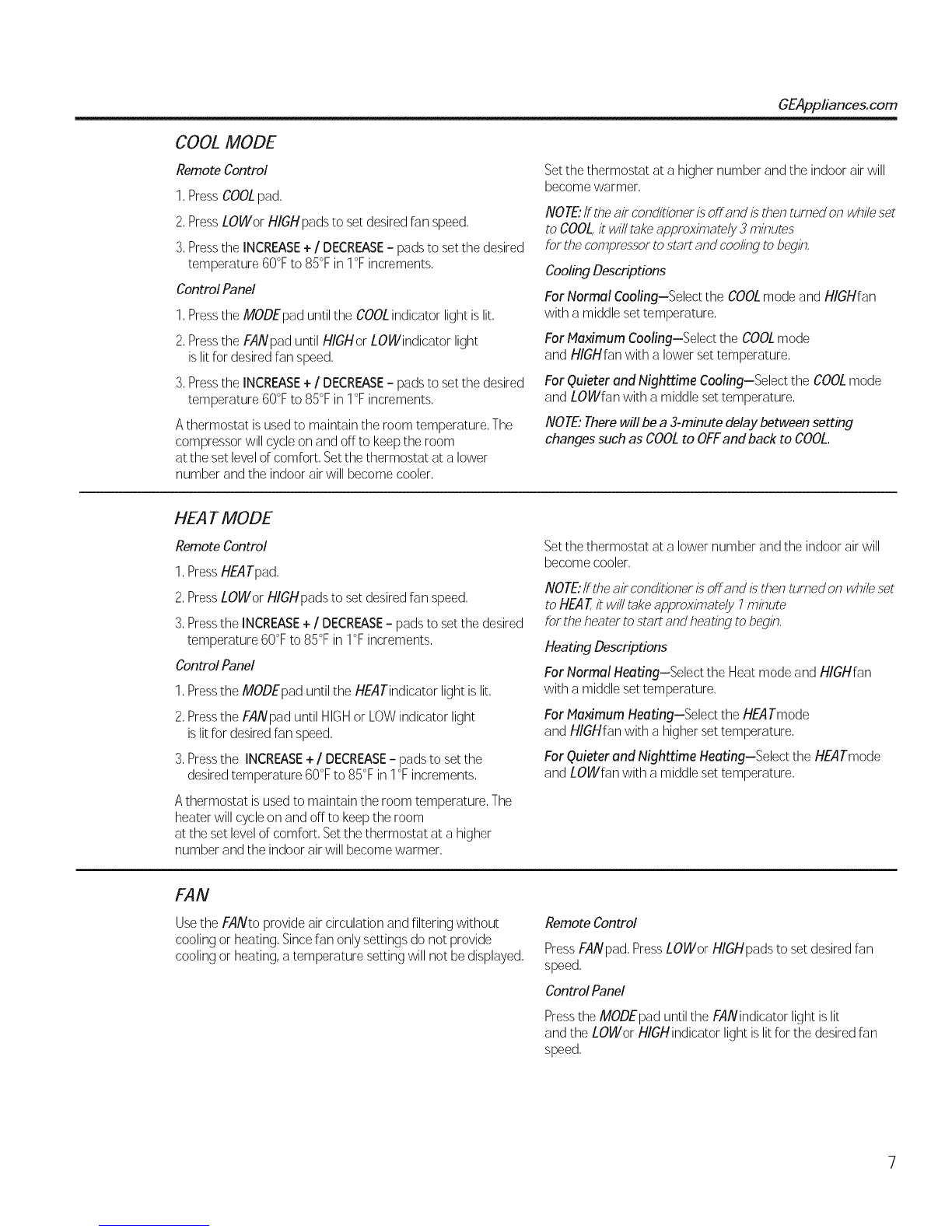

Cool Mode
Remote Control
1,PressCool pad,
2,PressLow, Medor High padsto set desiredfan speed,
3,Pressthe Increase +/Decrease- padsto set
the desired temperature 60°Fto 85°Fin 1°F
increments,
Control Panel
1,Pressthe Mode pad untilthe Coolindicator light is lit
and the Low, Medor High indicator light is litfor the
desired fan speed,
2,Pressthe Increase +/Decrease - pads to setthe
desired temperature 60°Fto 85°F in 1°Fincrements,
Athermostat isused to maintain the room temperature,
The compressor will cycleon and off to keep the room
at the set level of comfort, Setthe thermostat at a lower
number and the indoor air will become cooler,
Set the thermostat at a higher number and the indoor air
will become warmer,
NOTE."Ifthe air conditioner isoff and isthen turned on
while set to Cool,it will take approximately 3 minutes
for the compressor to start and cooling to begin,
Cooling Descriptions
For Normal Cooling-Select the Cool mode and High or
Medfan with a middle settemperature.
For tfeximum Cooling-Select the Coolmode
and HIGHfan with a lower set temperature.
For Quieter and Nighttime Cooling-Select the Cool
mode and Lowfan with a middle set temperature.
NOTE."Ifyou switch from a Cool setting to Off or to
a fan setting, wait at least 3 minutes before switching
back to a Coolsetting.
FAN MODE
Usethe Fan mode to provide air circulation and filtering
without cooling, Sincefan-only settings do not provide
cooling,a temperature setting will not bedisplayed,
Remote Control
PressFan pad, PressLow, Medor High pads to set
desired fan speed,
Control Panel
Pressthe Mode pad until the Fan indicator light is lit
and the Low, Medor High indicator light islit for the
desired fan speed,

About the controlson the air conditioner-Heat/Cool Models
Appearance may vary.
[ J
®
Air Conditioner Controls
Lights beside the touch pads on the air c'onditioner
control panel indicate the selected settings,
Controls
Remote Control
ON/OFF
Turns air conditioner on and off.
D /ay
Displays the temperature setting, Displays
hours when setting the timer,
MODE
On the air conditioner controls, use to set
COOL, HEA Tor FAN mode. Indicator lights
on the air conditioner controls will show the
mode selected.
TEMP Increase +/Decrease -Pads
Use to set temperature when in COOL
or HEATmode.
FAN Speeds
Use to set the fan speed at LOWor HIGH.
Indicator lights will show the speed selected.
TIMER
ON--When the air conditioner is off, it
can be set to automatically turn on in
half an hour to 24 hours at its previous
setting.
Each touch will set the time in half hours
upto 10 and then in hours upto 24.
To cancel the On Timer, press the ON
pad until "CL" appears. Then wait until
the display turns off.
OFF--When the air conditioner is on, it
can be set to automatically turn off in
half an hour to 24 hours. Each touch will
set the time in half hours up to 10 and
then in hours up to 24.
To cancel the Off Timer, press the OFF
pad until "CL" appears and wait for the
set temperature to be displayed. The unit
will now resume normal operation.
Remote Control Signal Receiver
6
Remote Control
m
NOTE'When the air conditioner isturned on,
it will automatically start in the setting last used.
To ensure proper operation, aim the
remote control at the signal receiver
on the air conditioner.
The remote control signal has a range
of up to 21 feet.
m Make sure nothing is between the air conditioner
and the remote control that could block the
signal.
m Make sure batteries are fresh and installed
correctly--see the Core ond Cleoning section.

GEApplMnces.com
COOL MODE
Remote Control
1,PressCOOLpad,
2,PressLOWor HIGHpads to set desiredfan speed,
3,Pressthe INCREASE+ /DECREASE- padsto setthe desired
temperature 60°Fto 85°Fin 1°Fincrements,
Control Panel
1,Pressthe MODEpad until the COOLindicator light is lit,
2,Pressthe FANpad until HIGHor LOWindicator light
islit for desired fan speed,
3,Pressthe INCREASE+ /DECREASE- padsto setthe desired
temperature 60°Fto 85°Fin 1°Fincrements,
Athermostat isused to maintain the room temperature, The
compressor will cycle on and offto keepthe room
at the set level of comfort, Setthe thermostat at a lower
number and the indoor air will become cooler,
Setthe thermostat at a higher number and the indoor air will
become warmer,
NOTE:If the air conditioner is off and Lsthen turned or7while set
to COOL,it will take approximately 3minutes
for the compressor to start and cooling to begin,
Cooling Descriptions
For Normal Coofing-Select the COOLmode and HIGHfan
with a middle set temperature,
For Maximum Cooling-Select the COOLmode
and HIGHfan with a lower set temperature,
For Quieter and Nighttime Cooling-%lect the COOLmode
and LOWfan with a middle settemperature,
NOTE."Therewill be a 3-minute delay between setting
changes such as COOLto OFFand back to COOL.
HEAT MODE
Remote Control
1,PressHEATpad,
2,PressLOWor HIGHpads to set desired fan speed,
3,Pressthe INCREASE+ /DECREASE- pads to set the desired
temperature 60°Fto 85°F in l°F increments,
Control Panel
1,Pressthe MODEpad until the HEATindicator light is lit,
2,Pressthe FANpad until HIGHor LOWindicator light
is litfor desired fan speed,
3,Pressthe INCREASE+ /DECREASE- pads to set the
desired temperature 60°Fto 85°F in 1°Fincrements,
Athermostat is used to maintain the room temperature, The
heater will cycle on and off to keep the room
at the set levelof comfort, Set the thermostat at a higher
number andthe indoor air will become warmer,
Set the thermostat at a lower number and the indoor air will
become cooler,
NOTE."Ifthe air COrTdit/onerL_off and L_then turned on while set
to flEAT,it will take approximately 7minute
for the heater to start and heat/ng to begin,
Heating Descriptions
For Normal Heating-Select the Heat mode and HIGHfan
with a middle set temperature,
For Maximum Heating-Select the HEATmode
and HIGHfan with a higher set temperature,
For Quieter and Nighttime Heating-Select the HEATmode
and LOWfnn with a middle set temperature,
FAN
Usethe F/INto provide air circulation and filtering without
cooling orheating, Sincefan only settings do not provide
cooling or heating, a temperature setting will not be displayed,
Remote Control
PressF/INpad, PressLOWor HIGHpads to set desired fan
speed,
Control Panel
Pressthe MODEpad until the F/INindicator light islit
and the LOWor HIGHindicator light is litfor the desired fan
speed,

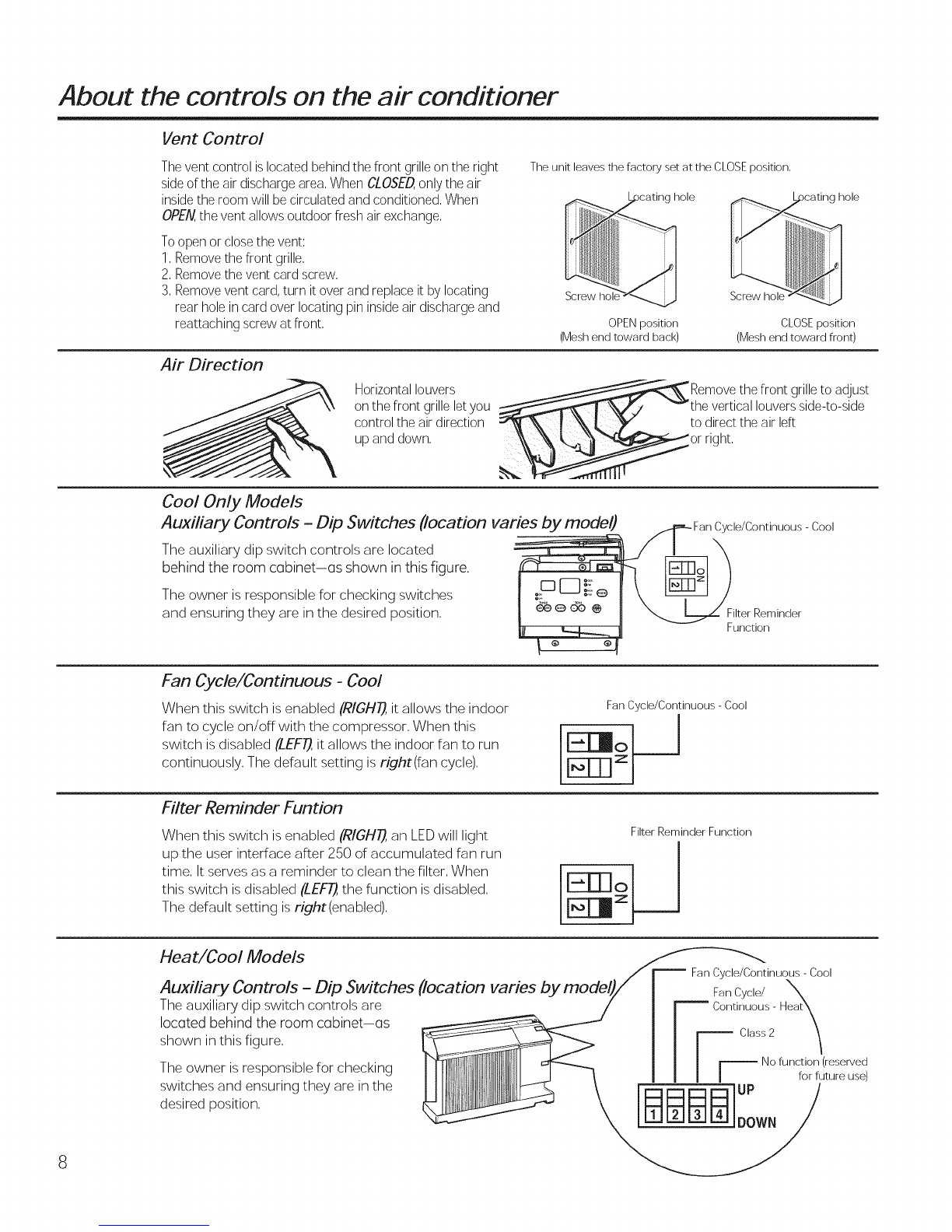

About the controls on the air conditioner
Vent Control
Thevent control islocated behind the front grilleon the right
side of the air discharge area.When CLOSED,only the air
insidethe room will be circulated and conditioned. When
OPENthe vent allows outdoor fresh air exchange.
Toopen or closethe vent:
1. Removethe front grille.
2. Removethe vent card screw.
3. Removevent card,turn it over and replace it by locating
rear hole in card over locating pin inside air discharge and
reattaching screw at front.
The unit leaves the factory set at the CLOSE position.
A Locating hole
OPEN position
(Mesh end toward back)
hole
Screw hok
CLOSE position
(Mesh end toward front)
Air Direction
Cool Only Models
Horizontal louvers
on the front grille letyou
control the air direction
up and down.
"Remove the front grille to adjust
vertical louvers side-to-side
to direct the air left
right.
Auxiliary Controls -Dip &witches (location varies by model)
The auxiliary dip switch controls are located
behind the room cabinet-as shown in this figure.
The owner is responsible for checking switches
and ensuring they are in the desired position.
Cycle/Continuous - Cool
Filter Reminder
Function
Fan Cycle/Continuous -Cool
When this switch is enabled (RIGHt, it allows the indoor
fan to cycle on/off with the compressor. When this
switch is disabled (LEFt, it allows the indoor fan to run
continuously. The default setting is right(fan cycle).
Fan Cycle/Continuous - Cool
E[:lo
Filter Reminder Funtion
When this switch is enabled (RIGH_ an LEDwill light
up the user interface after 250 of accumulated fan run
time. It serves as a reminder to clean the filter. When
this switch is disabled (LEFt, the function is disabled.
The default setting is right(enabled).
Filter Reminder Function
Heat/Cool Models
Auxiliary Controls -Dip Switches (location varies b,
The auxiliary dip switch controls are
located behind the room cabinet-as
shown in this figure,
The owner is responsible for checking
switches and ensuring they are in the
desired position,
Fan Cycle/Continuous - Cool
Fan Cycle/ H_
F Continuous -
Class 2
_ No function (reserved
for future use)
I BBBI::w.
8

GEApplMnces.com
Fan Cycle/Continuous -Cool
When this switch is enabled (UP) it allows the indoor
fan to cycle on/off with the compressor, When this
switch is disabled (DOWN), it allows the indoor fan to run
continuously, The default setting is DOWN(continuous),
w Fan Cycle/Continuous - Cool
Fan Cycle/Continuous -Heat
When this switch is enabled (UP),it allows the indoor
fan to cycle on/off with the heater operation, When this
switch is disabled (DOWN), it allows the indoor fan to run
continuously, The default setting is UP(cyclic),
r Fan Cycle/Continuous - Heat
Class 2- Remote Thermostat
When this switch is enabled (UP),it allows the unit
to operate with a Class 2 Remote Control Wall
Thermostat, The unit controls are disabled,
The default setting is DOWN(disabled),
r class 2
Terminal Connections Remote Thermostat- Class 2 (on some models)
The controls are located under a plastic cover
behind the front grille,
r_ Remove the front See the Front Grille
grille,
section of Care and Cleaning,
-1 Remove the screws securing the plastic cover
over the wiring connections, Set aside screws
and plastic cover,
To make wiring connections, insert the wires
into the bottom of the terminals and tighten
screws securely,
r_ fter all desired connections have been made,
replace the plastic cover and front grille,
The owner is responsible for making all
connections and setting the appropriate dip
switches,
When connected, the unit will be controlled
by a remote thermostat,
NOTE'The number 3 dip switch must be in
the enabled (UP)position to activate the remote
thermostat, (See the installation instructions
supplied with the remote thermostat,)
IMPORTANT."
The thermostat connections provide 24 V AC only,
If using a digital/electronic wall thermostat,
ensure it is compatible with 24 VAC signal, See
the Installation Instructions for the wall thermostat,
NOTICE."
Damage to a wall thermostat or to the electronics
can result from improper connections, Special
care must be used in connecting the wires, No line
voltage connections should be made to any circuit,
Isolate all wires in building from line voltage,
____ Terminal
onnections
location
under front
grille
Red- 24VAC only_ ( _ _ _ _ \
Green-LowSpeedFan---JI I I I \
Green HiqhNSoP_edc_an--J-S j )
(reserved for furture use)
Yellow- Compressor-- J J J /
White- Heater I | /
Common- Ground-- -- J /
No Function 7,
(reselved for futtu

Care and cleaning of the air conditioner.
Grifle and Case
Turn the air conditioner off and remove the plug To clean, use water and a mild detergent,
from the wall outlet before cleaning, Do not use bleach or abrasives,
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly,
If they are clogged with dirt or soot they may be
professionally steam cleaned, a service available
through your GE service outlet,
10
Front Grille
The front grille can be removed for more thorough
cleaning and to locate the model and serial numbers
on the front of the base pan,
Toremove:
1, Pull the filter out,
2, Remove the two grille screws,
On some models I
i
On some models
3, Pull the grille out from the bottom and lift up
from the tabs on the top of the case,
To replace:
Hook the tabs on the front grille even with the tabs on
the case and snap into place,
Replace the screws and filter,
0_/ Grille

of the air conditioner.
Tomaintain optimum performance, clean the filter at least every 30 days.
Air Filter
GEAppliances.com
Dirtyfilter-Needs cleoning
D_
Cloggedfilter-Greatly
reduces cooling, heating
and airflow,
Turn the air conditioner off before cleaning.
The most important thing you can do to maintain the
air conditioner is to clean the filter at least every 30
days. A clogged filter reduces cooling, heating and air
flow.
Keeping the air filter clean will:
[] Decrease cost of operation.
[] Save energy.
[] Prevent clogged heat exchanger coils.
[] Reduce the risk of premature component failure.
To clean the air fitters:
Toremove the air filter, on other models:
Pull it down,
replace the air filter:
Replace the clean filter by pushing it back
into place.
To
[] Vacuum off the heavy soil.
[] Run water through the filters.
[] Dry thoroughly before replacing.
To remove the air filter, on some models:
Carefully pull the tab forward, up and out. M_ "ri _ E"
_ !1_1C." Do not operate the air conditioner
without the filter in place, ff a filter becomes torn or
damaged it should be replaced immediately,
Operating without the filter in place or with a damaged
filter will allow dirt and dust to reach
the indoor coil and reduce the cooling, heating, airflow
and efficiency of the unit,
Replacement filters are available from your salesperson,
GEdealer, GEService and Parts Center or authorized
Customer Card " servicers.
How to Insert the Batteries in the Remote Control
[_ Remove the battery cover by sliding it according
to the arrow direction,
-2-] Insert new batteries making sure that the
(÷)and (-) of battery are installed correctly,
F_ eattach the cover by sliding it back
into position,
NO TE$:
[] Use 2 AAA (1.5 volt) batteries. Do not use
rechargeable batteries.
[] Remove the batteries from the remote control
if the system is not going to be used for a long time.
[] Do not mix old and new batteries. Do not mix
alkaline, standard (carbon-zinc) or rechargeable
(ni-cad, ni-mh, etc) batteries. 11

I stallatio
I structions Air Conditioner
BEFOREYOU BEGIN
Read these instructions completely
and carefully.
•IMPORTANT -Sovetheseinstructions
for local inspector's use,
•IMPORTANT- Observeallgoverningcodes
and ordinances,
• Note to Installer - Be sure to leave these instructions
with the Consumer,
• Note to Consumer - Keep these instructions
for future reference,
• Skill level- Installation of this appliance requires basic
mechanical skills,
• Completion time - Approximately 1 hour
We recommend that two people install this product.
Proper installation isthe responsibility of the installer.
Product failure due to improper installation
is not covered under the Warranty,
Air conditioner break-in period
NOTE- As with any mechanical device with moving
parts, this unit will have a wear-in period. AFTER
INSTALLATION,this unit should be operated for 48
hours to achieve optimum efficiency,
ELECTRICAL REQUIREMENTS
Ii_WARNING! Riskofelectricshock.Can
cause injury or death. This appliance must be
properly grounded. Where a 2-prong wall outlet
is encountered, it is your responsibility and
obligation to have it replaced with a properly
grounded 3-prong outlet.
Some models require a 115/1 20-volt a,c,,
60-Hz grounded outlet protected with a
15-amp time delay fuse or circuit breaker,
The 3-prong grounding plug minimizes the possibility of
electric shock hazard. If the wall outlet you plan to use
is only a 2-prong outlet, it isyour responsibility to have it
replaced with a properly grounded 3-prong wall outlet.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Do not change the plug on the power cord of this
air conditioner.
Aluminum house wiring may present special
problems-consult oquolified electricion.
Somemodels require 230/208-volt a,c,,protected
with atime delayfuse or circuit breaker,These
modelsshouldbe installedon their own single
branch circuit for best performance and to preventoverloading houseor apartment wiring circuits,
which could cause a possiblefire hazard from
overheating wires.
IMPORTANT!
GEstrongly recommends the removal of the old wall case
and the installation of a new GEWall Case.If you DONOT
use a GEWall Case,you run the risk of poor performance
or product failure. This is not covered under the terms of the
GEwarranty.
12

Installation
Read these instructions completely and carefully.
Instructions
Power cord may include a current interrupter device,
A test and reset button is provided on the plug case,
The device should be tested on a periodic basis by first
pressing the TESTbutton and then the RESETbutton.
If the TESTbutton does not trip or if the RESETbutton
will not stay engaged, discontinue use of the air
conditioner and contact a qualified service technician.
TOOLS YOU MAY NEED
Phillips-head
screwdriver Drill
Pencil
Adjustable Wrench
Ruler or Tape Measure
Level
Scissors or knife
Hand or Saber Saw
GE KIT NUMBERS
USE GE
KIT NUMBER: DESCRIPTION:
RAB46A ,46, Standard wall case for "J" model chassis. RAG13 stamped
47A, 47, 48A, aluminum exterior grille included. Remove the existing case
48B & 48 and replace.
RAK65A1 Kit for window installation.
RAK690
RAG13
RAG14E
FOR:
Use these kits for all GE
models and other brands
not listed
All GE Models
RAB36, 37, 38, 46, 47 or 48
(J-Chassis)
RAB36, 37, 38, 46, 47 or 48
(J-Chassis)
RAB36, 37, 38, 46, 47 or 48
(J-Chassis)
If you attach a custom architectural outdoor grille, use this kit
to ensure _er airflow.
Standard aluminum exterior grille (included with RAB46, 47, 48,
RAB46A, 47A, 48A, and 48B wall cases).
Architectural Iouvered exterior grille.
13

Installation Instructions
INSTALLING A J-MODEL IN AN
Read these instructions completely and carefully.
IT] REMOVE ALL SHIPPING MATERIAL
{IF PRESENT} INSIDE AIR CONDITIONER
NEXT TO COMPRESSOR
EXISTING WALL CASE
r_ CAREFULLY SLIDE AIR CONDITIONER
INTO CASE
Make sure that the tubing on the unit does
not touch the wall case and that the case
installation issecure.
jj j_.--JJ
[_] REMOVE THE FILTERAND FRONT GRILLE
Remove the two screws behind the filter then remove
the front grille. t
P
1_ REINSTALL LOCKING PLATE WITH TAB
BEHIND WALL CASE FLANGE. TIGHTEN
SCREW
Locking\
plate
Tighten /
screw /,iili
((
14
1-51ATTACH FRONT GRILLE
An opening for the power cord is on the bottom
of the front grille. !

Installation Instructions
INSTALLING THROUGH THE WALL
Read these instructions completely and carefully.
[i] PREPARE OPENING IN WALL
Make certain a wall receptacle isavailable close
to the hole location or make arrangements to install
a receptacle,
The cord length for the 115-volt models is 72"
to the right and 47" to the left.
For the 230/208-volt models the cord length is 65"
to the right and 39" to the left.
MINIMUM
FINISHED
OPENING
DIMENSIONS* CASE DIMENSIONS
Height Width Height Width Depth
15¾" 26½" 15%" 26¼d' 16"
'Dimensions may need
to be increased to fit
unique situations in the
field if using case angles.
171SUPPORT REQUIREMENTS FOR AIR
CONDITIONER
The air conditioner wall case may be installed
with 1/4" rain. extension out from the inside wall
or with 1/4" rain. extension out from the outside wall.
The finished sides of the opening should be structural
wall members.
Lintel - Use a lintel in brick veneer and brick
and block types of wall to support the bricks
or blocks above the opening, Do not allow the wall
case to be used in lieu of a lintel.
Flashing -Install flashing (drip rail) as shown
to prevent water from dripping inside the wall
and down the outside of the building,
Brick veneer _....
Lintel angle _.. "-...... g
I,ii, i!l
(,f requ,red) .... _" (' , ' it_[_ Plaster line
Caulking _=--I] ),
,ona,4sides ' lit
on the outside "d-_ I'_!l:t___- Trim
and inside -,_,_
I I IUlUll I_
of the case) Caulking i (if desired)
|
(above [ Room side
below the
flashing)
Flashing
(driprail) I
m
m
m
#
1/4" min, extension T
inside the wall from --
the trim molding
r@]SUPPORT REQUIREMENTS FOR AIR
CONDITIONER
Mortar between the case and the brick wall around
the case may be undercut at about 45° for
improved caulking,
Inside
Top ofcase ___-'-I
Caulking /Outside L Undercut
mortar
15

Before you call for service...
Troubleshooting T/)ps:Save time and money./Review the chart below first and you may not need to call for service.
Possible Causes What To Do
The air conditioner • Hake surethe air conditioner plug ispushed completely
doesnot start is unplugged, into the outlet,
The fuse is blown/circuit • Checkthe house fuse/circuit breaker box and replace
breaker is tripped, the fuse or resetthe breaker,
Power failure. • tf power failure occurs,turn the air conditioner OFF,When
power isrestored, wait 3minutes to restart the air conditioner
to prevent tripping of the compressor overload,
The current interrupter • Pressthe RESETbutton located on the power cord plug,
device is tripped. • tfthe RESETbutton will not stay engaged, discontinue use
of the air conditioner and contact a qualified service
technician,
Air conditioner does Airflow isrestricted. • Hake surethere are no curtains, blindsor furniture blocking
not cool or heat (some the front of the air conditioner,
models) asit should The tamp control may • tn COOLmode or HEATmode (some models),press the
not be set correctly. DECREASE-pad,
The air filter isdirty. • Cleanthe filter at leastevery 50 days.
Seethe Operating instructionssection,
The room may have been hot. • When the air conditioner isfirst turned on,you need
to allow time for the room to cool down,
Cold air is escaping. • Checkfor open furnace registersand cold air returns.
• Make surethe air conditioner's vent isin the closed position.
Cooling coils have iced up. • See "Airconditioner freezing up"below,
Air conditioner Ice blocks the airflow • Setthe controls at HIGHFANor HIGHCOOL and setthe
freezingup and stops the air conditioner thermostat to a higher temperature to allow the ice to melt,
from cooling the room. • Checkfilter for cleanliness.
Theremote contrails The batteries are inserted • Checkthe position of the batteries. Theyshould be
not working incorrectly, inserted correctly,
The batteries may be dead. • Replacethe batteries.
Water drips outside Hot, humid weather. • Thisis normal.
Water drips indoors The air conditioner is not • For proper water disposal,make sure the air conditioner
tilted to the outside, case is level or slants slightly from the case front to the rear,
Water collects in Moisture removed from air • Thisis normal for a short period inareas with little
basepan and drains into base pan. humidity; normal for a longer period invery humid areas,
Normal Operating Sounds
I You may hear a pinging noise caused by l
water being picked up and thrown against the
condenser on rainy days or when the humidity
is high, This design feature helps remove
moisture and improve efficiency,
mYou may hear the thermostat click when the
compressor cycles on and off,
m
Water will collect in the base pan during high
humidity or on rainy days, The water may
overflow and drip from the outdoor side of
the unit,
The fan may run even when the compressor
does not,
16

Notes.
17

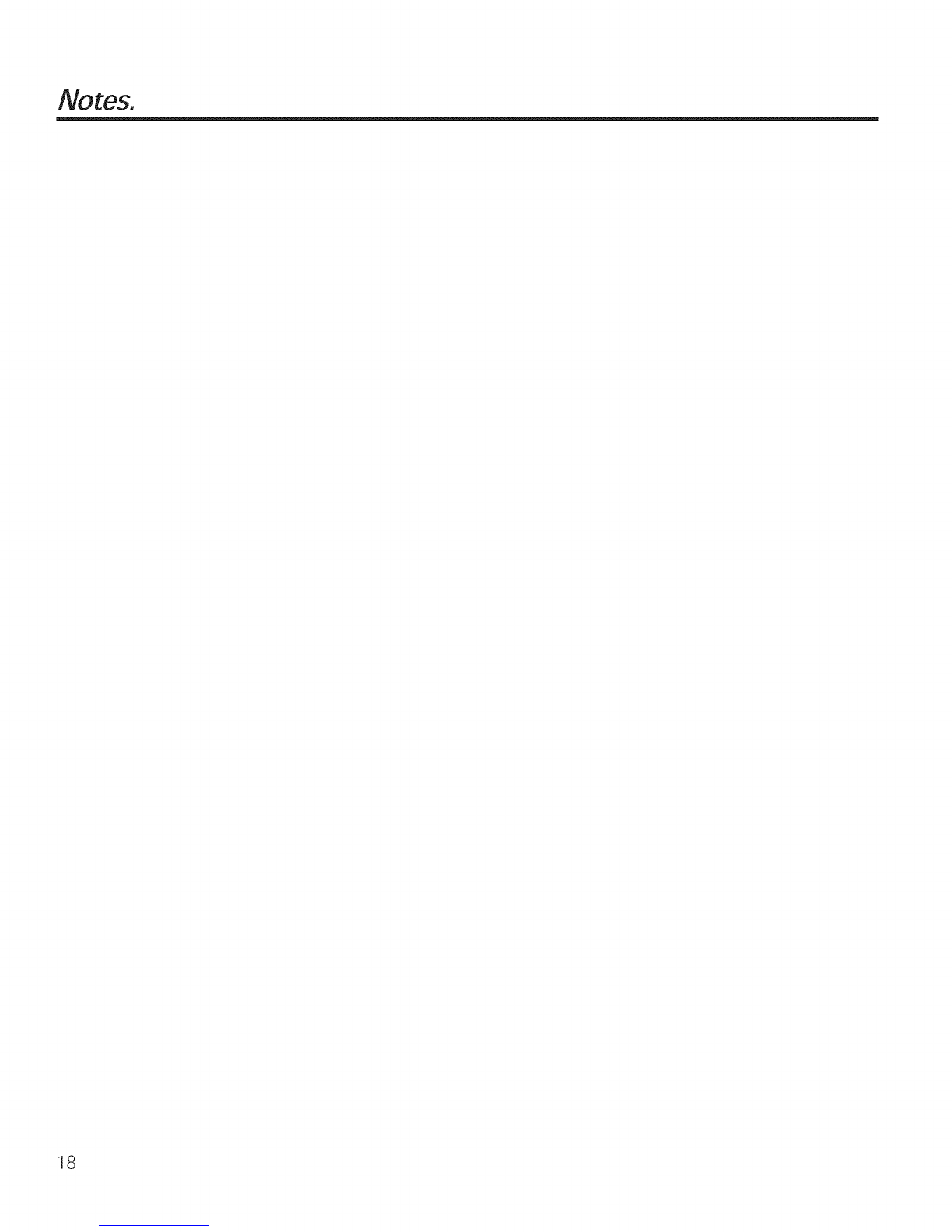

Notes.
18

Air Conditioner Warranty.
All warranty service provided by our Factory Service Centers,
or an authorized Customer Card_>technician. Toschedule service,
on-line visit us at GEAppliances.com, or call 800. GE CARES
(800.432.2737). For service in Canada, contact Gordon Williams
Corp. at 7.888.209.0999. Please have serial number and model
number available when calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain
service under the warranty.
GE Will Replace:
One Year Anypartof the air conditioner which fails due to a defect in materials or workmanship.
From the date of the During this limited one-year warranty, GEwill also provide, free of charge, all labor
originalpurchase and related service to replace the defective part.
Five Years
From the date of the
origina/ purchase
Any part of the sealed refrigerating system (the compressor, condenser, evaporator
and all connecting tubing) which fails due to a defect in materials or workmanship.
During this four-year limited additional warranty GEwill also provide, free of charge,
all labor and related service to replace the defective part.
Service trips to your home to teach you how to use
the product.
, improper installation, delivery or maintenance, if you
have an installation problem, or if the air conditioner is of
improper cooling capacity for the intended use, contact
your dealer or installer. You are responsible for providing
adequate electrical connecting facilities.
, Failure of the product resulting from modifications to the
product or due to unreasonable use including failure to
provide reasonable and necessary maintenance.
, In commercial locations labor necessary to move the unit
to a location where it is accessible for service by
an individual technician.
, Replacement of house fuses or resetting of circuit
breakers.
, Failure due to corrosion on models not corrosion-
protected.
, Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
, incidental or consequential damage caused by possible
defects with this air conditioner.
, Damage caused after delivery.
, Product not accessible to provide required service.
EXCLUSION OF Ih4PLIED WARRANTIES--Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose,
are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA and Canada. ff the product is located in an area where service by a GEAuthorized Servicer
is not available, you may be responsible for atrip charge or you may be required to bring the product to an
Authorized GE Service location for service, in Alaska, the warranty excludesthe cost of shipping or service calls to
your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
19

Consumer Support.
GEAppliances Webs/te GEAppliances.com
Have a question or need assistance with your appliance? Try the GEAppliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner's Manuals,
order parts or even schedule service on-line,
Schedule Service GEAppliances.corn
Expert GErepair service is only one step away from your door, Get on-line and schedule your service at
your convenience any day of the year! Or call 800,GE,CARES(800,432,2737) during normal business hours,
Studio GEAppliances. corn
I GEsupports the Universal Design concept-products, services and environments that can be used by
| people of all ages, sizes and capabilities, We recognize the need to design for a wide range of physical and
j mental abilities and impairments, For details of GE's Universal Design applications, including kitchen design
ideas for people with disabilities, check out our Website today, For the hearing impaired, please call 800,TDD,
GEAC(800,833,4322),
Extended Warranties GEAppliances.com
Purchase a GEextended warranty and learn about special discounts that are available while your warranty
is still in effect, You can purchase it on-line anytime, or call 800,626,2224 during normal business hours,
GEConsumer Home Services will still be there after your warranty expires,
Parts and Accessories GEApplia ncespa rts. corn
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA,MasterCard and Discover cards are accepted), Order on-line today, 24 hours every day or
by phone at 800,626,2002 during normal business hours,
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel, Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us GEApplia nces. corn
If you are not satisfied with the service you receive from GE,contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GEAppliances, Appliance Park
Louisville, KY40225
YourApp/iance GEAppliances.corn
IRegisteryour new appliance on-fine--atyour Timely product registration
convenience! will allow for enhanced
| communication and prompt service under the terms of your warranty, should the need arise,
You may also mail in the pre-printed registration card included in the packing material,
Printed in China
