Specification Revised 4/03
TM
PDW8500J – GE Profile™Stainless Built-In Dishwasher
24
25-1/4
21-1/4
44 (Adjustable)
34" MIN.
adj.to 35"
27-1/2
22-1/2

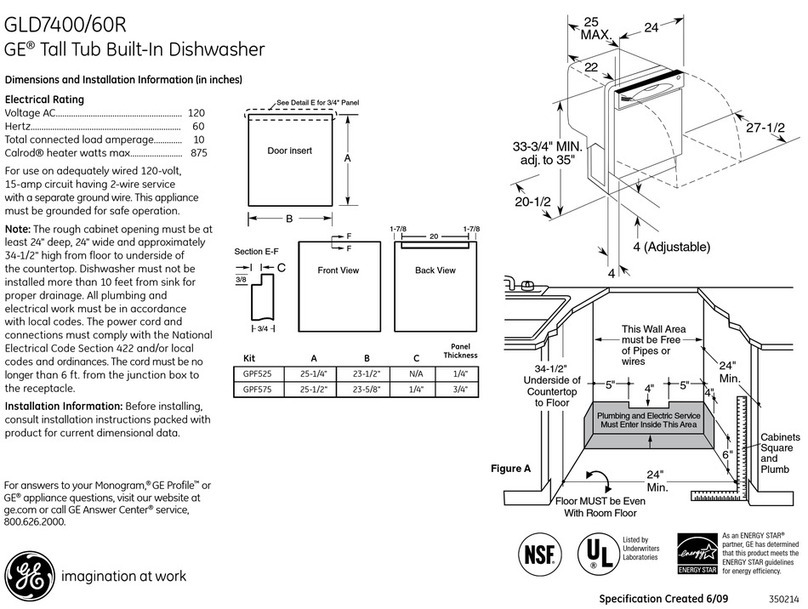

Built-In Dishwasher Dimensions
(in inches)
Electrical Rating
Voltage AC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Hertz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Total connected load amperage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.1
Calrod®heater watts max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 875
For use on adequately wired 120-volt, 15-amp circuit having 2-wire
service with a separate ground wire. This appliance must be
grounded for safe operation. For answers to your Monogram,
® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
As an ENERGY STAR®partner,
GE has determined that this product
meets the ENERGY STAR®
guidelines for energy efficiency.
Wood Insert Cutout Dimensions (in inches)
Kits: GPF825 and GPF875
B
See Detail E for 3/4" Panel Detail E for 3/4 panel only
Door insert ABack ViewFront View
F
F
1-7/8 1-7/8
20
Section F-FC
3/8
3/4
Panel
Kit A B C Thickness
GPF825 25-1/16" 23-1/2" N/A 1/4"
GPF875 25-7/16" 23-3/4" 1/4" 3/4"
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34-1/2±1/4"
Underside
of countertop
to floor
55
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet

Specification Revised 4/03
TM
PDW8500J – GE Profile™Stainless Built-In Dishwasher
Features and Benefits
• Long, Flat Door – Accepts custom panels to blend almost seamlessly with kitchen cabinets.
• Bright Annealed Stainless Steel Interior – A lustrous finish and lasting beauty that resists
stains and corrosion.
• Four-Position Adjustable/Removable Upper Rack – Pulls out completely and moves up,
down and diagonally for maximum loading flexibility.
• Countdown Display with 1-9-hr. Delay Start – Instantly identifies time left in a cycle.
• Color-Matched Nylon Pearlescent Racks – Complement the radiance of stainless steel.
• QuietPower™VSound Package – Ensures the kitchen stays incredibly quiet with an
enhanced sound deadening system.
• 100% Fold-Down Tines, Lower Rack – Provide maximum loading flexibility in the lower rack.
• Four Sets Fold-Down Tines, Four Sets StemSafe, Upper Rack – Provide loading flexibility for
odd-shaped items and safe washing for the stemware.
• Model PDW8500JWW – White on white
• Model PDW8500JCC – Bisque on bisque
• Model PDW8500JBB – Black on black
