Owner's
Manual
Dishwasher
ZBD1850
ZBD1870
monogram.corn

Consumer Information
Oishwosher
Introduction Your new Monogram dishwasher makes an eloquent statement of stgle, convenience and kitchen
planning flexibilitg. Whether gou chose it for its puritg of design, practical features or assiduous
attention to detail-or for all of these reasons-gou'll find that gour Monogram dishwasher's superior
blend of form and function will delight gou for gears to come.
The information on the following pages will help gou operate and maintain gour dishwasher properlg.
If gou have ang other questions, visit our Website at: monogrom.com
Contents Appliance Registration ................. ], 23, 24
Care and Cleaning ....................... 12-14
Consumer Services ....................... ], 19
Model and Serial Number Location ............ 3
Operating Instructions .................... 6-11
Control Panel and Operation ............. 6, 7
Water Temperature ........................ 8
Rinse Agent ............................... 8
Detergents ................................ 9
Dishwasher Racks .................... 10, 11
Problem Solver .......................... 15-17
Safetg Instructions ......................... 4, 5
Warrantg ................................... 18

Consumer Information
Oishwosher
Before
using
your
dishwasher
Read this manual carefully. It is intended to help
you operate and maintain your new dishwasher
properly.
Keep it handy for answers to your questions.
If you don't understand something or need more
help, there is a list of toll-free consumer service
numbers included on the Consumer Services
page in the back section of this manual.
OR
Visit our Website at: monogram.com
Write
down the
model &
serial
numbers
You can locate your model and serial numbers
on the tub wall just inside the door. Before sending in the card, please write these
numbers here:
Hodel Number
Serial Number
Use these numbers in any correspondence or
service calls concerning your dishwasher.
If you
received a
damaged
dishwasher
Immediately contact the dealer (or builder) that
sold you the dishwasher.
Save time
&money Before you request service, check the Problem
Solver in the back of this manual. It lists causes of minor operating problems that
you can correct yourself.
If you
need
service
To obtain service, see the Consumer Services
page in the back of this manual.
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are steps to
follow for further help.
FIRST,contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT,if you are still not pleased, contact us on
our website, write all the details-including your
phone number-or write to:
Manager, Customer Relations
GEAppliances
Appliance Park
Louisville, KY/40225

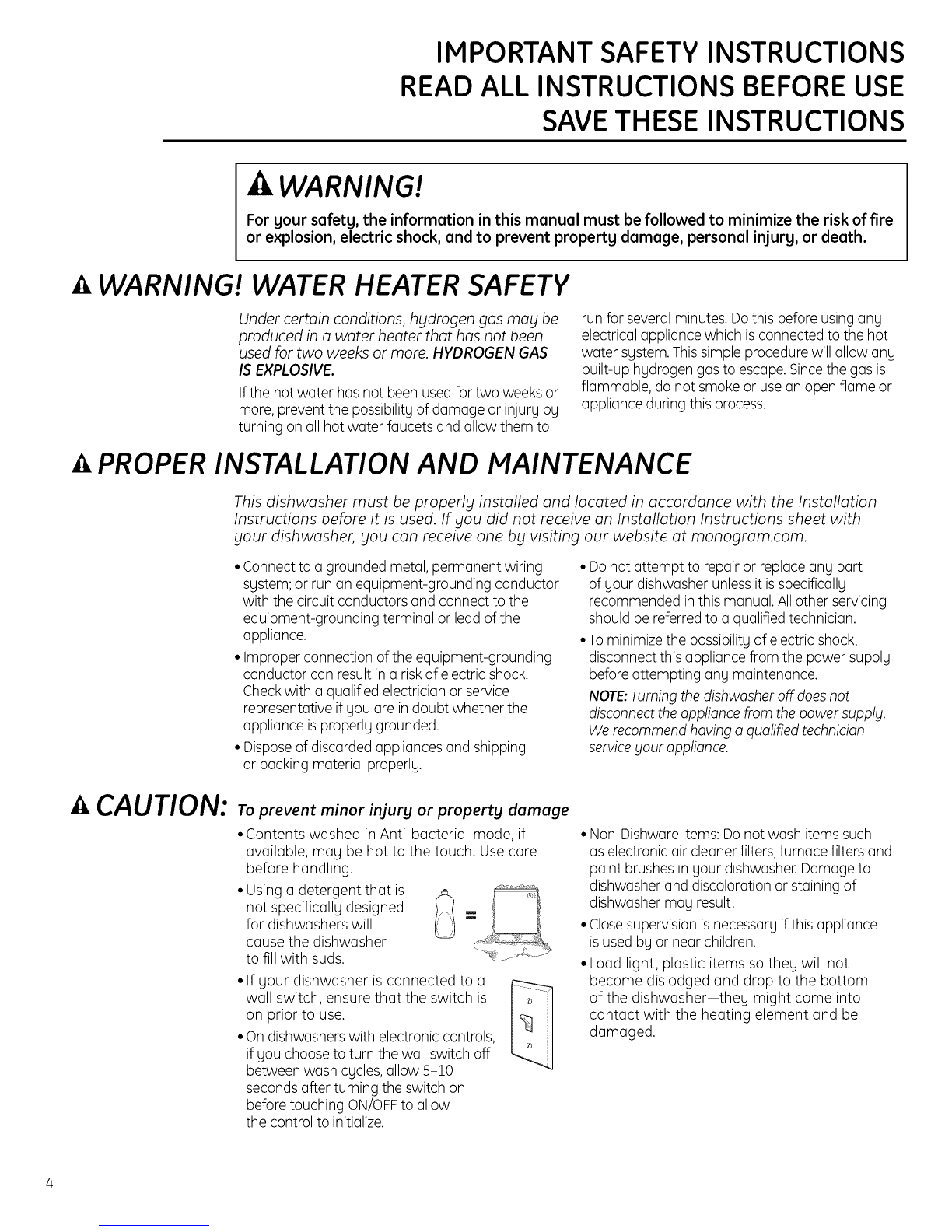

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
SAVE THESE INSTRUCTIONS
WARNING!
For gour safetg, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, and to prevent propertg damage, personal injurg, or death.
WARNING! WATER HEATER SAFETY
Under certain conditions, hydrogen gas may be
produced in a water heater that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE.
Ifthe hot water has not been usedfor two weeksor
more, prevent the possibility of damage or injury by
turning on all hot water faucets and allow them to
run for several minutes. Dothis before using any
electrical appliance which isconnected to the hot
water system. Thissimple procedure will allow any
built-up hydrogen gas to escape.Sincethe gas is
flammable, do not smokeor usean open flame or
appliance during this process.
PROPER INSTALLATION AND MAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation
Instructions before it is used. If you did not receive on Installation Instructions sheet with
_lour dishwasher, you con receive one b_l visiting our website at monogram.com.
• Connectto a grounded metal,permanent wiring
system; or run an equipment-grounding conductor
with the circuit conductors and connect to the
equipment-grounding terminal or lead of the
appliance.
• Improper connection of the equipment-grounding
conductor can result in a riskof electric shock.
Checkwith a qualified electricianor service
representative ifyou are indoubt whether the
appliance isproperly grounded.
• Disposeof discarded appliances and shipping
or packing material properly.
• Do not attempt to repair or replaceany part
of your dishwasher unless it isspecifically
recommended in this manual. All other servicing
should be referred to a qualifiedtechnician.
• Tominimizethe possibility of electric shock,
disconnect this appliance from the power supply
before attempting any maintenance.
NOTE:Turningthe dishwasheroff doesnot
disconnectthe appliance from the power supply.
Werecommend having a qualified technician
serviceyour appliance.
CAUTION: To prevent minor injurg or propertg damage
• Contents washed in Anti-bacterial mode, if
available, may be hot to the touch. Use care
before handling.
• Using a detergent that is
not specifically designed
for dishwashers will
cause the dishwasher
to fill with suds.
•If your dishwasher is connected to a r--_-_
wall switch, ensure that the switch is
on prior to use.
• On dishwashers with electronic controls,
if you choose to turn the wall switch off
between wash cycles,allow 5-:10
secondsafter turning the switch on
before touching ON/OFFto allow
the control to initialize.
• Non-Dishware Items: Donot wash items such
as electronic air cleanerfilters,furnace filters and
paint brushes in your dishwasher. Damage to
dishwasher and discoloration or staining of
dishwasher may result.
• Closesupervision isnecessary if this appliance
isusedby or near children.
• Load light, plastic items so they will not
become dislodged and drop to the bottom
of the dishwasher-they might come into
contact with the heating element and be
damaged.

IMPORTANT SAFETYINSTRUCTIONS
WARNING! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE DISHWASHER
Junked or abandoned dishwashers are
dangerous...even if they will sit for "just a
few days." If you are getting rid of your old
dishwasher, please follow the instructions
below to help prevent accidents.
Hold nutattop ofdishwasher
rew
Before You Throw Awag Your Old Dishwasher:
• Takeoff the door of the washing compartment
or remove the door latch keeper (asshown).
Doorlatchkeeper
WARNING! When using gour dishwasher, follow basic precautions,
including the following:
• Usethis appliance only for its intended purpose
as described in this Owner's Manual.
• Useonly powder, tabs,liquid detergents or rinse
agents recommended for use in a dishwasher and
keepthem out of the reach of children.Cascade®,
Cascade®Completeand Electrasol®Automatic
Dishwashing Detergents,and Jet-Dry®and
Cascade Crystal Cleare rinse agents have been
approved for usein all GEdishwashers.
• Locatesharp itemsso that they are not likely
to damage the door seal.
• Loadsharp kniveswith the handles up to reduce
the riskof cut-type injuries.
• Donot wash plastic items unlessmarked
dishwasher safe or the equivalent. Forplastic
items not somarked, checkthe manufacturer's
recommendations.
• Donot operate your dishwasher unlessall
enclosure panels are properly in place.
• Donot tamper with controls.
• Donot abuse, sit on or stand on the door or dish
rack of the dishwasher.
• Donot allow children to play around dishwasher
when opening or closing door due to the possibility
of small fingers being pinched in door.
• Donot discard a dishwasher without first removing
the door or the door latch keeperof the washing
compartment.
• Donot store or usecombustible materials, gasoline
or other flammable vapors and liquidsin the vicinity
of this or any other appliance.
• Donot allow children to play with, on or insidethis
appliance or any discarded appliance.
• Donot touch the heating element during or
immediately after use.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

Control Panel
Dishwasher
|D F8
@ ,EAvY°OOOALL,OH,OLASSEA,O,EEOO,,SE@
•LOW RINSE AiD ® • • Q 0 0 ® 0 CLEAN
-24HR. % D
[] ONIOFF
WASH CYCLE
SELECTIONS
HEAVY
NORMAL
LIGHT
GLASSES
AIR-DRY
SPEED
RINSE
Withdooropen,pressON/OFFbuttontoturntheunitONto beginoperationandOFFattheend
ofa washcycle.TheON/OFFlightisdisplayedwhenthedishwasherisON.
PressCYCLESELECTbutton to choose wash cycle.The light under the cycle name will display to
indicate which cycle has been selected.
NOTE:Allcycletimesandwaterusageinformationcontainedinthissectionareapproximate
values.Actualresultswilldependonseveralfactorsincluding,butnotlimitedto,inletwater
temperatureandhouseholdwaterpressure.
6.2gallons,125minutes
Thiscycleismeantforheavilysoileddishesorcookwarewithdried-onor baked-onsoils.This
cyclemay notremoveburned-onfoods.Everydaydishesaresafetobe usedinthiscycle.This
cyclealsoincludesheateddry.
5.3gallons,100minutes
Thiscycleismeantforloadsofeverydaydishes,glassesandcookwarewith mediumsoilsthat
havenotbeenpre-rinsed.Thiscyclealsoincludesheateddry.
/4./4gallons, 85 minutes
Thiscycle ismeant for loads of everyday dishes,glasses and cookware with light soilsthat have
been pre-rinsed. Thiscycle also includes heated dry.
3.5gallons,65minutes
Thiscycleismeantforlightlysoiledglassware.Thiscyclehaslessheatingduringthewashand
rinseto protectyourglassware.Thiscyclealsohasa lowertemperatureheateddry.
3.5gallons,50minutes
Thiscycleismeantforloadsofeverydaydishes,glassesandcookwarewith lightsoilsthat have
beenpre-rinsedandshouldair drynaturally.Thiscycledoesnotincludeheateddry.
5.3gallons,80minutes
Thiscycleismeantforloadsofeverydaydishes,glassesandcookwarewith mediumsoilsthat
havenotbeenpre-rinsed.Thiscyclefeaturesreducedwashtimesto allowforfastercycle
completion.Thiscyclealsohasa reducedtime heateddry.
i gallon, 10minutes
For rinsing partial loads that will bewashed later.Do not usedetergent with this cycle. Thiscycle
doesnot include heated dry.

Control Panel
Dishwasher
_-I DELAYHOUR
SELECTION
[] STARTING
ACYCLE
[] STATUS
INDICATORS
LOW RINSE AID
CLEAN
Thisoptionallowsyouto delaythestartofa washcyclefor upto 2/4hours.
Withthedooropen,turnthedishwasherONby pressingtheON/OFFbutton;thenpressDELAY
HOURSbuttontochoosethenumberof hoursyouwantto delaythestartofthewashcycle.The
hourswillshowinthedisplaywindow.
NOTE:TocanceltheDELAYHOURSoptionbeforethestartofthecycle,repeatedlypressthe
DELAYHOURSbuttonuntilthedisplayisblankor reads"00."
Afterselectingthewashcycle(Step2)anddelayhours(Step3),ifdesired,closethedoorofthe
dishwashertostartthecycleor begintheDELAYHOURScountdown.Whenthecyclestarts,the
drainbeginsandapproximately60secondslaterthewaterfillbegins.
Theredlightwilldisplaywhentherinseaiddispenserneedsto berefilledwith liquidrinseaid.Use
ofJet-Dry ®or Cascade Crystal Clear® rinseagentremovesspotsandpreventsnewfilm
buildupon yourdishes,glassware,flatware,cookwareandplastics.Seepage6forinstructionson
refillingtherinseaiddispenser.
Thegreenlightwilldisplayanda beepwillsoundto alertyouthatthewashcycleiscomplete.

Using the Dishwasher
Oishwosher
Check
the Water
Temperature
The entering water should be at least 120°F
and not more than 150°F for effective cleaning
and to prevent dish damage. Checkthe water
temperature with a candy or meat thermometer.
Turn on the hot water faucet nearest the
dishwasher, place the thermometer in a glass and
let the water run continuously into the glass until
the temperature stops rising.
Use 0
Rinse
Agent
A rinse agent improves dry performance,
reduces spots and prevents new film buildup
on your dishes, glasses, flatware, cookware
and plastic..let-Dry ®and Cascade Crystal
Clear®are recommended rinse agents for
Honogram Dishwashers.
Filling the Dispenser
The rinse agent dispenser holds 3.5 oz. of rinse
agent. Under normal conditions, this will last
approximately one month. Try to keep it full,
but do not overfill.
1. Hake sure the dishwasher door is fully open.
2. Turn the dispenser cap to the left and
lift it out.
3. Add rinse agent until the indicator window
looks full.
4. Clean up any spilled rinse agent with a
damp cloth,
S. Replace the dispenser cap.
Rinse Aid Setting
Theamount of rinse agent released into the final
wash con be adjusted.The factory setting is at the
midpoint. If there are rings of calcium (hard water)
spots on dishes,try a higher setting. If you observe
foam in the final rinse,try a lower setting.
To adjust the setting, remove the dispenser
knob; then turn the adjuster counterclockwise to
increase the amount of rinse agent or clockwise
to reduce the amount of rinse agent dispensed.
Indicator
.
Dispenser cap
Dish
Preparation
Prior to
Loading
• Noprerinsingofnormalfoodsoilisrequiredifusing
Heavy,NormalorSpeedwashcycles.
• Scrapeoff hardsoils,bones,toothpicks,skinsandseeds.
• Removelargequantitiesofany remainingfood.
• Removeleafyvegetables,meat,trimmingsand
excessiveamountsofgreaseoroil.

Using the Dishwasher
Oishwosher
Detergents Use only detergent specificolly mode for use
in dishwoshers. Cascade® ond Electrasol®
Automotic Dishwoshing Detergents hove been
opproved for use in oil Monogrom Dishwoshers.
Keep your detergent fresh ond dry. Don't put
detergent into the dispenser until you're reody
to wosh dishes.
The omount of detergent to use depends on
whether your woter is hord or soft. With hord
woter, you need extro detergent. With soft woter,
you need less detergent.
Protect your dishes ond dishwosher by contocting
your woter deportment ond osking how hord your
woter is.Twelve or more groins isextremely hord
woter. A woter softener is recommended. Without
it, lime con build up in the woter volve, which
could stick while open ond couse flooding. Too
much detergent with soft woter con couse o
permonent cloudiness of glosswore, coiled
etching.
Use the informotion in the toble below os o
guideline to determine the omount of outomotic
dishwosher detergent to ploce in the dispenser.
When using outomotic dishwosher detergent
toblets, simply ploce one toblet in the dispenser
ond close the cover.
Number
of Grains Detergent Cups to Fill
Lessthan 4 15 cup
4 to 8 25 cup
8to 12 15 and 25 cups
Greater than 12 15,25 cups and
the open cup
Button ..i
//U\\ //lg
Do not use hand dish detergent.
m
m
NOTE: Using odetergent that is not specifically
designed for dishwashers will cause the
dishwasher to fill with suds. During operation,
these suds will spill out of the dishwasher
vents, covering the kitchen floor and making
the floor wet.
Because so many detergent containers look
alike, store the dishwasher detergent in a
separate space from all other cleaners. Show
anyone who may use the dishwasher the correct
detergent and where it is stored.
While there will be no lasting damage to the
dishwasher, your dishes will not get clean using
a dishwashing detergent that is not formulated
to work with dishwashers.
Openfi
cup_ /II '_?{ _ \
Forheavily-soiledloads,usethe Heavycycleandadd a little extra
detergent.
Toopenthe washcover,pressthe buttonandthecoverwill flip back.
Forget
to odd
o dish?
Aforgottendishcanbeaddedanytimebeforethe
mainwash.
1. Unlatchthedoorto interruptthecycle.Pulldoorhandle
toreleasethedoor.
2. Donotopenthedooruntilthewater/sprayaction
stops.Steammay riseoutofthedishwasher.
3. Addforgottendishes.
4. Closethe doorand pushit intorelatch.

Loading the Racks
Oishwasher
For best dishwashing results, follow these
loading guidelines. Features and appearance of recks and silverware baskets mag varg from gour model.
Upper Rack
• j
The upper rock is for glosses, cups and saucers.
This is also o secure place for dishwasher-safe
plastics. A cup shelf mog be placed in the up
or down position to odd flexibilitg. The upper rock
is good for oil kinds of odd-shaped utensils.
Saucepans, mixing bowls and other items should
be placed face down.
Secure larger dishwasher-safe plastics over two
tines when possible.
Make sure small plastic items are secure so they
can't foil onto the heater.
Be sure that items do not protrude through the
bottom of the rack and block rotation of the
middle sprobl arm. This could result in poor wash
performance for items in the upper rack.
Lower Rack When loading the lower rack, do not load large
platters or trays in the front left corner. They may
prevent detergent from circulating during the wash
cycle,
The lower rock isbest used for plates, saucers
and cookwore. Large items should go along the
sides. Load plotters, pots and bowls along the
sides, in corners or in the back. The soiled side
of items should face the center of the rock.
Be careful not to let a portion of anblitem, such as
a pot or dish handle, extend through the bottom
rack. Thiscould block the wash arm and cause
poor washing results.
Wine Glass
Holder The Wine Gloss Holder secures wine glosses for
best woshobilitg. You mog also remove the
silverware basket to allow for oil glosses loading
of the lower rock.
10

Loading the Racks
Oishwosher
Silverware
Basket The silverware basket may be used without
the topper for quick loading. With the topper,
flatware is better positioned for the dishwasher to
thoroughly wash and dry oll pieces by preventing
nesting.
Without the Topper
Put the flatware in the removable basket with fork
and knife handles up to protect your hands. Place
spoons in the basket with handles down. Mix
knives, forks and spoons so they don't nest
together. Distribute evenly. Small plastic items,
such as measuring spoons and lids from small
containers, should go in the bottom of the
silverware basket with silverware on top.
With the Topper
Place small plastic items, such as measuring
spoons and lids from small containers, in the
bottom of the basket and snap the topper in
place. Insert spoons and forks, handles first,
through the holes in the topper. Place knives,
blades first, through the holes in the topper.
11

Careand Cleaning
Dishwasher
Exterior Cleaning the Door Panel
Before cleaning the front panel, make sure you
know what type of panel you have. Refer to the
last two letters of your model number. You can
locate your model number on the left-hand tub
wall just inside the door. If your model number
ends with SS,then you have a Stainless Steel door
panel.
Follow the instructions below for cleaning the door
panel for your specific model.
Stainless Steel Door Panel (model numbers
ending in SS)
The stainless steel panels can be cleaned with
Stainless Steel Magic or a similar product using a
clean, soft cloth. Do not use appliance wax, polish,
bleach or products containing chlorine on
Stainless Steel doors.
You can order Stainless Steel Magic #WXlOX15
through GEParts by calling 800.626.2002.
Cleaning the Control Panel
Toclean the control panel, use a lightly
dampened cloth; then dry thoroughly. Do not use
sharp objects, scouring pads or harsh cleaners on
the control panel.
12

Care and Cleaning
Dishwasher
Sprag
Arms and
Filters
The dishwasher will flush away all normal food
soils. However, objects (fruit pits, bones, etc.) may
collect in openings and should be removed
occasionally to avoid clogging the drain system.
CAUTION: Personal injury hazard.
Before cleaning the interior, wait at least 20
minutes after a cycle for the heating element
to cool down. Failure to do so could result in
burn injuries.
Cleaning the Spray Arms
Because hard water chemicals will clog the spray
arm jets and bearings, it is necessary to clean
the spray arms regularly. To remove the spray
arm, twist the retaining nut 90 degrees and pull
the spray arm off the shaft.
Wash the arms in soapy, warm water and use a
soft brush to clean the jets. Replace them after
rinsing thoroughly.
etaininc
nut
Cleaning the Filters
For best performance and results, the filter
assembly must be cleaned regularly. The filter
efficiently removes food particles from the wash
water, allowing water to be recirculated during
the cycle. For this reason, it is a good idea to
remove the large food particles trapped in the
filter frequently by rinsing the main filter and cup
under running water. To remove the filter
assembly, pull up on the cup handle. The entire
filter assembly should be cleaned at least once a
month. To clean the main filter and fine filter, use
a cleaning brush. Then, reassemble the filter
parts as shown in the illustration and reinsert the
entire assembly in the dishwasher, positioning it
in place and pressing downward. The dishwasher
must never be used without the filters. Improper
replacement of the filter may reduce the
performance level of the appliance and may
damage dishes and utensils.
Mainfilter
Cup __
:,nefilter [_)J);
Z3

Careand Cleaning
Dishwasher
Protect
Against
Freezing
If your dishwasher is left in an unheated place
during the winter, ask a service technician to:
1. Cut off electrical power to the dishwasher.
Remove fuses or trip circuit breaker.
2. Turn off the water supply and disconnect the
water inlet line from the water valve.
3. Drain water from the water inlet line and water
valve. (Use a pan to catch the water.)
4. Reconnect the water inlet line to the water
valve.
Does Your
Dishwasher
Have an Air
Gap?
An air gap protects your dishwasher against water
backing up into it if a drain clogs.Theair gap isnot
a part of the dishwasher. It isnot covered by your
warranty. Not all plumbing codes require air gaps,
so you may not have one.
The air gap is easg to clean.
1. Turn off the dishwasher and lift off the chrome
coveE
2. Remove the plastic cap and clean with
a toothpick.
Two types of _ "i _i
air
Checkthe airgapanytime ourdishwasher
isn't drainingwell.
Stainless
Steel
Interior--
Tub and
Inner Door
The stainless steel used to make the dishwasher
tub and inner door provides the highest reliability
available in a Monogram dishwasher. If the
dishwasher tub or inner door should be
scratched or dented during normal use,
they will not rust or corrode. These surface
blemishes will not affect their function
or durability.
14

Before You Call For Service
Dishwasher
Questions?
Use this
problem
solver
PROBLEM POSSIBLE CAUSE WHAT TO DO
Noise Someof the sounds you
will hear are normal
Woter stonding in the
bottom of the tub
Utensilsare not secure
in the rack or something
small hasdropped into
the rack
• Detergent cup opening.
• Themotor starting during the drying period.
• Water draining out of the tub immediately
after you start the dishwasher.
• Hake sureeverything is secured in
dishwasher.
Hotor hums • Dishwasher has not been usedon a regular
basis.If you do not useyour dishwasher
often, set it to fill and pump out once every
week.Thiswill help keepthe sealmoist.
• Dishwasher control was not advanced properly
to the start of the desiredcycle.Advance the
control to the start of the desiredcycle.
Detergent left in Dishesare blocking the • Repositionthe dishes.
dispenser cups detergent cups
Drainisclogged
Sudsin the tub
Thisisnormal
Correct detergent
wasn't used
Rinseagent was spilled
Detergentwith colorant
was used
Stoined dishwosher
parts
• If you have an air gap,clean it.
• Checkto seeif your kitchen sink isdraining
well. If not, you may need a plumber.
• If the dishwasher drains into a disposer,run
disposer clear.
A small amount of clean water around the
outlet of the tub bottom at the back of the
tub keepsthe water seallubricated.
Useonly automatic dishwasher detergents
to avoid sudsing.Cascade®and Electrasol®
Dishwashing Detergents havebeen approved
for use in all Monogram dishwashers.
Toremove suds from the tub, open the
dishwasher and let sudsevaporate. Add
I gallon of cold water to the tub. Closeand latch
the dishwasher. Pumpout water by slowly
turning the dial until a drain period is reached.
Repeat ifnecessary.
Always wipe up rinseagent spills
immediately.
Somedetergents contain colorant (pigment
or dyes)that will discolor the tub interior with
extended use.Checkthe detergent cup for signs
of any discoloration. Ifcup is discolored,change
to detergent without any colorant, Cascade®
and Electrosol®Dishwashing Detergents have
been approved for usein all Honogram
dishwashers.
Sometomato-based foods • Useof the RINSEONLYcycle offer adding
can stain the dish to the load can decreasethe level
of staining.
15

Before You Call For Service
Dishwasher
Questions?
Use this
problem
solver
PROBLEM POSSIBLE CAUSE WHAT TO DO
Dishes and flatware
not clean
Spots and filming on
glasses and flatware
Cloudiness on glassware
Low inletwater
temperature
Water pressureis • Turn on a faucet. Iswater coming out more
temporarily low slowly than usual? Ifso,wait until pressure is
normal before using your dishwasher.
Air gap isclogged • Cleanthe air gap.
Improper rack loading • Make sure large dishware does not blockthe
detergent dispenser or the wash arms.
Noair gap or high • Verify that you have an air gap or a high drain
drain loop loop. Referto the Installation Instructions.
Filterneedscleaning • The filter assembly must be cleaned regularly
to allow the filter to efficiently remove food
particles from the wash water.SeeCleaning
the Filtersectionon page 13.
Extremely hard water
Low inletwater temperature
Overloading the dishwasher
Improper loading
Old or damp powder
detergent
Rinseagent dispenserempty
Toolittle detergent
Combination of soft water
and too much detergent
Water temperature
entering the dishwasher
exceeds150°F
• Make sure inletwater temperature iscorrect
(seepage 8).
• UseJet Dry®or Cascade Crystal Clear<erinse
agent to remove spots and prevent new film
buildup.
• Makesurewater temperature isat least 120°E
• Load dishwasherasshown inthe Loadingthe
DishwasherRackssection.
• Makesuredetergent isfresh.
• If water isextremely hard,a water softenermay
be required.
• This iscalled etching and ispermanent.
To prevent this from happening, use less
detergent if you have softwater. Wash
glassware in the shortest cycle that will
get it clean.
•Lower the water heatertemperature.
Blockor grog marks Aluminum utensilshave • Removemarks with a mild, abrasive
on dishes rubbed against dishes cleaner.
Teaorcoffeestains •Yellowor brown film
on inside surfaces
An overallyellow or brown
film can be caused by iron
depositsin water
Removethe stain by hand, using a solution
of 1/2 cup bleach and 3 cups warm water.
WARNING: Beforecleaning
interior,wait at least 20 minutes after a cycle
for the heating element to cool down. Failure
to do socan result in burns.
• A specialfilter in the water supply line
isthe only way to correct this problem.
Contact a water softener company,
16

Before You Call For Service
Dishwasher
Questions?
Use this
problem
solver
PROBLEM POSSIBLE CAUSE WHAT TO DO
Hard water mineralsWhite film on inside
surfaces
Dishes don't drg
Dishwosher won't run
Steom
Control panel
responded to input
but dishwosher never
filled with woter
Dishwasher beeps
once everg 15 seconds
Beeping at the end of
the cgcle
LOW RINSE AID light
ison
Low inlet water
temperature
Rinse agent dispenser
is empty
Fuse is blown, or the
circuit breaker tripped
Power isturned off
Reboot your control
This is normal
Door latch may not be
properly seated
Water valve may be
turned off
This is normal
This is a reminder that
the door has been left
open during operation
This is normal
Rinse aid dispenser needs
to be refilled
To clean the interior, apply dishwasher
detergent to a damp sponge. Wear rubber
gloves. Do not use any type of cleanser
other than dishwasher detergent because
it may cause foaming or sudsing. Coscode®
and Electrosol ®Automatic Dishwashing
Detergents have been approved for use in all
Monogram dishwashers.
• Make sure inlet water temperature is
correct (seepage 8).
• Check the rinse agent dispenser.
• Replace fuse or reset circuit breaker.
Remove any other appliances from
the circuit.
In some installations, the power to the
dishwasher is proved through a wall switch,
often located next to the disposer switch.
Make sure it is on.
Turn off power to the dishwasher (at the
circuit breaker or wall switch) for
30 seconds; then turn back on.
Steam comes through the vent during
washing, drying and when water is being
pumped out.
Make sure the door isfirmly closed.
• Make sure water valve (usually located
under the sink)is turned on.
• Close the door after opening it mid-cycle.
• Press ON/OFFto turn OFFthe dishwasher.
• The dishwasher will beep and the CLEAN
light will display at the end of the wash
cycle.
• This can only be turned off by filling the
rinse aid dispenser with Jet-Drg ®or
Coscode Crgstol Cleor®.See Refilling the
Rinse Aid Dispenser section.
17

Warranty
Dishwasher
YOUR MONOGRAM DISHWASHER WARRANTY
Staple sales slip or canceled check here. Proof of original
purchase date is needed to obtain service under warranty.
WHAT IS
COVERED
From the Date
of the Original
Purchase
ONE-YEAR
Ang part of the dishwasher which fails due to adefect in materials or workmanship. During this
limited one-gear warranty, GEwill also provide, free of charge, all labor and in-home service to
replace the defective part.
This warranty is extended to the original purchaser and any succeeding owner for the products
purchased for ordinary home use in the 48 mainland states, Hawaii, Washington, D.C.or Canada.
If the product is located in an area where service by a GEAuthorized Servicer is not available, you
may be responsible for a trip charge or you may be required to bring the product to an Authorized
GEService location for service. InAlaska the warranty isthe same except that it is LIMITEDbecause
you must pay to ship the product to the service shop or for the service technician's travel cost to your
home.
All warranty service will be provided by our Factory Service Centers or by our authorized Customer
Care®servicers during normal working hours.
Should your appliance need service, during warranty period or beyond, in the U.S.A.call
800,444,1845,
Please have serial number and model number available when coiling for service.
EXCLUSION OF IMPLIED WARRANTIES--Vour sole and exclusive remedy is product
repair as provided in this Limited Warranty. Any implied warranties, including the
implied warranties of merchantability or fitness for a particular purpose, are limited to
one gear or the shortest period allowed by law.
WHAT IS NOT
COVERED • Service trips to gour home to teach gou
how to use the product.
• Improper installation, deliverg or
maintenance.
• Replacement of house fuses or resetting
of circuit breakers.
• Failure of the product if it is abused, misused,
or used for other than the intended purpose
or used commerciallg.
• Damage to the product caused bg accident,
fire, floods or acts of God.
• Incidental or consequential damage caused
bg possible defects with this appliance.
• Cleaning or servicing of the air gap device in
the drain line.
• Damage caused after deliverg.
• Product not accessible to provide required
service.
18
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state. To know what your
legal rights are in your state, consult your local or state consumer affairs office or your state's
Attorney General.
Warrantor: General Electric Company,
Louisville, KV40225. GE Consumer & Industrial
Appliances
General Electric Company
Louisville, KY/40225
ge.com

monogram.cam
Consumer Services
Oishwosher
With the purchase of your new Monogram appliance, receive
the assurance that if you ever need information or assistance
from GE, we'll be there. All you have to do is call--toll-free!
GE Answer
Center ®
In the USA:
800.626.2000
Whatever your question about any Monogram major appliance, GEAnswer Center®information
service is available to help. Your call-and your question-will be answered promptly and
courteously. And you can call any time. GEAnswer Center®service isopen 24 hours a day,
Monday through Saturday.
OR
Visit our Website at: monogram.com
In Canada, call 1.800.561.3344.
Monogram
Preferred Service
In the USA:
800.444.1845
In Canada:
1.800.561.3344
AGE consumer service professional will provide expert repair service, scheduled at a time that's
convenient for you. Many GEConsumer Service company-operated locations offer you service
today or tomorrow, or at your convenience (7:00 a.m. to 10:00 p.m. weekdays, 8:00 a.m. to
6:00 p.m. Saturday and Sunday). Our factory-trained technicians know your appliance inside
and out-so most repairs can be handled in just one visit.
For Customers
With Special
Needs...
In the USA:
800.626.2000
s_CllO_ A-A
GEoffers Braille controls for a variety of GEappliances, and a brochure
to assist in planning a barrier-free kitchen for persons with limited mobility.
Consumers with impaired hearing or speech who have access to a
TDD or a conventional teletypewriter may call 800.TDD.GEAC
(800.833.4322) to request information or service.
Service Contracts
In the USA:
800.626.2224
In Canada:
1.800.561.3344
You can have the secure feeling that GEConsumer Service will still be there after your warranty
expires. Purchase a GEcontract while your warranty isstill in effect and you'll receive a substantial
discount. With a multiple-year contract, you're assured of future service at today's prices.
Parts and
Accessories
In the USA:
800.626.2002
In Canada:
1.800.561.3344
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their home. The GEparts system provides access to over 47,000 parts...and all GEGenuine
Renewal Parts are fully warranted. VISA, NasterCard and Discover cards are accepted.
User maintenance instructions contained in this manual cover procedures intended to be
performed bg any user. Other servicing generally should be referred to qualified service
personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
19

Notes
Dishwasher
2O
