GE Monogram ZBD4600 User manual

Monogram.
Use and Care Guide
for ZBD4600
Dishwasher
1995 Monogram.TM
Dishwasher

Safety Instructions ................3
Operating Instructions, Tips
Appliance Registration ...........2
China, Crystal, Sterling ........10
Cycle Features ........................4
Detergent Guide .....................7
Detergent Dispenser ...............7
Drying Options .......................4
Energy-Saving Tips ................5
Features ..............................4, 5
Loading ...............................8, 9
Operating Guide .................4, 5
Rinse Agent.............................6
Water Temperature ..................5
Care and Cleaning...............11
Air Gap..................................11
Filters.....................................11
Wash Arms ............................11
Winter Storage.......................11
Problem Solver ..............12, 13
Consumer Services................14
Model and Serial Numbers......2
Warranty................................15
Before using your dishwasher, read this book carefully.
It is intended to help you operate and maintain your new dishwasher
properly.
Keep it handy for answers to your questions.
If you don’t understand something or need more help, call:
GE Answer Center®
800.626.2000
24 hours a day, 7 days a week
HELP US HELP YOU…
To obtain service, see the
Consumer Services page in the
back of this book.
We’re proud of our service and
want you to be pleased. If for some
reason you are not happy with the
service you receive, here are three
steps to follow for further help.
FIRST, contact the people who
serviced your appliance. Explain
why you are not pleased. In most
cases, this will solve the problem.
NEXT, if you are still not pleased,
write all the details—including
your phone number—to:
Manager, Consumer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
FINALLY, if your problem is still
not resolved, write:
Major Appliance
Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
2
IF YOU NEED SERVICE
Write down the model and serial numbers.
You’ll find them on a label fastened to the tub wall just inside the
dishwasher door.
These numbers are also on the Consumer Product Ownership Registration
Card that came with your dishwasher. Before sending in this card, please
write these numbers here:
Model Number
Serial Number
Use these numbers in any
correspondence or service calls
concerning your dishwasher.
If you received a
damaged dishwasher…
Immediately contact the dealer
(or builder) that sold you the
dishwasher.
Save time and money.
Before you call for
service…
Check the Problem Solver. It
lists causes of minor operating
problems that you can correct
yourself.
CONTENTS

WARNING—When using this
appliance, always exercise basic safety
precautions, including the following:
• Use this appliance only for its
intended purpose, as you will find described in
this guide.
• Use only powder or liquid detergents or wetting
agents recommended for use in a dishwasher.
Keep all washing detergents and wetting agents
out of reach of children, preferably in a locked
cabinet. Observe all warnings on container labels
to avoid personal injury.
• When loading items to be washed:
A. Locate sharp items so that they are not
likely to damage the door seal, and
B. Load sharp knives with the handles up
to reduce the risk of cut-type injuries.
•Do not wash plastic items unless marked
“dishwasher safe” or the equivalent. For plastic
items not so marked, check the manufacturer’s
recommendations.
•Do not touch the heating element during or
immediately after use.
•Do not operate your dishwasher unless all
enclosure panels are properly in place.
•Do not tamper with controls.
•Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
•Close supervision is necessary if this appliance
is used by or near children. Do not allow children
to play inside, on or with this appliance or any
discarded appliance. Dispose of discarded
appliances and shipping or packing material
properly. Before discarding a dishwasher,
remove the door of the washing compartment.
Do not store or use combustible
materials, gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
•Load light plastic items so they will not
become dislodged and drop to the bottom of
the dishwasher—they might come into contact
with the heating element and be damaged.
To minimize the possibility of electric shock,
disconnect this appliance from the power supply
before attempting any maintenance. NOTE: Turning
the dishwasher off does not disconnect the appliance
from the power supply. We recommend having a
qualified technician service your appliance.
• Do not attempt to repair or replace any part
of your dishwasher unless it is specifically
recommended in this guide. All other servicing
should be referred to a qualified technician.
GROUNDING INSTRUCTIONS
This dishwasher must be properly
installed and located in accordance
with the Installation Instructions
before it is used. If you did not receive
an Installation Instructions sheet with your
dishwasher, you can obtain one by calling, toll free,
the GE Answer Center®, 800.626.2000.
•This appliance must be connected to a grounded
metal, permanent wiring system; or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead of the appliance.
WARNING—Improper connection
of the equipment–grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician or
service representative if you are in doubt whether
the appliance is properly grounded.
WARNING—HYDROGEN GAS
is produced by the chemical action
within your water heater. It can
accumulate in the water heater
and/or water pipes if hot water has not been
used for a period of two weeks or longer.
HYDROGEN GAS IS EXPLOSIVE. To prevent
the possibility of damage or injury, if you have
not used hot water for two weeks or more, or
moved into a residence in which the hot water
system may not have been used for some time,
turn on all hot water faucets and allow them to
run for several minutes before using any
electrical appliance which is connected to the hot
water system. This will allow any hydrogen gas
to escape. Also, since the gas is flammable, do
not smoke or use an open flame or appliance
during this process.
SAVE THESE
INSTRUCTIONS
GAS
Potscrubber1125
Cycles Options
WATER
SAVER
POT-
SCRUBBERNORMAL
WASH RINSE
&HOLD HEATED
DRYENERGY
SAVER
WASHHEAT
BOOST

(NOHEATBOOST)
RINSING
OFF
START
WASHING
DELAYED
START
QuietPower
2
4
6
H
O
U
R
D
E
L
A
Y
S
DRYING
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
3
Contents Important Safety Instructions

HOW TO OPERATE YOUR DISHWASHER
ON
OFF
RINSE & HOLD
RINSE & DRY
NORMAL WASH
POTS & PANS
Monogram.
STEP 1. Load your dishwasher. See Loading section.
STEP 2. Add detergent to the detergent dispenser. (See
Detergent Guide.) For best results use your rinse agent
at all times. Not only will it help prevent spotting and
provide optimum drying results, but your rinse agent
rinses the tub and inner door of your dishwasher which
will give it a polished look. See the Rinse Agent section.
STEP 3. The wash arms must be free to move and
should not be blocked by an item extending into them.
STEP 4. Latch door.
STEP 5. Push the Cycle Selector dial so that it is
extended. Turn the dial to the cycle you desire by lining
up the green line on the dial with the Cycle Indicator on
the control panel. The dial may be pushed in for flush
appearance.
• POTS & PANS—For items such as pots, pans and
casseroles with dried-on or baked-on soils. Everyday
dishes may be included. Burned-on food and food
burned black should be presoaked and scoured. The
dishwasher cannot remove burned-on food.
• NORMAL WASH—For loads of everyday dishes,
glasses and cookware with medium soils. Designed
to yield high performance on normal soils.
• RINSE & DRY—Rinses and dries dusty dishes that
are already washed. Don’t use detergent.
• RINSE & HOLD—For rinsing partial loads which
will be washed later. Do not use detergent.
STEP 6. To start the dishwasher, press the ON/OFF
button. To stop the dishwasher, press the ON/OFF
button.
STEP 7. The dishwasher cycle is complete when the
dial stops before the next cycle. Clean the filter.
Features and appearance may vary slightly.
4
To Interrupt a Cycle Drying
To interrupt a cycle, press the ON/OFF button to stop the
operation. If you’re interrupting the cycle during a wash
or rinse cycle wait until the water noises stop before
opening the door. The cycle may be resumed by closing
the door and turning the machine back on. As a safety
feature the dishwasher will automatically turn itself
off whenever the door is opened. However, if the door
is opened quickly while in a wash or rinse cycle some
water may splash out of the dishwasher. For this reason it
is recommended that the machine always be switched to
off before opening the door. If you have used the
ON/OFF button to interrupt the cycle, remember to
turn the machine back on by pressing ON/OFF.
The dishwasher has an energy efficient wash and dry
system. The heat energy from the wash cycle is used
to dry the dishes. After the wash cycle it will take an
additional 45 minutes for a typical load of dishes to dry.
Quicker drying can be accomplished by opening the door
slightly. The use of a rinse agent is recommended. It will
improve drying and lessen water spotting.

What Happens in Each Cycle
Energy-Saving Tips
• Operate dishwasher only when it’s full. Let the
dishes accumulate in dishwasher. When you put in
only a partial load, use the RINSE & HOLD cycle
to rinse off heavy soils. Be sure to latch the door
when waiting for a full load. This helps keep soils
moist, easier to remove.
•If you don’t need your dishes right away, open your
dishwasher door and they will dry naturally over a
longer period such as overnight.
• Always select the cycle that uses the least amount
of water that will remove the soil from the load.
Cycles
POTS & PANS
NORMAL WASH
RINSE & DRY
RINSE & HOLD
Water Use
Gallons
(approx.)
7.3
5.7
4.4
1.8
Wash Cycle
Time
Minutes
(approx.)
95
87
40
38
Cycle Sequence
Good Dishwashing Starts with HOT Water
To get dishes clean and dry, you need hot water. To help you get water of the
proper temperature, your dishwasher automatically heats the water in the
wash cycle. For good washing and drying, the entering water must be at least
120
° F. To prevent dish damage, inlet water should not exceed 150 ° F.
How to Test Water Temperature
Higher water temperature is needed to dissolve grease and activate powder
detergents.
Check your water temperature with a candy or meat thermometer. Turn on
the hot water faucet nearest the dishwasher. Put the thermometer in a glass
and let the water run continuously into the glass until the temperature stops
rising. If the water temperature is below 120°F, adjust your water heater.
Helpful Hints
If outside temperatures are unusually low, or if your
water travels a long distance from water heater to
dishwasher, you may need to set your water heater’s
thermostat up. If you have not used hot water for
some time, the water in the pipes will be cold. Turn
on the hot water faucet at the sink and allow it to run
until the water is hot. Then start the dishwasher.
If you’ve recently done laundry or run hot water for
showers, give your water heater time to recover
before operating the dishwasher.
To improve washability if the water is less than 120°F
and you cannot adjust your water heater: Select a
longer cycle and fill both detergent cups at least half
full with detergent.
5
Operating Instructions Energy-Saving Tips Hot Water
Pre
Wash
Pre
Wash
Wash Rinse
Wash
Rinse
Rinse
Rinse
Rinse
Rinse
Rinse Rinse
Dry
Dry
Dry

6
How to Use a Rinse Agent
It is recommended that a liquid rinse agent be used
at all times with your dishwasher. Do not use powder
or solid rinse agents.
Your rinse agent has a dual purpose with your
dishwasher. It makes water flow off dishes quicker
than usual. This lessens water spotting and makes
drying faster, too. The rinse agent also serves to rinse
the tub and the inner door of the dishwasher. Your tub
and inner door will begin to take on a dull, unpolished
look if rinse agent is not used.
For best dishwashing performance, use of a rinse agent
such as JET-DRY brand is recommended.
Your dishwasher is equipped with a reservoir for
storing and dispensing liquid rinse agent.
To fill the rinse agent reservoir:
• Remove the reservoir cap.
• Pour the rinse agent into the reservoir until the clear
level indicator turns completely dark. The reservoir is
full when the level indicator is dark.
• Replace rinse agent reservoir cap
. A full reservoir
will provide enough rinse agent for approximately 30
washes.
Rinse Agent Dispenser Regulator
Your rinse agent reservoir is provided with a regulator.
This regulator controls the amount of rinse agent
dispensed.
• If water spots appear, it is recommended that
the regulator be turned to a higher number.
• If you see streaks, it is recommended that
the regulator be turned to a lower number.
To adjust the dispenser regulator:
• Open the rinse agent reservoir.
• Adjust to a higher or lower number as needed.
• Securely close the rinse agent reservoir.
If you accidentally spill: Wipe up the rinse agent with
a damp cloth. Don’t leave the spill in the dishwasher. It
can keep your detergent from working.
If you can’t find any rinse agent, write:
BENCKISER CONSUMER PRODUCTS, INC.
(“JET-DRY”)
Corporate Centre 1
55 Federal Road
P.O. Box 1991
Danbury, CT 06813-1991
Use only powder or liquid detergent specifically
made for use in dishwashers. Other types will
cause oversudsing.
How much detergent should you use? That depends.
Is your water ‘‘hard’’ or ‘‘soft’’? With hard water, you
need extra detergent to get dishes clean. With soft
water, you need less detergent.
Your water department can tell you how hard
your water is. So can your county extension agent
or your area’s water softener company. Just call and
ask them how many ‘‘grains’’ of hardness there are
in your water.
Too much detergent with soft water not only wastes
money, it can be harmful. It can cause a permanent
cloudiness of glassware called ‘‘etching.’’ An outside
layer of glass is etched away! Of course, this takes
some time. But why take a chance when it’s easy to
find out the hardness of your water.
Keep your detergent fresh and dry. Under the sink
isn’t a good place to store detergent because there is
too much moisture. Don’t put powder detergent into
the dispenser until you’re ready to wash dishes, either.
(It won’t be fresh OR dry.)
If your powder detergent gets old or lumpy, throw it
away. Old detergent often won’t dissolve. If you use a
liquid dishwasher detergent, these precautions are not
necessary because liquid detergents don’t ‘‘lump’’ as
they age or come in contact with moisture.
How to Choose and Use the Right Detergent

SOFT WATER MEDIUM WATER HARD WATER
0-3 grains 3-7 grains 7-12 grains*
CYCLES Main Cup Open Cup Main Cup Open Cup Main Cup Open Cup
POTS & PANS Full None Full Full Full Full
NORMAL WASH 1⁄2Full None Full None Full Full
RINSE & DRY Use no detergent Use no detergent Use no detergent
RINSE & HOLD Use no detergent Use no detergent Use no detergent
*12 grains and up is extremely hard water. A water softener is recommended. Without it, lime can build up in the water valve.
The water valve may stick and flooding could occur.
NOTE: The above chart is a general guide. Detergent amounts should be adjusted depending on the amount and type of soil until
satisfactory results are achieved.
How to Prepare the Dishes for Washing
If this is your first dishwasher, or if you’re replacing
a much older model, you may wonder how much
preparation your dishes need. Actually very little.
Scrape off bones, seeds, skins, toothpicks and other
hard solids. Remove excessive quantities of oil
and grease.
NOTE: You may also want to consider removing foods
such as mustard, mayonnaise, vinegar, lemon juice and
other foods that can cause discoloration of stainless steel
if allowed to remain on dishes for a long period of time.
The POTS & PANS cycle can wash heavily soiled dishes
and remove dried-on and baked-on soils from pots, pans
and casseroles. Items with burned-on soils need extra
preparation.
Detergent Usage Guide (powder or liquid)
Rinse Agent Detergents Dish Preparation
7
Detergent Dispenser
To open your detergent dispenser cover, press the
retainer button. The cover will flip back.
Once the cover is open, fill the detergent main cup
compartment with detergent, as suggested in the guide
below. Close the cover until it clicks shut.
Some cycles will also require the open cup to be
filled. See the guide below for the suggested amount
of detergent to use.
The detergent will be dispensed automatically during
the wash portion of the cycle.
If you have a problem closing the cover of the detergent
dispenser, it is likely due to excess detergent in the area
where the cover seals. Brush the detergent away from
the seal area and relatch. If the cover still will not close
it may be because the machine was stopped in the wash
portion of the cycle.

Your dishwasher should be loaded so that water can circulate freely and
reach every part of every item that is to be cleaned. When unloading the
dishwasher always unload the bottom rack first and then unload the upper
rack. This sequence of unloading will minimize the chance of water drops
from the upper rack falling on the dishes in the bottom rack. The silverware
basket of the dishwasher has a handle to allow easy removal of the basket to
your silverware drawer for unloading.
HOW TO LOAD YOUR DISHWASHER

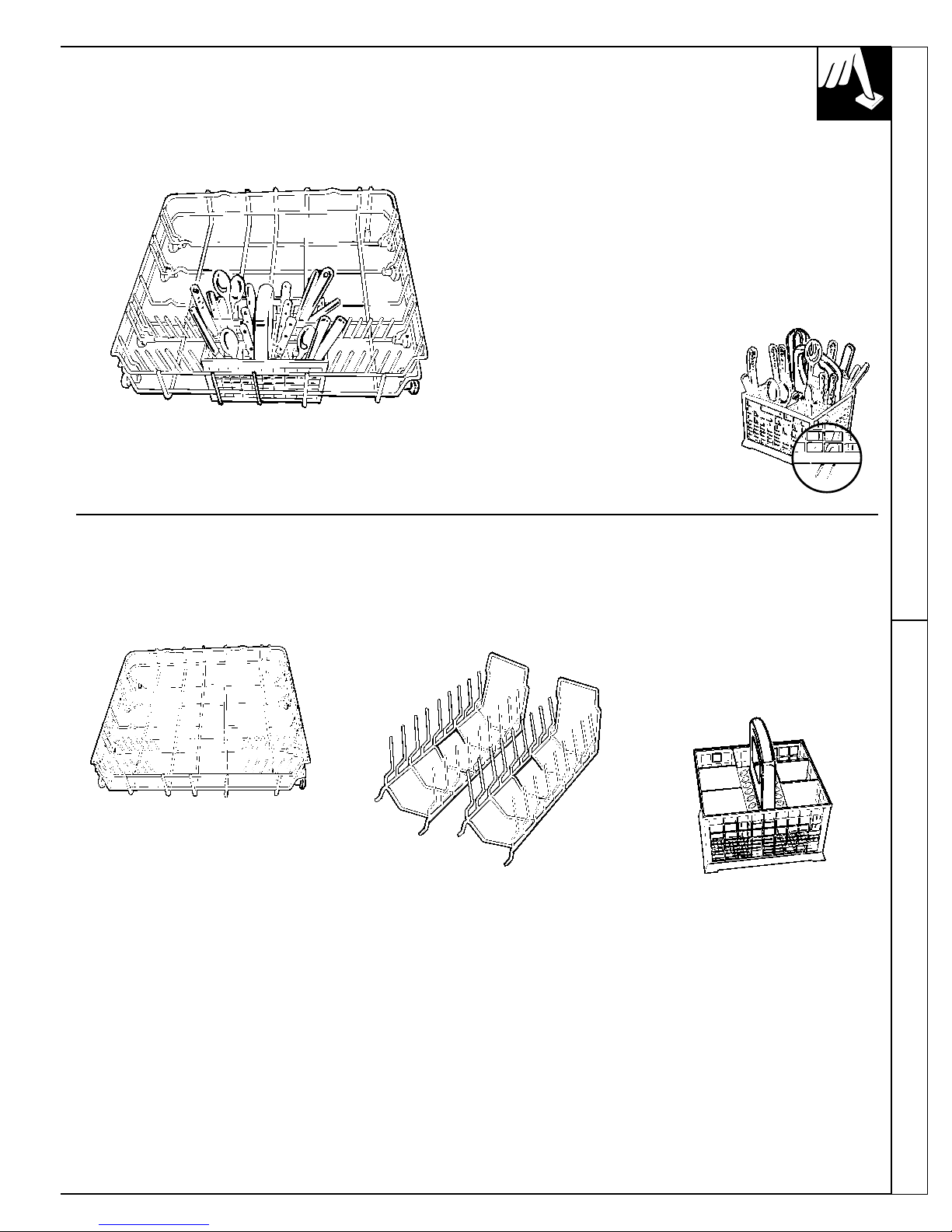

• The upper rack is best for glasses, cups and saucers.
Two rows of cups can be washed when using the
folding shelf. Load the bottom row first, then fold
down the shelf and load the top row. Cups and
glasses fit best along the sides. This is the place for
dishwasher-safe plastics, too. Make sure small
plastic items are lodged in tightly so they can’t fall
onto the heating element. Arrange stemware so that
it cannot move easily. Don’t let the glasses touch
each other.
• Saucepans, mixing bowls and other small items may
be placed—face down—in this upper rack. The
upper rack is handy for all kinds of odd shapes.
Upper Rack Height Adjustment
The upper rack has two adjustable positions. The upper rack may be placed
in the upper position to provide more room for large items like platters to be
placed in the bottom rack—or—the upper rack may be placed in the lower
position to provide additional room for items such as tall glasses to be
placed in the upper rack.
To reposition the upper rack:
1. Empty upper rack and pull it partially out to
allow access to the latches at the front of the
roller channels.
2. Release the latches on both channels, left and
right, by flipping them towards the outside of
the dishwasher.
3. Pull the upper rack forward until rollers
are completely free of the channels.
4. Push channels back into dishwasher until they stop.
5. Reinsert upper rack.
6. With rollers within channels, close latches by flipping
them closer toward the center of the dishwasher.
How to Load the Upper Rack
8
Latch Channel

How to Load the Bottom Rack
• Fit plates and saucers between the pins. Load
platters, pots and bowls along the sides, in corners
or in the back.
• Heavily soiled pots, pans and casseroles MUST be
loaded in the bottom rack, facing down. Prop broiler
pans and racks along the edge. Shallow items may
be angled provided the lower side does not shield
the soiled surface inside from the water.
• Put flatware in the removable
basket with fork and knife
handles up to protect your
hands. Place spoons in the
basket with handles down.
Mix knives, forks and spoons
so they don’t nest together.
Distribute evenly.
Customizing Your Bottom Rack
The bottom rack is designed so you may easily rearrange
its parts for different heights, angles and sizes of your dishware.
BOTTOM RACK
2 RACKS WITH PINS FOR
EASY PLACING OF POTS,
PANS, PLATES, ETC. SILVERWARE
BASKET
9
Don’t let any
item extend
through bottom
Upper Rack Bottom Rack

Usually
Material Safe Exceptions (not safe) Special Instructions
Aluminum YES Some colored anodized Some darkening or spotting possible. Remove by
aluminum can fade. scouring with soap-filled steel wool pads.
China/ YES Antique, metal-trimmed, If in doubt, check with the manufacturer. Or test wash
Stoneware hand-painted or over-the-glaze one piece daily for at least a month. Compare with the
patterns fade. Gold leaf rest of the set.
will discolor.
Crystal YES Antique, metal-trimmed or Load securely to prevent movement. Check your
hand-painted patterns fade. manufacturer’s instructions for your crystal.
Gold leaf will discolor.
Non-dishwasher NO Do not wash in dishwasher. Damage to dishwasher
items—such and discoloration or staining of dishwasher may result.
as electronic
air cleaner
filters, furnace
filters, paint
brushes, etc.
Glass YES Milk glass may yellow.
Iron NO Iron will rust.
Pewter NO Pewter tarnishes.
Plastics YES If it doesn’t say DISHWASHER SAFE, test one piece in
the upper rack before dishwashing an entire set.
Stainless steel YES Rinse if not washing immediately. Salty or acidic foods
can stain if left on.
Sterling silver YES Don’t put in same silverware Rinse if not washing immediately. Salty or acidic foods can
and silver plate basket with stainless steel. stain if left on. Dry detergent can cause difficult-to-remove
Contact between metals can black spots. Place in back section of silverware basket to
damage silver. avoid exposure to detergent from the detergent cup.
Don’t wash copper utensils in
the same load. Silver may get a
brown film.
Adhesive used to attach some
hollow-handle knives can loosen.
Non-stick YES After washing, wipe the non-stick coating area with
coatings vegetable oil to keep it from losing its non-stick quality.
Tin NO Tin can rust.
Wood NO Wood can warp, crack or lose
its finish with any type of washing.
Add dishes any time during the wash cycle.
See the Operating section, for easy instructions.
Forget a Dish? Here’s When You Can Add It
10
WHAT YOU CAN USUALLY WASH SAFELY
IN YOUR DISHWASHER

What is Dishwasher-Safe Care and Cleaning
Clean the outer surface and door jambs with a
lightly dampened cloth. Dry thoroughly. Do not
use abrasives or sharp objects, they can damage
the dishwasher.
The inside usually takes care of itself. Keeping
your rinse agent dispenser filled all the time will give
the tub and inner door of your dishwasher a polished
appearance.
If your dishwasher is left in an unheated place
during the winter, ask a service technician to:
• Cut off electric power to the dishwasher.
Remove fuses or trip circuit breaker.
• Turn off the water supply.
• Disconnect the water inlet line from the water valve.
• Drain water from the inlet line and water valve.
(Use a pan to catch the water.)
• Reconnect the water inlet line to the water valve.
• Pour 1 cup non-toxic antifreeze into the sump.
(Non-toxic antifreeze available at recreational
vehicle stores.)
Not Using Your Dishwasher in Winter? Protect Against Freezing
An air gap is a plumbing device.
It protects your dishwasher against
water backing up into it if a drain
clogs. The air gap is not a part of
the dishwasher. And you may not
even have one. Not all plumbing
codes require air gaps.
Check the air gap any time your
dishwasher isn’t draining well.
If you have an air gap, check it at
least once a month. IT IS NOT
PART OF YOUR DISHWASHER.
IT IS NOT COVERED IN YOUR
WARRANTY.
The air gap is easy to clean.
With most types, first turn off the
dishwasher, then lift off the chrome
cover. Then unscrew the plastic cap
and check for any buildup of grit.
A toothpick makes cleaning easy.
Built-in Dishwashers Often Use an Air Gap. Keep It Clean
TWO TYPES OF AIR GAPS
Keeping Your Dishwasher Filters Clean
The wash arms should be checked on a regular basis to
assure that the spray orifices are clear and unobstructed.
If wash arms require cleaning they are easily removable.
The lower wash arm can be removed by pulling upwards.
The upper wash arm is held in position by a knurled nut.
Clean with water and a stiff bristled brush and replace.
Keeping Your Dishwasher Wash Arms Clean
CARE AND CLEANING
11
Your dishwasher has a filter system comprised of a
central filter and a microfilter. At the end of each wash,
remove the filter from the bottom of the dishwasher and
make sure it is clean.
To check to see if the filter is
clogged or dirty, first remove
the lower wash arm by lifting
it up and off. Turn the center
filter assembly handle
counterclockwise and pull out.
Remove the microfilter
by pulling it down
away from the center
filter assembly. Then
press the tabs on the
inner filter and remove
it also. Clean all filter
parts with water and a
stiff bristled brush.
To replace, line up the dome on
the tube, press down and lock
into place by turning clockwise.
Replace the wash arm.
Tube
Dome

PROBLEM POSSIBLE CAUSE
ON/OFF INDICATOR A fuse in your home may be blown, or the circuit breaker tripped. Replace fuse or
LIGHT DOESN’T reset circuit breaker.
COME ON
DISHWASHER • Dishwasher door may not be closed securely. Close door until you hear it click.
DOESN’T START • ON/OFF light not “ON.” Turn dishwasher on.
• Cycle not selected. Turn to desired cycle.
DISHES NOT CLEAN • Spray arms blocked. Check for free rotation of both upper and lower arms.
• Water inlet temperature too low. Maintain at least 120°F inlet temperature.
• Not enough detergent used. Check usage recommendation in Detergent Guide.
• Drain blocked or filter clogged. Check filters in bottom of machine and at water
inlet and clear as required. Check drain air gap on sink or wall and check drain
outlet. Clean or repair as required.
• Clogged nozzles in wash arm. Clean as described in Care and Cleaning section.
• Wrong cycle selected. Try longer cycle.
WATER NOT Kink in drain hose. Filters clogged. Drain pipe clogged. See Care and Cleaning section.
PUMPED FROM If problem is in sink or drain, you may need a plumber.
DISHWASHER
UNUSUAL NOISES Dishes or utensils being struck by water or spray arm. Rearrange dishes.
DISHES DON’T DRY • Make sure inlet water temperature is correct. See How to Test Water Temperature
section.
• Unload the bottom rack first. Water from dishes in the upper rack may be spilling
into the bottom rack.
• Check for improper loading. Dishes shouldn’t nest together. Avoid overloading.
• Check the rinse agent dispenser to see that it’s not empty.
• The use of a rinse agent will improve drying performance.
• Dishes will dry faster if you open the door slightly.
QUESTIONS?
USE THIS PROBLEM SOLVER
12

PROBLEM POSSIBLE CAUSE
Spotting can be caused by all these things:
• Extremely hard water. (See How to Choose and Use Detergent section.)
• Low inlet water temperature. (See How to Test Water Temperature section.)
• Overloading the dishwasher.
• Improper loading. (See Loading section.)
• Old or damp powder detergent.
• Phosphate level in detergent too low. (See How to Choose and Use Detergent section.)
• Rinse agent dispenser empty. (See How to Use Rinse Agent section.)
• Too little detergent. (See How to Choose and Use Detergent section.)
Local water conditions and personal preferences vary. Try several brands of detergent
to find one that gives the best results for you. A liquid dishwasher detergent may help
reduce filming.
YELLOW OR Tea or coffee can stain cups. Remove the stain by hand, using a solution of 1/2 cup
BROWN FILM bleach and 3 cups warm water.
An overall yellow or brown film on dishes or glassware can be caused by iron deposits
in water. A special filter in the water supply line is the only way to correct this
problem. Your water softener company can tell you about the filter.
Yellow film on sterling silver results when you wash copper utensils in the same load.
Silver polish will usually remove this stain.
SPRAY ARMS Remove spray arms and clean.
DO NOT ROTATE
FREELY
13
The Problem Solver
SPOTS AND
FILMING ON
GLASSES AND
FLATWARE
If you need more help…call, toll free:
GE Answer Center®
800.626.2000
consumer information service

We’ll Be There
With the purchase of your new Monogram appliance, receive the assurance that if you ever
need information or assistance from GE, we’ll be there. All you have to do is call—toll-free!
Upon request, GE will provide
Braille controls for a variety of
Monogram appliances, and a
brochure to assist in planning a
barrier-free kitchen for persons
with limited mobility. To obtain
these items, free of charge, call
800.626.2000.
Consumers with impaired hearing or speech who have
access to a TDD or a conventional teletypewriter may
call 800-TDD-GEAC (800-833-4322) to request
information or service.
In-Home Repair Service
800-GE-CARES (800-432-2737)
A GE consumer service professional will provide expert repair service,
scheduled at a time that’s convenient for you. Many GE Consumer Service
company-operated locations offer you service today or tomorrow, or at your
convenience (7:00 a.m. to 7:00 p.m. weekdays, 9:00 a.m. to 2:00 p.m. Saturdays).
Our factory-trained technicians know your appliance inside and out—so most
repairs can be handled in just one visit.
GE Answer Center®
800.626.2000
Whatever your question about any Monogram major appliance, GE Answer
Center®information service is available to help. Your call—and your
question—will be answered promptly and courteously. And you can call any
time. GE Answer Center®service is open 24 hours a day, 7 days a week.
Service Contracts
800-626-2224
You can have the secure feeling that GE Consumer Service will still be there
after your warranty expires. Purchase a GE contract while your warranty is still
in effect and you’ll receive a substantial discount. With a multiple-year contract,
you’re assured of future service at today’s prices.
Parts and Accessories
800-626-2002
Individuals qualified to service their own appliances
can have parts or accessories sent directly to their home.
The GE parts system provides access to over 47,000
parts…and all GE Genuine Renewal Parts are fully
warranted. VISA, MasterCard and Discover cards
are accepted.
User maintenance instructions contained in this booklet
cover procedures intended to be performed by any user.
Other servicing generally should be referred to qualified
service personnel. Caution must be exercised, since
improper servicing may cause unsafe operation.

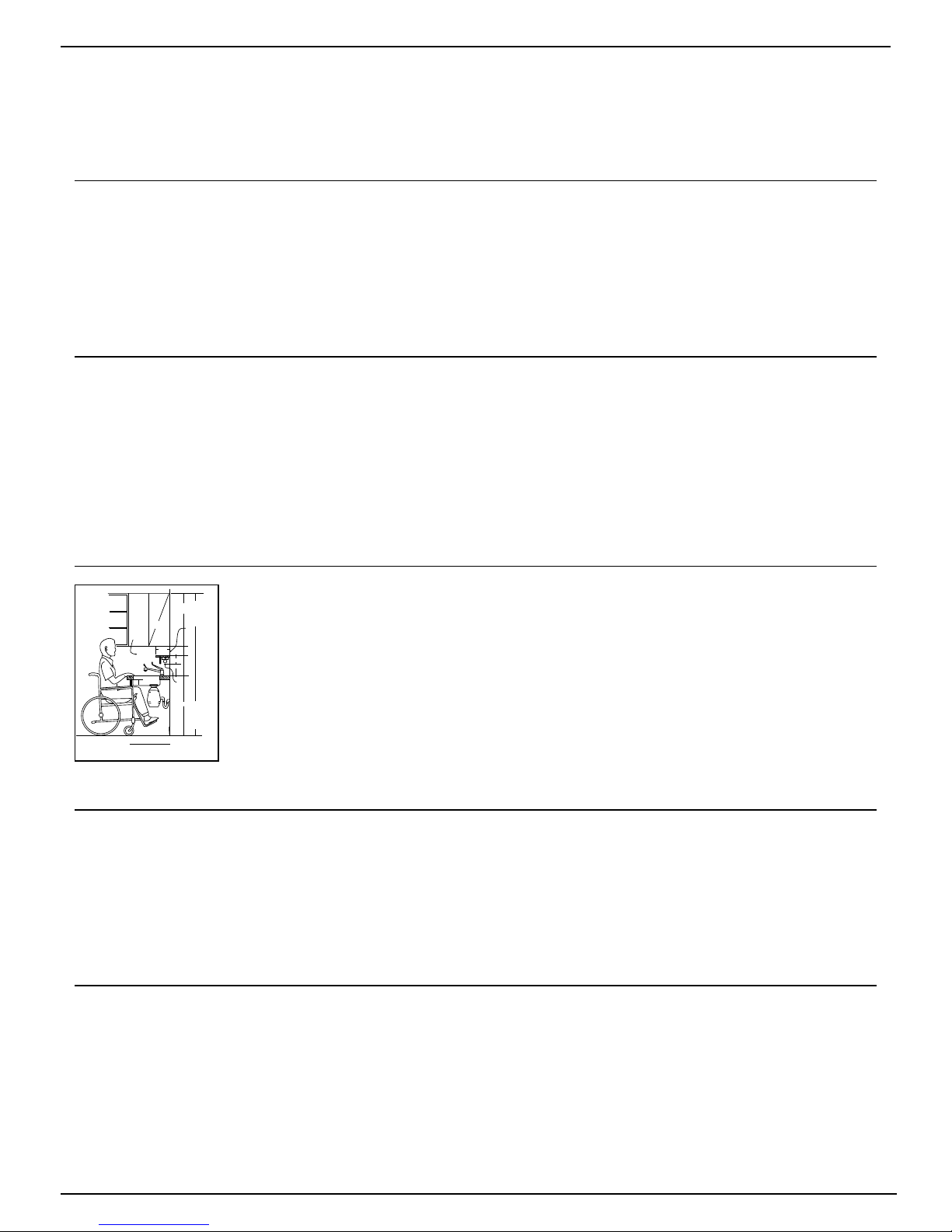

For Customers With Special Needs…
800.626.2000
SINGLE CONTROL
FAUCET
TBXTOLITE
ON WALL
6’ 10"
5"
8" 6"
5"
7"
1’ 0"
R SHALLOW DEPTH SINKS (6") WITH REAR DRAIN.
SINK SHOULD ALSO BE UNDERCOATED
2’ 10"
3’ 1/8"
SCALE 1’=1"
SECTION A-A
FLUORESCENT
FIXTURE
THIS LIGHT CAN
BE INSTALLED
IN BOTTOM OF
WALL CABINETS
2’ 6"

WHAT IS COVERED
FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of
charge, parts and service labor in
your home to repair or replace any
part of the dishwasher that fails
because of a manufacturing defect.
LIMITED SECOND-YEAR PARTS
WARRANTY
For the second year from date of
original purchase, we will provide,
free of charge, replacement parts for
any part of the dishwasher that fails
because of a manufacturing defect.
You pay for the service trip to your
home and service labor charges.
LIMITED FIVE-YEAR RACK
WARRANTY
For five years from date of original
purchase, we will provide, free of
charge, replacement parts for any
rack that rusts because of a
manufacturing defect
You pay for the service trip to your
home and service labor charges.
FULL TWENTY-YEAR TUB/DOOR
LINER WARRANTY
For twenty years from date of original
purchase, we will provide, free of
charge, parts and service labor in
your home to repair or replace the
stainless steel tub or door liner if
it fails to contain water because of a
manufacturing defect.
*******************************
This warranty is extended to
the original purchaser and any
succeeding owner for products
purchased for ordinary home use in
the 48 mainland states, Hawaii and
Washington, D.C. In Alaska the
warranty is the same except that it is
LIMITED because you must pay to
ship the product to the service shop
or for the service technician’s travel
costs to your home.
All warranty service will be
provided by our Factory Service
Centers or by our authorized
Customer Care®servicers during
normal working hours.
Should your appliance need
service, during warranty period or
beyond, call 800-GE-CARES
(800-432-2737).
WHAT IS NOT COVERED • Service trips to your home to teach
you how to use the product.
Read your Use and Care material.
If you then have any questions
about operating the product, please
contact your dealer or our
Consumer Affairs office at the
address below, or call, toll free:
GE Answer Center®
800.626.2000
consumer information service
• Improper installation.
If you have an installation problem,
contact your dealer or installer. You
are responsible for providing
adequate electrical, plumbing, and
other connecting facilities.
• Replacement of house fuses or
resetting of circuit breakers.
• Cleaning or servicing of air gap
device in drain line.
• Failure of the product if it is used for
other than its intended purpose or
used commercially.
• Damage to product caused by
accident, fire, floods or acts of God.
WARRANTOR IS NOT RESPONSIBLE
FOR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company
If further help is needed concerning this warranty, write:
Manager—Consumer Affairs, GE Appliances, Louisville, KY 40225
YOUR MONOGRAM DISHWASHER
WARRANTY Staple sales slip or cancelled check
here. Proof of original purchase date
is needed to obtain service
under warranty.

General Electric Company
Louisville, KY 40225
Monogram.
TM
I95900113.00
Pub. No. 49-5713
Part No. 165D4700P057
12-95 CG
Printed in Italy
