GE GDWT668V User manual

GDWT668V
GDWT768V
PDWT560V
PDWT565V
PDWT380V
PDWT180V
CDWT980V
CDWT280V
ZBD8920V
ZBD7920V
ZBD6920V
New Top Control Door Design Platform

2
Presenter and Event
8/2/2011

3
Presenter and Event
8/2/2011

Copyright 2010 4
IMPORTANT SAFETY NOTICE
The information in this presentation is intended for use by individuals
possessing adequate backgrounds of electrical, electronic, & mechanical
experience. Any attempt to repair a major appliance may result in
personal injury & property damage. The manufacturer or seller cannot be
responsible for the interpretation of this information, nor can it assume
any liability in connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing this product.
If electrical power is required for diagnosis or test purposes, disconnect
the power immediately after performing the necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to complete
a path to ground are removed for service, they must be returned to their
original position & properly fastened.

Dyneema®Cut
Resistant Glove
Safety Glasses must be
ANSI Z87.1-2003 compliant
Prescription Safety Glasses
Plano Type Safety Glasses
Steel Toe Work
Boot
Electrically Rated Glove
and Dyneema®Cut
Resistant Glove Keeper
Brazing Glasses
GE Factory Service Employees are required to use safety glasses with
side shields, safety gloves & steel toe shoes for all repairs

6
Presenter and Event
8/2/2011
Monogram Cafe
Profile GE

7 /
GE Title or job number /
8/2/2011

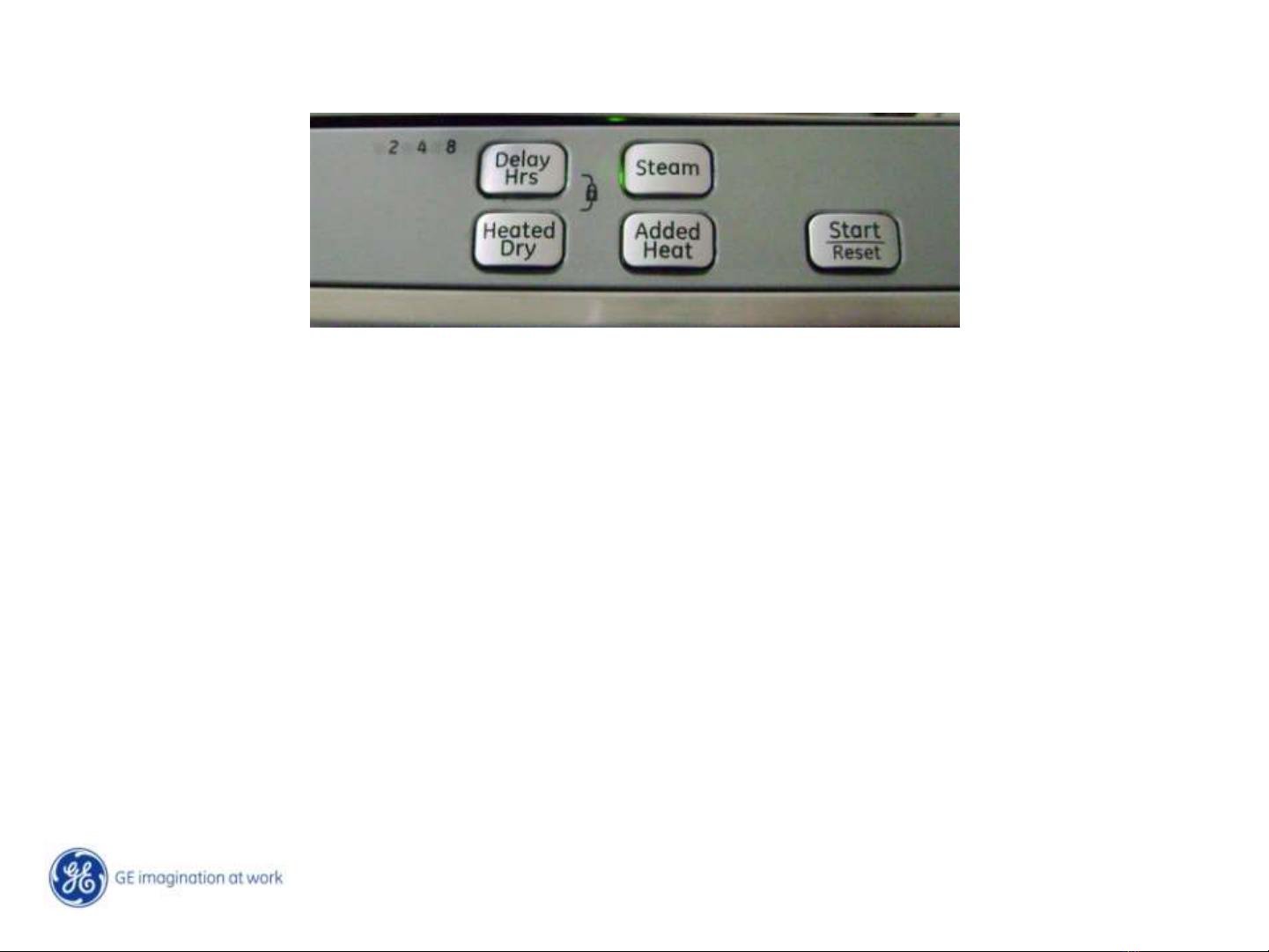

New Look Control Designs - GE
LED indicators Plastic tactile buttons
with painted metallic
finish
NOTE: Graphics/Text on top controls are not on the
top layer of surface to prevent being exposed to the
environment.

8 /
GE Title or job number /
8/2/2011
New Look Control Designs - Profile
White “SSD”
(Seven segment display)
White LED’s
Chrome tactile buttons.
White LED’s only visible
when illuminated

9 /
GE Title or job number /
8/2/2011
New Look Control Designs - Cafe
Plastic tactile buttons
with painted metallic
finish
Note Blue LED’s
Text

10 /
GE Title or job number /
8/2/2011
New Look Control Designs - Monogram
Silk screen text Chrome collar White SSD
Plastic tactile with
chrome finish and white
LED indicator
