GE Profile PDWT500V Manual

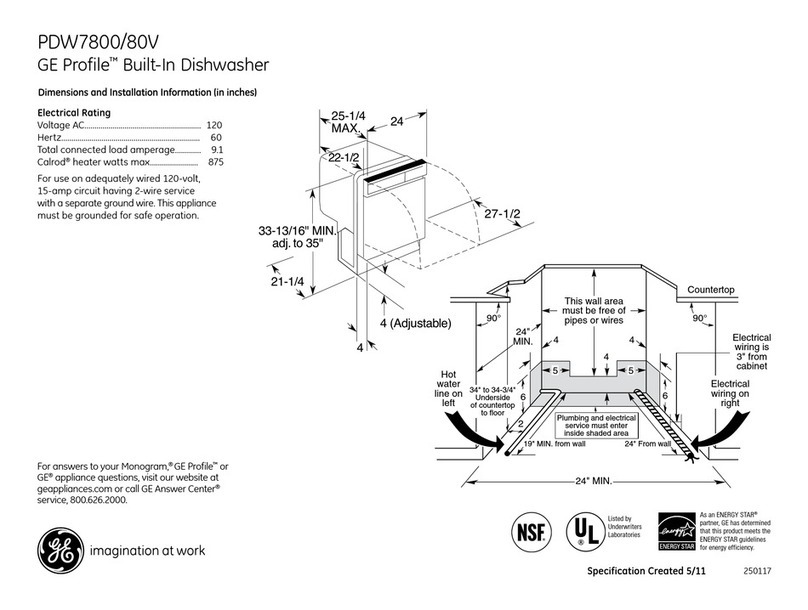

Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Created 5/11 250243
Listed by
Underwriters
Laboratories
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
55
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24
24-3/4*
21-1/4
3-1/2
4" (Adjustable)
33-13/16" MIN.
adj. to 35"
27-1/2
22-1/2
* Allow and additional 2.525" for the handle on
CDWT980 Series models.
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.9
Calrod®heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
†† Add 1/2" for deepest part of contour door.
Allow an additional 2” for the handle on
PDWT500/PDWT400/PDWT200 Series
models.
PDWT500/580/505/585V
GE Profile™Dishwasher with SmartDispense™Technology

Specification Created 5/11 250243
Features and Benefits
• 5-stagefiltrationwithPiranha™hard food disposer - 5 self-cleaning filters ensure clean dishes
• Dedicatedsilverwarejets-Highlypressurizedsprayjetstargetthesilverwareareafor
improved cleaning
• DeepClean™cycle with Steam Prewash - Removes tough, baked-on soils like egg, rice
and oatmeal
• Toprackonlyselection-Upperrackonlycycleuseslesswaterthanafullload
• FanassistdrywithheatedoptionandActiveVent-Aheatingelementheatstheairinside
while a hidden fan circulates the warm air to help dry dishes
• 48dBAsoundlevel-Nearlysilenttwo-pumpsystemcleansdirtydisheswithoutdisruption
• ENERGYSTAR®qualified and CEE Tier II rated - Meets or exceeds federal guidelines for
energy efficiency for year-round energy and money savings
• Eclipseblackfull-extensionrackswithball-tiptines-Durableracksglidesmoothlyonball-
bearings for easy loading
• Lowerrackfold-downtines-Flexibleloadingoptionshandletoday'sdishesandcookware
of all shapes and sizes
• SmartDispense™technology - Conveniently stores up to 47 oz of liquid detergent and
automatically dispenses multiple doses in each cycle
• Upperrackdeepbowltines-Evenoversizedbowlsfitperfectlyinthetoprackfor
easy cleaning
• Flexibleracks-Designedfortoday'sdishesandholdsupto16-placesettings
• Two-pumpsystem-Onesmallpumpforwashing/rinsingandonesmallpumptoremove
soils provide excellent wash performance with reduced sound
• ModelPDWT500VWWandPDWT505VWW-Whiteonwhite
• ModelPDWT500VBBandPDWT505VBB-Blackonblack
• ModelPDWT580VSSandPDWT585VSS-Stainlesssteel
PDWT500/580/505/585V
GE Profile™Dishwasher with SmartDispense™Technology
