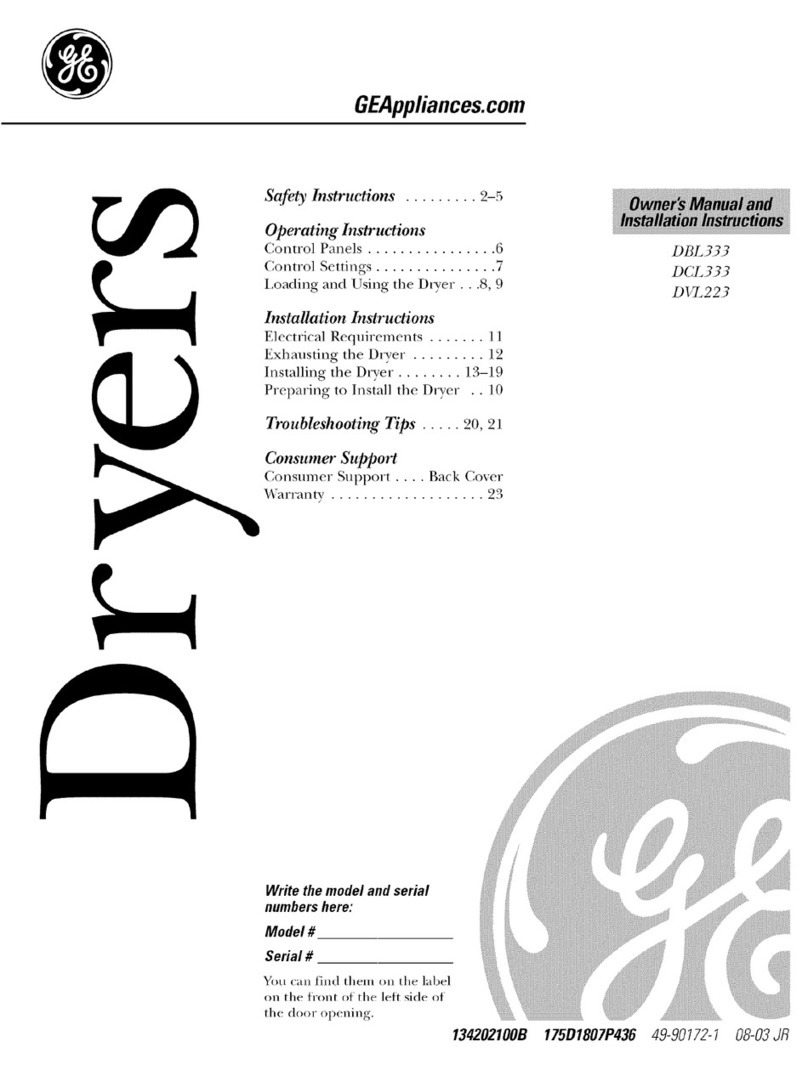

GE DBL333 Operating instructions

GEAppliances.com
Safety Instructions ......... 2-5
Operating Instructions
Control Panels ................ 6
Control Settings ............... 7
Loading and Using the Dryer ...8, 9
Installation Instructions
Electrical Requirements ....... 11
Exhausting the Dryer ......... 12
Installing the Dryer ........ 13-19
Preparing to Install the Dryer .. 10
Troubleshooting Tips ..... 20, 21
Consumer Support
Consumer Support .... Back Cover
Warranty ................... 23
DBL333
DCL333
DVL223
Write the model and serial
numbers here:
Model #
Serial #
You can find them on tile label
on the fi'ont of the left side of
the door opening.
134202100A 175D1807P436 49-90172 06-03JR

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
AWARNING!
For yoursafety,the informationin this manual mustbe followed tominimize the risk of fire
or explosion,electric shock,or topreventpropertydamage,personal injury,or death.
•Donotstoreor usegasoline or other
flammable vaporsand liquidsin the
vicinityof thisor any otherappliance.
•Installationand servicemustbeperformed
bya qualifiedinstaller,service agencyor
the gas supplier.
WHATTODOIF YOUSMELLGAS:
]Do nottry tolight a match, or cigarette, or
turnon anygas or electrical appliance.
]Do nottouch anyelectrical switch;
donotuse any phone in yourbuilding.
[] Clear the room,building orarea of all
occupants.
[]Immediately call yourgas supplier from
a neighborsphone.Follow the gas
supplier'sinstructionscarefully.
[] ff youcannotreach yourgas supplier,
call the fire department.
Cafifomia Safe Drinking Water and ToxicEnforcement Act
This act requires tbe governor of California to publish a list of substances known to tbe state to cause cancel;
birth defects or other reproductive harm and requires businesses to warn customers of potential exposure
to such subsvances.
Gas appliances can cause minor exposure to [our of tbese substances, namely benzene, carbon monoxide,
formaldehyde and soot, caused primarily by tile incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to tbese substances can be
minimized furtber by properly venting tile dryer to tim outdoors.
2

GEAppliances.com
AWARNING!
PROPERINSTALLATION
This dryer must be properly installed and located in accordance with the Installation Instructions
before it is used.
Properly ground dryer to conform with all
governing codes and ordinances. Follow
details in the Installation Instructions section.
Install or store where it will not be exposed
to temperatures below freezing or exposed
to the weather.
Connect to a properly rated, protected and
sized power supply circuit to avoid electrical
overload.
Remove all sharp packing items and dispose
of all shipping materials properly.
Exhaust/Ducting:
[]This dryer MUSTbe exhausted to the outside.
[]Use only rigid metal 4" diameter ductwork
inside the dryer cabinet. Use only rigid metal
or flexible metal 4" diameter ductwork for
exhausting to tile outside. USE OFPIJtSTIC OR
OTHERCOMBUSTIBLEDUCTWORKCANCAUSE
A FIRE.PUNCTUREDDUCTWORKCANCAUSEA
FIREIF IT COLLAPSESORBECOMESOTHERWISE
RESTRICTEDIN USEORDURINGINSTALLATION.
Follow de'mils in the Installation Instructions section.
YOURLAUNDRYAREA
Keep the area underneath and around your
appliances free of combustible materials, such
as lint, papm; rags, chemicals, gasoline and
other flammable vapors and liquids.
Keep the floor around your appliances clean
and dry to reduce the possibility of slipping.
Keep area around the exhaust opening and
surrounding areas fl'ee from the accumulation
of lint, dust and dirt.
Do not obstruct tile flow of ventilating ail:
Do not stack or place laundry or throw rugs
against the front or back of the drym:
•Close supervision is necessary if this appliance
is used by or near children. Do not allow
children to play on, with or inside dlis or
any other appliance.
•Keep all laundry aids (such as detergents,
bleaches, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all
warnings on container labels to avoid injury.
•Never climb on or stand on the dryer top.
•Do not install or store this appliance where
it will be exposed to the weathen
3

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
4
AWARNING!
WHENUSINGYOURDRYER
• Never reach into the dryer while the drum is
moving. Before loading, unloading or adding
clothes, w-ait until the drum has completely
stopped.
•Cleanthelint filter beforeeachload to prevent
lint accumulation inside the dryer or in the
room. DONOT OPERATETHEDRYERWITHOUT
THELINTFILTERIN PLACE,UNLESSTHEDRYING
RACKIS IN USE.
• Do not wash or dry articles that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances
(such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) which
may ignite or explode. Do not add these
substances to the wash v_aten Do not use or
place these substances around your washer
or dryer during operation.
• Any article on which you have used a cleaning
solvent or that contains flammable materials
(such as cleaning cloths, mops, towels used in
beauty salons, restaurants or barber shops,
etc.) must not be placed in or near the dryer
until solvents or flammable materials have
been removed. There are many highly
flammable items used in homes such as
acetone, denatured alcohol, gasoline, kerosene,
some household cleaners, some spot removers,
turpentines, waxes, wax removers and products
containing petroleum distillates.
• The laundry process can reduce the flame
retardancy of fabrics. To avoid such a result,
carefully follow the garment manufacturer's
care instructions.
• Do not dry articles containing rubbm; plastic,
or similar materials such as padded bras, tennis
shoes, galoshes, bath mats, rugs, bibs, baby
pants, plastic bags, pillows, etc. that may melt
or burn. Some rubber materials, when heated,
can under certain circumstances produce fire
by spontaneous combustion.
• Do not store plastic, paper or clothing that
may burn or melt on top of the dryer during
operation.
• Garments labeled OryAwagfrom Hoator Do Not
YumbloDry (such as life jackets containing
Kapok) must not be put in your drym:
• Do not dry fiberglass articles in your dryen
Skin irritation could result fi'om the remaining
particles that may be picked up by clothing
during subsequent dryer uses.
• To minimize the possibility of electric shock,
unplug this appliance from the power supply
or disconnect the dryer at the household
distribution panel by removing the fuse or
switching off the circuit breaker before
attempting any maintenance or cleaning
(except the removal and cleaning of the lint
filter). NOTE:Turning the Cycle Selector knob
to an off position, or pressing PAUSEdoes NOT
disconnect the appliance from the power supply.
• Do not spray any type of aerosol into, on or
near dryer at any time.
• Do not place items exposed to cooking oils in
your dryen Items contaminated with cooking
oils may contribute to a chemical reaction that
could cause a load to catch fire.
• Never attempt to operate this appliance
if it is damaged, malfunctioning, partially
disassembled, or has missing or broken parts,
including a damaged cord or plug.
• The interior of the machine and the exhaust
duct connection inside the dryer should be
cleaned at least once a year by a qualified
technician. See the Loading and Using the Oryor
section. Do not use any type of spray cleaner
when cleaning dryer interiol: Hazardous fumes
or electrical shock could occm:
• If yours is a gas drym, it is equipped with an
automatic electric ignition and does not have
a pilot light. DONOTATTEMPTTOLIGHTWITH
A MATCH.Burns may result from having your
hand in the vicinity of the burner when the
automatic ignition turns on.
• You may wish to soften your laundered fabrics
or reduce the static electricity in them by using
a dryer-applied fabric softener or an anti-static
conditionen We recommend you use either a
fabric softener in the wash cycle, according to
the manufacturer's instructions for those
products, or try a dryer-added product for
which the manufacturer gives written assurance
on the package that their product can be safely
used in your drym: Service or performance
problems caused by use of these products are
the responsibility of the manufacturers of
those products and are not covered under
the warranty to this appliance.

GEAppliances.com
WHENNOTUSINGYOURDRYER
Grasp the plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Place the cord away from traffic areas
so it will not be stepped on, tripped over or
subjected to damage.
Do not attempt m repair or replace any part
of this appliance or attempt any servicing
unless specifically recommended in this
Owner's Manual or in published use>repair
instructions that you understand and have
_lle skills to carry out.
•Before discarding a dr/el; or removing it
from smwice, remove tile dryer door to
prevent children from hiding inside.
•Do not tamper with controls.
.._'j,,, READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
i_'\_ SAVETHESEINSTRUCTIONS
5

Aboutthecontrolpanel
Youcan locate your model number on the label on the front of the left side of the door opening.
Model DBL333
START TEM PERATURE LESSam
OlqlMUMDRY
MEDIUM COTTONS
Amo_nc
M0EDRY
MOREDRY
LESSDRY
EASY CARE
AUTOMAT/C
2O 3O 40
El o 0
TIMED DRY
6o
50
Model DCL333
START
START
LESSDRY
OR11MUMDRY
COTTONS
AUTOM4_TC
REGL#-4RHEAT
MOEDRY
MOREDRY
LESSDRY
._ EASY CARE
AUTOMAT/C
m//F_T
B10 20 30 40 19
FLUFF
NOHEAT
Model DVL223
START
START
B
OPllMUMDRY_i_
CO'I-FONS _,_,,,_
A_X'_
gg _ a
6o MIN
2O
B
N 3O
6

Aboutthecontrolsettings.
NOTE."Not all features are available on all dryer models. GEAppliances.com
IMPORTANT: Clean the lint filter each time you use the dryer.
HTemperature
REGULAR Forregulartoheawcottons.
MEDIUM Forsynthetics,blends,delicatesanditemslabeledpermanentpress.
FLUFF Forfluffing itemswithoutheat.Usethe TIMEDDRYcycle.
NOHEAT
_'_ Automatic cycles automatically determine fhbric dryness. Select LESSDRYif you want your clothes slightly damp at
tile end of the drying cycle. Select MOREDRYif you vcant them to feel drier.
Drying Cycles
COI'I'ONS Forcottonsandmostlinens.FormostloadsselectOPTIMUMDRY.
EASYCARE Forwrinkle-free,permanentpressanddelicateitems,andknits.
TIMEDDRY SettheCycleSelectoratthedesireddryingtime.
FLUFF Providesno-heattumblingforfresheningorfluffingalreadydryclothing,fabric,linensandpillows.
DStart_lose the dryer door. Turn the STARTcontrol clockwdse to START Hold for 1-2 seconds and release.
Opening the door during operation will stop the dryer. To restart the dryer, close the door and
select STARTto complete the cycle.
NOTE:Drying times will vary according to the type of heat used (Electric, Natural or LP gas), size of
load, types of fabrics, wetness of clothes and condition of exhaust ducts.
7

i_1"._ and the _1__
Loamng using uryer.Always follow the fabric manufacturer's care label when laundering.
dO[{ SortingandLoadingHints
_ As a general rule, if clothes are sorted properly DO not overload. This wastes energy and causes
for the washer, they are sorted properly for wrinkling.
the dryer.
Donot add fabric softener sheets once the load has
become warm. Theymay cause fabric softener stains.
Bounce®Fabric Conditioner Dryer Sheets have been
approved for usein all GEDryers when usedin
accordance with the manufacturer's instructions.
Do notdry the followingitems: fiberglass items,
woolens, rubber-coated items, plastics, items with
plastic trim and foam-filled items.
CamandCleaningof theDryer
The Exterior:Wipe or dust any spills or washing
compounds with a damp cloth. Dryer control
panel and finishes may be damaged by some
laundry pretreatment soil and stain remover
products. Apply these products away from the
dryen The fabric may then be washed and dried
normally. Damage to your dryer caused by these
products is not covered by your warranty.
The Lint Filter: Clean the lint filter before each
use. Remove by pulling straight up. Run your
fingers across the filter. A waxy buildup may" form
on the lint filter from using dryer-added tfbric
softener sheets. To remove this buildup, wash the
lint screen in warm, soapy w-aten Dry thoroughly
and replace. Do not operate the dryer without
the lint filter in place.
Have a qualified technician vacuum the lint
from the dryer once a year.
The Exhaust Duct: Inspect and clean the exhaust
ducting at least once a year to prevent clogging.
A partially clogged exhaust can lengthen the
drying time.
Follow these steps:
[_ Turn off electrical supply by disconnecting
the plug from the wall socket.
[_ Disconnect the duct from the dryer:
[_ Vacuum the duct with the hose attachment
and reconnect the duct.
The Exhaust Hood:Check from the outside that
the flaps of the hood move freely when operating.
Make sure that there is no wildlife (birds, insects,
etc.) nesting inside the duct or hood.
8

GEAppliances.com
FabricCareLabels
WASH LABELS
wash __ __
cycle Normal Permanent Press/ Gentie'_/ De not wash Do net wring
wrinkle resistant delicate Hand wash
Water •• • • • •
temperature .ot W_rm Co,d/coo,
(50°C/120OF) (40oc/I05°F) (30°C/85OF)
BLEACHLABELS
A A
aymuula Any bleach Only non-chlorine bleach Do not bleach
(when needed) (when needed)
DRYLABELS
d vTUmbleD _-_ [-_ D _ _
_r. Donotdry
Dry Normal Permanent Press/ Gentle/ Do net tumble dry {used with
wrinkle resistant delicate do not wash)
Heat _ (_ Q 0
setting High Medium Low No heat/air
Special D _ D D
instructions Line dry/ Drip dry Dry flat In the shade
hang to dry
9

Preparingtoinstallyourdryer.
Read these instructions completely and carefully.
&WARNING
• This dryer must be exhausted to the outdoors.
Use only rigid metal or flexible metal 4"
diameter ductwork for exhausting m the
outside. Use only rigid metal 4" diameter
ductwork inside the dryer cabinet.
• The National Fuel Gas code restricts installations
of gas appliances in garages. They must be 18"
(45.7 cm) off the ground and protected from
vehicles by a barrien See Location of Your Dryer
section.
•Neveruseplastic orothercombustibleductwork.
See Exhaustingsection.
• This appliance must be properly grounded
and installed as described in these Installation
Instructions.
• Do not install or store appliance in an area
where it will be exposed to ,a-ater/weathm:
See Location of YourOryersection.
• The electricalservice to the dryer must
conform with local codes and ordinances and
the latest edition of the National Electrical
Code, ANSI/NFPA 70.
• The gas service to the dryer must conform with
local codes and ordinances or the latest edition
of the National Fuel Gas Code ANSI Z223.1.
The gas dryer is designed under ANSI Z 21.5.1
for home use only. This dryer is not
recommended for commercial applications
such as restaurants or beauty salons, etc.
ToolsandMaterialsRequiredforDryerInstallation
[] Phillips head screwdriver
[] Adjustable pliers
[] Carpenter's level
[] Flat or straight blade screwdriver
[] Duct tape
[] Rigid or flexible metal 4" (10.2 cm) duct
[] Vent hood
[] Pipe thread sealer {GAS DRYER)
10
PreparingtheInstallationSiteandUnpackingtheDryer
[]Prepare the area and exhaust tor installation
of the new drym:
[]Check to be sure that the existing external
exhaust is clean and that it meets attached
installation specifications.
[]Using the tbur shipping carton corner posts
as padding (two on each side), caret_dly lay
the dryer on its let} side and remove foam
shipping pad.
CAUTION:To prevent damage,
do not use the control panel as a means
to pick up or move the dryen
_ Return the dryer to an upright position.
_Move the dryer to the desired location.
_ Connect the external exhaust.
[Adjust the leveling legs to match the washer
height. The dryer must be level and rest
firmly on all four leveling legs.
_ Connect the power supply.
Foamshippinggad _ Check the operation of the power supply
and venting.
_ Place the Owner's Manual and the
Installation Instructions in a location where
they will be noticed by the owner.
Packing

Electricalrequirements.
Read these instructions completely and carefully.
CElectricalConnectionInformationforElectricDryers
_I, WARNING-Toreducethorisk
of fire, electric shock or personal iqjury:
•DONOT USEAN EXTENSIONCORDWITH THIS
APPLIANCE.
ElectricalRequirements
•This dryer must be connected to a 208V or
240V individual branch circuit, protected by
30 amp circuit breakers or time<lelay fuses.
•THISAPPLIANCEMUSTBEPROPERLYGROUNDED. •Use copper conductors only.
Thisdryermustbeelectrically groundedin
accordancewith local codesand ordinances,orin
theabsenceoflocal codes,in accordancewith the
NATIONALELECTRICALCODE,ANSI/NFPANO. 70.
•If the electric supply does not meet the above
specifications, call a licensed electrician.
NOTE:A wiring diagram is located inside tile
control panel.
ElectricalConnectionInformationforGasDryers
_i WARNING-Toreduce the risk
of fire, electric shock or personal injury:
•DONOT USEAN EXTENSIONCORDORAN
ADAPTERPLUGWITH THISAPPLIANCE.
•DONOT,UNDERANY CIRCUMSTANCES,CUTOR
REMOVETHETHIRDGROUNDINGPRONGFROM
THEPOWERCORD.
Thisdryermustbeelectrically groundedin
accordance with local codesandordinances,orin
theabsenceoflocal codes,in accordance with the
NATIONALELECTRICALCODE,ANSI/NFPANO. 70.
Electrical Requirements
•This dwer must be supplied with 120V, 60 Hz,
and connected m an individual properly
grounded branch circuit, protected by a 15 or
20 amp circuit breaker or time-delay filse.
•If the electric supply provided does not
meet the above specifications, it is
recommended that a licensed electrician
install an approved outlet.
ExternalGround(ifrequired)
An externalgroundwire (notprovided),which
meetslocal codes,may beaddedbyattaching#to
thegreengroundscrew on therear of thedryerin
theupperleftcomer abovethecord,and togrounded
metalcoldwater pipe orotherestablishedground.
Attachgroundwire
o F {obtainlocally)
•o'_ "L_J
"C
NOTE:A wiring diagram is located inside tile
control panel.
11

Exhaustingthedryer.
Read these instructions completely and carefully.
ExhaustSystemRequirements
Use only 4" (102 cm) diameter (minimum) rigid metal
duct forbest performance, or flexible metal duct. Use
approved vent hood which has swing-out dampers
that open when the dryer is in operation. When the
dryer stops, the dampers automatically close to
prevent drafts and the entrance of insects and
rodents. To avoid restricting the outlet, maintain a
minimum of 12" (30.5 cm) clearance between the
vent hood and the ground or any other obstruction.
AThedryerexhaustsystemMUSTBEEXHAUSTED
TOTHEOUTSIDEofthedwelling.
ADO NOTallow combustible materials (for example:
clothing, draperies/curtains, paper) to come in
contact with exhaust system.
AThedryerMUSTNOTbeexhaustediutoagasveu_
chimney,a wall,a ceiling,acommonductwitha
If all rigid metal duct cannot be used, then flexible
all-metal venting can be used, but it will reduce the
maximum recommended duct length. See Additional A
InstallationInstructionstollowing.
Correct
Incorrect
WARNING:thefollowingarespecific
requirementsforproperandsafeoperationof your
drye_Failureto followtheseinstructionscan create
excessivedryingtimesandfirehazards.
ADO NOTuseplasticflexibleducttoexhaustthe
dryer.Excessivelintcanbuildupinsideexhaust
systemandcreatea firehazardandrestrictair
flow.Restrictedair flowwill increasedryingtimes.
ff yourpresentsystemismadeupofplasticduct
ormetalfoilduct replaceitwithrigidorflexible
metalduct.Ensurethepresentductisfreeofany
lintpriortoinstallingdryerduct
kitchenexhaustoranyconcealedspaceofa
buildingwhichcanaccumulatelict resultingin
a firehazard.
DO NOTexceed die length of duct pipe or
number of elbows allowed in dm Maximum Length
charts. Lint can accumulate in the exhaust
system, plugging dm system and creating a fire
hazard, as well as increasing dodng times.
DO NOTscreen the exhaust ends of the vent
system, nor use any screws or rivets to assemble
the exhaust system. Lint can become caugilt in
the screen, on the screws or rivets, clogging the
duct work and creating a fire hazard as well as
increasing drying times. Use an approved vent
hood to terminate the duct outdoors, and seal
all joints with duct tape. All male duct pipe
fittings MUSTbe installed downstream with
the flow of air:
AEXPLOSION HAZARD.Do not install the dryer
where gasoline or other flammables are kept
or stored. If the dryer is installed in a garage,
it must be a minimum of 18" (45.7 cm) above
the floor. Failure to do so can resuh in death,
explosion, fire or burns.
A Provide an access 1or inspection and cleaning of
the exhaust system, especially at turns. Inspect
and clean at least once per year.
ADo not obstruct incoming or exhausted ain
12
Additional Installation Instructions
If all rigid metal duct cannot be used, then flexible
all-metal venting can be used, but it will reduce the
maximum recommended duct length. In special
installations when it is impossible to make a
connection with the above recommendations, then
UL-listedclothesdryer transitionduct may be used as
transition venting between the dryer and wall
connection only. The use of this ducting will affect
drying time.
ff flexibletransitionductisnecessary,onlyUL-listedduct
identifiedforusewithclothesdryersisapproved.
The following directions must be followed.
• Use the shortest lengdl possible.
• Stretch the duct to its maximum length.
• Do not crush or collapse.
• Never use n'ansition duct inside the w-all, flooring,
ceiling or inside the dryen
• Avoid resting the duct on sharp objects.
• Venting must contorm to local building codes.

Installingthe dryer.
Exhaust Ducting Length
Tim exhaust system should be inspected and cleaned
at least once a year with normal usage. Tile more the
dryer is used, tbe more often you should check 1he
exhaust system and vent hood for proper operation.
If roof vents or louvered plenums are used, 1hey must
be equivalent to a 4" dampered wall cap in regard to
resistance to airflow, prevention of back drafts and
maintenance required to prevent clogging.
•DONOTassemble tbe duct workwitb thsteners that
extend into the duct. Timy will serve as collection
points for lint.
•Ductwork which runs through an unheated area or
is near an air conditioning duct should be insulated
to reduce condensation and lint build-up.
MAXIMUM LENGTH of4" (10.2cm) Dia.RIGIDMETALDUCT
Number ol
00°tllrBS
0
1
2
3
4
PREFERREDVENTHOODTYPE
4" (10.2cm) Louvered
60' {18.28In)
52' (15.84m)
44' (13.41In)
32' (9.75In)
28' (8.53m)
48' (14.63In)
40' (12.19In)
32' (9.75In)
24' (7.31In)
16' (4.87 In)
MAXIMUM LENGTH of 4" (10.2cm)Dia. FLEXIBLEMETALDUCT
Number of
90° ullns
O
1
2
3
INSTALLMALE FITTINGSIN
CORRECTDIRECTION
PREFERREDVENTHOODTYPE
4" 110.2cm) Louvered
30"{9.14In)
22' {6.71In)
14' (4.27In)
18' (5.49In)
14' (4.27In)
10' (3.05In)
notrecommended
ExhaustDirection
All dryers are shipped set up for rear exhausting, jSameas EXHAUSTDUCTLOCATING I
On electric dryers, exhausting can be on the cabinet _ It,"otherride DIMENSIONS
t._,,,'I 5.7/8"
right or left side, or through tim dryer bottom. I_,,_S I(15cm) 44/8"
Gas dryei,'s can exhaust on the cabinet right side or L_t ,./1_j_3.v2" _{u_m) /
tim dryer bottom. To change exhaust direction you
will need Exhaust Kit, Pub. No. 14-A018 and a rigid
metal 4" 90 degree ell,'ow. Tim kit is available through _'_-._ __
your GE rerailm: Follow tbe instructions supplied
witb the kit. S-3/4"{9.5cm}f _ Z 13-3/4"(9£ crn}
GasSupplyRequirements
A Replace brass connecting pipe that is not
plastic-coated. Stainless steel or plastic-coated
brass MUSTbe used.
[]
WARNING:Neverrouseoldflexible
connectors. The use of old flexible connectors can
cause gas leaks and personal injmy_Alwa)_use NEW
flexible connectors when inslalling a gas appliance.
Installation MUSrconform witb local codes, or
in tbe absence of local codes, with tbe National
Fuel Gas Code, ANSI Z223.1 (latest edition).
[]
[]
The gas supply line should be of 1/2" (1.27 cm)
rigid pipe.
If codes allow, flexible metal tubing may be used
to connect your dryer to the gas supply line. The
tubing MUSTbe consrructed of stainless steel or
plastic-coated brass.
_The gas supply line MUSThave an individual
shutoff waive.
_A 1/8" (0.32 cm) NPT minimum plugged
tapping, accessible 1or test gauge connection,
MUSTbe installed immediately upstream of the
gas supply connection to tim dryer.
_The dryer and its individual shutoffwalve MUST
be disconnected from the gas supply piping
system during any pressure testing of the gas
supply piping system at test pressures in excess
of 1/9 psig (3.45 kPa).
]The dryer MUSTbe isolated from tim gas supply
piping system by closing its individual manual
shutoff waiveduring any pressure testing of the
gas supply piping system at test pressures
equal to or less tban 1/2 psig (3.45 kPa). 13

Installingthedryer.
Read these instructions completely and carefully.
Locationof YourDryer
Do Not lnstall the Dryer:
]Do notinstallthe dryerin an area exposed to
dripping water or outside weather conditions.
[]Do not installthe dryer in an area where it will
come in contact with curtains, drapes or
anything that will obstruct the flow of
combustion and ventilation air.
[] Do not install the dryer on carpet.
Floor MUSTbe solid with a maximum slope
of 1" (9.54 cm).
Installation in Recess or Closet
[] ThisdryerMUSTbeexhaustedoutdoors.
]No other fuel burning appliance shall be
installed in the same closet as tile G.zlSDRYER.
]Your dryer needs the space around it for proper
ventilation. DONOTINSTALLYOURDRYERIN
A CLOSETWITHASOLIDDOOR.
[]Closet doo_,'smust be louvered or otherwise
ventilated and must contain a minimum of
60 sq. in. of open area equally distributed.
If the closet contains both a washer and a drym;
doors must contain a minimum of 190 sq. in. of
open area equally disnibuted. Air openings are
required to be unobstructed when a door is
installed. A louvered door with equivalent air
openings for the fi.lll lengdl of the door is
acceptable.
0
1 I
Closetdoor
60sq in
(387.1sq cm)
-- I-- 0" (0cm}
Allow thefollowingclearancesfor easeofinstallation:
FRONT SIDES REAR* TOP
1"(2,54cm) 0(0cm) 1"(2,54cm) 15"(38,1cm)
*Additional rear clearancemaybe requireddepending
onthe ductinginstallation.
15"
(381cm} 1" (254cm)
14

Mobile Home Installation
[]Dryer MUSTbe exhausted outside (outdoors, not
beneath tile mobile home) using metal ducting
that will not support combustion. Metal ducting
must be 4" (10.16 cm) in diameter with no
obstructions. Rigid metal duct is preferred.
[]If dryer is exhausted tbrough tim floor, the
exhaust system MUST NOTterminate beneatb the
mobile home. Termination MUSTbe securely
fastened to tbe mobile home structure.
]When installing a dryer into a mobile home,
a provision must be made for outside make-up
ai_:Provide an opening with a flee area of at
least 25 square inches for introduction of outside
air into tim dryer room.
[]Gas drym.'s MUSTbe fastened to the floor
using Mobile Home Installation Kit
Pub. No. 14-D346-33.
[]See tbe Exhaust System Requirements section
1or other important venting information.
[] Installation MUSTcontorm to current
Manulactured Home Construction & Safety
Standard (which is a Federal Regldation Title
24 CFP,--Part 32-80) or, when such standard is
not applicable, with American National Standard
1or Mobile Homes, ANSI/NFPA No. 501B.
Correct
Incorrect
Thedryeris designedunderANSIZ 21.5.I
for HOMEUSEonl_

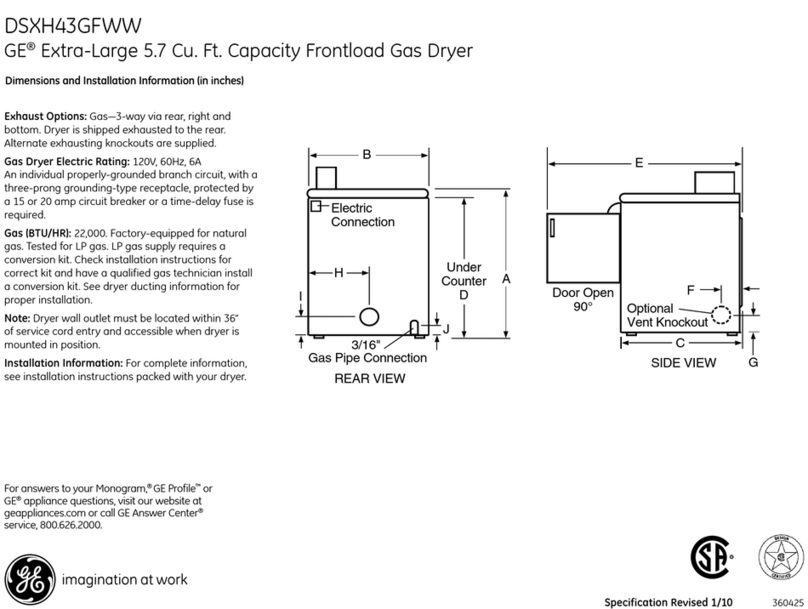

Rough-&Dimensions
!
267/8" --
-- (68.3cm)
[3--" Electdcalconnection
435/8"
(110.7era}
,, I
n-
"_ 3/8,,(096era)Dia/
gaspipe
35 *_
{915 cm}
1
L
f
1" (254cm}
471/2"
Dooropen
90
43/8"
(111crn}'_.
OptionaP~-,-_,, '
vent knockout '.. -_1_
27" /
33/4" (686cm) 33/4"
{9.5cm} {9.5cm}
REARVIEW SIDEVIEW
Servicing -Considerationmust begiven toprovide adequate clearances for installation and servicing.
15

Installingthedryer.
Read these instructions completely and carefully.
GroundingRequirements
__ DANGER:.,,properconnectionofthe
equipment-grounding conductor can result in
a risk of"electric shock. Check with a licensed
electrician if you are in doubt as m whether
the appliance is properly grounded.
Grounding must be in accordance with local
codes and ordinances, or in the absence of
local codes, in accordance with the National
Electrical Code %NSI/NFPA No. 70.
Fora grounded,cord-connectedelectricdryer.
[]The dryer MUSTbe grounded. In tile event of
a malfunction or breakdown, grounding will
reduce tile risk of electrical shock by creating
a path of least resistance for electrical current.
[] If your dryer is equipped with a power supply
cord having an equipment-grounding conductor
and a grounding plug, the plug MUSTbe
plugged into an appropriate, copper-wired
receptacle that is properly installed and
grounded in accordance with all local codes and
ordinances. Ifin doub_call alicensed electrician.
Fora permanently-connectedelectricdryer:
• The dryer MUSTbe connected m a grounded
metal, permanent wiring system; or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on tile appliance.
Fora cord-connectedgasdryer:
• This dryer is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged directly into
a properly grounded three-prong receptacle.
Do not cut or remove tile grounding prong from
this plug.
ElectricalInsta//ationforElectricDryers
__IL WARNING:The following are specific A WARNING.A UL-approved swain
requirements fbr proper and safe electrical relief must be installed onto power cord. K the
installation of your dryer. Failure to fbllow strain relief is not attached, tile cord can be pulled
these instructions can create electrical shock out of the dryer and can be cut by any movement of
and/or a fire hazard, tile cord, resulting in elecnical shock.
AWARNING:Thisappliance MUSTbe
properly grounded. Elecnical shock can result
if the dryer is not properly grounded. Follow
tile instructions in this manual for proper
grounding.
AWARNING:DONOTuseanextension
cord with this dryer. Some extension cords are
not designed to withstand the amounts of
electrical current this dryer utilizes and can
melt, creating electrical shock and/or fire
hazard. Locate the dryer within reach of tile
wall outlet, taking into account the length
of power cord to be purchased and allowing
some slack in tile cord. Refer m Electrical
Requirementsin this manual for the proper
power cord to be purchased.
AWARNING:u.co..errece.=desordv.
NOTE:Dryers operating on 208-volt power supply will
have longer drying times than those operating on
240-volt power supply.
A wiring diagram is located inside the control panel.
16

3-Wire System for Electric Dryers--DO NOT use for Mobile Home Installations
[] Remove the screws securing the terminal block
access cover and the strain relief mounting
bracket located on the back of the dryer
upper corner.
[]Install a UL-approved strain relief into the power
cord entry hole of the mounting bracket. Use
a strain relief which attaches to the mounting
bracket with a nut. Finger-tighten the nut only
at this time.
[] Thread a UL-approved 30A, 240V, 3 #10 AWG
minimum copper conductor power cord through
the sn'ain relief.
Green
Greenneutral Nut
[]Attach the power cord neutral (center wire)
conductor to the silver-colored center terminal
on the terminal block. Tighten the screw
securely.
[]Attach the remaining two power cord outer
conductors to the outer brassmolored terminals
on the terminal block. Tighten both screws
securely.
WARNING:Donotmakeasharp
bend or crimp wiring/conductor at
connections,
[ Reattach tile strain relief mounting bracket to
the back of tile dryer with two screws. Tighten
screws securely,
[]Tighten the fastenel,-s securing the cord resn'aint
firmly against the power cord.
[]Tighten the strain relief nut securely so that the
su'ain relief does not turn.
[]Reinstall the terminal block access cove_:
Use copper ief
conductors only. mountingbracket
owercord
4-Wire System for Electric Dryers--MUST be used for Mobile Home Installations
[Remove the screws securing the terminal block
access cover and the strain relief mounting
bracket located on the back of the dryer
upper corner.
[] Install a UL-approved sU'ain relief in the enu'y
hole of the mounting bracket. Use a sn'ain relief
which attaches to the mounting bracket with a
nut. Finger-tighten the nut only at this time.
]Remove the green neun'al ground wire from
the green ground screw located above the
terminal block.
[]
Black240V
Typical _#. Whiteneutral
4conductorcord_ Red240V
Greenground
Thread a UL-approved 30A, 240V, 4#f0 AWG
minimum copper conductor power cord through
the sn'ain relief.
[]Attach the green power cord ground wire to the
cabinet with the green ground screw,
[]Attach the white (neutral) power cord
conductor from the power cord and the green
ground wire from the dryer harness to the silver-
colored center terminal on the terminal block.
Tighten the screw securely.
[]Attach the red and black cord conductors
power
to the outer brassmolored terminals on the
terminal block.
Greenpowercordgroundwire
Greenground _ /
screw "_t_"/.,_/Silver terrninaI
Greenneutral _ __
groundi,o 7-- Black
_k_'_ _i!'_White Nut
_; _ _f ,, Tightennutto
Red _ _ _/Sthese threads
:,_ _ relief_F._€_.
Powercord mounting_I4K-. _
bracket
.& WARNING:Donotmakeasharp
bend or crimp wiring/conductor at the
connections.
[]Tighten the fgsteners securing the cord
restraint firmly against the power cord,
[]Tighten the strain relief nut securely so the
su'ain relief does not turn.
_ Reinstall the terminal block access coven
17

Installingthedryer.
Read these
{3instructions completely and carefully.
GasConnectionforGasDryers
[]Remove the shipping cap from gas pipe at tile
rear of tile dryer.
NOTE:DONOTconnect the dryer to LP gas smMce
without converting the gas valve. An LP conversion
kit (Pub. No. 14-A038) MUSTbe installed by
a qualified gas technician.
[]Connect a 1/2" (1.27 cm) I.D. semi-rigid
or approved pipe from gas supply line to
the 3/8" (0.96 cm) pipe located on the back
of the dryer: Use a 1/2" to 3/8" (1.27 cm to
0.96 cm) reducer for a connection. Apply an
approved thread sealer that is resistant to the
corrosive action of liquefied gases on all pipe
connections.
[] Open the shutoffwalve in the gas supply line.
[]Test all connections by brushing on a soapy
water solution.
WARNING:NEVERTESTFOR
GASLEAKSWITHAN OPENFLAME.
NOTE:On gas dryers, before tile burner will light,
it is necessary for tile gas line to be bled of ail:
If the burner does not light within 45 seconds the
first time the dryer is turned on, the safety switch will
shut the burner of[ If this happens, turn the timer
to OFFandwait 5 minutes betore making another
attempt to light.
BeforeOperatingtheDryer
[]Connect the exhaust duct to outside exhaust
system. Use duct tape to seal all joints.
[_ With the dryer in its final position, adjust one or
more of the legs until the dryer is resting solidly
on all four legs. Place a level on top of the drym:
THEDRYERMUST BE LEVELAND RESTING
SOLIDLYON ALLFOURLEGS.
[]Plug the power cord into a grounded oudet.
NOTE:Check to ensure the power is offat circuit
breaker/fuse box betore plugging the power
cord into the outlet.
[Turn on the power at the circuit breaker/
filse box.
CAUTION:botoreope, tingthedrym;
make sure the dryer area is clear and free
from combustible materials, gasoline and
other flammal)le vapol.-s._Msosee that nothing
(such as boxes, clothing, etc.) obstructs the
flow of combustion and ventilation air.
[_Run th.e dryer through a cycle check for proper
operanon.
[_ lfyour dryer does not operate, please rmdew the
groubloshootin 9 77pssection in this manual before
calling for service.
[_ Place these instructions in a location near the
dryer for thture reference.
18

ReplacementParts
If replacement parts are needed fbr your drym; visit
GEAppliances.com,or call GEPartsandAccessories
at 800.626.2002 or contact an authorized parts
supplim:
WARNING:Destroythecarton and
plastic bags 'after tile dryer is unpacked.
Children might use them for play. Cartons
covered witb rags, bedspreads or plastic sheets
can become airtight chambers causing
suffocation. Place all materials in a ,garbage
container or make materials inaccessible
to children.
AWARNING:Theinsn'uctionsinthe
manual and all otber literature included witb
this dryer are not meant to cover every possible
condition and situation tbat may occur. Good
safe practice and caution MUSTbe applied
when installing, operating and maintaining
any appliance.
ReversingtheDryerDoorSwing
[]Open tim dryer door. Remove tim 4 hinge hole
plugs or .screwsfrom tim left side of door
opening. Place nearby for future installation.
NOgE:You may need a plastic knife to help pull
out tim plugs. Be careful not to scratch tim paint.
[]
[]
[]
Remove tim four screws tbat secure the door
hinges to tim dryer front panel. NOTE:Remove
1 screw from each oftbe 2 hinges first. Hold tim
door firmly befbre remoxdng tim last 2 screws.
Rotate tim door 180 ° and reinstall the door
hinges to tim dryer front panel witb tim 4 screws.
Install the 4 hinge hole plugs or screws tbat were
removed in step f into tbe open screw holes on
tim right side of the door opening.
Remove4 screws--onefromeachhingefirst
19

Before youcall forservice...
Troubleshooting tips
Save time and money! Review the charts on the following pages,
or visit 6EAppliauces.eom. Youmay not need to call for service.
Problem Possible Causes What ToDo
DtFerdoesn:tstart Dryer is unplugged * Make sure tile dryer plug is pushed completely into
tile outlet.
Fuse is blown/circuit breaker * Check the household Distribution Panel fuse/circuit
is tripped breaker box in your home, and replace fuse or reset
breakeE NOTE: Elecu'ic dryers use two fuses or breakers.
Thermal limiter tripped * Check the vent for any obsn'uctions. Call authorized
service person for replacement if necessary.
OtFer doesn:t heat Fuse is blown/circuit breaker * Check the filse/circuit breaker box in your home,
is tripped; the dryer may tumble and replace both fuses or reset tx_th breakers.
but not heat Your dryer may tumble if only one tuse is blown or
one breaker n'ipped.
Gas service is off * Make sure gas shutoff at dryer and main shutoff are
fully open.
LP gas supply tank is empty *Refill or replace 'tank. Dryer should heat when utility
or there has been a utility service is restored.
interruption of natural gas
(gas models)
OtFer shakes or Some shaldng/noise is normal. * Move dryer to an even floor space, or adjust leveling legs
makes noise Dryer may be sitting unevenly as necessary until even.
Greasy spots on clothes Improper use of fabric softener * Follow directions on tabric softener package.
Drying dirty items with *Use your dryer re dry only clean items. Dirty items can
dean ones stain clean items and the drym:
Clothes were not * Sometimes stains which cannot be seen when the
completely dean clothes m'e wet appoar_ter drying. Use proper washing
procedures betore drying.
tinton clothes Lint filter is full * Clean lint screen before each load.
Improper sorting * Sort lint producers (like chenille) from lint collectors
(like corduroy).
Static dectridty can attract lint * See suggestions in this section tinder STATIC.
Overloading * Separate large loads into smaller ones.
Paper, tissue, etc. left in pockets * Empty all pockets before laundering clothes.
Static occurs No fabric softener was used * Try a Pabric sotbener.
• BouncC ) Fabric Conditioner Dryer Sheets have been
approved for use in all GE Dryers when used in
accordance with the manufacturer's instructions.
Overdrylng * Try a t:abric soffenen
• Adjust controls to LESSDRE
Synthetics, permanent press * Try a Pabric solbener.
and blends can cause static
2O
