GE DCCH480EK Original instructions

Safety Instructions . . . . . . . . . . . 2–4
perating Instructions
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .5–7
Cycle Options . . . . . . . . . . . . . . . . . . . . . .8, 9
Using the Dryer . . . . . . . . . . . . . . . . . . . . .10
Cleaning the Dryer . . . . . . . . . . . . . .10, 11
Installation Instructions
Before You Begin . . . . . . . . . . . . . . . .12, 13

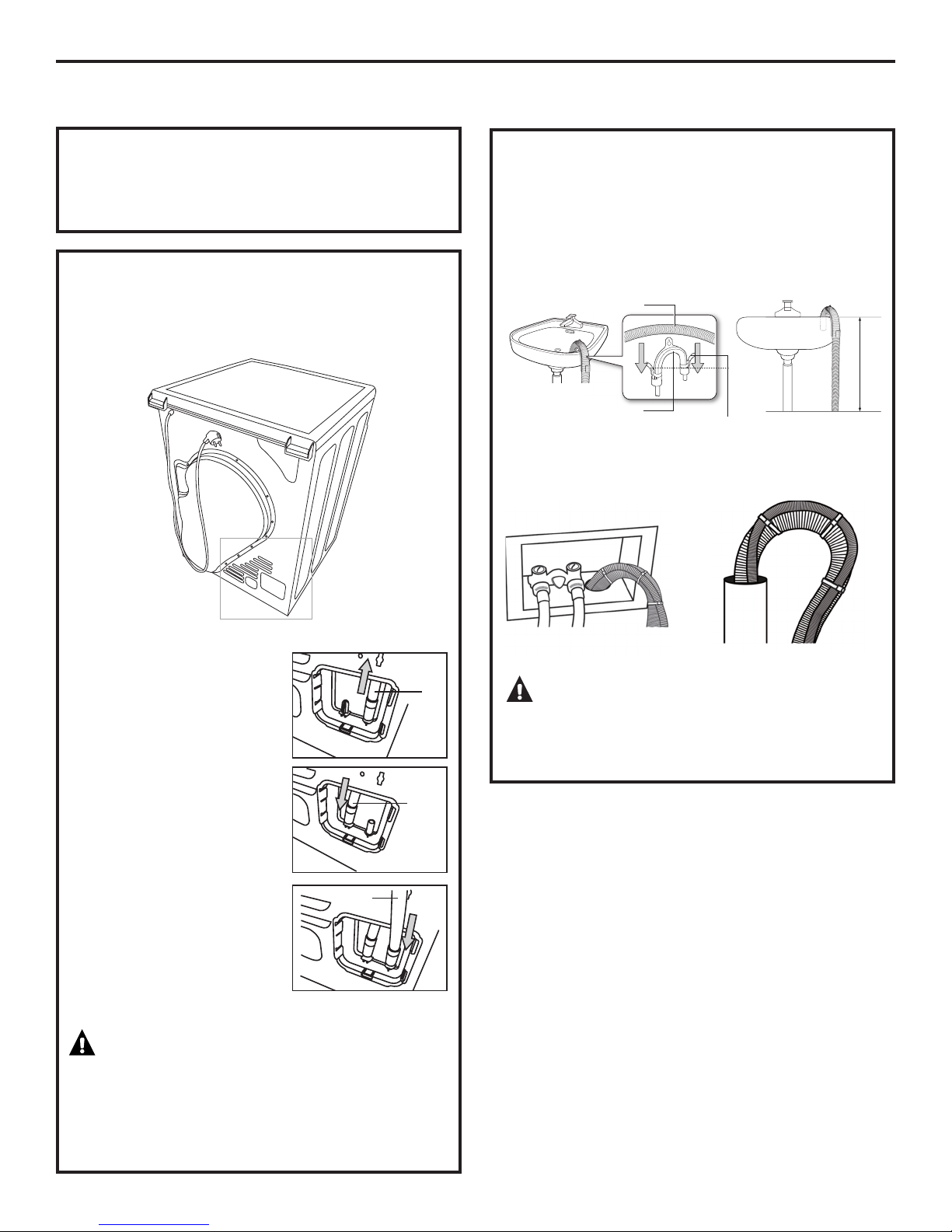

Connecting Drain Hose . . . . . . . . . . . . .17

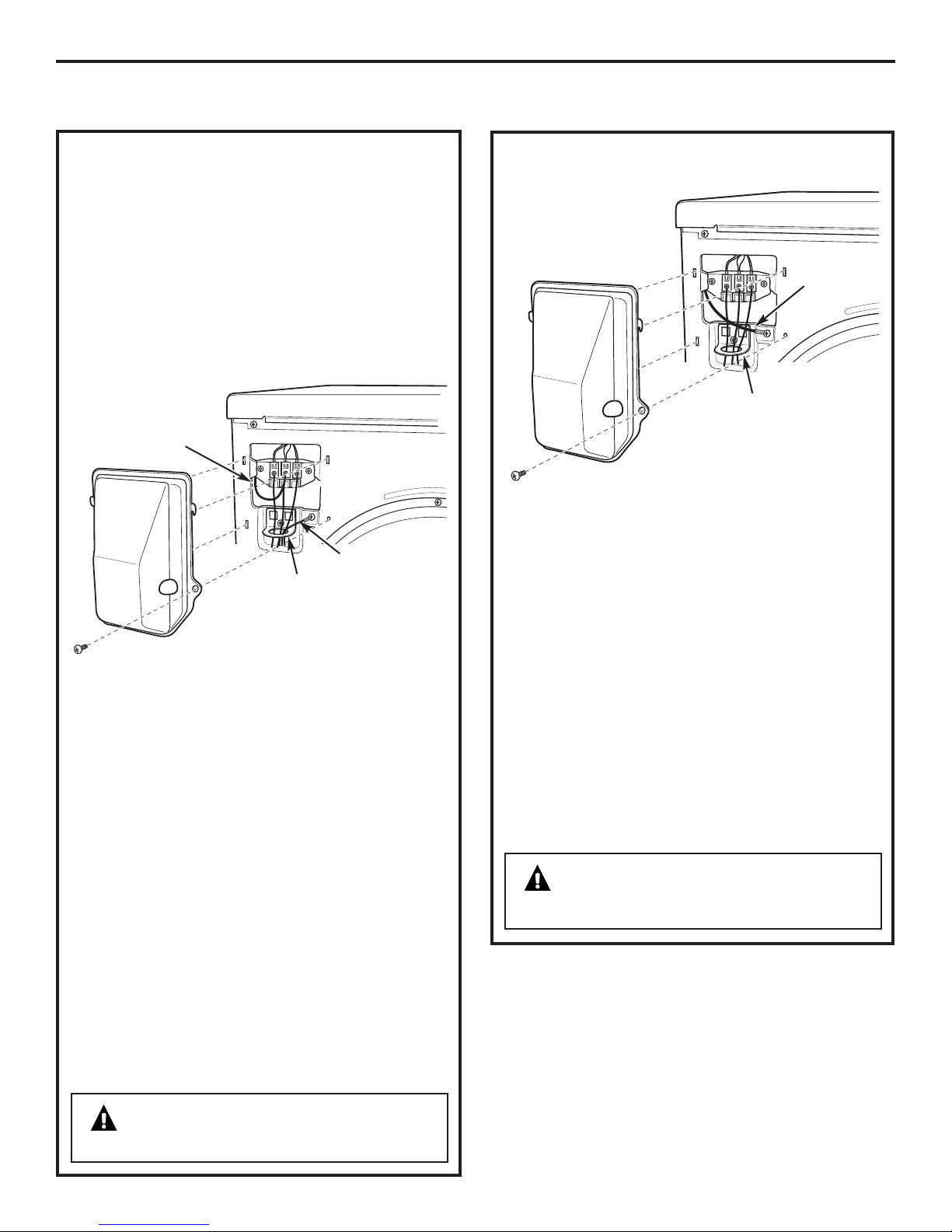

Connecting
Electric Dryer . . . . . . . . . . . . . . . . . . .15, 16
Final Setup . . . . . . . . . . . . . . . . . . . . . . . . . .18
Location of your Dryer . . . . . . . . . .12, 13

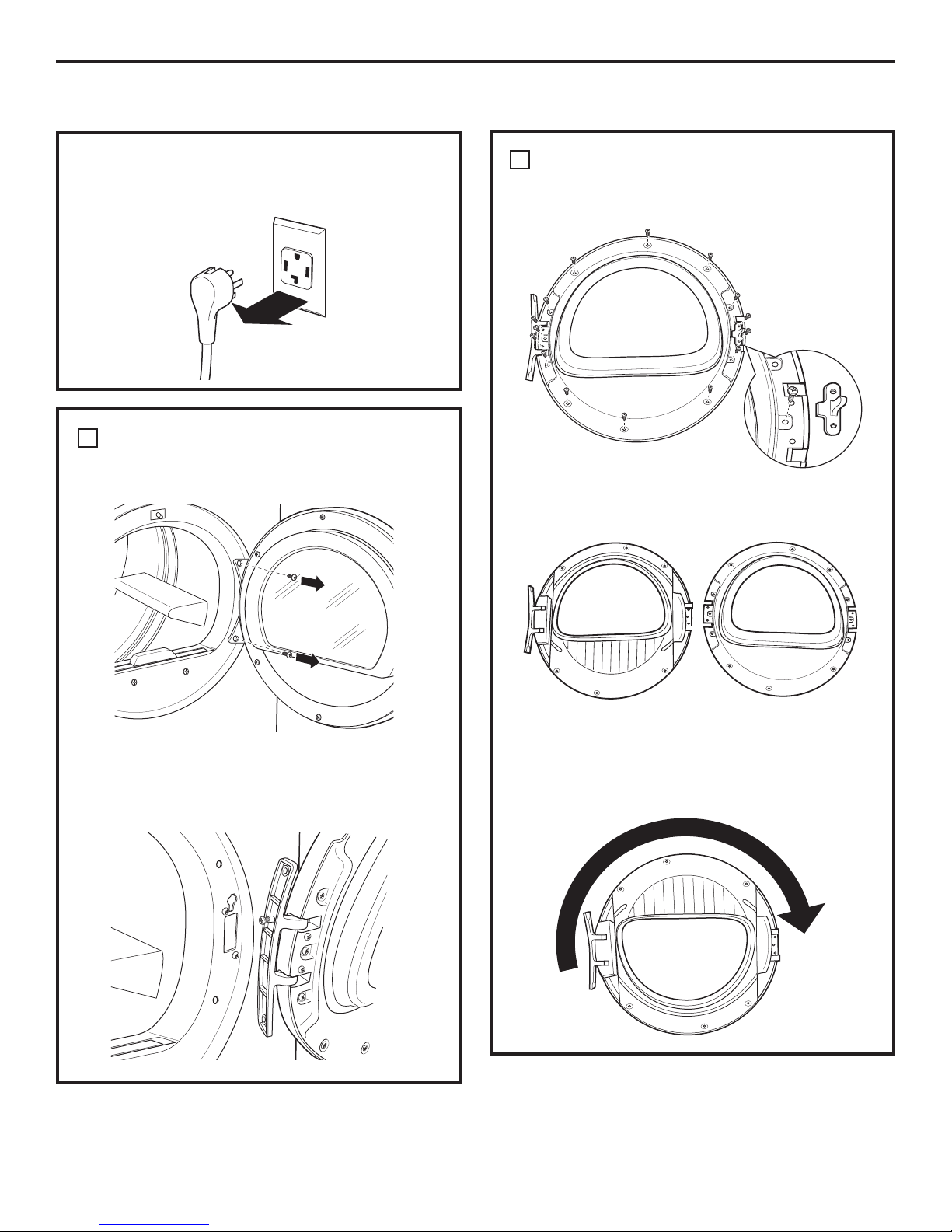

Reversing the Door Swing . . . . . .19–21
Stacking the Washer
and Dryer . . . . . . . . . . . . . . . . . . . . . . .22-24
Troubleshooting Tips . . . . . .26-28
Consumer Support
Consumer Support . . . . . . . . . . . . . . . . . 30
Warranty (U.S.) . . . . . . . . . . . . . . . . . . . . . .29
GEAppliances.com
Dryers

Write the model and serial
numbers here:
Model # ______________
Serial #________________
They are on the label on the front
of the dryer behind the door.
wner’s Manual &
Installation Instructions
SAVE THESE INSTRUCTI NS
DCCH480EK
DCCH485EK

nProperly ground dryer to conform with all
governing codes and ordinances. Follow details
in Installation Instructions.
nInstall or store where it will not be exposed to
temperatures below freezing or exposed to water
or weather, which could cause permanent damage
and invalidate the warranty.
nConnect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
nRemove all sharp packing items and dispose of
all shipping materials properly.
IMP RTANT SAFETY INF RMATI N.
READ ALL INSTRUCTI NS BEF RE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury,
or death.

*+5&4;'4/756$'2412'4.;+056#..'&#0&.1%#6'&+0#%%14&#0%'9+6*6*'056#..#6+1005647%6+105
$'(14'+6+575'&056#..#6+1005647%6+105#4'+0%.7&'&+06*'$#%-1(6*+5/#07#.
nDo not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
nInstallation and service must be
performed by a qualified installer
or service agency.
2
perating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

Consumer SupportTroubleshooting Tipsperating InstructionsSafety Instructions
WARNING!
"  "
nKeep the area underneath and around your
appliances free of combustible materials,
(lint, paper, rags, etc.), gasoline, chemicals
and other flammable vapors and liquids.
nKeep the floor around your appliances clean
and dry to reduce the possibility of slipping.
nClose supervision is necessary if this appliance is
used by or near children. Do not allow children to
play on, with or inside this or any other appliance.
nKeep all laundry aids (such as detergents,
bleaches, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all
warnings on container labels to avoid injury.
nNever climb on or stand on the dryer top.
! " "
nNever reach into the dryer while the drum is
moving. Before loading, unloading or adding
clothes, wait until the drum has completely
stopped.
nClean the lint filter before each load to prevent lint
accumulation inside the dryer or in the room. D
N T PERATE THE DRYER WITH UT THE LINT
FILTER AND C NDENSER IN PLACE.
nDo not wash or dry articles that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances (such as
wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.). These substances give
off vapors that may ignite or explode. Do not add
these substances to the wash water. Do not use
or place these substances around your washer
or dryer during operation.
nDo not place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a clothes load to catch fire.
nAny article on which you have used a cleaning
solvent or that contains flammable materials
(such as cleaning cloths, mops, towels used in
beauty salons, restaurants or barber shops, etc.)
must not be placed in or near the dryer until
solvents or flammable materials have been
removed. There are many highly flammable items
used in homes such as acetone, denatured alcohol,
gasoline, kerosene, some household cleaners,
some spot removers, turpentines, waxes, wax
removers and products containing petroleum
distillates.
nThe laundry process can reduce the flame
retardancy of fabrics. To avoid such a result,
carefully follow the garment manufacturer’s
care instructions.
nDo not dry articles containing rubber, plastic
or similar materials such as padded bras, tennis
shoes, galoshes, bath mats, rugs, bibs, baby pants,
plastic bags or pillows that may melt or burn.
Some rubber materials, when heated, can under
certain circumstances produce fire by
spontaneous combustion.
nDo not store plastic, paper or clothing that may
burn or melt on top of the dryer during operation.
nGarments labeled 4;9#;(41/'#6or 116
7/$.'4;(such as life jackets containing Kapok)
must not be put in your dryer.
nDo not dry fiberglass articles in your dryer.
Skin irritation could result from the remaining
particles that may be picked up by clothing
during subsequent dryer uses.
nTo minimize the possibility of electric shock, unplug
this appliance from the power supply or disconnect
the dryer at the household distribution panel by
removing the fuse or switching off the circuit
breaker before attempting any maintenance or
cleaning (except the removal and cleaning of the
lint filter). N TE: Pressing START/PAUSE or POWER
does N T disconnect the appliance from the power
supply.
nEmpty the water tank after drying cycle is
complete.
(NOTE: if drain hose is installed, emptying the water
tank is not required)
nNever run the dryer without the condenser
installed.
GEAppliances.com
3

! " "
nGrasp the plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Place the cord away from traffic areas
so it will not be stepped on, tripped over or
subjected to damage.
nDo not attempt to repair or replace any part of
this appliance or attempt any servicing unless
specifically recommended in this Owner’s Manual
or in published user-repair instructions that you
understand and have the skills to carry out.
nBefore discarding a dryer, or removing it from
service, remove the dryer door to prevent children
from hiding inside.
nDo not tamper with controls.
!" "
SAVE THESE INSTRUCTI NS
4
WARNING!
! " "%106
nNever attempt to operate this appliance if it is
damaged, malfunctioning, partially disassembled,
or has missing or broken parts, including a
damaged cord or plug.
nClean the condenser once per month using only
water. If you fail to clean the condenser, your
drying performance may degrade.
nYou may wish to soften your laundered fabrics
or reduce the static electricity in them by using
a dryer-applied fabric softener or an antistatic
conditioner. We recommend you use either a
fabric softener in the wash cycle, according to
the manufacturer’s instructions for those products,
or try a dryer-added product for which the
manufacturer gives written assurance on the
package that their product can be safely used
in your dryer. Service or performance problems
caused by use of these products are the
responsibility of the manufacturers of those
products and are not covered under the
warranty of this appliance.
perating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
IMP RTANT SAFETY INF RMATI N.
READ ALL INSTRUCTI NS BEF RE USING.

WARNING! 14'&7%'6*'4+5-1((+4''.'%64+%5*1%-14+0,74;612'451054'#&6*'
" $'(14'12'4#6+0)6*+5#22.+#0%'
About the dryer control panel. GEAppliances.com
*417)*1766*+5/#07#.('#674'5#0&#22'#4#0%'/#;8#4;(41/;174/1&'.
Consumer SupportTroubleshooting Tipsperating InstructionsSafety Instructions
Quick Start
If the screen is dark, press the P WER button to “wake up”
the display.
Press the
P WER
button.
Select a cycle by turning the
Cycle Knob.
If you selected a SENS R DRY cycle—
just press the START/PAUSE button.
If you selected a TIME DRY
cycle—select your heat setting
and the amount of time you
want your items to dry by
pressing the TIME button until
the desired time appears in
the display. Then press the
START/PAUSE button.



5
Power
Press to “wake up” the display. If the display is active, press to turn the dryer off.
N TE: 4'55+0)P WER &1'5016&+5%100'%66*'#22.+#0%'(41/6*'219'45722.;
1
1
2
3
4 5
6

2
About the dryer control panel.
Dry Cycles
The dry cycle controls the cycle time for the drying process. The chart below will help you match
the dry setting with the loads.
Sensor Cycles
COTTONS For cottons and most linens.
MIXED OAD For loads consisting of cottons and poly blends.
WRINK E FREE For wrinkle-free/easy care and permanent press items.
ACTIVE WEAR Clothing worn for active sports exercise and some casual wear. Fabrics include new
technology finishes and stretch fibers such as spandex.
DE ICATES For lingerie and special-care fabrics.
SPEED DRY For small loads that are needed in a hurry, such as sports or school uniforms. Can also be
used if the previous cycle left some items damp, such as collars or waistbands.
Time Dry Cycles
WARM UP Provides 10 minutes of warming time to warm up clothes.
DEWRINK E For removing wrinkles from items that are dry or slightly damp. This cycle is not
recommended for delicate fabrics.
AIR F UFF Use this feature to tumble items without heat.
Timed Dry
Use to set your own dry time. TIMED DRY is also recommended for small loads.
To use TIMED DRY:
1. Turn dry cycle dial to TIMED DRY.
2. Select the drying time by pressing the TIME button. You can increase the time in 10-minute
increments up to 1 hour and 20 minutes.
3. Select the DRY TEMP.
4. Close the door.
5. Press START/PAUSE.
Sensor Dry Level
The sensor continuously monitors the amount of moisture in the load. When the moisture in your
clothes reaches your selected dry level, the dryer will stop.
EXTRA DRY Use for heavy-duty fabrics or items that should be very dry, such as towels.
MORE DRY Use for heavy or mixed type of fabrics.
DRY Use for normal dryness level suitable for most loads. This is the preferred cycle
for energy saving.
ESS DRY Use for lighter fabric (ideal for ironing).
DAMP For leaving items partially damp.
NOTE: The Sensor Dry Levels can only be selected in a Sensor Dry Cycle.
3
4
6
perating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

7
Consumer SupportTroubleshooting Tipsperating InstructionsSafety Instructions
GEAppliances.com
Dry Temp
You can change the temperature of your dry cycle.
ANTI-BACTERIA This option may only be used with COTTONS or MIXED OAD cycles. This option reduces
certain types of bacteria. The anti-bacterial process occurs when high heat is used
during a portion of this drying cycle.
NOTE: Do not use this cycle on delicate fabrics.
HIGH For regular to heavy cottons.
MEDIUM For synthetics, blends and items labeled permanent press.
OW For delicates, synthetics and items labeled 7/$.'4;19.
EXTRA OW For lingerie and special-care fabrics.
START/PAUSE
Press to start a dry cycle. If the dryer is running, press it once and it will pause the dryer.
Press it again to restart the dry cycle.
“CLEAN LINT FILTER” (message)
This message stays on until the START button is pressed. This message is only a reminder.
5
6

perating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
About cycle options.
N TE: 16#..('#674'5#4'#8#+.#$.'10#..&4;'4/1&'.5
8
Extend Tumble
Minimizes wrinkles by adding
approximately 20 minutes of constant
no-heat tumbling followed by 70 minutes
of intermittent no-heat tumbling after
clothes are dry. The dryer is in EXTENDED
TUMBLE when the ESTIMATED CYCLE TIME
display is illuminated in a circular pattern.
The light in the button will light up when
EXTEND TUMBLE is on.
N TE: 6+5014/#.(146*'&47/612#75'
(145*1462'4+1&51(6+/'&74+0)EXTEND
TUMBLE
Delay Start
Use to delay the start of your dryer.
1. Choose your dry cycle and any options.
2. Press the DELAY START button. You
can change the delay time in 1-hour
increments (up to 18 hours) each time
you press the DELAY START button. Stop
pressing the button when your desired
time is displayed.
3. Press the START/PAUSE button to start
the countdown.
The countdown time will be shown in the
ESTIMATED TIME REMAINING display.
N TES:
n(6*'&114+512'0'&9*+.'6*'&4;'4+5+0
DELAY6*'%1706&1906+/'9+..%106+07'
61%1706&1906*'&'.#;6+/'(6*'&114
+5016%.15'&#0&6*'%1706&1906+/'
':2+4'56*'%;%.'9+..01656#46706+.6*'
&114+5%.15'&#0&6*'START/PAUSE
button +524'55'&
n"17%#0&'.#;6*'56#461(#&4;'4%;%.'
7261*1745
The light in the button will light up when
DELAY START is on.

Consumer SupportTroubleshooting Tipsperating InstructionsSafety Instructions
9
Lock
You can lock the controls to prevent any
selections from being made. Or you can
lock or unlock the controls after you have
started a cycle.
*+.&4'0%#0016#%%+&'06#..;56#46
6*'&4;'4$;617%*+0)2#&59+6*
6*+5126+105'.'%6'&

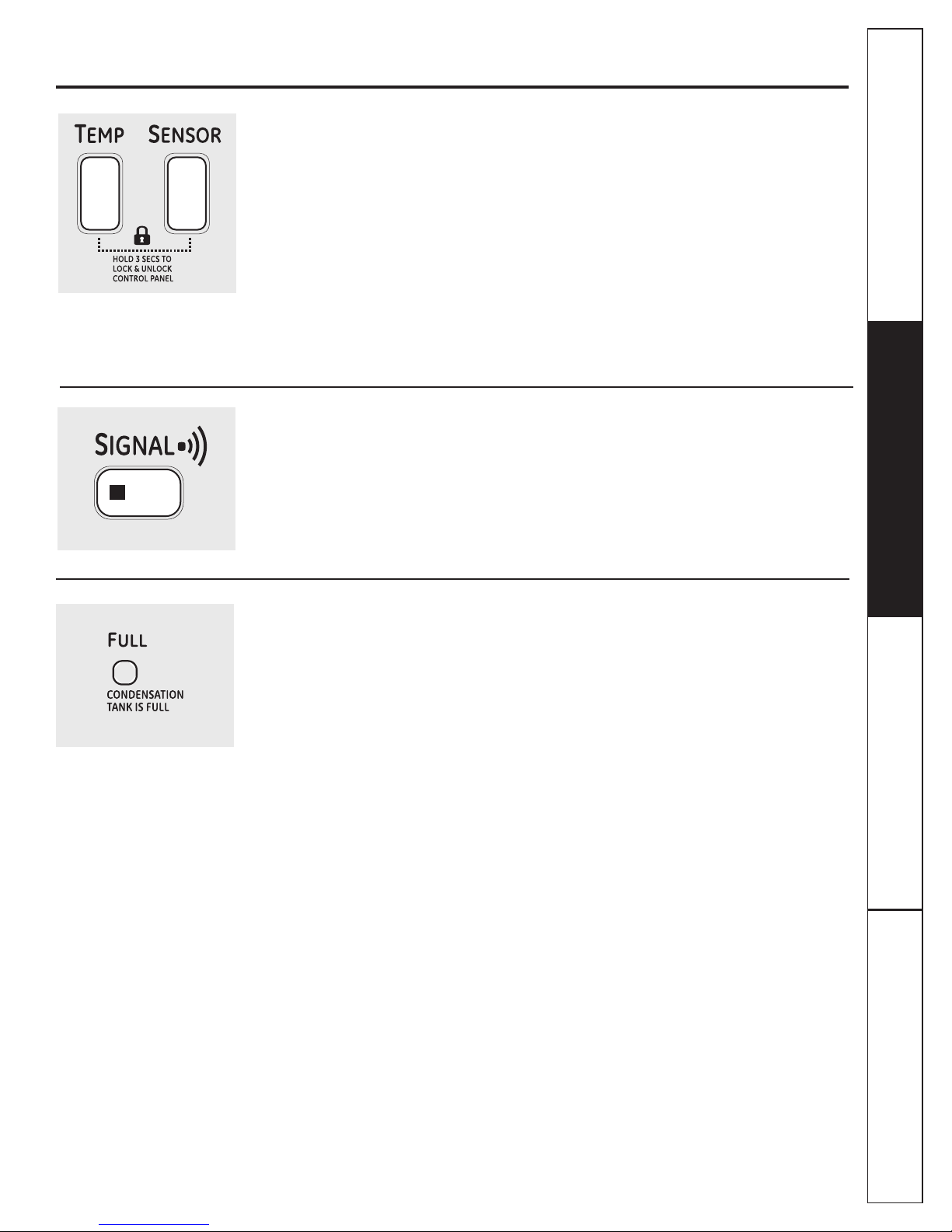

To lock the dryer, press and hold
the TEMP and SENS R buttons together
for 3 seconds.
To unlock the dryer controls, press
and hold the TEMP and SENS R buttons
together for 3 seconds. A sound will
indicate the lock/unlock status.
The control lock icon on the display will
light up when it is on.
N TE: *'P WER $76610%#056+..$'75'&
9*'06*'/#%*+0'+5.1%-'&
Signal
When the light is “on,” the dryer will beep
at the end of the cycle and every time
you press a button on the control panel.
To turn the signal off, press the SIGNAL
button and the light will go off.
GEAppliances.com
Tank Full Indicator
When the light is “on,” you must empty the
tank before continuing use of the dryer.
Remove the tank and empty the water.
Replace the tank and clear the warning light.
(See page 11)
N TE: The dryer will not operate until the
tank is emptied and the warning has been
cleared.

10
perating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
Using the dryer.
Care and Cleaning of the Dryer
Dryer Interior: The interior of the
appliance should be cleaned once a year.
The Exterior: Wipe or dust any spills or
washing compounds with a damp cloth.
Dryer control panel and finishes may be
damaged by some laundry pretreatment
soil and stain remover products. Apply
these products away from the dryer. The
fabric may then be washed and dried
normally. Damage to your dryer caused
by these products is not covered by your
warranty.
Do not touch the surface or the display
with sharp objects.
The int Filter: Clean the lint filter before
each use. Remove by pulling straight up.
Open the filter and run your fingers across
the filter. A waxy buildup may form on the
lint filter from using dryer-added fabric
softener sheets. To remove this buildup,
wash the lint screen in warm, soapy
water. Dry thoroughly and replace. Do not
operate the dryer without the lint filter
in place.
Vacuum the lint from the dryer lint
filter if you notice a change in dryer
performance.
Stainless Steel: To clean stainless steel
surfaces, use a damp cloth with a mild,
nonabrasive cleaner suitable for stainless
steel surfaces. Remove the cleaner
residue, and then dry with a clean cloth.
The stainless steel used to make
the dryer drum provides the highest
reliability available in a GE dryer. If
the dryer drum should be scratched or
dented during normal use, the drum
will not rust or corrode. These surface
blemishes will not affect the function
or durability of the drum.
Condenser: The condenser should be
cleaned once per month.
Always follow fabric manufacturer’s care label when laundering.
Tumble
dry
Dry Normal Permanent Press/
wrinkle resistant
Gentle/
delicate Do not tumble dry
Do not dry
(used with
do not wash)
Heat
setting
High Medium Low No heat/air
Special
instructions Line dry/
hang to dry Drip dry Dry at In the shade
Dry Labels
Sorting and Loading Hints
As a general rule, if clothes are sorted
properly for the washer, they are sorted
properly for the dryer. Try also to sort items
according to size. For example, do not dry
a sheet with socks or other small items.
Do not add fabric softener sheets once
the load has become warm. They may
cause fabric softener stains. Bounce®
Fabric Conditioner Dryer Sheets have
been approved for use in this dryer when
used in accordance with the manufacturer’s
instructions.
See below for lint filter cleaning instructions.
Do not overload. This wastes energy and
causes wrinkling.
Do not dry the following items: fiberglass
items, woolens, rubber-coated items, plastics,
items with plastic trim and foam-filled items.
Fabric Care Labels
Below are fabric care label “symbols” that
affect the clothing you will be laundering.

11
Consumer SupportTroubleshooting Tipsperating InstructionsSafety Instructions
GEAppliances.com
Emptying the Water Tank

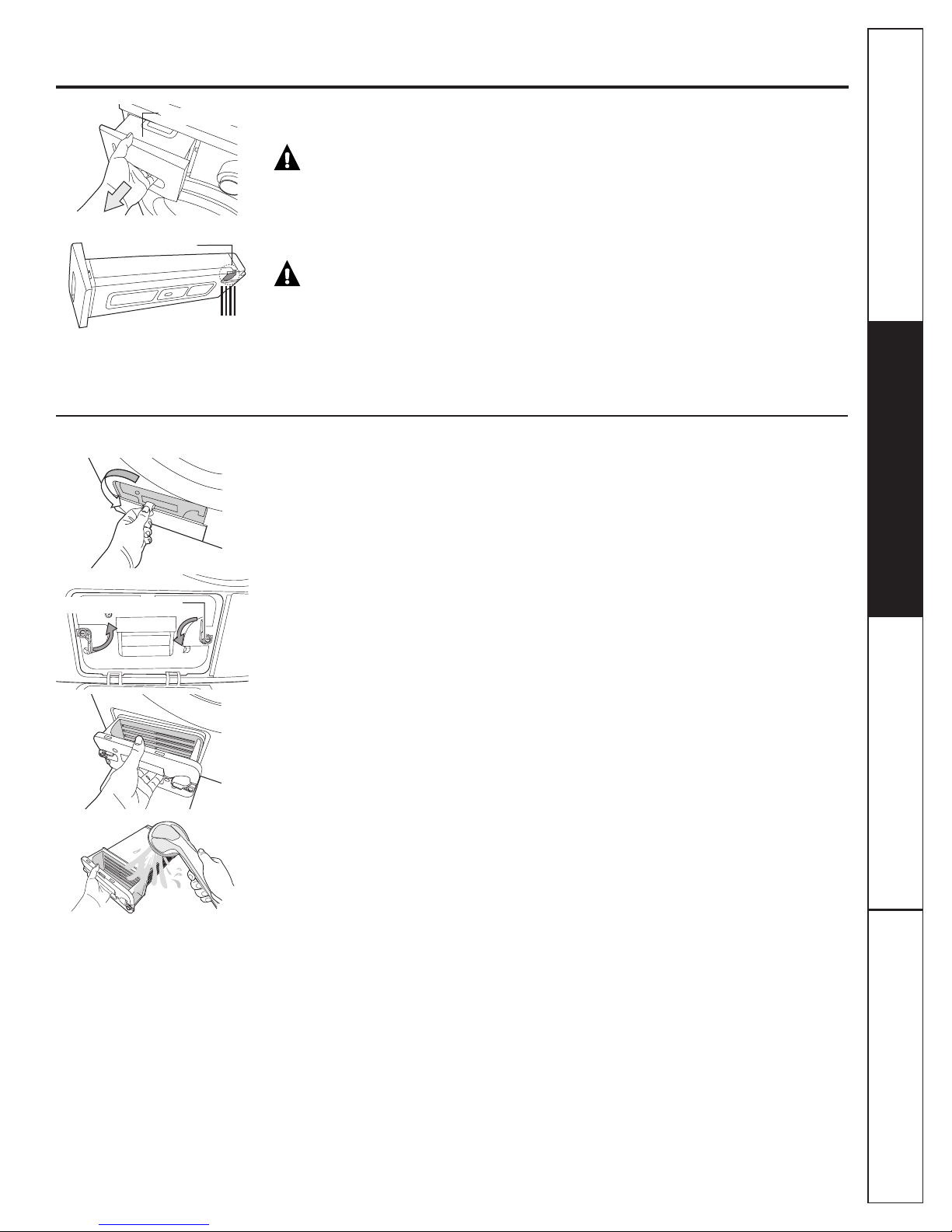

1. Pull out the water tank.
CAUTION: !*'04'/18+0)6*'!#6'46#0-(41/6*'241&7%6*1.&+675+0)
$16**#0&5#5+6+5*'#8;#0&6#-'%#4'0166152+..#0;9#6'4+05+&'6*'6#0-
'/18'6*'%10&'05'&9#6'4+05+&'6*'9#6'46#0-
='/18'6*'%10&'05'&9#6'4+06*'6#0-#(6'4'8'4;&4;+0)%;%.'
WARNING: +0%'6*'4'+5#%*#0%'1(9#6'4.'#-+0)+(;17&1016&4#+06*'
9#6'4#(6'475+0)6*'241&7%6/#-'574'61&4#+06*'9#6'4
N TE: !*'06*'#0-7..+0&+%#614.+)*6+5?10@the dryer will not operate until the tank is
emptied and the warning has been cleared. Press the START button and the indicator light
will turn off and the dryer will resume the cycle.
Water-Tank
Drain hole
Cleaning the condenser
1. Open the condenser compartment cover.
2. Unlock the fixer condenser.
3. Remove the condenser.
4. Clean the condenser completely by allowing tap water to flow through it.
N TES:
• Make sure to clean your condenser once per month to prevent degradation of the dryer’s
performance.
• When assembling the condenser after cleaning it, make sure the fixer condenser is set to
the lock position.
Fixer Condenser

Installation Dryer
Instructions
12
Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca
If you are planning to stack the washer and dryer,
order Stacking Kit number GE24STACK to be used
for this dryer. Kit sold separately.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT – Save these instructions for local
electrical inspector’s use.
•IMPORTANT – Observe all governing codes and
ordinances.
•Install the clothes dryer according to the manufacturer’s
instructions and local codes.
• Note to Installer – Be sure to leave these instructions
with the Consumer.
• Note to Consumer – Keep these instructions for future
reference.
•Clothes dryer installation must be performed by a
qualified installer.
•Before the old dryer is removed from service or
discarded, remove the dryer door.
•Service information and the wiring diagram are located
in the control console.
•Do not allow children on or in the appliance. Close
supervision of children is necessary when the appliance
is used near children.
•Proper installation is the responsibility of the installer.
•Product failure due to improper installation is not
covered under the Warranty.
•Install the dryer where the temperature is above 50°F
for satisfactory operation of the dryer control system.
FOR YOUR SAFETY:
WARNING – Risk of Fire
•To reduce the risk of severe injury or death, follow
all installation instructions.
•Clothes dryer installation must be performed by a
qualified installer.
•Install the clothes dryer according to these
instructions and in accordance with local codes.
•Do not install or store this appliance in any location
where it could be exposed to water and/or weather.
•Save these instructions. (Installers: Be sure to leave
these instructions with the customer.)
DCCH480EK, DCCH485EK

Installation Instructions
13
UNPACKING YOUR DRYER
Tilt the dryer sideways and remove the foam
shipping pads by pulling at the sides and breaking
them away from the dryer legs. Be sure to remove
all of the foam pieces around the legs.
Remove the bag containing the literature.

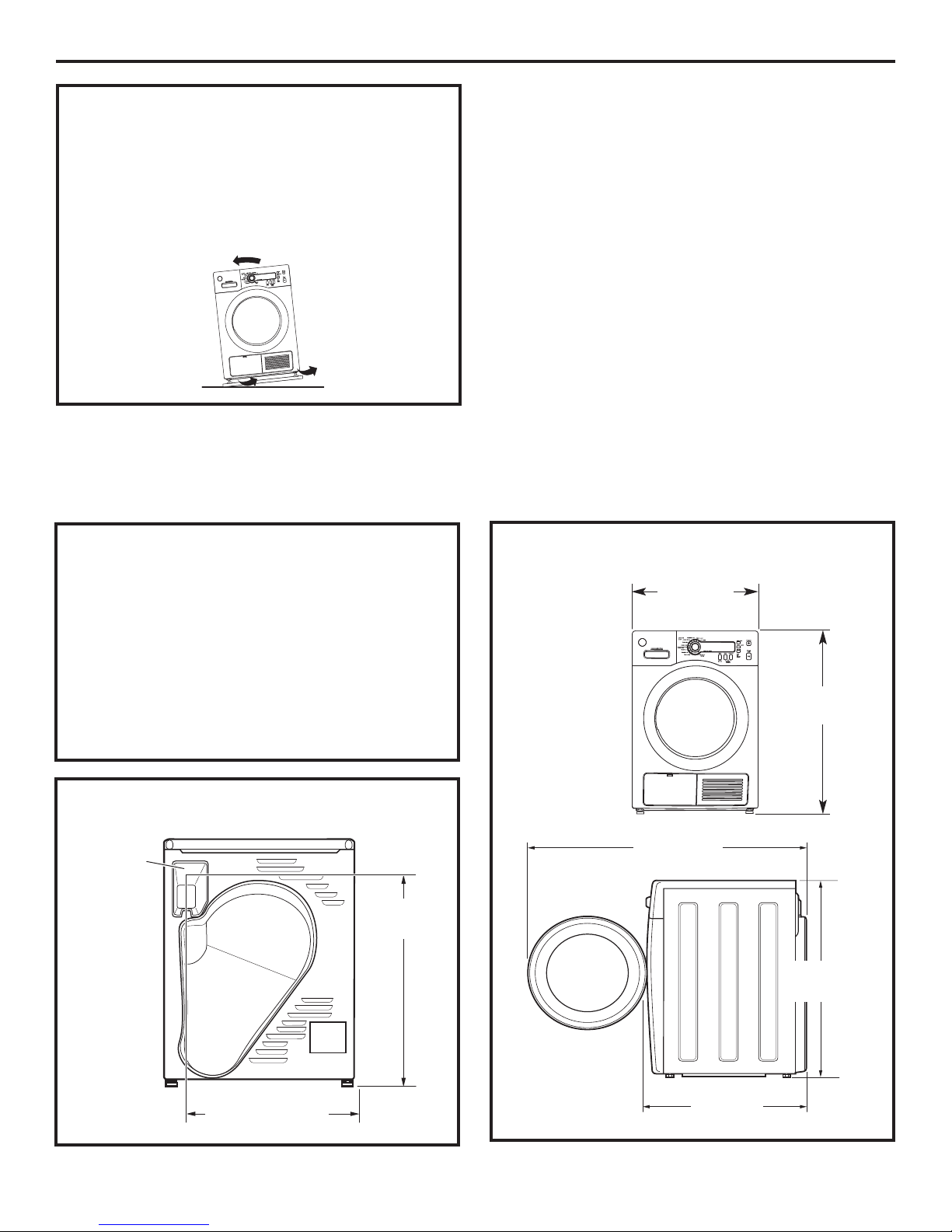

DRYER DIMENSIONS
¿ÀÈÄ 2:32:37
25.5”
(647 mm)
33.4”
(847.5 mm)
Side View
Front View
OCATION OF YOUR DRYER
¿ÀÈÄ 2:32:37
42.75”
(1086 mm)
E ECTRICA CONNECTION
Electrical
Connection
27.65”
(702 mm)
20.75” (527 mm)
Back View
23.5”
(598 mm)
33.4”
(848 mm)
MINIMUM C EARANCE OTHER THAN
A COVE OR C OSET INSTA ATION
Minimum clearance to combustible surfaces and
for air openings are:
•0 inch clearance both sides
•3 inches front and rear
Consideration must be given to provide adequate
clearance for proper operation and service.

14
Installation Instructions
BATHROOM OR BEDROOM
INSTA ATION
•The installation must conform with local codes or,
in the absence of local codes, with the NATIONAL
ELECTRICAL CODE, ANSI/NFPA NO. 70 (for electric
dryers) or NATIONAL FUEL GAS CODE, ANSI Z223
(for gas dryers).
MOBI E OR MANUFACTURED HOME
INSTA ATION
•The installation must conform to the
MANUFACTURED HOME CONSTRUCTION & SAFETY
STANDARD, TITLE 24, PART 32–80 or, when such
standard is not applicable, with AMERICAN
NATIONAL STANDARD FOR MOBILE HOME,
NO. 501B.
•Provide an opening with a free area of at least
25 sq. in. for introduction of outside air into the
dryer room.

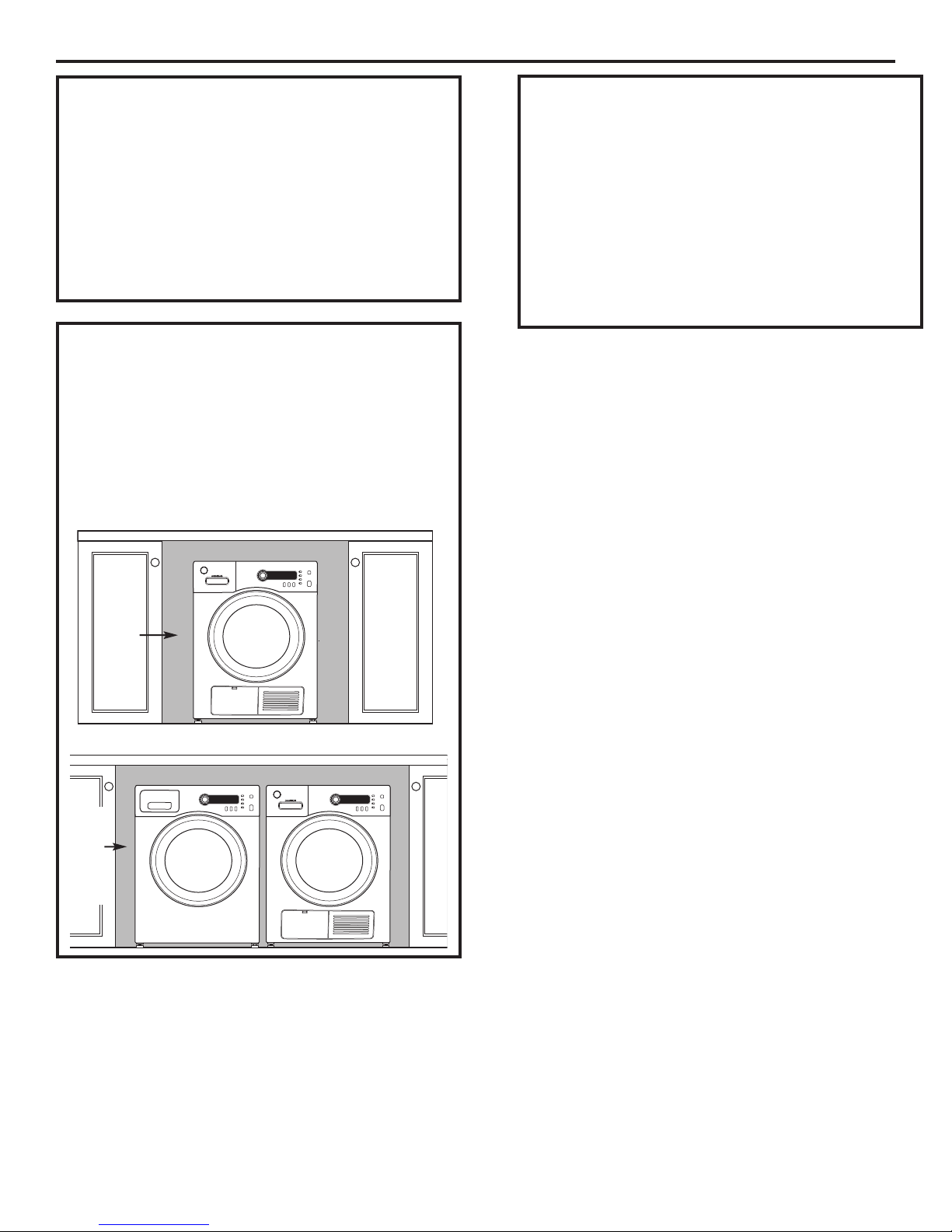

UNDERCOUNTER INSTA ATION
If an undercounter installation is desired:
•No special dryer installation kit is required.
•If the dryer is installed alone, a minimum of
60 square inches of open area is required.
If a washer and dryer are installed together,
a minimum of 120 square inches of open area
is required.
Washer and Dryer installed together
120
square
inches
min.
open
area
Countertop and side cabinets
Dryer installed alone
60
square
inches
min.
open
area
Countertop and side cabinets

Installation Instructions
15
CONNECTING AN E ECTRIC DRYER
E ECTRICA CONNECTION
INFORMATION FOR E ECTRIC DRYERS
WARNING – To reduce the risk of
fire, electrical shock and personal injury:
•Do not use an extension cord or an adapter
plug with this appliance.
•The dryer must be electrically grounded in
accordance with local codes and ordinances
or, in the absence of local codes, in accordance
with the NATIONAL ELECTRICAL CODE,
ANSI/NFPA NO. 70.
FOR YOUR SAFETY:
WARNING
Before making the electrical connection, turn off
the circuit breaker(s) or remove the dryer’s circuit
fuse(s) at the electrical box. Be sure the dryer cord
is unplugged from the wall. NEVER LEAVE THE
ACCESS COVER OFF THE TERMINAL BLOCK.
rSlip joint pliers
rFlat-blade screwdriver
rPhillips screwdriver
rLevel
TOO S YOU WI NEED
MATERIA S YOU WI NEED
rSafety glasses
rGloves
rDryer power cord kit
6 ft. long (not
provided with dryer)
UL-rated 120/240V,
30A with 3 or 4 prongs.
Identify the plug type
as per the house
receptacle before
purchasing line
cord. (4-prong cord set
is included and
installed on Canadian
models PCVH480 and
PCVH485.) Stacking
installations may
require a power cord
up to 6 feet in length.
E ECTRICA REQUIREMENTS
FOR E ECTRIC DRYERS
This dryer must be connected to an individual
branch circuit, protected by the required time-
delay fuses or circuit breakers. A three- or four-
wire, single-phase, 120/240V or 120/208V, 60Hz,
30-amp circuit is required.
If the electric supply does not meet the above
specifications, then call a licensed electrician.
GROUNDING INSTRUCTIONS
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal on the appliance.

CONNECTING DRYER USING 3-WIRE
CONNECTION
1. Turn off the circuit breaker(s) (30 amp) or remove
the dryer’s circuit fuse at the electrical box.
2. Be sure the dryer cord is unplugged from the
wall receptacle.
3. Remove the power cord cover located at the
upper back.
4. Bring the power cord through the bracket.
5. Connect power cord as follows:
A. Connect the 2 hot lines to the outer screws
of the terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center
of the terminal block (marked N).
6. Be sure ground strap is connected to green
ground screw on cabinet rear. Tighten all
terminal block screws (3) completely.
7. Reinstall the cover.
WARNING – NEVER EAVE THE
COVER OFF OF THE TERMINA B OCK.
Ground strap
Bracket
Installation Instructions
CONNECTING DRYER USING 4-WIRE
CONNECTION (MUST BE USED FOR
MOBI E HOME INSTA ATION)
NOTE: Since anuary 1, 1996, the National
Electrical Code requires that new constructions
utilize a 4-wire connection to an electric dryer.
A 4-wire cord must also be used where local codes
do not permit grounding through the neutral.
3-wire connection is NOT for use on new
construction.
WARNING – NEVER EAVE THE
COVER OFF OF THE TERMINA B OCK.
1. Turn off the circuit breaker(s) (30 amp) or remove
the dryer’s circuit fuse at the electrical box.
2. Be sure the dryer cord is unplugged from the wall
receptacle.
3. Remove the power cord cover located at the
upper back.
4. Remove the green ground screw and attach
the ground strap to the center terminal along
with the (white) neutral line described below.
Keep the green ground screw for Step 7.
5. Bring the power cord through the bracket.
6. Connect power cord as follows:
A. Connect the 2 hot lines to the outer screws
of the terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center
of the terminal block (marked N).
7. Attach ground wire of power cord with the green
ground screw (hole above strain relief bracket).
Tighten all terminal block screws (3) completely.
8. Reinstall the cover.
Green wire
from power
cord
Ground strap
16
Bracket
CONNECTING AN E ECTRIC DRYER (cont.)

Installation Instructions
17
CONNECTING THE DRAIN HOSE
DRAINING WATER WITHOUT USING THE
WATER TANK
You can use the dryer without using the water tank by
following the procedures below.
CONNECTING THE DRAIN HOSE
The Dryer can pump the condensed water outside of the
DRYER directly with drain hose provide.
The procedures to connect the drain hose are as follows.
A
A
B
1. Disconnect the drain hose A.
2. Connect the drain hose Ato
the other hole.
3. Connect accessory hose B
(long drain hose) adjacent to
hose A.
CAUTION:
rWhen connecting hose B, take care that the height of
the hose does not exceed 4 ft.
rAfter connecting the drain hose, you can now directly
drain the condensed water to a standpipe or washstand.
CONNECTING THE DRAIN HOSE (CONT.)
1. Over the edge of a wash basin: The drain hose must be
placed lower than 4 ft. If the end of the drain hose needs
to be placed above the ground, we recommend a height
of 3 - 4 ft. To keep the drain hose spout bent, use the
supplied plastic hose guide. Secure the guide to the wall
with a hook or to the tap with a piece of string to prevent
the drain hose from moving.)
2. Assemble the drain hose and the hose guide and fix
them with the cable-tie.
Drain hose
Hose guide
90 cm
Cable Tie
CAUTION:Do not push the drain hose in
the standpipe any further than 4 inches. Pushing
the drain hose further in the standpipe can cause
leaking.

Installation Instructions
18

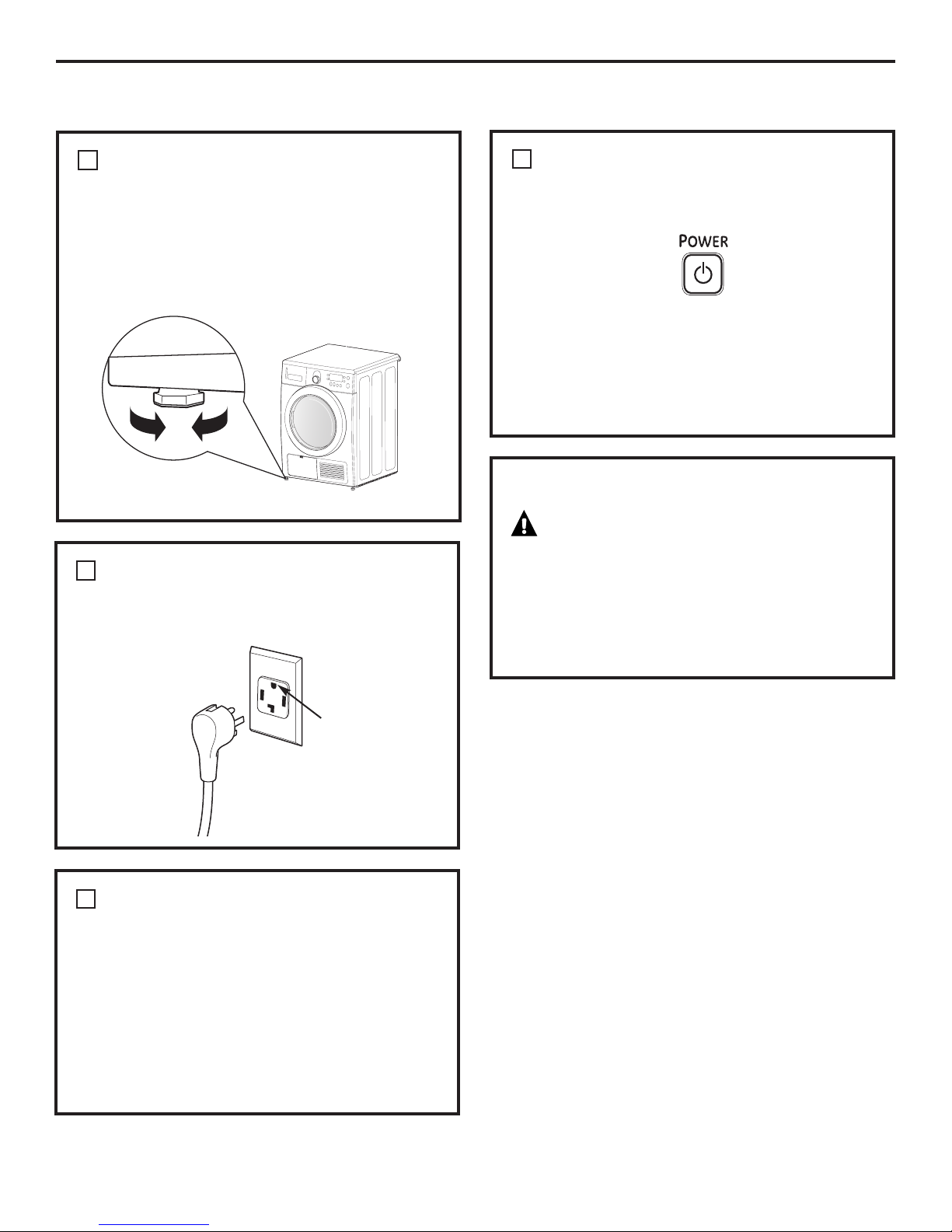

EVE THE DRYER
Stand the dryer upright near the final location
and adjust the four leveling legs at the corners
to ensure that the dryer is level from side to side
and front to rear.
Raise
Lower
P UG DRYER IN
Ensure proper
ground exists
before use.
1
FINA SETUP
2
DRYER STARTUP
Press the POWER button.
NOTE: If the dryer has been exposed to
temperatures below freezing for an extended
period of time, allow it to warm up before pressing
POWER. Otherwise, the display will not come on.
The dryer is now ready for use.
SERVICING
WARNING – abel all wires prior
to disconnection when servicing controls. Wiring
errors can cause improper and dangerous
operation after servicing/installation.
For replacement parts and other information,
refer to the back cover for servicing phone
numbers.
4
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event
of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing
a path of least resistance for electric current.
This appliance is equipped with a cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
3
NOTE: Stacking installations may require a power
cord up to 6 feet in length.

19
rPhillips-head screwdriver
Installation Instructions
REVERSING THE DOOR SWING (if desired)
IMPORTANT NOTES
•Read the instructions all the way through before
starting.
•Handle parts carefully to avoid scratching paint.
•Provide a nonscratching work surface for
the doors.
•Set screws down by their related parts to avoid
using them in the wrong places.
•All screws must be hand-tightened.
•Normal completion time to reverse the door
swing is 20–30 minutes.
IMPORTANT: Once you begin, do not move the
cabinet until door-swing reversal is completed.
These instructions are for changing the hinges
from the right side to the left side—if you ever want
to switch them back to the right side, follow these
same instructions and reverse all references
to the left and right.
TOO S YOU WI NEED
HARDWARE USED
rMounting Screw
rHinge Bracket
Anchoring Screws
rDoor and Latch Screws

REMOVE THE DOOR ASSEMB Y
Remove hinge bracket anchoring screws.
1
DISASSEMB E THE DOOR ASSEMB Y
Remove 16 door screws and male end of latch
from the inner side of the door.
2
Remove the inner face.
Installation Instructions
20
BEFORE YOU START
Unplug the dryer from its electrical outlet.
REVERSING THE DOOR SWING (if desired)
Slide door and hinge assembly upward; then
remove the assembly from the dryer front panel.
Lift and rotate the window assembly 180º and
replace. Also rotate the inner face 180° and
replace.
