GE GFDN110GD User manual

Dimensions and Installation Information (in inches)
Exhaust Options: 3-way via rear, left, and bottom.
Circuit Requirements: An individual, properly grounded
branch circuit, protected by a 15-20 amp circuit breaker
or a time-delay fuse, is required.
Note: Dryer wall outlet must be located within 36”
of service cord entry and accessible when dryer is
mounted in position.
Installation Information: For complete information, see
installation instructions packed with your dryer.
Gas Dryer Rating
120V 60Hz, 6A
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
GFDN110GD
GE®7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
Above illustration intended for dimensional reference only.
Refer to photography for actual product appearance.
2-1/2
1-3/4
12
3-1/2
Electrical
Connection
Gas Pipe
Connection
Specification Revised 4/15
27 32-3/16
39-3/8
4-1/2
4-3/8

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Special Installation Requirements:
Stacked Installation:
•Brackets for stacking dryer over washer are not included with the dryer.
GEFLSTACK or part no. WE25X10018.
Alcove or Closet Installation:
•Ifyourdryerisapprovedforinstallationinanalcoveorcloset,itwillbe
stated on a label on the dryer back.
•ThedryerMUSTbeexhaustedtotheoutside.
•Minimumclearancesbetweendryercabinetandadjacentwallsorother
surfaces are: 0" either side, 3" front and rear
•Minimumverticalspacefromfloortooverheadcabinets,ceilings,etc.is52".
•Closetdoorsmustbelouveredorotherwiseventilatedandmustcontaina
minimumof60sq.in.ofopenareaequallydistributed.Ifthisclosetcontains
both a washer and a dryer, doors must contain a minimum of 120 sq. in. of
open area equally distributed.
•Nootherfuel-burningapplianceshallbeinstalledinthesameclosetwith
a gas dryer.
Bathroom or Bedroom Installation:
•ThedryerMUSTbeexhaustedtotheoutdoors.
•Theinstallationmustconformwiththelocalcodes,orintheabsenceof
local codes, with the National Electric Code and National Fuel Gas Code,
ANSIZ223forgasdryers.
Minimum Clearance other than Alcove or Closet Installations:
•Minimumclearancestocombustiblesurfaces0"bothsides,3"rear.
For more information on venting kits and accessories,
please call 1-800-GE-CARES.
Stacked Dimensions (in inches)
27
13
28-3/4
Pedestal Dimensions (in inches)
SBSD137HWW - white
This optional 13" pedestal raises
the door opening and height of
the washer or dryer. Feet on 13"
pedestalallowittoadjustto
13-3/8" height.
GFDN110GD
GE®7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
Above illustrations intended for dimensional reference only.
Refer to photography for actual product appearance.
Specification Revised 4/15
1/2
49-5/8
24 3-1/4
79-5/8

Dryer Exhausting Information – Metal Duct Only
For complete information, see installation instructions packed with your dryer.
Ducting Materials: For best performance, this dryer should be vented with 4” diameter
allrigidmetalexhaustduct.Ifrigidmetalductcannotbeused,thenUL-listedflexible
metal(semi-rigid)ductingcanbeused(KitWX08X10077).Inspecialinstallations,itmay
benecessarytoconnectthedryertothehouseventusingaflexiblemetal(foil-type)duct.
AUL-listedflexiblemetal(foil-type)ductmaybeusedONLYininstallationswhererigid
metalorflexiblemetal(semi-rigid)ductingcannotbeusedANDwherea4”diametercan
be maintained throughout the entire length of the transition duct. Please see installation
instructionpackedwithyourdryerforcompleteinstructionswhenusingflexiblemetal(foil
type) ducting.
Exhaust Length Calculation:
1. Determinethenumberof90°turnsneededforyourinstallation.Ifyouexhausttothe
side or bottom of dryer, add one turn.
2. Themaximumlengthof4’rigid(aluminumorgalvanized)ductwhichcanbetoleratedis
shown in the table.
A turn of 45° or less may be ignored. Two 45° turns within the duct length should be
treated as a 90° elbow.
A turn over 45° should be treated as a 90° elbow.
Dryers mustbeexhaustedtotheoutside.
Caution: Forpersonalsafetydonotterminateexhaustintoachimney,underanyenclosed
house floor (crawl space), or into an attic, since the accumulated lint could create a fire
hazardormoisturecouldcausedamage.Neverterminatetheexhaustintoacommonduct
orplenumwithakitchenexhaust,sincethecombinationoflintandgreasecouldcreatea
fire hazard.
Exhaustductsshouldbeterminatedinadamperedwallcaptopreventbackdrafts,bird
nesting, etc. The wall cap must also be located at least 12" above the ground or any other
obstruction with the opening pointed Down.
For more information on venting kits and accessories, please call 1-800-GE-CARES.
GFDN110GD
GE®7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
Specification Revised 4/15

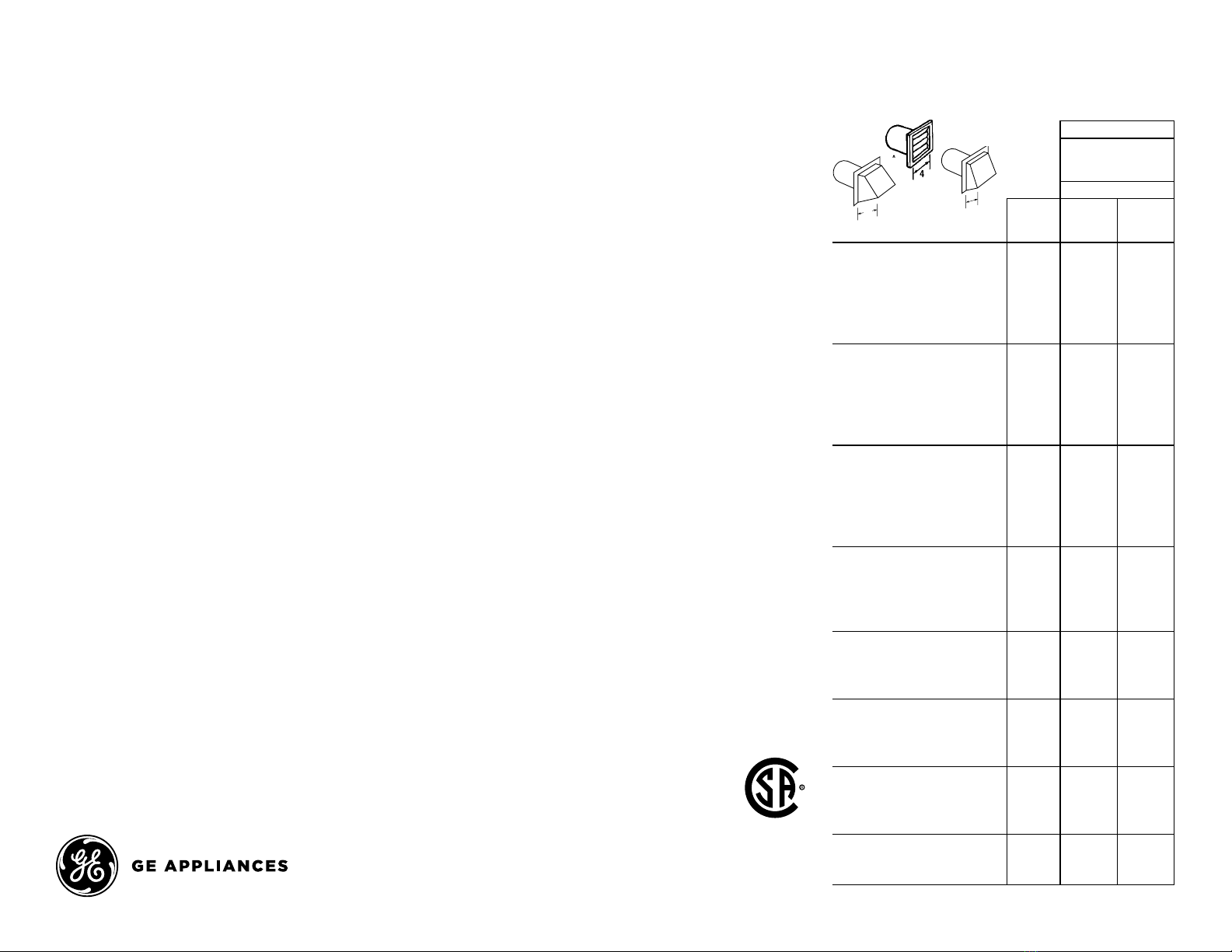

Dryer exhausting information—use metal
duct only vertical and horizontal ducting
A
B
2-1/2
4
GE Dryer Vent
A
B
2-1/2
4
GE Dryer Vent
A
Best performance
Maximumlength
of 4" dia rigid
metal duct
Exhausthoodtype
Domestic dryer models
Number
of 90°
turns
A
4"
opening
B
2-1/2"
opening
GE Frontload Long Vent 7.0
cu. ft. capacity electric dryer
(GFDL)
0200 ft. 175 ft.
1185 ft. 165 ft.
2175 ft. 155 ft.
3165 ft. 145 ft.
4155 ft. 135 ft.
5145 ft. 125 ft.
Long Vent 6.0 - 8.0 cu. ft.
capacity electric & gas dryers
(GTDL and GTV)
0150 ft. 125 ft.
1135 ft. 115 ft.
2125 ft. 105 ft.
3115 ft. 95 ft.
4105 ft. 85 ft.
595 ft. 75 ft.
Long Vent 7.0 cu. ft. capacity
electric & gas (GTD42, GTD45,
GTD65, GTX42 and GTX60)
0120 ft. 90 ft.
1100 ft. 75 ft.
285 ft. 65 ft.
370 ft. 55 ft.
460 ft. 45 ft.
555 ft. 35 ft.
All 6.0 - 8.3 cu. ft. capacity
models electric and gas dryers
(GFDS, GFDR, GFDN, GTDS,
GTDN, GHDN, GHDS, GTDP,
GLDP, GTD, HTDP, HTDX)
090 ft. 60 ft.
160 ft. 45 ft.
245 ft. 35 ft.
335 ft. 25 ft.
425 ft. 15 ft.
DCVH480
090 ft. 60 ft.
160 ft. 45 ft.
245 ft. 35 ft.
335 ft. 25 ft.
All 3.6 cu. ft. (DSKS, DSKP)
electric dryers
046 ft. 37 ft.
137 ft. 30 ft.
230 ft. 22 ft.
323 ft. 15 ft.
LaundryCenterGUD27
056 ft. 42 ft.
148 ft. 34 ft.
240 ft. 26 ft.
332 ft. 18 ft.
LaundryCenterGUD24
043 ft. 36 ft.
133 ft. 26 ft.
224 ft. 16 ft.
Foreveryextra90°elbow,reducetheallowableventsystemlengthby10ft.
Two 45° elbows will be treated like one 90° elbow.
Forthesideexhaustinstallations,addone90°elbowtothechart.
The total vent system length includes all the straight portions and elbows of
the system (transition duct included).

GFDN110ED_GDWW
Features and Benefits
•DuraDrumprovideslong-lastingdependability
•HESensorDry-Keepyourclotheslookingandfeelingtheirbest.Dualthermistors
continually monitor temperature with a sensor bar that measures moisture to
prevent over-drying
•SpeedDryquicklydriesitemsandsmallloadsforfamiliesonthego
•eDryoption—energysavingoptionreducesdrytemperaturesonselectcycles
without sacrificing performance
•4heatsettingsprovidetherighttemperaturefortherightdryingneeds
•6drycycles—additionalcyclesforyourclothes-dryingneeds
• ModelGFDN110GDWW–White
GFDN110GD
GE®7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
Specification Revised 4/15
