JKP20BF/CF/WF – GE 27" Built-In Single Oven
Specification Created 7/02
320430
Installation Information: Before installing, consult
installation instructions packed with product for current
dimensional data.
27" Built-In Single Oven Dimensions (in inches)
2" x 4"
or equiv.
runners
B MIN.
C MIN.
Conduit 4 8-1/2" long
6015 Built-in Single Oven
(Pub. 1-G003 pg. 107) April 28, 1993
32-1/2
D
10
AAllow 3/4"
for overlap
over all edges
of cutout
Locate
junction box
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
Minimum
cutout location
from floor
(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)
E
G
F
20
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least a 194°F temperature rating.
Note: For 27" built-in single ovens, if marks, blemishes or the cutout opening
is visible above the installed oven, it may be necessary to add wood shims
under the runners and front trim until the marks or openings are covered.
Note: These ovens are not approved for stackable or side-by-side
installations.
Note: These ovens can be installed side-by-side with no less than
30" distance between center-to-center of each oven.
Cabinet 27"
A – Cabinet Width Required 27" min.
B – Minimum Cabinet Depth 23-5/8"
C – Opening Width 25" min. - 25-1/4 max.
D – Opening Height 27-5/8" min. - 28-1/8 max.
Oven
E – Overall Depth 23-5/8"
w/o trim 28-1/4"
F – Overall Height with trim 29"
G – Overall Width 26-5/8"
C�
L�
Suitable�
bracing �
to support�
runners 18" �
Over centerline�
of cabinet
2" x 4" or�
equivalent�
runners
(Must support 275 lbs.)
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™ or
GE appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Electric wall ovens are not approved for installation with a plug
and receptacle. They must be hard wired in accordance with
installation instructions.
KW Rating
240V 3.4
208V 2.6
Breaker Size
240V 20 Amps
208V 20 Amps

GE Appliances
JKP20BF/CF/WF – GE 27" Built-In Single Oven
Specification Created 7/02
320430

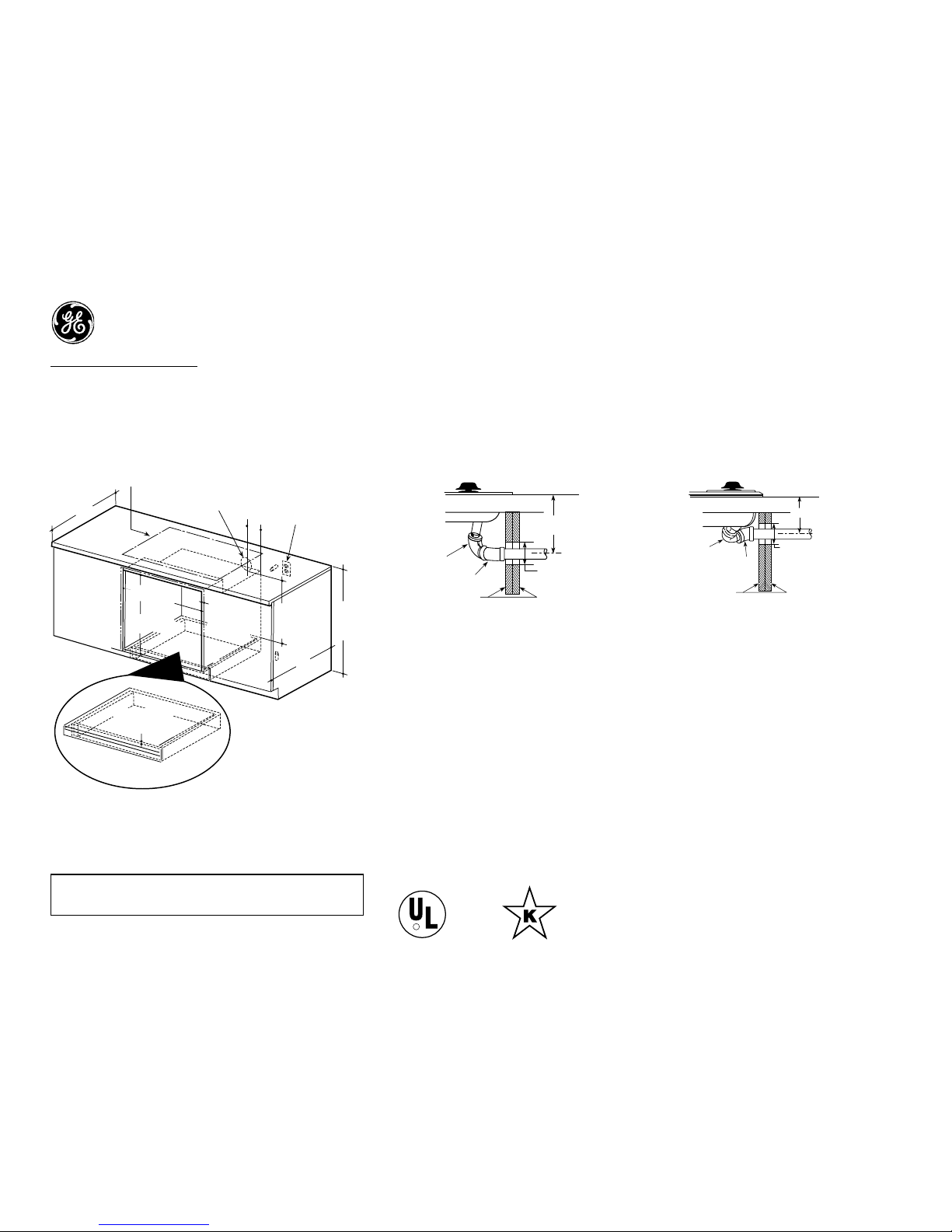

Undercounter Installation Dimensions (in inches) Sealed Burner Gas Cooktop
Installation Dimensions (in inches)
Standard Burner Gas Cooktop
Installation Dimensions (in inches)
7
25
Gas or electric cooktops may be installed over this�
oven. See cooktop installation instructions for cutout size.�
See label on top of oven for approved cooktop models.
Gas or electric connections�
for gas cooktop must be�
located in an adjacent�
accessible location to the right
5
240V / 208V�
Junction Box�
Location
36"�
Typical�
Countertop�
Height
24
Allow 1"�
unit overlap�
all edges
25" MIN.
25 1/4" MAX.
27 5/8" MIN.
28 1/8" MAX.
3/4" Support�
Platform Required
Must Support 150 Lbs.
22" MIN. �
Above�
Support�
Platform
Note: Oven is rated for use only under 30" standard or sealed burner gas and
selected 30" CleanDesign and Calrod® electric cooktops.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
90° Street el
45° Elbow
Cabinet sides
2" Diameter hole (20-7/8"�
from front of countertop�
to hole center)
Sealed Burner Gas Cooktop Installation
(Pub. 1-G003 pg. 107) May 11, 1993
5" To center of 2" diameter�
hole from countertop
90° Street el
45° Elbow
To center of 2" diameter�
hole from countertop
Cabinet sides
3-7/16"
2" MIN. diameter hole�
(23-1/4" from front�
surface of countertop)
Standard Burner Gas Cooktop Installation�
(Pub. 1-G003 pg. 107) May 11, 1993
Note: Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least a 194°F temperature rating.
Electric wall ovens are not approved for installation with a plug
and receptacle. They must be hard wired in accordance with
installation instructions.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™ or
GE appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.

GE Appliances
JKP20BF/CF/WF – GE 27" Built-In Single Oven
Specification Created 7/02
320430
JKP20WF/BF/CF
Features and Benefits
• TrueTemp™ System
• Extra-Large 3.9 cu. ft. Capacity Self-Cleaning Oven
• SmartSet Electronic Oven Controls
• Certified Sabbath Mode
• Delay Bake Option
• 2 Oven Racks with 4 Embossed Positions
• Audible Preheat Signal and Interior Oven Light
• True Frameless Glass Oven Door with Big ClearView™ Window
• Installation Flexibility
• Model JKP20WFWW – White on white
• Model JKP20CFCC – Bisque on bisque
• Model JKP20BFBB – Black on black
