JT915BF/CF/SF/WF – GE Profile™30" Built-In Single Oven
Dimensions (in inches)
Single Oven Wall-Mount or Cabinet Installation (in inches)
KW Rating
240V 3.6
208V 2.7
Breaker Size
240V 20 Amps
208V 20 Amps
Note: These ovens are not approved for stackable or side-by-side installations.
Most 30" Wall Cabinets can be used with this unit.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
29-3/4
28-1/4
30
Recommended
cutout location
32-1/2"
from floor
21
Junction
box
location
Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
Conduit
(48" long)
5
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
A
B
23-1/2'' MIN.
Cutout depth
22'' MIN.
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
C
L2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners 21-5/8"
over centerline
of cabinet
(Must support 275 lbs.)
Specification Created 7/02
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.

JT915BF/CF/SF/WF –GE Profile™30" Built-In Single Oven
TM

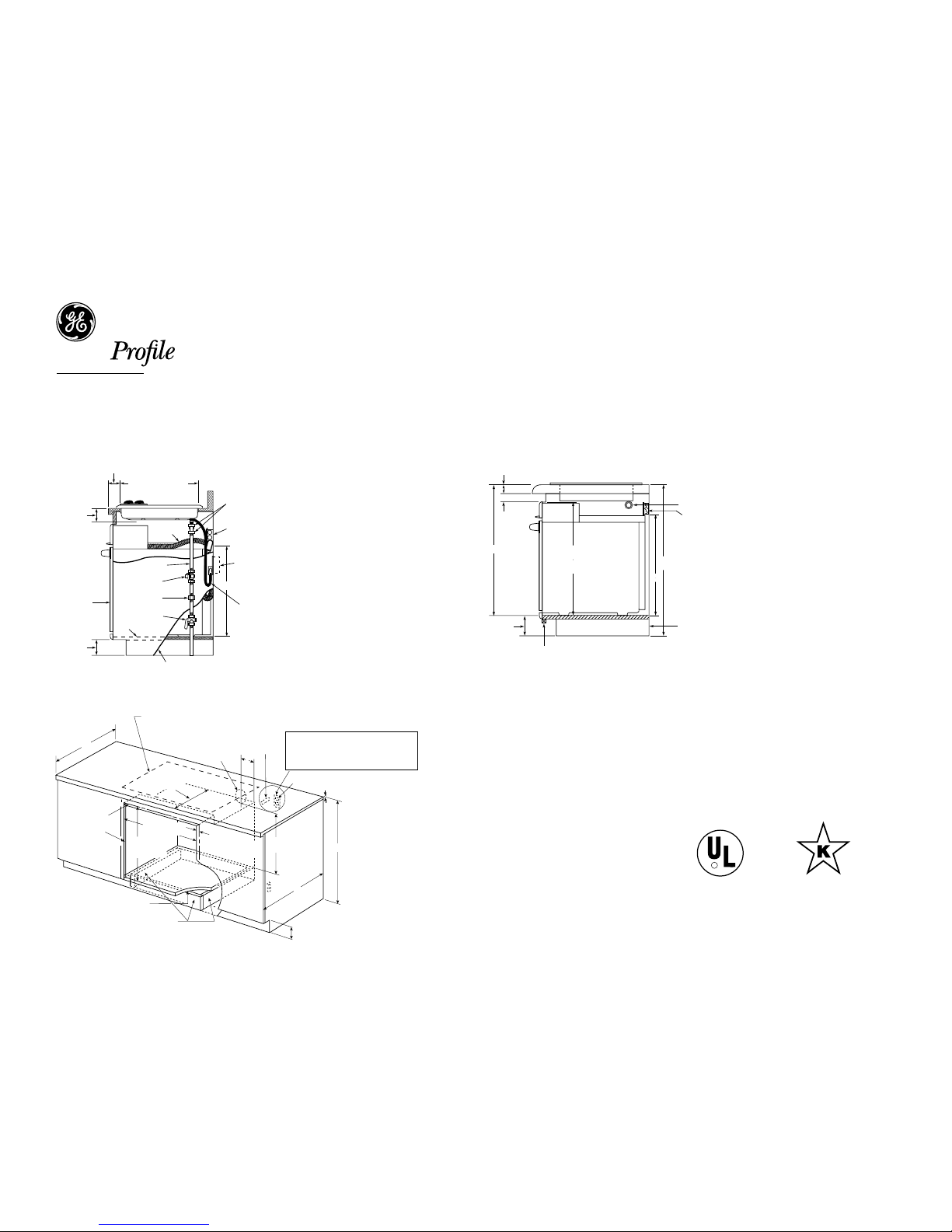

Optional Undercounter Installation
with 36" Gas Cooktop (in inches) Optional Undercounter Installation With 30" CleanDesign or Sealed Burner Gas Cooktop (in inches)
Specification Created 7/02
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Power cord
for counter unit
Junction box
for oven
Junction box in
adjacent cabinet
for counter unit
hook-up
2 (two) 90°elbows &
sufficient pipe to
connect in adjacent
cabinet
Right cabinet side
3/4" Support
Shut-off
valve
Pressure
regulator
1/2" Black
iron pipe
Union
Conduit
(48" long)
30" built-in
oven
3-1/2" MIN.
Free space
4" To 4-1/2"
3-1/4
22
19-1/16" Cutout depth
Side View
This installation is to achieve minimum gap
between bottom of countertop and control panel.
Note: For this installation, the bottom trim
will not be flush with a typical 4" toe kick.
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a
194°F temperature rating.
5-9/16"
Reference dim. for
MAX. support height
with typical 36" countertop
height
36" Typical
Countertop height
Power cord
Reference
5-9/16
30-7/16
Free space
1-1/2" MIN.
1-1/2" Typical countertop
Side View
22
27-5/16" MAX.
Cutout height
27-1/4" MIN.
Junction box(s) for
oven & radiant
cooktop 22" from
floor
Add suitable filler
to match adjacent
cabinets when needed
to maintain toe kick
alignment
Undercounter Installation (in inches)
5
24
25
Gas or electric cooktops may be installed over
this oven. See cooktop installation instructions
for cutout size. See label on top of oven for
approved cooktop models. Gas (including the pressure regulator) and
electrical connections for gas cooktop must
be located in an adjacent accessible location
to the right. For a 36" gas cooktop, the
connections may be made to the left.
120 Volt
Outlet
Gas
connection
Junction box
location
240/208V
36'' MIN.
4'' To 4-1/2 '' Toe kick allowable
Match toe kick height
front and two sides
22'' MIN. above
support platform
Top and/or side
fillers may be
necessary if unit
is positioned
between
existing cabinets
28-1/2'' MIN.
28-5/8'' MAX.
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
3/4'' Support
platform required
23-1/2" MIN.
Cutout depth
Allow 11/16''
overlap over side
edges of cutout
1-1/2"
Countertop
Note: 36" ribbon cooktops (excluding JP968) are approved for
use over GE 30" single wall ovens only. 30" ribbon cooktops
(excluding JP938) are approved for use over GE 30" and
GE 27" single wall ovens. Model JP938 can be installed over
27" wall ovens except stainless model JK915 and JK912SF.
Refer to cooktop and wall oven installation information packed
with products for current dimensional data.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.

TM
Specification Created 7/02
JT915BF/CF/SF/WF –GE Profile™30" Built-In Single Oven
Features and Benefits
•Multi-Mode Convection Bake and Convection Roast with Auto Recipe™Conversion
•Precise Air™Convection System
•TrueTemp™System
•Extra-Large 4.1 cu. ft. Capacity Self-Cleaning Convection Oven with
CleanDesign™Oven Interior and Delay Clean Option
•SmartSet Electronic Glass Touch Oven Controls with Digipad
•Certified Sabbath Mode/Proofing Mode
•3 Heavy Duty Oven Racks with 7 Embossed Positions and Roasting Rack
•True Frameless Glass Oven Door with Big ClearView™Window and
Halogen Interior Light
•Convection Cookbook Included
•Model JT915WFWW –White on white
•Model JT915BFBB –Black on black
•Model JT915CFCC –Bisque on bisque
•Model JT915SFSS –Stainless steel
