GE 28031xx2 User manual

Model 28031 Series
5.8 GHz Cordless Handset
Speakerphone/Answering
System User’s Guide
25840
Need grayscale,
3/4 view of complete unit.
Your new Ge telephone sYstem is eXpAnDABle
up to AtotAl of 4 hAnDsets (BY purchAse of optionAl
moDel 28001 hAnDset with chArGe crADle)
Spun from the 28021

2
equipment ApprovAl informAtion
Your telephone equipment is approved for connection to the Public Switched Telephone Network
and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical
Requirements for Telephone Terminal Equipment published by ACTA.
1 Notification to the Local Telephone Company
On the bottom of this equipment is a label indicating, among other information, the US
number and Ringer Equivalence Number (REN) for the equipment. You must, upon request,
provide this information to your telephone company.
The REN is useful in determining the number of devices you may connect to your telephone
line and still have all of these devices ring when your telephone number is called. In most (but
not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5.
To be certain of the number of devices you may connect to your line as determined by the
REN, you should contact your local telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68 rules and requirements adopted
by the ACTA. A compliant telephone cord and modular plug is provided with this product.
It is designed to be connected to a compatible modular jack that is also compliant. See
installation instructions for details.
Notes
• This equipment may not be used on coin service provided by the telephone company.
• Party lines are subject to state tariffs, and therefore, you may not be able to use your own
telephone equipment if you are on a party line. Check with your local telephone company.
• Notice must be given to the telephone company upon permanent disconnection of your
telephone from your line.
• If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this product does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult your telephone company or a
qualied installer.
US Number is located on the cabinet bottom
REN number is located on the cabinet bottom
2 Rights of the Telephone Company
Should your equipment cause trouble on your line which may harm the telephone network,
the telephone company shall, where practicable, notify you that temporary discontinuance
of service may be required. Where prior notice is not practicable and the circumstances
warrant such action, the telephone company may temporarily discontinue service
immediately. In case of such temporary discontinuance, the telephone company must: (1)
promptly notify you of such temporary discontinuance; (2) afford you the opportunity to
correct the situation; and (3) inform you of your right to bring a complaint to the Commission
pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations.

3
The telephone company may make changes in its communications facilities, equipment,
operations or procedures where such action is required in the operation of its business and
not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the
use or performance of your telephone equipment, the telephone company must give you
adequate notice, in writing, to allow you to maintain uninterrupted service.
interference informAtion
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference; and (2) This device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna (that is, the antenna for radio or television that
is “receiving” the interference).
• Reorient or relocate and increase the separation between the telecommunications
equipment and receiving antenna.
• Connect the telecommunications equipment into an outlet on a circuit different from that
to which the receiving antenna is connected.
If these measures do not eliminate the interference, please consult your dealer or an
experienced radio/television technician for additional suggestions. Also, the Federal
Communications Commission has prepared a helpful booklet, “How To Identify and Resolve
Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing
Ofce, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering
copies.
heArinG AiD compAtiBilitY (hAc)
This telephone system meets FCC standards for Hearing Aid Compatibility.
licensinG
Licensed under US Patent 6,427,009

4
SEE MARKING ON BOTTOM / BACK OF PRODUCT
RISK OFELECTRICSHOCK
DONOTOPEN
WARNING: TO
PREVENT FIRE OR
ELECTRICAL SHOCK
HAZARD, DO NOT
EXPOSETHIS
PRODUCT TO RAIN
OR MOISTURE.
THE LIGHTNING
FLASH AND ARROW
HEAD WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
“DANGEROUS
VOLTAGE” INSIDE
THE PRODUCT.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR
BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
CAUTION:
fcc rf rADiAtion eXposure stAtement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body. This transmitter must not be co-located or
operated in conjunction with any other antenna or transmitter.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines
when used with the belt clip supplied with this product. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.

5
EquipmEnt ApprovAl informAtion ................ 2
intErfErEncE informAtion ........................... 3
tABle of contents

6
SAVE THESE INSTRUCTIONS

7
introDuction
CAUTION: When using telephone equipment, there are basic safety
instructions that should always be followed. Refer to the IMPORTANT
SAFETY INSTRUCTIONS provided with this product and save them for
future reference.
IMPORTANT: Because cordless phones operate on electricity, you should have
at least one phone in your home that isn’t cordless, in case the power in your
home goes out.
Before You BeGin
pArts checklist (for moDel 28031XX1)

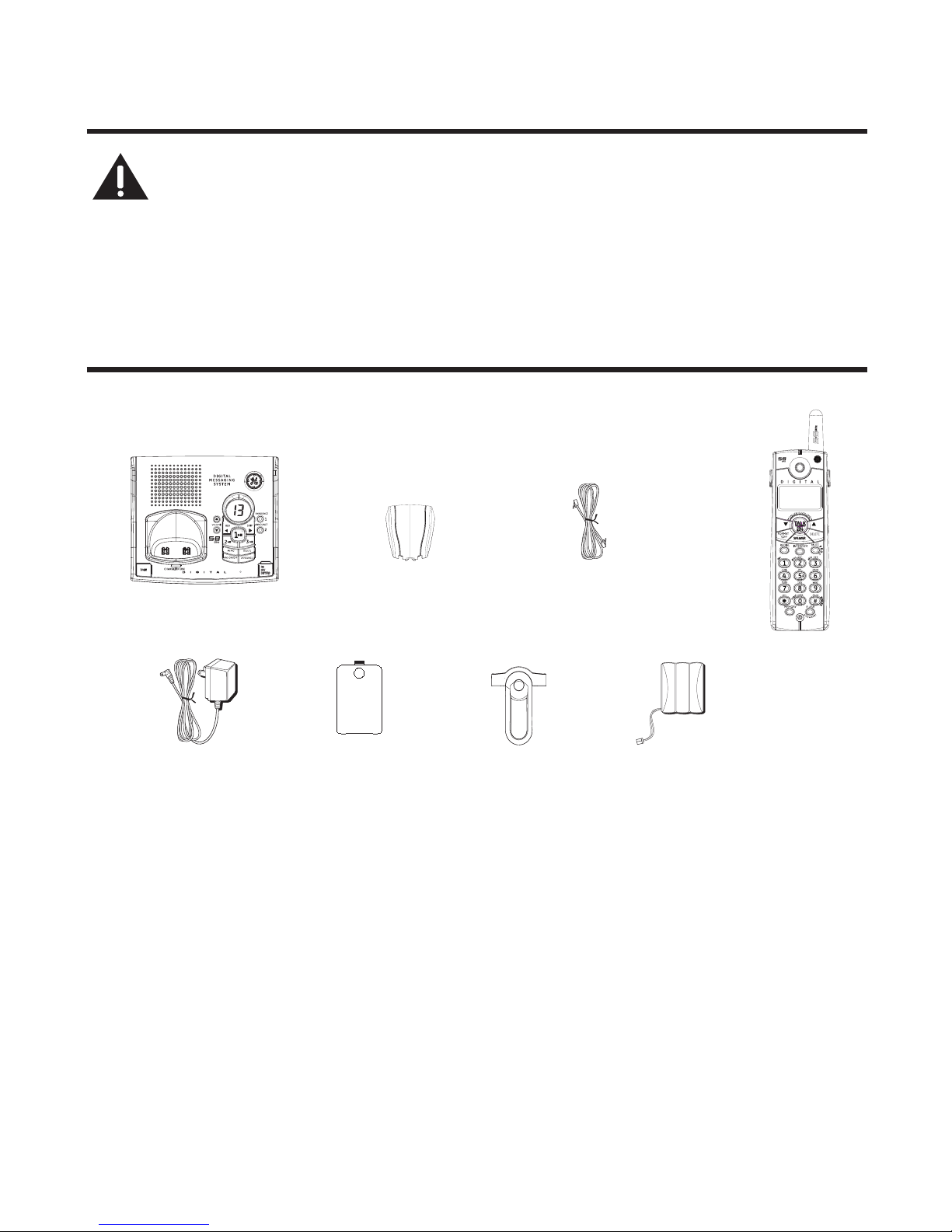

Make sure your package includes the items shown here.
For Model 28031xx2 there will be ONE additional handset, charge cradle, belt clip,
battery pack and cover than shown above.
For Model 28031xx2 there will be TWO additional handsets, charge cradles, belt clips,
battery packs and covers than shown above.
For Model 28031xx2 there will be THREE additional handsets, charge cradles, belt
clips, battery packs and covers than shown above.
Base
Handset
Belt
clip
Telephone
line cord
AC power
adaptor
Handset
battery pack
Battery compartment
cover
Wall mount
bracket

8
telephone JAck requirements

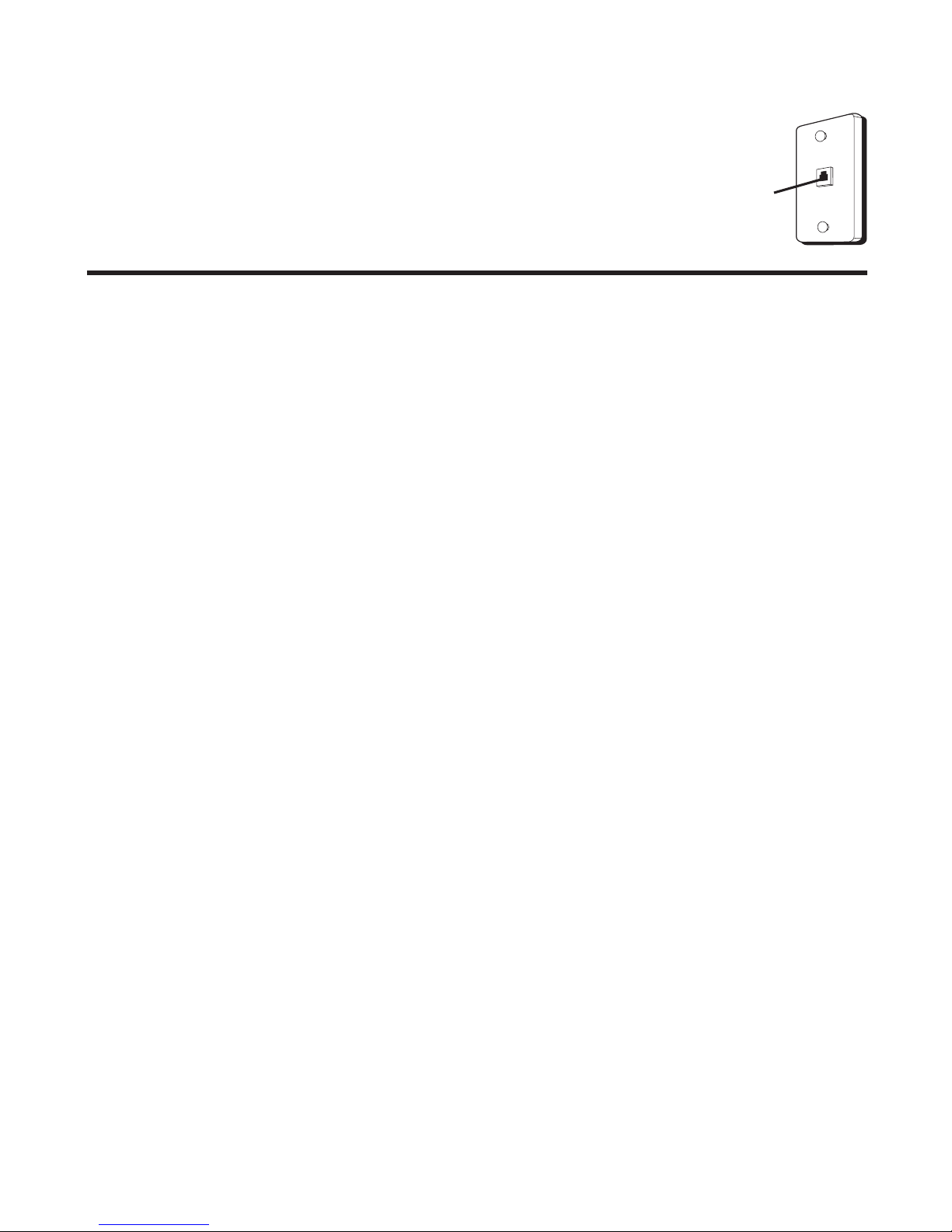

To use this phone, you need an RJ11C type modular telephone
jack, which might look like the one pictured here, installed in
your home. If you don’t have a modular jack, call your local
phone company to nd out how to get one installed.
instAllAtion
DiGitAl securitY sYstem
Your cordless phone uses a digital security system to protect against false ringing,
unauthorized access, and charges to your phone line.
INSTALLATION NOTE: Some cordless telephones operate at frequencies that
may cause or receive interference with nearby TVs, microwave ovens, and
VCRs. To minimize or prevent such interference, the base of the cordless
telephone should not be placed near or on top of a TV, microwave ovens, or
VCR. If such interference continues, move the cordless telephone farther away
from these appliances.
Certain other communications devices may also use the 5.8 GHz frequency
for communication, and, if not properly set, these devices may interfere with
each other and/or your new telephone. If you are concerned with interference,
please refer to the owner’s manual for these devices on how to properly set
channels to avoid interference. Typical devices that may use the 5.8 GHz
frequency for communication include wireless audio/video senders, wireless
computer networks, multi-handset cordless telephone systems, and some
long-range cordless telephone systems.
importAnt instAllAtions GuiDelines
• Avoid sources of noise and heat, such as motors, uorescent lighting,
microwave ovens, heating appliances and direct sunlight.
• Avoid areas of excessive dust, moisture and low temperature.
• Avoid other cordless telephones or personal computers.
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specically
designed for wet locations.
• Never touch non-insulated telephone wires or terminals, unless the telephone
line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
Modular
telephone
line jack
Wall plate

9
FORMAT/CONF
(format/conference button)

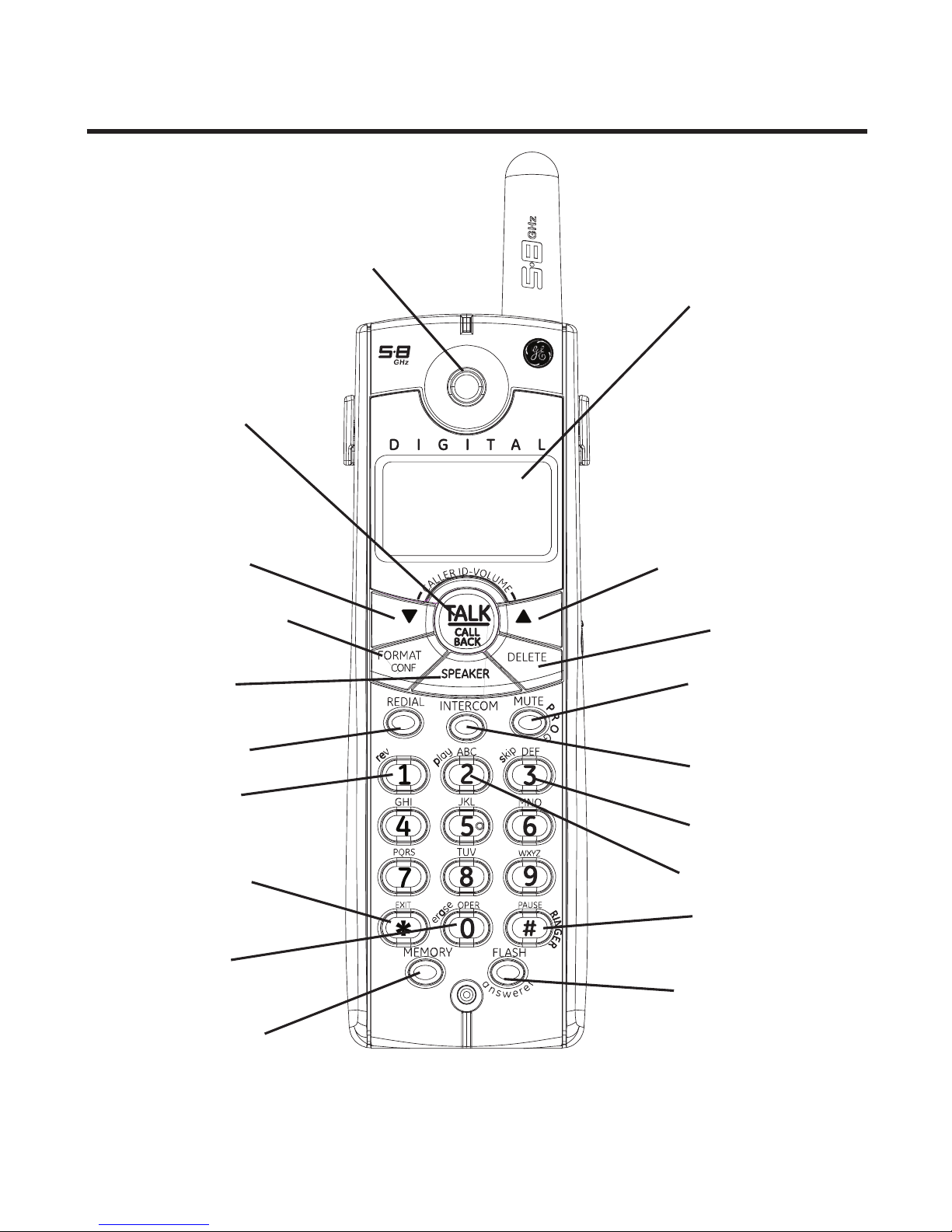

hAnDset lAYout
display
SPEAKER
(button)
skip (button)
# PAUSE/RINGER
(button)
MEMORY (button)
erase (button)
FLASH/answerer (button)
MUTE/PROG
(mute/program button)
INTERCOM
(button)
REDIAL (button)
* EXIT (button) play (button)
rev (review
button)
TALK•CALL BACK
(button)
CALLER ID-VOL
(caller ID/volume button)
DELETE (button)
SPEAKER
CALLER ID-VOL
(caller ID/volume button)

10

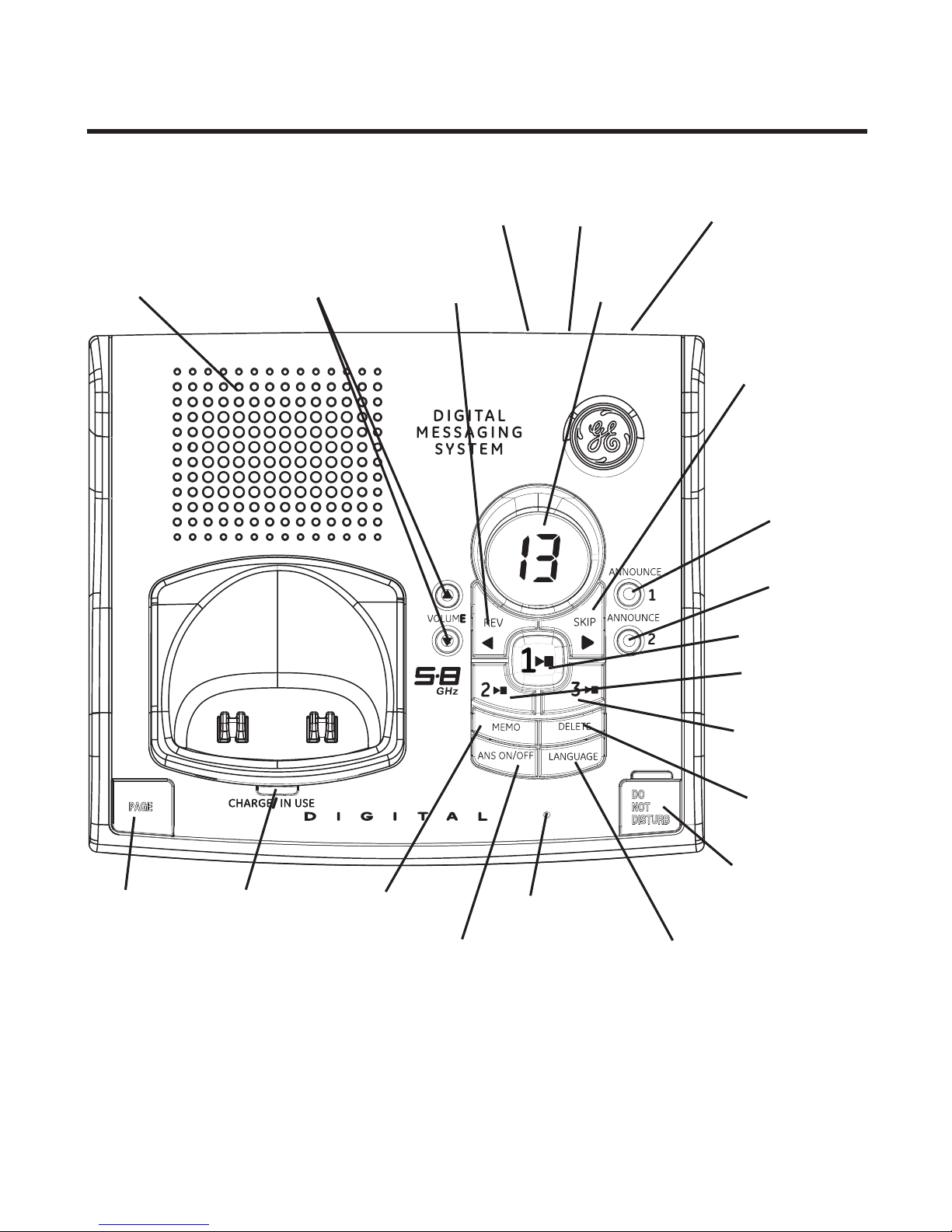

BAse lAYout
CHARGE/IN USE
(indicator)
ANS ON/OFF
(answerer
button)
ANNOUNCE 1
(button)
ANNOUNCE 2
(button)
DELETE
(button)
REVIEW
(button)
PLAY/STOP 1
(button/indicator)
SKIP
(button)
DO NOT DISTURB
(button)
MEMO
(button)
VOL
(volume buttons)
PLAY/STOP 3
(button/indicator)
PLAY/STOP 2
(button/indicator)
Message
indicator
PAGE
(button)
DAY/CHECK
(button)
HOUR
(button)
MIN
(minute button)
LANGUAGE
(button)
Microphone
SPEAKER

11
instAllinG the phone
instAllinG the hAnDset BAtterY
NOTE: You must connect the handset battery before use.
CAUTION: To reduce the risk of fire or personal injury, use only the
ATLINKS USA, Inc. Nickel-metal Hydride battery model 5-xxxx, which is
compatible with this unit.
1. Locate battery and battery door which are packaged together inside a plastic bag
and are separate from the handset.
2. Locate the battery compartment on the back of the handset.
3. Plug the battery pack cord into the jack inside the compartment.
NOTE: To ensure proper battery installation, the connector is keyed and can
be inserted only one way.
4. Insert the battery pack.
5. Close the battery compartment by pushing the door up until it snaps into place.
BLACK WIRE
RED WIRE
BATTERY
PRESS DOWN
FIRMLY

12
BAse stAtion
1. Choose an area near an electrical outlet and a telephone wall jack (RJ11C), and
place your telephone base on a level surface, such as a desktop or tabletop, or
you may mount it on the wall.
2. Plug one end of the telephone line cord into the TEL LINE jack on the bottom of the
base and the other end into a modular jack.
3. Plug the AC power converter into the electrical outlet and the DC connector into
the jack on the bottom of the base.
4. Place the handset in the base cradle. The charge/in use indicator turns on,
verifying the battery is charging.
5. Allow the handset to charge for 16 hours prior to rst use. If you don’t properly
charge the phone, battery performance is compromised.
CAUTION: Use only the ATLINKS USA, Inc. 5-2512 power converter that
came with this unit. Using other power converters may damage the unit.
wAll mountinG
1. Turn the base over.
2. Attach the wall mounting pedestal by rst inserting the tabs on the open edge of
the pedestal into the slots on the lower portion of the bottom of the base. Then
push down and s nap the pedestal into place.
3. Slip the mounting holes (on the back of the base) over the wall plate posts, and
slide the unit down into place. (Wall plate not included.)
NOTE : If desired, gather the extra telephone line and power adaptor cord and
store inside the wall mounting bracket.

13
AnswerinG sYstem setup
This section shows you how to set up your answering system to receive incoming
calls. Before you begin the set up process, you must turn on the answering system.
• Press the ANS ON/OFF button to turn the answering system on and off.
The MESSAGES indicator lights when the answering system is on. The indicator
blinks when you have new messages.
NOTE: The answering system displays “- -” when it is off.
settinG the voice prompt lAnGuAGe
The default voice prompt language is English.
To change the answering system’s voice prompt language,
• Press the LANGUAGE button on front of base to change to the FRENCH voice
prompt. The unit announces “OPTION FRANCAISE “ and Fr shows in the message
counter.
• Press the LANGUAGE button again to change to the SPANISH voice prompt. The
unit announces “SELECCION ESPANOL” and SP shows in the message counter.
NOTE: To change to English, press the LANGUAGE button again.
NOTE: In remote access mode, the system follows the selected language. The
voice prompt language cannot be switched remotely.
voice time/DAY stAmp AnD reAl time clock
1. Make sure the answering system is ON.
2. Press and hold the DAY/CHECK button to set the day of the week.
3. Press and hold the HOUR button to set the hour (a.m. or p.m.). Example: 12AM, 1AM,
or 12PM, 1PM.
4. Press and release the MIN button to advance the clock in one minute intervals.
Press and hold to increase by 5-minute increments.
5. After the time is set, the real time clock will be displayed on the handset within 1
minute.
NOTE: You must set the day manually. You may choose to set the time manually
as well though the time is automatically transmitted by your local phone
company as part of Caller ID service. If you subscribe to Caller ID service, the
current time is set automatically when you receive your first CID record.

14
speAker volume
Use the VOLUME (5 or 6) buttons to adjust speaker volume on the base to a
comfortable level. L1 is the minimum speaker volume and L8 is the maximum.
voice instruction
If you need additional assistance, press the REV button in standby mode and follow
the voice instructions.
recorDinG the outGoinG Announcement
For best results when recording, you should be about nine inches from the
microphone, and eliminate as much background noise as possible.
You may record 2 outgoing announcements in the answerer or choose the default for
your current outgoing announcement.
1. Make sure the answering system is ON.
2. Press and hold the ANNOUNCE 1 or ANNOUNCE 2 button until the speaker
announces “RECORD ANNOUNCEMENT AFTER TONE“.
3. Begin speaking after you hear the beep.
4. Release the button when you nish your announcement.
NOTE: If you choose not to record an outgoing announcement, a default
announcement plays instead. To return to the default announcement after
you have recorded your own outgoing announcement, press the ANNOUNCE
1 or 2 button and release it when you hear the beep. Or, press the DELETE
button while the announcement is reviewing.
Sample Outgoing Announcement
1) Sample Single Mailbox Outgoing Announcement
Hi, this is (use your name here), I can’t answer the phone right now, so please leave your name, number and
a brief message after the tone, and I’ll get back to you. Thanks.
NOTE: The maximum recording time for the outgoing announcement is 2
minutes.
2) Sample Multi-Mailbox Outgoing Announcement
Hi, this is (use your name here), We can’t answer the phone right now, so please press 1 to direct your message
to (name 1), press 2 to direct your message to (name 2), press 3 to direct your message to (name 3). Leave your
name, number and a brief message after the tone, and we’ll get back to you soon. Thanks.
reviewinG AnD choosinG the Announcement
Press and release the ANNOUNCE 1 button to review and select this one as your
outgoing announcement. Or, press and release the ANNOUNCE 2 button to review
and select this one as your outgoing announcement.

15
proGrAmminG the telephone
stAnDBY screen
The handset displays the handset number and user name.
proGrAmminG functions
The system uses a menu structure to give you access to all of the built-in features. You
may program the following items in main menu: Room Monitor and Handset Setup.
room monitor (ApplicABle onlY with ADDitionAl hAnDsets)
1. Make sure your phone is OFF (not in talk mode).
2. Press the MUTE/PROG button to go to the main menu.
RAYMOND
HANDSET 1
11:30AM
ROOM MONITOR
HANDSET SETUP
ROOM MONITOR
EXTENSION ?
3. Press CALLER ID-VOLUME (5 or 6) button to scroll to ROOM MONITOR.
4. Press MUTE/PROG button to enter ROOM MONITOR menu, ROOM MONITOR
EXTENSION? shows in the display.
5. Use the touch tone pad to enter the handset number to be monitored.
NOTE: When this phone system is expanded (up to 4 handsets by purchase
of optional Model 28001 handset with recharge cradle), handsets are named
HANDSET 1, HANDSET 2, HANDSET 3 and HANDSET 4 respectively.
6. The receiving handset will turn on the microphone and the originating handset will
turn on the speakerphone to monitor sound from the receiving handset.
NOTE: For room monitoring mode to work, the originating handset must NOT
be on the cradle.

16
NOTE: While in room monitoring mode, the handsets will emit an alert tone
approximately every 5 seconds if there is an incoming call. You may press the
SPEAKER button to quit room monitor and answer the call.
NOTE: While in room monitoring mode, the originating handset can be
switched to monitor by handset earpiece by pressing the TALK/CALL BACK
button once. Switch back to speakerphone by pressing the SPEAKER button
once.
NOTE: Press the *EXIT button on the handset to exit room monitor mode.
hAnDset setup
1. Make sure your phone is OFF (not in talk mode).
2. Press the MUTE/PROG button to go to the main menu.
3. Press CALLER ID-VOLUME ( 6 or 5) button to scroll to HANDSET SETUP.
4. Press MUTE/PROG button to conrm and you may program the following items:
Language, Handset Name, Ringer Tone, Ringer Volume, VIP Melody, Key Tone, Area
Code, Registration, Deregistration and Default Setting.
NOTE: During programming, you may press the *EXIT button at any time to
exit the sub-menu and return to the menu.
lAnGuAGe
From the Handset Setup Menu:
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the SET LANGUAGE sub-
menu.
2. Press MUTE/PROG button to enter the menu. SET LANGUAGE 1ENG 2FRA 3ESP
shows in the display.
3. Use the touch tone pad on the handset to select 1ENG, 2FRA, 3ESP, or use the
CALLER ID-VOLUME ( 6 or 5) button to scroll to the desired language. English is
the default setting.
4. Press the MUTE/PROG button to save your selection. You will hear a conrmation
tone and the selected language shows in the display.
Handset Name
From the Handset Setup Menu:
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the HANDSET NAME sub-
menu .
2. Press MUTE/PROG button to enter the menu. HANDSET NAME shows in the display.
3. Use the touch-tone pad to enter a name (up to 15 characters). More than one letter is stored
in each of the number keys. For example, to enter Bill Smith, press the 2 key twice for the letter

17
B. Press the 4 key 3 times for the letter I. Press the 5 key 3 times for the letter L. Press the 5 key
3 times for the second letter L, and press the 1 key to insert a space between the rst and last
name. Press the 7 key 4 times for the letter S; press the 6 key once for the letter M; press the 4
key 3 times for the letter I; press the 8 key for the letter T; press the 4 key twice for the letter H.
NOTE: If you make a mistake, use the DELETE button to backspace and delete
one character at a time.
4. Press the MUTE/PROG button to save your name. You will hear a conrmation tone
and the handset name shows in the display.
rinGer tone
You may choose from ten different ringer tones and ten different melodies.
From the Handset Setup Menu:
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the RINGER TONE
sub-menu .
2. Press MUTE/PROG button to enter the menu. SET RINGER TONE 01 shows in the
display. 01 is default setting.
3. Use the CALLER ID-VOLUME ( 6 or 5) button to scroll to the desired setting
(1 through 20). You will hear a sample of the ringer tone/melody you select.
4. Press the MUTE/PROG button to save your selection. You will hear a conrmation
tone and the selected ringer tone shows in the display.
NOTE: You must have the Ringer Volume set to ON for ring tone to signal an
incoming call.
rinGer volume
From the Handset Setup Menu:
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the RINGER VOLUME
sub-menu .
2. Press MUTE/PROG button to enter the menu. SET RINGER 1HI 2LOW 3OFF shows in
the display.
3. Use the touch tone pad on the handset to select 1, 2 or 3, or use the CALLER ID-
VOLUME ( 6 or 5) button to scroll to your selection. HI is the default setting.
4. Press the MUTE/PROG button to save your selection. You will hear a conrmation
tone and the new volume setting shows in the display.
NOTE: If you turn the ringer OFF, the ringer off icon shows in the display.

18
vip meloDY
This features allow you to assign a specic melody to someone you want to get your
attention when the person calls. When a VIP melody is assigned and that person calls, the
unit rings the normal ring for the rst ring and then follows with VIP melody ring. You may
choose from ten different polyphonic melodies and may store up to 10 VIP records.
NOTE: This feature ONLY works when the following conditions are met.
1. You have subscribed to Caller ID.
2. You have your Caller ID record previously transferred to the memory.
(Refer to Storing CID Records in Internal Memory). NO USER MEMORY will
show in the display to remind the user to do CID record transfer first.
Storing VIP Melody
From the Handset Setup Menu:
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to VIP MELODY sub-
menu.
6. Press MUTE/PROG button to select VIP melody feature and then display VIP 1
record.
- If VIP1 does NOT contain any specic number/records, it will display EMPTY.
7. Press CALLER ID-VOLUME ( 6 or 5) button to select the specic VIP melody
memory location (10 VIP locations) that does not contain any record.
8. Press MUTE/PROG button to display SELECT MEMORY.
NOTE: If the memory location does not contain any CID memory records and you are
trying to mark a specic record as VIP MELODY, then SELECT MEMORY will not be
displayed. Instead, NO USER MEMORY will display in prompt to alert the user.
9. Press CALLER ID-VOLUME ( 6 or 5) button to view the records from memory to
be selected as VIP.
10. Press MUTE/PROG button to conrm and then display VIP MELODY 01 to wait
for the melody tone selection.
11. Press CALLER ID-VOLUME ( 6 or 5) button to select from melody 01 to melody
10 (a testing tone is generated while making melody selection)
12. Press MUTE/PROG button to conrm.
NOTE: If the desired number/record was previously stored in any one of the
ten VIP melody records, DUPLICATE NUMBER shows in the display.

19
Changing a Stored VIP Melody Record
Use the Storing VIP Melody procedure to change the number of a selected record
and replace the old phone number with new phone number.
When REPLACE VIP# ? shows in the display, you must press MUTE/PROG button on
the handset to conrm replacement.
Reviewing And Deleting Stored VIP Melody Record
1. Press the MUTE/PROG button to enter to VIP MELODY menu.
2. Use the CALLER ID-VOLUME ( 6 or 5) button to scroll to the desired VIP Melody
Record.
3. If you want to delete the information, press the DELETE button on the handset
while the entry displays. The display show DELETE VIP# ?.
4. Press DELETE again to conrm. You will hear a conrmation tone and VIP#
DELETED shows in the display.
keY tone
From the Handset Setup Menu:
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the KEY TONE sub-
menu.
2. Press MUTE/PROG button to enter the menu. SET KEY TONE 1ON 2 OFF shows in
the display.
3. Use the touch tone pad on the handset to select 1 or 2, or use the CALLER ID-
VOLUME ( 6 or 5) button to scroll to your selection. 1ON is the default setting.
4. Press the MUTE/PROG button to conrm and the key tone setting shows in
the display.
messAGe Alert (for AnswerinG sYstem)
This feature sets your answering system to give alert tone every 10 seconds when
there are new messages.
From the Handset Setup Menu:
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the MESSAGE ALERT
sub-menu.
2. Press MUTE/PROG button to enter the menu. NEW MSG ALERT 1ON 2OFF shows in
the display.
3. Use the touch-tone pad to enter the selection, or use the CALLER ID-VOL (3or4)
button to scroll to the 1ON or 2OFF. The default setting is 2OFF.
4. Press the MUTE/PROG button to conrm. You will hear a conrmation tone and the
new setting shows in the display.

20
rinGs to Answer (for AnswerinG sYstem)
This feature lets you select the number of times you want the phone to ring before
the answering system answers a call.
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the RING TO ANSWER sub-
menu.
2. Press MUTE/PROG button to enter the menu. RING TO ANSWER 3 4 5 6 TS shows in
the display.
3. Use the CALLER ID-VOLUME ( 6 or 5) button to scroll to the your selection. The
default setting is 5.
4. Press the MUTE/PROG button to conrm. You will hear a conrmation tone and the
new setting shows in the display.
NOTE: If you select Toll Saver (TS) the unit answers after the 3rd ring if there
are NEW messages, OR the unit answers after the 5th ring if there are NO new
messages. This allows user to access their answerer from another location
and then hang up after 4 rings to save long distance charges.
securitY coDe (for AnswerinG sYstem)
You can access the answering system from a tone dialing telephone
in another (remote) location. The security code is required for re-
mote access, and it prevents unauthorized access to your answering
system.
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the SECURITYCODE sub-menu.
2. Press MUTE/PROG button to enter the menu. SECURITY CODE 1 2 3 shows in the
display.
3. Use the touch-tone pad to enter your new 3-digit security code. The default setting
is 123.
4. Press the MUTE/PROG button to conrm. You will hear a conrmation tone and the
new security code shows in the display.
NOTE: If you make a mistake, use the DELETE button to backspace and erase
the wrong digit.
AreA coDe
From the Handset Setup Menu:
1. Press the CALLER ID-VOLUME ( 6 or 5) button to scroll to the AREA CODE sub-menu.
2. Press MUTE/PROG button to enter the menu. SET AREA CODE - - - shows in the
