Owner’s Guide
Model 106727
Household Type
www.wal-mart.com
Maintenance ................. 15-17
Problem Solving ............... 18
Customer Order Form ...... 19
Warranty ............................ 21
For Customer Assistance Please Call: 1-877-207-0923
Part No. 71722 (8/01)
Important Safeguards ........ 2
Service Information ............ 4
Assembly ............................. 6
Preparation .......................... 7
Use .................................. 8-14
Deep Steam
Carpet Cleaner

2
Cleaner Safety
IMPORTANT SAFEGUARDS
When usin g an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS CLEANER.
To reduce the risk of fire, electric shock, or injury:
•Do not immerse product. Use only on surfaces
moisten ed by cleaning process.
•Do n ot use outdoors or expose to rain.
•Use only commercially available floor cleaners
intended for machine application.
• Do not leave carpet shampooer/ extractor when
plugged in. Turn off the switch and unplug th e
electrical cord when not in use and before servicing.
•Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
•Use only as described in this manual. Use only
man ufacturer’s recommended attachmen ts.
•Do not use with damaged cord or plug. If carpet
sh ampooer/ extractor is not working properly, has
been dropped, damaged, left outdoors, or dropped
into water, return it to a service center immediately.
•Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corn ers. Do not run carpet shampooer/
extractor over cord. Keep cord away from heated
sur faces.
•Do not use extension cords or outlets with
inadequate current carrying capacity.
•Turn off all controls before un plugging.
•Do not unplug bypulling on cord. To unplug, grasp
the plug, not the cord.
•Do not handle plug or carpet shampooer/ extractor
with wet hands.
•Do not put any object in to open ings. Do not use
with any opening blocked; keep free of dust, lint,
hair, and anything th at may reduce airflow.
•This carpet shampooer/ extractor creates suction.
Some models also con tain a revolving brush roll.
Keep hair, loose clothing, fingers, and all parts of
body away from openings an d moving parts.
•Do n ot use without recovery tank in place.
•Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
•Use extra care when cleaning on stairs.
•If the mach ine tips over during use, shut it off
immediately, set it uprigh t, and wait for the motor
to stop completely. This allows the ball float to
return to n ormal position an d permits proper
airflow through the cleaner.
•Do not use to pick up gasolin e, acetone, perfumes,
colognes, paint thinners and other flammable
liquids such or use in places where they may be
present.
•Operate and store in doors in an area above 32˚F
where the machine will not freeze.
•Keep your work area well lighted.
SAVE THESE
WARNING
SAVE THESE INSTRUCTIONS

Grounding Instructions
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord h aving an
equipment-grounding con ductor and groun din g plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinan ces.
DANGER
Improper connection of an equipmen t-grounding conductor can result in risk of electric sh ock. Check with a
qualified electrician or service person if you are in doubt as to wheth er the outlet is properly grounded. Do not
modify the plug provided with the applian ce. If it will not fit the outlet, have the proper outlet installed by a
qualified technician.
This appliance is for use on a nominal 120 volt circuit an d has a grounding plug that looks like the plug illustrated
in Figure A. A temporary adapter which looks like the adapter illustrated in Figure B may be used to con nect this
plug to a two-pole receptacle, as shown, if a properly groun ded outlet is not available. Th e temporary adapter
sh ould be used only until a properly grounded outlet, Figure A, can be installed by a qualified electrician. Th e
green colored rigid ear, lug, or th e like extending from the adapter must be connected to a permanent ground
such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
NOTE:In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
INSTRUCTIONS VISANT LA M ISE À TERRE
Cet appareil doit être mis à la terre. En cas défaillance ou de panne éventuelles, la mise à la terre fournit au couran t
un chemin de moindre résistan ce qui réduit le risque de choc électrique. Cet appareil est pourvu d’un cordon
muni d’un conducteur de terre et d’une fiche avec broche de terre. La fiche doit être bran chée dans une prise
appropriée correctement installée et mise à la terre con formémen t aux règlements et ordon nances municipaux.
AVERTISSEMENT
Un conducteur de terre mal raccordé peut entraîner un risque de choc électrique. Consulter un électricien ou un
technicien d’en tretien qualifié si vous n’êtes pas certain que la prise est correctement mise à la terre. Ne pas
modifier la fiche fournie avec l’appareil-si elle ne eput être in sérée dans la prise, faire installer une prise adéquate
par un électricien qualifié.
Note. Au Canada, l’utilisation d’un adaptateur temporaire n’est pas autorisée par le Code canadien de l’électricité.
Cet appareil est destiné à un circuit de 120V et est muni d’une fiche de mise à la terre semblable à celle illustrée par
le Figure A. S’assurer que l’appareil est branché à une prise de couran t ayan t la même configuration que la fiche.
Aucun adaptateur ne devrait être utilisé avec cet appareil.
3

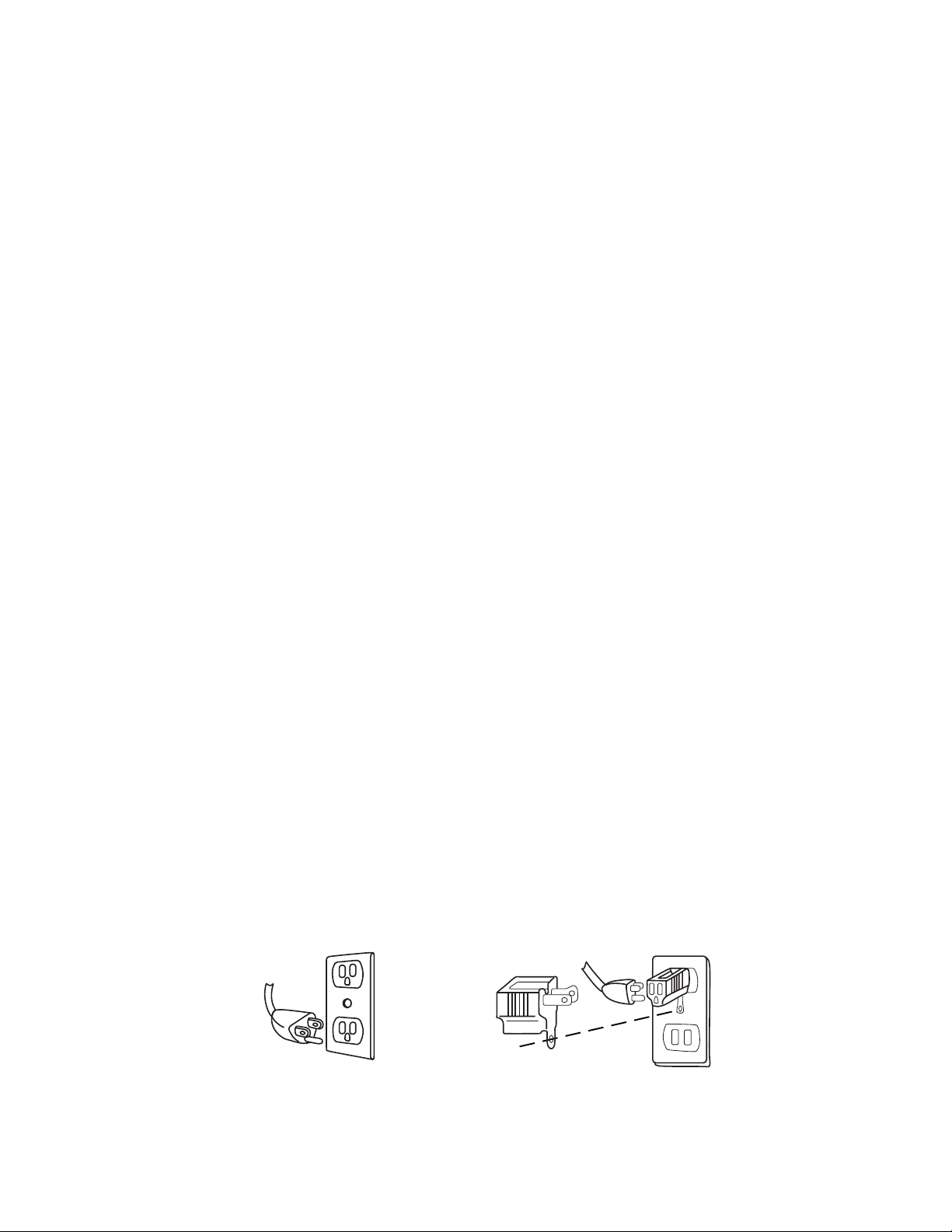

Grounding Blade is
Longest of the Three
Blades
La Lame de Terre
Est La Plus Longue
Des Trois Lames
Grounded Outlet Box
Boîte de Prise de Terre
Figure A
Adapter
Adaptateur
Grounded Outlet Box
Boîte de Prise de Terre
Metal
Screw
Vis de
Métal
Grounding
Tab
Taquet de
Terre
Figure B

4
Rating Plate
The model, type, and serial numbers are in dicated on
the rating plate located on the underneath side of the
cleaner. For prompt and complete service information ,
always refer to these numbers when inquirin g about
service.
Model & Type__________________________
Serial No. _____________________________
General Information
DO NOT OIL the motor or the brush roll at any time. The bearings are permanently lubricated and
sealed.
Customer Assistance
The instructions in this booklet serve as a guide to routine maintenance. For additional service information please
call, 1-877-207-0923. You should know the model, type and serial numbers when you call.

5
Carpet Shampooer/ Extractor Parts
Handle
Clean Water
Solution Tank
Selector
Knob
Suction
Cover
Hose
Handle
Release
Hardware
Lift
Recovery Tank with
Lid and Filter
Carrying Handle
Tank Lid
Filter
Cleaning Solution
NOTICE
ON MODELS WITH THE ACCESSORY
HOSE, YOU MAY NOTICE SMALL
WATER DROPLETS IN THE WATER
LINE. THIS IS DUE TO THE FACT THAT
ALL UNITS ARE 100% INSPECTED ON
THE PRODUCTION LINE USING WATER
TO ASSURE PROPER FUNCTION OF
THE ACCESSORIES.
NOTE: You can also use Wal-Mart’s Great Value
brand carpet cleaning solution in your GE
shampooer.

6

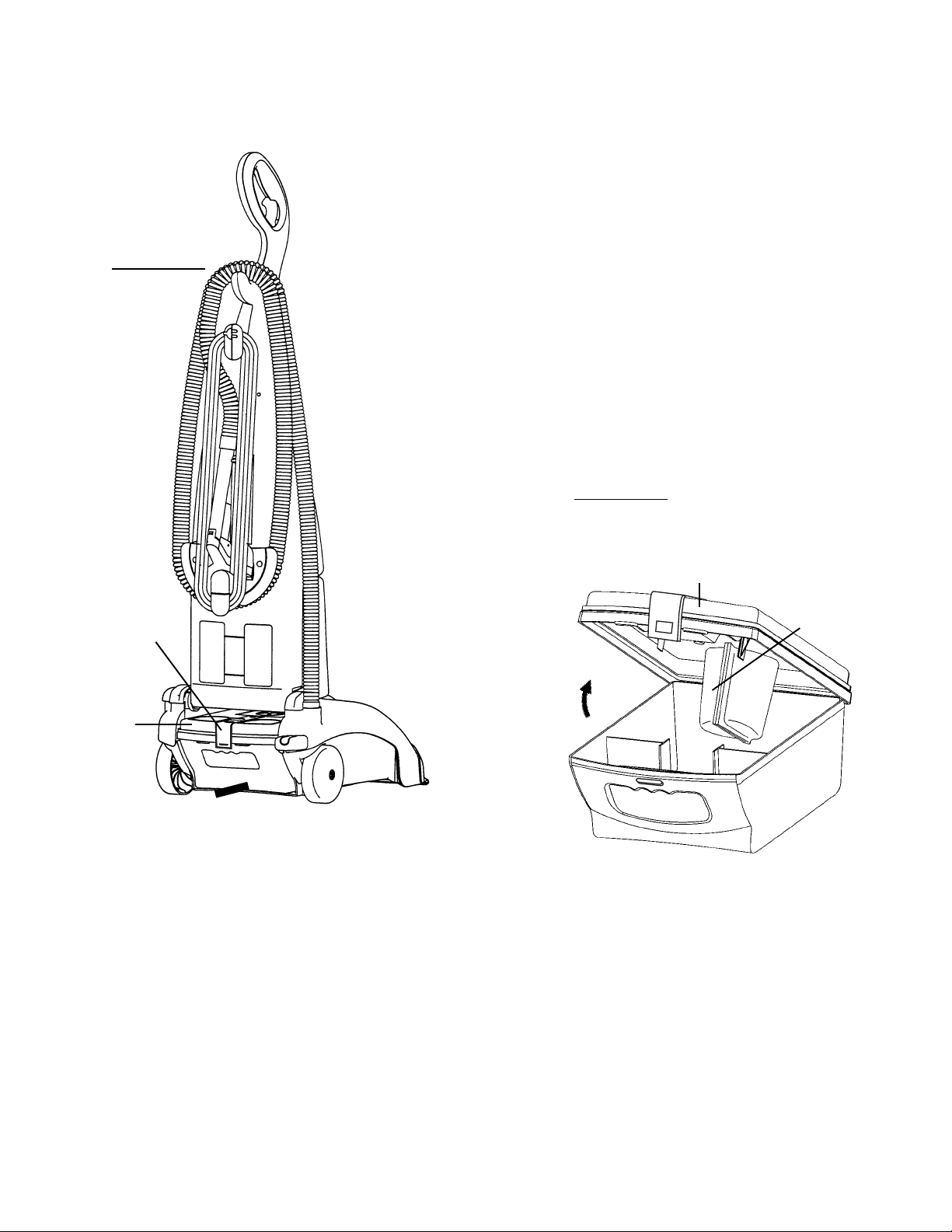

How To Assemble
NOTE: Completely assemble the carpet shampooer/ extractor before using.
B. Store Attachment Hose
•Wrap the hose around the hose hooks.
•Push Upholstery/ Stair Nozzle into caddy.
C. Store Electrical Cord
•Wrap cord around bottom and top hooks.
D. Check Recovery Tank
•After assemblin g the unit, remove the recovery
tank from th e un it and take the tan k lid off. Then
remove the filter and check that the filter frame is
sn apped securely into place.
t
Recovery
Tank
Upholstery/
Stair Nozzle
Hose
Tool Caddy
Hose Hook
A. Attach Handle
•Align h andle above carpet
sh ampooer/ extractor.
•Push handle all the way
down.
•Secure with two screws. Cord Wrap Hook
Cord Wrap Hook

7
Preparing The
Carpet Before
Cleaning
Vacuum Carpet
NOTE: Never use this carpet shampooer/
extractor as a standard vacuum cleaner.
For best results, vacuum carpets with a
vacuum cleaner that has a brush roll.
The bristles of the brush roll help
loosen and remove soil th at is deep in
the carpet n ap.
(1) Pretest for Color Fastness
Before cleaning the carpet, we recommend
testing the carpet for color fastness. Moisten a
white towel with th e cleaning solution . Test a
small hidden area of the carpet in a closet or in
a corner. Gently rub the cloth over the carpet.
Check each color. If the towel does n ot pick up
any color, it should be safe to use th e cleaning
solution on the entire area. See page 13 for
addition al information.
(2) Remove Furniture
Remove as much furniture from the room as
possible. Place aluminum foil or plastic film
un der or around the legs and bases of the
remaining furn iture to prevent stains. Leave the
foil or plastic in place until the carpet is
completelydry. Use maskin g tape or pins to hold
furniture skirts an d draperies up out of th e way.
Helpful Hints for Deep-Cleaning
Carpet
Follow the instructions in th is owner’s guide. Here
are a few extra hints that will make deep-cleaning
carpet easier.
•Before you begin using the carpet sh ampooer/
extractor, vacuum carpet thoroughly.
• Do not use the carpet shampooer/ extractor for
dry vacuuming as this can damage the unit.
•Allow plenty of time to thoroughly deep-clean
carpets. Rush ing th e cleaning job may give poor
results.
•To speed drying time, deep-clean carpets during
dryperiods of the year or when the heating system
is in operation.
•Use consisten t forward an d reverse strokes over
the carpet surface.
•Wipe cleaning solution from woodwork and wood
furniture immediately to prevent damage to the
wood or upholstery.
•Fluff damp fibers against the nap after wet
cleaning to help th e drying and prevent matting.
•Ventilate the room while clean ing to speed
drying.
•Try not to walk on carpets until they are dry.
• If the carpet sh ampooer/ extractor is difficult to
push when operatin g, try push ing the cleaner at
a different 90 degree angle so it moves with the
grain an d not against the grain of the carpet
fibers.
Consult a professional cleaner before wet cleaning
Oriental rugs.
After Cleaning
•Allow carpets to dry thoroughly. Try to keep
children and pets off th e carpet until it is
completely dry.
•Use towels or white cloths to step on if you must
walk on the area before it is dry.
•If furniture must be placed back in the room
before th e carpet is dry, use aluminum foil or
plastic un der the furniture legs to prevent
staining the carpet.

8
Lift
Latch
HOW TOPrepare The Carpet Shampooer/
Extractor For Carpet Cleaning
IMPORTANT: For best results, begin with a clean surface by vacuuming surface or item before using the
carpet shampooer/ extractor.
A. Fill the Clean Water Solution Tank
1) Lift up th e tank latch to release the clean water solution tank.
2) Grasp the carrying handle on the clean water solution tank an d
remove it from unit.
3) Remove cap and add 4 ounces of Genuine GE carpet/ upholstery
sh ampoo to the tank.
4) Fill tank to the designated fill line with warm tap water, not to
exceed 120°F, replace cap ( see diagram) .
5) Place clean water solution tank into the carpet shampooer/
extractor unit by
a) place the bottom of tank in to the reservoir.
b) gently push upper portion of tank into unit until it snaps
securely into place.
lFill Line -
1 Gallon
NOTE: When moving th e carpet shampooer/ extractor from on e location to another, always make sure the
recoveryand clean water solution tanks are completelyempty. Then tilt the unit slightlybackward and
roll on rear wheels or use the carpet shampooer/ extractor’s carrying handle for transporting up and
down stairs.
NOTE: Mix cleaning solution properly to avoid
damage to carpet and upholstery.
NOTE: FAMILIARIze yourself with the parts of the
carpet shampooer/ extractor by reading this
owner’s manual before using.
Carrying
Handle
Tank Latch
4)
l
l

9
Recovery
Tank
Latch
Slide
Automatic Shut-Off
The automatic suction shut-off functions when the recovery tank is full of liquid. This can be
detected by a noticeable difference in the motor sound. Immediately turn off the unit when
this happens an d empty the recovery tank.
Recovery
Tank
Recovery Tank
FIGURE 2
FIGURE 1
B. Emptying the Recovery Tank
NOTE: Turn off the power switch and unplug the carpet shampooer/
extractor to empty the recovery tank.
1) Press the recovery tank latch downward to release the tank from the carpet
sh ampooer/ extractor unit as shown in Figure 1.
2) Slide the recovery tank out from the lower portion of the carpet
sh ampooer/ extractor unit.
3) Lift off the recovery tan k lid an d empty contents into a suitable water
drain.
4) Rinse out the recovery tan k and tan k lid thoroughly.
5) Remove an d clean th e filter by rinsing it with water after each use. Place
the same filter back in the recovery tank as shown in Figure 2.
6) Replace the recovery tan k lid by align ing notches in lid over tan k tabs.
7) Close lid securely.
8) Return the recovery tank to the carpet shampooer/ extractor unit.
9) Push the recovery tank all the wayinto carpet shampooer/ extractor un til
secure. Be sure the ridge on the latch sn aps securely in place.
10) Resume cleaning.
s
Lift
Tank Lid
Filter

How To Use The Carpet Shampooer/ Extractor
Carpet Cleaning
A. Make sure th e selector knob is in the carpet position.
B. Place electrical cord into an outlet.
Solution
Release
Trigger
Clean Water
Solution Tank
10
Handle
Release
C. Step on th e handle release.
Lower handle to operatin g position.
Handle
Release
Selector Knob
G
N
I
N
A
E
L
C
T
N
E
M
H
C
A
T
T
A
T
N
A
T
S
N
I
ATTACHM ENT
CARPET

Operating The Carpet Shampooer/ Extractor
D. Push power switch on , which is located on the back side
of the unit.
E. Pull up and hold the solution release trigger and apply
two spraying strokes by moving the carpet shampooer/
extractor forward and then backward at a moderate pace
two times. As the nozzle moves over th e carpet, the
cleaning solution is sprayed onto the carpet. At the same
time the n ozzle picks up the dirty water and places it in
the recovery tank. It is important to move th e carpet
sh ampooer/ extractor in a steady motion over anysurface.
F. Release the trigger to stop the solution flow. Avoid over-
soaking.
G. Move the carpet shampooer/ extractor over the carpet
several more times without engaging the trigger. Repeat
this process until little or no water is visibly traveling un der
the clear suction shield. This removes excess water and
helps th e carpet dry faster.
H. Repeat steps E, F, an d G on h eavily soiled areas.
Transporting the Carpet Shampooer/Extractor
When moving th e carpet shampooer/ extractor from one location to another, always make sure the recovery an d
clean water solution tan ks are completely empty. Then tilt the unit slightly backward an d roll on rear wheels or use
the carpet shampooer/ extractor’s carrying handle for transporting up and down stairs.
11
Power
Switch
0 = Off
I=On
()
NOTE: The nap of the carpeting and the
amount and type of soil mayrequire less
or more cleaning solution be applied to
achieve desired cleaning levels.

12
How To Prepare The
Carpet Shampooer/
Extractor For
Upholstery And Stair
Cleaning
Vacuum Upholstery or Stairs
NOTE: Never use this carpet shampooer/ extractor
as a standard vacuum cleaner.
Vacuum upholstery and stairs with a vacuum cleaner’s
attachment tool. Use a crevice tool for hard to reach
areas such as tufts and corn ers.
IMPORTANT: Cleaning some upholstery fabrics
with a wet cleaning solution may
damage the fabric. Know what the
fabric content is and how to clean
it before using a cleaning solution
on upholstery fabrics.
Most manufacturers care code their fabrics with
cleaning methods. Some very delicate and unusual
fabrics are DRYCLEAN ONLY. If in doubt of the fabric
type, call a dealer or take a cushion or arm cover to a
dealer for advice.
Check the stuffing material if
possible
Look in side th e cushions or on the underneath side.
If filling is a dark color, it may bleed through and
discolor the fabric. Most stuffing material that is white
to light yellow is color fast and will not bleed colors
through to the fabric covering.
Test clean a hidden area
Be sure to test clean a hidden area several hours
before starting to clean. Let the test area dry
completely. Inspect for changes in color, bleeding,
stretch ing, or shrinkin g. Test anoth er area if in doubt.
Pretest for Color Fastness
Before cleaning the upholstery, we recommend
testing it for color fastness. Moisten a white towel with
the cleaning solution. Test a small area of the cushion
back. Gently rub the cloth over th e area. Ch eck each
area for color bleeding. If the towel does not pick up
anycolor, it should be safe to use the cleaning solution
on the en tire area.
Fabric Code Ratings:
• W for wet clean.
• S-W for solvent-dry or wet clean.
• S for solvent-dry clean only. Do not wet clean.

13
How To Use The Carpet Shampooer/ Extractor
For Upholstery Or Stair Cleaning
NOTE: Use extra caution when cleaning on stairs.
To prevent the carpet shampooer/ extractor from falling, do not place the unit on stairs. It is suggested that
the carpet shampooer/ extractor be placed at floor level to clean the lower portion of the stairs and be
securely placed at the top of the stairway to clean th e upper portion of the stairs.
Clean Water
Solution Tank
A. Turn selector knob to the Attachment Mode.
Selector
Knob
B. Lift the attachment hose
from the tool caddy on
the back of the
sh ampooer/ extractor.
G
N
I
N
A
E
L
C
T
N
E
M
H
C
A
T
T
A
T
N
A
T
S
N
I
ATTACHM ENT
CARPET

14
How to Use the Carpet Shampooer/ Extractor
for Upholstery and Stair Cleaning(continued)
C. Place th e Upholstery Nozzle at the top of th e cleaning
area.
D. Pull up and hold the solution release trigger and pull
the nozzle backward at a moderate pace.
E. Release the trigger at the end of the stroke.
F. Lift nozzle and start again at the top. Applyone to three
spraying strokes. Avoid over-soaking the area.
NOTE: As the nozzle moves over the sur face, the cleaning
solution sprays on to the sur face. At the same time
the nozzle picks up the dirty water and places it in
the recovery tank.
G. Move the nozzle over th e surface several more times
with out engaging the trigger. This removes excess water
and helps the surface dry faster.
H. Brush roll does not rotate when cleaning in th e
attachment mode.
Solution Tube
Trigger
“M” Shaped Piece
1) Remove th e “M” shaped piece on th e un derside
of the Upholstery/ Stair Nozzle (Use a small
screwdriver to pry loose) .
2) Clear and rinse an y debris from the “M” shaped
piece by placin g it under running water.
3) Replace th e “M” sh aped piece into the solution
tube then position and lock the piece into place.
NOTE: If the cleaning solution and water are not released from the upholstery/ stair nozzle, there may be an air
lock. With unit in the Off position, raise the attachment handle above your head. Then engage the
attachment handle trigger for 4 seconds. Turn unit On to resume spraying.
NOTE: If you should encounter a clog in the Upholstery/ Stair Nozzle Filter:
Solution
Release
Trigger

15
How To Maintain The Carpet Shampooer/
Extractor
The instructions in this booklet serve as a guide to routine main tenance. Follow th ese suggestion s to avoid
un necessary service calls.
Before storing th e carpet shampooer/ extractor, on a linoleum or vinyl surface put the un it in the floor mode
and use clean water (with out solution) to flush out all remaining particles in th e carpet shampooer/ extractor
un it.
• Place clean water in the clean water solution tank.
• Operate the un it, by pullin g up on the Dispensing Trigger located in the carpet shampooer/
extractor’s handle.
• Activate the trigger for 4 strokes ( 2 forward and 2 backward).
• Then , release the trigger while operatin g the unit for another 4 strokes or until the floorin g is dry.
For models featuring the Attachment Hose, on a linoleum or vinyl surface, activate the trigger on the attachmen t
handle to run clear water through the nozzle using 4 backward strokes. Then release trigger an d proceed with
any additional strokes to remove moisture. This will flush out all the remaining particles.
A. Clean Water Solution Tank M aintenance
NOTE: Turn off the power switch and unplug the electrical cord before
cleaning.
1. Remove the clean water solution tank by lifting up on the tank
latch to release th e clean water solution.
2. Grasp the carrying han dle to remove th e clean water solution
tank from the carpet shampooer/ extractor unit.
3. Empty any remainin g liquids from the clean water solution
tank.
4. Rinse the tank with warm tap water.
5. Thorough lyair dryth e clean water solution tank before storing.
6. Place the dry, clean water solution tank back onto the carpet
sh ampooer/ extractor unit making sure it snaps securely into
place. See page 9 for more detailed instructions.
B. Recovery Tank M aintenance
NOTE: Turn off the power switch and unplug the electrical cord before
cleaning.
1. Remove the recoverytank from the carpet shampooer/ extractor
un it by pushing the recovery tank latch downward to release it
from th e un it.
2. Pull the tank out from the lower portion of the carpet
sh ampooer/ extractor unit.
3. Lift the tank lid off an d empty contents into a suitable water
drain.
4. Clean the recovery tank and lid with soap and water. Also, rinse
the filter after each use with water.
5. Thoroughly air dry the recovery tank before storing.
6. To replace the recoverytank into the unit, push the dry recovery
tank all th e way into the carpet shampooer/ extractor until the
latch snaps to secure th e tank. Be sure the ridge on the latch is
pushed all the way under the carpet shampooer/ extractor
housin g.
Carrying Handle
Tank Latch
Clean Water
Solution Tank
Lift
Recovery Tank with
Lid and Filter
Tank Lid
Filter

16
How To Maintain
NOTE: Turn off the power switch and unplug the electrical cord to service cleaning nozzles.

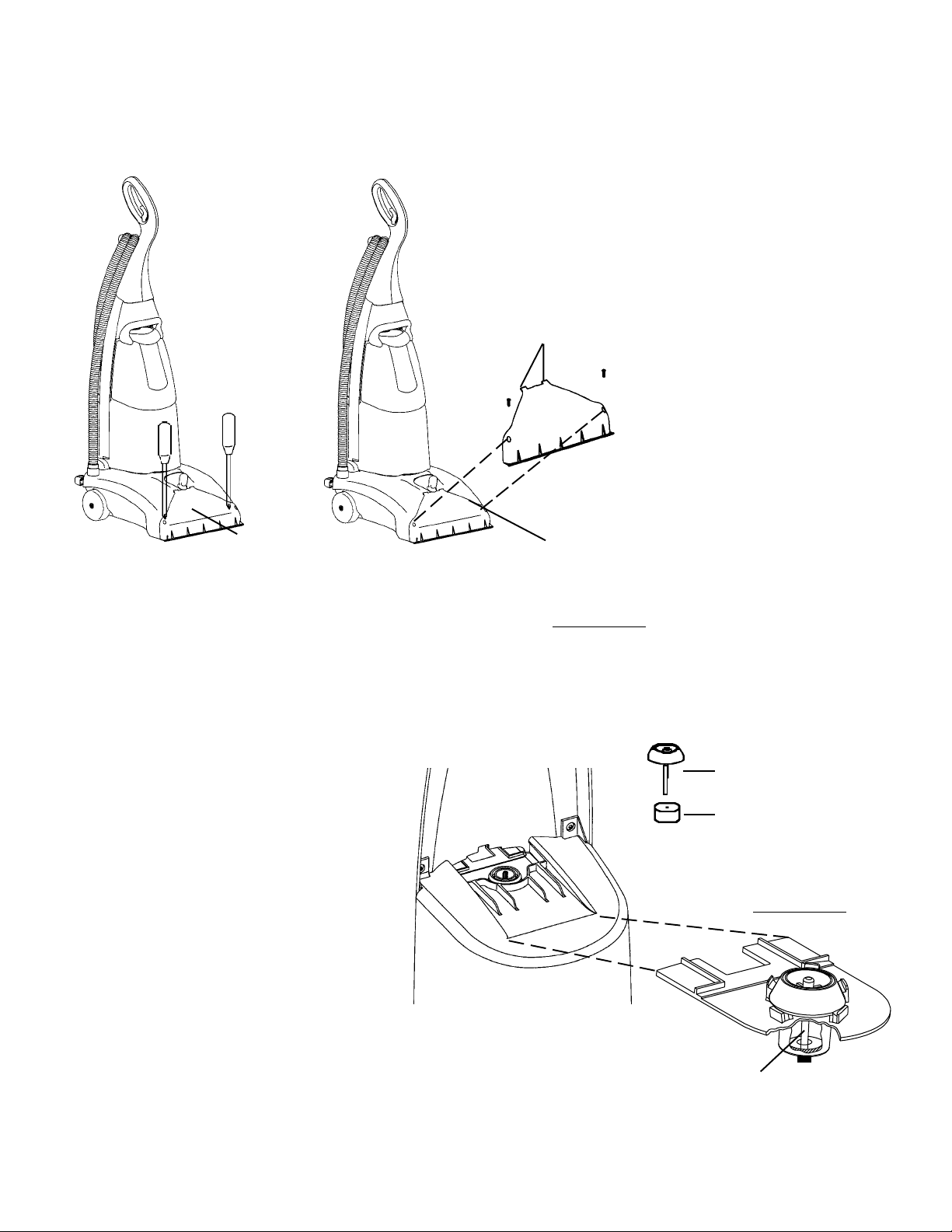

C. Cleaning the Carpet Shampooer/Extractor’s Suction Cover
1. Remove the screws from each
side of the suction cover.
2. Lift the suction cover off and
clean the area of dirt and lint.
3. Replace the suction cover by
sliding the tabs on top of the
suction cover into the top slots
on the hood. Make sure the
suction cover gasket is in place
on the unit before replacing
cover.
4. Align one of the screw holes in
the suction cover, h ood and base
then secure with screw. Also
complete this step for secon d
screw hole.
D. Cleaning the Carpet
Shampooer/Extractor’s
Plunger, Boot Seal and
Filter
1. Remove the clean water solution tank.
2. Remove the Plunger, Boot Seal an d Filter
Assembly by lifting up the Boot Seal. This
will pull out the Plunger, Boot Seal an d
Filter Assembly (see Figure 1).
3. Remove the Reservoir Filter and clean it
by removing an y debris and rinsin g with
water.
4. Rein sert the Filter on the Plunger stem
and place the Assembly directly into the
reservoir. Install this assembly into the
reservoir by pressing down on the top of
the plastic plunger. Do not press down on
the rubber boot seal.
IMPORTANT! Make sure the plunger stem
is placed into the hole in the
bottom of the reservoir for
a secure fit (see Figure 2).
5. Replace the Clean Water Solution Tan k
back onto th e carpet shampooer/
extractor unit.
Suction
Cover
Boot Seal
Plunger Stem Assembly
Reservoir Filter
Correct installation
of assembly
FIGURE 1
FIGURE 2
Plunger, Boot Seal and
Filter Assembly
Tabs
Suction Cover Gasket
(around rim of suction
cover area on unit)

17
How To Maintain
Brush Roll Belt (for models with a brush roll)
The brush roll belt on the carpet sh ampooer/ extractor drives
the brush to agitate, sweep, an d comb th e carpet nap. Check
the belt regularly to be sure it is in good condition. Replace
the belt if it is stretching, cracking or slipping. Cut away any
hair or th read woun d around the brush roll or the belt pulley
because the buildup could cause th e belt to rotate unevenly.

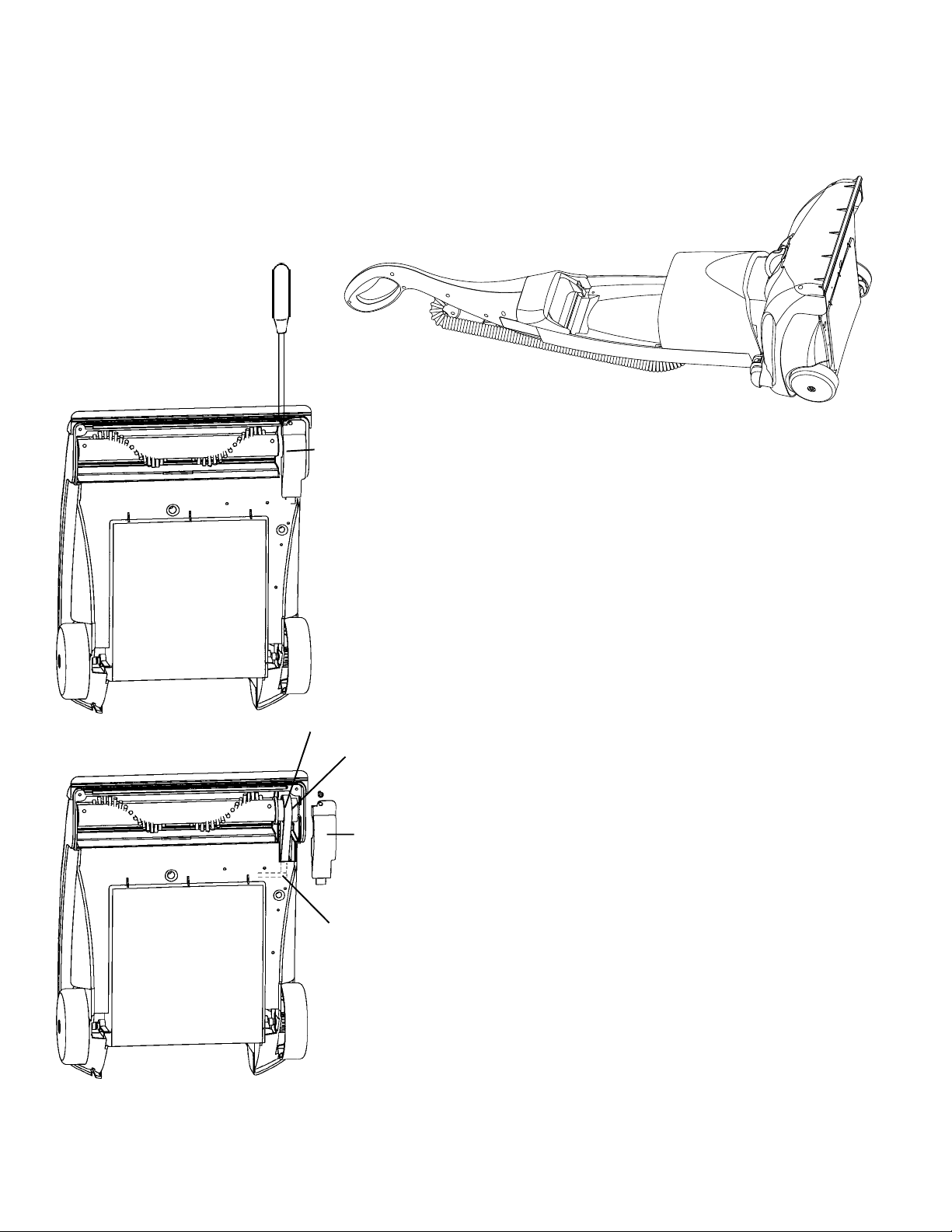

1. Tip the carpet shampooer/ extractor back to place the
handle on the floor (See Figure 1).
2. Position yourself in fron t of the carpet shampooer/
extractor’s base and remove the screw from the right
side of base (Figure 2).
3. Lift off the belt cap.
4. Lift brush roll out an d remove worn belt.
5. Squeeze the sides of new belt together and place it
around the motor pulley. Squeezing the belt will aid in
placing the belt on the pulley.
6. Place the pulley en d of brush roll in side the belt.
7. Align brush roll end caps with openings in base.
8. Push down on the brush roll to secure it (Figure 3) .
9. Rotate the brush roll un til the belt is in place.
10. Replace belt cap an d secure with screw.
E. How to Replace the Carpet
Shampooer/Extractor’s Belt
NOTE: Turn off the power switch and unplug the electrical cord
to replace the brush roll belt.
NOTE: If the tanks contain liquid, remove both tanks before
placing the handle on the floor. FIGURE 1
Motor
Pulley
Belt
Cap
Brush Roll
End Cap
Belt
Belt
Cap
FIGURE 2
FIGURE 3
* When rein stalling the brush roll, check the en d caps for correct alignmen t into th e base of th e un it. Sometimes
the squares of the en d caps become off-center. By holding one end and turning the other, realignment can
be corrected.

18
Motor will not start. MElectric Plug MPush plug securely in to outlet.
MTry an other outlet.
MCheck circuit breaker.
MPower switch is not turn ed ON MMake sure power switch is in O N position.
Cleaning solution MClean Water Solution Tank is MBe sure Clean Water Solution Tank is locked securely into
and water are not incorrectly installed place.
released from the MRefill Clean Water Solution Tank with clean water an d solution.
Carpet Nozzle MCarpet nozzle area clogged MRemove debris from the carpet nozzle area.
MCheck Plunger, Boot Seal and Filter Assembly (see p. 16)
Cleaning solution MAir Lock MWith unit in th e OFF position, raise th e attachmen t han dle
and water are n ot above your head. Then engage the attach ment handle trigger
released from the for 4 seconds. Turn un it ON to resume spraying.
Uph olstery/ Stair MLow water solution level in clean MCheck th e water level in the Clean Water Solution Tank
Nozzle water solution tank and refill.
MClog in Upholstery/ Stair Nozzle MClear the Upholstery/ Stair Nozzle of debris.
MClog in Upholstery/ Stair Nozzle MRemove the “M” shaped piece on the underside of the
tubin g Uph olstery/ Stair Nozzle, then remove, rin se and replace
the filter into the Solution Tube (see p. 14) .
MPlunger, Boot Seal an d Filter MCheck Plunger, Boot Seal and Filter Assembly (see p. 16)
Assembly is not in correct position
Does not pick up MRecovery Tank is full MEmpty Recovery Tank. Replace lid and return to cleaner.
the dispensed Resume cleaning.
cleanin g solution MThere may be excessive foam in th e Recovery Tan k.
and water from Use correct cleaning solution and water mix ratio:
carpet (4 oun ces of cleanin g solution per 1 gallon of water.)
Empty Recovery Tank, th en clean or replace the filter.
MRecovery Tank is not fully installed MMake sure Recovery Tank is fully locked into position.
MSelector Knob is not in carpet position MMake sure th e Selector Knob is in th e carpet position.
Does not clean the MBelt MReplace a cut, loose, or out of sh ape belt (see p. 17)
carpet MBrush Roll MRemove belt cap an d clean h air, thread and debris from bristles
and brush roll area. Replace brush roll if bristles are worn.
MImproper cleanin g solution used MUse Gen uine GE Carpet/ Upholstery Cleanin g Solution.
MSelector Knob n ot in carpet position MMake sure Selector Knob is in carpet position.
Clean Water MPlunger, Boot Seal an d Filter MRemove Clean Water Solution Tank and check Plunger, Boot
Solution Tank Assembly is not in correct position Seal and Filter Assembly by removin g it and reinstallin g it into
leaks prior to the reservoir by pressing the top of the plastic plunger
activating handle downward. Do not press down on th e rubber Boot Seal.
trigger or
Uph olstery/ Stair
Nozzle Trigger
Minimal suction at MSelector Knob is not in the MMake sure Selector Knob is in attachmen t position .
the end of the h ose attachment position
MUph olstery/ Stair Nozzle is clogged MRemove any visible clogs from n ozzle that restricts the airflow.
MActivate the Upholstery/ Stair Nozzle Trigger an d flush with
clean water while the un it is in attachment mode ( see p. 14) .
MRecovery Tank n ot completely MMake sure Recovery Tank is in locked secured position.
installed
Water appears on MPlunger, Boot Seal an d Filter MRemove Clean Water Solution Tank and check Plunger, Boot
top of th e Assembly is not correctly in stalled Seal and Filter Assembly by removin g it and reinstallin g it into
Recovery Tank the reservoir by pressing the top of the plastic plunger
downward. Do not press down on th e rubber Boot Seal.
Suction sh uts off MExcessive foam in the MUse correct cleaning solution and water mix ratio:
prematurely Recovery Tank (4 oun ces of cleanin g solution per 1 gallon of water.)
Empty Recovery Tank, th en clean or replace the filter.
MImproper cleanin g solution used MUse Gen uin e GE Carpet/ Upholstery Cleanin g Solution.
Missing parts MCall 1-877-207-0923 for customer assistance.
Questions MCall 1-877-207-0923 for customer assistance.
PROBLEM SOLVING
NOTE: Turn off the switch and unplug the electrical cord before servicing.
PROBLEM CAUSE SOLUTION
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3

TO ORDER BYPHONE, PLEASE CALL:
1-877-207-0923 between 7 a.m. and 8 p.m.
Cen tral Standard Time, Monday - Friday
or FAX to 1-309-823-5789.
S
O
L
D
T
O
S
H
I
P
T
O
NAME
ADDRESS (street address needed for UPS)
CITY
STAT E ZIP
DAYTIME PH ONE EVENING PH ONE
FAX E-MAIL
NAME
ADDRESS (street address needed for UPS)
CITY
STAT E ZIP
DAYTIME PH ONE EVENING PH ONE
FAX E-MAIL
IM PORTANT: Be sure to in clude your model, type, and serial number. Th ese n umbers may be found on the rating plate.
MODEL NUMBER: ____________________ TYPE: ____________ SERIAL NUMBER: ______________________
Part Number Qty. Price (USD) Total
ACCESSORIES/ TOOLS:
Uph olstery Nozzle with Bristles 61754 7.99
Uph olstery Nozzle with Sponge 61755 8.49
Hose Assembly 61758 33.99
MISCELLANEOUS PARTS:
Brush Roll 61759 10.99
Belt 61760 1.99
Clean Water Solution Tank 61761 17.99
Tank Cap 61762 1.49
Recovery Tan k 61763 29.99
Filter Package (Reservoir & Basket Filters) 61764 2.49
Carpet/ Floor Suction Cover 61765 5.49
Rotor Kn ob 61766 1.99
Boot Seal with Plunger 61756 .99
Rear Wh eel Replacemen t Kit (wheels, axles, clips) 61757 3.99
Prin ted in U.S.A.
71727
BYMAIL: Simply fill out this form and mail to address above. Please in clude day and even ing ph on e numbers
Method of Paymen t:
Check or Money Order (payable to Authorized Appliance Parts)
Month
Exp. Date:
_
Year
Signatu re (full name as shown on acct.) _____________________________________________
TOTAL ( prices subject to ch ange without notice)
TAX (add state tax & local taxes as required by law)
PO STAGE & H ANDLING CHARGE (within U.S.A.)
TOTAL ( please no cash or C.O.D.s)
$5.50
AUTHORIZED APPLIANCE PARTS
P.O. BOX 2799, BLOOMINGTON, IL 61702-2799
8/ 01
#

Customer Assistance
If you have a claim under this warranty, please call our Customer Assistan ce Number. For faster service please have
model, series, an d type numbers ready for operator to assist you. These numbers can be found on the rating plate
on the bottom of your clean er.
MODEL:______________________ TYPE:_____________________ SERIES:_________________
Customer Assistance Number, 1-877-207-0923; Canada, 1-877-556-0973
Keep this number for future reference!
E-mail inquiries: www.wal-mart.com
Two-Year Limited Warranty
What does your warranty cover?
•Any defect in material or workmanship.
For how long after the original purchase?
•Two years.
What will we do?
•Provide you with a new unit.
•The exch ange un it is warran ted for the remainder
of your product’s original two-year warranty period.
How do you make a warranty claim?
•Properly pack your un it. We recommend using the
original carton an d packing materials.
•Include in the package a copy of the sales receipt
or other eviden ce of date of original purch ase. If
the unit was a gift, provide a statement specifying
the date received. Also print your name and address
and a description of th e defect.
•Return the product to your nearest
WAL-MART store.
•A n ew unit will be provided.
What does your warranty not cover?
•Belts, filters and light bulbs.
•Commercial use or any other use not found in
printed directions.
•Damage from misuse, abuse, or n eglect.
•Products purchased or serviced outside th e USA.
How does state law relate to this warranty?
•This warranty gives you specific legal rights, and
you may also have other rights which varyfrom state
to state.
•WAL-MART expresslydisclaims all responsibilityfor
consequen tial damages or incidental losses caused
by use of this appliance. Some states do not allow
this exclusion or limitation of in cidental or
consequen tial losses so the foregoing disclaimer
may n ot apply to you.
What if you purchased this product in the United
States, Canada or Mexico and encounter a
problem while using it outside the USA?
•The warrantyis valid onlyin the country of purch ase
and if you follow th e warranty claim procedure as
noted.
For products purchased outside the Un ited States and
Canada, see dealer for warranty.
WAL-MART Stores, Inc.
Bentonville, AR 72716
