GE 71722 User manual

www.eureka.com
Owner’s Guide
Model 106727
Household Type
www.wal-mart.com
Maintenance................. 15-17
Problem Solving ............... 18
Customer Order Form ...... 19
Warranty ............................ 21
For Customer Assistance Please Call: 1-877-207-0923
Part No. 71722 (8/01)
Important Safeguards ........ 2
Service Information ............ 4
Assembly ............................. 6
Preparation .......................... 7
Use .................................. 8-14
Deep Steam
Carpet Cleaner

2
Cleaner Safety
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS CLEANER.
To reduce the risk of fire, electric shock, or injury:
•Do not immerse product. Use only on surfaces
moistened by cleaning process.
•Do not use outdoors or expose to rain.
•Use only commercially available floor cleaners
intended for machine application.
• Do not leave carpet shampooer/extractor when
plugged in. Turn off the switch and unplug the
electricalcordwhennotinuseandbeforeservicing.
•Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
•Use only as described in this manual. Use only
manufacturer’s recommended attachments.
•Do not use with damaged cord or plug. If carpet
shampooer/extractor is not working properly, has
beendropped,damaged,leftoutdoors,ordropped
intowater,returnittoaservicecenterimmediately.
•Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run carpet shampooer/
extractor over cord. Keep cord away from heated
surfaces.
•Do not use extension cords or outlets with
inadequate current carrying capacity.
•Turn off all controls before unplugging.
•Donotunplugbypullingoncord.Tounplug,grasp
the plug, not the cord.
•Donothandleplugorcarpetshampooer/extractor
with wet hands.
•Do not put any object into openings. Do not use
with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce airflow.
•This carpet shampooer/extractor creates suction.
Some models also contain a revolving brush roll.
Keep hair, loose clothing, fingers, and all parts of
body away from openings and moving parts.
•Do not use without recovery tank in place.
•Donotpickupanythingthatisburningorsmoking,
such as cigarettes, matches, or hot ashes.
•Use extra care when cleaning on stairs.
•If the machine tips over during use, shut it off
immediately, set it upright, and wait for the motor
to stop completely. This allows the ball float to
return to normal position and permits proper
airflow through the cleaner.
•Donotuse to pick up gasoline, acetone, perfumes,
colognes, paint thinners and other flammable
liquids such or use in places where they may be
present.
•Operate and store indoors in an area above 32˚F
where the machine will not freeze.
•Keep your work area well lighted.
SAVE THESE
WARNING
SAVE THESE INSTRUCTIONS

Grounding Instructions
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an
equipment-groundingconductorandgroundingplug.Theplug must be pluggedintoanappropriateoutletthatis
properly installed and grounded in accordance with all local codes and ordinances.
DANGER
Improper connection of an equipment-grounding conductor can result in risk of electric shock. Check with a
qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not
modify the plug provided with the appliance. If it will not fit the outlet, have the proper outlet installed by a
qualified technician.
This appliance is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug illustrated
in Figure A. A temporary adapter which looks like the adapter illustrated in Figure B may be used to connect this
plug to a two-pole receptacle, as shown, if a properly grounded outlet is not available. The temporary adapter
should be used only until a properly grounded outlet, Figure A, can be installed by a qualified electrician. The
green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground
such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
NOTE:In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
INSTRUCTIONS VISANT LA MISE À TERRE
Cetappareildoitêtremisàla terre. En casdéfaillanceoudepanneéventuelles,lamise à la terrefournitaucourant
un chemin de moindre résistance qui réduit le risque de choc électrique. Cet appareil est pourvu d’un cordon
muni d’un conducteur de terre et d’une fiche avec broche de terre. La fiche doit être branchée dans une prise
appropriée correctement installée et mise à la terre conformément aux règlements et ordonnances municipaux.
AVERTISSEMENT
Un conducteur de terre mal raccordé peut entraîner un risque de choc électrique. Consulter un électricien ou un
technicien d’entretien qualifié si vous n’êtes pas certain que la prise est correctement mise à la terre. Ne pas
modifier la fiche fournie avec l’appareil-si elle ne eput être insérée dans la prise, faire installer une prise adéquate
par un électricien qualifié.
Note. AuCanada,l’utilisationd’unadaptateurtemporairen’estpas autorisée par le Code canadiendel’électricité.
Cetappareilestdestinéàuncircuitde 120V et est muni d’unefichedemiseàlaterresemblableàcelle illustrée par
le Figure A. S’assurer que l’appareil est branché à une prise de courant ayant la même configuration que la fiche.
Aucun adaptateur ne devrait être utilisé avec cet appareil.
3
Grounding Blade is
Longest of the Three
Blades
La Lame de Terre
Est La Plus Longue
Des Trois Lames
Grounded Outlet Box
Boîte de Prise de Terre

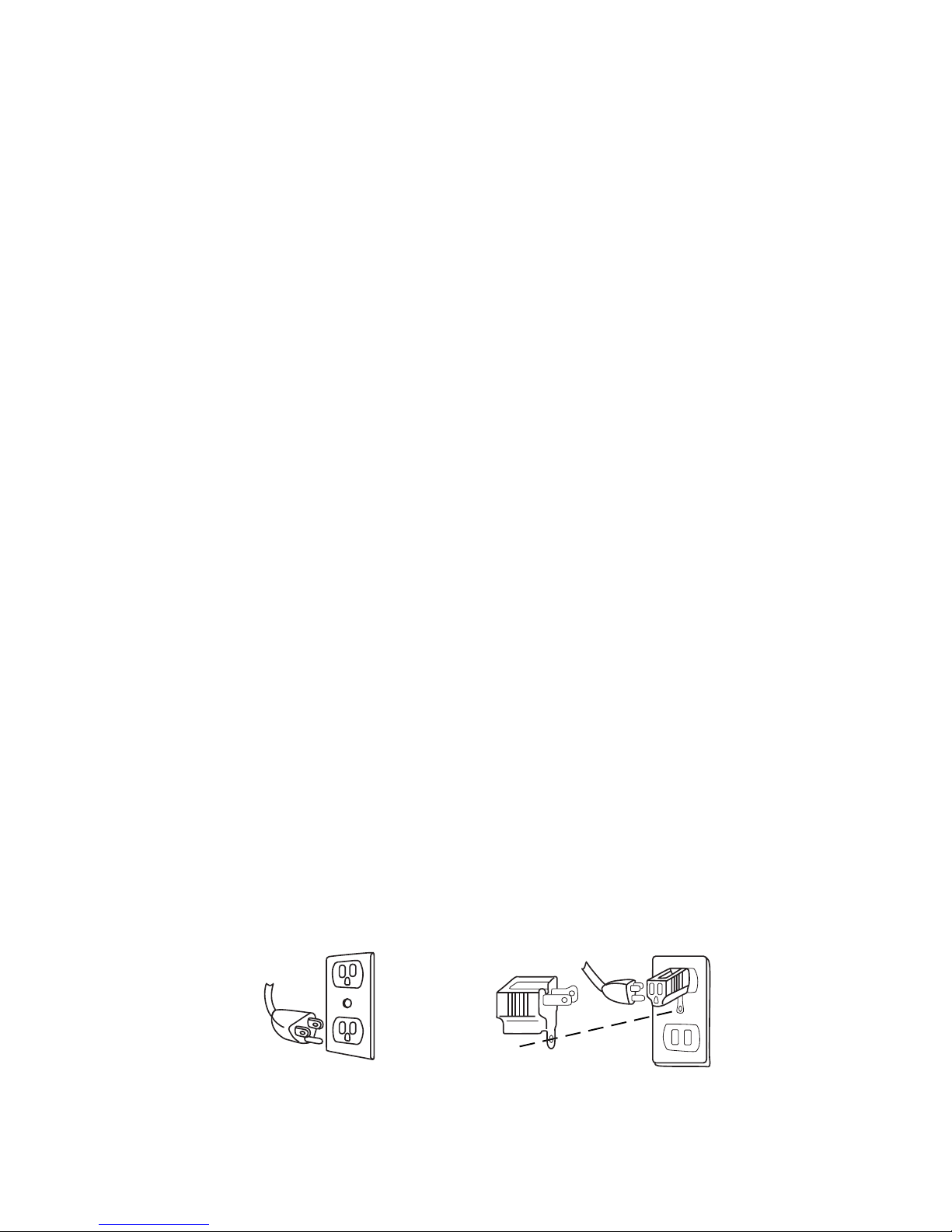

Figure A
Adapter
Adaptateur Grounded Outlet Box
Boîte de Prise de Terre
Metal
Screw
Vis de
Métal
Grounding
Tab
Taquet de
Terre
Figure B

4
Rating Plate
Themodel,type,andserial numbers areindicatedon
theratingplatelocatedon the underneathsideofthe
cleaner.Forpromptandcompleteserviceinformation,
always refer to these numbers when inquiring about
service.
Model & Type__________________________
Serial No. _____________________________
General Information
DO NOT OIL the motor or the brush roll at any time. The bearings are permanently lubricated and
sealed.
Customer Assistance
The instructions in this booklet serve as a guide to routine maintenance. For additional service information please
call, 1-877-207-0923. You should know the model, type and serial numbers when you call.

5

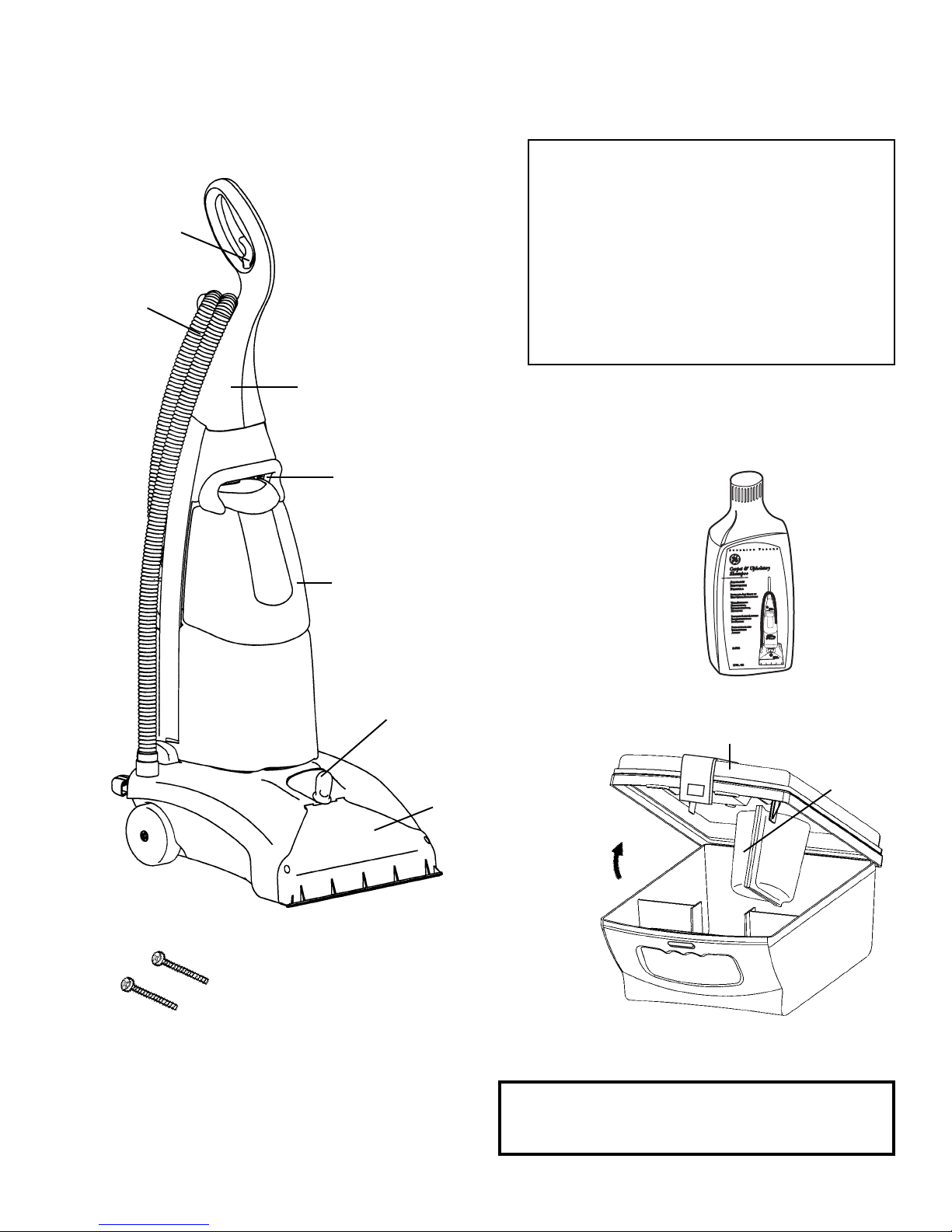

Carpet Shampooer/Extractor Parts
Handle
Clean Water
Solution Tank
Selector
Knob
Suction
Cover
Hose
Handle
Release
Hardware
Lift
Recovery Tank with
Lid and Filter
Carrying Handle
Tank Lid
Filter
Cleaning Solution
NOTICE
ON MODELS WITH THE ACCESSORY
HOSE, YOU MAY NOTICE SMALL
WATER DROPLETS IN THE WATER
LINE. THIS IS DUE TO THE FACT THAT
ALL UNITS ARE 100% INSPECTED ON
THE PRODUCTION LINE USING WATER
TO ASSURE PROPER FUNCTION OF
THE ACCESSORIES.
NOTE: You can also use Wal-Mart’s Great Value
brand carpet cleaning solution in your GE
shampooer.

6

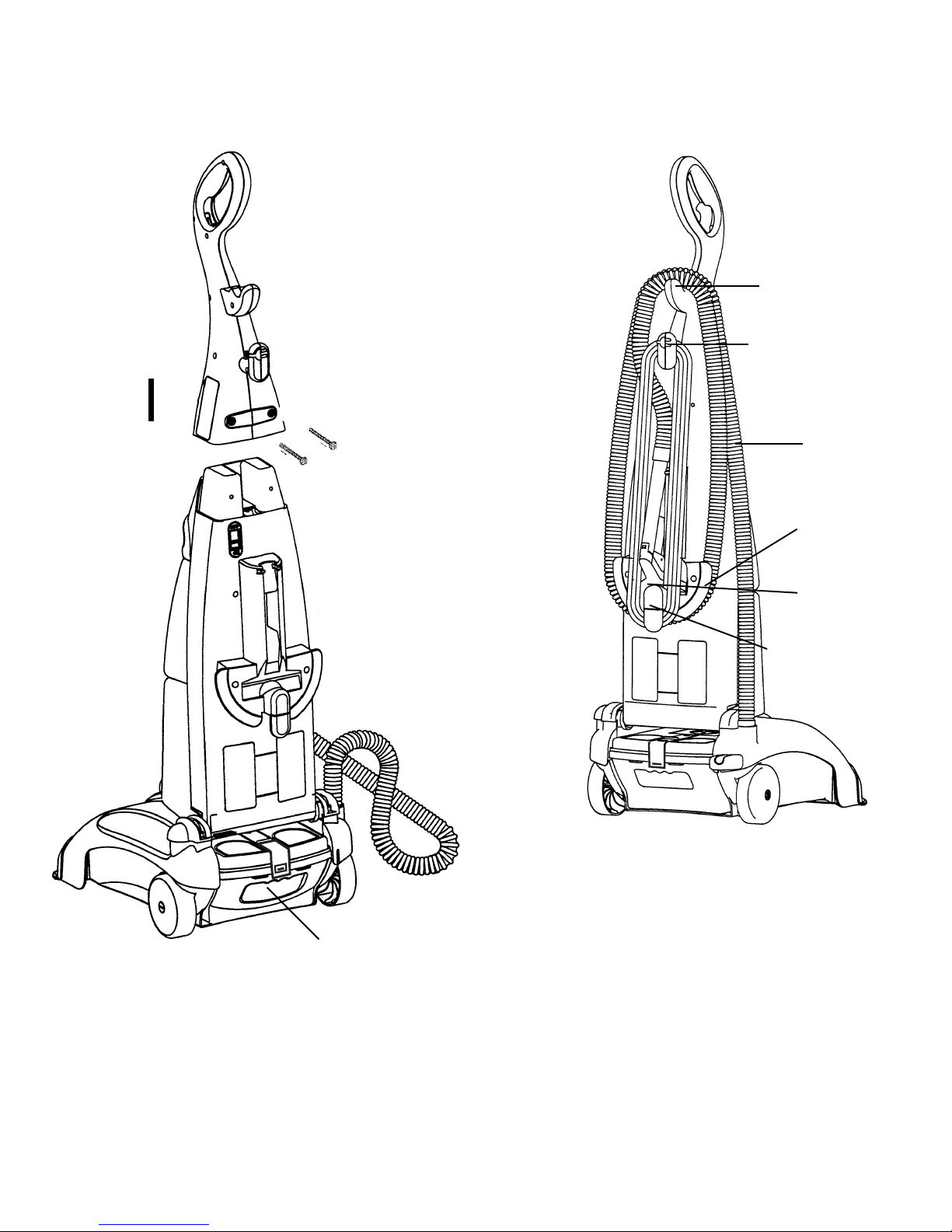

How To Assemble
NOTE: Completely assemble the carpet shampooer/extractor before using.
B. Store Attachment Hose
•Wrap the hose around the hose hooks.
•Push Upholstery/Stair Nozzle into caddy.
C. Store Electrical Cord
•Wrap cord around bottom and top hooks.
D. Check Recovery Tank
•After assembling the unit, remove the recovery
tank from the unit and take the tank lid off. Then
removethefilter and check that the filter frame is
snapped securely into place.
t
Recovery
Tank
Upholstery/
Stair Nozzle
Hose
Tool Caddy
Hose Hook
A. Attach Handle
•Align handle above carpet
shampooer/extractor.
•Push handle all the way
down.
•Secure with two screws. Cord Wrap Hook
Cord Wrap Hook

7
Preparing The
Carpet Before
Cleaning
Vacuum Carpet
NOTE: Never use this carpet shampooer/
extractorasa standardvacuum cleaner.
For best results, vacuum carpets with a
vacuum cleaner that has a brush roll.
The bristles of the brush roll help
loosen and remove soil that is deep in
the carpet nap.
(1) Pretest for Color Fastness
Before cleaning the carpet, we recommend
testing the carpet for color fastness. Moisten a
white towel with the cleaning solution. Test a
small hidden area of the carpet in a closet or in
a corner. Gently rub the cloth over the carpet.
Check each color. If the towel does not pick up
any color, it should be safe to use the cleaning
solution on the entire area. See page 13 for
additional information.
(2) Remove Furniture
Remove as much furniture from the room as
possible. Place aluminum foil or plastic film
under or around the legs and bases of the
remainingfurnituretopreventstains. Leavethe
foil or plastic in place until the carpet is
completelydry. Usemaskingtapeorpinstohold
furniture skirts and draperies up out of the way.
Helpful Hints for Deep-Cleaning
Carpet
Follow the instructions in this owner’s guide. Here
are a few extra hints that will make deep-cleaning
carpet easier.
•Before you begin using the carpet shampooer/
extractor, vacuum carpet thoroughly.
• Do not use the carpet shampooer/extractor for
dry vacuuming as this can damage the unit.
•Allow plenty of time to thoroughly deep-clean
carpets. Rushing the cleaning job may give poor
results.
•To speed drying time, deep-clean carpets during
dryperiodsoftheyearorwhentheheatingsystem
is in operation.
•Use consistent forward and reverse strokes over
the carpet surface.
•Wipecleaningsolutionfromwoodworkandwood
furniture immediately to prevent damage to the
wood or upholstery.
•Fluff damp fibers against the nap after wet
cleaningtohelp thedryingandpreventmatting.
•Ventilate the room while cleaning to speed
drying.
•Try not to walk on carpets until they are dry.
• If the carpet shampooer/extractor is difficult to
push when operating, try pushing the cleaner at
a different 90 degree angle so it moves with the
grain and not against the grain of the carpet
fibers.
Consult a professional cleaner before wet cleaning
Oriental rugs.
After Cleaning
•Allow carpets to dry thoroughly. Try to keep
children and pets off the carpet until it is
completely dry.
•Use towels or white cloths to step on if you must
walk on the area before it is dry.
•If furniture must be placed back in the room
before the carpet is dry, use aluminum foil or
plastic under the furniture legs to prevent
staining the carpet.

8
Lift
Latch
HOW TOPrepare The Carpet Shampooer/
Extractor For Carpet Cleaning
IMPORTANT: For best results, begin with a clean surface by vacuuming surface or item before using the
carpet shampooer/extractor.

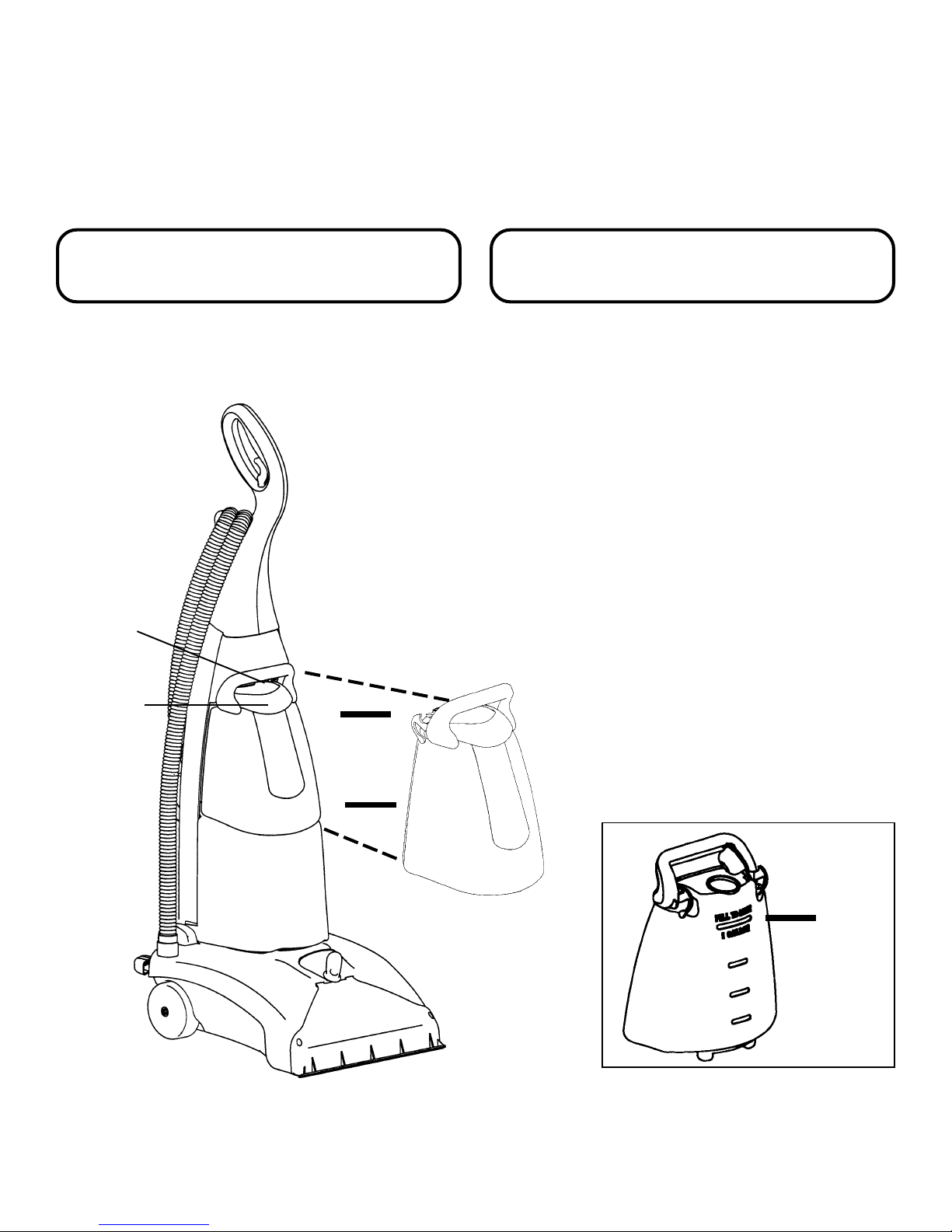

A. Fill the Clean Water Solution Tank
1) Lift up the tank latch to release the clean water solution tank.
2) Graspthecarrying handle ontheclean water solution tank and
remove it from unit.
3) Removecapandadd4ouncesofGenuineGEcarpet/upholstery
shampoo to the tank.
4) Fill tank to the designated fill line with warm tap water, not to
exceed 120°F, replace cap (see diagram).
5) Place clean water solution tank into the carpet shampooer/
extractor unit by
a) place the bottom of tank into the reservoir.
b) gently push upper portion of tank into unit until it snaps
securely into place.
lFill Line -
1 Gallon
NOTE: When moving the carpet shampooer/extractor from one location to another, always make sure the
recovery andcleanwatersolutiontanksarecompletelyempty.Thentilttheunitslightlybackward and
roll on rear wheels or use the carpet shampooer/extractor’s carrying handle for transporting up and
down stairs.
NOTE: Mix cleaning solution properly to avoid
damage to carpet and upholstery.
NOTE: FAMILIARIze yourself with the parts of the
carpet shampooer/extractor by reading this
owner’s manual before using.
Carrying
Handle
Tank Latch
4)
l
l

9
Recovery
Tank
Latch
Slide
Automatic Shut-Off
Theautomaticsuctionshut-offfunctions whentherecoverytankisfullofliquid. Thiscanbe
detected by a noticeable difference in the motor sound. Immediately turn off the unit when
this happens and empty the recovery tank.
Recovery
Tank
Recovery Tank
FIGURE 2
FIGURE 1

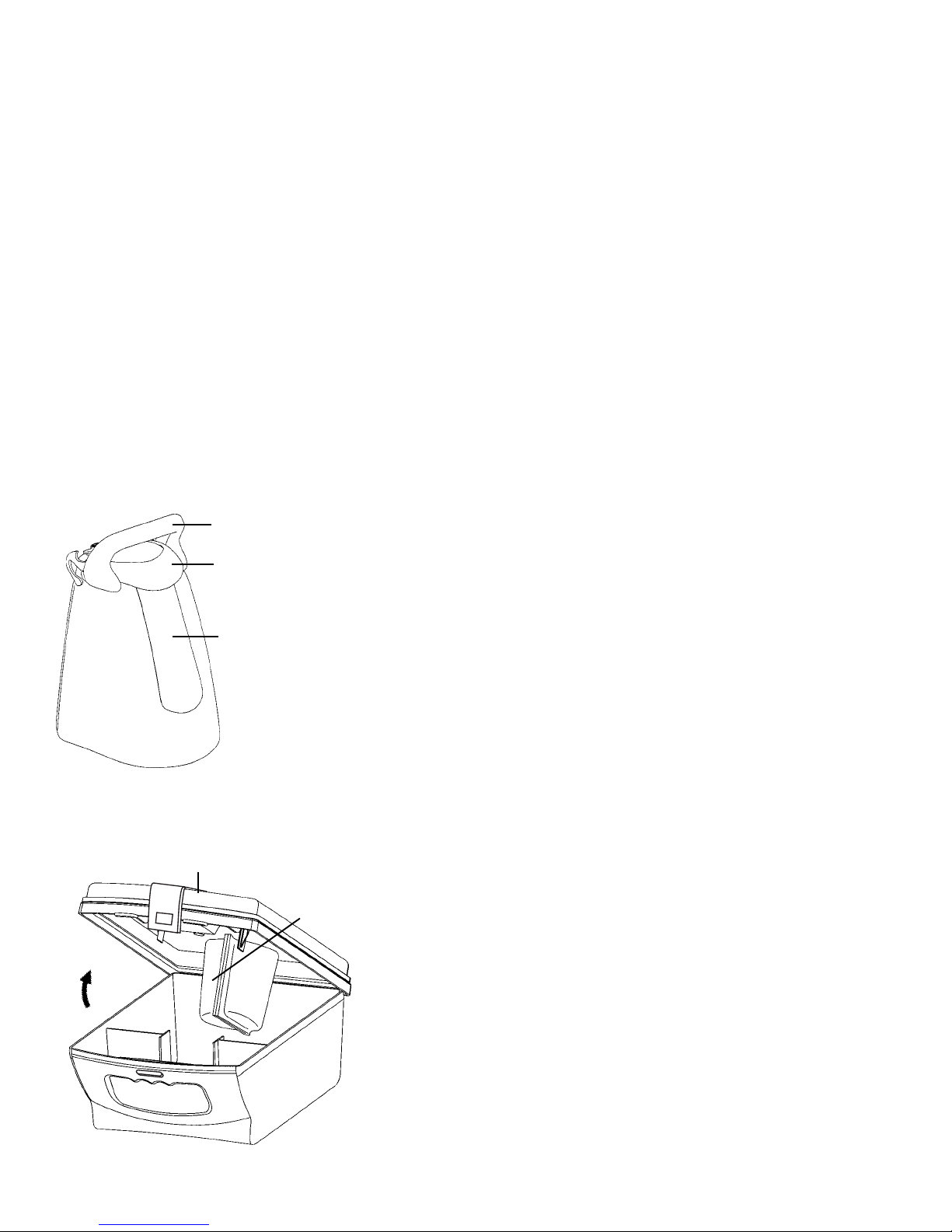

B. Emptying the Recovery Tank
NOTE: Turn off the power switch and unplug the carpet shampooer/
extractor to empty the recovery tank.
1) Presstherecoverytanklatchdownwardtoreleasethetankfromthecarpet
shampooer/extractor unit as shown in Figure 1.
2) Slide the recovery tank out from the lower portion of the carpet
shampooer/extractor unit.
3) Lift off the recovery tank lid and empty contents into a suitable water
drain.
4) Rinse out the recovery tank and tank lid thoroughly.
5) Remove and clean the filter by rinsing it with water after each use. Place
the same filter back in the recovery tank as shown in Figure 2.
6) Replace the recovery tank lid by aligning notches in lid over tank tabs.
7) Close lid securely.
8) Return the recovery tank to the carpet shampooer/extractor unit.
9) Pushtherecoverytankallthewayintocarpetshampooer/extractoruntil
secure. Be sure the ridge on the latch snaps securely in place.
10) Resume cleaning.
s
Lift
Tank Lid
Filter

How To Use The Carpet Shampooer/Extractor
Carpet Cleaning
A. Make sure the selector knob is in the carpet position.
B. Place electrical cord into an outlet.
Solution
Release
Trigger
Clean Water
Solution Tank
10
Handle
Release
C. Step on the handle release.
Lower handle to operating position.
Handle
Release
Selector Knob
G
N
I
N
A
E
L
C
T
N
E
M
H
C
A
T
T
A
T
N
A
T
S
N
I
ATTACHMENT
CARPET

Operating The Carpet Shampooer/Extractor
D. Push power switch on, which is located on the back side
of the unit.
E. Pull up and hold the solution release trigger and apply
two spraying strokes by moving the carpet shampooer/
extractor forward and then backward at a moderate pace
two times. As the nozzle moves over the carpet, the
cleaning solution is sprayed onto the carpet. At the same
time the nozzle picks up the dirty water and places it in
the recovery tank. It is important to move the carpet
shampooer/extractorinasteadymotionoveranysurface.
F. Release the trigger to stop the solution flow. Avoid over-
soaking.
G. Move the carpet shampooer/extractor over the carpet
several more times without engaging the trigger. Repeat
thisprocessuntillittleornowaterisvisiblytravelingunder
the clear suction shield. This removes excess water and
helps the carpet dry faster.
H. Repeat steps E, F, and G on heavily soiled areas.
Transporting the Carpet Shampooer/Extractor
When moving the carpet shampooer/extractor from one location to another, always make sure the recovery and
clean water solution tanks are completely empty. Then tilt the unit slightly backward and roll on rear wheels or use
the carpet shampooer/extractor’s carrying handle for transporting up and down stairs.
11
Power
Switch
0 = Off
I=On
()
NOTE: The nap of the carpeting and the
amountandtypeofsoilmayrequireless
ormorecleaningsolutionbeappliedto
achieve desired cleaning levels.

12
How To Prepare The
Carpet Shampooer/
Extractor For
Upholstery And Stair
Cleaning
Vacuum Upholstery or Stairs
NOTE: Never use this carpet shampooer/extractor
as a standard vacuum cleaner.
Vacuum upholsteryandstairswithavacuumcleaner’s
attachment tool. Use a crevice tool for hard to reach
areas such as tufts and corners.
IMPORTANT: Cleaning some upholstery fabrics
with a wet cleaning solution may
damage the fabric. Know what the
fabric content is and how to clean
it before using a cleaning solution
on upholstery fabrics.
Most manufacturers care code their fabrics with
cleaning methods. Some very delicate and unusual
fabricsareDRYCLEANONLY. Ifindoubtofthefabric
type, call a dealer or take a cushion or arm cover to a
dealer for advice.
Check the stuffing material if
possible
Look inside the cushions or on the underneath side.
If filling is a dark color, it may bleed through and
discolorthefabric. Moststuffingmaterialthatiswhite
to light yellow is colorfast and will not bleed colors
through to the fabric covering.
Test clean a hidden area
Be sure to test clean a hidden area several hours
before starting to clean. Let the test area dry
completely. Inspect for changes in color, bleeding,
stretching,orshrinking. Testanotherareaifindoubt.
Pretest for Color Fastness
Before cleaning the upholstery, we recommend
testingitforcolorfastness.Moistenawhitetowelwith
thecleaningsolution.Testasmallareaofthecushion
back. Gently rub the cloth over the area. Check each
area for color bleeding. If the towel does not pick up
anycolor,itshouldbesafetousethecleaningsolution
on the entire area.
Fabric Code Ratings:
• W for wet clean.
• S-W for solvent-dry or wet clean.
• S for solvent-dry clean only. Do not wet clean.

13

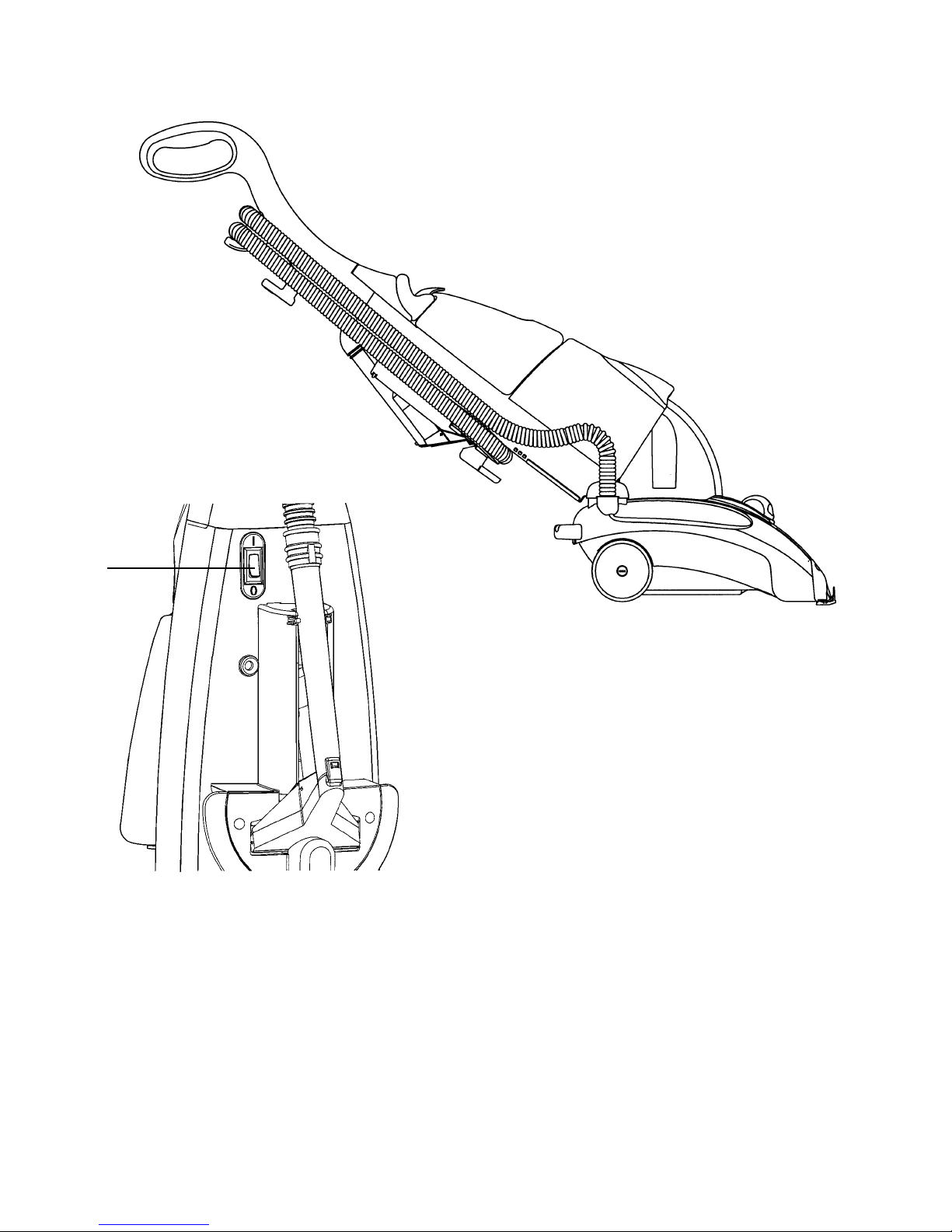

How To Use The Carpet Shampooer/Extractor
For Upholstery Or Stair Cleaning
NOTE: Use extra caution when cleaning on stairs.
Topreventthe carpet shampooer/extractorfromfalling,donotplace the unitonstairs. Itissuggestedthat
the carpet shampooer/extractor be placed at floor level to clean the lower portion of the stairs and be
securely placed at the top of the stairway to clean the upper portion of the stairs.
Clean Water
Solution Tank
A. Turn selector knob to the Attachment Mode.
Selector
Knob
B. Lift the attachment hose
from the tool caddy on
the back of the
shampooer/extractor.
G
N
I
N
A
E
L
C
T
N
E
M
H
C
A
T
T
A
T
N
A
T
S
N
I
ATTACHMENT
CARPET

14
How to Use the Carpet Shampooer/Extractor
for Upholstery and Stair Cleaning(continued)
C. Place the Upholstery Nozzle at the top of the cleaning
area.
D. Pull up and hold the solution release trigger and pull
the nozzle backward at a moderate pace.
E. Release the trigger at the end of the stroke.
F. Liftnozzleandstartagainatthetop. Applyonetothree
spraying strokes. Avoid over-soaking the area.
NOTE: Asthenozzlemovesoverthesurface,thecleaning
solutionspraysontothesurface. Atthesametime
thenozzlepicksupthedirtywater and places itin
the recovery tank.
G. Move the nozzle over the surface several more times
withoutengagingthetrigger. Thisremovesexcesswater
and helps the surface dry faster.
H. Brush roll does not rotate when cleaning in the
attachment mode.
Solution Tube
Trigger “M” Shaped Piece
1) Removethe “M” shaped piece onthe underside
of the Upholstery/Stair Nozzle (Use a small
screwdriver to pry loose).
2) Clear and rinse any debris from the “M” shaped
piece by placing it under running water.
3) Replace the “M” shaped piece into the solution
tubethenpositionandlockthepieceintoplace.
NOTE: If the cleaning solution and water are not released from the upholstery/stair nozzle, there may be an air
lock. With unit in the Off position, raise the attachment handle above your head. Then engage the
attachment handle trigger for 4 seconds. Turn unit On to resume spraying.
NOTE: If you should encounter a clog in the Upholstery/Stair Nozzle Filter:
Solution
Release
Trigger

15
How To Maintain The Carpet Shampooer/
Extractor
The instructions in this booklet serve as a guide to routine maintenance. Follow these suggestions to avoid
unnecessary service calls.
Before storing the carpet shampooer/extractor, on a linoleum or vinyl surface put the unit in the floor mode
and use clean water (without solution) to flush out all remaining particles in the carpet shampooer/extractor
unit.
• Place clean water in the clean water solution tank.
• Operate the unit, by pulling up on the Dispensing Trigger located in the carpet shampooer/
extractor’s handle.
• Activate the trigger for 4 strokes (2 forward and 2 backward).
• Then, release the trigger while operating the unit for another 4 strokes or until the flooring is dry.
FormodelsfeaturingtheAttachmentHose,onalinoleumorvinylsurface,activatethetriggerontheattachment
handle to run clear water through the nozzle using 4 backward strokes. Then release trigger and proceed with
any additional strokes to remove moisture. This will flush out all the remaining particles.
A. Clean Water Solution Tank Maintenance
NOTE: Turn off the power switch and unplug the electrical cord before
cleaning.
1. Removethe clean water solution tankby lifting up on thetank
latch to release the clean water solution.
2. Grasp the carrying handle to remove the clean water solution
tank from the carpet shampooer/extractor unit.
3. Empty any remaining liquids from the clean water solution
tank.
4. Rinse the tank with warm tap water.
5. Thoroughlyairdrythecleanwatersolutiontankbeforestoring.
6. Place the dry, clean water solution tank back onto the carpet
shampooer/extractor unit making sure it snaps securely into
place. See page 9 for more detailed instructions.
B. Recovery Tank Maintenance
NOTE: Turn off the power switch and unplug the electrical cord before
cleaning.
1. Removetherecoverytankfromthecarpetshampooer/extractor
unit by pushing the recovery tank latch downward to release it
from the unit.
2. Pull the tank out from the lower portion of the carpet
shampooer/extractor unit.
3. Lift the tank lid off and empty contents into a suitable water
drain.
4. Clean the recovery tank and lid with soap and water. Also, rinse
the filter after each use with water.
5. Thoroughly air dry the recovery tank before storing.
6. Toreplacetherecoverytankintotheunit,pushthedryrecovery
tank all the way into the carpet shampooer/extractor until the
latch snaps to secure the tank. Be sure the ridge on the latch is
pushed all the way under the carpet shampooer/extractor
housing.
Carrying Handle
Tank Latch
Clean Water
Solution Tank
Lift
Recovery Tank with
Lid and Filter
Tank Lid
Filter

16
How To Maintain
NOTE: Turn off the power switch and unplug the electrical cord to service cleaning nozzles.

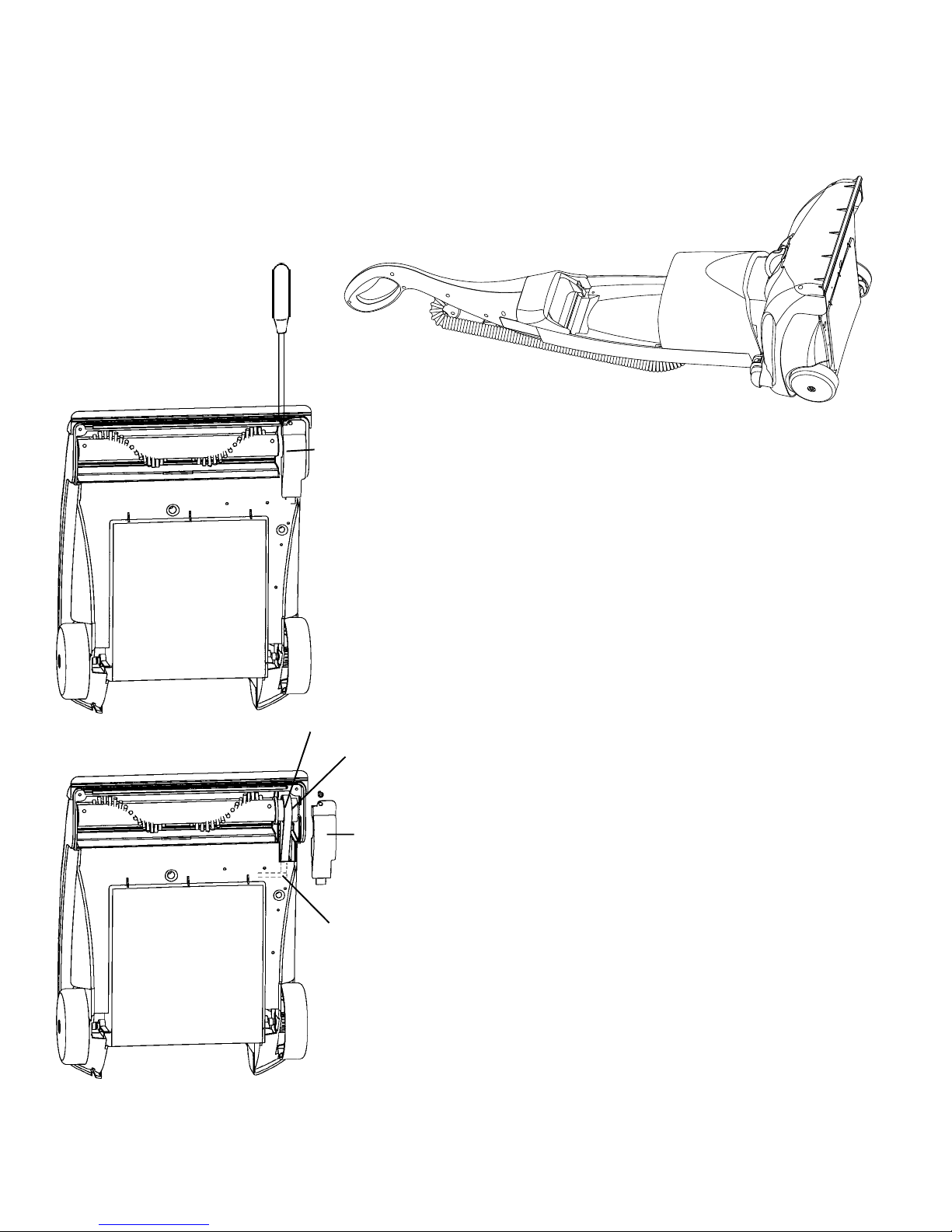

C. Cleaning the Carpet Shampooer/Extractor’s Suction Cover
1. Remove the screws from each
side of the suction cover.
2. Lift the suction cover off and
clean the area of dirt and lint.
3. Replace the suction cover by
sliding the tabs on top of the
suction cover into the top slots
on the hood. Make sure the
suction cover gasket is in place
on the unit before replacing
cover.
4. Align one of the screw holes in
thesuctioncover, hood andbase
then secure with screw. Also
complete this step for second
screw hole.
D. Cleaning the Carpet
Shampooer/Extractor’s
Plunger, Boot Seal and
Filter
1. Remove the clean water solution tank.
2. Remove the Plunger, Boot Seal and Filter
Assembly by lifting up the Boot Seal. This
will pull out the Plunger, Boot Seal and
Filter Assembly (see Figure 1).
3. Remove the Reservoir Filter and clean it
by removing any debris and rinsing with
water.
4. Reinsert the Filter on the Plunger stem
and place the Assembly directly into the
reservoir. Install this assembly into the
reservoir by pressing down on the top of
theplasticplunger.Do not press down on
the rubber boot seal.
IMPORTANT! Make surethe plungerstem
isplacedintotheholeinthe
bottom of the reservoir for
a secure fit (see Figure 2).
5. Replace the Clean Water Solution Tank
back onto the carpet shampooer/
extractor unit.
Suction
Cover
Boot Seal
Plunger Stem Assembly
Reservoir Filter
Correct installation
of assembly
FIGURE 1
FIGURE 2
Plunger, Boot Seal and
Filter Assembly
Tabs
Suction Cover Gasket
(around rim of suction
cover area on unit)

17
How To Maintain
Brush Roll Belt (for models with a brush roll)
Thebrushrollbeltonthecarpetshampooer/extractordrives
the brush to agitate, sweep, and comb the carpet nap. Check
the belt regularly to be sure it is in good condition. Replace
the belt if it is stretching, cracking or slipping. Cut away any
hairor thread wound around the brushrollor the belt pulley
because the buildup could cause the belt to rotate unevenly.
1. Tip the carpet shampooer/extractor back to place the
handle on the floor (See Figure 1).
2. Position yourself in front of the carpet shampooer/
extractor’s base and remove the screw from the right
side of base (Figure 2).
3. Lift off the belt cap.
4. Lift brush roll out and remove worn belt.
5. Squeeze the sides of new belt together and place it
around the motor pulley. Squeezing the belt will aid in
placing the belt on the pulley.
6. Place the pulley end of brush roll inside the belt.
7. Align brush roll end caps with openings in base.
8. Push down on the brush roll to secure it (Figure 3).
9. Rotate the brush roll until the belt is in place.
10. Replace belt cap and secure with screw.
E. How to Replace the Carpet
Shampooer/Extractor’s Belt
NOTE: Turn off the power switch and unplug the electrical cord
to replace the brush roll belt.
NOTE: If the tanks contain liquid, remove both tanks before
placing the handle on the floor. FIGURE 1
Motor
Pulley
Belt
Cap
Brush Roll
End Cap
Belt
Belt
Cap
FIGURE 2
FIGURE 3
* Whenreinstallingthebrushroll,checktheendcapsforcorrectalignmentintothebaseoftheunit.Sometimes
the squares of the end caps become off-center. By holding one end and turning the other, realignment can
be corrected.

18
Motor will not start. MElectric Plug MPush plug securely into outlet.
MTry another outlet.
MCheck circuit breaker.
MPower switch is not turned ON MMake sure power switch is in ON position.
Cleaning solution MClean Water Solution Tank is MBe sure Clean Water Solution Tank is locked securely into
and water are not incorrectly installed place.
released from the MRefill Clean Water Solution Tank with clean water and solution.
Carpet Nozzle MCarpet nozzle area clogged MRemove debris from the carpet nozzle area.
MCheck Plunger, Boot Seal and Filter Assembly (see p. 16)
Cleaning solution MAir Lock MWith unit in the OFF position, raise the attachment handle
and water are not above your head. Then engage the attachment handle trigger
released from the for 4 seconds. Turn unit ON to resume spraying.
Upholstery/Stair MLow water solution level in clean MCheck the water level in the Clean Water Solution Tank
Nozzle water solution tank and refill.
MClog in Upholstery/Stair Nozzle MClear the Upholstery/Stair Nozzle of debris.
MClog in Upholstery/Stair Nozzle MRemove the “M” shaped piece on the underside of the
tubing Upholstery/Stair Nozzle, then remove, rinse and replace
the filter into the Solution Tube (see p. 14).
MPlunger, Boot Seal and Filter MCheck Plunger, Boot Seal and Filter Assembly (see p. 16)
Assembly is not in correct position
Does not pick up MRecovery Tank is full MEmpty Recovery Tank. Replace lid and return to cleaner.
the dispensed Resume cleaning.
cleaning solution MThere may be excessive foam in the Recovery Tank.
and water from Use correct cleaning solution and water mix ratio:
carpet (4 ounces of cleaning solution per 1 gallon of water.)
Empty Recovery Tank, then clean or replace the filter.
MRecovery Tank is not fully installed MMake sure Recovery Tank is fully locked into position.
MSelector Knob is not in carpet position MMake sure the Selector Knob is in the carpet position.
Does not clean the MBelt MReplace a cut, loose, or out of shape belt (see p. 17)
carpet MBrush Roll MRemove belt cap and clean hair, thread and debris from bristles
and brush roll area. Replace brush roll if bristles are worn.
MImproper cleaning solution used MUse Genuine GE Carpet/Upholstery Cleaning Solution.
MSelector Knob not in carpet position MMake sure Selector Knob is in carpet position.
Clean Water MPlunger, Boot Seal and Filter MRemove Clean Water Solution Tank and check Plunger, Boot
Solution Tank Assembly is not in correct position Seal and Filter Assembly by removing it and reinstalling it into
leaks prior to the reservoir by pressing the top of the plastic plunger
activating handle downward. Do not press down on the rubber Boot Seal.
trigger or
Upholstery/Stair
Nozzle Trigger
Minimal suction at MSelector Knob is not in the MMake sure Selector Knob is in attachment position.
the end of the hose attachment position
MUpholstery/Stair Nozzle is clogged MRemove any visible clogs from nozzle that restricts the airflow.
MActivate the Upholstery/Stair Nozzle Trigger and flush with
clean water while the unit is in attachment mode (see p. 14).
MRecovery Tank not completely MMake sure Recovery Tank is in locked secured position.
installed
Water appears on MPlunger, Boot Seal and Filter MRemove Clean Water Solution Tank and check Plunger, Boot
top of the Assembly is not correctly installed Seal and Filter Assembly by removing it and reinstalling it into
Recovery Tank the reservoir by pressing the top of the plastic plunger
downward. Do not press down on the rubber Boot Seal.
Suction shuts off MExcessive foam in the MUse correct cleaning solution and water mix ratio:
prematurely Recovery Tank (4 ounces of cleaning solution per 1 gallon of water.)
Empty Recovery Tank, then clean or replace the filter.
MImproper cleaning solution used MUse Genuine GE Carpet/Upholstery Cleaning Solution.
Missing parts MCall 1-877-207-0923 for customer assistance.
Questions MCall 1-877-207-0923 for customer assistance.
PROBLEM SOLVING
NOTE: Turn off the switch and unplug the electrical cord before servicing.
PROBLEM CAUSE SOLUTION
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3

TO ORDER BY PHONE, PLEASE CALL:
1-877-207-0923 between 7 a.m. and 8 p.m.
Central Standard Time, Monday - Friday
or FAX to 1-309-823-5789.
S
O
L
D
T
O
S
H
I
P
T
O
NAME
ADDRESS (street address needed for UPS)
CITY STATE ZIP
DAYTIME PHONE EVENING PHONE
FAX E-MAIL
NAME
ADDRESS (street address needed for UPS)
CITY STATE ZIP
DAYTIME PHONE EVENING PHONE
FAX E-MAIL
IMPORTANT: Be sure to include your model, type, and serial number. These numbers may be found on the rating plate.
MODEL NUMBER: ____________________ TYPE: ____________ SERIAL NUMBER: ______________________
Part Number Qty. Price (USD) Total
ACCESSORIES/TOOLS:
Upholstery Nozzle with Bristles 61754 7.99
Upholstery Nozzle with Sponge 61755 8.49
Hose Assembly 61758 33.99
MISCELLANEOUS PARTS:
Brush Roll 61759 10.99
Belt 61760 1.99
Clean Water Solution Tank 61761 17.99
Tank Cap 61762 1.49
Recovery Tank 61763 29.99
Filter Package (Reservoir & Basket Filters) 61764 2.49
Carpet/Floor Suction Cover 61765 5.49
Rotor Knob 61766 1.99
Boot Seal with Plunger 61756 .99
Rear Wheel Replacement Kit (wheels, axles, clips) 61757 3.99
Printed in U.S.A.
71727
BY MAIL: Simply fill out this form and mail to address above. Please include day and evening phone numbers
Method of Payment:
Check or Money Order (payable to Authorized Appliance Parts)
Month
Exp. Date:
_
Year
Signature (full name as shown on acct.) _____________________________________________
TOTAL (prices subject to change without notice)
TAX (add state tax & local taxes as required by law)
POSTAGE & HANDLING CHARGE (within U.S.A.)
TOTAL (please no cash or C.O.D.s)
$5.50
AUTHORIZED APPLIANCE PARTS
P.O. BOX 2799, BLOOMINGTON, IL 61702-2799
8/01
#

Customer Assistance
If you have a claim under this warranty, please call our Customer Assistance Number. For faster service please have
model, series, and type numbers ready for operator to assist you. These numbers can be found on the rating plate
on the bottom of your cleaner.
MODEL:______________________ TYPE:_____________________ SERIES:_________________
Customer Assistance Number, 1-877-207-0923; Canada, 1-877-556-0973
Keep this number for future reference!
E-mail inquiries: www.wal-mart.com
Two-Year Limited Warranty
What does your warranty cover?
•Any defect in material or workmanship.
For how long after the original purchase?
•Two years.
What will we do?
•Provide you with a new unit.
•The exchange unit is warranted for the remainder
ofyourproduct’soriginaltwo-yearwarrantyperiod.
How do you make a warranty claim?
•Properly pack your unit. We recommend using the
original carton and packing materials.
•Include in the package a copy of the sales receipt
or other evidence of date of original purchase. If
the unit was a gift, provide a statement specifying
thedatereceived.Alsoprintyournameandaddress
and a description of the defect.
•Return the product to your nearest
WAL-MART store.
•A new unit will be provided.
What does your warranty not cover?
•Belts, filters and light bulbs.
•Commercial use or any other use not found in
printed directions.
•Damage from misuse, abuse, or neglect.
•Products purchased or serviced outside the USA.
How does state law relate to this warranty?
•This warranty gives you specific legal rights, and
youmayalsohaveotherrightswhichvaryfromstate
to state.
•WAL-MARTexpresslydisclaimsallresponsibilityfor
consequential damages or incidental losses caused
by use of this appliance. Some states do not allow
this exclusion or limitation of incidental or
consequential losses so the foregoing disclaimer
may not apply to you.
What if you purchased this product in the United
States, Canada or Mexico and encounter a
problem while using it outside the USA?
•Thewarrantyisvalidonlyinthecountryofpurchase
and if you follow the warranty claim procedure as
noted.
ForproductspurchasedoutsidetheUnitedStatesand
Canada, see dealer for warranty.
WAL-MART Stores, Inc.
Bentonville, AR 72716
21
