Owner’s Manual
Vent Systems
Downdraft

Operating Instructions
Safety Information
Safety Precautions . . . . . . . .3, 4
Operating Instructions
Using the Downdraft
System . . . . . . . . . . . . . . . . .5, 6
Using the Controls . . . . . . . . . .5
Care and Cleaning . . . . . . . . . .6
Installation Instructions
Before You Begin . . . . . . . . . . .7
Measurements . . . . . . . . . . .7–9
Planing the Ductwork . . . . . . .10
Planing the Wiring . . . . . . . . .11
Installing the
Downdraft . . . . . . . . . . . . .11, 12
Installing the
Electrical Wiring . . . . . . . . . . .13
Troubleshooting Tips
Before You Call
For Service . . . . . . . . . . . . . . . 14
Customer Service
Product Registration . . . . . . . .17
Warranty . . . . . . . . . . . . . . . . .19
Service Telephone
Numbers . . . . . . . . . Back Cover
2
Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
Congratulations!
You Are Now Part of the GE Family.
Welcome to the GE family. We’re proud of our quality products and we are committed
to providing dependable service. You’ll see it in this easy-to-use Owner’s Manual and
you’ll hear it in the friendly voices of our customer service department.
Best of all, you’ll experience these values each time you use your vent. That’s important,
because your new vent will be part of your family for many years. And we hope you will be
part of ours for a long time to come.
We thank you for buying GE. We appreciate your purchase, and hope you will continue
to rely on us whenever you need quality appliances for your home.
Inside you will find many helpful hints on how to use and maintain your
vent properly. Just a little preventive care on your part can save you a great
deal of time and money over the life of your vent.
READ THIS MANUAL
GE & You, A Service Partnership.
FOR YOUR RECORDS
Write the model and serial numbers here:
##
Staple sales slip or cancelled check here.
PLEASE NOTE: The downdraft vent system you have purchased was
designed to be used with GE Profile cooktops listed in this manual.
Proof of the original purchase date is needed to obtain service under
the warranty.
IMPORTANT!
Fill out and return the Consumer Product Registration Card that is
packed with this product. If you cannot find it, please send in the
duplicate card printed in the back of this manual.
You’ll find many answers to common problems in the Before You Call For
Service section. If you review our chart of Troubleshooting Tips first, you
may not need to call for service at all.
If you do need service, you can relax knowing help is only a phone call
away. A list of toll-free customer service numbers is included in the back
section of this guide. Or you can always call the GE Answer Center® at
800.626.2000, 24 hours a day, 7 days a week.
IF YOU NEED SERVICE

Customer Service
Operating Instructions
Safety Instructions
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Installation Instructions Troubleshooting Tips
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, personal injury, or loss of life.
A. Use this unit only in the manner intended by
the manufacturer. If you have any questions
contact the manufacturer.
B. Before servicing or cleaning unit, switch
power off at service panel and lock the
service disconnecting means to prevent
power from being switched on accidentally.
When the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a tag, to
the service panel.
CAUTION: For general ventilating use only.
Do not use to exhaust hazardous or explosive
materials and vapors.
■Installation work and electrical wiring must
be done by qualified person(s) in
accordance with all applicable codes and
standards, including fire-rated construction.
■When cutting or drilling into wall or ceiling,
do not damage electrical wiring and other
hidden utilities.
■Ducted fans must always be vented to the
outdoors.
■Sufficient air is needed for proper
combustion and exhausting of gases through
the flue (chimney) of fuel-burning
equipment to prevent backdrafting. Follow
the heating equipment manufacturer’s
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the
local code authorities.
■To reduce the risk of fire, use only metal
ductwork.
■PVC sewer pipe can be used as duct under
concrete slab if allowed by local code board.
■This unit must be grounded.
WARNING—TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
■Keep fan, filters and grease laden
surfaces clean.
■Always turn hood
ON when cooking
at high heat.
■Use high range settings on range only when
necessary. Heat oil slowly on low to
medium setting.
■Don’t leave range unattended when cooking.
■Always use cookware and utensils
appropriate for the type and amount
of food being prepared.
■When flaming foods under the hood, turn
the fan on.
SAFETY PRECAUTIONS
3
WARNING—TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Operating Instructions
4
Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
WARNING!
SAFETY PRECAUTIONS
It may be necessary to remove the downdraft
blower system in order to service components
such as the blower motor or air vent
mechanism.
Disconnect power to the cooktop and remove
it first. Reverse the steps in the
Install the
Downdraft
section to remove the blower.
Service parts are available from a GE Service
and Parts Center.
SERVICING
Read and follow this Safety Information carefully.
READ AND SAVE THESE INSTRUCTIONS
A. SMOTHER FLAMES with a close-fitting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go
out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—
You may be burned.
C. DO NOT USE WATER, including wet
dishcloths or towels—a violent steam
explosion will result.
D.Use an extinguisher ONLY if:
1.
You know you have a Class ABC
extinguisher, and you already know how to
operate it.
2. The fire is small and contained in the area
where it started.
3. The fire department is being called.
4. You can fight the fire with your back
to an exit.
*Based on “Kitchen Firesafety Tips” published by NFPA.
CAUTION:
For general ventilating use only.
Do not use to exhaust hazardous or explosive
materials and vapors.
Make sure all fingers are away from the downdraft
top when it is lowered.
If You Need Service…
Do not attempt to repair or replace any part of
the downdraft system unless it is specifically
recommended in this guide. All other servicing
should be referred to a qualified technician.
WARNING—TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
Be sure electrical power is off before servicing the unit.

5
Using the downdraft system.
Customer Service
Installation Instructions Troubleshooting Tips
Operating Instructions
Safety Instructions

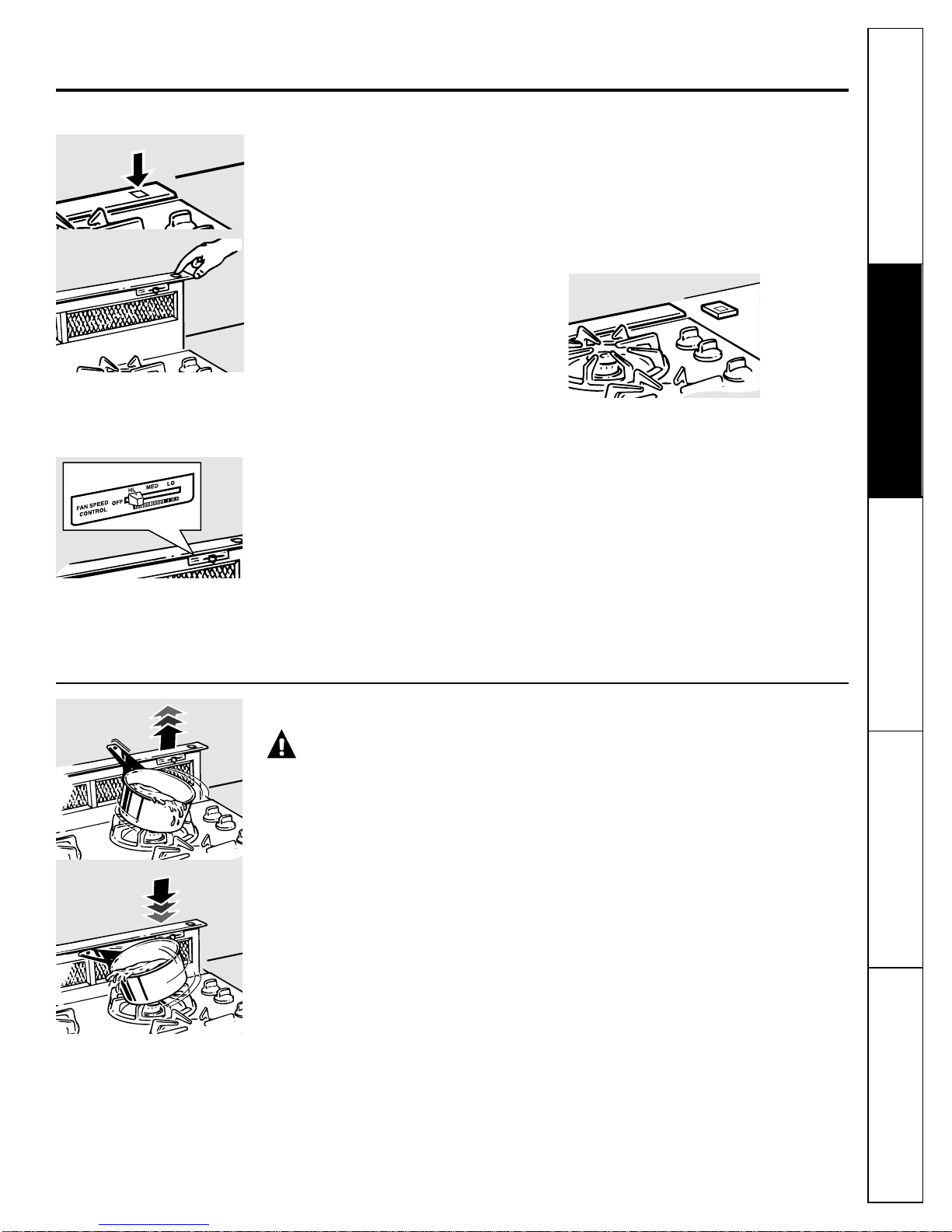

RAISE/LOWER Switch (30” models only)
Turn the downdraft blower ON by pressing
the RAISE/LOWER switch located at the top
right of the vent (on some models). Place
your finger on the “center” of the switch
and hold until you observe the vent moving,
then release. The air vent will rise. Use the
selector switch to turn the blower ON, OFF
or to change the blower speed.
The vent may be lowered by again pressing
the RAISE/LOWER switch at the top right side
of the vent. The blower, if left on, will
automatically go off when the vent is
lowered.
NOTE: For most convenient operation, set the
blower to the speed you use most often. The
blower will come on to this speed whenever
the unit is raised.
Remote RAISE/LOWER switch
(36″models only)
36″models have a remote RAISE/LOWER
switch. It operates in the same manner as
the switch located on the vent.
RAISE/LOWER switch location may vary.
Using the Cooktop
Caution
Be careful when raising or lowering the
downdraft. Be sure pots, pot handles and
other objects are clear of the downdraft and
cannot be struck or tipped by the downdraft
being raised.
NOTE: There is a slight trim overhang at each
end of the vent.
■ To avoid injury, be sure fingers are clear
of the downdraft cover when it is being
lowered.
■ Keep hands and fingers away from all
downdraft parts.
On some models, the RAISE/LOWER
switch is located at the top right of
the vent.
Use the selector switch to turn the
blower ON, OFF or to change the
blower speed.

Using the downdraft system.
Care and cleaning of the downdraft system.
Operating Instructions Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
6
The efficiency of your downdraft depends on
a clean filter.
Frequency of cleaning depends on the type
of cooking you do. Grease filters should be
cleaned at least once a month.
Never operate the downdraft without the filters
in place.

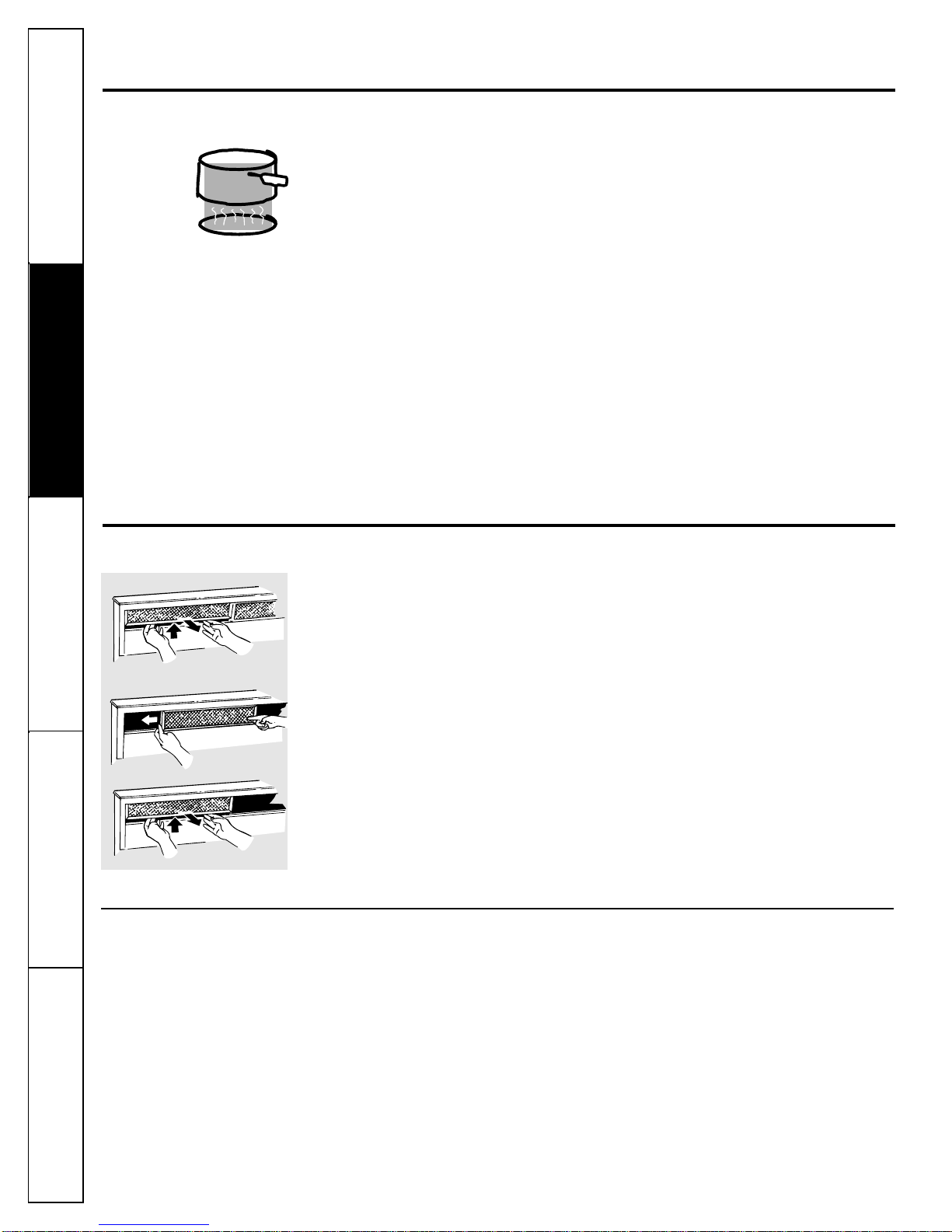

To remove: Lift up and pull the bottom out.
Remove the left filter first, then slide the
right filter to the left and remove it.
To clean: Soak and then agitate in a hot
detergent solution. Light brushing may be
used to remove imbedded soil. Rinse, shake
and remove moisture before replacing.
Filters may be cleaned by placing in
dishwasher, although some slight color
fading may occur after several washings.
With careful handling, the filter will last for
years. If replacement becomes necessary,
order the part from your dealer.
Cooking Tips
The high air movement of this downdraft
system can increase the cooking times for
some foods. It may take longer to reach
high cooking temperatures if the downdraft
is turned to high right away. Adjust the fan
speed for best cooking results.
For best results when heating oil for deep
frying or when boiling water, use the front
surface units or wait until the water is
boiling or the oil is at frying temperatures
before turning on the downdraft.
The downdraft may not completely capture all the
steam from pans on the front burners.
Canning
When canning foods in a water-bath canner,
a gentle but steady boil must be maintained
continuously for the required time.
When canning foods in a pressure canner,
the pressure must be maintained
continuously for the required time.
Use of the blower at HIGH speed when
canning may reduce the temperature
enough to stop boiling. While canning,
we recommend using the downdraft at
LOW speed and using the front surface unit.
Painted or metal surfaces
Grease filters
Clean greasy surfaces frequently, using a
mild detergent.
Do not use abrasive cloth or cleaners, steel wool
pads or scouring powder because they will scratch
the surface.

Customer Service
Operating Instructions
Safety Instructions

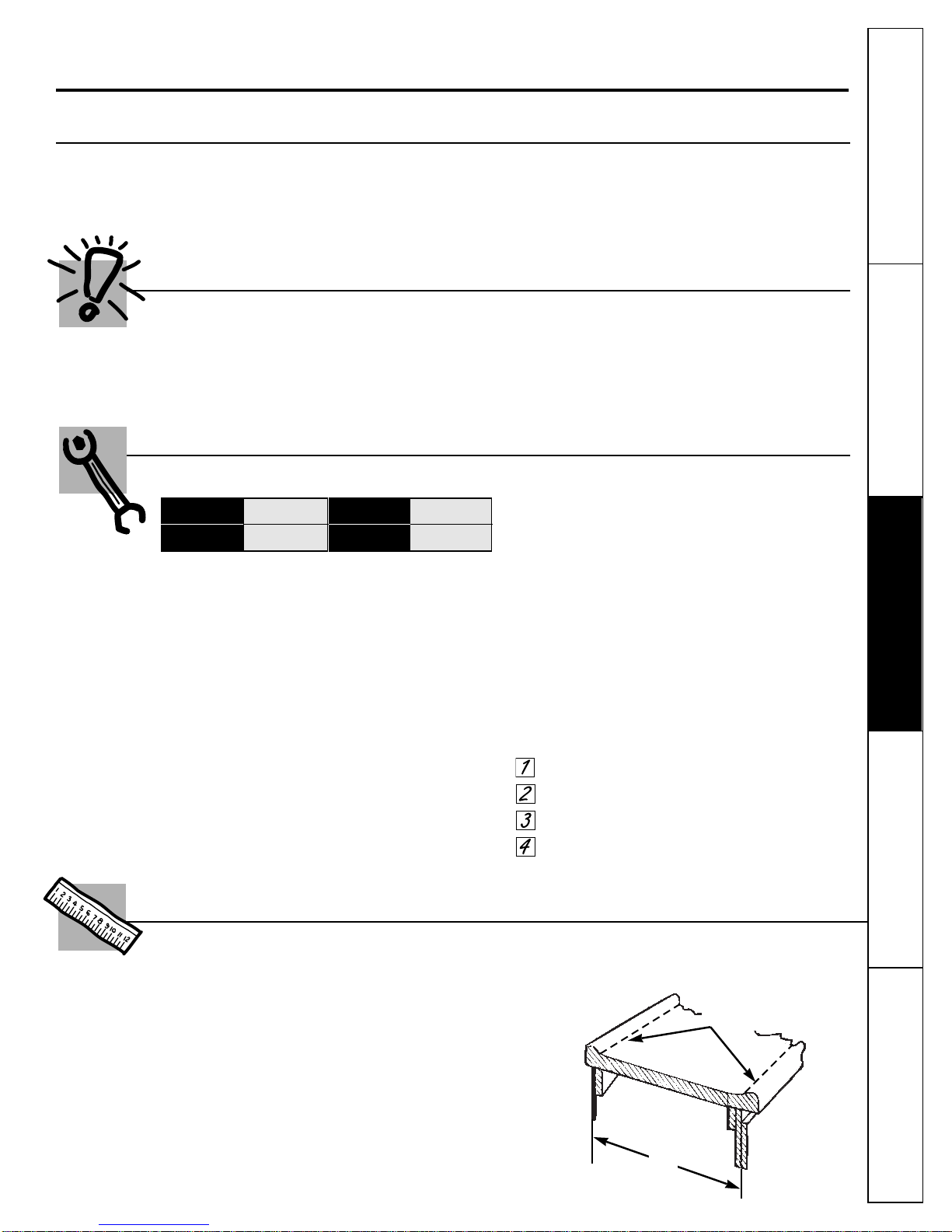

Installation of the downdraft system. Read these instructions completely and carefully.
Installation Instructions Troubleshooting Tips
Before You Begin
IMPORTANT: Save these instructions for the local
electrical inspector’s use.
IMPORTANT: OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
NOTE TO INSTALLER: Leave these instructions with
the appliance after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual
and Installation Instructions for future use.
NOTE: This appliance must be properly grounded.
WARNING—TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be
done by qualified persons(s) in accordance with
all applicable codes and standards, including fire-
rated construction.
B. Ducted fans must always be vented to the
outdoors.
WARNING—To reduce the risk of fire, use only metal
ductwork.
Measurements
■The 30″models will fit in most 30″wide cabinets
and the 36″models will fit in most 36″wide
cabinets.
■Check the inside dimensions of the cabinet before
beginning installation. The top of the side walls
may need to be cut to provide clearance for
mounting.
NOTE: To install a cooktop with this downdraft,
the cabinet depth must be 26″minimum.
A countertop with a raised lip may not allow enough flat
countertop for a proper installation.
Installation Requirements
* Can be transitioned to round duct (6″round minimum).
This downdraft blower system is designed to be used
to exhaust smoke and odors when cooking with all
GE Profile electric and gas cooktops listed in this
manual. It can be mounted in either an island or
peninsula location.
Requirements for an approved installation:
■26″minimum cabinet depth
■26″minimum from the back of the downdraft to
the front of the countertop, with
■231⁄2″minimum FLAT countertop surface
■If you install the vent and cooktop in an island,
you may need additional island depth. 24″base to
base will not be adequate. Please see below.
Plan the placement of the electrical outlet carefully.
It should NOT be installed on the back wall of the
cabinet because it may interfere with the downdraft.
It should be installed on a side wall or adjacent
cabinet. Make sure it is within reach of the unit’s 2 ft.
long power cord and conforms to all local codes.
Install a standard outlet to make the electrical
connection.
Plan the location of the gas supply pipe (for gas
cooktops) carefully to avoid interference with the
downdraft installation.

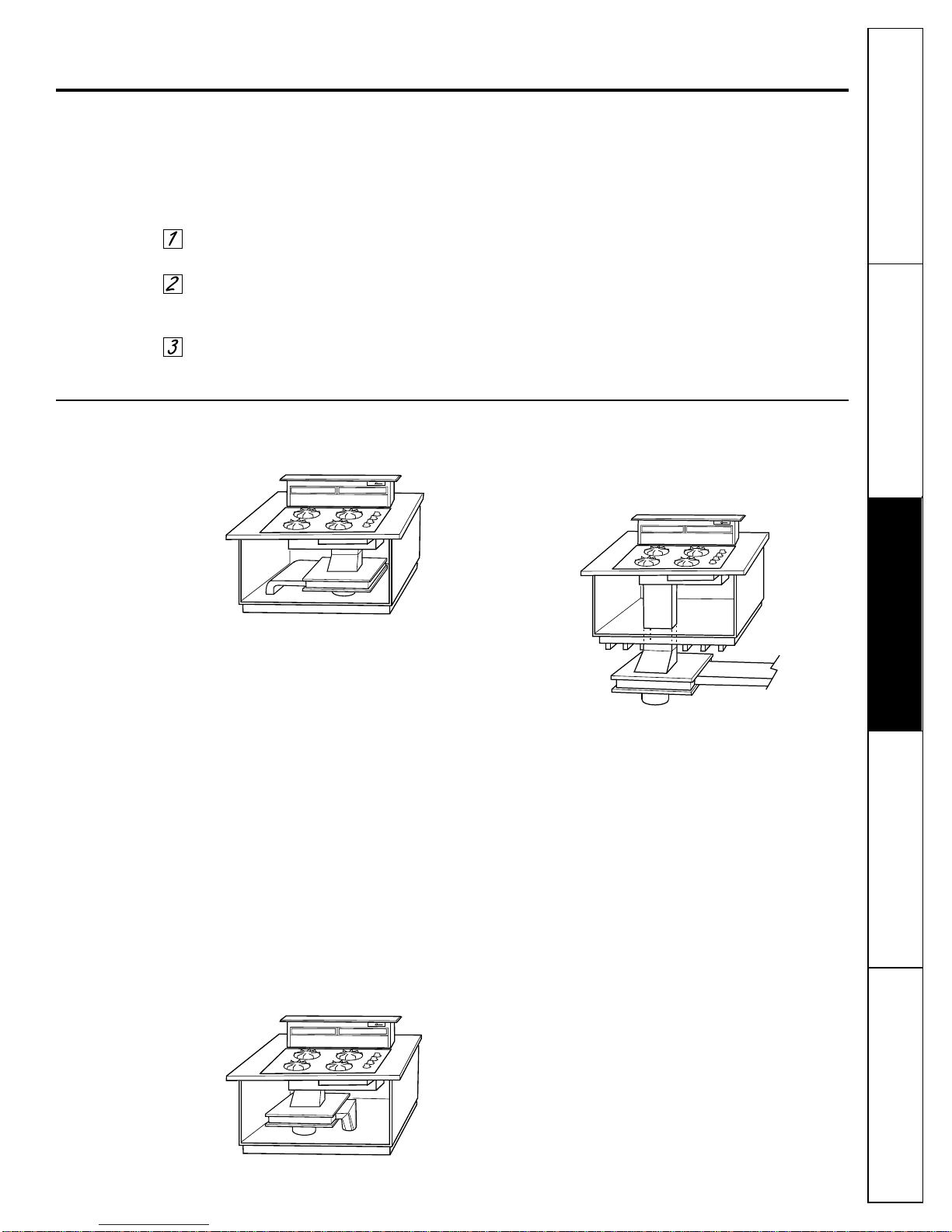

This unit can be easily installed following these
basic steps:
Cut out the countertop opening.
Install the downdraft in the cabinet.
Connect the ductwork and electrical.
Install the cooktop.
VOLTS 120
AMPS 4.0
CFM 500
DUCT 31⁄4″x 10″*
Before starting installation, check the following requirements:
7
Flat counter area
26″

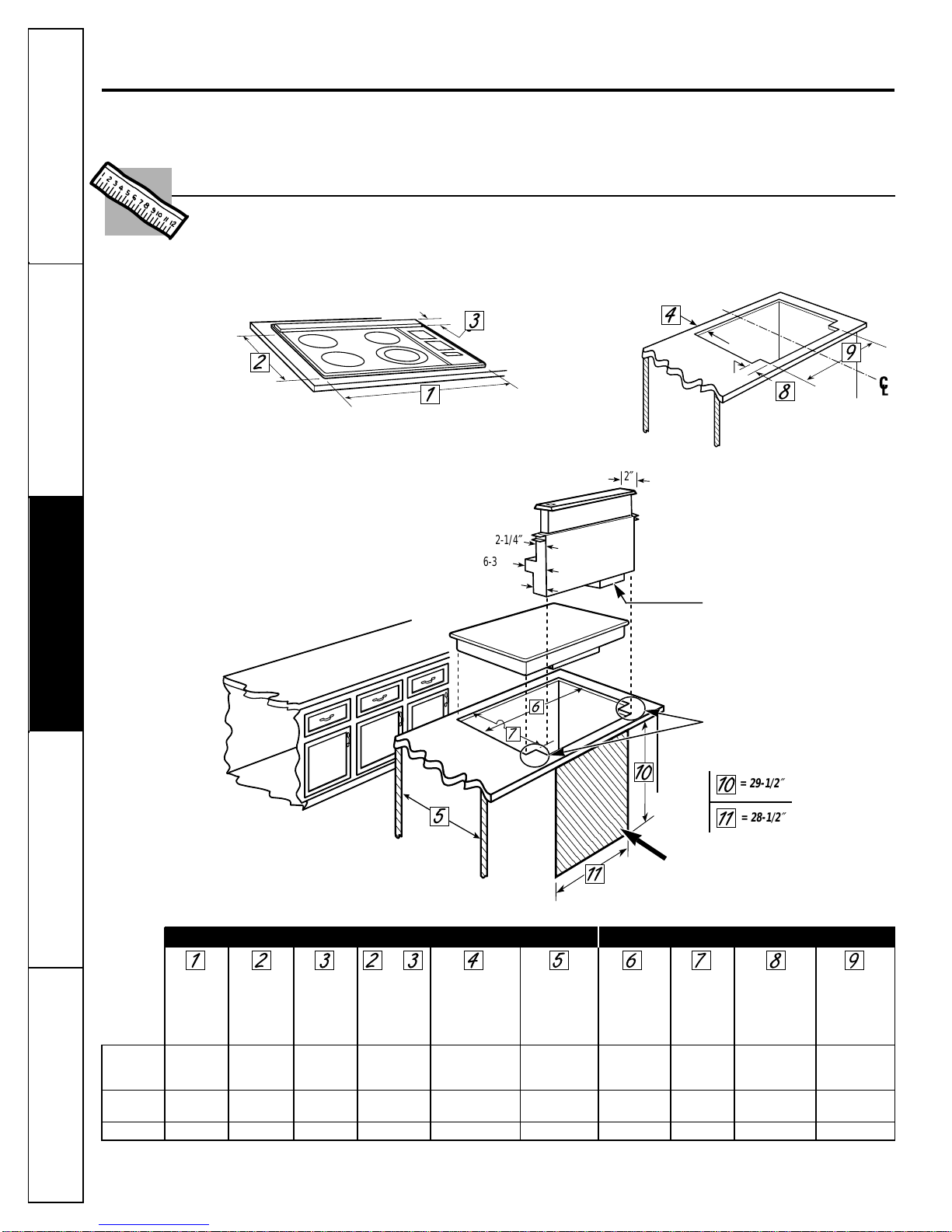

Refer to the cooktop installation instructions for dimensions of cooktop, countertop cutout,
and cabinet requirements.
Cutout dimension and illustrations are given for 30″and 36″cooktops.

Operating Instructions Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
Installation of the downdraft system.
Read these instructions completely and carefully.
30″Cooktops/Downdraft Unit JVB36
NOTE: Against-the-wall installations are limited due to dimension requirements.
Refer to details below.
,
,




,



= 29-1/2″
= 28-1/2″
2″
2-1/4″
6-3/4″
3-1/4″
*Front edge of countertop to cutout
Minimum inside
cabinet clearance No gas or electric service
inside shaded area.
Notches may not be needed
depending upon cutout width.
Exhaust (right or left)
Vent
Cooktop
Island
Island
Figure 3
Cutout for vent
Figure 2
Overall cutout dimensions
Figure 1
Overall cooktop dimensions *
Planning Installation (Note: 26″deep cabinets required) Preparing Cutout
&
(Figure 1) (Figure 1) (Figure 1) (Figure 1) (Figure 3*) (Figure 2) (Figure 2) (Figure 2) (Figure 3) (Figure 3)
Min. Setback— Downdraft
Cooktop Cooktop Depth Front Edge Min. Required Cooktop Cooktop Additional Depth Cutout Width
Overall Overall Vent Cooktop + Countertop to Front Inside Cabinet Cutout Cutout Required for Required from
Model No. Width Depth Depth Downdraft Vent Edge of Cutout Clearance Width Depth Downdraft Centerline
JP340
JP350 29-3/8″20-1/2″2″22-1/2″3″22-11/16″28-1/2″19-9/16″2-3/8″28-1/2″
JP360
JP392
JP393 30″20-3/4″2″22-3/4″2″23″29-1/8″19-15/16″2-5/16″28-1/2″
JGP336 30″21″2″23″3-1/4″22-7/8″28-1/2″19-1/2″2-5/8″28-1/2″
*Required to maintain UL or AGA approvals.
8

9
Customer Service
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
36″Cooktops/Downdraft Unit JVB66
NOTE: Against-the-wall installations are limited due to dimension requirements.
Refer to details below.


,



= 29-1/2″
= 34″
2″
8″
35-3/16″
14-7/8″
2-1/4″
6-3/4″
3-1/4″
Minimum inside
cabinet clearance No gas or electric service
inside shaded area.
Notches may not be needed
depending upon cutout width.
Exhaust (right or left)
Vent
Cooktop
Island
Figure 2
Overall cutout dimensions
Figure 1
Overall cooktop dimensions
Planning Installation (Note: 26″deep cabinets required) Preparing Cutout
&
(Figure 1) (Figure 1) (Figure 1) (Figure 1) (Figure 3*) (Figure 2) (Figure 2) (Figure 2) (Figure 3) (Figure 3)
Min. Setback— Downdraft
Cooktop Cooktop Depth Front Edge Min. Required Cooktop Cooktop Additional Depth Cutout Width
Overall Overall Vent Cooktop + Countertop to Front Inside Cabinet Cutout Cutout Required for Required from
Model No. Width Depth Depth Downdraft Vent Edge of Cutout Clearance Width Depth Downdraft Centerline
JP660 35″20″2″22″2-1/2″22″34″19-9/16″2-3/8″34″
JP692
JP693 35-1/2″20-3/4″2″22-3/4″2″23″34-5/8″19-15/16″2-5/16″34″
JGP636 35-1/2″21″2″23″3-1/4″22-11/16″34″19-1/16″2-7/8″34″
*Required to maintain UL or AGA approvals.
Remote RAISE/LOWER switch
(See the Installing the
RAISE/LOWER switch section.)
,
,


*Front edge of countertop to cutout
Island
Figure 3
Cutout for vent *

Operating Instructions
10
Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
Installation of the downdraft system.
Read these instructions completely and carefully.
Planning the Ductwork
This downdraft blower system is designed
for use with 31⁄4″x 10″ductwork (can be
transitioned to 6″round). Two different
discharge directions are available with side-to-
side adjustment for accurate alignment of
ductwork.
For best performance: Choose the ducting
option which allows the shortest length of
ductwork and a minimum number of elbows
and transitions. Check location of floor joists,
wall joists, wall studs, electrical wiring or
plumbing for possible interference.
Steps to Determine Flexible Ducting’s Equivalent Length
Measure the actual amount of offset
(Maximum 3″recommended). The effect
upon airflow is dependent upon the amount
of offset.
Calculate the equivalent ducting
allowances using:
( ___ in. offset) x (14 ft. per inch)
= ___ ft. equivalent length.
Ensure that the total equivalent length of
ducting does not exceed the maximum
recommendation of 150 feet.
Left discharge (as shipped)
Right discharge
Duct Equivalent Duct Equivalent Duct Equivalent
Pieces Length* Pieces Length* Pieces Length*
31⁄4″x 10″
to 6″Round
6″Round 1 ft. (per 31⁄4″x 10″Transition 12 ft.
Straight foot length) 45° Elbow 5 ft. 90° Elbow
6″Round
31⁄4″x 10″1 ft. (per 31⁄4″x 10″Wall Cap 21 ft.
Straight foot length) 90° Flat Elbow 24 ft. with Damper
6″Round 31⁄4″x 10″
6″15 ft. to 31⁄4″x 10″7 ft. Wall Cap 27 ft.
90° Elbow Transition with Damper
31⁄4″x 10″
6″to 6″Round 5 ft. 6″Round
45° Elbow 9 ft. Transition Roof Cap 20 ft.
6″Round
to 31⁄4″x 10″
31⁄4″x 10″Transition 20 ft. 6″Round
90° Elbow 16 ft. 90° Elbow Roof Vent 24 ft.
SHOULD NOT EXCEED 150 EQUIVALENT FT.
*Equivalent lengths of duct pieces are based on actual tests conducted by GE Evaluation Engineering
and reflect requirements for good venting performance. See chart for CFM Duct Length.

Customer Service
Installation Instructions Troubleshooting Tips
Operating Instructions
Safety Instructions
Preparing to Install the Downdraft System
Changing Blower Discharge
Discharge left
(shown with rectangular duct)
The vent is shipped with the outlet on the left.
If the position of the discharge needs to be moved
so the ductwork does not interfere with floor joists,
plumbing or wiring below, make the following
changes:
To change the discharge from left to right, remove
the screws holding the outlet panel to the bottom of
the vent. Remove and rotate the panel and fasten
with the screws.
Preparing the Blower
A transition is provided to connect a 31⁄4″ x 10″duct
to the blower. Attach the duct transition to the top
of the blower with the screws provided. The blower
has holes that match the transition.
Do not drill additional holes in the blower.
If round ducting is used, transition to 6″round to
connect to the inlet of the blower.
Discharge right
(shown with 6″round duct)
The blower can be mounted in the cabinet or under
the floor. The blower will fit between floor joists on
16″centers.
Through the floor
(shown with rectangular duct)
For installations where the blower is mounted
in the cabinet, attach the mounting supports to the
corners of the blower housing on the motor side of
the motor housing.
If the blower is installed under the floor, attach the
support legs to the corners of the blower housing on
the side that the inlet duct attaches.
The support legs are adjustable for height by sliding
the two halves and tightening the bolts when
extended to the desired length.
Planning the Wiring
All wire connections and installations must be in
compliance with local codes. In the absence of local
electrical codes consult the National Electric Code.
The downdraft blower system draws 4 AMPS
and requires a 120 VAC, 60 Hz circuit.
Plan to provide a grounded outlet in a
location which will allow the unit’s power
cord to reach.
On 36″model, plan the RAISE/ LOWER switch.
The lead to the switch is 72″long.
The outlet cannot be located on a back wall.
The outlet needs to be mounted on the side wall
of the cabinet or it could be on the back wall of an
adjacent cabinet with access through an opening
in the side wall. (Based on local codes.)
11

Operating Instructions
12
Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
Installation of the downdraft system.
Read these instructions completely and carefully.
Installing the Downdraft
Set the downdraft into the opening.
Secure the downdraft to the countertop as
follows: Hold the downdraft against the back
of the countertop cutout and tighten the
2 mounting screws (one on each end of unit)
on the underside of the countertop. Use a
wood shim between the screw and the
underside of granite countertops.
There are holes provided to attach the
stabilizing strap to either side of the downdraft.
Fasten the other end of the strap to the back or
side wall of the cabinet.
If installing on a tile surface, it may be necessary to
apply locally approved caulking along the back and
sides to cover gaps.
Mounting Screws
Installing the Ductwork
CAUTION—BEFORECUTTINGA HOLE IN CABINET FOR
DUCTWORK: Check for interference with floor joists,
wall studs, electrical wiring or plumbing.
Cut the hole in the cabinet as well as holes in
the wall or floor as necessary.
Mount the roof or wall cap and work back
towards the cabinet and blower, attaching all
ductwork, elbows and transitions as previously
planned. Tape all ductwork connections to
make them secure and air tight.
Installing the RAISE/LOWER Switch (on some models)
The RAISE/LOWER switch can be installed in the
countertop, cabinet face or wall near the downdraft.
Determine where you wish to place the remote
mount RAISE/LOWER switch. Keep in mind that the
wiring lead length for the switch is 72 inches. The
connector at the end of the leads plugs into a
mating connector located in the control box.
After selecting
the location of
the switch, drill
a 1/8″hole in
the surface
selected, i.e.
top, cabinet
face, or
adjacent wall.
Countersink
11/16″to a
1/4″depth. Tie
a small knot in
the switch leads
as shown in this
figure. The knot should be as close to the
switch as possible so that is fits into the
countersink. This provides for strain relief.
Mount the metal switch bracket, with either the
screws provided or locally approved adhesive, over
the countersink.
Make sure the bracket is oriented with the center section
touching the mounting surface.
Peel the film from the back of the trim to
expose the adhesive and thread the electrical
leads through the mounting bracket 1/8″
hole and into the cabinet.
If mounted on a tile surface, make the
hole large enough for wires (i.e. between tile
sections) and use locally approved caulking
to cover any gaps around the base of the
trim body.
Snap the trim body onto the mounting
bracket and press to set the adhesive.
Attach the 2 leads to the two-prong plug and
plug into the panel on the vent. Route and tie
the switch leads and any excess wire length so
they will not be pinched or caught during
operation of the vent or by an article stored
within the cabinet.
Trim
Mounting
bracket
Leads
Knot

Customer Service
Installation Instructions Troubleshooting Tips
Operating Instructions
Safety Instructions
Installing the Cooktop
Align the cooktop with the downdraft and
fasten cooktop in place.
NOTE: Accurate alignment of cooktop and downdraft is
necessary to ensure that there is not interference when
air vent is raised and lowered. There should be a gap of
1/16″–1/8″between the back of the cooktop and the
front of the downdraft cover.
Installing the Electrical Wiring
Mount a standard wiring box, with 3-pronged,
120 volt, 60HZ outlet, inside the cabinet.
Make sure the downdraft’s power cord can
easily reach it.
Run the appropriate power cable into the
cabinet and connect it to the outlet.
Plug the downdraft’s power cord into the
outlet.
For Local Installation
The conduit on the blower is of sufficient length to connect to
the downdraft when the blower is mounted in the cabinet and
for some installations under the floor.

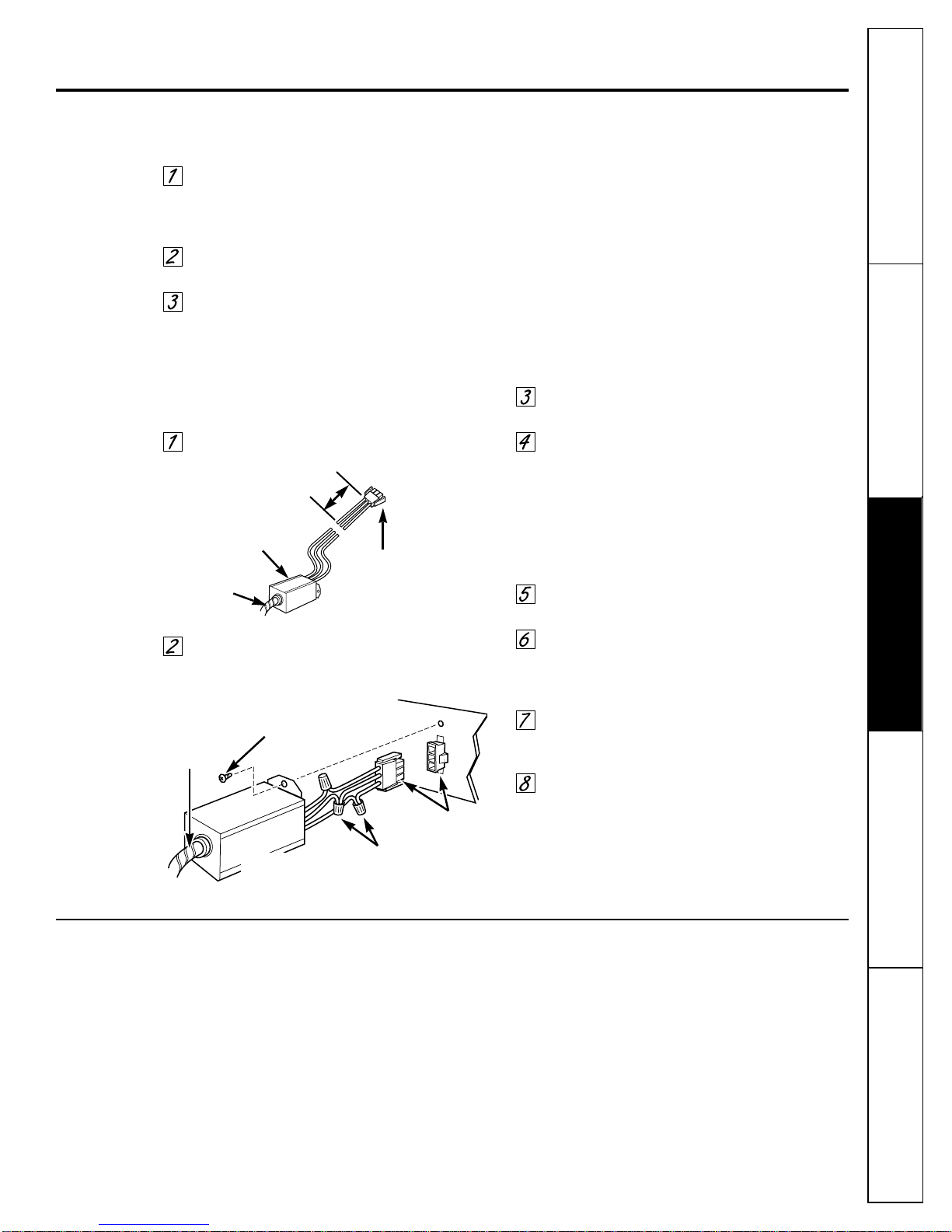

Plug the blower conduit into the mating connector
on the bottom of wiring compartment cover on the
downdraft. Fasten the wire box to the main unit
wiring compartment with the screws provided.
For Remote Installations
If the blower conduit is not long enough to reach the wiring
compartment on the downdraft, the leads can be extended.
Cut the blower leads approximately 3″from
the plug on the end of the blower conduit.
Remove the wire box and conduit fitting from
the end of the blower conduit by loosening the
screw on the fitting.
Save the wire box and plug to complete the
connection at the downdraft vent in the house.
Use electrical cable and connectors that
conform to local codes (14 gauge min. is
recommended). Attach the wire box removed
from the blower conduit to the end of the wire
run at the vent. Attach the plug and 3″leads to
the cable at the downdraft vent. Insert the plug
into the mating plug on the vent. Attach wire
box with screws to the vent.
Install appropriate electrical box with conduit
connectors near the blower.
Check that the red plastic anti-short bushing is
secured in the end of the conduit. Install the
blower conduit into the conduit connector on
the electrical box.
Attach the green ground lead from the blower
to the ground lead of the wiring of the
downdraft vent.
Connect the neutral and power leads from the
blower to the leads from the downdraft vent.
13
Blower
conduit
Blower wire box
Blower wire box
3-Wire
connectors
Wire nuts
Mounting screw
Wire to outdoor
enclosure
3-Wire connector
3″

Operating Instructions Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
14
Before You Call For Service…
Troubleshooting Tip
Save time and money! Review the tip below and you may
not need to call for service.
Problem Possible Causes What To Do
Fan does not work The vent is not fully extended. •Press the RAISE/LOWER switch.
The blower control switch may •Slide it to the right.
be in the OFF position.

15
Customer Service
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
Notes

Operating Instructions Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
16
Notes

17
General Electric Company
Warranty Registration Department
P.O. Box 34070
Louisville, KY 40232-4070
GE Service Protection Plus™
GE, a name recognized worldwide for quality and dependability, offers you Service
Protection Plus™—comprehensive protection on all your appliances—No Matter
What Brand!
Benefits Include:
• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
• One 800 number to call
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Please place in envelope and mail to:
✁Cut here

Consumer Product Ownership Registration
Model Number Serial Number
Important
Mail
Today!
GEAppliances
General Electric Company
Louisville, Kentucky 40225
First
Name
Mr. ■■Ms. ■■Mrs. ■■Miss ■■
Street
Address
City
State
Date Placed
In Use
Month Day Year
Zip
Code
Apt. #
Last
Name
Phone
Number __
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your
confidence in us. We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Complete and
mail your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of
a safety modification.
After mailing
the registration
below, store this
document in a safe
place. It contains
information you
will need should
you require service.
Our service number
is 800-GE-CARES
(800-432-2737).
Read your Owner's
Manual carefully.
It will help you
operate your new
appliance properly.
If you have questions,
or need more infor-
mation call the
GE Answer Center®
800.626.2000.
Important: If you did not get a registration card with your product,
detach and return the form below to ensure that your
product is registered.
123
Model Number Serial Number
✁Cut here
18

Customer Service
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
19
GE Downdraft System Warranty
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care® technician. For service,
call 800-GE-CARES.
For The Period Of: GE Will Replace, At No Charge To You:
One Year Any part of the downdraft system which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, GE will also provide, free of charge, all labor
original purchase and in-home service to replace the defective part.
■Service trips to your home to teach you how to use the
product.
■Improper installation.
■Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
■Replacement of house fuses or resetting of circuit
breakers.
■Replacement of the replaceable filters.
■Damage to the product caused by accident, fire, floods or
acts of God.
■Incidental or consequential damage to personal property
caused by possible defects with this appliance.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate
electrical, gas, exhausting and other connecting facilities as described in the Installation Instructions provided
with the product.
Warrantor: General Electric Company. Louisville, KY 40225

Operating Instructions Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
Service Telephone Numbers.
GE Answer Center
®
800.626.2000
The GE Answer Center® is open 24 hours a day, 7 days a week.
In-Home Repair Service 800-GE-CARES (800-432-2737)
Expert GE repair service is only a phone call away.
Special Needs Service 800.626.2000
800-TDD-GEAC (800-833-4322)
GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons
with limited mobility.
Service Contracts 800-626-2224
Purchase a GE service contract while your warranty is still in effect and you’ll receive a
substantial discount. GE Consumer Service will still be there after your warranty expires.
Parts and Accessories 800-626-2002
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their homes (VISA, MasterCard and Discover cards are accepted).
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since
improper servicing may cause unsafe operation.
Service Satisfaction
If you are not satisfied with the service you receive from GE:
First, contact the people who serviced your appliance.
Next, if you are still not pleased, write all the details—including your phone number—to:
Manager, Customer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
Finally, if your problem is still not resolved, write:
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
Printed in the United States
20
