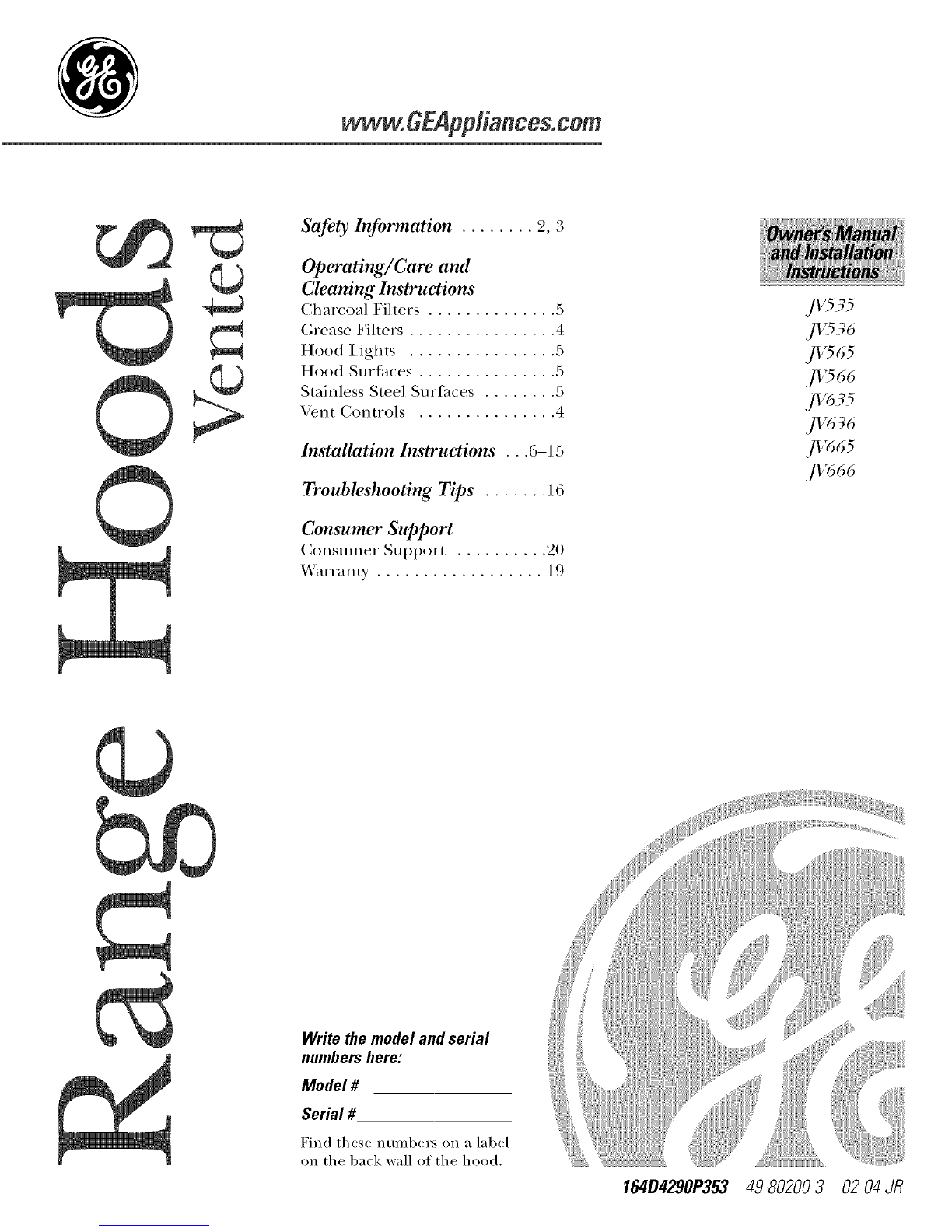

GE JV565 Operating instructions

www.GEAppliances.cem
Safety Information ........ 2, 3
Operating/Care and
Cleaning Instructions
Charcoal Filters .............. 5
Grease Filters ................ 4
Hood Lights ................ 5
Hood Surfaces ............... 5
Stainless Steel Surfaces ........ 5
Vent Controls ............... 4
Installation Instructions ...6-15
Troubleshooting Tips ....... 16
Consumer Support
Consumer Support ........... 90

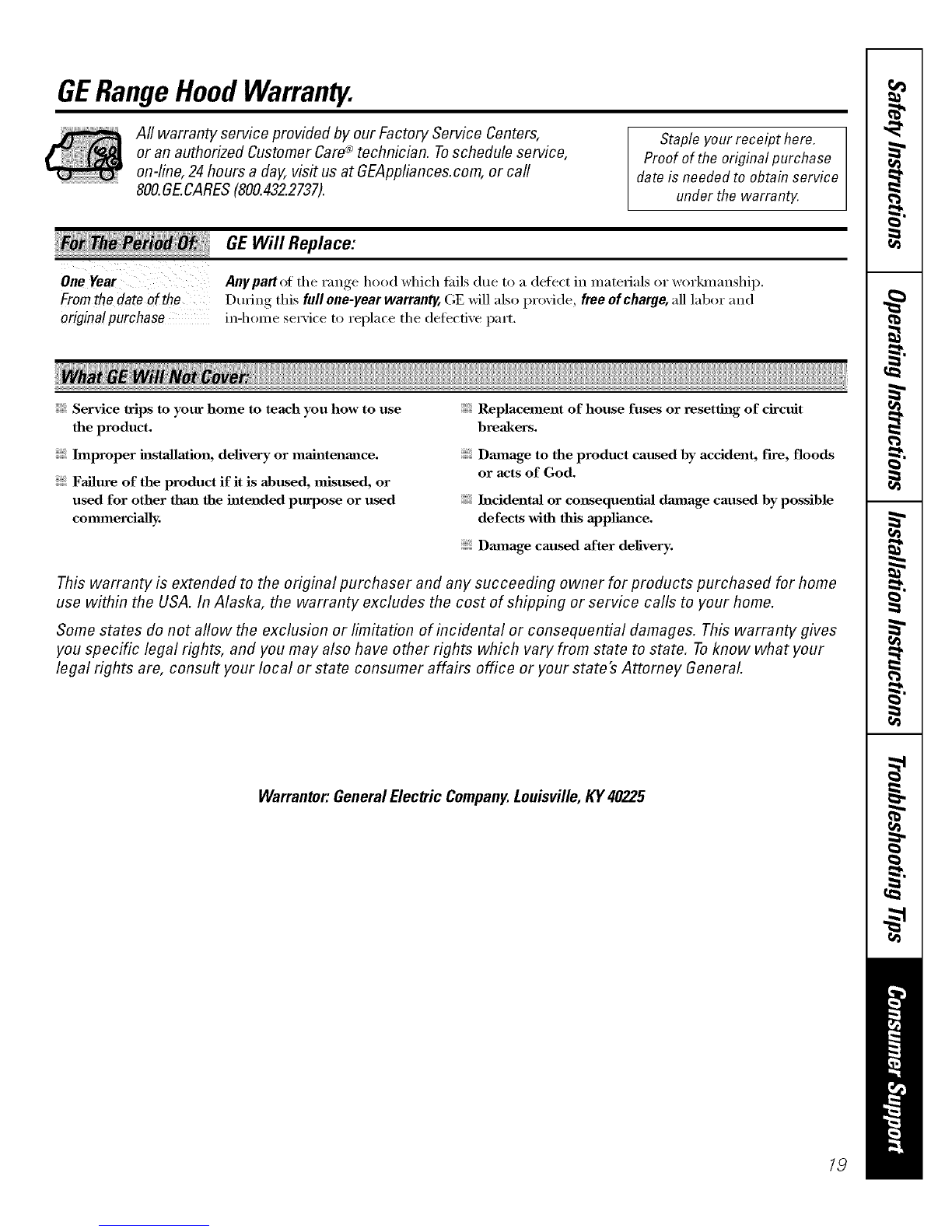

X4'arranty .................. 19
JVS)5
JV536
JV565
JV566
JV635
JV636
jq!665
3q7666
Write the model and serial
numbers here:
Model #
Serial #
Find these nmnl_ers on a label
on the back wall of the hood.
iii!
164D4290P353 49-80200-3 02-04 JR

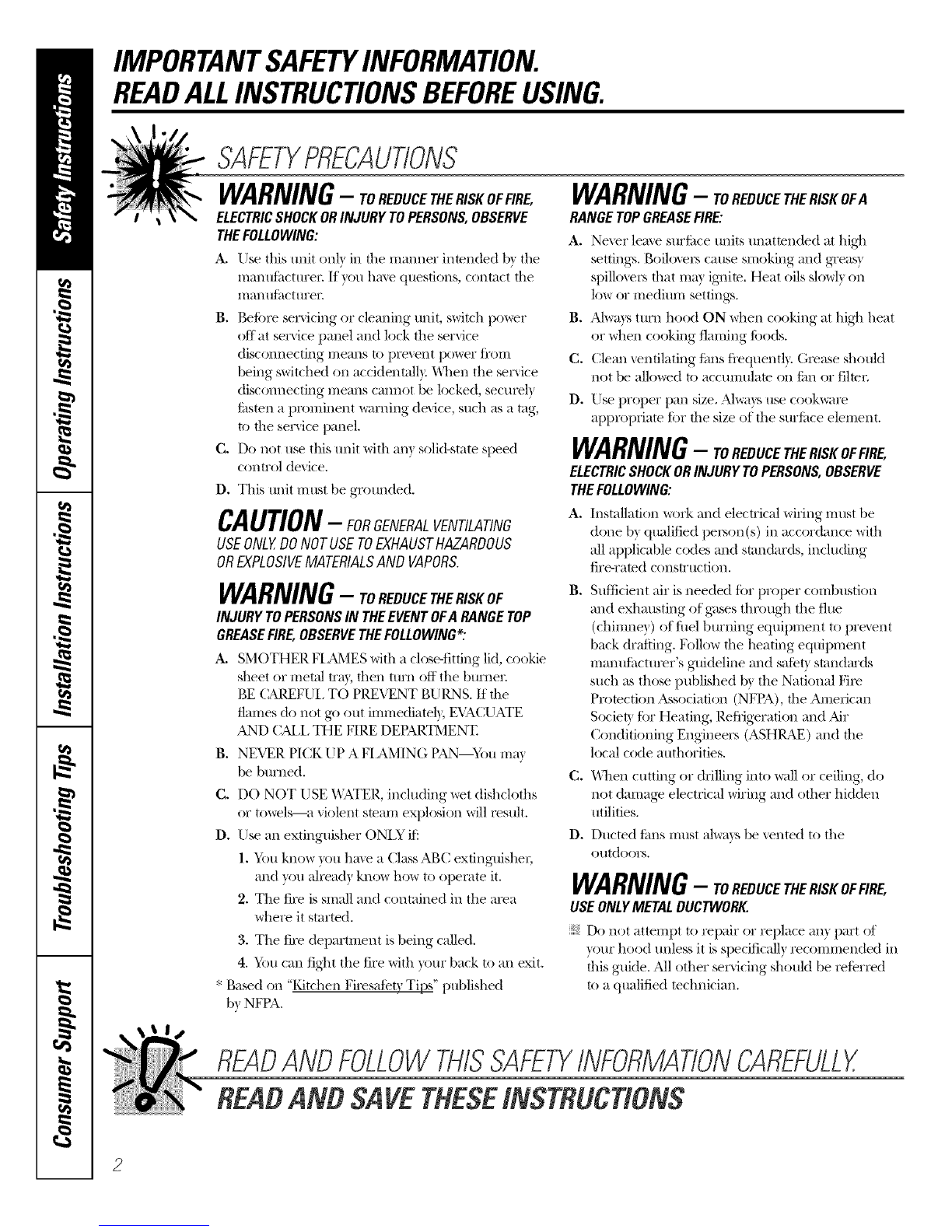

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
SAFETYPRECAUTIONS
WARNING-TOREOUCETHERISKOFFIRE,
ELECTRICSHOCKORINJURY TOPERSONS,OBSERVE
THEFOLLOWING:
A. Use this unit onl} in the rammer intended b) tile
manutimtm'ec If you hmv questions, contact the
irlan tltilct tire/;
B. Befi)re seIMcing or cleaning unit, switch po_vwr
off at serxice panel and lock the service
disconnecting means to prevent power fl'om
being switched on accidentally. When the set\ice
discomlecting means camlot be locked, securel}
thsten a prominent warning dexice, such as a tag,
to the seIMce panel.
C. Do not use this unit with an) solid-state speed
control device.
D. This unit must be grounded.
CAUTION-FORCENERALVE,VT/_T,VC
USEONLY.DONOTUSETOEXHAUSTHAZARDOUS
OREXPLOSIVEMATERIALSAND VAPORS.
WARNING- TOREBUCETHERISKOF
INJURY TOPERSONSIN THEEVENTOFA RANGETOP
GREASEFIRE,OBSERVETHEFOLLOWING*:
A. SMOTHER FI AMES with a close-fitting lkt, cookie
sheet or metal tray, then turn off the bm'ne_:
BE CAREFUI, TO PREVENT BURNS. If the
flames do not gx) out immediate]y, EX,ACUATE
AND CA[ i, THE FIRE DEPARTMENT.
B. NEVER PICK UP A FIAMING PAN--3ftu ma)
be burned.
C. DO NOT USE \\_4TER, inchlding _vt dishcloths
or to_vls--a violent smam explosktn will result.
D. Use an extinguisher ONIXitl
1. Ytu know you hmv a (;lass ABC extinguisher;
and you alread} know how to operate it.
2. The fire is small and contained in the area
where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
* Based on "_tchen Firesatbt} Tips" published
b) NFPA.
WARNING-TOREOUCETHERISKOFA
RANGETOPGREASEFIRE:
A. Ne_vr leme surfiwe units unattended at high
settings, goilo_vI_ cause smoking and gTeas)
spillovet_ that ma) ig_lim. Heat oils slowl) on
low or medimn settings.
B. Always turn hood ON when cooking at high heat
or when cooking flaming foods.
C. Clean ventilating tiros fl'equentb'. Grease shouM
not be allo_vd to accumulam on tim or filmr,
D. Use proper pan size. N_l),s use cookwm'e
appropriate titr the size of the surtilce element.
WARNING-TOREOUCETHERISKOFFIRE,
ELECTRICSHOCKORINJURY TOPERSONS,OBSERVE
THEFOLLOWING:
A. Installation _)I'k and electrical wiring must be
done b) qualified pelion(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
B. Sufficient air is needed tin" proper combustion
and exhausting of gases through the title
(chimne}) of filel burning equipment to pre_ent
back dratiing. Follow the heating equipment
manufhcturer's guideline and safet) smndm'ds
such as those published b) the National Nre
Promctktn Association (NFPA), the Amei'ican
Societ) titr Heating, Refl'igeradon and Air
Conditktning Engineers (ASHRAE) and the
local code authorities.
C. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
D. Ducted thns must alwa)_ be vented to tile
o tltdooi's,
WARNING-TOREOUCETHERISKOFFIRE,
USEONLYMETALDUCTWORK.
Do not attempt to repair or replace an) part of
)'our hood unless it is specificall} recolnlnended iI1
this gukte. 'All other selMcing should be referred
to a qualified technician.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
READAND SAVETHESEINSTRUCTIONS
2

INSTRUCTIONSDESECURffEIMPORTANTE$.
USEZ TOUTE$tES/NSTRUCT/ONSAVANTffUT/USER _CEA_li_.oo=om
PRCcCAUTIONSENMATIecREDESCcCUR/TCc
t
........,_ AVERTISSEMENT-mRRtOUIRELEAVERTISSEMENT-RtOUISEnE
RISQUED'INCENDIE,DESECOUSSEELECTRIQUEOUDE RISQUED'UNFEUDEGRAISSEStIRLASURFACEDE
BLESSURECORPORELLE,OBSERVEZLESPR£'CAUTIONS
SUIVANTES:
A. N'ufi]iscz cot apparel] qtte dc ]a mani,St'c prdvue pro le
lidMcant. Si ','(ms a'a.'zdes qtl¢'StJOl/S, appelez k' Jitbricant.
B, ,\We[It de rdl)_ll:er Otl de lletto}t'r \'otre appareil,
ddbrai/chez le cot[/';lllt au nivcatt du panneau de service
et vcrrouillez les mdcanismes de d('brmlchemem de
S('I:\JC(! pO(ll: @iter [(Hit bl'_lllchel/l(!l/t accidente] att
co/lral/t. Ni \_)/IS lie po/l_'z pas \_TFO/lilleF les
mdcanismes de ddbnmcheumnt de service, attachez
soignettselnent/ill avcrtisse]l/ellt bien visible, col_/i/le
ttile dtiquette, all ])ai/l/eatl de service.
C. N'utilisezjamNs cet appareil avcc un mdcanisme de
rdgl;ig-e de la \itesse h semi-coiMucteurs.
D. Cet appareil dolt ,Stre bien mis 5 la terre.
ATTENTION- UNIOUEMENrAUSACEOE
VENTILATIONGE-NE-RALE.N'UTILISEZJAMAISPOUR
L'E-CHAPPEMENTDEMATIE-RESETDEVAPEURS
EXPLOSIVES.
AVERTISSEMENT-POURR_OUIREtE
RISQUEDEBLESSURECORPORELLESIDELAGRAISSE
PRENDFEUStIRLASURFACEDECUISSONDUFOUR,
SUIVEZLESINSTRUCTIONSSUIVANTES*:
A. I(TOUIq;EZ I.ES I:I,AMMES a_e( tm (ott'v(!r(h: q/li
(O]/Vi(!ll[, till(! t61e _ l)is( uJts Oil L11/ ])latealt (!l/nl('tal,
puis ('migm_z le brfllem: I:AITES glEN ,_ITENTION
I)E NE BkS \OU S BRI_JI,ER. Si les tlammes lie
s'dteignem pas immddiatement, SORTEZ ET APPEI.EZ
I.ES POMPIERS.
B. NE DI{PI.ACEZJ_\M\IS UNE CASSEROI,I E ()UI
FI .\M gE - \Oils po mez xr()ttS br tt](}12
C. N'UTII.ISEZJAM\IS I)'EkU, ell patti( ulier de serdette
ou d(! ( hiitbn mouilld - il se produira un(! explosion
vJolellt(} de vapcur l)rttlal/te.
D. N'UTII.ISEZ UN EXTINCI'ELIR que si :
lo _0/lS _/_,(?Z ILl/ eXtill( te/Ir (]e ( ]aSSe Age (}t votts sa*,ez
( omment l'ufiliser;
2. I.e t{_u est r('duit et (onfind _ll'endroit off il a
(()filial(fill (';
3. V0us avez d(jh appel(' les pompiers;
4. _O/lS (()I/lbat[(!Z leS f[_tI/ll/lI.!S (!l/ tO/ll'lla]/t 112 (10S _'1
( LI/IZ sortie.
* gasd snr l'ou'vrage infimld <<Kitthen Fire Sati:ty Tips>>
publi(' par la NI:E\.
CUISSONDUFOUR:
A. Ne laissezjamais _ms surwillancc los uniE('sde cuisson de
sur/iuc it une tcmpi, rature (,hw(*x_.Is' bouillonm'mcnt
o( CkkfliOlllledes d('bOl'(l(!l//el/tS tilll/alllb et gTaisseux (]/li
pemvnt prendrc Ji'u. Chau//bz _/li:tt doux les substances
huil,.:uses, m'cc un rdgl_/ge bas ou moycn.
B. Mettez tot!jotnTs la hotte el/m_u'che quand mus cuisinez
it haum tempgTature ou qland vous cuisinez des
aliments qui om des flmnmes.
C. Netlo\cz les mdcanismes de _vndlation ti'6queumlent.
I1ne [imt pas permettre une accumulation de graisse
sur le ventilateur ou sur le fihre.
D. Utilisez line casserole de bonne taille. I-Itilisez toujoltrs
ttn ustensil(! de cuisine qui COlIVielllle all diam6tre de
l'/'ldment de cuisson.
AVERTISSEMENT-pOURRtOUIREtE
RISQUED'INCENDIE,DESECOUSSEE.LECTRIQUEOUDE
BLESSURECORPORELLE,OBSERVEZLESPRE.CAUTIONS
SUIVANTES:
A. Vous/t('x('z Jidr(' ('x/'(ut('r t/ms l('s tra\attx d'insufllatMn
et de (2d)l_/g(' dlectrique par une personlle qualifide,
C()lll[)lTl/l('ll/ellt _/ tOllS l(:s codes et les l/()Fl//eS eII
dgltem; ell particulier ce/tx de construction relatig
aux incendies.
Bo rOllS d('\_.'z assez d'air pour ktVOil" /lIle bOl/l/(!
col/lbusdoll et permetlre l'd\ilcttath)ll des g;iz par le
collduit de cheminde du n'_at('l:iel de con'_b/lstioil (ill
C_/l'b/IFk/l/t, 3Jill d'6viter loll[ retO/ll? (l'kliK S/li\_.'Z 1(!S
directives du ]hbricant de mat('riel de combustion et
les normes de s6curitd comme celles publi('es par la
National Nre Protection Association (NFI{\),
l',\merican Society ]br Iteafing, Re/i'igerafion mM
Nr Conditioning Engineers (ANIRAE), aJnsi que les
modalitds des codes locaux.
Co _i VO/IS thites (lIl [F()/l O/l Itne O/lV('lTtllre d_IIs till Ill/IF
ou un plaJbnd, n'endolmnagez pas les tils dlectriques
et les mitres installations cach('es de service public.
D. Vous dc_vz t/)/{jours alimemer les v('nfilateurs darts les
conduits en air el/pr/)v(.nallce de Fextdriem:
AVERTISSEMENT-pOURR_OUIRE
LERISQUED'INCENDIE,N'UTILISEZQUEDESCONDUITS
ENM_'TAL
N'ess_Ewzjamais dc _emplkwer ()It (h' rdparcr un i'll'merit
(l(' \/)tl'(' h()tt(' si l(' t)l'('S('llt llKIll/l(!l Xl(' l(' 1X'C()I]lll/_lll(]('
pas exl)ressdment. "Ibut autr,.: entreden doit £'tre eJti:ctu6
par un technicien qttalili&
LISEZETSUIVEZATTENTIVEMENTCESINSTRUCTIONS.
LISEZETCONSERVEZCESINSTRUCTIONS 3

Usingthehoodcontrols.
Throughout this manual, features and appearance may vary from your model
Control Knobs (on some models) Rocker Switch Controls (on some models)
OFAN Control
Turn to LO,MED,HIor MAX asneeded.
(_onfinuous use of the tim system while cooking
helps kee I) the kitchen comflwtable and less hmnid.
It also reduces cooking o(lo_ and soiling moisture
that create a fl'equent need for cleaning.
OLIGHTControl
Tm'n to HI while cooking or to NITE t0r use as
a night light.
Hi
OFF
LOW
€#FAN _LIGHT
O ,
Hm
OFF
NTE
OFAN Control
Press the rocker switch at the top to turn the tim on
HI and at the bottom to turn it on LOVV.The center
position is OFF.
Continuous use of the tim system while cooking
helps kee I) the kitchen comt0rtable and less humid.
It also reduces cooking o(lo_ and soiling moisture
that create a fl'equent need fi)r cleaning.
OLIGHTControl
Press the rocker switch at the top to turn the light ON
while cooking. Press the rocker switch at the bottom
fi)r use as a night light. The center position is OFF,
Careand cleaning ofthe venthood.
Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the vent hood.
If it ever becomes necessary to replace
the metal grease filters, they may be
ordered from your GEsupplier
ReusableMetal Grease Filters
The hood has 2 metal reusable
grease filte_.
The metal filte_ tral ),grease released
1)_fl)ods on the cooktop. The) also
help prexent flaming toods on the
cookto ) fl'om damaging the inside
of the hood.
For this reason, the filtet_ inust
ALWAYS be in place when the hood
is used. The grease filte_ should
be cleaned once a month, or
as needed.
To remove, press the filter locks
back and pull the filte_s down
[1110 Otlt,
To clean the grease f'flters, soak
them and then sMsh them around
in hot water and detergent.
Don't use [llllll/oni[l oi" [lllli/loni[l
products because they will darken
the metal. Do not use abrasives or
oven cleane_5. I,ight brushing can
be used to remove embedded dirt.
Rinse, shake and let them dry befi)re
replacing. They may also be demled
in an automatic dishwasher,
NOTE."Beforec/eanlbg makesure the
charcoalfilters, if present,am unclipped
andremoved Seethe CharcoalFilters
seCtl'On.
4
To replace, insert the rear filter tabs
in the fl'ame slots at the back of the
opening. Push the filte_ up and lock
them into place.

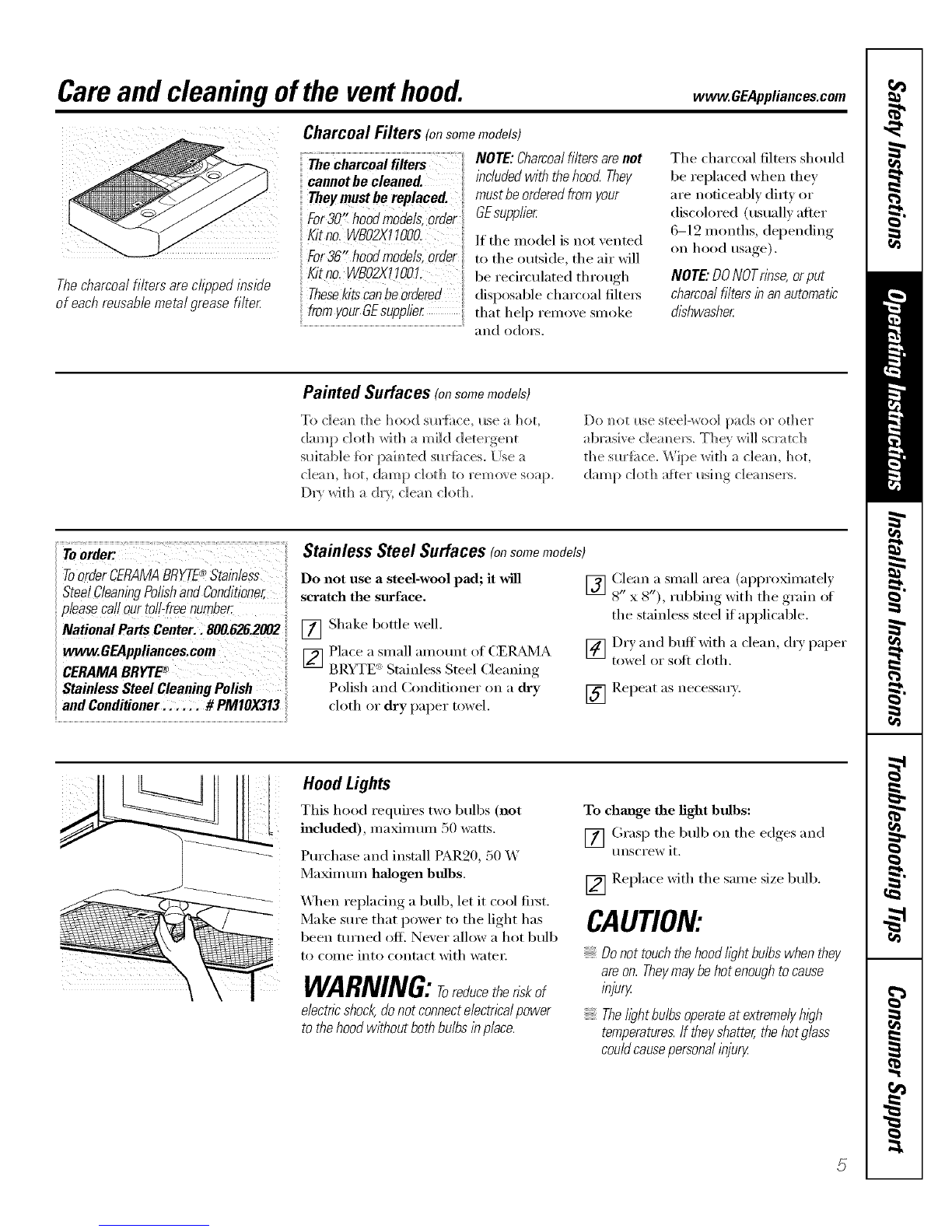

Careand cleaning ofthe venthood. www.GEAppliances.com
Thecharcoal filters are cfiooed nslde
of each reusable metal grease filter
Charcoal Filters (onsomemodels)
The charcoai filters :: : : NOTE: Charcoal filters are not
cannot be cleaned, included with the hood They
They must be replaced, mustbe orderedfrom your
For30 hoodmodels,Order GEsupplier
K,tno lgoo .them. lelis,,,,t.e,,te l
For36 hOM models, Order to the ,,utside, the air,,'ill
Kitno. WBO2X1100L be recirculated through
TheSekits canbe ordered disposable charcoal filte,_
from yourGEsupplier that help remove smoke
.....................................................................................................................................................................................and odoi_.
The charcoal filters should
be replaced when they
are noticeably dirty or
discolored (usually after
6-12 months, depending
on hood usage).
NOTE'.DONOTrinse,or put
charcoal filters in anautomatic
dishwasher
Painted Surfaces fonsomemodels)
To c]em_ the hood sm'fi_ce, I_se a hot,
(]a_))p do[h P,ri[h a m))i](] (]ete_ge_t
sinkable fbl" paim_te(]sm'fi_ces. [Ise a
c]eam hoL damp cloth to rem_>_e soap.
[)r_ with a dr}, c]em_ cloth.
Do m_ot I_se steel-wool pads o1" other
ab_asive c]em_ers. The_ will sQv_tch
the sm'{i_ce. W_pe _ith a c]emL hot,
damp cloth after I_sim_gclean,seas.
ToOrderCERAMABRYTE®Stainless _:
SteelCleaningPolishandConditioner,
pleaseCa!loUr tO!!-freenumbec
National Parts Center.: 800.626.2002
Stainless Steel Cleaning Polish
and Conditioner: ..._. # PM10X313 I
Stainless Steel Surfaces (onsomemodels)
Do not use a steel-wool pad; it _dll [] Clean a Slnall area (apl)roxhnatel)
8" x 8"), rubbing wKh the glam of
scratch the surface.
[] Shake bottle well.
[] Place a small aillO/lnt of (]E[)v_/L_
BRYTE _'Stainless Steel Clealfing
Polish and (_ondititmer on a dry
cloth or dry paper towel.
tile stainless steel if applicable.
[] Dr)and buff'with a clean, dry paper
towel or soft cloth.
[] Repeat as necessala.
Hood Lights
This hood requires two bulbs (not
included), maximum 50 watts.
Purchase and install PAR20, 50 W
Matin tun halogen bulbs.
\Aq/en repladng a bulb, let it cool fi_st.
Make sure that power m the light has
been turned ofL Never allow a hot bulb
to come into contact with wateI _.
WARNING:Toreducether,sof
electricshock,donot connectelectricalpower
to thehood without bothbulbs/b place.
To chm_ge the fight bulbs:
[] (;rasp tile bulb on tile edges and
tmscrew it.
[] Replace with tile same size bull).
CAUTION:
Do not touchthehood light bulbs when they
are on. Theymay be hot enoughtocause
bjury
{TheI/ghtbu/bsoperateat extremelyh/_?h
temperatures,ff theyshatter,thehotg/ass
couldcausepersonalinju_
5

Installation
Instructions RangeHood
Questions?Call 800.GE.CARES(800.432.2737)or Visit our Website at: www.GEAppliances.com ]
BEFORE YOU BEGIN
Read these ]nstructim]s completely and carefully:
. IMPORTANT - hese
im_s[]l_( [lolls ['o]" local im_spec[o]"s I_se.
"IMPORTANT - Obse,,'e_,11
_ove]']_im_ codes amid o]'dim_am_ces.
o Note to Installer -Be sm'e to leave these
imlstm(ti{ms with the (2resumer.
oNote to Consumer - Keep these imlstrlaXiomls
for t_ma'e refere]_ce.
o Skill level - h]sta]]ati(m {7["this app]im_ce reqldres
basic mec]lamca] aml electrical skills.
o Completion time - 1-3 horn's
o Proper im_sta]]atiom_ is the respom_sibi]ity of the
im_stall er.
• Product fai]m'e due to improper im_sta]]atiom_ is m)t
covered m_der the \_rraN_t'_.
o[Jse {_])r _IH t]_ appr{}ved cord kit,JXHt'A.
FOR YOUR SAFETY:
WARNING -Before beginulng tile
installation, switch power off at service panel and lock
the service discom]ecting means to prevent power
fi'om being switched on accidentally. When tile service
discom]ecting means cam]ot be locked, securely
tasteu a prominent warning device, such as a rag,
to the service panel.
DUCTWORK REQUIREMENTS
NOTE: Read the ductwork sections only if you do not
have existing ductwork. If you have existing ductwork,
skip to the "Damage" section m_d proceed.
Tile venting system must exhaust to tile outside.
This hood can be vented vertically through upper
cabinets or horizontally through an outside wall.
Ductwork is not inclmled.
Exhaust connection:
Tile hood exhaust has been designed t{>mate with
standard 3¼" x 10" rectangular ducting or 7" diameter
rom]d ducting.
If a 6" round duct is required, a rectai]gulai_to-roui]d
transition adaptor must be used*. Do not use less thma
a 6" diameter duct.
Maximum duct length:
For satisii_{'tory air movement, tile total duct length
of a 3¼" x 10" rectangulm; 6" or 7" diamemr rom]d
duct should not exceed 65 equivalent feet.
NOTE: It's impommt that ducfing be installed using
tile u]ost direct route and with as ti_w elbows as possible.
This ensm'es clear venting {>fexhaust and helps prevent
blockages. Also, make sure dampers swing freely mad
nothing is blocking the ducts.
Elbows, transitions, wall and roofcaps, etc.,
present additional resistance to airflow and are
equivalent to a section of straight duct longer than their
actual physical size. When calculating tile total duct
length, add tile equiwdent lengths of all mmsitions and
adaptm_ plus tile length of all straight duct sections. Tile
charts on tile tollowiug pages show you how to calculate
total equi\zdent ductw{>rk length using tile approximate
feet of equiwdent length of sou]e typical ducts.
* IMPORTANT: If a rectangula>to-
rom]d transition adaptor is used, tile
bottom corne_ of tile damper will
have to be cut to fit, using tile tin
snips, in order to allow flee
u/oveu/eut of tile dai/iper.
Equiwdent lengths of duct pieces
are based on actual tests and reflect
requirements for good venting
perti>rmance with any hood.
6

Installation Instructions
Follow the guidelines for proper duct sizing in the ducth_g charts.
DUCTING CHART_JV5 Series Models
3OO
u. 250
u
200
,m
<_
7" Round
31/4"x 10"
Rectangular
--.-...._.
150 25 50 75 100 125
Equivalent Length (feet)
150 175
DUCTING CHART_JV6 Series Models
45O
g.
0_
400
350
300
,m
<_ 250
200 0 25
7" Round
31/4" x 10"
50 75 100
Equivalent Length (feet)
125 150
31/4"x 10" Rectangular Transition to 6" Round = 4.5 ft.
7" Round 90 ° Elbow = 8 ft.
7" Roof Cap = 30 ft.
MAXIMUM DUCT LENGTH: For satisfactorx air movement the total duct length of a 3¼" x 10" rectangular;
6" or 7" diameter round duct should not exceed 65 equivalent feet.
7

Installation Instructions

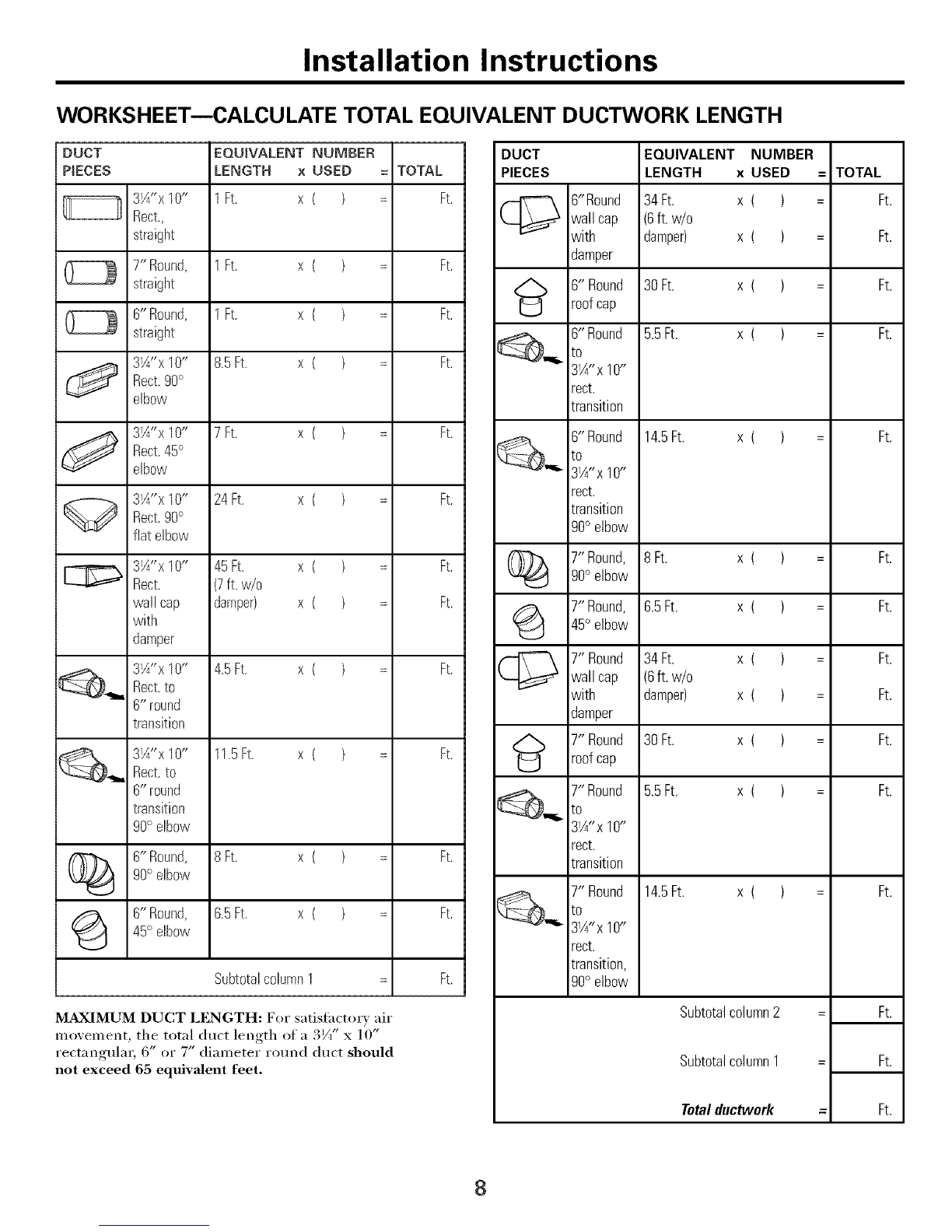

WORKSHEET--CALCULATE TOTAL EQUIVALENT DUCTWORK LENGTH
DUCT
PgECES
O
J
3W'x 10"
Rect.,
straight
7" Round,
straight
6"Round,
straight
3W'x 10"
Reck90°
elbow
3W'x 10"
Rect.45°
elbow
3W'x 10"
Rect.90°
flat elbow
3W'x 10"
Rect.
wall cap
with
damper
3W'x 10"
Rect.to
6"round
transition
3¼"x 10"
Rect.to
6"round
transition
90° elbow
EQUIVALENT NUMBER
LENGTH ×USED
lFt. x ( )
1Ft. x ( )
1Ft. x ( )
8.5Ft. x ( )
7Ft. x ( )
24Ft. x ( )
45Ft. x ( )
(7ft.w/o
damper) x ( )
4.5Ft. x ( )
11.5Ft. x ( )
(_ 6"Round, 8Ft. x ( )
90° elbow
(_ 6"Round, 6.5Ft. x ( )
45° elbow
SubtotalcolumnI =
= TOTAL
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
Ft.
MAXIMUM DUCT LENGTH: For satislhctor_ air
i]lo_,eillent, the total dt/ct length ot a 31/t" x 10"
rectangulm; 6" or 7" diameter round duct should
not exceed 65 equivalent feet.
DUCT
PIECES
6"Round
wallcap
with
damper
6" Round
roofcap
6" Round
to
3W'x 10"
rect.
transition
6" Round
to
3W'x 10"
rect.
transition
90° elbow
EQUIVALENT NUMBER
LENGTH x USED
34 Ft. x ( )
(6ft.w/o
damper) x ( )
30 Ft. x ( )
5.5Ft. x ( )
14.5Ft. x ( )
7"Round, 8Ft. x ( )90° elbow
7"Round, 6.5Ft. x ( )
45° elbow
7" Round 34 Ft. x ( )wallcap (6ft.w/o
with damper) x ( )
damper
7" Round 30 Ft. x ( )
roofcap
7" Round 5.5Ft. x ( )
3W'x 10"
rect.
transition
14.5R. x ( )
7" Round
to
3W'x 10"
rect.
transition,
90° elbow
Subtotalcolumn2
Subtotalcolumn1
Totalductwork
=TOTAL
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
= Ft.
= Ft.
=Ft.
8

Installation Instructions
DAMAGE--SHIPMENT/INSTALLATION
•If the unit is da_naged in shipment, return the unit to the
store in which it was bought for repair or replacement.
• If the refit is dmnaged by the customer, repair or
replacement is the responsibility of the customer;
• If the unit is damaged by the installer (if other than
the customer), repair or replacement must be made
by arrangement between customer and instnlle_:
MOUNTING SPACE
.....;i.....
Bottomedgeof
cabinetneeds
to be30"or
__j __J morefrom
the cooking
surface
the hood
NOTES:
• This range, hood is fin" installation oxer ram,es_, up to
•DWl(le.
• If YOU are going to vent your range hood to the
outside, see the "Ducting Requirements" section for
exhaust duct preparation.
TOOLS YOU WILL NEED
Flat blade and Phillips Pencil
screwdrivers Duct tape
Saw (saber or keyhole) Electric drill Metal snips
(in some
applications)
1/4" pivoting Pliers Tapemeasure Wire stripper
hex socket
Flashlight Caulking Level 1/4" Nutdriver
PARTS INCLUDED
PART QUANTITY
MetalGreaseFilters 2
MountingScrews 4
ExhaustAdaptor/Damper 1
(for3%"x10" rect.venting)
ExhaustAdaptorScrews 1
ExhaustAdaptor 1
(for7" roundventing)
Damperfor7" Round
ExhaustAdaptor(ObtainLocally) ,I
OPTIONAL ACCESSORIES
ThesekitscanbeorderedfromyourGEsupplier.
ICordKit--For both30"and36"models,
orderKitno.JXHC1.
CharcoalFilters--JV5Seriesonly,if recirculating
For30"hoodmodels,orderKitno.WB02X11000.
For36"hoodmodels,orderKitno.WB02X11001.
9

Installation Instructions
[] CHOOSE VENT OPTION
Detemfine the vent option that your installation will
require fl'om the t011owing choices:
The outside vent exhaust option that vour installation
requires will determine the hood knockouts that wm
will use.
NOTE: Only,IV5 Se_ies m odels may be recirculated.
The,IV6 Series models cannot be recirculated.
IMPORTANT: If the hood is to be installed in a
recirculating, non-vented ductless rammer, do not knock
out rely vent openings in the hood. Only an electrical
access hole will be knocked out of the hood.
[] Outside top exhaust 10"
(Vertical duct_3Vg' x Rectangular)
[_ Outside top exhaust
(Vertical duct_7" Round)
Outside rear exhaust 10"
(Horizontal duct_31A" x
Rectangular)
I-_ Recirculating
(Non-vented ductless_Optional for
JV5 Series models only)
10
