GE Appliances JVE40 Operating instructions

GEAppliances.com
0
0
Safety Information ........ 2,s
Operating/Care and
Cleaning Instructions
Charcoal Filters .................. 5
Grease Filters .................... 4
Hood Lights ...................... 5
Painted Surfaces ................. 5
Stainless Steel Surfaces .......... 5
Vent Controls .................... 4
Installation Instructions.. 6-13
Troubleshooting Tips ....... 14
Consumer Support
Consumer Support .............. 16
Warranty ....................... 15
JVE40
*ENERGY STAR ® labeled product
ENERGYSTAR
As an ENERGYSTAR® partner, GE
has determined that this product
meets the ENERGYSTAR@guidelines
for energy efficiency.
Printed in China
Write the model and serial
numbers here:
Model #
Serial #
Find these numbers on a label on
the back wall of the hood. 49-80622-1 08-11 GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
SAFETY PRECAUTIONS
AWARNING- TOREDUCETHERISKOFFIRE,
ELECTRICSHOCKORINJURYTOPERSONS,OBSERVETHE
FOLLOWING:
A. Usethis unit onlyinthe manner intendedbythe manufacturer.
Ifyou havequestions,contact the manufacturer.
B. Beforeservicingor cleaningunit,switch poweroff at service
paneland lockthe servicedisconnectingmeansto prevent
powerfrom beingswitchedon accidentally.Whenthe service
disconnectingmeanscannot belocked,securelyfastena
prominentwarning device,such asa tag,to the servicepanel.
C. Donot usethis unitwith anysolid-statespeedcontrol device.
D. Thisunitmustbegrounded.
ACAUTION- FORGENERALVENTILATINGUSEONLY
DONOTUSETOEXHAUSTHAZARDOUSOREXPLOSIVEMATERIALS
ANDVAPORS.
,AWARNING- TOREDUCETHERISKOFINJURYTO
PERSONSIN THEEVENTOFA RANGETOPGREASEFIRE,OBSERVE
THEFOLLOWING*:
A. SHOTHERFLAHESwith a close-fittinglid,cookiesheetor metal
tray,thenturn off the burner.BECAREFULTOPREVENTBURNS.If
theflamesdo notgo out immediately,EVACUATEANDCALLTHE
FIREDEPARTMENT.
B. NEVERPICKUPAFLAMINGPAN-Youmay be burned.
C. DONOTUSEWATER,includingwet dishclothsor towels-a
violentsteamexplosionwill result.
D. Usean extinguisherONLYif:
1. Youknowyou havea ClassABCextinguisher,andyou
alreadyknow howto operateit.
2. Thefireissmalland contained inthe areawhere itstarted.
3. Thefiredepartment isbeing called.
4. Youcanfight thefirewith your backto an exit.
*Basedon "KitchenFireSafety"publishedby NFPA.
^_WARNING- TOREDUCETHERISKOFARANGE
TOPGREASEFIRE:
A. Neverleavesurfaceunitsunattended at highsettings.Boilovers
causesmokingand greasyspilloversthat may ignite.Heatoils
slowlyon lowor medium settings.
B. Alwaysturn hood ONwhen cookingon high heator when
flamb_ingfood (i.e.CrepesSuzette,CherriesJubilee,Peppercorn
BeefFlamb_).
Co
D.
Cleanventilatingfans frequently.Greaseshouldnot beallowed
to accumulateon fan or filter.
Useproperpan size.Alwaysusecookwareappropriatefor the
sizeof thesurfaceelement.
^,,.WARNING- TOREDUCETHERISKOFFIRE,
ELECTRICSHOCKORINJURYTOPERSONS,OBSERVETHE
FOLLOWING:
A. Installationwork and electricalwiring mustbe doneby qualified
person(s)inaccordancewith all applicablecodesand standards,
includingfire-rated construction.
B. Sufficientair isneededfor propercombustionand exhausting
of gasesthrough theflue (chimney)offuel burningequipment
to preventbackdrafting.Followthe heatingequipment
manufacturer'sguidelineand safetystandardssuchasthose
publishedbytheNational FireProtectionAssociation(NFPA),the
AmericanSocietyfor Heating,Refrigerationand AirConditioning
Engineers(ASHRAE)and the localcodeauthorities.
C. Whencuttingor drillingintowallor ceiling,do notdamage
electricalwiringand other hiddenutilities.
D. Ductedfans must alwaysbeventedto the outdoors.
^,,,,WARNING- TOREDUCETHERISKOFFIREANDTO
PROPERLYEXHAUSTAIR,BESURETODUCTAIROUTSIDE-DONOT
VENTEXHAUSTAIRINTOSPACESWITHINWALLSORCEILINGSOR
INTOATTICS,CRAWLSPACESORGARAGES.
,&WARNING- TOREDUCETHERISKOFFIRE,USE
ONLYMETALDUCTWORK.
Donot attempt to repair or replaceanypart ofyour hood unless
it isspecificallyrecommendedin thisguide.Allother servicing
shouldbereferredto a qualifiedtechnician.
READAND FOLLOW THISSAFETYINFORMATIONCAREFULLY.
READAND SAVETHESEINSTRUCTIONS
2

INSTRUCTIONSDESECURIT[::"IMPORTANTES.
LISEZTOUTESLESINSTRUCTIONSAVANT D'UTILISER. GEAppliances.com
PRdLCAUTIONSEN IVlATIEREDE SdLCURITdL
AVERTISSEMENT- POURR_DUlRE
LE RISQUED'INCENDIE, DE SECOUSSEELECTRIQUEOU DE
BLESSURECORPORELLE,OBSERVEZLESPRECAUTIONS
SUIVANTES:
A. N'utilisezcet appareitquedela mani@repr@vuepar lefabricant.Sivous
avezdesquestions,appelezlefabricant.
B. Avantder@pareroude nettoyervotre appareit,d@branchezle courant
au niveaudu panneaude serviceetverrouittezlesm@canismesde
d@branchementde servicepour @iter tout branchementaccidentel
au courant.Sivousnepouvezpasverrouillerles m@canismesde
d@branchementde service,attachezsoigneusementun avertissement
bienvisible,comme une@tiquette,au panneaude service.
C. N'utilisezjamaiscet appareilavec un m@canismede r@glagedela
vitesse8 semi-conducteurs.
D. Cet appareil dolt _tre bien mis0la terre.
AATTENTION-UNIQUEMENTA USAGEDE
VENTILAT,ION GENERALE.N'UTILISEZJAMAIS POURL'ECHAPPEMENT
DEMATIERESETDE VAPEURSEXPLOSIVES.
AA VERTISSEFIENT- POURR_DUlRELE
RISQUEDE BLESSURECORPORELLESI DE LA GRAISSEPREND
FEUSURLA SURFACEDE CUISSON DU FOUR,SUIVEZ LES
INSTRUCTIONSSUIVANTES*:
A. ETOUFFEZLESFLAMMESavec uncouverclequi convient,unet61e
biscuitsou unplateau en m#tal,puis @eignezlebrOteur.FAITESBIEN
ATTENTIONDENEPASVOUSBRULER.Silesflammes nes'@eignentpas
imm@diatement,SORTEZETAPPELEZLESPOMPIERS.
B. NEDEPLACEZJAMAISUNECASSEROLLEOUIFLAMBE- Vouspouvez
vousbrOler.
C,
D.
N'UTILISEZJAiVlAISD'EAU,en particulierdeservietteou de chiffon
mouitt@- itseproduira uneexplosionviolentedevapeur br0tante.
N'UTILISEZUNEXTINCTEURquesi:
1. Vousavezunextincteur dectasseABCet voussavezcomment
I'utiliser;
2. Lefeu estr@duitetconfin@a I'endroito0 ita commenc@;
3. Vousavezd@jaappel@lespompiers;
4. Vouscombattez lesflammes entournant ledos 5 unesortie.
*Bas#sur I'ouvrageintitul# <<KitchenFireSafety>>publi#
parla NFPA.
,&AVERTISSEMENT- R_DUISEZLERISQUE
D'UN FEU DE GRAISSESURLA SURFACEDE CUISSONDU FOUR:
A. Nelaissezjamaissanssurveillancelesunit@sdecuissondesurface5 une
temp@rature@[e-mail]nedesd@bordements
fumantsetgraisseuxquipeuventprendrefeu.Chauffez5feu douxtes
substanceshuiteuses,avecun r@glagehasou moyen.
B. IVletteztoujours la hotte en marche quand vous cuisinez @haute
temp@ratureou quand vous faites flamber des aliments (p.ex.
cr@pesSuzette,cerisesJubilee, Bceufflamb@Peppercorn).
C. Nettoyezles m@canismesde ventilationfr@uemment. Itnefaut pas
permettre uneaccumulation de graissesur leventitateur ousur lefittre.
D. Utitisezunecasseroledebonne taille.Utiliseztoujours un ustensilede
cuisinequiconvienneau diam@trede I'@l@mentde cuisson.
AA VERTISSEMENT- POURR_DUIRE
LE RISQUED'INCENDIE, DE SECOUSSEELECTRIQUEOU DE
BLESSURECORPORELLE,OBSERVEZLESPRECAUTIONS
SUIVANTES:
A. Vousdevezfaire ex_cutertousles travaux d'instaltationet dec_blage
@lectriquepar unepersonnequalifi@e,conform@ment5tousles codes
et les normesen vigueur,en particulierceux deconstruction relatifs
aux incendies.
Vousdevezassezd'air pour avoir une bonne combustionet permettre
I'@vacuationdesgazparle conduit dechemin@edu mat@letde
combustion du carburant,afin d'@vitertout retourd'air.Suivezles
directivesdufabricant de mat@ielde combustionet lesnormes
de s@curit@comme celtespubii@espar la National FireProtection
Association(NFPA),I'AmericanSocietyfor Heating,Refrigerationand
AirConditioningEngineers(ASHRAE),ainsique lesmodalit@sdescodes
Iocaux.
C. Sivous faitesun trou ou uneouverturedans un mur ou un plafond,
n'endommagez paslesills @lectriqueset lesautres installations
cach@esde servicepublic.
D. Vousdeveztoujours alimenterlesventilateursdans lesconduitsen air
en provenancede I'ext@ieur.
AAVERTISSENENT- _OURR_DUIRE_ERISQUE
D'INCENDIEETEVACUERADEQUATENENTL'AIR,ASSUREZ-VOUSDEFAIRE
DEBOUCHERLACONDUITED'AIRA L'EXTERIEUR-NEVENTILEZPASL'AIR
E-VACUEDANSDESESPACESCOMPRISA L'INTERIEURDENURS,D'UN
PLAFOND,D'UNGRENIER,D'UNVIDESANITAIREOUD'UNGARAGE.
AA VERTISSENENT- POURR_DUIRE_E
RISQUED'INCENDIE, N'UTILISEZQUE DESCONDUITS EN NE-TAL
N'essayezjamaisde remplacerou der_parer un_l_ment devotre hotte
siJepr@sentmanuel nele recommandepas [e-mail] autre
entretien dolt@treeffectu@par un technicienqualifi@.
LISEZ ETSUIVEZATTENTIVEMENT CESINSTRUCTIONS.
LISEZ ET CONSERVEZ CES INSTRUCTIONS

Using the hood controls.
Throughout this manual, features and appearance may vary from your model.
Rocker Switch Controls
HI
OFF
FAN
LO
00
©!-!
0
OFF
LIGHT
ON
FAN Control
Press the rocker switch at the top to turn the fan on
HIand at the bottom to turn it on LOW.The center
position is OFF.
Continuous use of the fan system while cooking helps
keep the kitchen comfortable and less humid. It also
reduces cooking odors and soiling moisture that create a
frequent need for cleaning.
LIGHT Control
Pressthe rocker switch at the bottom to turn the light ON
while cooking. Pressthe rocker switch at the top to turn
the light OFF.
Care and cleaning of the vent hood.
Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the vent hood.
Filter locks
If it ever becomes necessary to replace
the metal grease filters, they may be
ordered from your GE supplier.
Reusable Metal Grease Filters
Thehood has 2 metal reusablegrease
filters.
Themetal filters trap grease released
by foods on the cooktop. Theyalso help
prevent flaming foods on the cooktop
from damaging the inside ofthe hood.
Forthis reason,the filters must ALWAYS
be in placewhen the hood isused.The
grease filters should be cleaned once a
month, or as needed.
To remove, pressthe filter locksback
and pull the filters down and out.
To replace, insert the rear filter tabs
in the frame slotsat the back of the
opening. Pushthe filters up and lock
them into place.
To clean the grease filters,soak them
and then swishthem around in hot
water and detergent. Don't useammonia
or ammonia products because they will
darken the metal. Donot useabrasives
or oven cleaners.Light brushing can be
usedto remove embedded dirt. Rinse,
shake and letthem dry before replacing.
They may also be cleaned in an
automatic dishwasher.
NOTE:Beforecleaning,make surethe
charcoal filters,ifpresent,are unclipped
and removed.Seethe CharcoalFilters
section.

Care and cleaning of the vent hood. GEAppliances.com
The charcoal filters are clipped
inside of each reusable metal
grease filter.
Charcoal Filters (onsomemodels)
cannot be cleaned.
They must be replaced.
Order Kitno.
WBO2X11000
Thiskit canbeordered
from your GEsupplier.
NOTE:Charcoal filtersare not
included with the hood.They
must be ordered from your
GEsupplier.
Ifthe model isnot vented
to the outside,the air will
be recirculated through
disposable charcoal filters that
help remove smoke and odors.
Thecharcoal filters should
be replaced when they are
noticeably dirty or discolored
(usually after 6-12 months,
depending on hood usage).
NOTE:DONOTrinse,or put
charcoal filtersin an automatic
dishwasher.
Note: If the hood in installed
for recirculation mode, it is
not ENERGY STAR@certified.
Painted Surfaces (onsome models)
Toclean the hood surface, usea hot, damp
cloth with a mild detergent suitable for
painted surfaces.Usea clean,hot, damp
cloth to remove soap. Dry with a dry, clean
cloth.
Do not use steel-wool pads or other abrasive
cleaners.They will scratch the surface. Wipe
with a clean, hot, damp cloth after using
cleansers.
Stainless Steel Surfaces (on some models)
Do not use asteel wool pad; it will scratch
the surface.
Toclean the stainless steelsurface, use
warm sudsywater or a stainlesssteel
cleaner or polish.Alwayswipe the surface in
the direction of the grain. Followthe cleaner
instructions for cleaning the stainless steel
surface.
Toinquire about purchasing stainlesssteel
appliance cleaner or polish,or to find the
location of a dealer nearest you, pleasecall
our toll-free number:
National Parts Center 800.626.2002
GEAppliances.com
Hood Lights
AWARNING:
- Lamp contains Hercury. Hanage
in accord with disposal laws. Seewww.
lamprecycle.orgor 1-800-435-4448.
For installation, handling and disposal
precautions, referto the fluorescent lamp
packaging literature.
AWARNING:
Toreducethe risk ofelectricshock,do
not connect electricalpower to the hood
without both lamps in place.
ACAUTION:
Donot touch thehood lamps whenthey ore
on.Theymay be hotenough to causeinjury.
Toprevent injury from brokenlamps,
handle lamps carefullyand do not operate
hood without lamp lenscoversin place.
Thishood requirestwo Compact Fluorescent
Lamps (CFL)with a GU24base(included),
maximum 15watts.
Tochange the lamps:
[] When installing or replacing a lamp,
make surethat power to the light has
been turned off. Never allow a lamp to
come into contact with water.
[_ Removethe lenscoverbyslidingit ina
horizontaldirectionand pullingit down
and awayfrom thehood.
I-_ Graspthe lamp by the plastic base
portion of the lamp and unscrew it.
[] Replacewith energysavingGE15W
Compact Fluorescent Lampwith GU24
base GEServicePart: WBO8XlO064.

Installation
Instructi Ra ge ood
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and carefully.
.IMPORTANT -Savetheseinstructionsfor
local inspector's use.
" IMPORTANT - Observe all governing
codes and ordinances.
, Note to Installer - Be sure to leave these
instructions with the Consumer.
, Note to Consumer - Keepthese instructions
for future reference.
, Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
, Completion time - 1-3 hours
, Proper installation isthe responsibility of the installer.
, Product failure due to improper installation is not
covered under the Warranty.
FORYOUR SAFETY:
A WARNING - Beforebeginningthe
installation, switch power off at service panel and lock the
servicedisconnecting means to prevent power from being
switched on accidentally. When the servicedisconnecting
means cannot be locked, securelyfasten a prominent
warning device, such as a tag, to the service panel.
AWARNING - ToREOUCETHERISK
OFFIRE,ELECTRICSHOCKORINJURY TOPERSONS,
OBSERVETHEFOLLOWING:
A. Installationwork and electricalwiring mustbe done by
qualifiedperson(s)inaccordancewith allapplicablecodes
and standards,includingfire-rated construction.
B. Sufficientair isneededfor propercombustion and
exhaustingof gasesthroughthe flue(chimney)of fuel
burningequipmentto preventbackdrafting.Followthe
heatingequipmentmanufacturer'sguidelineand safety
standardssuchasthose publishedbythe NationalFire
ProtectionAssociation(NFPA),theAmericanSocietyfor
Heating,Refrigerationand Air ConditioningEngineers
(ASHRAE)and the localcodeauthorities.
C. Whencutting or drillingintowall or ceiling,do notdamage
electricalwiringand other hiddenutilities.
D. Ductedfansmust alwaysbeventedto the outdoors.
A WARNING- TOREDUCETHERISKOFFIREAND
TOPROPERLYEXHAUSTAIR,BESURETODUCTAIROUTSIDE-
DONOTVENTEXHAUSTAIRINTOSPACESWITHINWALLSOR
CEILINGSORINTOATTICS,CRAWLSPACESORGARAGES.
DUCTWORK REQUIREMENTS
NOTE:Readthe ductwork sections only if you do not have
existing ductwork. If you have existing ductwork, skip to
the "Damage" section end proceed.
The venting system must exhaust to the outside,
This hood can be vented vertically through upper cabinets
or horizontally through an outside wall. Ductwork isnot
included.
Exhaust connection:
The hood exhaust has been designed to mate with
standard 3¼" x 10" rectangular ducting.
If a 7" round duct is required, a rectangular-to-round
transition adaptor must be used*. Do not use less then a
7" diameter duct.
Maximum duct length:
Forsatisfactory air movement, the total duct length of a
3¼"x 10" rectangular should not exceed 65 equivalent feet.
NOTE:It'simportant that ducting beinstalled usingthe
most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Elbows, transitions, wall and roofcaps, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct longer than their actual
physical size.When calculating the total duct length, add
the equivalent lengths of all transitions and adaptors plus
the length of all straight duct sections.The charts on the
following pages show you how to calculate total equivalent
ductwork length using the approximate feet of equivalent
length of some typical ducts.
* IMPORTANT:If a rectangular-to-round
transition adaptor isused, the bottom
corners of the damper will have to
be cut to fit, using the tin snips,in
order to allow free movement of the
damper. Equivalent lengths of duct
pieces are based on actual tests and
reflect requirements for good venting
performance with any hood.
6

Installation Instructions
WORKSHEET - CALCULATE TOTAL EQUIVALENT DUCTWORK LENGTH
DUCT
PIECES
3¼"x i0"
Rect.,
straight
7" Round,
straight
3¼"x 10"
Rect.90°
elbow
3¼"x 10"
Rect. 85 °
elbow
EQUIVALENT NUMBER
LENGTH x USED
! Ft. x ( )
! Ft. x ( )
14 Ft. x ( )
8 Ft. x ( )
= TOTAL
= Ft.
= Ft.
= Ft.
= Ft.
l_ 3¼"x !0" 33 Ft. x ( ) = Ft.
Rect. 90 °
flat elbow
3¼"x !0"
Rect.
wall cap
with
damper
24 Ft. x (
(18ft.w/o
damper) x ( t =
Ft.
Ft.
Subtotal column i = Ft.
MAXIMUM DUCT LENGTH: Forsatisfactory air movement,
the total duct length of a 3¼" x 10" rectangular should not
exceed 65 equivalent feet.
DUCT
PIECES
%
G
7" Round,
90°elbow
7" Round,
45°elbow
EQUIVALENT NUMBER
LENGTH x USED
14 Ft. x ( )
7" Round
wall cap
with
damper
7" Round
roof cap
9 Ft. x ( )
28 Ft. x ( )
(21ft.w/o
damper) x( )
39 Ft. x ( )
iFt. x ( )7" Round
to
3¼"x i0"
rect.
transition
= TOTAL
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
= Ft.
(_,_ 7" Round 5 Ft. x ( ) = Ft.
to
3¼"x !0"
rect.
transition
90 ° elbow
Subtotal column 2 = Ft.
Subtotal column 1 = Ft.
Total ductwork = Ft.
7

Installation Instructions
DAMAG E-SH IPMENT/I NSTALLATIO N
, If the unit isdamaged in shipment, return the unit to the
store in which it was bought for repair or replacement.
, If the unit isdamaged bythe customer, repair or
replacement isthe responsibility of the customer.
If the unit isdamaged bythe installer (ifother than
the customer), repair or replacement must be made
by arrangement between customer and installer.
MOUNTING SPACE
66" or
morefrom
thefloor to
thetop of
the hood
J
Bottom edge of
cabinet needs
to be 30" or
more from
the cooking
NOTES:
, This range hood is for installation over ranges up to 30"
wide.
If you are going to vent your range hood to the outside,
seethe "Ducting Requirements" section for exhaust duct
preparation.
TOOLS YOU WILL NEED
Flatbladeand Phillips Pencil
screwdrivers
Saw(saberor Electricdrill
keyhole)
!/4" pivoting Pliers Tapemeasure
hexsocket
Duct tape
Metalsnips
(in some
applications)
Wire stripper
Flashlight Caulking Level !/4" Nutdriver
PARTS INCLUDED
PART QUANTITY
Metal GreaseFilters 2
_ Mounting Screws 4
ExhaustAdaptor/Damper 1
(for 3W' x !0" rect.venting)
I_ ExhaustAdaptor Screws 1
OPTIONAL ACCESSORIES
This kits can be ordered from your GEsupplier.
Charcoal Filters If recirculating
order Kit no.WBO2X11000
Note: tf the hood in installed for recirculation
mode, it is not ENERGYSTAR®certified.
8

Installation Instructions
CHOOSE VENT OPTION
Determine the vent option that your installation will require
from the following choices:
Theoutside vent exhaust option that your installation
requires will determine the hood knockouts that you
will use.
IMPORTANT:Ifthe hood isto be installed in a recirculating,
non-vented ductless manner, do not knock out any vent
openings in the hood. Onlyan electrical access hole will be
knocked out of the hood.
Outside top exhaust
(Vertical duct-3¼" x 10" Rectangular)
_Outside rear exhaust 10"
(Horizontal duct-3V/' x Rectangular)
\\
Recirculating
(Non-vented ductless-Optional)
\\
9

Installation Instructions
_-I REMOVE FILTERS
Removethe protective shipping film from the edges
of the metal grease filters. Pressthe filter locks back and
lift the filters out. Setthem aside.
[] REMOVE WIRING COVER
FROM THE JUNCTION BOX
Removethe wiring cover from insidethe hood.
Setthe cover and its mounting screw aside.
Wiring
cover
Mounting
Screw "-_._ .
_-IREMOVE DUCT KNOCKOUT(S)
If recirculating, non-vented ductless see note below and
skip to Step 7 and proceed.
Using a flat blade screwdriver, remove the appropriate
duct knockout(s) from the top or back of the hood.
3¼" x 10" Rectangular
vertical discharge.
Remove top rectangular
duct knockout only.
3¼" x !0" Rectangular
horizontal discharge. Remove
rear rectangular duct
knockout only.
NOTE:If the hood is to be installed in a recirculating,
non-vented ductless manner, order charcoal filters, kit
number WB02X!!000 for 30" hood models.These kits
can be ordered from your GEsupplier. Skip to Step 7C and
proceed.
NOTE:If the hood in installed for recirculation mode, it is
not ENERGYSTAR@certified.
[_ REMOVE WIRING KNOCKOUT
Removeeither the top or the back wiring knockout as
needed and install an approved strain relief clamp.
Strain relief
clamp
10

Installation Instructions
[_] FOR 3¼"x :10" RECTANGLE DUCTED
DISCHARGE INSTALLATIONS:
Attach exhaust adaptor/damper over knockout
opening with two exhaust adaptor screws. Hake sure
damper pivot isnearest to top/back edge of hood.
Removetape from damper flap.
Up to !" side-to-
side adjustment
ge
Exhaust adaptor/damper
(vertical discharge position
shown)
NOTE:The exhaust adaptor/dumper can be installed
up to 1 inch on either side of the hood center to
accommodate off-center ductwork. In extreme off-center
installations, one end of the duct connector may need to
be trimmed to clear the electrical cable clamp.
FflMARK HOLES
Select the vent option that your installation will require
and proceed to that section:
A. Outside top exhaust
(Vertical duct-3¼" x iO" Rectangular}
. Use the diagram or the hood as a template and mark
the locations on the cabinet for ductwork, electrical
wiring and keyhole screw slots.
Hood mounting screws (4)
13¾" IPA"
Wood shims _ Electrical access
(recessed-bottom ll/16" hole (in cabinet
Center bottom)
cabinetsonly) line
B. Outside rear exhaust
(Horizontal duct-3¼" x lO" Rectangular}
. Use the diagram or the hood as a template and mark
the locations on the cabinet for ductwork, electrical
wiring and keyhole screw slots.
Wood shims (recessed-bottom cabinets only)
_-- 5½"
lPA"
Hood mounting
screws (4) Center line
Cabinet
bottom
Electrical
access hole
(in wall)
C. RedrcuJating (non-vented ductless}
.Use the hood as a template and mark the locations
on the cabinet for the electrical wiring and keyhole
screw slots.
. Since the hood isto be recirculated (not to bevented
outside), do not cut out any vent openings in the wall
or cabinet bottom.
11

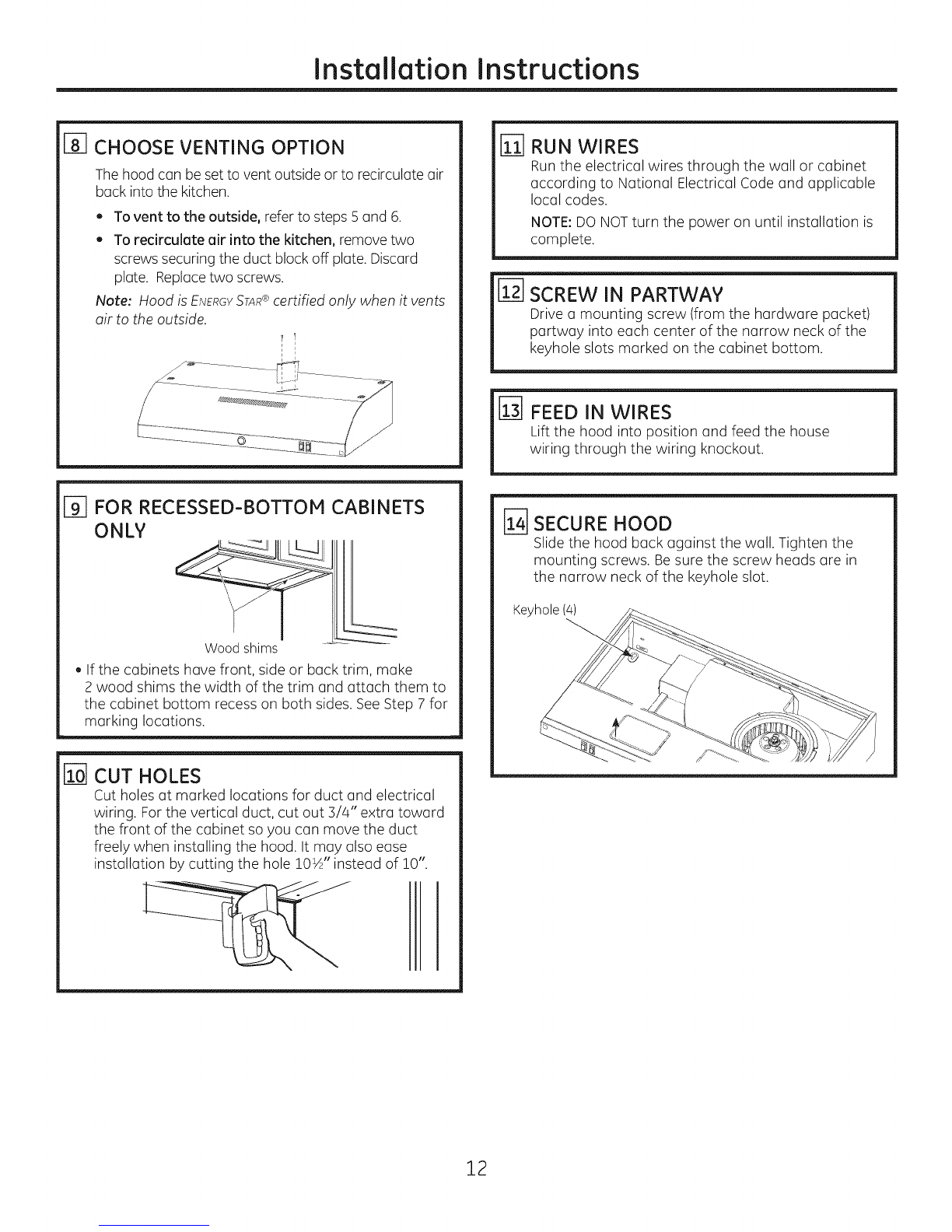

Installation Instructions
[_ CHOOSE VENTING OPTION
Thehood can be set to vent outside or to recirculute air
back into the kitchen.
. Tovent to the outside, refer to steps 5 and 6.
, To recirculate air into the kitchen, remove two
screws securing the duct block off plate. Discard
plate. Replacetwo screws.
Note: Hood isENERGYSTAR®certified only when it vents
air to the outside.
r9] FOR RECESSED-BOTTOM CABINETS
ONLY
Woodshims
. If the cabinets have front, side or back trim, make
2 wood shims the width of the trim and attach them to
the cabinet bottom recess on both sides. SeeStep 7 for
marking locations.
[_] CUT HOLES
Cut holes at marked locations for duct and electrical
wiring. Forthe vertical duct, cut out 3/4" extra toward
the front of the cabinet so you can move the duct
freely when installing the hood. It may also ease
installation by cutting the hole !0½" instead of !0".
[] RUN WIRES
Runthe electrical wires through the wall or cabinet
according to National Electrical Code and applicable
local codes.
NOTE:DO NOTturn the power on until installation is
complete.
r_] SCREW IN PARTWAY
Drive a mounting screw (from the hardware packet)
partway into each center of the narrow neck of the
keyhole slots marked on the cabinet bottom.
FEED IN WIRES
Lift the hood into position and feed the house
wiring through the wiring knockout.
[_] SECURE HOOD
Slide the hood back against the wall. Tighten the
mounting screws. Be sure the screw heads are in
the narrow neck of the keyhole slot.
Keyhole (4)
12

Installation Instructions
i-_ CONNECT DUCTWORK TO HOOD
Use duct tape to make joints secure and air tight.
Note: Illustration shows rectangular to round ducl adapter.
[16] INSTALL LAMPS
AWARNING:
(_- Lamp contains Mercury. Manage in accord with
disposal laws. See www./amprecyc/e.org or 1-800-435-4448,
For installation, handling and disposal precautions, refer to
the fluorescent lamp packaging literature.
AWARNING:
Toreduce the risk of electric shock, do not connect electrical
power to the hood without both lamps in place.
ACAUTION:
Do not touch the hood lamps when they are on. They may
be hot enough to cause injury.
Toprevent injury from broken lamps, handle lamps carefully
and do not operate hood without lamp lens covers in place.
This hood requires two Compact Fluorescent Lamps (CFL)
with a GU24 base (included), maximum J_5watts.
To change the lamps:
E_ When installing or replacing a lamp, make sure that
power to the light has been turned off. Never allow a
lamp to come into contact with water.
[] Remove the lens cover by sliding it in a horizontal direction
and pulling it down and away from the hood.
rJ] Grasp the lamp by the plastic base portion of the lamp
and unscrew it.
[] Replacewith energy saving GE15W Compact Fluorescent
Lump with GU24 bose GEService Part: WBO8X10064.
13
i_] FOLLOW ELECTRICAL CODE
Complete the electrical wiring according to National
Electrical Code and local codes.
NOTE: This hood must be permanently grounded.
Connect house wiring (120 VAC) to hood wiring.
CONNECT WIRING
Connect house black to hood black wire, house white
to hood white wire, and house ground to hood green/
yellow wire. Securely tighten the strain relief clamp
onto the house wiring.
[_ REPLACE WIRING COVER
Replace the wiring cover.
/<
[_ REPLACE FILTERS
The installation is complete. Turn on power at service
panel, and test for proper operation.
TROUBLESHOOTING CHECKLIST
If the hood seems to be operating at high speed when
the control is not set on high, or if ventilation seems
inadequate, check the following:
GI Knockouts not removed from hood.
GI Damper blade not opening.
GI Reduced airflow because the duct is too small or the
duct length is too long.
GI The duct is blocked.
GI Undersized or restrictive wall or roof cap.

Before you call for service...
Troubleshooting Tips
Save time and money! Review the following chart first
and you may not need to coil for service.
Possible Causes What To Do
Fan doesnot operate A fuse may be blown or a . Replace fuse or reset circuit breaker.
whenthe switchison circuit breaker may be tripped.
Fan fails to circulate air
or moves air more slowly
than normal
Fan continually cycles
off and on
Excessively soiled filter.
The motor is probably
overheating and turning itself
off. This can be harmful to
the motor. Filter may be
excessively soiled.
Wash and replace the filters. See the Reusable
Metal GreaseFilterssection.
Replace the filter if it istoo soiled to clean. If it
is not soiled, or if replacing the filter does not
solve the problem, call for service.
Replace the filter if it is soiled. If it is not soiled,
or if replacing the filter does not solve the problem,
call for service.
Compact Fluorenscent This is normal for Compact . Allow lamp to run for several minutes. If this warm up
Lamp appears dim Fluorescent Lamps especially time does not solve the problem replace the lamp.
on start up on first installation.
Compact Fluorescent This is normal for Compact . Allow lamp to run for several minutes.
Lamp briefly Fluorescent Lamps If this warm up time does not solve the problem
flickers on start up especially on first installation, replace the lamp.
After replacing one
lamp, the new lamp
appears to be a
different color
The replacement lamp may
have a different color
temperature rating :i.e. is
3000K instead of 2700K.
. Use a GE15W GU24 base lamp with a 2700K rating.
GEService Part number WB08X10064.
The replacement lamp may
be from a different
manufacturer.
. Use a GE15W GU24 base lamp with a GE Service Part
number WB08X!0064.
14

GE Range Hood Warranty.
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. Toschedule service
on-line, visit us at GEAppliances.com, or call 800.GE.CARES
(800.432.2737). Please have serial number and model number
available when calling for service.
GE Will Replace:
Stapleyour receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
One Year Any part of the range hood which fails due to a defect in materials orworkmanship.
From thedate Ofthe During this limited one-year warranty, GEwill also provide, free of charge, all labor and
OriginalpOrchase in-home serviceto replacethe defective part.
Service trips to your home to teach you how to use
the product.
Improper installation, delivery or maintenance.
Product damage or failure of the product if it isabused,
misused, modified, used for other than the intended
purpose, or used commercially.
Replacement of house fuses or resetting of circuit breakers.
Damage to the product caused by accident, fire, floods
or acts of God.
Incidental or consequential damage caused by possible
defects with this appliance.
Damage caused after delivery.
Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTIES--Your sole and exclusive remedy is product repair as provided
in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability
or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a GEAuthorized Servicer is not available, you
may be responsible for a trip charge or you may be required to bring the product to an Authorized GEService Location for
service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Warranton General Electric Company. Louisville, KY 40225
15

Consumer Support.
GE Appliances Website GEAppliunces.com
Have a question or need assistancewith your appliance?Try the GEAppliances Website 24 hoursa day,
any day of the year! Forgreater convenience and faster service,you can now download Owner's Hanuals,
order parts or even scheduleservice on-line.
Schedule Service GEAppliances.com
ExpertGErepair service isonly one step away from your door. Geton-line and scheduleyour serviceat
your convenience any day of the year! Or call800.GE.CARES(800.432.2737)during normal businesshours.
Real Life Design Studio GEAppliances.com
GEsupports the UniversalDesignconcept---products, services and environments that can be used by
people of all ages, sizesand capabilities.We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE'sUniversalDesignapplications, including kitchen design
ideasfor peoplewith disabilities,check out our Website today. Forthe hearing impaired, pleasecall 800.TDD.
GEAC(800.833.4322).
Extended Warranties GEAppliances.com
Purchasea GEextended warranty and learn about special discounts that are availablewhile your warranty
isstill in effect.You can purchase it on-line anytime, or call 800.626.2224during normal businesshours.
GEConsumer Home Serviceswill still be there after your warranty expires.
Parts and Accessories GEAppliances.com
Individualsqualified to servicetheir own appliances can have parts or accessoriessent directly to their homes
(VISA,HasterCard and Discovercards are accepted).Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal businesshours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us GEAppliances.com
Ifyou are not satisfied with the serviceyou receive from GE,contact uson our Websitewith all the details
includingyour phone number, or write to: General Manager,Customer Relations
GEAppliances,Appliance Park
Louisville,KV40225
Register Your Appliance GEAppliances.com
Register your new appliance on-line---at your convenience! Timelyproduct registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
16

0GEAppliances.com
0
InformaciGn de seguridad.. 2
Instrucciones de operaciGn /
Cuidado y limpieza
controles de ventilaciGn .......... 3
Filtros de carb6n ................. 4
Filtros para la grasa .............. 3
Luces de la campana ............ 4
Superficies de
acero inoxidable ................. 4
Superficies de la campana ....... 4
Instrucciones
de instalaciGn .............. 5-12
Solucionar problemas ...... 13
Soporte al consumidor
soporte al consumidor .......... 16
Garantia ........................ 15
JVE40
*Producto rotulado como ENERGYSTAR®
ENERGYSTAR
Como un socio de ENERGYSTAR ®,
GEha determinado que este
producto cumple con I(]s normas
de ENERGYSTAR®per(] un uso
eficiente de I(] energi(].
Impreso en China
Escriba el modelo y n_mero de
serie uqui:
N_mero de modelo
N_mero de serie
Estos nSmeros se encuentron en uno
etiqueto en Io pored posterior de Io
compono. 49-80622-1 08-11 GE

INSTRUCCIONES DE SEGURIDAD ihIPORTANTES.
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR.
PRECAUCIONESDE SEGURIDAD
AADVERTENCIA- PARAREOUCIR
EL RIESGODE INCENDIOS, DESCARGASELECTRICAS
0 LESIONESPERSONALES,OBSERVELOSIGUIENTE:
A Useesteunidad solamentede la maneraque elfabricante Ioindique.
Siustedtiene preguntas,p6ngase encontacto conel fabricante.
B. Antesde proporcionarservicioo de limpiarla unidad,desconecteet
suministroel@ctricoen el paneldeservicioy cierreelmecanismo de
seguridadpara evitarquealguien Ioconecte accidentalmente.Cuando
no existaun dispositivode cierrede seguridad,amarre unavisovisible,
como una etiquetaal paneldeserviciohaciendo la advertencia.
C. No useesta unidadcon ning0n dispositivode control develocidadde
estados61ido.
D. Estaunidaddebeestar conectadaa tierra.
a,PRECAUCION- Parausodeventitacidngeneraf
sofamente.Nousepara exputsarmateriatespetigrososo expfosivos
y vapores.
AADVERTENCIA-PARAREDUCIR
EL RIESGODE LESIONESPERSONALESEN EL CASODE UN
INCENDIO DEBIDO A GRASADE ESTUFAQUEHADA, HAGA LO
SIGUIENTE*:
A. CONTENGALASLLAMAScon unatapa que ajustebien sobrela sart@n,
con unaI@minapara hacerdulcesocon una bandejamet@lica,y luego
apagueetquemador.TENGACUIDADODENOQUENARSE.
Silasllamas noseapagan inmediatamente,EVACUEELLUGARY
LLAMEALDEPARTAMENTODEBOIVlBEROS.
B. NUNCAAGARREUNASARTENOUNAOLLAQUESEENCUENTREEN
LLANAS-Sepodria quemar.
C. NOUSEAGUA,incluyendopaBosde cocinaotoallas humedecidas-
estohar@queocurra unaexplosi6ndevapor violenta.
D. Useun extintor SOLANENTEsi:
1. Ustedsabeque tiene un extintor ClaseABC,y siustedya sabe
c6mo operarlo.
2. Elfuego es pequer_oy est@contenidoal @eadonde comenz6.
3. Eldepartamentode bomberoshasidoItamado.
4. Ustedest@luchandocontra lasllamas con susespaldashacia una
salida.
* Basadoen "KitchenFireSafety",publicado porNFPA.
AADVERTENCIA- PARAREOUCIR
EL RIESGODE UN FUEGODE GRASADE ESTUFA:
A. Nunca dejeunidadesde superficiessin la atenci6ndebida en
seleccionesaltas.Cuandoseest5hirviendo algoy ocurren
derramamientos,estospodriancausar humoy que los
derramamientosgrasososseincendien.Calientelosaceites
lentamentea seteccionesmediasy bajas.
B. Siempreenciendalacampana cuando cocinea fuego alto ocuando
flambeealimentos(CrepesSuzette,CherriesJubilee,Flambeadode
Camecon Pimienta).
C. Limpieel ventiladorconfrecuencia. Lagrasa no debeacumularseen et
ventiladoro en elfittro.
D. Useunasart@ndetamar_oapropiado.Siempreusepiezasdecocina
apropiadaspara ettamar_odelelementode lasuperficie.
ADVERTENCIA-PARAREDUCIREL RIESGODE
INCENDIOS, DESCARGASELE-CTRICAS0 LESIONESPERSONALES,
OBSERVELO SIGUIENTE:
A. Eltrabajo deinstalaci6nyelalambrado el@ctricodebehacerlo una
persona(s)calificada conformeatodos
losc6digosy est@ndaresaplicables,incluyendo una construcci6n
aprobada pot etinspectordeincendios.
B. Suficienteaireesnecesariopara una combusti6napropiaday para
deshacersede losgasesatrav@sde una salidade humo (chimenea)
de equiposquequeman combustiblespara prevenirretroalimentaci6n.
Sigalas recomendacionesdelfabricante delequipo decalentamiento
y losest6ndaresde seguridadtales como lospublicadospot la
Asociaci6nnacionaldeprotecci6nde incendios(NFPA),y la Sociedad
americana deingenierosde calefacci6n,acondicionadoresde airey
refrigeraci6n(ASHRAE),y losc6digosde lasautoridadeslocales.
C. Cuandose encuentrecortando o taladrandoen la pared o enel techo,
no dar_elos alambradoset@ctricosu otrasutitidadesescondidas.
D. Losventiladorescon conductos debenestar siempreventiladoshacia
el exterior.
,_ADVERTENCIA-PARAREDUCIRELRIESGO
DE INCENDIO YPApA QUE ELAIRESEVENTILEDE MANERA
ADECUADA,ASEGURESEDEQUEELAIRESALGAAL EXTERIOR-NO
VENTILEAIREDEESCAPEEN ESPAC!OSDENTRODE PAREDES
0 CIELORRASOS0 DENTRODE,_TICOS,HUECOSSANITARIOS0
GARAJES.
^,_ADVERTENCIA- PARAREOUCIRELRIESGO_E
INCENDIOS,SOLAHENTE USECONDUCTOS1'4ETALICOS.
No intentereparar o reemplazarningunaparte desuestufade
ventilaci6ndeairedescendente(down@aft)a no setque Iorecomiende
especificamenteestemanual.Cualquierotro serviciodebeser referidoa
un t@cnicocalificado.
LEAYSIGAESTAINFORMACIONDESEGURIDADCUIDADOSAMENTE
GUARDE ESTAS INSTRUCCIONES

Uso de los controles de la campana.
A Io largo de este manual, los funcionesy el aspecto pueden ser diferentes a los de su modelo.
Controles interruptores de presi6n (enaOunos modelog
GEAppliances.com
HI
OFF
FAN
LO
D
©
I
0
m[
OFF
LIGHT
ON
Control del VENTILADOR
Presioneelinterruptoren lapartesuperiorparaencenderel
ventiladorenlavelocidadalta(HI)yen laparteinferiorpara
reducirloa bajo(LOW).Enla posici6ncentralquedaapagado
(OFF).
Elusocontinuodelsistemadeventilaci6nmientrascocina
ayudaa mantenerla cocinaa gustoymenosh0meda.Tambi6n
reducelosoloresdecocci6nyla humedadqueproduce
manchasycreanunanecesidadfrecuentede limpieza.
Control de Io LUZ
Presioneelinterruptoren lapartesuperiorparaencenderlaluz
(ON)mientrasestacocinando.Presioneelinterruptoren laparte
deabajoparausarcomoluzpor lanoche.
Laposici6ncentralindicaqueestaapagada(OFF).
Cuidado y limpieza de la campana de ventilaci6n.
Cerci6rese de que la corriente eldctrica estd apagada y todas los superficies estdn frias antes de limpiar o
realizar mantenimiento a cualquier porte de la campana de ventilaci6n.
Filtros met61icos reutilizables para
LGcampana tiene dos filtros metc_licos
reutilizables.
Si fuese necesario reemplazar los filtros
metdlicos para la grasa, los puede
ordenar a travds de su proveedor GE.
Losfiltros metc_licosatrapan la grasa que
liberan losalimentos en la superficie de
la estufa. Tambi6n ayudan a evitar que
losalimentos en llamas que estc_nen la
superficie de la estufa da_en en interior
de la campana.
Poresta raz6n, losfiltros SIEMPRE
deben estar en su lugar cuando seusa
la campana. Losfiltros para la grasa se
deben limpiar una vez al mes,o segOn
sea necesario.
Para retirarlos, presionelos bloqueosdel
filtro hacia atrc_syhale losfiltros hacia
abajo yhacia fuera.
Para reemplazarlos, inserte laspestahas
posteriores del filtro en las ranuras
del marco en la parte posterior de la
abertura. Presionelosfiltros hacia arriba
yaj0stelosen sulugar.
la grasa
Para limpiar los filtros para la grasa,
rem6jelosyluego agitelos en agua
caliente ydetergente. No useamoniaco
o productos basados en amoniaco
ya que oscurecerc_nel metal. Nouse
abrasivoso limpiadores de homo. Se
pueden cepillar ligeramente para retirar
la suciedad incrustada. Enjuague,agite
ydeje secar antes de reemplazar.
Tambi6n se pueden limpiar en la
lavadora de platos autom6tica.
NOTA:Antes de Iimpiar,cerci6resede
que losfiltros de carb6n,silos hay,se
desprendany retiren.Consultela secci6n
Filtrosde carb6n.

Cuidado y limpieza de la campana de ventilaci6no
Los filtros de carb6n estdn unidos
al interior de cada filtro metdlico
pare la grasa.
Filtros de carb6n (analgunos moddos)
no sepueden limpiar,
sinoque sedeben
reemplazar.
Ordeneel ki[ NO:
WBO2X10707i
EstoSitSSenueden
ordenar a trovdsde
proveedoGE.
NOTA:Losfiltros de carb6n
no estdn incluidoscon
la campana.Debenser
ordenados de susuplidor GE.
Siel modelo no tiene
ventilaci6n hacia el exterior, el
aire serecircula a trav@sde los
filtros de carb6n desechables
qua ayudan a evitar el humo y
losolores.
Losfiltros de carb6n se
deben reemplazar cuando
est_n obviamente sucioso
descoloridos(por Io general
despu#s de 6 a 12 mesas,
dependiendo del uso de la
campana).
NOTA:NOenjuague,o lave
losfiltros de carb6n en un
lavaplatos automdtico.
Note: Si la campona se insta-
la en modo de recirculaci6n,
no seencuentra certificada
pot ENERGY STARe.
Superficies pintadas tenalgunosmoddos)
Pare limpiar la superficiede lacampana, use
un paho humedecido con ague caliente y
detergente suave adecuado pare superficies
pintadas. Useun paho limpio, humedecido
con ague caliente pare retirar eljab6n. Seque
con un paso limpioyseco.
No useesponjillas u otros limpiadores
abrasivosya qua pueden rayar la superficie.
Limpie con un paso limpio, humedecido con
ague caliente despu6sde user limpiadores.
Superficies de acero inoxidable (analgunos modelos)
No utilice almohadillas de lana de acero
ya que rayar(_ la superficie.
Pare limpiar la superficiede acero
inoxidable, utilice aguajabonosa o u
limpiador o pomade pare acero inoxidable.
Siemprelimpie la superficie en la direcci6n
del grano. Siga lasinstrucciones del
producto limpiador al limpiar la superficiede
acero inoxidable.
Sitiene preguntas sobre la compra de
un limpiador o pomade limpiadora de
electrodom6sticos de acero inoxidable,o
pare averiguar la direcci6n del distribuidor
m@scercano, por favor llama al siguiente
nOmerotelef6nico gratuito:
Centro nacionel de piezes 800.626.2002
GEAppliances.com
4
Luces de la campana
AADVERTENCIA:
-Lalampara contJenemercurJo.
Maneje de ecuerdo con las leyes de
eliminaci6n.Verwww.lamprecycle.orgo
1-800-435-4448.
Pare precaucionessobreinstalaci6n,
manipulaci6n y eliminaci6n,consultela
informaci6n de empaque de la 16mpara
fluorescente.
AADVERTENCIA:
• Pare reducirel riesgode una descarga
eldctrica,no conectela energfaeldctrica
hacia la campana sinambas Idmparas en
su lager.
APRECAUCION:
• No toque losIdmparas de la campana
cuando seencuentren encendidas.
Puedenester Iosuficientementecalientes
como poe provocar lesiones.
• Poe evitar lesionesprovocadas pot
Idmpams rotes,manipOlelascon cuidado
y no opera la campana sin loscubiertasde
losIdmpams en su lager.
Estacampana requiere dos 16mparas
fluorescentes compactas (CFL)con una base
GU24(incluida)de 15vatios como m6ximo.
Pare cembier les 16mparas:
JTJ Cuando instale o reemplace una
16mpara,asegOresede qua la energia
dirigida hacia la luzsehaya apagado.
Nunca permita qua una lampara entre
en contacto con ague.
[] Quitela cubiertade la lampara
deslizandolaunsentido horizontaly
jalandola haciaabajoyen sentido
contrariode la campana.
Tomela bmpara dela porci6npbstica de
la basede la 16mparaydesenr6squela.
Coloqueuna lamparafluorescente
compacta GE:I.5Wde bajoconsumocon
la piezadeservicioGEpare baseGU24:
WB08X10064.
