Installation
Instructions
30" Woll-Mounted Hood
ZV30H
Hotte de cuisine murale de
Instructions d'installation
La section fran¢aise commence (3la page 21
76,2 cm (30 po)
Campana Montada en Paredde 30"
Instruccionesde instalaci6n
La secci6nen espa_olempieza en lap6gina 39
131-10749
0/4-10 GE

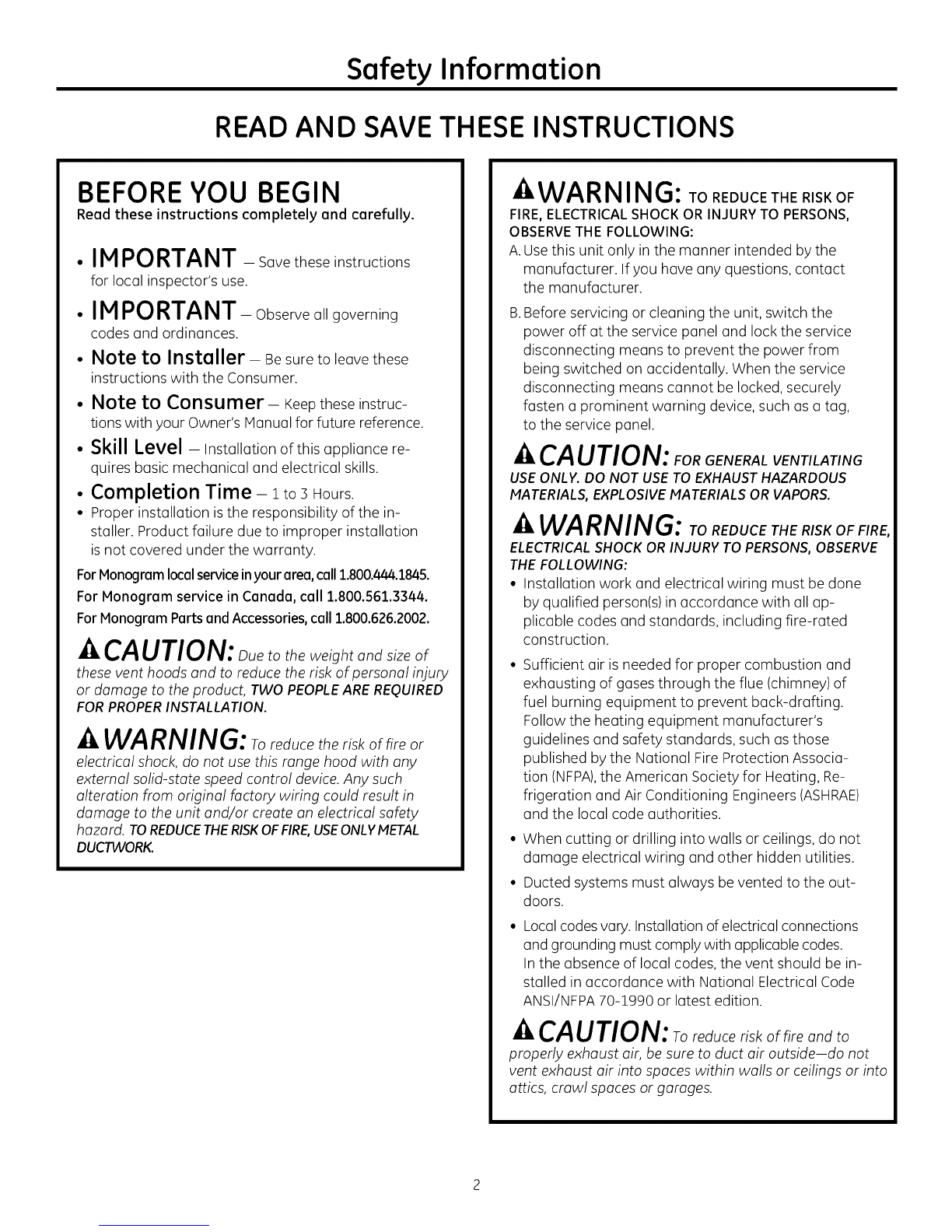

Safety Information
READ AND SAVE THESE INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT -Soretheseinstructions
for Iocol inspector's use.
• IMPORTANT-observe oil governing
codes ond ordinonces.
• Note to Installer- Be sure to leove these
instructions with the Consumer.
• Note to Consumer- Keepthese instruc-
tions with your Owner's Manual for future reference.
• Skill Level -Installation of this appliancere-
quires basic mechanical and electrical skills.
• Completion Time - 1to3Hours.
• Proper installation isthe responsibility of the in-
staller. Product failure due to improper installation
is not covered under the warranty.
ForMonogramlocalserviceinyour area,call1.800.444.1845.
For Monogram service in Canada, call 1.800.561.3344.
ForMonogram PartsandAccessories,call 1.800.626.2002.
CAUTION: _uetotheweightandsizeof
these vent hoods and to reduce the risk of personal injury
or damage to the product TWO PEOPLE ARE REQUIRED
FOR PROPER INSTALLATION.
WARNING: _oreducether_skoff,rear
electrical shock, do not use this range hood with any
external solid-state speed control device. Any such
alteration from original factory wiring could result in
damage to the unit and/or create an electrical safety
hazard. TOREDUCETHERISKOFFIRE,USEONLYMETAL
DUCTWORK.
WARNING: ToREDUCETHERISKOF
FIRE,ELECTRICALSHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A.Use thisunitonlyinthemonner intendedbythe
monufocturer.Ifyou hoveony questions,contoct
the manufacturer.
B.Before servicing or cleaning the unit, switch the
power off at the service panel and lock the service
disconnecting means to prevent the power from
being switched on occidentally. When the service
disconnecting means cannot be locked, securely
fasten o prominent warning device, such as o tog,
to the service panel.
.4,CAUTION: FORGENERALVENTILATING
USEONLY. DO NOT USETOEXHAUSTHAZARDOUS
MATERIALS,EXPLOSIVEMATERIALSOR VAPORS.
WARNING: TO REDUCE THE RISK OF FIRE.
ELECTRICALSHOCKORINJURYTOPERSONS,OBSERVE
THE FOLLOWING:
• Installation work and electrical wiring must be done
by qualified person(s)in accordance with oil ap-
plicable codes and standards, including fire-rated
construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent back-drafting.
Follow the heating equipment manufacturer's
guidelines and safety standards, such as those
published by the Notional Fire Protection Associa-
tion (NFPA),the American Society for Heating, Re-
frigeration and Air Conditioning Engineers (ASHRAE)
and the local code authorities.
• When cutting or drilling into walls or ceilings, do not
damage electrical wiring and other hidden utilities.
• Ducted systems must always be vented to the out-
doors.
• Local codesvary. Installation ofelectrical connections
and grounding must comply with applicable codes.
In the absence of local codes, the vent should be in-
stalled in accordance with National Electrical Code
ANSI/NFPA70-1990 or latest edition.
CAUTI0 N: :oreduceriskoffireondto
properly exhoust oir, be sure to duct oir outside-do not
vent exhaust oir into spaces within wolls or ceilings or into
attics, crawl spaces or garages.

Design Information
CONTENTS
Design Information
Models Available ................................................................................3
Product Dimensions .........................................................................3
Advance Planning
Ductwork Planning ..........................................................................4
Adequate Support ............................................................................4
Installation Preparation
Duct Fittings .........................................................................................5
Power Supply.......................................................................................6
Tools and Materials Required......................................................6
Remove the Packaging ..................................................................7
Check Installation Hardware ......................................................7
Determine Installation Height .....................................................8
Installation Instructions
Installation - Vented to the Outside ...............................10-14
Step 1. Ductwork, Wiring Locations ........................................l0
Step 2.Wall or Ceiling and Cabinet Preparation ...............l0
Step 3. Hounting Hood to Bottom of Cabinet ....................11
Step 4.Connecting Ductwork ....................................................13
Step 5.Connecting Electrical .....................................................14
Step 6. Installing Baffle Grease Filters
and DripTray.....................................................................14
Step 7. Finalize Installation ..........................................................14
Installation Instructions
Installation - Redrculating ..................................................15-18
Step 1.Wiring Locations...............................................................15
Step 2.Wall and Cabinet Preparation ....................................15
Step 3. Mounting Hood to Bottom of Cabinet ....................16
Step 4. Connecting Electrical .....................................................17
Step 5. Installing Charcoal Filter...............................................18
Step 6. Installing Baffle Grease Filters
and Drip Tray......................................................................18
Step 7. Finalize Installation ..........................................................18
MODELS AVAILABLE
Model ZV3OHS
This hood may be installed to vent to the outdoors,
or installed for recirculating operation. All necessary
parts for recirculating operation are supplied with
the hood. No kits required.
This vent hood can be installed over any 30" electric or
gas cooktop including Honogram Professional cooktops
or ranges less than 36".
PRODUCT DIMENSIONS AND
CLEARANCES
The vent hood must be installed 24" minimum and
36" maximum above the cooking surface.
NOTE: Installation height should be measured from
the cooking surface to the lowest part of the hood.
The ductwork running from the top of the hood can
be concealed in the soffit and/or upper cabinet. NO
duct cover accessories are provided or required.
10-1/2"
24" Min.
s6" max.
O0 ® O0

Advance Planning
DUCTWORK PLANNING FOR VENTED
NODE
• This vent hood is designed to be installed beneath a
cabinet or beneath a cabinet mounted to a soffit.
• This hood is designed for 8" round ducting. The
8" round duct can transition to 3-1/4" x 10" or
3-1/4" x 12".
• Plan the route for venting exhaust to the outdoors
considering any transitions you may require.
• Use locally supplied ducting to vent horizontally
through the rear wall or vertically through the
ceiling.
• Use the shortest and straightest duct route
possible. For satisfactory performance, duct run
should not exceed 100' equivalent length for any
duct configurations.
• Refer to "Duct Fittings" chart to compute the
maximum permissible length for duct runs to
the outdoors.
• Install a wall or roof cap with damper at the exte-
rior opening. Order the wall or roof cap and any
transition and length of duct needed in advance
from a local hardware store.
• Determine the exact location of the vent hood.
• Wall or ceiling duct must be projected out at least
r' for duct connection.
WARNING: TOREOUCET.ERISKOF
FIRE, USE ONLY METAL DUCTWORK.
• For better air flow results, use rigid metal ductwork.
DUCTWORK PLANNING FOR
RECIRCULATION NODE
Allparts are included to install in recirculation mode.
MOUNTING FOR ADEQUATE SUPPORT
• The hood must be secured to vertical studs in the
wall. See the Wall or Ceiling and Cabinet Preparation
section for vented or recirculutiong installation.
• We strongly recommend that the vent hood be on
-site to accurately locate the ductwork and electri-
cal service.
• Installation will be easier if the vent hood is in-
stalled before the cooktop and countertop are
installed.
IMPORTANT: The vent hood must be secured
to the cabinet and at least two wall studs and
dry wall with anchors. The cabinet must be ca-
pable of supporting :100 Ibs.
4

Installation Preparation
DUCT FITTINGS
Use this chart to compute maxi-
mum permissible lengths
for duct runs to outdoors.
NOTE: Do not exceed maximum
permissible equivalent lengths!
Maximum duct length:
100 foot for range hoods.
Flexible ducting:
If flexible metal ducting is used,
all the equivalent feet values in
the table should be doubled.
The flexible metal duct should
be straight and smooth and ex-
tended us much us possible.
DO NOT use flexible plastic
ducting.
NOTE:Any home ventilation
system, such as aventilation
hood, may interrupt the proper
flow of combustion air and
exhaust required by fireplaces,
gas furnaces, gas water heat-
ers and other naturally vented
systems.
To minimize the chance of
interruption of such naturally
vented systems, follow the heat-
ing equipment manufacturer's
guidelines and safety standards
such as those published by
NFPA and ASHRAE.
DuctPiece Dimensions
Round,
straight
%3-1/4" x 10"
straight
Equivalent
Length*
1 ft. (per
foot length)
1 ft. (per
foot length)
90 ° elbow 12 ft.
Quantity
Used
45°elbow 7 ft.
3-i14" x i0"
3-i14" x 12"
90 ° elbow
14 ft.
i0 ft.
3-i/4" x i0" 8 ft.
3-i/4" x 12" 6 ft.
45°elbow
3-i/4" x i0" 33 ft.
3-i14" x 12" 24 ft.
90 ° flat elbow
8" round to 2 ft.
rectangular
Rectangular to 8" 2 ft.
round
3-i/4" x i0" 4 ft.
3-i/4" x 12" 4 ft.
8" round to rectangular
transition 90 ° elbow
3-i14" x i0" 4 ft.
3-i14" x 12" 4 ft.
Rectangular to 8" round
transition 90° elbow
Roundwall cap
with damper 24 ft.
3-i/4" x i0" 24 ft.
3-i14" x 12" 18 ft.
Rectangular wall cap
with damper
Round roof cap 33 ft.
*Actual length of straight duct plus duct fitting
equivalent. Equivalent length of duct pieces are
based on actual tests conducted by GE Evalua-
tion Engineering and reflect requirements for good
venting performance with any ventilation hood.
Total Duct Run,
Total
Equivalent
Length

Installation Preparation
POWER SUPPLY
IMPORTANT -(Please read carefully)
-AWARNING:
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
Remove house fuse or open circuit breaker before
beginning installation.
Do not use an extension cord or adapter plug with
this appliance. Follow National Electrical Code or
prevailing local codes and ordinances.
Electrical supply
This vent hood must be supplied with 120V, 60Hz,
and connected to an individual, properly grounded
brunch circuit, and protected by u 15- or 20-amp
circuit breaker or time-delay fuse.
• Wiring must be 2-wire with ground.
• If the electrical supply does not meet the above
requirements, cull u licensed electrician before
proceeding.
• Route house wiring us close to the installation
locution us possible. Wiring can enter from the
ceiling or rear wall. Route additional length from
the ceiling or wall to reach the junction box.
• Connect the wiring to the house wiring in uccor-
dunce with local codes.
Grounding instructions
The grounding conductor must be connected to
u ground metal, permanent wiring system, or an
equipment-grounding terminal or lead on the hood.
WARNING: The improper connection
of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified
electrician or service representative if you are in
doubt whether the appliance is properly grounded.
TOOLS AND MATERIALS REQUIRED
(NOT SUPPLIED)
;::::::::::.....................................................................)))_} Safety glasses
Pencil and tape measure
Gloves
Spirit level Hammer
Flashlight
Phillips screwdriver Utility Knife
Metal snips
Electric drill or cordless driver
with #2 Phillips bit, 1/8", 5/16"
and wood-cutting hole saw
drill bits
Stepladder
Pliers
UL-listed wire nuts
Masking Wire cutter/stripper
tape
Saber saw or Key Hole saw
Aluminized
duct tape ©
Strain relief for
junction box
8" round metal
duct, length to
suit installation
120V 60Hz. 15- or 20-Amp,
2-wire with ground, properly
grounded branch circuit

Installation Preparation
REMOVE THE PACKAGING
ZLCAUTION: Wearglo estoprotectagainst
sharp edges. Thevent hood is shipped secured to a
shipping board with 4 screws.
• Remove the accessories and Styrofoam
packaging.
• Lift the hood out of the box.
• Remove and properly discard the plastic
wrapping.
• Remove metal grease filters and other
accessories.
• To remove the shipping board, locate and remove
the 4 screws inside the hood on the left and right
sides. Discard the shipping board.
Shipping
board
Shipping
screws Packaging Shipping screws
CHECK INSTALLATION HARDWARE
Locate the hardware accessory box packed with
the hood and check contents.
4 DamperFLssembly
screws (supplied
with damper
assembly)
10 wall/cabinet 2 metal wall
screws fasteners
Damper
assembly Grease tray
13Greasefilters
I' _,,,,,,_ss'
Riser
,4,,
Cabinet Template
31-10571
6 riser
screws 10 flat 1 plastic
washers grommet
Wall Template
31-10570
2 charcoal filters
NOTE: Additional tools, materials and hardware are
required to construct your wall framing support.

Installation Preparation
DETERMINE INSTALLATION HEIGHT
This hood can be installed for vented or recirculating
operation. All necessary parts are shipped with the hood
for recirculation mode.
NOTE: Installation height should be measured from
the cooking surface to the bottom of the hood.
The vent hood must be installed 24" min. and
36" max. above the cooking surface.
24" iVlin.
36" Max.
00 ®
RecirculGtion Mode
You must use the riser with louvers facing the front
side with recirculation mode. The hood height with
the riser is 14". Do not knock out the duct opening
on the riser.
DONOTknock out
the duct opening for
recirculation mode.
Riser
Z
Y
R--3 1/2"
B=10 1/2"
i
×=24" Min, 36" Max
!
A
C--Ceiling
Height
To determine the distance between the bottom of
the hood and the cooking surface (IVlin24", Max. 36"
use the following formula to solve for X:
X=C-(A+B+R+Y+Z) where
A = Cooking surface to the floor
B = Hood height without riser
C = Ceiling height
R= Riser height (must be used with recirculation
mode, optional for vent mode)
Y = Cabinet height
Z = Soffit/Gap between the cabinet and ceiling (may
be "0")
Example: X = 96" - (36" + 10 1/2" + 3 1/2" + 15" + 6")
X= 25"

Installation Preparation
Z
iY
R=3 I/2" (Optional)
B=IO 1/2"
_r C=Ceiling
Height
X=24" Min, 36" Max
l
A
V
Vent Mode
In vent mode, instc]llc]tion can be done with or with-
out the riser. You must consider 3 1/2" riser height in
determining the hood instc]llc]tion height.
To determine the hood instc]llc]tion height with riser:
X=C-(A+ B+ R+Y +Z)
Example: X = 96" - (36" + 10 1/2" + 3 1/2" + 15" + 6")
X = 25"
1/2"
C=Ceiling
Height
X=24" Min, 36" Max
1
r
A
To determine the hood instc]llc]tion height without
riser:
X=C-(A+B+Y+Z)
Exomple: X = 96" - (36" + 10 1/2" + 24" + 0")
x =25 1/2"
NOTE: Instollotion height should be meosured from
the cooking surface to the bottom of the hood. The
vent hood must be instolled 24" min. ond 36" mox.
obove the cooking surface. The hood instollotion
height, from the cooking surface to the bottom of the
hood, depends upon ceiling height ond other factors
which must be considered.

Installation Instructions
INSTALLATION - VENTED TO THE OUTSIDE
I-I-IDUCTWORK, WIRING LOCATIONS
Determine the exact location of the vent hood.
• Locote the templote pocked with the literoture.
- IVleosure36" from the floor to the top of the cook-
ing surfoce. Add hood instollution height deter-
mined on previous poges. IVlorkthor Iocotion.
- Use u level to draw u straight pencil line on the wall.
- Tope the templote in position olong the penciled
line. CHECKTO BESURETHETEIVlPLATEISLEVEL.
6 5/8"
holeforduct
Centerline 8 1/4" min. J
abovehoodchassis xx_ ,_i_,__"
/
..........................i,
Cabinet/Ceiling ducting:
If ductwork will vent stroight up to the ceiling or
cobinet:
• Useu level to drow o line struight up, from the cen-
terline on the templote to the ceiling/cubinet.
• IVleusure6-5/8" from the bock woll to the centerline
of on 8-1/2" hole on the ceiling/cobinet top.
NOTE:If drywoll is not present, odd drywoll thickness
to the 6-5/8" dimension.
Wall Ducting:
If ductwork will vent to the reor:
• Use o level to drowo line stroight up from the
centerline on the templote.
• IVleosureot leost 8 1/4" obove the hood chossis
top surfoce Iocotion shown on the templote to the
centerline of o 8-1/2"-dio. duct hole. (Hole moy be
elongoted for duct elbow.)
House Wiring Locution:
• The junction box is Iocoted on the top right side of
the hood.
10
I-I-IDUCTWORK, WIRING LOCATIONS
(Continued)
•Wiring con enter the cobinet from the ceiling or
bock woll.
• Route odditionol wiring length to reoch the junction box.
ILIWALL OR CEILING AND CABINET
PREPARATION
IMPORTANT --The vent hood must be secured
to the cobinet ond ot leost two woll studs ond
drywoll with onchors. Cobinet must be copoble of
supporting 100 Ibs.
• With the templote toped in ploce, use o punch to
mork oil mounting screw Iocotions. Mork duc-
twork, screw ond electricol holes occording to
your opplicotion.
• Drill o minimum 3/4" hole for electricol coble in
the bottom of the cobinet.
• Drill 1/8" pilot holes ot the 4 punched Iocotions on
the bottom of the cobinet.
• Drill 1/8" pilot holes ot the 4 punched Iocotions on
the woll
• Remove the templote.
• Enlorge holes thot did not enter studs to 5/16".
Top onchors for woll fosteners into the holes.
Cobinet templote
Cobinet mounting
screw locutions
holes which oli(,n with the studs.

Installation Instructions
INSTALLATION - VENTED TO THE OUTSIDE
ILl WALL OR CEILING AND CABINET
PREPARATION (Continued)
FOR REARWALL DUCTING
Determine the cabinet center line.
If the hood is mounted with the riser:
• Cut o 14" diameter hole in the cabinet bottom.
• Cut an 8-1/2" diameter hole in the cabinet rear
wall. You may need to odd ducting between the
hood exhaust outlet and the elbow.
If the hood is mounted without the riser:
• Cut (] 10" diameter hole in the cabinet bottom.
• Cut the location of the 8-1/2" diameter hole in the
cabinet rear wall. You may need to odd ducting
between the hood exhaust outlet and the elbow,
depending on the location planned for the rear wall
exit.
• Depending on cabinet height, you may need to
shorten the height of the 8" elbow.
FOR CEILING DUCTING
If the hood is mounted with the riser:
• Cut a 14" diameter hole in the cabinet bottom.
• Cut on 8-1/2" diameter hole in the cabinet top and
ceiling 6-5/8" from wall.
If the hood is mounted without the riser:
• Cut a 10" diameter hole in the cabinet bottom
6- 5/8" from the wall.
• Cut an 8-1/2" diameter hole in the cabinet top
6-5/8" from the wall and one in the ceiling 6-5/8"
from wall.
NOTE:Any exposed ducting needs to be covered us-
ing your preferred method.
I ,-_IMOUNTING HOOD TO BOTTOM OF
CABINET
Mounting hood to the bottom of the cabinet is dependent
on your cabinet. For non-flush bottom cabinets, two (2)4'
wide (length and thickness depend on your cabinet) solid
wooden fillers are required on the left and right sides of
lower cabinet as shown in the picture. Use shims if neces-
sary to make the wooden fillers flush.
I .............
Wooden fillers
NOTE: When securing wooden fillers to cabinet, be
sure to consider hood mounting screw locations on
the template. Wooden fillers must be flush or slightly
less than the cabinet flange. Make sure the cabinet
bottom is level.
For flush bottom cabinets, no special instructions
are required.
Hood Installation with Riser:
• Remove the appropriate electrical and duct
knockouts in the riser as shown in the figure.
• Install plastic grommet (from hardware bug)in
electrical knockout hole to protect the cable.
Electrical
Vent knock knock out Grommet
out
ll

Installation Instructions
INSTALLATION - VENTED TO THE OUTSIDE
I-_IMOUNTING HOOD TO BOTTOM OF
CABINET (Continued)
• To secure the riser to the cabinet, place the riser
(with louvers facing the wall/under the cabinet. Align
the riser and cabinet mounting holes. Drive 4 sup-
plied wood screws to install the riser to the cabinet.
NOTE: If desired, you may choose to install the
riser with the louvers facing forward.
Riser
Wood screws
• Drive 4 hood mounting screws into the threaded
nuts on the bottom of the riser leaving 1/4" pro-
truding from the riser. The 1/4" gap will provide
the clearance to engage the key hole slots in the
top of the hood.
___.o nting_/__ L_
• Install the dumper assembly on top of the hood
with 4 Phillips screws supplied.
#2 Phillips
screws
Dumper
assembly
#2
screws
I-_IMOUNTING HOOD TO BOTTOM OF
CABINET (Continued)
•Liftthe hood to the installation position. Locate the
house wiring and route it through the knockout on
top of the hood. Lift the hood and engage the key
hole slots over the mounting screws and slide it
buck against the wall. Tighten the mounting screws.
Add 2 additional screws at the front center of the
riser.
• Install 4 wall screws and washers into the anchors
or studs to complete the hood mounting.
Mounting screw
Key hole slot
in hood
12

Installation Instructions
INSTALLATION - VENTED TO THE OUTSIDE
I-3-1MOUNTING HOOD TO BOTTOM OF
CABINET (Continued)
Hood Installation without Riser:
Install the damper assembly on top of the hood
with 4 supplied Phillips screws.
Lift the hood under the cabinet. Align the hood
and cabinet mounting holes. Use 4 supplied
wood screws and washers to secure the hood to
the cabinet.
• Drill two 1/8" pilot holes in the cabinet flange. Se-
cure with 2 additional wood screws, supplied. Be
careful when driving screws into the front flange.
• Install 4 wall screws into the anchors or studs to
complete the hood mounting.
Cabinet I /................................_ /i_!.....................////
flange z, , ,z_.Y-4
Mounting_-7-7'... ___ Mounting
screws_' J' _ _ "_i_ rews
°/Additional screws \ _ "_
_// to cabinet flange
Wall screws Wall screws
and washers for and washers for
anchors or studs anchors or studs
[4-ICONNECTING DUCTWORK
• Install the ductwork by making connections in the
direction of the airflow.
• Secure joints in ductwork with sheet metal screws,
being sure to allow clearance for damper flaps to
open and close.
• Wrap all duct joints with aluminized duct tape for
an airtight seal.
• Use aluminized duct tape to secure the flange
connection. Reach inside the hood and push the
damper up to be sure it moves freely.
Aluminized('
duct tape \
Screw
/"
L*
i flow
13

Installation Instructions
INSTALLATION - VENTED TO THE OUTSIDE
F_CONNECTING ELECTRICAL
Verify that the power is turned off at the source.
WARNING:: Ifthe house wiring is not
2-wire with a ground wire, a ground must be pro-
vided by the installer. When house wiring is alu-
minum, be sure to use UL-approved antio×idant
compound and aluminum-to-copper connectors.
• Remove the junction box cover.
• Secure the house wiring to the junction box with
a strain relief (not provided).
• Connect the white lead to the branch circuit white
lead.
• Connect the black lead to the branch circuit black
lead.
• Connect the green/yellow lead to the branch
circuit green lead or bare ground lead.
• Secure all the connections with wire nuts on each
electrical connector. Check for secure wiring con-
nections.
• Push the wires into the junction box and replace
the cover. Be sure the wires are not pinched.
• Secure the junction box cover with the 2 original
screws.
Put the main power disconnect switch located on
the control box cover to the ON position. Test all
hood functions to ensure electrical connections.
See the owner's manual for instructions to test
operations.
Strain relief
Junction box
cover wiring
UL listed
wire nuts
ground
wires
INSTALLING BAFFLE GREASE
I "-" I FILTERS AND DRIP TRAY
Installing Drip Tray
1.Lift drip tray with slots and filter channel toward
the front.
2.Align the tray with the hood drip tray channel and
ease into position.
Drip tray
Installing Baffle Grease Filters
1.Remove protective film.
2. Hold both filter knobs while positioning the front end
of the filter in the upper (front) filter channel. Pull the
filter as far forward as possible into the channel.
3. Lift the opposite end of the filter, aligning with the
rear (lower) filter channel.
/4.Push the filter into the rear channel, allowing it to
settle into the rear channel.
5. Make sure filters are seated properly.
Front
channel
Rear channel -----"1
with grease tray _ I
"
FINALIZE INSTALLATION
• Remove any remaining protective film from the
front face of the hood.
• Be sure fan and lights operate correctly. Refer to
the Owner's Manual for operating instructions and
Problem Solver.
14

Installation Instructions
INSTALLATION - RECIRCULATING
[_-IWIRING LOCATIONS
Determine the exact location of the vent hood.
•Locate the template packed with the literature.
- Measure 36" from the floor to the top of the cook-
ing surface. Add hood installation height deter-
mined on previous pages. Mark that location.
- Use a level to drawa straight pencilline on the
Wall.
- Tape the template in position along the penciled
line. CHECK TO BE SURETHE TEMPLATE IS LEVEL.
i
' 7
i
..................................... ii
HOUSE WIRING LOCATION:
• The junction box is located on the top right side of
the hood.
• Wiring can enter the cabinet from the ceiling or
from the back wall.
• Route additional wiring length to reach the junction
box.
[-_IWALL AND CABINET PREPARATION
IMPORTANT --The vent hood must be secured
to the cabinet and at least two wall studs and
drywall with anchors. Cabinet must be capable of
supporting 100 Ibs.
• With the template taped in place, use a punch to
mark all mounting screw locations and electrical
holes according to your application.
• Drill a minimum 3/4" hole for electrical cable in
bottom of the cabinet.
• Drill 1/8" pilot holes at the 4 punched locations on
the bottom of the cabinet.
• Drill 1/8" pilot holes at the 4 punched locations on
the wall
• Remove the template.
• Enlarge holes that did not enter studs to 5/16".
Tap anchors for wall fasteners into the holes.
Cabinet template
I
Cabinet mounting
screw locutions
holes which alk,n with the studs.
15

Installation Instructions
INSTALLATION - RECIRCULATING
I-3-IMOUNTING HOOD TO BOTTOM OF
CABINET
Mounting the riser to the bottom of the cabinet isdepen-
dent on your cabinet. For non-flush bottom cabinets, two
(2)4"wide (length and thickness depend on your cabinet)
solid wood fillers ore required on the left and right sides of
lower cabinet as shown. Use shims if necessary to make
wooden fillers flush.
NOTE: When securing wooden fillers to cabinet, be
sure to consider the hood mounting screw locutions
on the template. Wooden fillers must be flush or
slightly less than the cabinet flange. IVlake sure the
cabinet bottom is level.
For flush bottom cabinets, no special instructions
are required.
Wooden filler
boards
Hood and Riser Installation
• Remove the appropriate electrical knockouts in
the riser as shown in the figure.
• Install plastic grommet (from hardware bag)in
electrical knock out hole to protect cable.
IMPORTANT: DO NOT remove the large knock
out for RECIRCULATION installation. Louvers
must face the front.
DO NOT REMOVE Electrical
Vent knock out knock out Plastic
_Grommet
I-_IMOUNTING HOOD TO BOTTOM OF
CABINET (Continued)
To secure the riser to the cabinet:
• Place the riser (with louvers facing the front) under
the cabinet. Align the riser and cabinet mounting
holes. Drive 4 supplied wood screws to install the
riser to the cabinet. Hole in
cabinet for
electrical
cable
Riser
Wood screws
• Drive 4 hood mounting screws into the threaded
nuts on the bottom of the riser leaving 1/4" pro-
truding from the riser. The 1/4" gap will provide
the clearance to engage the key hole slots in the
top of the hood.
i//_
16

Installation Instructions
INSTALLATION - RECIRCULATING
I-3-1MOUNTING HOOD TO BOTTOM OF
CABINET (Continued)
• Lift the hood to the installation position. Locate
the house wiring and route it through the knock-
outs at the top right of the hood. Lift the hood
and engage the key hole slots over the mounting
screws and slide it back against the wall. Tighten
the mounting screws. Add 2 additional screws at
the front and center the hood on the riser.
• Install 4 wall screws into the anchors or studs to
complete the hood mounting.
Mounting screw
Keyh°le sl°t _/__----_ /
in hood _-_
)
House wiring
[---] ooooo
_-- -- I I-- " :J-I/
__,-_ .._-__, i
Additional
_\ screws to riser /J
_' Wall screws _/
and washers for
anchors or studs
_-ICONNECTING ELECTRICAL
Verify that the power is turned off at the source.
WARNING:: Ifthe house wiring is not
2-wire with a ground wire, a ground must be pro-
vided by the installer. When house wiring is alu-
minum, be sure to use UL-approved antio×idant
compound and aluminum-to-copper connectors.
• Remove the junction box cover.
• Secure the house wiring to the junction box with a
strain relief (not provided).
• Connect the white lead to the branch circuit white
lead.
17
i4-1CONNECTING ELECTRICAL(Continued)
Connect the black lead to the branch circuit black
lead.
•Connect the green/yellow leadto the branch cir-
cuit green lead or bare ground lead.
• Secure all the connections with wire nuts on each
electrical connector. Check for secure wiring con-
nections.
• Push the wires into the junction box and replace
the cover. Be sure the wires are not pinched.
• Secure the junction box cover with the 2 original
screws.
Put the main power disconnect switch located on the
control box cover to the ON position. Test all hood
functions to ensure electrical connections. See the
owner's manual for instructions to test operations.
Strain relief
Junction box
cover
House
wiring
UL listed
wire nuts
Black
leads
Green/yellow
ground wires

Installation Instructions
INSTALLATION - RECIRCULATING
I-_INSTALLING CHARCOAL FILTERS
Charcoal filters must be installed for recirculation
installation.
To install:
1.Align the charcoal filter with the notch on the
plastic blower cover.
2.Turn the filter counterclockwise to lock into place.
Make surebothtabsare engaged on the char-
coalfilter. Make sure the filters are secure.
I b IINSTALLING BAFFLE GREASE FILTERS
AND DRIP TRAY
Installing Drip Tray
1.Lift drip tray with slots and filter channel toward
the front.
2.Align the tray with the hood drip tray channel and
ease into position.
Drip tray
16-]INSTALLING BAFFLE GREASE FILTERS
AND DRIP TRAY (Continued)
Installing Baffle Grease Filters
1.Remove protective film.
2.Hold both filter knobs while positioning the front end
of the filter in the upper (front) filter channel. Pull the
filter as far forward as possible into the channel.
3.Lift the opposite end of the filter, aligning with the
rear (lower) filter channel.
4.Push the filter into the rear channel, allowing it to
settle into the rear channel.
5. Make sure filters are seated properly.
Front
channel
Rear channel
with grease tray _ I
"
I-_ FINALIZE INSTALLATION
• Remove any remaining protective film from the
front face of the hood.
• Be sure fan and lights operate correctly. Refer to
the Owner's Manual for operating instructions and
Problem Solver.
18

Notes
19

NOTE:While performing installations described in this book,
safety glasses or goggles should be worn.
For Monogram ®local service in your area, call
1.800.444.1845.
NOTE:Product improvement is a continuing endeavor
at General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
Pub. No. 31-10749
04-10 GE Printed in Italy
GE Consumer & Industrial
Appliances
General Electric Compung
Louisville, KY40225
GEApplionces.com
