GE Profile WPDH8800 Original instructions

ge.com
el._
Q.
Safety Instructions ............. 2,s
Operating Instructions
Available Accessories ................. 14
Control Panel ......................... /4
Control Settings .................... 5-9
Features ............................. 10
Loading and Using the Washer .... 11-14
Installation Instructions ..... 1s-20

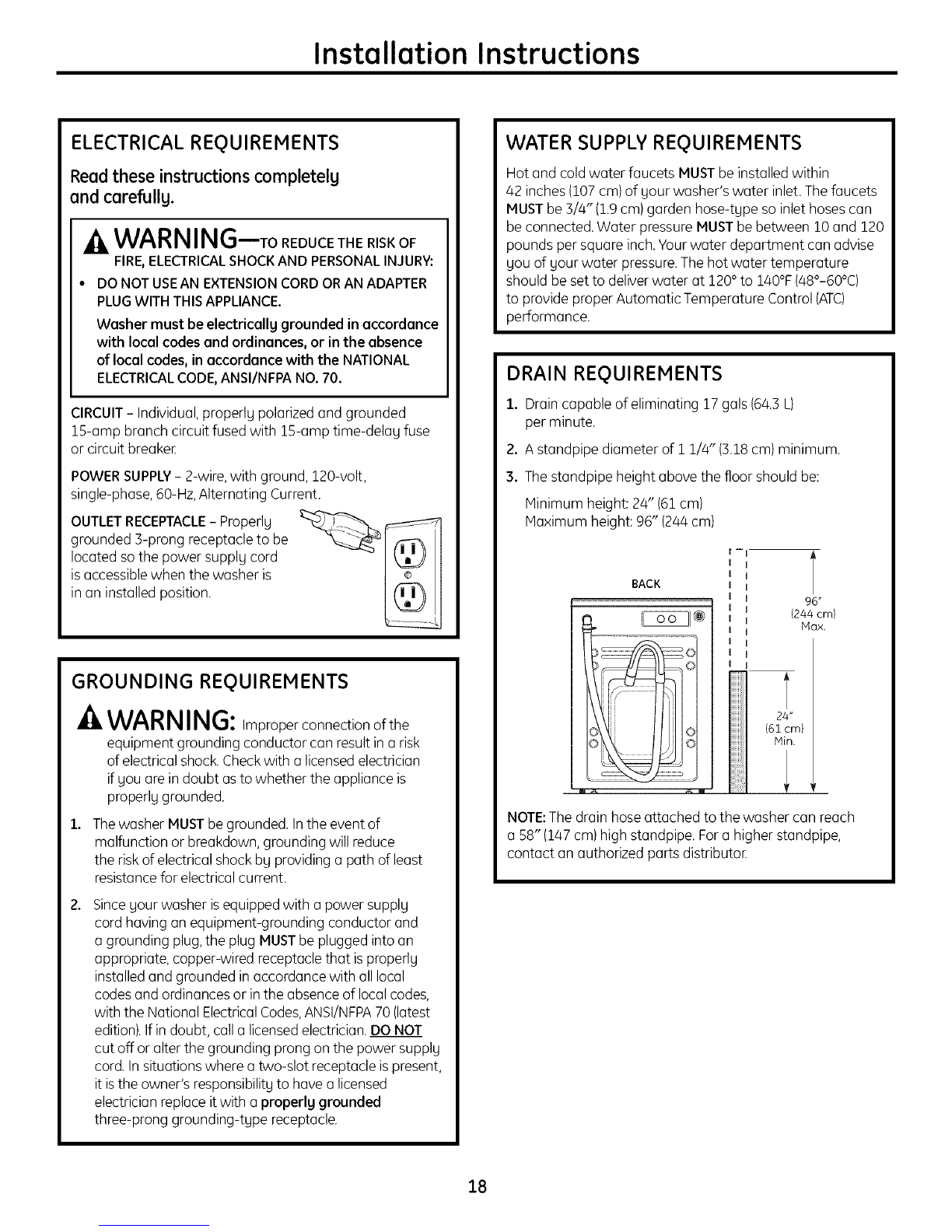

Drain Requirements .................. 18
Electrical Requirements ............... 18
Grounding Requirements ............. 18
Installing the Washer ............. 19, 20
Location of Your Washer ............. 16
Preparing to Install Your Washer ...... 1S
Replacement Parts ................... 20
Rough-In Dimensions ................. 16
Unpacking Your Washer .............. 17
Water Supply Requirements .......... 18
Troubleshooting Tips ......... 21-23
Consumer Support
Consumer Support .......... Back Cover
Warrantu (Canada) .................. 25
Warranty (U.S.) ...................... 24
WPDH8800
GPDH8800
Loveuses
Profile
La section frangaise commence _la page 27
Lavadoras
Profile
La secci6n en espaSol empieza en la p@ina 53
ENERGYSTAR
As an ENERGYSTAR®partner,
GEhas determined that this
product meets the ENERGYSTAR®
guidelines for energy efficiency.
Write the model and serial
numbers here:
Model #
Serial #
Youcan find them on a label on the
sideof the washer 175DI807P608 49-90340 12-07JR

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WAR NING! yoursafety,theinformationinthismanualmust befollowedto minimizetherisk
of fire or explosion, electric shock, or to prevent property damage, personal injury or
loss of life.
The instructions in this manual and all other literature included with this washer are
not meant to cover every possible condition and situation that may occun Good, safe
practices and caution MUSTbe applied when installing, operating and maintaining
any appliance.
WATERHEATERSAFETY
Undercertain conditions,hydrogen gas may beproduced in awater heater that has not been usedfor two weeks
or more.Hydrogen gascan be explosiveunder these circumstances.
Ifthe hotwater hasnot been usedfor two weeksor more, preventthe possibilityof damage or injury by
turning on all hot water faucets and allowingthem to run for severalminutes. Dothis before using ang electrical
appliancewhich isconnectedto the hotwater system.Thissimpleprocedurewill allow any built-up hydrogen
gasto escape.Sincethe gasisflammable,do not smokeor usean open flame or appliance during this process.
PROPERINSTALLATION
Thiswasher must be properly installedand located in accordancewith the Installation Instructions beforeit isused.
• Installor storewhere itwill notbe exposed • Properlygroundwasherto conformwith all governing
to temperaturesbelowfreezingor exposed codesand ordinances.Followdetailsin Installation
to the weather,which couldcausepermanent Instructions.
damage and invalidatethe warranty.
YOURLAUNDRYAREA
• Keepthe area underneath and around your
appliances free of combustible materials such as
lint, paper,rags and chemicals.
• Donot leavethe washer door open.An open door
could entice childrento hang on the door or crawl
insidethe washen
• Closesupervision isnecessary if this appliance is
used by or near children. Do not allow children to
play on,with or insidethis or any other appliance.

ge.com

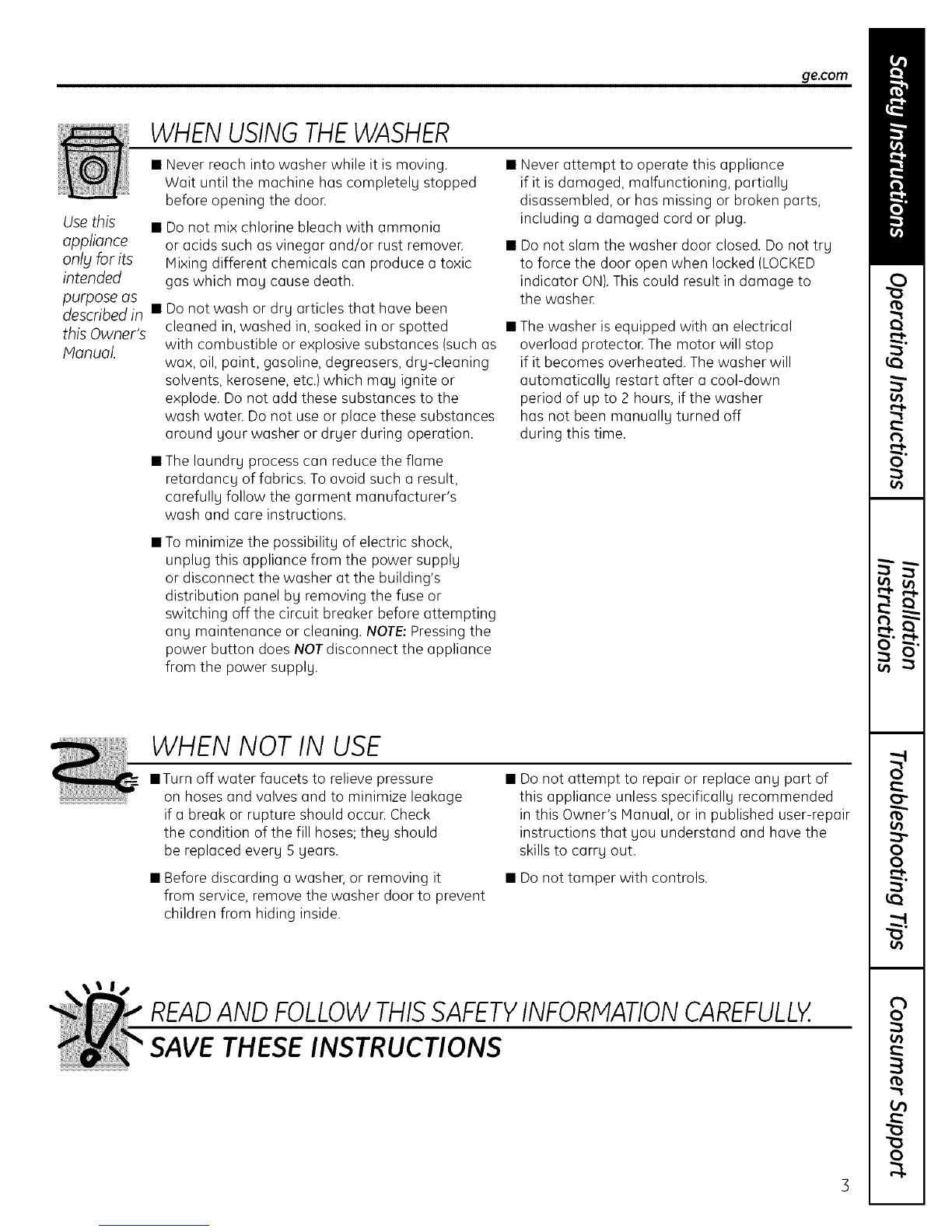

WHEN USINGTHEWASHER
• Never reach into washer while it is moving. • Never attempt to operate this appliance
Wait until the machine has completely stopped if it is damaged, malfunctioning, partially
before opening the door. disassembled, or has missing or broken parts,
Do not mix chlorine bleach with ammonia including a damaged cord or plug.
or acids such as vinegar and/or rust remover. • Do not slam the washer door closed. Do not tru
Mixing different chemicals can produce a toxic to force the door open when locked (LOCKED
gas which may cause death, indicator ON).This could result in damage to
the washeE
Do not wash or dry articles that have been
Use this •
appliance
on!y for its
intended
purpose as
described in •
this Owner's
Manual
cleaned in, washed in, soaked in or spotted •
with combustible or explosive substances (such as
wax, oil, paint, gasoline, degreasers, dru-cleaning
solvents, kerosene, etc.)which mag ignite or
explode. Do not add these substances to the
wash water. Do not use or place these substances
around gour washer or drger during operation.
The laundry process can reduce the flame
retardancg of fabrics. To avoid such a result,
carefully follow the garment manufacturer's
wash and care instructions.
The washer is equipped with an electrical
overload protector. The motor will stop
if it becomes overheated. The washer will
automaticallg restart after a cool-down
period of up to 2 hours, if the washer
has not been manuallg turned off
during this time.
To minimize the possibility of electric shock,
unplug this appliance from the power supplg
or disconnect the washer at the building's
distribution panel bg removing the fuse or
switching off the circuit breaker before attempting
ang maintenance or cleaning. NOTE:Pressing the
power button does NOTdisconnect the appliance
from the power supplg.
WHEN NOT IN USE
• Turn off water faucets to relieve pressure
on hoses and valves and to minimize leakage
if a break or rupture should occur. Check
the condition of the fill hoses; theg should
be replaced everg 5 gears.
• Before discarding a washer, or removing it
from service, remove the washer door to prevent
children from hiding inside.
• Do not attempt to repair or replace ang part of
this appliance unless specificallg recommended
in this Owner's Manual, or in published user-repair
instructions that gou understand and have the
skillsto carrg out.
• Do not tamper with controls.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY
SAVE THESEINSTRUCTIONS

About the washer control panel.
You can locate your model number on o label on the side of the washen
il, WAR NING! Toreducether,skoff,re,electr,cshock,or,_j_r_to_erso_s,readthe,_ORTANT
SAFETY INSTRUCTIONS before operating this appliance.
Quick Start
If the screen isdark, pressthe POWERbutton to "wake up"
the display.
r_l Pressthe POWERbutton.
Selecta wash cycle. (Defaults ............_°_°?'"7%_...............
'_ are set for eachwash cycle. A_,,_,w°_,__...... ......................................
_NDWASH
Thesedefault settings can be ........
changed. SeeControl settings ..............
for more information.) ..................._,,,_s_,,
r_lf you selecteda wash cycle
other than SPECIALTVCYCLE,
pressthe START/PAUSEbutton.
If you selectedSPECIALTYCVCLE,choose between Garments,
Bed and Bath, OtherSpecialty and Basket Cleanfor your
specific needsbefore pressing START/PAUSESeeSpecialty
Cyclesfor more information.
COLORS NORMAL
WRINKLE FREE WHITES /HEAVY DUTY
ACTIVE WEAR
HANDWASH
ST
INSPI
DELICATES
WASHABLE WOOLS
POWER SPEED WASH DRAIN & SPIN MY PRE EXTRA
RINSE & SPIN CYCLE WASH RINSE
SACK
SANmZE
HOT_
_o_o_
TAP COLD
OPower
Pressto "wake up" the display. If the display is active, press to put the washer into standby mode.
NOTE: Pressing POWER does not disconnect the appliance from the power supplg.

Control settings, ge.com
@
Specialty Cycles
GARMENTS
Coats
DressShirts
Hosiery/Bras
Jeans
Khakis
Sweaters

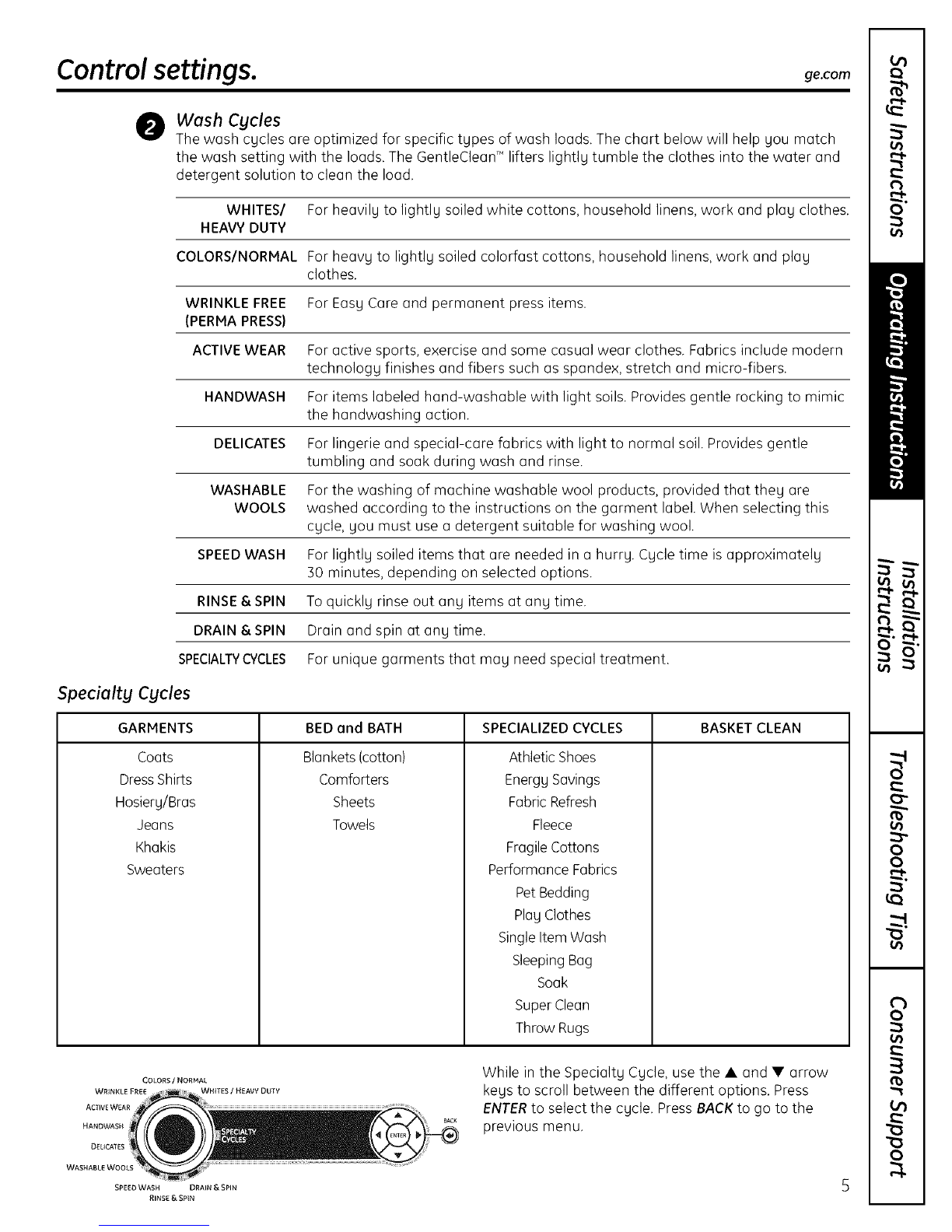

Wash Cycles
The wash cyclesareoptimizedforspecifictypesofwash loads.The chartbelowwillhelpyou match
thewash settingwiththeloads.The GentleCleanT"lifterslightlytumbletheclothesintothewaterand
detergentsolutiontocleantheload.
WHITES/ For heavily to lightly soiled white cottons, household linens, work and play clothes.
HEAVYDUTY
COLORS/NORMAL For heavy to lightly soiled colorfast cottons, household linens, work and play
clothes.
WRINKLE FREE For Easy Care and permanent press items.
(PERMAPRESS)
ACTIVEWEAR For active sports, exercise and some casual wear clothes. Fabrics include modern
technology finishes and fibers such as spandex, stretch and micro-fibers,
HANDWASH For items labeled hand-washable with light soils. Provides gentle rocking to mimic
the handwashing action,
DELICATES For lingerie and special-care fabrics with light to normal soil. Provides gentle
tumbling and soak during wash and rinse.
WASHABLE For the washing of machine washable wool products, provided that they are
WOOLS washed according to the instructions on the garment label. When selecting this
cycle, you must use a detergent suitable for washing wool,
SPEEDWASH For lightly soiled items that are needed in a hurry. Cycle time is approximately
30 minutes, depending on selected options.
RINSE& SPIN To quickly rinse out any items at any time.
DRAIN &SPIN Drain and spin at any time.
SPECIALTYCYCLES For unique garments that may need special treatment.
SPECIALIZEDCYCLES BASKETCLEANBED and BATH
Blankets (cotton)
Comforters
Sheets
Towels
Athletic Shoes
Energy Savings
FabricRefresh
Fleece
FragileCottons
Performance Fabrics
PetBedding
Play Clothes
SingleItem Wash
SleepingBag
Soak
SuperClean
ThrowRugs
COLORS /NORMAL
WRINKLE FREE WHITES /H£AVV DUTY
ACTIVEWEAR
HANOWASH
DSLICATES
WASHABLE WOOLS
SPEED WASH DRAIN & SPIN
RINSE & SPIN
While in the Specialty Cycle, use the • and • arrow
kegs to scroll between the different options. Press
ENTERto select the cycle. PressBACKto go to the
previous menu.

Control settings.
6

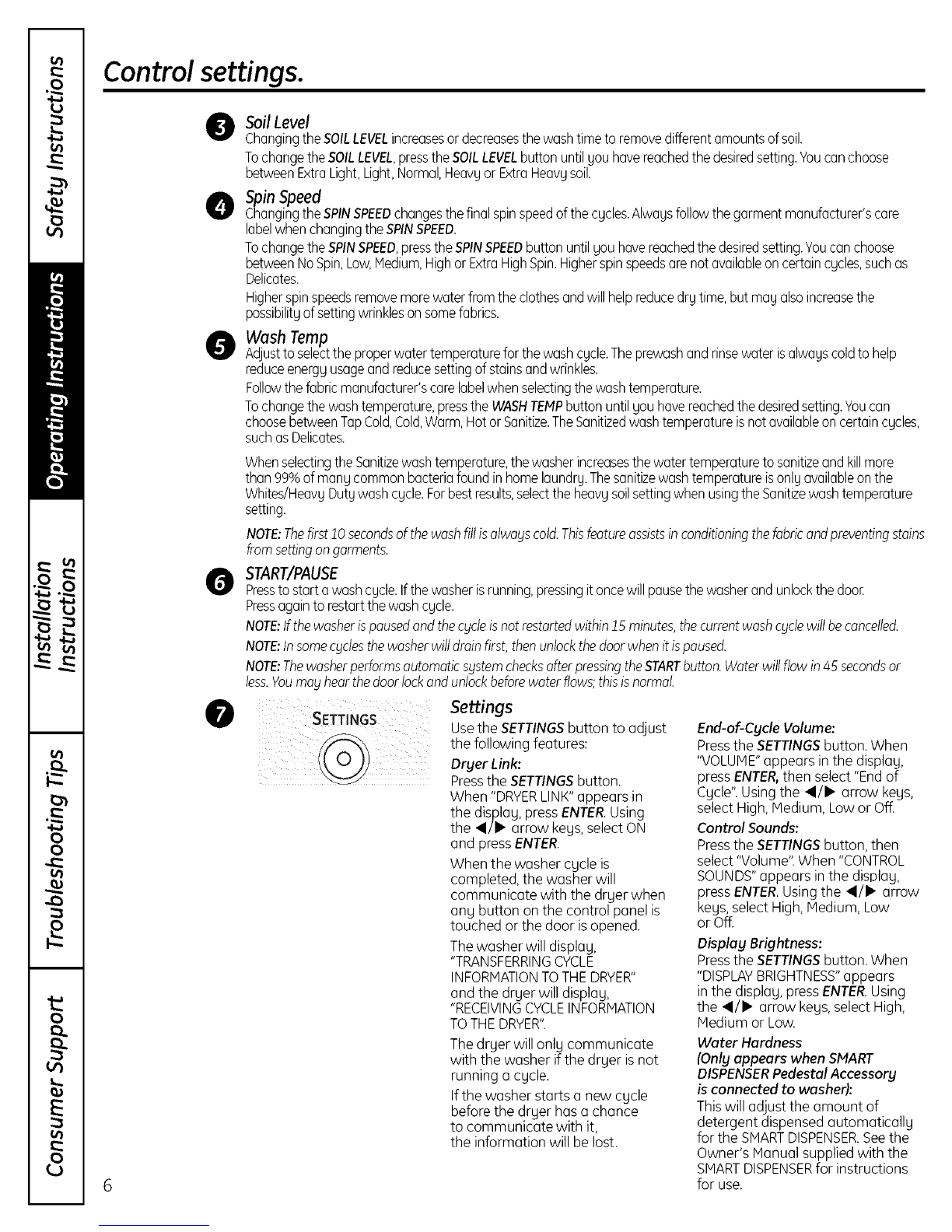

OSoil Level
ChangingtheSOILLEVELincreasesordecreasesthewashtimeto rernovedifferentamountsofsoil.
TochangetheSOILLEVEL,presstheSOILLEVELbuttonuntilgouhavereachedthedesiredsetting.Youcanchoose
betweenExtraLight,Light,Normal,Heuvgor ExtraHeuvgsoil.
OSpinSpeed
ChangingtheSPINSPEEDchangesthefinalspinspeedofthecgcles.Alwaysfollowthegarmentmanufacturer'scare
labelwhenchangingtheSPINSPEED.
TochangetheSPINSPEED,presstheSPINSPEEDbuttonuntilSOUhavereachedthedesiredsetting.Youcanchoose
betweenNoSpin,Low,Hedium,HighorExtraHighSpin.Higherspinspeedsarenotavailableoncertaincycles,suchas
Delicates.
Higherspinspeedsremovemorewaterfromtheclothesandwillhelpreducedrytime,butmay alsoincreasethe
possibilityof settingwrinkleson somefabrics.
OWash Temp
Adjustto selectthe properwatertemperatureforthewashcycle.Theprewashandrinsewaterisalwayscoldto help
reduceenergyusageandreducesettingofstainsandwrinkles.
Followthefabricmanufacturer'scarelabelwhenselectingthewashtemperature.
Tochangethewashtemperature,presstheWASHTENPbuttonuntilSOUhavereachedthedesiredsetting.Youcan
choosebetweenTapCold,Cold,Warm,Hotor Sanitize.TheSanitizedwashtemperatureisnotavailableoncertaincycles,
suchasDelicates.
O
O
WhenselectingtheSanitizewashtemperature,thewasherincreasesthewatertemperatureto sanitizeandkillmore
than99%of manycommonbacteriafoundin homelaundry.Thesanitizewashtemperatureisonlyavailableonthe
Whites/HeawDutgwashcycle.Forbestresults,selecttheheaw soilsettingwhenusingtheSanitizewashtemperature
setting.
NOTE:Thefirst10secondsofthewashfillisalwagscold.Thisfeatureassistsinconditioningthefabricandpreventingstains
fromsettingongarments.
START/PAUSE
Pressto starta washcycle.Ifthewasherisrunning,pressingit oncewillpausethewasherandunlockthedoo_
Pressagaintorestartthewashcycle.
NOTE:Ifthewasherispausedandthec_tcleisnotrestartedwithin15minutes,thecurrentwashc_tclewillbecancelled.
NOTE:Insomec_/c/esthewasherwilldrainfirst,thenunlockthedoorwhenitispaused.
NOTE:Thewasherperformsautomatics_tstemchecksafterpressingtheSTARTbutton.Waterwillflowin45 secondsor
less.Youma_lhearthedoorlockandunlockbeforewaterflows;thisisnormal
sETTiN6S Settings
Usethe SETTINGSbutton to adjust
theDryer,ink:fo,ow ngfeotures:
Pressthe SETTINGSbutton.
When "DRYERLINK"appears in
the displag, pressENTER.Using
the _1/1_arrow kegs,selectON
and pressENTER.
When the washer cgcle is
completed, the washer will
communicate with the drger when
ang button on the control panel is
touched or the door isopened.
Thewasher will displag,
"TRANSFERRINGCYCLE
INFORMATIONTOTHEDRYER"
and the drger will displag,
"RECEIVINGCYCLEINFORMATION
TOTHEDRYER".
Thedrger will only communicate
with the washer if the drger is not
running a cgcle.
Ifthe washer starts a new cgcle
beforethe dryer has a chance
to communicate with it,
the information will be lost.
End-of-Cycle Volume:
Press the SETTINGS button. When
"VOLUHE" appears in the displag,
press ENTER,then select "End of
Cycle". Using the ,/1_ arrow keys,
select High, Medium, Low or Off.
Control Sounds:
Press the SETTINGS button, then
select "Volume". When "CONTROL
SOUNDS" appears in the displag,
press ENTER. Using the ,/1_ arrow
kegs, select High, Medium, Low
or Off.
Display Brightness:
Press the SETTINGS button, When
"DISPLAYBRIGHTNESS"appears
in the displag, press ENTER.Using
the _/1_ arrow kegs, select High,
Medium or Low.
Water Hardness
(Only appears when SMART
DISPENSER Pedestal Accessory
isconnected to washer):
This will adjust the amount of
detergent dispensed automaticallg
for the SMART DISPENSER.See the
Owner's Manual supplied with the
SMART DISPENSERfor instructions
for use.

ge.com

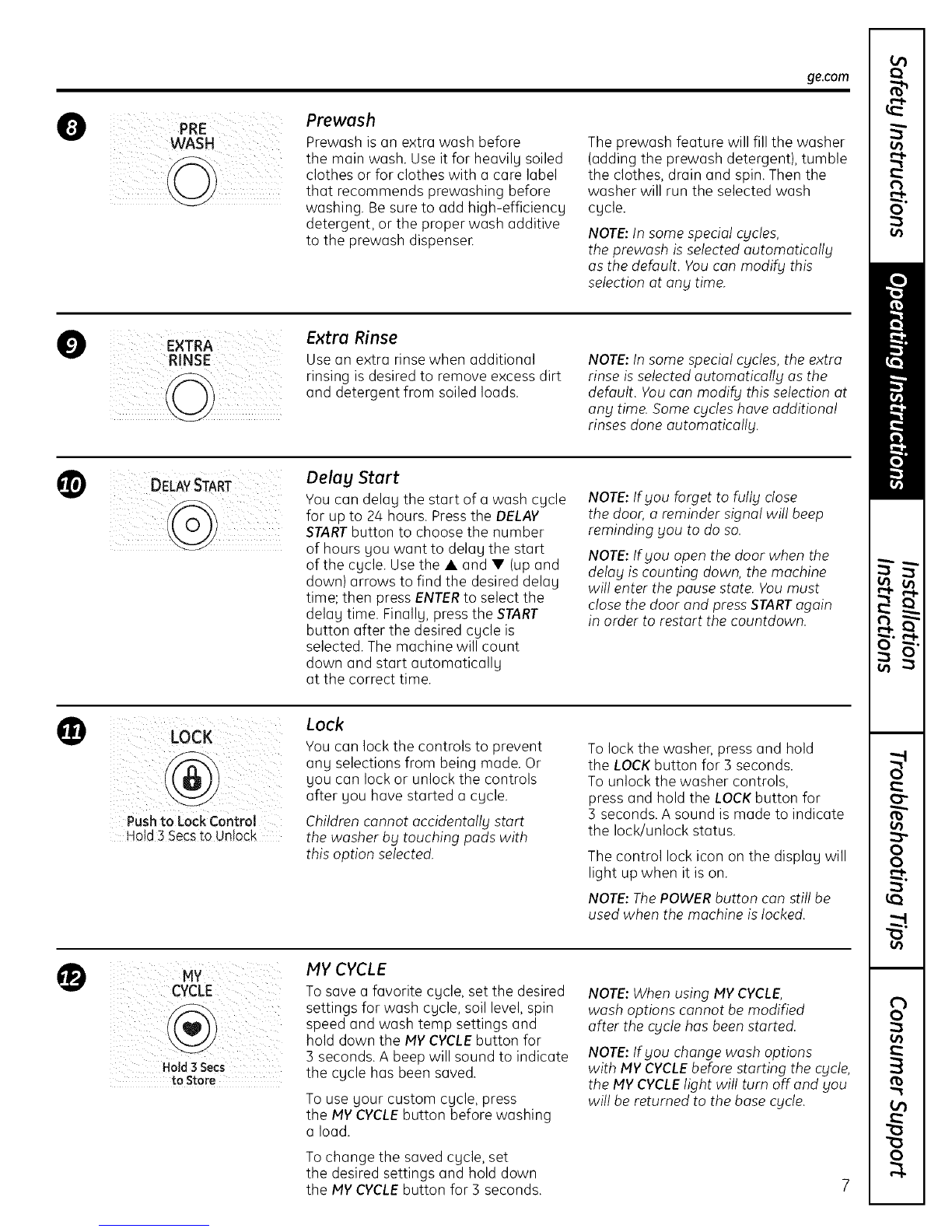

WASH
Prewash
Prewash is an extra wash before
the main wash. Use it for heavily soiled
clothes or for clothes with a care label
that recommends prewashing before
washing. Be sure to add high-efficiency
detergent, or the proper wash additive
to the prewash dispenser
The prewash feature will fill the washer
(adding the prewash detergent), tumble
the clothes, drain and spin. Then the
washer will run the selected wash
cycle.
NOTE:In some special cycles,
the prewash is selected automatically
as the default. You can modify this
selection at any time.
EXTRA
RINSE Extra Rinse
Use an extra rinse when additional
rinsing is desired to remove excess dirt
and detergent from soiled loads.
NOTE:In some special cycles, the extra
rinse is selected automatically as the
default. Youcan modify this selection at
any time. Some cycles have additional
rinses done automatically.
@DELAYSTART Delay Start
You can delay the start of a wash cycle
for up to 24 hours. Press the DELAY
STARTbutton to choose the number
of hours you want to delay the start
of the cycle. Use the • and • (up and
down) arrows to find the desired delay
time; then press ENTERto select the
delay time. Finally, press the START
button after the desired cycle is
selected. The machine will count
down and start automatically
at the correct time.
NOTE:If you forget to fully close
the door, a reminder signal will beep
reminding you to do so.
NOTE:If you open the door when the
delay is counting down, the machine
will enter the pause state. Youmust
close the door and press STARTagain
in order to restart the countdown.
LOCK
Push to Lock €ontrOl
Hold 3 Secs to Unlock
Lock
You can lock the controls to prevent
any selections from being made. Or
you can lock or unlock the controls
after you have started a cycle.
Children cannot accidentally start
the washer by touching pads with
this option selected.
To lock the washer, press and hold
the LOCKbutton for 3 seconds.
To unlock the washer controls,
press and hold the LOCKbutton for
3 seconds. A sound is made to indicate
the lock/unlock status.
The control lock icon on the display will
light up when it is on.
NOTE:ThePOWER button can still be
used when the machine is locked.
CYCLE
Hold3Sees
to Store
MY CYCLE
To save a favorite cycle, set the desired
settings for wash cycle, soil level, spin
speed and wash temp settings and
hold down the MYCYCLEbutton for
3 seconds. A beep will sound to indicate
the cycle has been saved.
To use your custom cycle, press
the MYCYCLEbutton before washing
a load.
To change the saved cycle, set
the desired settings and hold down
the MYCYCLEbutton for 3 seconds.
NOTE:When using MY CYCLE,
wash options cannot be modified
after the cycle has been started.
NOTE:tf you change wash options
with MY CYCLE before starting the cycle,
the MYCYCLE light will turn off and you
will be returned to the base cycle.

Control settings.
Stain Inspector
The STAININSPECTORfeature allows you
to indicate what stains are on the garments in your
Ioa& This feature can be used with any wash cycle.
To use STAIN INSPECTOR:
1. Select the wash cycle.
0
2. Pressthe STAININSPECTORbutton (the button will
light up when it is on).
3. Check the wash instructions on your garment.
5. Pressthe ENTERbutton to select the stain
category,
7. Use the • and • arrows to select the desired
stain,
Co,f fee,iTe,_
4. Pressthe ENTERbutton to continue.
S. Usethe • and • arrows to find the desired stain
category.
You have the followingstainsavailableto choose from:
OUTDOOR
Clay
Grass
Hud/Dirt
RustIron
TreeSap
COSMETICS
Lipstick/Lip Balm
Deodorant
Lotions
Makeup(water-based)
Oil(hair/mineral)
BEVERAGES
GrapeJuice
Coffee/Tea
Fruit Juice Other
Milk/Dairy
Wine (red/white)
FOOD/COOKING
ButteriHargarine
Cooking/VegetableOil
Chocolate
Tomato Based
Barbecue Sauce
PERSONAL
Blood
Perspiration
Urine/Feces
Mouthwash
Vomit
SCHOOL/OFFICE/HOME
AdhesiveTape
BallpointInk
Glue(white common)
PencilMark
Correction Fluid
LAUNDRY
Dingy White Socks
Collar/Cuff Soil
Dye Transfer
FabricSoftener
Yellowing
OIL/GREASE/WAX
Motor Oil/Lube
Ointment/Salve
CandleWax
Crayon
ChapstickTM
8
8. Pressthe ENTERbutton to select the stain.
9. Your selected stain will appear on the display.
10. Pressthe STARTbutton to start the cycle.
NOTE:Toturn off STAININSPECTORor to select a
different stain, press the STAININSPECTORbutton
again.
NOTE:Prewash is selected automatically
as the default for some stains. When selected
automatically, the PREWASHbutton will light.
For optimum stain removal, it is recommended
to add high-efficiency detergent or proper wash
additive to the prewosh dispense_ Youcon turn
off the prewash option if you do not wont to odd
the prewosh to the cycle.

ge,com

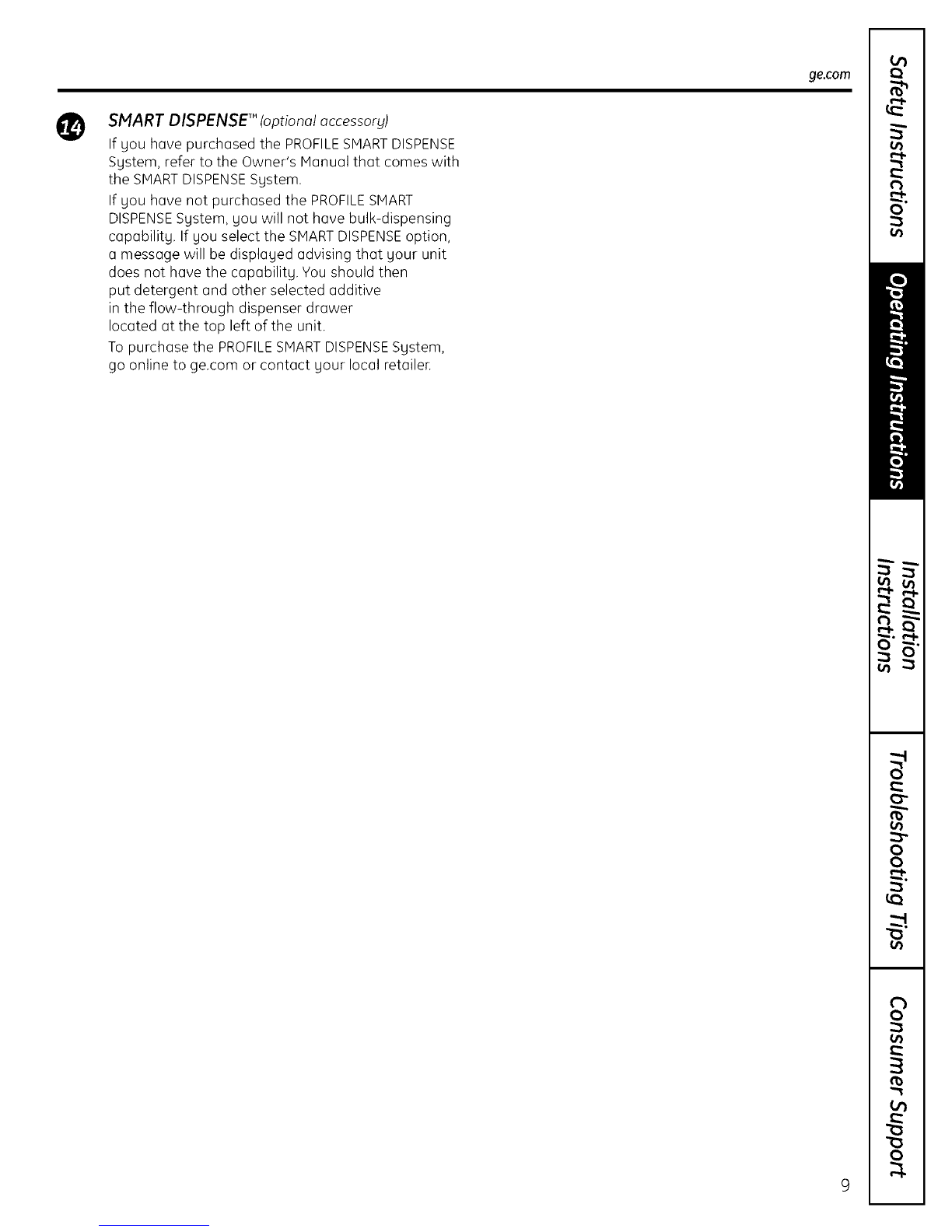

SMART DISPENSE TM (optional accessory)
If UOUhave purchased the PROFILESMARTDISPENSE
Sustain, refer to the Owner's Manual that comes with
the SMARTDISPENSESystem.
If Uouhave not purchased the PROFILESMART
DISPENSESustain, Uou will not have bulk-dispensing
capabilitu. If Uouselect the SMARTDISPENSEoption,
a message will be displaued advising that uour unit
does not have the capabilitu. You should then
put detergent and other selected additive
in the flow-through dispenser drawer
located at the top left of the unit.
To purchase the PROFILESMARTDISPENSESustain,
go online to ge.com or contact uour local retailer.

About the washer features.
The Dispenser Drawer
Blowluopenthe dispenserdrawer bg pulling
it out untilit stops.
After addinglaundryproducts,slowlyclose
thedispenserdrawer.Closingthedrawer
too quicklgcouldresultin earlgdispensing
of thebleach,fabricsofteneror detergent.
Youmay seewaterin the bleachand fabric
softenercompartmentsatthe endofthe cycle.
Thisisa resultof theflushing/siphoningaction
and ispart ofthe normal
operationof thewasher.
Useonly HEHigh-Efficiency
detergent.
The Prewash Compartment
• Onlgusethe PrewashCompartmentif gou
areselectingthe Prewashcurie for heavilg
soiledclothes.Add measureddetergentor
prewashadditive to the back left prewash
compartmentof the dispenserdrawer.
• Detergentor prewashadditiveisflushed
from thedispenserinthe prewashcurie
(ifselected).
NOTE:Liquiddetergentwill drain
into thewasherdrumasit isadded.
Detergentusagemau needto be adjusted
for water temperature,water hardness,size
and soillevelof the load.Avoidusingtoo
much detergent in uour washerasit can
lead to oversudsingand detergent residue
being left on the clothes.
Powder4"_J
Icons__. _
Insertinrearpositionforpowder
detergent
Liquid_j
Icons 7_._
Insertinforwardpositionforliquid
detergent
The Detergent Compartment
• Only usehigh-efficiency detergent
in this washer. Usethe detergent
manufacturer's recommendedamount.
DONOTfill abovethe MAXline.
Thedetergent selectioninsert mustbe placed
inthe detergentcompartment in a specific
positionaccordingto thetgpe of detergent
Uouare using.
PowderDetergent - Placethe insert oooo
inthe rearposition.ThePowderIconsoooo....
mustline up on centerwhenthe insert
isinthe powderposition.
Liquid Detergent - Placethe insertin
the forward position.TheLiquidIcons(2?"
mustline up on centerwhenthe insert
isinthe liquidposition.
Movethe insert bg pullingit up and replace
it bUslidingit down betweeneitherthe rear
or front detergentcompartment moldedrails,
asdesired,for powderor liquiddetergent.
• Add measureddetergentto the front left
detergent compartmentof the dispenser
drawer.
Detergentisflushedfrom the dispenser
at the beginningofthe wash curie. Either
powderedor liquid detergentcanbe used.
Detergentusagemau needto be adjusted
for water temperature,water hardness,
sizeand soillevelof the load.Avoidusing
too much detergent in uourwasher asit
can leadto oversudsingand detergent
residuebeing left on the clothes.
The Liquid Bleach Compartment
If desired,measureout the recommended
amount of liquidbleach,notto exceed
1/3cup (80ml)and pour into the center
compartment labeled"LIQUIDBLEACH"
markedwith this %mbol/CL'X,.
It isrecommendedto useHigh-Efficiency(HE)
bleachin this front-loadwasher.
Donot exceedthemaximum fillline.Overfilling
cancauseearlydispensingof thebleachwhich
couldresultin damagedclothes.
NOTE:Donotusepowderedbleachin the
dispenser.
The Fabric Softener Compartment
If desired,pourthe recommendedamount
of liquidfabric softenerintothe compartment
labeled"FABRICSOFTENER."
Useonlg liquidfabric softenerinthe dispensen
Dilutewith waterto the maximumfill line.
Donotexceedthemaximumfill line.Overfilling
cancauseearlydispensingofthefabric
softener,which couldstainclothes.
NOTE:Donot pour fabricsoftenerdirectly
10 on thewashload.

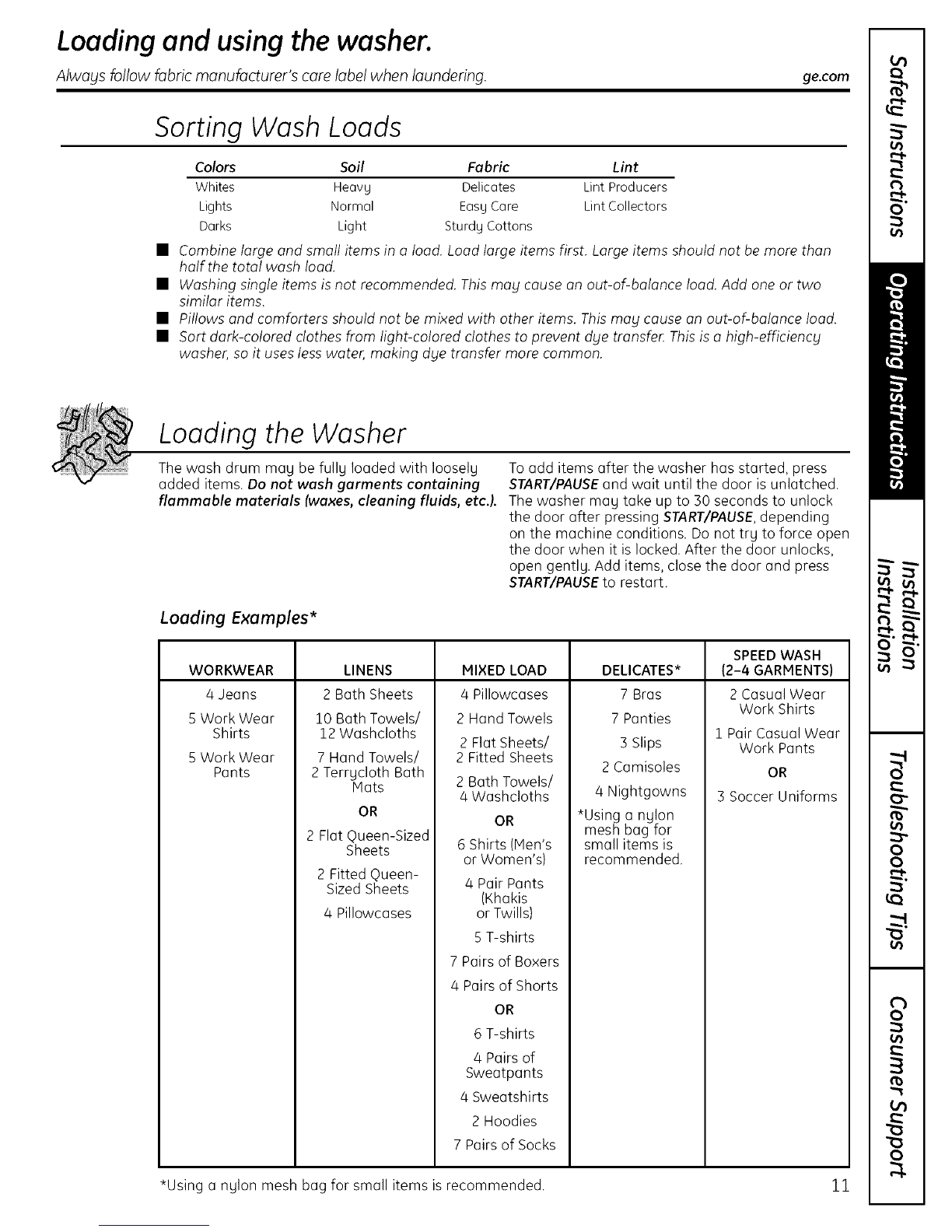

Loading and using the washer.
Always follow fabric manufacturer's care label when laundering, ge.com
Sorting Wash Loads
Colors Soil Fabric Lint
Whites Heavg Delicates LintProducers
Lights Normal EasyCare LintCollectors
Darks Light Sturdy Cottons
Combine large and small items in aload. Load large items first. Large items should not be more than
half the total wash load.
Washing single items is not recommended. This may cause an out-of-balance load. Add one or two
similar items.
Pillows and comforters should not be mixed with other items. This may cause on out-of-balance load.
Sort dark-colored clothes from light-colored clothes to prevent dye tronsfen This is o high-efficiencg
washer, so it uses less water, making dbletransfer more common.
Loading the Washer
The wash drum mag be fullg loaded with Iooselg To add items after the washer has started, press
added items. Do not wash garments containing START/PAUSEand wait until the door is unlatched.
flammable materials (waxes, cleaning fluids, etc.). The washer mag take up to 30 seconds to unlock
the door after pressing START/PAUSE,depending
on the machine conditions. Do not trg to force open
the door when it is locked. After the door unlocks,
open gentlg. Add items, close the door and press
START/PAUSEto restart.
Loading Examples*
WORKWEAR
4Jeans
5 Work Wear
Shirts
5 Work Wear
Pants
LINENS
2 Bath Sheets
10 Bath Towels/
12 Washcloths
7 Hand Towels/
2 Terrgcloth Bath
Mats
OR
2 FlatQueen-Sized
Sheets
2 FittedQueen-
SizedSheets
4Pillowcases
MIXEDLOAD
4 Pillowcases
2 Hand Towels
2 Flat Sheets/
2 Fitted Sheets
2 Bath Towels/
4 Washcloths
OR
6 Shirts (Men's
or Women's)
4 Pair Pants
(Khakis
or Twills)
5 T-shirts
7 Pairs of Boxers
4 Pairsof Shorts
OR
6 T-shirts
4 Pairs of
Sweatpants
4 Sweatshirts
2 Hoodies
7 Pairs of Socks
DELICATES*
7 Bras
7 Panties
3 Slips
2 Camisoles
4 Nightgowns
*Using a nglon
mesh bag for
small items is
recommended.
SPEED WASH
(2-4 GARMENTS)
2 Casual Wear
Work Shirts
1 Pair Casual Wear
Work Pants
OR
3 Soccer Uniforms
*Using a nglon mesh bag for small items is recommended. 11

Loading and using the washer.
Careand Cleaning/GeneralMaintenance
Exterior: Immediatel9 wipe off any spills. Wipe with damp cloth. Do not hit surface with sharp objects.
Interior: Drg around the washer door opening, flexible gasket (including attached hoses) and door glass.
These areas should alwags be clean to ensure a water-tight seal.
It is recommended to rinse the washer at least once per month with 1 cup of bleach (or other
commerciallg available product manufactured for this purpose) poured into the prewash section
of the dispenser (no clothes) using the BASKETCLEAN CVCLE(found in the SPECIALTVCVCLESmenu).
Moving and Storage: Ask the service technician to remove water from drain pump and hoses.
Do not store the washer where it will be exposed to the weather. When moving the washer,
the tub should be kept stationary by using the shipping bolts removed during installation.
See Installation Instructions in this manual. If these parts are not available, they can be ordered
by visiting our Website at ge.com or by calling 800.GE.CARES.
Long Vocations: Be sure water supplu is shut off at faucets. Drain all water from hoses if weather
will be below freezing.
Clean Pump Filter
Due to the nature of the front-load washer, it is sometimes possible for small articles to pass
to the pump. The washer has a filter to capture lost items so they are not dumped to the drain.
To retrieve lost items, clean out the pump filter.
I. Using a coin in the notch on the door, open the access door.
2. Place a shallow pan or dish under the pump access door
and towels on the floor in front of the washer to protect
the floor. It is normal to catch about a cup of water when
the filter is removed.
3. Turn the pump filter counterclockwise and remove the filter.
4. Clean the debris from the filter.
5. Replace the filter and turn clockwise to the marked position.
6. Close the access door.
filter
12
Cleaning the Door Gasket
Open the washer door. Using both hands, press down the door gasket.
Remove any foreign objects if found trapped inside the gasket. Make sure
there is nothing blocking the holes behind the gasket.
While holding down the door gasket, inspect the interior gasket bg pulling
it down with your fingers. Remove an9 foreign objects if found trapped
inside this gasket. Make sure there is nothing blocking the holes behind
the gasket.
When you are finished cleaning the door gasket, remove your hands and
the gaskets will return to the operating position.

Always Follow fabric manufacturer's care label when laundering, ge.com
Dispenser Drawer Areu: Detergent and fabric softener mag build up
in the dispenser drawer. Residue should be removed once or twice a month.
• Remove the drawer bg first pulling it out until it stops. Then reach back into
the right rear corner of the drawer cavity and press down firmlg on the lock tab,
pulling out the drawer.
Lock tab is visible onl£tafter
drawer has been pulled out
• Remove the insert from the bleach and fabric softener compartments
and the detergent insert. Rinsethe inserts and the drawer with hot water
to remove traces of accumulated laundrg products.
• To clean the drawer opening, use a small brush to clean the recess.
Remove all residue from the upper and lower parts of the recess.
• Return inserts to the proper compartments. Replace the dispenser drawer
To reduce buildup in the Dispenser Drawer area:
Useonlg HE
High-Efficiency
detergent.
13

Loading and using the washer.
FabricCareLabels
Below are fabric care label "symbols" that affect the clothing you will be laundering.
WASH LABELS
wash m
cycle ,orma_ P.......... t Press/ Gentle/ Do not wash Do not wring
wrinkle resistant delicate Hand wash
Water O0 • O0 •
temperature Hot W.... Cold/cool
(50°C/120°F) (40°C/105°F) (30°C/85°F)
BLEACH LABELS
Symu01_ A,lvHeach Only.......Hori,,ebleach Dono_Heooh
(when needed) (when needed)
DETERGENT LABELS
Use only HE High-Efficiency detergent.
Available accessories.
Pedestal
There is a pedestal available for your
washer. This pedestal gives the washer
more height and gives storage for your
washing necessities, Included with the
pedestal is a divider that allows you
to store liquid laundry detergent out
of sight. See the pedestal installation
instructions.
14
Profile Smart Dispense System
The Profile SMARTDISPENSESystem
lets you store laundry detergent and
fabric softener to be dispensed
automatically during the wash and
rinse cycles of this washer. NO BLEACH
may be used in this dispense system.
See the Owner's Manual that is
included with the Profile SMART
DISPENSESystem for installation
instructions.

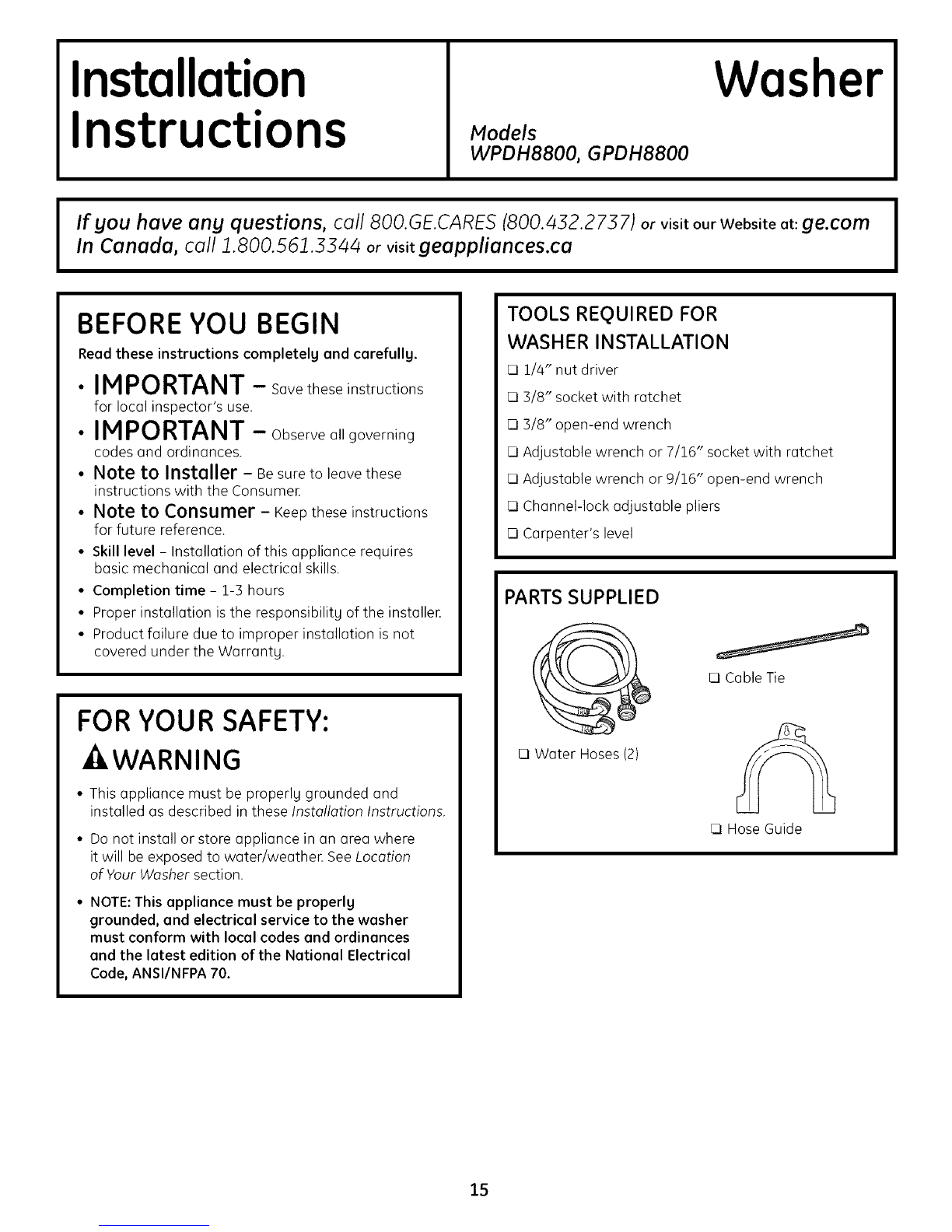

Installation
Instructions Models
WPDH8800, GPDH8800
Washer
IIfgou hove ong questions, call 800.GE.CARE5 (800.432.2737) orvisitour Websiteat:ge.com I
In Conodo, call 1.800.561.3344 orvisitgeopplionces.co I
BEFORE YOU BEGIN
Read these instructions completelg and carefullg.
• IMPORTANT - Savetheseinstructions
for local inspector's use.
•IMPORTANT - Observeall governing
codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with the ConsumeE
• Note to Consumer - Keepthese instructions
for future reference.
• Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time - 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
FORYOUR SAFETY:
-_WARNING
• This oppliance must be properly grounded and
instolled as described in these Instollotion Instructions.
• Do not instoll or store oppliance in an oreo where
it will be exposed to water/weather. See Locotion
of Your Wosher section.
• NOTE: This appliance must be properlg
grounded, and electrical service to the washer
must conform with local codes and ordinances
and the latest edition of the National Electrical
Code, ANSI/NFPA 70.
TOOLS REQUIRED FOR
WASHER INSTALLATION
GI1/4" nut driver
CI 3/8" socket with ratchet
CI 3/8" open-end wrench
CI Adjustable wrench or 7/16" socket with ratchet
CI Adjustable wrench or 9/16" open-end wrench
CI Channel-lock adjustable pliers
E3Carpenter's level
PARTS SUPPLIED
CI Woter Hoses (2)
C] Cable Tie
CI Hose Guide
15

Installation Instructions
LOCATION OF YOUR WASHER
Do Not Install the Washer:
1.In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60°F (15.6°C)for proper
washer operation.
2.In an area where it will come in contact with curtains
or drapes.
3.On carpet. The floor MUSTbe a hard surface with
a maximum slope of 1/2" per foot (1.27cm per
B0 cm).To make sure the washer does not vibrate
or move, Uou mau have to reinforce the flooE
NOTE:If floor is in poor condition, use B/4" impregnated
plywood sheet solidlu attached to existing floor covering.
IMPORTANT:
Minimum Installation Clearances
• When installed in alcove: Sides, Rear,
Top = O" (0 cm)
• When installed in closet: Sides,Rear,
Top = O" (0 cm), Front = 1" (2.54 cm)
• Closet door ventilation openings required:
2 louvers each 60 square in. (B87 cm2),located B"
(7.6cm) from top and bottom of door
ROUGH-IN DIMENSIONS
FRONT
•_ 27.0" _"
(68.6 cm)
................. _ oo o @
J o o ooo_ .:
SIDE
32.1"
(81.5crn)
*NOTE:
With Washer Legs: 40.5" (102.5 cm/
(0.75" adjustability)
With Pedestal: 53.75" (136.6 cm)
(0.75" adjustabilit M)
Stacked: 82.75" (209.8 cm/
39.2"*
(99.5 cm)
39.2"*
{99.5 cm)
16

Installation Instructions

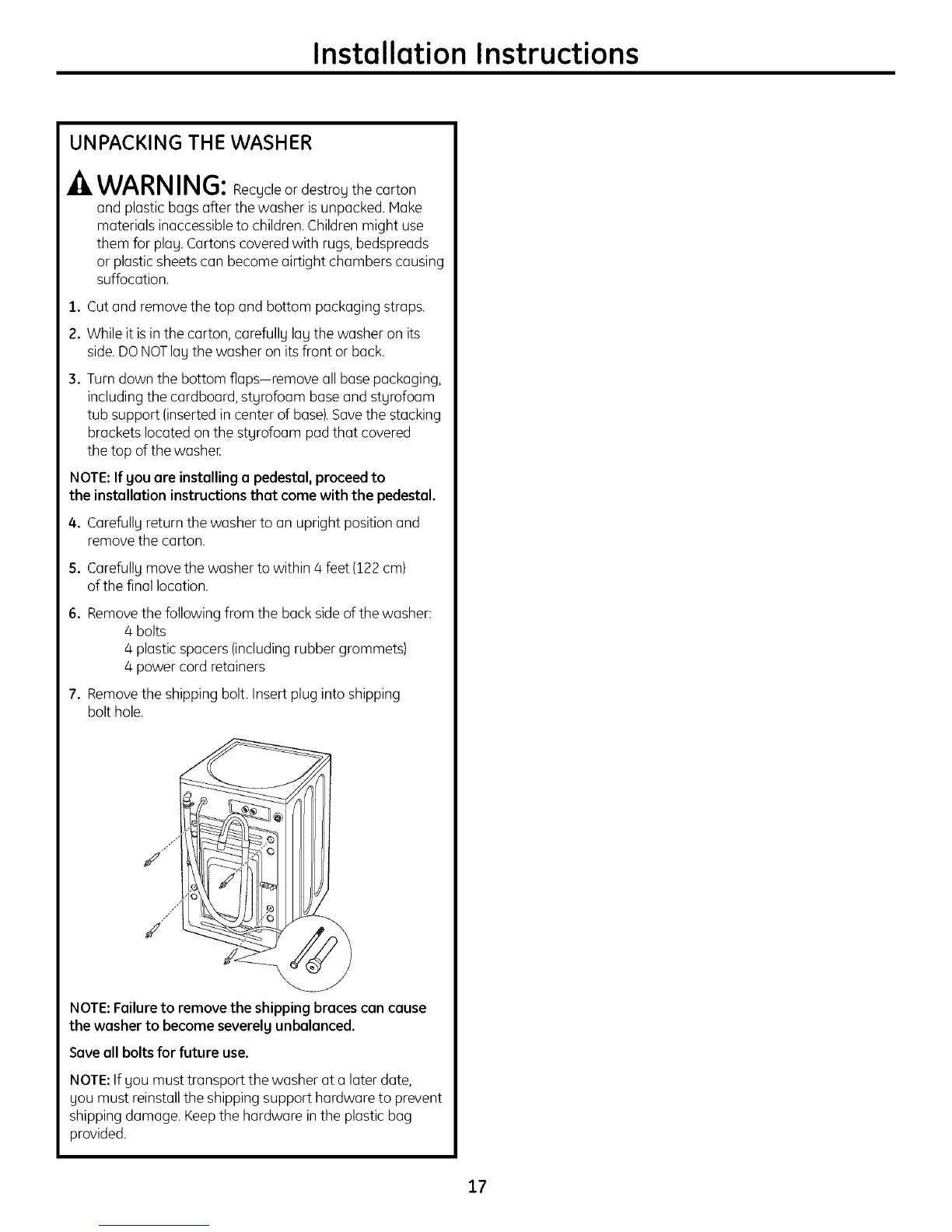

UNPACKING THE WASHER
-AWARNING: Recycleor destroy the carton
and plastic bags after the washer isunpacked. Make
materials inaccessibleto children.Childrenmight use
them for play. Cartons coveredwith rugs,bedspreads
or plasticsheets can become airtight chambers causing
suffocation.
1. Cut and remove the top and bottom packaging straps.
2. Whileit isin the carton, carefully lag the washer on its
side.DONOTlag the washer on its front or back.
3. Turn down the bottom flaps-remove all basepackaging,
including the cardboard, styrofoam baseand styrofoam
tub support (insertedin center of base).Savethe stacking
brackets located on the styrofoam pad that covered
the top of the washer
NOTE:If you are installing a pedestal, proceed to
the installation instructions that come with the pedestal.
4. Carefullyreturn the washer to an upright position and
remove the carton.
5. Carefullymove the washer to within 4 feet (122 cm)
of the final location.
6. Removethe following from the back sideof the washer:
4 bolts
4 plastic spacers (includingrubber grommets)
4 power cord retainers
7. Removethe shipping bolt. Insertplug into shipping
bolt hole.
NOTE: Failure to remove the shipping braces can cause
the washer to become severely unbalanced.
Save all bolts for future use.
NOTE:If you must transport the washer at a later date,
you must reinstall the shipping support hardware to prevent
shipping damage. Keepthe hardware inthe plastic bag
provided.
17

Installation Instructions
ELECTRICAL REQUIREMENTS
Read these instructions completely
and carefully.
.& WARNING--TOREDUCETHERISKOF
FIRE,ELECTRICALSHOCKAND PERSONALINJURY:
•DO NOTUSEAN EXTENSIONCORDORANADAPTER
PLUGWITH THISAPPLIANCE.
Washer must be electrically grounded in accordance
with local codes and ordinances, or in the absence
of local codes, in accordance with the NATIONAL
ELECTRICALCODE,ANSIINFPANO.70.
CIRCUIT- Individual,properly polarized and grounded
15-amp branch circuit fused with 15-amp time-delay fuse
or circuit breaker
POWERSUPPLY- 2-wire, with ground, 120-volt,
single-phase,60-Hz,Alternating Current.
OUTLETRECEPTACLE- Properly _ _
grounded 3-prong receptacleto be
located sothe power supply cord
is accessiblewhen the washer is
in an installed position.
GROUNDING REQUIREMENTS
-&WARNING: ,mproperconnectionofthe
equipment grounding conductor can result in a risk
ofelectrical shock.Checkwith a licensedelectrician
if you are in doubt asto whether the appliance is
properly grounded.
1. Thewasher MUSTbe grounded. Inthe event of
malfunction or breakdown, grounding will reduce
the riskof electricalshock bg providing a path of least
resistancefor electricalcurrent.
2. Sinceyour washer isequipped with a power supply
cordhaving an equipment-grounding conductor and
a grounding plug,the plug MUSTbe plugged into an
appropriate, copper-wired receptacle that isproperly
installedand grounded in accordancewith all local
codesand ordinances or in the absence of local codes,
with the National ElectricalCodes,ANSI/NFPA70 (latest
edition).If in doubt, calla licensedelectrician.DONOT
cut off or alter the grounding prong on the power supply
cord.In situationswhere a two-slot receptacleispresent,
itisthe owner's responsibilityto havea licensed
electricianreplaceit with a properly grounded
three-prong grounding-type receptacle.
WATER SUPPLY REQUIREMENTS
Hot and coldwater faucets MUSTbe installedwithin
42 inches (107 cm)of your washer's water inlet.Thefaucets
MUSTbe 3/4" (1.9cm) garden hose-type so inlethoses can
be connected. Water pressureMUSTbe between 10 and 120
pounds per square inch. Yourwater de )artment can advise
you of your water pressure.Thehot water temperature
should be set to deliverwater at 120°to 140°F(48°-60°C)
to provide properAutomatic Temperature Control (ATC)
performance.
DRAIN REQUIREMENTS
1. Drain capable of eliminating 17gals (64.3L)
per minute.
2. A standpipe diameter of i i/4" (3.18cm) minimum.
3. The standpipe height above the floor should be:
Minimum height: 24" (61cm)
Maximum height: 96" (244cm)
BACK -I A
96"
(244 cm)
Max.
T
24"
(61 cm)
Min.
NOTE:The drain hose attached to the washer can reach
a 58" (147cm) high standpipe. Fora higher standpipe,
contact an authorized parts distributon
18

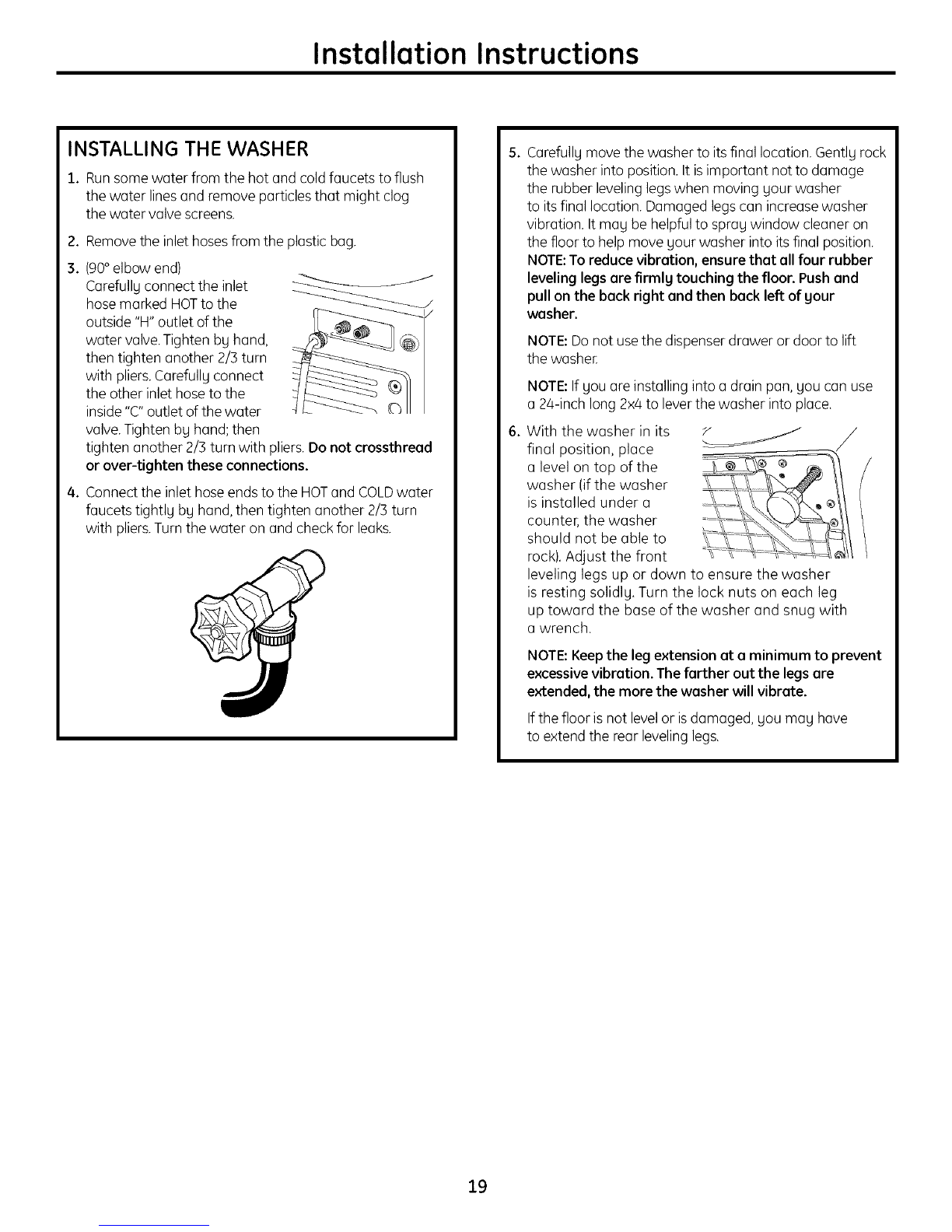

Installation Instructions
INSTALLING THE WASHER
1. Runsome water from the hot and cold faucets to flush
the water linesand remove particles that might clog
the water valve screens.
2. Removethe inlethosesfrom the plastic bag.
3. (90°elbow end)
Carefully connect the inlet
hosemarked HOTto the
outside "H" outlet of the
water valve.Tighten bg hand,
then tighten another 2/Bturn
with pliers.Carefully connect
the other inlet hoseto the
inside'%"outlet of the water
valve.Tighten bg hand; then
tighten another 2/B turn with pliers.Do not crossthread
or over-tighten these connections.
4. Connectthe inlet hoseendsto the HOTand COLDwater
faucets tightly bg hand,then tighten another 2/Bturn
with pliers.Turnthe water on and check for leaks.
5.
6.
Carefully move the washer to its final location. Gently rock
the washer into position.It isimportant notto damage
the rubber levelinglegswhen moving your washer
to its final location. Damaged legscan increasewasher
vibration. It may be helpfulto spray window cleaner on
the floor to help move your washer into itsfinal position.
NOTE:To reduce vibration, ensure that all four rubber
leveling legsare flrmlg touching the floor. Pushand
pull on the back right and then back left of gour
washer.
NOTE:Do not usethe dispenser drawer or door to lift
the washer
NOTE:If you are installing into a drain pan, you can use
a 24-inch long 2x4 to leverthe washer into place.
With the washer in its
final position, place
a level on top of the
washer (ifthe washer
is installed under a
counter, the washer
should not be able to
rock).Adjust the front
leveling legs up or down to ensure the washer
is resting solidly. Turn the lock nuts on each leg
up toward the base of the washer and snug with
a wrench.
NOTE: Keep the leg extension at a minimum to prevent
excessive vibration. The farther out the legs are
extended, the more the washer will vibrate.
Ifthe floor is not level or is damaged, you may have
to extend the rear leveling legs.
19

Installation Instructions
INSTALLING THE WASHER Icont.)
7. Attach U-shaped hose guide to the end of the drain
hose. Place the hose in a laundry tub or standpipe
and secure it with the cable tie provided in the
enclosure package.
NOTE:If the drain hose isplaced in a standpipe without
forming a Ushape, a siphoning action could occur There
must be an air gap around the drain hose.A snug hose
fit can alsocause a siphoning action.
CableTie/Cable Tie -_f I
Cable Tie
8. Plug the power cord into a grounded outlet.
NOTE:Check to be sure the power is off at the circuit
breaker/fuse box before plugging the power cord into
an outlet.
9.Turn on the power at the circuit breaker/fuse box.
10. Read the rest of this Owner's Manual. It contains
valuable and helpful information that will save gou
time and moneg.
11. Before starting the washer, check to make sure:
CI Mainpower isturned on.
CIThewasher is plugged in.
CIThewater faucets are turned on.
CITheunit isleveland all four levelinglegsare firmlg
on the floor
CITheshipping support hardware is removed
and saved.
CIThe drain hose isproperlg tied up.
E]Thereare no leaks at the faucet, drain line
or washer
12. Run the washer through a complete cgcle.
Check for water leaks and proper operation.
13. If gour washer does not operate, please review
the BeforeYouCallForServicesection before
calling for service.
14. Place these instructions in a location near the washer
for future reference.
REPLACEMENT PARTS
If replacement parts are neededfor 9our washer,they can
be ordered in the United States bg visiting our Website
at ge.com or bg calling 800.GE.CARES.In Canada, visit
geappliances.ca or call 1.800.561.3344.
2O
