Geemarc Amplicall 20 User manual

This product may be purchased from Connevans Limited
secure online store at www.DeafEquipment.co.uk
DeafEquipment.co.uk
Offering you choice
Helping you choose
Connevans.info
Solutions to improve the quality of life

0

1
Description
DESCRIPTION
Red LED
Doorbell tone
control
OrangeLED
Strobe flasher
Volume control
Tone control
Speaker
Alarm mode
switch
Low battery indicator
(Green LED)
Table mounting
Adaptor jack
(option)
Wall mounting
screw holes
Shaker jack
Modular
jack PTT line
Modular jack PTT line or
for a second Amplicall20
connection
batteries
compartment
(4 X AA)
FRONT
REAR

2
Installation (See drawing)
1 - Insert 4 AA batteries into the battery compartment
2 - Connect the UK line cord into your telephone and into
the connector fitted from the Amplicall 20 into the PTT
socket.
3 - Connect the UK line cord from the Amplicall 20 and
the PTT wall socket.
4 - Plug the power cable into the power adapter jack
found at the rear of the Amplicall 20. Plug the adaptor
into the mains supply at the wall (optional extra)
INSTALLATION
Door Bell
button
Door
Bell
AC adaptor
230V
UK plug
Option: Shaker
(ref.:SHAKCL_BLK)
Telephone
plug
Option :
Special
cable to link
two AC20

3
Second method:
1) Insert 4 AA batteries into the battery compartment
2) Connect one end of the telephone line cord to the
Amplicall 20 and the other end to the wall socket.
3) Connect the RJ11 cable between theAmplicall 20 and
the telephone.
4) Plug the power cable into the power adapter jack found
at the rear of the Amplicall 20. Plug the adaptor into the
mains supply at the wall (optional extra)
INSTALLATION
Door Bell
button
Door
Bell
AC adaptor
230V
UK plug
Option: Shaker
(ref.:SHAKCL_BLK)
Telephone
plug

4
Electrical connection : The apparatus is designed to
operate from a 230V 50Hz supply only. (Classified as
«hazardous voltage» according to EN60950 standard).
The apparatus does not incorporate an integral power
on/off switch. To disconnect the power, either switch off
supply at the mains power socket or unplug the AC
adaptor. When installing the apparatus, ensure that the
mains power socket is readily accessible.
Telephone connection : Voltages present on the
telecommunication network are classified TNV-3
(Telecommunication Network Voltage) according to the
EN60950 standard.
INSTALLATION

5
Setting up Door bell
1. The door bell can be used by people who need
assistance.
2. The door bell can be fixed on a wall or a door
surround. Drill two holes horizontally, 15mm apart
and place the supplied anchors into the two holes.
Hang the door bell onto the two anchors and then
insert and tighten the screws. Stick the
EMERGENCY CALL sticker over the two holes.
3. The door bell can be stuck onto a door or window
using the supplied strong adhesive tape. Remove the
protective paper from the adhesive tape on the back
of the door bell and stick to the required door or
window.
Wall Mounting
1. Drill two holes horizontally, 96mm apart, and leave the
screws protruding from the wall by 5mm.
2. Hang the base on to the two screws and pull the base
down to lock it on
INSTALLATION

6
Table Mounting
If you want to mount the unit on a table, simplyplace it in
the base cradle and place the base cradle on a table.
Setting the Alarm Mode
Choose which alarm mode you want by moving the alarm
mode switch to one of the following positions:
0 :no alarm
:both strobe flasher and sound alarm activated
:both strobe flasher and shaker (if connected)
activated
:both sound alarm and shaker (if connected)
activated
Volume Control Slide Switch
Use the slider control to adjust the volume of the door bell
ring, phone ring or power OFF
Tone Control Switch (3 Positions)
Set the tone of the alarm sound.
Door Bell Tone Control
The three position switch allows you to set a different
tone when the door bell rings.
INSTALLATION

7

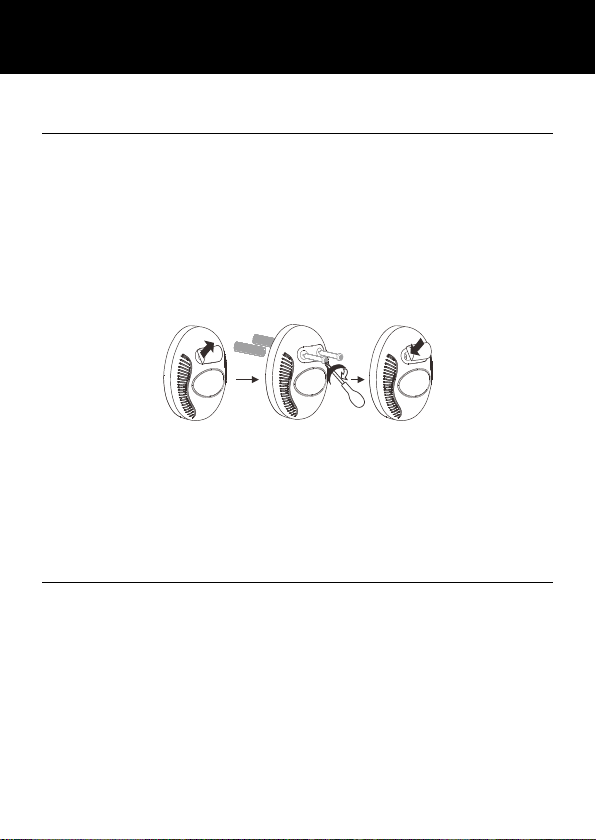

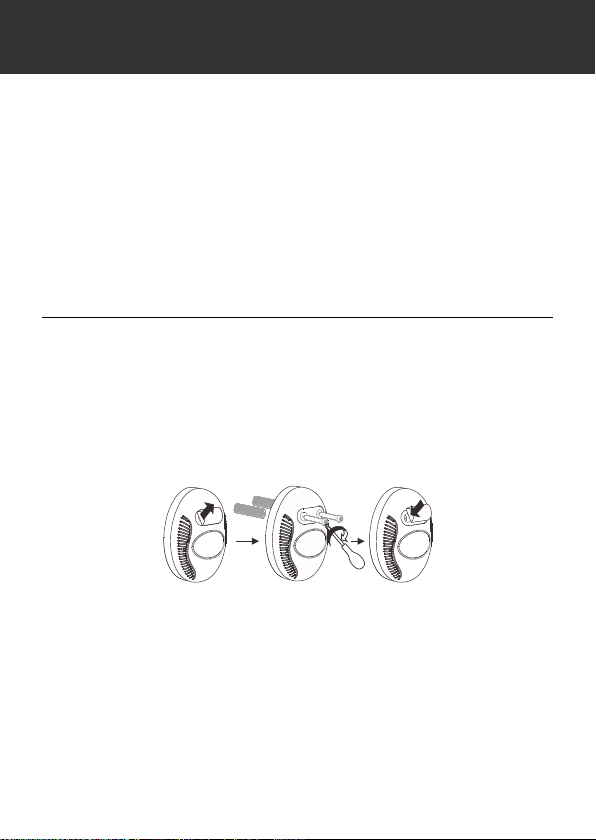

Change The Battery of Indoor unit (option)
The unit requires 4×AA batteries
1. Open the battery compartment door.
2. Insert 4 x AA batteries into the battery compartment.
3. Snap the battery compartment door back into place.
Note: when the red LED indicator flashes, it is time to
replace the batteries.
Whilst replacing the batteries, disconnect all telephone
line cords from the modular wall jacks.
Second Amplicall 20
Another Amplicall 20 can be added to the system (call
01707 384483)

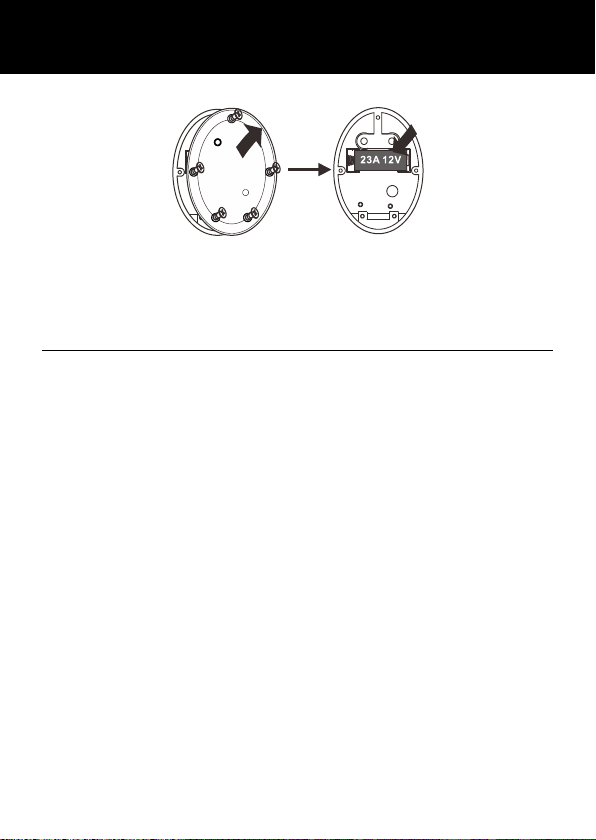

Change the Battery of the Door bell
The door bell is supplied with a 23A 12V battery. The
Door bell is supplied ready to use, it is not necessary to
open the Door Bell when you first install the Amplicall 20.
To replace the battery, unscrew the door bell from the
wall, unscrew the five screws located on the base and
open the box to get access to the battery compartment.
Replace the battery, replace back and remount.
INSTALLATION

8
Note: Do not use a rechargeable battery. Do not put the
used battery into the household rubbish, pay attention to
battery regulations regarding battery disposal.
The Pairing Procedure
1. Press and hold the Pairing/Test button until the unit
makes a beep sound, then release the Pairing/Test
button. The 1st LED lights to indicate that the
pairing mode has been entered.
2. Press and hold the Pairing/Test button again until the
1st LED flashes, then press and hold the remote
button at the same time until the strobe flasher
flashes. The unit makes a beep sound to confirm
pairing has been successful.
3. If the user wants to pair a 2nd and 3rd remote, when
the 1st LED lights, press the Pairing/Test button once,
the 1st LED goes off and then the 2nd LED lights.
The user is then able to pair the 2nd remote. Repeat
the same procedure for the 3rd remote.
4. Repeat the above, all 3 LEDS flashing together for
the 4th remote pairing.
INSTALLATION
