Geerpres UVAIRO 600 User manual
UV-C Air Sanitizers
UVAIRO
600
SERVICE MANUAL
2
TABLE OF CONTENTS
INTRODUCTION 3
Preface 3
Parts Ordering 3
SAFETY WARNINGS 4
Personnel Safety 4
Operations Safety 4
Maintenance Safety 5
OPERATIONS 6
System Overview 6
UV-C Lamps 7
Air Infeed 7
Power Supply 7
CLEANING 8
Cleaning Notes 8
Lamp Cleaning 8
MAINTENANCE 9
Changing the Lamps 9
Changing the Air Filter 12
Changing the Power Supply Fuse 13
Service Parts List 14
Preventative Maintenance 14
3
In this manual, reference is made to the following terms:
NOTE:
Notes are specific and important points which are informative and are included for further information
about the particular subject.
CAUTION!
Cautions are procedures, practices, or specific points of information which, if not carefully followed, may
result in damage to the machines or equipment or, may lead to minor personal injury.
WARNING! Warnings are procedures, practices, or specific points of information which, if not carefully
followed, may result in serious personal injury—even death—or, may result in severe damage to the
machinery or equipment. They are preceded by this exclamation diagram.
Parts Ordering
Please refer to the machine model number and part number when ordering parts.
Our normal business hours are 8:00 a.m. to 5:00 p.m. USA Eastern Standard Time (EST), Monday
through Friday.
Geerpres Telephone: 800-253-0373
1780 Harvey St. Facsimile: 231-773-8263
The information contained or disclosed by this document is considered proprietary by Geerpres. This document, items, and
information contained or disclosed herein shall not be used, copied, or reproduced in whole or in part, nor shall the contents be
revealed in any manner to any person unless written permission is obtained from Geerpres.
INTRODUCTION
Preface
This manual will only benefit all of us if you, and others responsible for the operation and maintenance of
this equipment, review this manual and keep it with
the machine where it can be referenced for immediate
use.
For safety and reliable operation, custom equipment like this machine requires a working
understanding
of the adjustments and principles of operation by the personnel involved.
To order parts, the correct part number, serial number, and model number of the equipment will be
required.
Throughout this manual, features and appearances may vary from your model. Due to CI (continuous
improvement), the pictures shown may not depict exactly your
machine; however, the concepts are the
same.
4
SAFETY WARNINGS
Read all Safety & Precaution statements throughout this manual.
Personnel Safety
Operations Safety
All powered equipment can and will be dangerous to you if not operated properly. Be certain you are
familiar with this machine and its functions before you operate it or perform any maintenance on it.
Failure to follow safety precautions could result in serious personal injuries, including the possibility of the
loss of life, equipment damage, or failure, and may void the warranty on your machine.
Personnel Responsibilities
The personnel responsible for the machine must be familiar with all safety devices installed on the
machine as well as their use. Do not allow unauthorized personnel to operate or perform maintenance on
this machine. All personnel involved with the machine must be instructed in the following:
•Safety procedures and accident prevention.
•Specific safety procedures concerning the machine.
•Locations and positions of the operating controls.
Personnel Safety
Do not stick your hand, arm, or any other part of your body into the machine while in operation.
Hazard Labels
Refer to all machine labels that have been placed on the machine to familiarize yourself with the potential
hazards on the machine.
Safety Guarding
Do not operate the UVairo Air Sanitizer without all guards and covers in place.
WARNING! DO NOT OPERATE WITHOUT ALL guards and components in place and securely fastened.
Irreparable damage to your eyes and skin could result!
5
Personnel Safety
(continued)
Maintenance Safety
Safety Glasses
Make certain UV-C light safety glasses are always worn when servicing this equipment. Anytime you are
working on or around the UVairo Air Sanitizer, UV-C safety glasses MUST BE WORN! Always wear
safety glasses when performing maintenance on this machine.
Machine Cleanliness
After performing maintenance procedures, make certain all tools and equipment are removed from the
machine area before resuming operations. Do not leave maintenance tools (wrenches, screwdrivers,
etc.) inside the machine components or lying around the machine.
Power Supply
Prior to performing maintenance or cleaning the machine, unplug the machine to remove the electrical
power source.
UV-C Light Warnings
WARNING! When performing any servicing that requires the housings to be opened, such as changing
the lamps, MAKE CERTAIN power is shut-off, unplugged from wall, and allowed to cool.
WARNING! Exposure to UV-C light can cause “sunburn-like” skin irritation, and irreparable damage to
the eyes.
Warning Labels
Obey them!
6
OPERATIONS
System Overview
Air Filter
UVC Lamps
UVairo 600 Air Sanitizer
Overview
Power Supply,
Fuse,
and
On/Off Switch
7
System Overview
(continued)
UV-C Lamps
The UV-C lamps are extremely powerful and should be treated with appropriate caution. Refer to the
safety section for precautions.
UV-C light can kill micro-organisms when they are exposed to it for enough time. The rate at which
micro-organisms are killed depends on the wavelength of the light, the intensity of the light, and the
exposure time. Depending on the application, the UVairo Air Sanitizer has been designed to kill in a
range of 90% to 99.99% of all potentially harmful organisms.
Light Box
The heart of the UVairo Air Sanitizer is the UV-C lamp chamber (the light box). This stainless-steel
structure is made up of the external shell and internal reflectors/lamp holders.
Lamp Life
The lamps have a rated life of 9000 hours of operation. 9000 hours is the point at which the actual output
of UV-C light may start to drop below 90% of the original, and the risk of inadequate dosage exceeds
allowable tolerances.
Air Infeed
The UVairo Air Sanitizer uses forced-air for both cooling the UV-C lamps and for feeding air into the UV-C
box.
Air Filtration
The air filter is located at the bottom of the machine, below the air intake fan. The filter prevents particles
from entering and contaminating the UVairo Air Sanitizer system enclosure. Be sure to inspect the filter
every month, as noted in the PM section.
Changing the Air Filter
The UVairo Air Sanitizer air filter simply slides in and out to make inspection and changing easier.
Power Supply
On the backside of the machine is an on/off switch, power cable, and power supply fuse. CAUTION: Do
not tamper with the three prongs or remove the grounding prong.
8
CLEANING
Cleaning Notes
The UVairo Air Purifier is a precision machine that must be cared for and cleaned on a regular basis. The
interior of the light chamber should be blown-out with clean, compressed shop air on a weekly basis to
remove any accumulated dust and debris that could cause shadowing of the UV-C lamps.

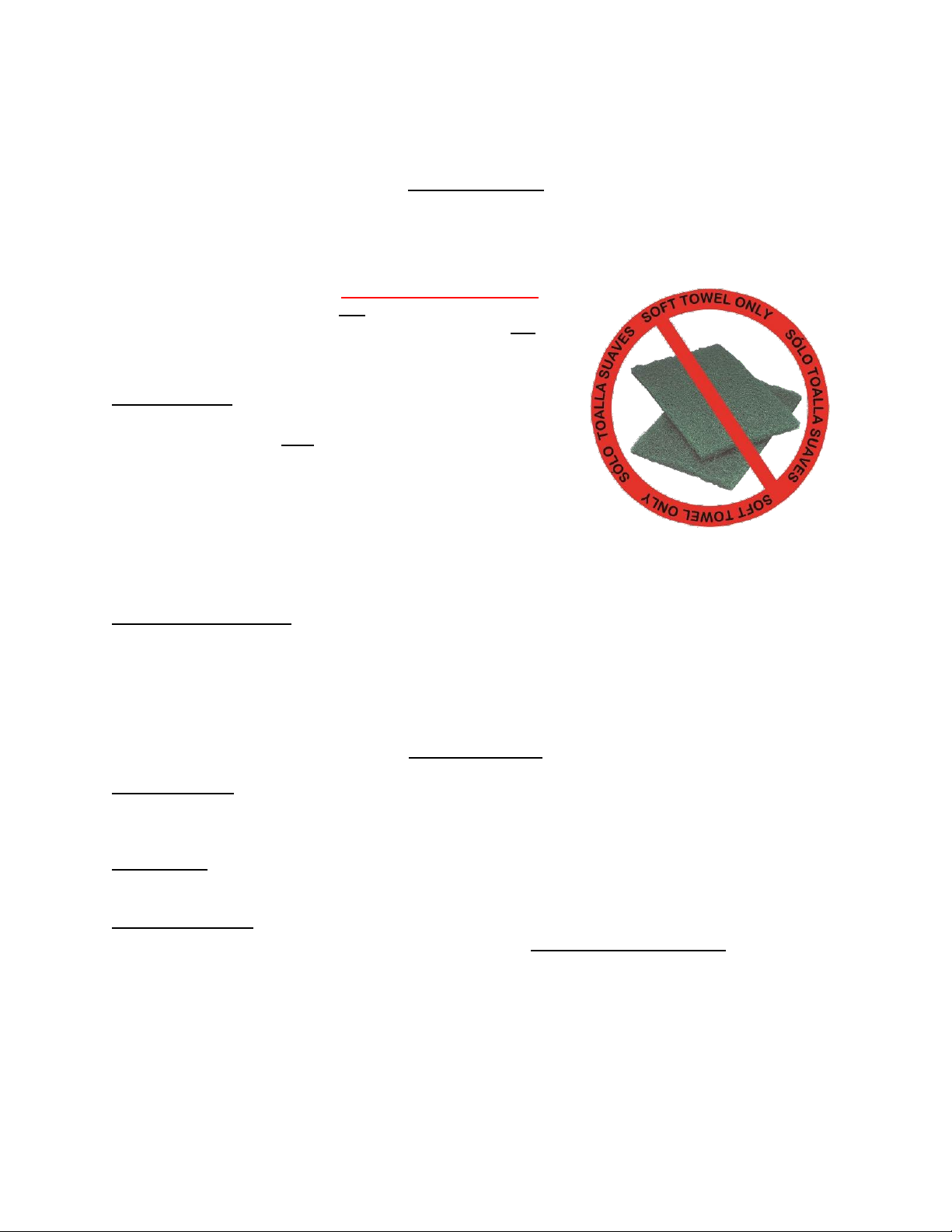

CAUTION: No Abrasive Pads! Do not use any abrasive pad or
similar Scotch-Brite®material on any parts of the machine.
Unsightly scratching and micro-scratching of the surfaces will
result.
Plastic Cleaning
Use soft, white cloths and a specific plastic cleaner when
cleaning the plastic. Do NOT use paper towels. Micro-scratching
and a damaged finish will result if cleaners and materials other
than those specified for plastic are used. Recommend using
Geerpres Advantex® Single-Use Microfiber wipes for cleaning.
CAUTION: Do not use any type of caustic cleaner or solvent-
type cleaner on the polycarbonate doors of the machine, nor any
type of Scotch-Brite®material, or equivalent.
Stainless Steel Cleaning
Use soft, white cloths and a specific, high quality stainless-steel cleaner to avoid scratching the mirror-like
surface and to keep the unit looking clean. Recommend using Geerpres Advantex® Single-Use
Microfiber wipes for cleaning.
Lamp
Cleaning
Lamp Reflectors
The stainless-steel lamp reflectors must be kept clean to maintain their bright, polished surfaces to
ensure proper air sanitation.
UV-C Lamps
The lamps can be wiped down with a cloth soaked with tap water (use no chemicals), and then wiped dry.
Machine Enclosure
CAUTION: Do not spray the device with water or cleaner as
these are not sealed units.
9
MAINTENANCE
Changing the Lamps
1. Disconnect the power and allow the unit to cool.
2. Open the top of the unit by unscrewing the four screws.
3. Remove the top cover.
Continued on the next page.
Location of Screws
Top Lifted Off
10
Changing the Lamps
(continued)
2. Gently slide the new lamps into the pockets, connecting the new lamps with the slightly
rectangular connections. Note: if it doesn't connect, slowly rotate until the pins align and the
lamp "drops in" to place. Press firmly to secure it.
Continued on the next page.
Firmly Grasp the End of a Lamp
Slightly Rectangular Lamp Plug
1. Disconnect the Lamps:
a. Firmly grasp a lamp,
b. Lift lamp out of its pocket.
CAUTION! Do not twist the lamp when pulling out! Sheering of the lamp pins mayoccur!
11
Changing the Lamps
(continued)
1. Once the lamps have been replaced, reattach the cover and
tighten the 4 screws.
2. Plug the unit back in.
3. Turn on the power switch.
4. Visually inspect: Are all lamps lit after 30 seconds? If not,
disconnect the machine, remove top, and inspect the lamp
connections.
Note: You can safely look into this machine when the top cap
is on the machine.
CAUTION! NEVER look directly into the machine with the top cap
lifted off!
12
1.
2.
3.
4.
5.
3
Press the Filter
Pull out the Filter
Air Flow Arrow
Changing the Air Filter
Lock two wheels.
On opposite side of big air filter opening, there are a few thin openings. Use a thin, firm object
(like a ruler or credit card) to press on the filter and push it out a couple
inches so that it can be
removed from the
other side.
Pull the filter out.
Orient the new air filter according to the air flow arrow. It should be pointing upwards
Gently
slide the new filter into the spring-loaded filter retainer.
13
Changing the Power Supply Fuse
Tucked between the On/Off switch and the power cord plug-in is a fuse insert. Unplug the cord from the
wall and from the machine, pry open the fuse insert from inside the power cord plug-in, and replace the
fuse.
Fuse in the Insert
Fuse Location
Pry out the Fuse Insert
Service Parts List
Preventative Maintenance
Monthly Maintenance
Air Filter: Inspect
Inspect the air filter at least monthly and change as necessary.
3-Month Maintenance
Air Filter: Change
Change the air filter at least every 3 months.
Yearly Maintenance
Lamps: Change
Change the lamps every year, at a minimum. Their effectiveness reduces after approximately 9000 hours
of use (one year), based on a 24/7 run schedule.
14
Geerpres
Part # Kit Qty
560600UV 4
560600F6 2
560600C4 4
560600SV 1Annual Service Kit - 4 Lamps and 12 Filters
Filters
Caster
Item
UV-C Lamp
PROFESSIONAL CLEANING SOLUTIONS
