Gefen Pro GEF-MOD-16416-DVI User manual

Audio
Embedder
3GSDI
16 16
x
SOURCES DISPLAYS
Modular
Matrix
Release A5
User Manual
GEF-MOD-16416-DVI • GEF-MOD-16416-DVIELR
GEF-MOD-16416-ELR • GEF-MOD-16416-DVI1FO
GEF-MOD-16416-1FO • GEF-MOD-16416-DPDVI
GEF-MOD-16416-DPELR • GEF-MOD-16416-DP1FO

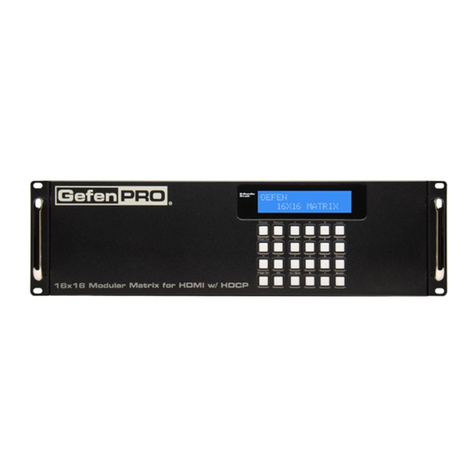

16x16 Modular Matrix
Important Safety Instructions
ii
GENERAL SAFETY INFORMATION
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install or place this product near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. To reduce the risk of electric shock and/or damage to this product, never handle or
touch this unit or power cord if your hands are wet or damp. Do not expose this
product to rain or moisture.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15. Batteries that may be included with this product and/or accessories should never be
exposed to open ame or excessive heat. Always dispose of used batteries
according to the instructions.
RACK MOUNT SAFETY INFORMATION
a. Maximum recommended ambient temperature: 40 ˚C (104 ˚F).
b. Increase the air ow as needed to maintain the recommended temperature
inside the rack.
c. Do not exceed maximum weight loads for the rack. Install heavier equipment in the
lower part of the rack to maintain stability.

16x16 Modular Matrix
Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and
workmanship.
If equipment fails because of such defects and Gefen is notied within two (2) years from
the date of shipment, Gefen will, at its option, repair or replace the equipment, provided
that the equipment has not been subjected to mechanical, electrical, or other abuse or
modications. Equipment that fails under conditions other than those covered will be
repaired at the current price of parts and labor in effect at the time of repair. Such repairs
are warranted for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or tness for any particular purpose, all of
which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cables must be in their original
condition.
The information in this manual has been carefully checked and is believed to be accurate.
However, Gefen assumes no responsibility for any inaccuracies that may be contained
in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or
consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding the features and specications is subject to change without notice.
For the latest warranty coverage information, refer to the Warranty and Return Policy under
the Support section of the Gefen Web site at www.gefen.com.
PRODUCT REGISTRATION
Please register your product online by visiting the Register Product page under the
Support section of the Gefen Web site.
iii

iv
16x16 Modular Matrix
Gefen, LLC
c/o Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
Telephone: [phone]
[phone]
Fax: [phone]
Email: [email protected]
Visit us on the Web: www.gefenpro.com
Technical Support Hours: 8:00 AM to 5:00 PM Monday - Friday, Pacic Time
For 24 / 7 support, see the back of the product for the
support number
16x16 Modular Matrix is a trademark of Gefen, LLC.
Important Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging, and any
accompanying documentation without prior written notice.
© 2013 Gefen, LLC. All Rights Reserved.
All trademarks are the property of their respective owners.
Contacting Gefen Technical Support
iv

vv
3GSDI Audio Embedder
• There is no internal scaling in the 16x16 Modular Matrix. All of the attached monitors
must be able to display the output resolutions of the source devices. For maximum
compatibility it is recommended that only one compatible/common resolution be used
by all of the source devices.
• Routing features can be accessed using RS-232 or IP control. See RS-232 and IP
Conguration for more information.
• The 16x16 Modular Matrix provides several different pre-congured packages to suit
the needs of your application. This User Manual covers all available congurations.
See Pre-Congured Options for information on identifying the type of 16x16 Modular
Matrix that was purchased.
Operating Notes
16x16 Modular Matrix

vi
Features
• Supports up to two modular input cards and two modular output cards,
each with eight connectors
• Supports resolutions up to 1920 x 1200
• Advanced EDID management for rapid integration of sources and displays
• RS-232 Serial interface for remote control via a computer or automation control
system
• Built-in Web server and Telnet control via IP
• Front-panel LCD display
• Front-panel push buttons for local switching
• Routing states can be stored and recalled at the touch of a button
• Dual redundant hot-swappable power supplies
• Removable and replaceable fan and lter modules
• Output masking command
• Standby mode
• Power ON / OFF switch
• Rack-mountable
Packing List
See Pre-Congured Options for packing list details for each pre-congured option. If any
of these items are not present in your box when you rst open it, immediately contact your
dealer or Gefen.
16x16 Modular Matrix
Features and Packing List
1080P

3GSDI Audio Embedder16x16 Modular Matrix
Table of Contents
viii
01 Getting Started
Pre-Congured Options......................................................................................... 2
Panel Layout ......................................................................................................... 6
Front Panel.................................................................................................... 6
Back Panel .................................................................................................... 7
IR Remote Control Unit ......................................................................................... 8
Front.............................................................................................................. 8
Back .............................................................................................................. 9
Installing the Battery.................................................................................... 10
Setting the IR Channel ................................................................................ 10
Installation ............................................................................................................11
Sample Wiring Diagram .............................................................................. 11
GEF-MOD-16416-DVI................................................................................. 12
GEF-MOD-16416-DVIELR.......................................................................... 12
GEF-MOD-16416-ELR................................................................................ 14
GEF-MOD-16416-DVI1FO.......................................................................... 16
GEF-MOD-16416-1FO................................................................................ 18
DisplayPort Package Options ..................................................................... 20
02 Operating the 16x16 Modular Matrix
Front Panel Controls ........................................................................................... 24
Front Panel Buttons .................................................................................... 24
Front Panel LCD Screen ............................................................................. 25
Displaying Matrix Settings........................................................................... 26
Routing Basics .................................................................................................... 27
Routing Inputs to Outputs ........................................................................... 27
Getting the Current Routing Status ............................................................. 29
One-to-One Routing.................................................................................... 30
Saving the Current Routing State ............................................................... 31
Recalling a Saved Routing State ................................................................ 33
Masking............................................................................................................... 35
Masking Outputs ......................................................................................... 35
Getting the Current Masking Status ............................................................ 37
Unmasking Outputs..................................................................................... 38
Locking the Matrix ............................................................................................... 40
EDID Management.............................................................................................. 41
Saving the Downstream EDID to an Input .................................................. 41
Saving the Default EDID to an Input ........................................................... 44
IR Control ............................................................................................................ 46
Routing Sources using the IR Remote Control Unit.................................... 46
Using the IR Extender ................................................................................. 47
Resetting the Matrix ............................................................................................ 48

16x16 Modular Matrix
ix
Table of Contents
03 Advanced Operation
RS-232 and IP Conguration .............................................................................. 52
RS-232 Interface ......................................................................................... 52
RS-232 Settings .......................................................................................... 52
IP / UDP Conguration................................................................................ 53
RS-232 / IP Commands ...................................................................................... 54
EDID Management...................................................................................... 54
IP Conguration .......................................................................................... 64
Routing and Masking .................................................................................. 72
System ........................................................................................................ 82
Web Interface ...................................................................................................... 92
Using the built-in Web Server ..................................................................... 92
Routing ► Routing...................................................................................... 93
Routing ► I/O Names ................................................................................. 98
Routing ► +5V............................................................................................ 99
Routing ► Output Masks .......................................................................... 101
Status ► In / Out....................................................................................... 103
Status ► System ...................................................................................... 104
Manage EDID ► Assign ........................................................................... 105
Manage EDID ► Bank Names ................................................................. 108
Manage EDID ► Upload / Download........................................................ 109
Conguration ► Change IP Settings ........................................................ 110
Conguration ► TCP / Telnet Terminal Login Settings ............................ 111
Conguration ► UDP Connection Settings .............................................. 112
Conguration ► Web Login Settings ........................................................ 113
Conguration ► System Conguration..................................................... 114
04 Appendix
Card Removal and Installation ...........................................................................118
Firmware Upgrade Procedure........................................................................... 121
Specications .................................................................................................... 125
Modular Matrix 8 DVI Input Card............................................................... 126
Modular Matrix 8 DisplayPort Input Card .................................................. 126
Modular Matrix 8 ELR Input Card.............................................................. 126
DVI ELR Sender with POL ........................................................................ 127
Modular Matrix 8 FO Input Card................................................................ 127
DVI Sender over 1 FO............................................................................... 128
Modular Matrix 8 DVI Output Card............................................................ 128
Modular Matrix 8 ELR Output Card........................................................... 128
DVI ELR Receiver with POL ..................................................................... 129
Modular Matrix 8 FO Output Card............................................................. 129
DVI Receiver over 1 FO ............................................................................ 129

16 16
x
SOURCES DISPLAYS
Modular
Matrix
01 Getting Started
Pre-Congured Options......................................................................................... 2
Panel Layout ......................................................................................................... 6
Front Panel.................................................................................................... 6
Back Panel .................................................................................................... 7
IR Remote Control Unit ......................................................................................... 8
Front.............................................................................................................. 8
Back .............................................................................................................. 9
Installing the Battery.................................................................................... 10
Setting the IR Channel ................................................................................ 10
Installation ............................................................................................................11
Sample Wiring Diagram .............................................................................. 11
GEF-MOD-16416-DVI................................................................................. 12
GEF-MOD-16416-DVIELR.......................................................................... 12
GEF-MOD-16416-ELR................................................................................ 14
GEF-MOD-16416-DVI1FO.......................................................................... 16
GEF-MOD-16416-1FO................................................................................ 18
DisplayPort Package Options ..................................................................... 20

page | 2
Getting Started
Pre-Congured Options
The following list outlines the available pre-congured options. Because this User Manual
covers information on all available congurations, it is important to identify the type of
16x16 Modular Matrix that was purchased.
• 16 DVI Input / 16 DVI Output (GEF-MOD-16416-DVI)
Two input cards. Each card uses eight DVI inputs, providing a total of 16 DVI inputs.
Two output cards. Each card uses eight DVI outputs, providing a total of 16 DVI
outputs.
Packing List:
(1) 16x16 Modular Matrix Frame
(1) DB-9 cable
(2) AC power cords
(2) Modular Matrix 8 DVI Input Cards
(2) Modular Matrix 8 DVI Output Cards
(1) Quick-Start Guide
• 16 DVI Input / 16 CAT-5 ELR Output (GEF-MOD-16416-DVIELR)
Two input cards. Each card uses eight DVI inputs, providing a total of 16 DVI inputs.
Two output cards. Each card uses eight ELR-POL outputs. Each of these ELR-POL
outputs are connected to a Receiver unit, using a CAT-5e cable, allowing you to
extend the DVI signal up to 330 feet (100 meters). 16 ELR-POL Receiver units are
included with this package option.
Packing List:
(1) 16x16 Modular Matrix Frame
(1) DB-9 Cable
(2) AC Power Cords
(2) Modular Matrix 8 DVI Input Cards
(2) Modular Matrix 8 DVI Sender over CAT-5 Cards
(16) DVI ELR Receivers with POL
(1) Quick-Start Guide

page | 3
Getting Started
Pre-Congured Options
• 16 CAT-5 ELR Input / 16 CAT-5 ELR Output (GEF-MOD-16416-ELR)
Two input cards. Each card uses eight ELR-POL inputs, providing a total of 16 ELR-
POL inputs. Each of these ELR-POL inputs are connected to a Sender unit, using
a CAT-5e cable, allowing you to extend the matrix up to 330 feet (100 meters) away
from the DVI source. 16 ELR-POL Sender units are included with this package option.
Two output cards. Each card uses eight ELR-POL outputs. Each of these ELR-POL
outputs are connected to a Receiver unit, using a CAT-5e cable, allowing you to
extend the DVI signal up to 330 feet (100 meters). 16 ELR-POL Receiver units are
included with this package option.
Packing List:
(1) 16x16 Modular Matrix Frame
(1) DB-9 Cable
(2) AC Power Cords
(2) Modular Matrix 8 ELR-POL Input Cards
(2) Modular Matrix 8 ELR-POL Output Cards
(16) DVI ELR-POL Senders
(16) DVI ELR-POL Receivers
(1) Quick-Start Guide
• 16 DisplayPort Input / 16 DVI Output (GEF-MOD-16416-DPDVI)
Two input cards. Each card uses eight DisplayPort inputs, providing a total of 16
DisplayPort inputs.
Two output cards. Each card uses eight DVI outputs, providing a total of 16 DVI
outputs.
Packing List:
(1) 16x16 Modular Matrix Frame
(1) DB-9 Cable
(2) AC Power Cords
(2) Modular Matrix 8 DisplayPort Cards
(2) Modular Matrix 8 DVI Output Cards
(1) Quick-Start Guide

page | 4
Getting Started
Pre-Congured Options
• 16 DisplayPort Input / 16 CAT-5 ELR Output (GEF-MOD-16416-DPELR)
Two input cards. Each card uses eight DisplayPort inputs, providing a total of 16
DisplayPort inputs.
Two output cards. Each card uses eight ELR-POL outputs. Each of these ELR-
POL outputs are connected to a Receiver unit, using a CAT-5e cable, allowing you
to extend the DisplayPort signal up to 330 feet (100 meters). 16 ELR-POL Receiver
units are included with this package option.
Packing List:
(1) 16x16 Modular Matrix Frame
(1) DB-9 Cable
(2) AC Power Cords
(2) Modular Matrix 8 DisplayPort Cards
(2) Modular Matrix 8 DVI Sender over CAT-5 Cards
(16) DVI ELR Receivers with POL
(1) Quick-Start Guide
• 16 DVI Input / 16 Fiber Output (GEF-MOD-16416-DVI1FO)
Two input cards. Each card uses eight DVI inputs, providing a total of 16 DVI inputs.
Two output cards. Each card uses eight SC-type ber optic connectors. Each of
these ber optic connectors are connected to a Receiver unit, allowing you to extend
the DVI signal up to 6600 feet (2 kilometers) using 50μ OM3e multimode ber optic
cable. OM3 and OM1 ber are also supported. 16 ber optic Receiver units are
included with this package option.
Packing List:
(1) 16x16 Modular Matrix Frame
(1) DB-9 Cable
(2) AC Power Cords
(2) Modular Matrix 8 DVI Input Cards
(2) Modular Matrix 8FO Sender Cards
(16) DVI Modular Receivers over 1FO
(16) Power supplies for DVI Modular Receivers over 1FO
(1) Quick-Start Guide

page | 5
Getting Started
Pre-Congured Options
• 16 DisplayPort Input / 16 Fiber Output (GEF-MOD-16416-DP1FO)
Two input cards. Each card contains eight DisplayPort inputs, providing a total of 16
DisplayPort inputs.
Two output cards. Each card contains eight SC-type ber optic connectors. Each of
these ber optic connectors are connected to a Receiver unit, allowing you to extend
the DisplayPort signal up to 6600 feet (2 kilometers) using 50μ OM3e multimode ber
optic cable. OM3 and OM1 ber are also supported. 16 ber optic Receiver units are
included with this package option.
Packing List:
(1) 16x16 Modular Matrix Frame
(1) DB-9 Cable
(2) AC Power Cords
(2) Modular Matrix 8 DisplayPort Input Cards
(2) Modular Matrix 8FO Sender Cards
(16) DVI Modular Receivers over 1FO
(16) Power supplies for DVI Modular Receivers over 1FO
(1) Quick-Start Guide
• 16 Fiber Input / 16 Fiber Output (GEF-MOD-16416-1FO)
Two input cards. Each card uses eight SC-type ber optic inputs, providing a total
of 16 ber optic inputs. Each of these ber optic inputs are connected to a Sender
unit, using single-strand 50μ OM3e/OM4 multimode ber optic cable, allowing you
to extend the matrix up to 6600 feet (2 kilometers) away from the DVI source. OM3
and OM1 ber are also supported. 16 ber optic Sender units are included with this
package option.
Two output cards. Each card uses eight SC-type ber optic connectors. Each of
these ber optic connectors are connected to a Receiver unit, allowing you to extend
the DVI signal up to 6600 feet (2 kilometers) using 50μ OM3e/OM4 multimode ber
optic cable. OM3 and OM1 ber are also supported. 16 ber optic Receiver units
are included with this package option.
Packing List:
(1) 16x16 Modular Matrix Frame
(1) DB-9 Cable
(2) AC Power Cords
(2) Modular Matrix 8 FO Sender Cards
(2) Modular Matrix 8 FO Receiver Cards
(16) DVI Modular Receivers over 1FO
(16) DVI Modular Senders over 1FO
(16) Power supplies for DVI Modular Receivers over 1FO
(16) Power supplies for DVI Modular Senders over 1FO
(1) Quick-Start Guide

page | 6
Front Panel
ID Name Description
1 Mode buttons Used to control various features on the
Matrix. See Front Panel Controls for more
information.
2 Out Used for routing an Input to an Output.
Each of these buttons represents an Output.
See Routing Basics for more information on
routing sources.
3 In Used for routing an Input to an Output.
Each of these buttons represents an Input.
See Routing Basics for more information on
routing sources.
4 Power This LED indicator will glow bright red when
the matrix is powered ON.
5 LCD display Provides feedback of matrix features during
operation.
Getting Started
Panel Layout
21 4 5
3

page | 7
Back Panel
ID Name Description
1 IP Control Connect an Ethernet cable between
this jack and a LAN to use IP control.
See IP / UDP Conguration for more
information.
2RS-232 Connect the included RS-232 cable from this
port to an RS-232 device. See RS-232 and
IP Conguration for more information.
3 IR Connect an IR Extender (Gefen part no.
EXT-RMT-IREXTN).
4 Power This LED indicator glows bright blue when
the matrix / board is powered.
5 Power supply 100 - 240V AC internal hot-swappable power
supply.
6IEC connector Connect the included AC power cords
from these power receptacles to available
electrical outlets.
7 Grounding terminal Connect a grounding wire from the grounding
terminal to an approved ground path.
8In (A/B) These two expansion bays accept Input
cards, only.
9Out (A/B) These two expansion bays accept Output
cards, only.
Getting Started
Panel Layout
94 4
1 2 3 5 56 67 8

page | 8
Getting Started
Front
ID Name Description
1 Activity indicator This LED glows bright orange when a key
is pressed on the remote.
2Buttons (1 - 16) Used to select the desired matrix routing.
IR Remote Control Unit
1
2
NOTE: The IR remote control (Gefen part no. RMT-16416IR) unit is
sold separately.

page | 9
IR Remote Control Unit
Getting Started
Back
(shown with cover removed)
ID Name Description
1 DIP switch bank Use these DIP switches to set the IR
channel of the remote. See Setting the IR
Channel for more information.
2 Primary battery slot
(shown without battery)
Holds the battery for operating the remote.
Use only 3V CR2032-type batteries. Make
sure that the positive (+) side of the battery
is facing up.
3 Alternate battery slot Allows for the installation of secondary
(backup) battery.
2
1
3

page | 10
Getting Started
Installing the Battery
The IR remote control unit ships with two batteries. Only one battery is required for
operation. The second battery is a spare. Use only 3V CR2032-type batteries.
1. Remove the back cover the IR Remote Control unit.
2. Insert the included battery into the primary battery slot. The positive (+) side of the
battery should be facing up.
3. Replace the back cover.
Setting the IR Channel
In order for the included IR remote control to communicate with the 16x16 Modular Matrix,
the IR remote control must be set to the same channel as the matrix. See the #set_ir
command for instructions on setting the IR channel of the matrix.
WARNING: Risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to the instructions.
Remote Channel 2: Remote Channel 3:
Channel 0 (default): Remote Channel 1:
1 2
ON
1 21 2
ON
1 2
ON
1 2
ON
NOTE: If the Activity Indicator, on the IR remote control unit,
ashes quickly while holding down any one of the buttons, then this
indicates a low battery. Replace the battery as soon as possible.
IR Remote Control Unit
DIP switches
