Operating Notes
• Shielded CAT-5e cables should not exceed 198 feet (60 meters) and CAT-6 cables
should not exceed 230 feet (70 meters). For the best performance, keep these cables
away from electromagnetic sources.
• POL (Power Over Line) technology from Gefen sends power to the Receiver unit over
the same shielded CAT-5e (or better) cable that is used for extending the HDMI signal.
• HDBaseT® technology allows HDMI, IR (bidirectional), and power to be sent over a
single shielded CAT-5e / CAT-6 cable.
• The IR In port, on the Sender unit, is designed to accept an electrical IR connection
from third-party automation devices. It will not work with Gefen IR extenders.
• The IR Ext port, on the Receiver unit, is designed to work with the Gefen
EXT-RMT-EXTIRN extender. It will not work with the electrical IR connection from an
automation control device.

Features
• Extends 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0, or 30 Hz, 4:4:4) and Bi-Directional
IR up to 130 feet (40 meters) over a single CAT-5e cable (8-bit color)
• Extends 4K Ultra HD (4096 x 2160 @ 24 or 30 Hz 4:4:4) and Bi-Directional IR up to
130 feet (40 meters) over a single CAT-5e or CAT-6 cable
• Extends HDMI at 1080p Full HD and Bi-Directional IR up to 230 feet (70 meters) over
a single CAT-6 cable, or up to 198 feet (60 meters) over CAT-5e
• HDMI Features Supported:
►HDCP 2.2 and 1.4
►12-bit Deep Color
► LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD Master
Audio™
►3DTV pass-through
► CEC pass-through
► Lip Sync pass-through
• Bi-Directional IR extension
• Gefen POL feature provides power to the Receiver unit over the CAT-5e
• Uses HDBaseT™ technology
• Locking power connector
• Easy surface mounting
Features and Packing List

Packing List
The following items are shipped with the 4K Ultra HD Extender w/ POL and 2-way IR.
If any of these items are not present in the box when you rst open it, immediately contact
your dealer or Gefen.
• 1 x 4K Ultra HD Extender w/ POL and 2-way IR (Sender unit)
• 1 x 4K Ultra HD Extender w/ POL and 2-way IR (Receiver unit)
• 1 x 6 ft. locking HDMI cable (M-M)
• 1 x IR extender
• 1 x IR emitter
• 1 x 24V DC locking power supply
• 1 x Quick-Start Guide
Features and Packing List
Information
The Extender for HDMI w/ POL ships with one IR emitter. However,
depending upon the application, a secondary IR emitter may need to be
purchased. See IR Control (page 11) for more information on using IR
control.

Extender w/ POL and 2-way IR
60Hz, 4:2:0

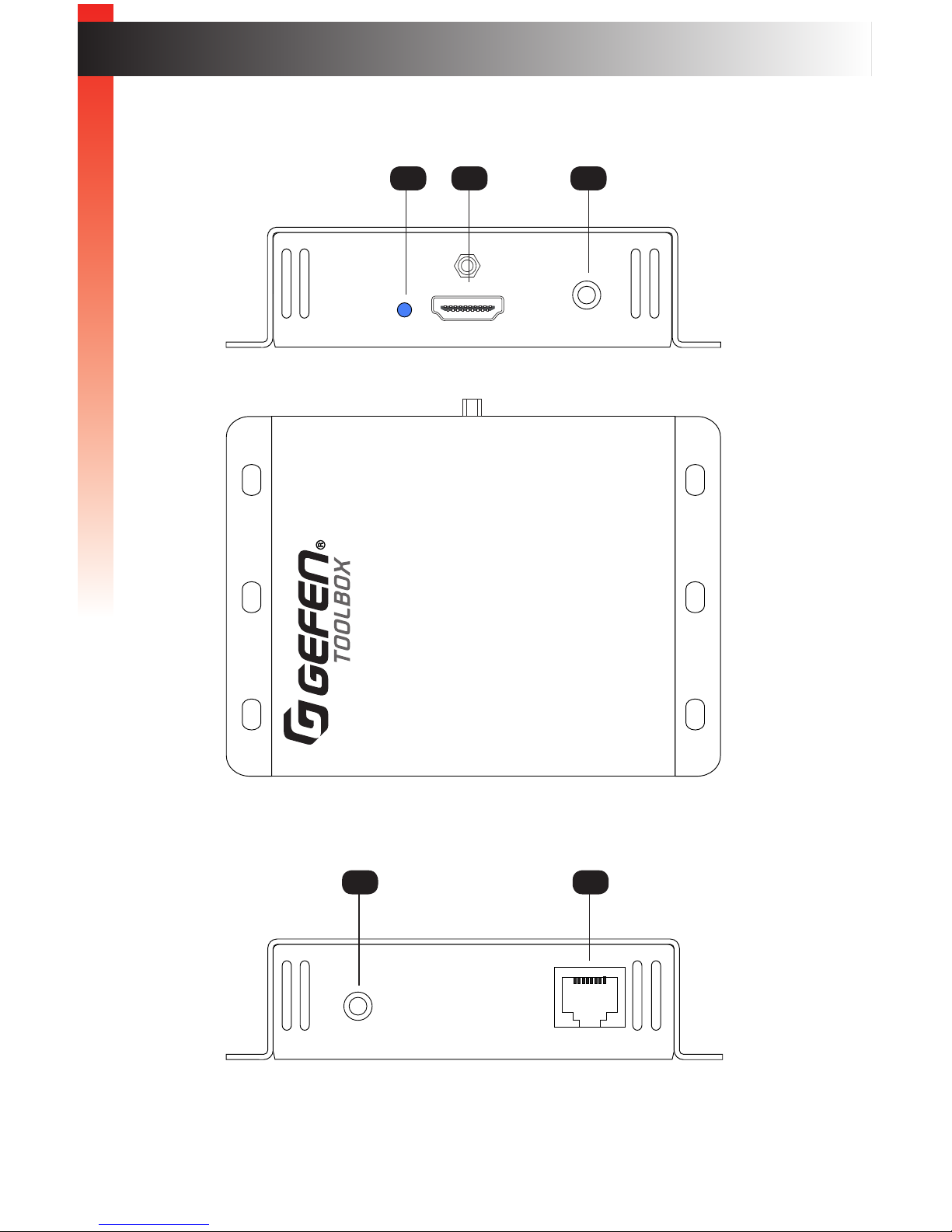

1 Getting Started

Page Title
Introduction
Sender unit
4K Ultra HD Extender
w/ POL and 2-way IR S
IR Out
IR InHDMIPower24V DC
Link
4K Ultra HD Extender
w/ POL and 2-way IR S
IR Out
IR InHDMIPower24V DC
Link
4K Ultra HD Extender
w/ POL and 2-way IR S
IR Out
IR InHDMIPower24V DC
Link
65
2 431
Getting Started Getting Started

Page TitleIntroduction
ID Name Description
1 24V DC Connect the included 24V DC power supply
to this power receptacle.
2 Power This LED indicator will glow bright blue
and will remain illuminated as long as
the power supply is connected to the
Sender unit. See Power LED Status (page
10) for more information on LED status
messages.
3 HDMI Use the included HDMI cable to connect an
Ultra Hi-Def source to this HDMI port.
4 IR In Connect a mini-mono 3.5mm cable from
this port to an automation system with an
electrical IR output. It will not work with
Gefen IR extenders.
5 IR Out Connect the included IR emitter from this
port to the IR sensor of the device to be
controlled.
6 Link Connect a shielded CAT-5e cable (or
better) from this port to the Link port on the
Receiver unit. See Connection Instructions
(page 6)for information on resolutions,
cable type, and distance.
Getting Started

Page TitleIntroduction
Receiver unit
4K Ultra HD Extender
w/ POL and 2-way IR R
IR Out
IR ExtHDMIPower
Link
4K Ultra HD Extender
w/ POL and 2-way IR R
IR Out
IR ExtHDMIPower
Link
4K Ultra HD Extender
w/ POL and 2-way IR R
IR Out
IR ExtHDMIPower
Link
4 5
2 31
Getting Started Getting Started

Page TitleIntroduction
ID Name Description
1 Power This LED indicator will glow bright blue
and will remain illuminated as long as the
power supply is connected to the Receiver
unit. See Power LED Status (page
10) for more information on LED status
messages.
2 HDMI Connect an HDMI cable between this port
and an Ultra HD display.
3IR Ext Connect the included IR extender to this
port. It will not work with the electrical IR
connection from an automation control
device.
4 IR Out Connect an IR emitter (Gefen part no. EXT-
IREMIT) from this port to the IR sensor of the
device to be controlled.
5 Link Connect a shielded CAT-5e cable (or better)
from this port to the Link port on the Sender
unit. See Connection Instructions (page
6)for information on resolutions, cable
type, and distance.
Getting Started

Connection Instructions
►Video
1. Connect the included HDMI cable between the Ultra HD source and the HDMI port
on the Sender unit.
2. Connect an Ultra HD display to the HDMI port on the Receiver unit using another
HDMI cable.
►Network cable
3. Connect a shielded CAT-5e or CAT-6 cable from the Link jack on the Sender unit to
the Link jack on the Receiver unit:
Resolution Cable type Distance
4K Ultra HD (3840 x 2160)
• 60 Hz @ 4:2:0
• 30 Hz @ 4:4:4
CAT-5e
(or better)
130 feet (40 meters)
8-bit color, only
4K Ultra HD (4096 x 2160)
• 30 Hz @ 4:4:4
CAT-5e
(or better)
130 feet (40 meters)
1080 Full HD (1920 x 1080)
• 60 Hz @ 4:4:4
CAT-5e
(or better)
198 feet (60 meters) using
CAT-5e
230 feet (70 meters) using
CAT-6
►IR
4. Refer to IR Control (page 11) for details on connecting IR devices.
►Power
5. Connect the included 24V DC power supply to the Sender unit and plug the AC power
cord into an available electrical outlet. Power to the Receiver unit is delivered from the
Sender unit over the CAT-5e/CAT-6 cable using Gefen POL technology.
Installation
Information
If terminating network cables in the eld, please adhere to the TIA/EIA568B
specication. See Network Cable Diagram (page 17) for more information.
Getting Started Getting Started

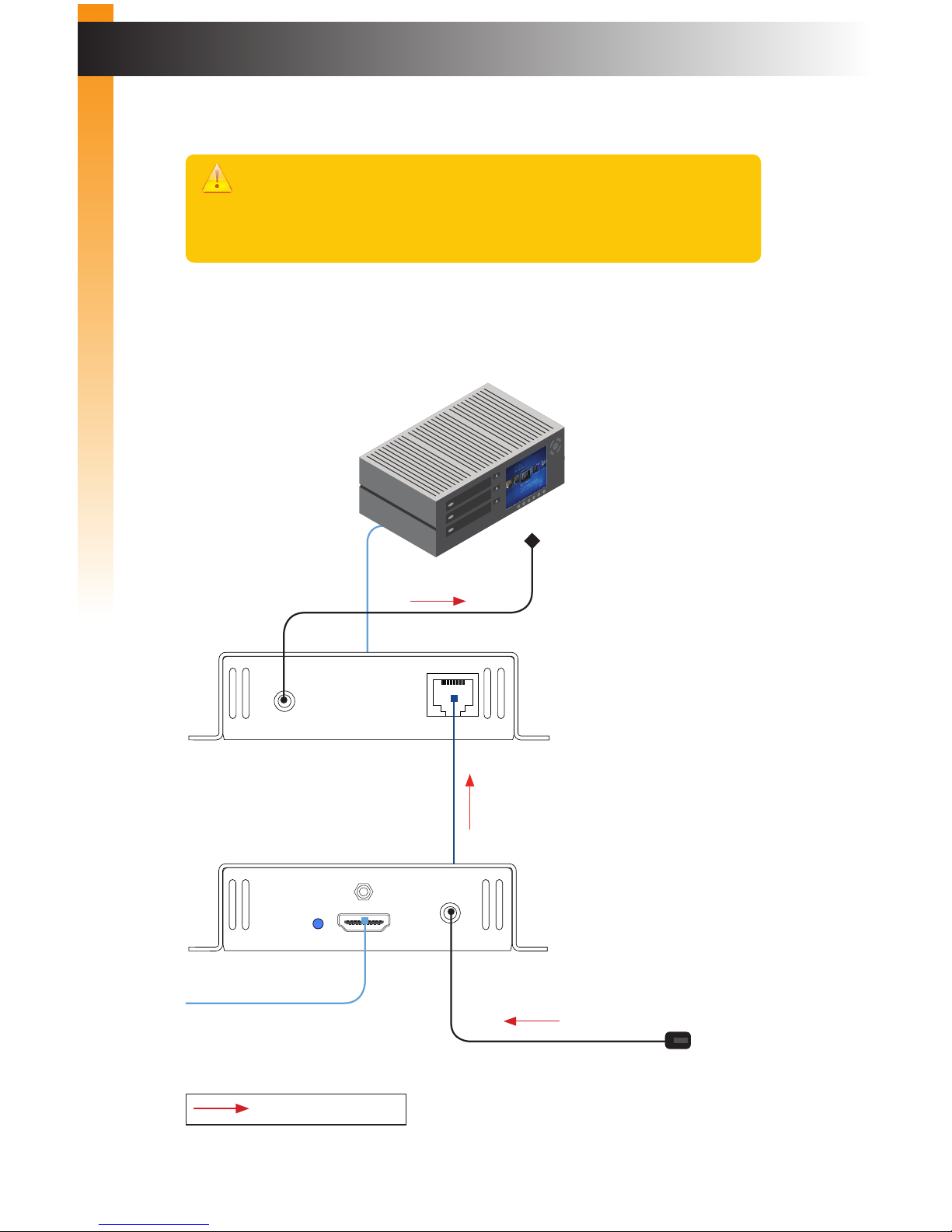

Sample Wiring Diagram
GTB-HDBT-POL-BLK
HDMI CABLE
CAT-5e (or better) CABLE (Up To 230 FT)
IR
Sender
Receiver
Ultra HD Source
Ultra HD Display
IR Emitter
IR Emitter
IR Input
Automation System
IR
Extender
Information
The wiring diagram, shown above, requires an additional IR emitter (Gefen
part no. EXT-IREMIT).
Installation
Getting Started

Extender w/ POL and 2-way IR
60Hz, 4:2:0
Basic Operation

Power LED Status
The Power LED indicator on the Sender and Receiver unit provides basic information on the
current status of the Extender for HDMI w/ POL.
LED Status Description
Power Solid blue • Power connected to Sender unit.
Off • No power supplied to the Sender or
Receiver unit.
• Make sure the power supply is
connected to the Sender unit.
• Make sure that the outlet is “live”.
• If the Sender unit LED is illuminated
and Receiver unit LED is off, inspect
the CAT-5e / CAT-6 cable between
the Sender and Receiver unit.
Flashing blue
and amber
• Non-HDCP content is being
transmitted from the source device.
Basic Operation Basic Operation

Page Title
Controlling the Source from the Viewing Location
1. Connect the included IR extender to the IR Ext port on the Receiver unit.
2. Connect the included IR emitter from the IR Out port on the Sender unit to the
IR sensor on the source device.
IR Control
IR signals
Basic Operation
4K Ultra HD Extender
w/ POL and 2-way IR S
IR Out
IR InHDMIPower24V DC
Link
4K Ultra HD Extender
w/ POL and 2-way IR R
IR Out
IR ExtHDMIPower
Link
Shielded CAT-5e cable (or better)
IR extender
to IR Ext port
IR emitter
to Ultra HD display
HDMI cable to IR Out port
HDMI cable
Ultra HD source
Sender unit
Receiver unit
Important
The IR Ext port, on the Receiver unit, is designed to work with the Gefen
EXT-RMT-EXTIRN extender. It will not work with the electrical IR connection
from an automation control device.

Controlling the Display from the Source Location
1. Connect the 3.5mm connector from the IR In port on the Sender unit to an automation
system with electrical IR output.
2. Connect the included IR emitter from the IR Out port on the Receiver unit to the IR
sensor on the display.
IR signals
IR Control
Basic Operation
HDMI cable
4K Ultra HD Extender
w/ POL and 2-way IR R
IR Out
IR ExtHDMIPower
Link
4K Ultra HD Extender
w/ POL and 2-way IR S
IR Out
IR InHDMIPower24V DC
Link
HDMI cable
IR emitter
Ultra HD display
from Ultra HD source
from Automation
System
Sender unit
Receiver unit
Shielded CAT-5e cable (or better)
to IR In port
to IR Out port
Important
The IR In port, on the Sender unit, is designed to accept an electrical IR
connection from third-party automation devices. It will not work with Gefen
IR extenders.

Extender w/ POL and 2-way IR
60Hz, 4:2:0
Appendix

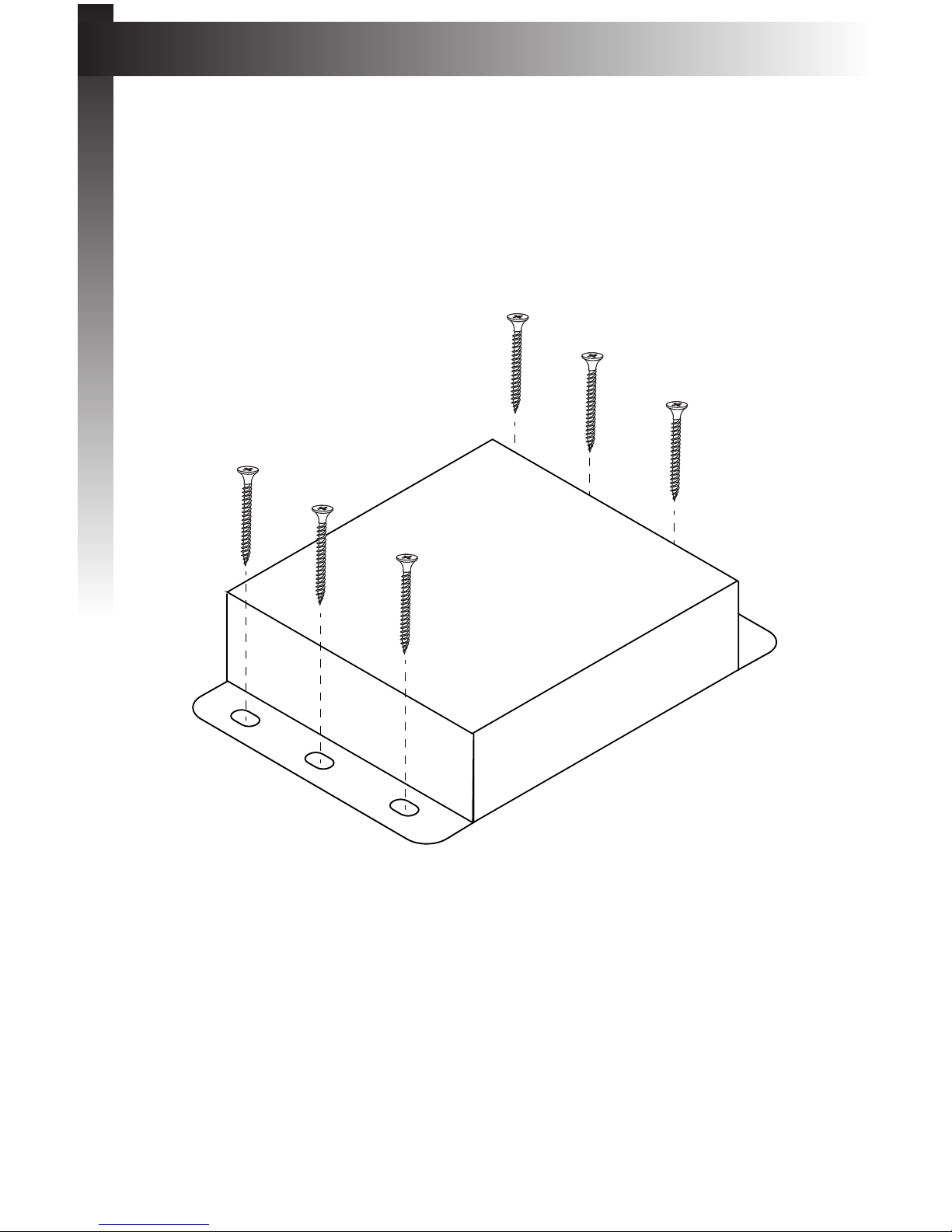

The Sender and Receiver units can be mounted on any at surface, as shown below
(screws not included). There should be an inch or two of clearance between the edges of
the unit and any walls or vertical surfaces to allow for enough clearance for connection and
disconnection of the HDMI cables.
For installation on a drywall surface, use a #6 drywall screw. When installing, it is
recommended to use the center hole on a stud.
Surface Mounting Instructions
Appendix Appendix

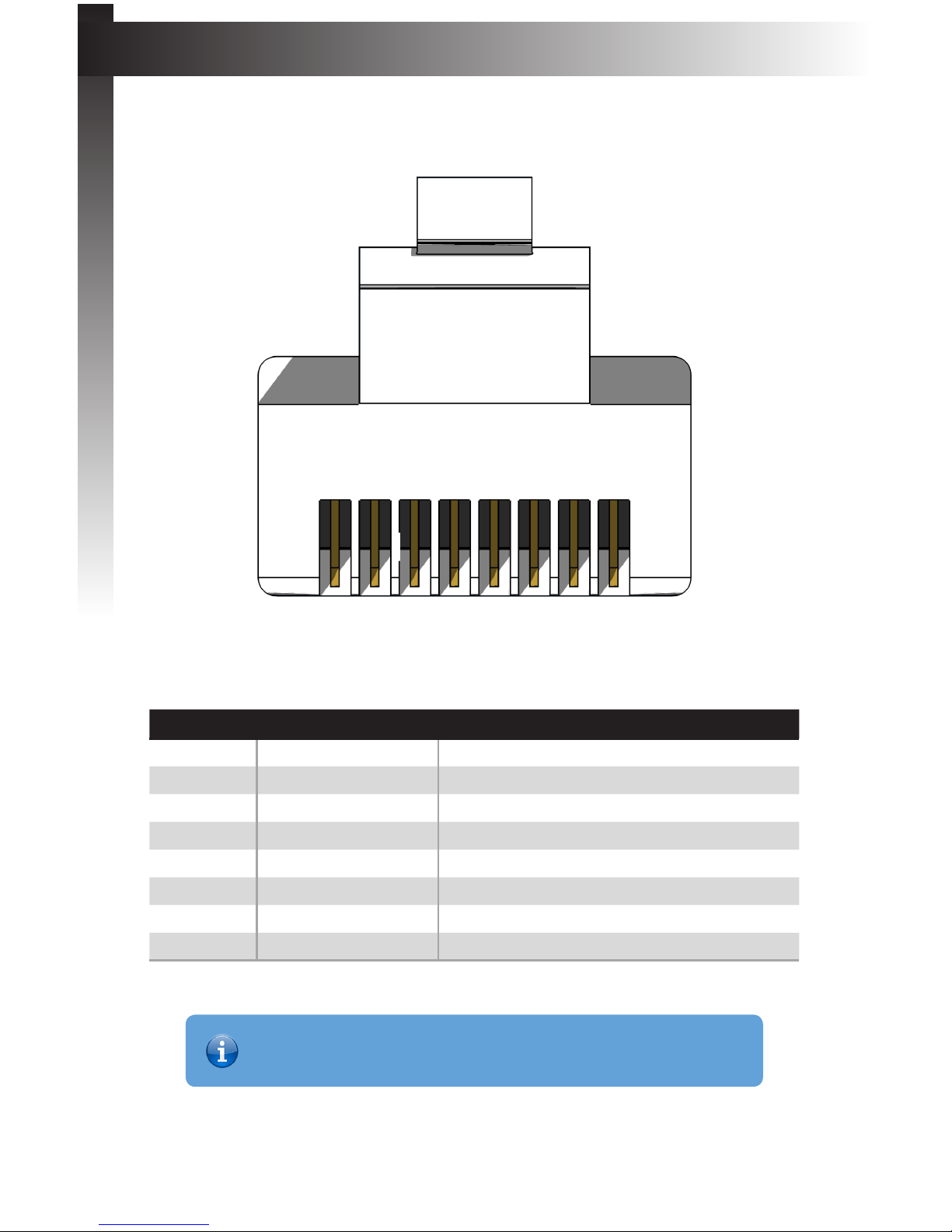

Network Cable Diagram
Front of RJ-45 Connector
Gefen recommends the TIA/EIA-568-B wiring option. Use the following table when
terminating cables in the eld.
Pin Color Description
1 Orange / White TD+ (Transmit Data, positive differential signal)
2 Orange TD- (Transmit Data, negative differential signal)
3 Green / White RD+ (Receive Data, positive differential signal)
4 Blue Unused
5 Blue / White Unused
6 Green RD- (Receive Data, negative differential signal)
7 Brown / White Unused
8 Brown / White Unused
1 2 3 4 5 6 7 8
Appendix
Information
Shielded CAT-5e (or better) cabling is recommended.
