Gefen Digital Audio Switcher User manual

HDTV Switcher
USER MANUAL
www.gefen.com

Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
9:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
6265 Variel Ave.
Woodland Hills, CA91367-9897
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
HDTV Switcher is a trademark of Gefen Inc.
© 2006 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE

TABLE OF CONTENTS
Introduction
Features
Panel Desciptions
Connecting and Operating the HDTV Switcher
RMT2-IR Installation
IR Code Conflicts
IR-Extender Installation
Specifications
Warranty
1
2
3
4
5
6
7
8
9

Congratulations on your purchase of the ex•tend•it HDTV Switcher. Your complete
satisfaction is very important to us.
Gefen’s line of HDTV switches, extenders, and splitters are designed to make yourA/V
equipment use more comfortable, more productive and less expensive.
The HDTV Switcher allow access to multiple HDTV devices, using a single HDTV
display while the HDTV extender product line can extend the DVI video signal up to
1640 feet (500 meters).
The ex•tend•it line offers solutions for noise, space and security concerns, data center
control, information distribution, conference room presentation, school and corporate
training environments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime of support from a team of outstanding engineers.
The ex•tend•it HDTV Switcher allows two HDTV DVI devices to be switched easily in to
one HDTV DVI compatible monitor or projector. The HDTV switcher can also be placed
at the end of a long DVI cable to regenerate the DVI signal.
INTRODUCTION
1

FEATURES
Features
• Switches easily between any two HDTV sources
• Maintains 480i, 480p, 720p, 720i, 1080i, and 1080p (1920x1200) resolutions
• Extends any DVI compliant device by regenerating the DVI signal
• Maintains highest DVI single link video resolution
• Supports DDWG standard for DVI compliant monitors
• Supports HDCP compliant devices
• Optional RMT-2 remote control
• DVI cables are used to connect the DVI inputs and HDTV Switcher output
• Installs in seconds
Includes:
2x 6’ DVI-D cables (m-m)
5V DC Power Supply
RMT2-IR
HDTV Switcher
2

PANEL DESCRIPTIONS
Input 1 and 2
Equalization
Adjustments
Connects to IR
extender
IR eye
Indicates if port 1 or
port 2 is selected
Selects port 1
or port 2
3
IR eye

Connecting and Operating the HDTV Switcher
How to Connect the HDTV Switcher to your devices
1 Connect the supplied DVI cables from the HDTV DVI sources into the DVI Switcher Input.
2Connect the cable from your display (monitor or projector) into the DVI Out of the
HDTV Switcher.
3Connect the 5VDC power supply into the HDTV Switcher.
4 If any pixels are present on the video on either input, adjust the EQ associated with
the particular input with the pixels.
How to Operate the HDTV Switcher
1 Use the front panel push button to switch between sources.
2 Alternatively, use the RMT2-IR remote control port to remotely toggle between sources.
4

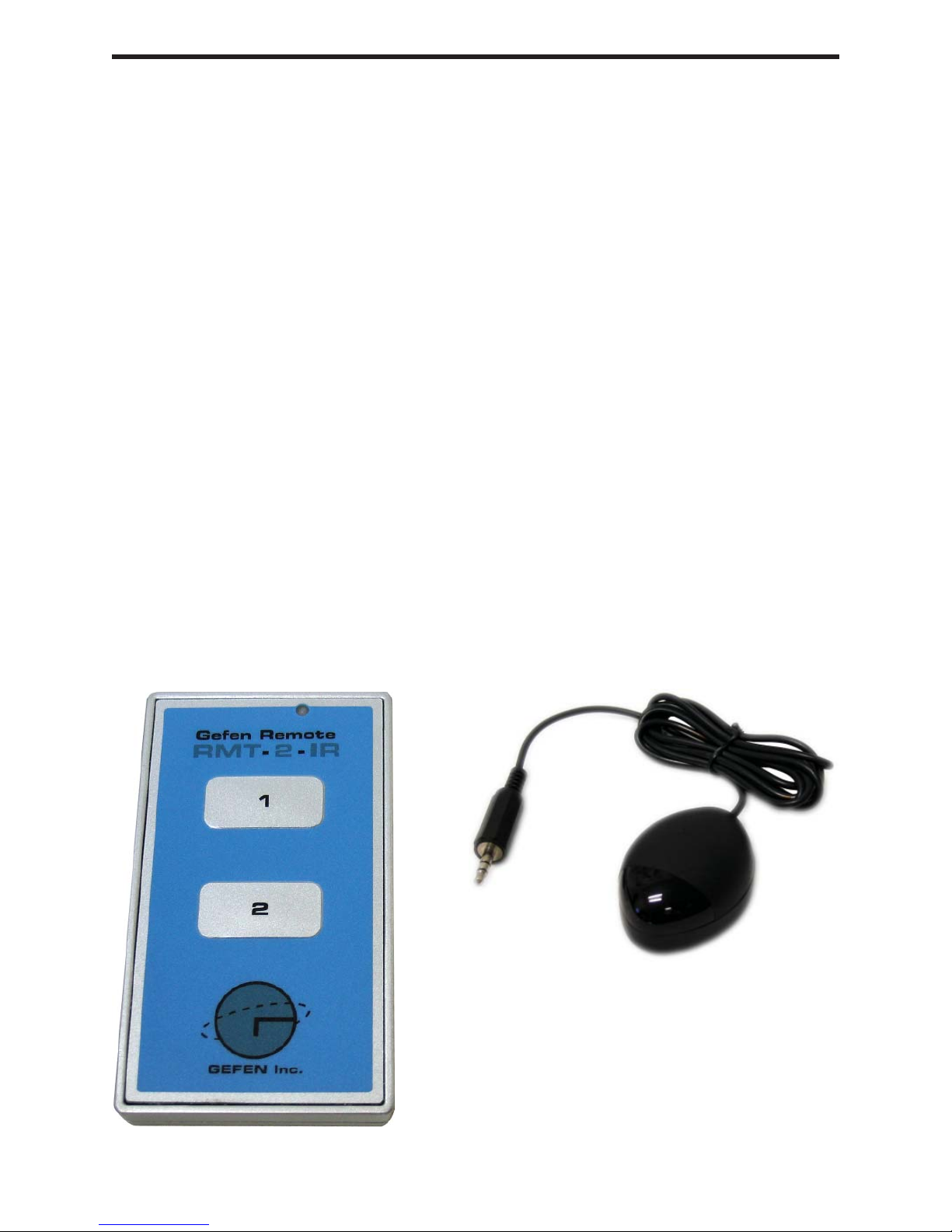

RMT2-IR Installation
1. Remove battery cover from the back of the RMT2-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up. The
side that is not marked must be facing down.
4. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator light
on the remote will flash once each time you press a button. WARNING: Do not press
multiple buttons simultaneously and do NOT press buttons rapidly. These actions will
cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT2-IR ships with two batteries. One battery is required for operation, the
second battery is complimentary.
5
The optional IR extender allows you to re-
locate your HDTV switcher and still have IR
control of the HDTV Switcher

IR Code Conflicts
How to Resolve IR Code Conflicts
There are matching pairs of dip switches underneath the Switcher unit and under the
remote battery cover. Switch 1 & 2 on the Remote and Switch 3 & 4 underneath the unit
are the matching switches. These switches need to be matched for the remote to
communicate with the switcher. There are 4 possible sets of IR codes and at least one of
these sets should be able to resolve any IR conflicts with other home theater devices.
6

IR Extender Installation
How to Connect the IR Extender
1 Plug the IR extender into the Remote port on the front of the Switcher Unit
2Flip the Dip Switch 1 underneath the unit to the ON position
7

SPECIFICATIONS
8
Video Amplifier Bandwidth ............................................................................... 1.65 Gbps
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Single Link Range ......................................................................................... 1920 x 1200
DVI Input/Output Connector Type ............................... DVI-I (29 pin) female (digital only)
Power Consumption ................................................................................... 5 Watts (max)
Power Supply ......................................................................................................... 5V DC
Dimensions ................................................................................... 6.25”W x 1”H x 3.25”D
Shipping Weight ....................................................................................................... 3 lbs.

Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notified within one
(1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace
the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the of repair. Such repairs are warranted for
ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose,
all of which are expressly disclaimed.
The information in this manual has been carefully checked and is believed to be
accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may
be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission
in this manual, even if advised of the possibility of such damages. The technical
information contained herein regarding HDTV Switcher features and specifications is
subject to change without notice.
WARRANTY
