Gefen EXT-UHDV-HBTLS-TX User manual
EXT-UHDV-HBTLS-TX
EXT-UHDA-HBTL-RX
User Manual
Version A1
4K Ultra HD HDBaseT™
Multi-Format 2x1 Auto-Switching Sender w/ Scaler
Receiver w/ Audio-De-Embedder and POH
2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install or place this product near any heat sources such as radiators, heat registers,
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your
-
ment of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch
this unit or power cord if your hands are wet or damp. Do not expose this
product to rain or moisture.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14.
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15. Batteries that may be included with this product and/or accessories should never be
according to the instructions.
3
Warranty Information
For the latest warranty coverage information, refer to the Warranty and Return Policy under
the Connect section of the Gefen website at http://www.gefen.com/connect/warranty-and-
return-policy
4
Contact Us
Technical Support
1-707-283-5900 1-800-472-5555
Email
support@gefen.com
Web
http://www.gefen.com
Mailing Address
Gefen
All trademarks are the property of their respective owners.
packaging, and any accompanying documentation without prior notice.
5
Operating Notes
Important
•
6A may be acceptable depending on cable quality. Care should always be given
to keep these cables away from power lines and other sources of electromagnetic
interference.
• Cable quality is critical when handling 4K HDMI signals. We highly
recommend Gefen HDMI cables. They have been designed and tested to reliably
transport the the full throughput of HDMI standard.
•
•
can pass both HDCP 2.2 and 1.4.
• The information in this manual has been carefully checked and is believed
any inaccuracies that may be contained in this manual. In no event will Gefen and
damages resulting from any defect or omission in this manual.
• All information contained herein is subject to change without notice.
6
For three years from date of activation of this product, any party may request, and we will
readable copy of the corresponding open source code on a medium customarily used for
subject to their respective open source licenses:
• lwIP
• jQuery
All rights reserved.
are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from
Licensing
7
EXT-UHDV-HBTLS-TX*
•
•
• Automatic switching of HDMI and VGA inputs
•
•
• VGA Phase and Clock adjustments
•
•
HDMI 2.0
HDCP 2.2 and 1.4
through
3DTV pass-through
•
•
•
•
•
Receiver or vice-versa, over the link cable. Only one side needs external power
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
•
•
•
•
All trademarks and registered trademarks are properties of their respective owners.
Features
8
EXT-UHDA-HBTL-RX*
HDMI 2.0
HDCP 2.2 and 1.4
through
3DTV pass-through
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
All trademarks and registered trademarks are properties of their respective owners.
Features
9
EXT-UHDV-HBTLS-TX*
. If any of these items
soon as possible.
EXT-UHDA-HBTL-RX*
. If any of these items are not
possible.
All trademarks and registered trademarks are properties of their respective owners.
Packing Lists
10
Table of Contents
Controls, Connectors, and Indicators............................................................................11
...........................................................................................................11
............................................................................................................ 14
Installation .....................................................................................................................17
..................................................................... 17
....................................................................... 17
....................................................................................................... 18
LED Status...................................................................................................................... 19
Scaler Functions and Picture Adjustments.................................................................20
EDID Management ....................................................................................................... 21
OSD.................................................................................................................................22
..........................................................................................................................22
......................................................................................................................22
..........................................................................................................................23
RS-232 ............................................................................................................................29
Features ..............................................................................................................................29
Commands ............................................................................................................................32
IR Control .......................................................................................................................34
.............................................................34
Controlling the Display from the .............................................................. 35
Co 36
Firmware Update .......................................................................................................... 37
................................................................................................................38
11

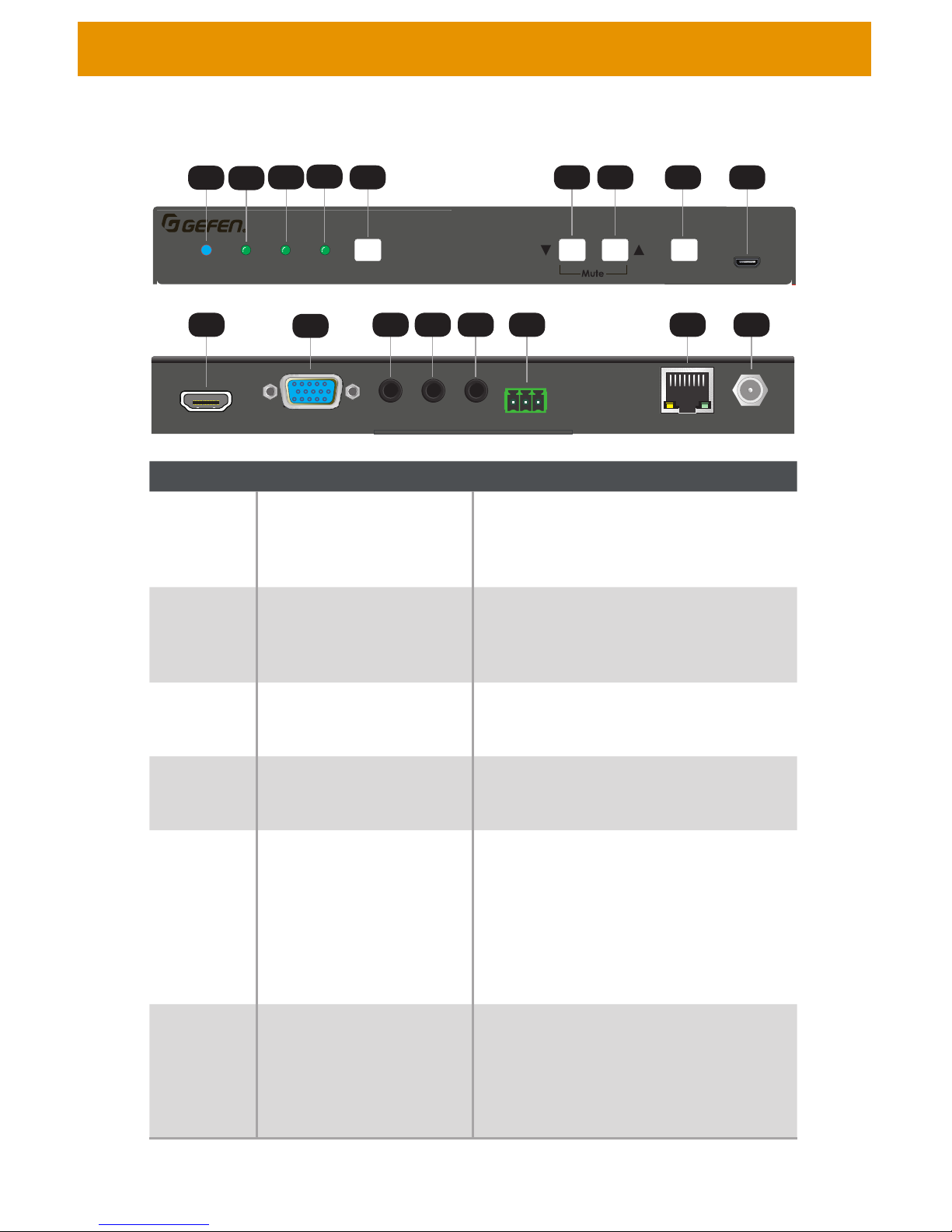

EXT-UHDV-HBTLS-TX
Controls, Connectors, and Indicators
Aut o VGA
HDM I
Powe r
Volum e
Inpu t Menu
4K Ultra HD Multi-Format 2x1 HDBaseT™Sender w/ Scaler, Auto-Switching & POH
Firmware
12345 6 7 8 9
12V DCLine In VGA In
HDMI In IR Out
RS232
IR In/Ext
Tx G Rx
EXT-UHDV-HBTLS-TX
HDBaseT™ Out
10 11 12 13 14 15 16 17
ID Name Description
1 Power Indicator
for more information.
2 Auto Indicator
for more information.
3 HDMI Indicator
HDMI input has been selected.
for more information.
4 VGA Indicator
VGA input has been selected.
for more information.
5 To switch between HDMI and VGA inputs,
press and release this button. To activate or
this button for 3 seconds or longer until the
function engages or disengages. The Auto
for more information.
6 Volume Down Button Press and release this button to decrease
audio output. Press both Volume Up and
Volme Down buttons simultaneously to mute
the audio. Press Volume Up or Volume Down
buttons to unmute.
12
Controls, Connectors, and Indicators
ID Name Description
7 Volume Up Button Press and release this button to increase
audio output. Press both Volume Up and
Volme Down buttons simultaneously to mute
the audio. Press Volume Up or Volume Down
buttons to unmute.
8 Menu Button Press and release the Menu button to enter and
9 Firmware Update Port
unit (Page 28
update process.
10 HDMI Input Connect a Gefen HDMI cable from your
source to this input.
11 VGA Input Connect a VGA cable from your source to this
input.
12 VGA Audio Input Connect a 3.5mm stereo audio cable from
the analog stereo audio output of your
source to be used with the VGA input.
13 3.5mm mini-stereo jack. Connect an IR
to this port. Alternatively, connect a 3.5mm
mini-stereo connector from this port to the
output of an automation system with an
electrical IR output.
14 IR Out
device to be controlled.
15 This port can be used for extending
2-way RS-232 communications between
the Sender and the Receiver, for remote
control of the Sender, for Gefen Syner-G™
interface using an Rs-232 connection with
a computer. Connect Tx, Rx, and Ground
from an automation control device or an
connector.
13
Controls, Connectors, and Indicators
ID Name Description
16 Connect a CAT-5e or better cable,up to the
recommended length for a given resolution,
from this port to the HDBaseT™ In port on the
Receiver unit. This Sender can send power to
and receive power from over the CAT-5 cable
from EXT-UHDA-HBTL-RX or another POH-
compatible Receiver.
17 12V DC In This power receptacle is used to connect the
included 12V DC power supply. When used
required for the extender system to operate.
14
5

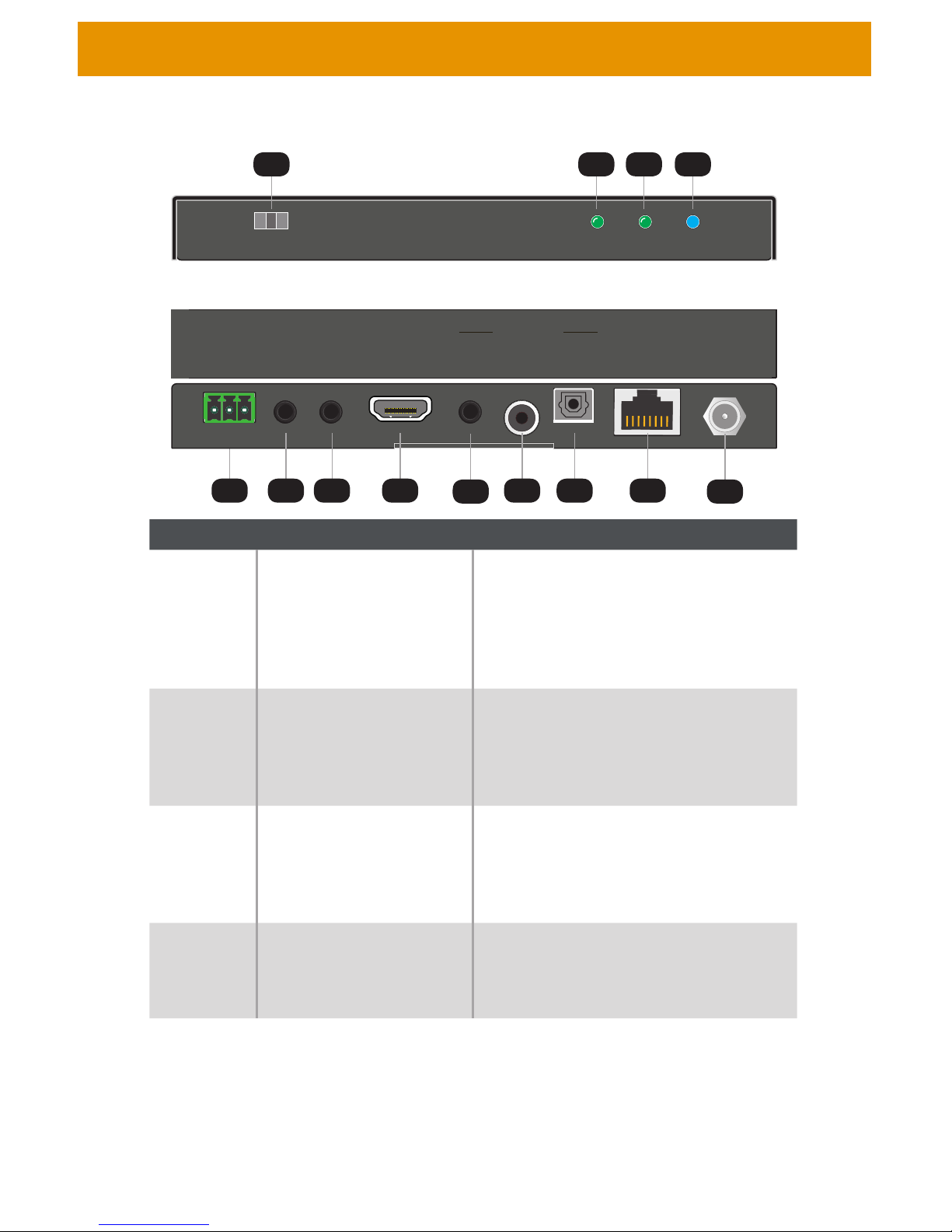

EXT-UHDA-HBTL-RX
Powe r
Link HDCP
Prog 1 Prog 2
RS-232 Pass-Thru
Tx G Rx
RS-23 2
IR In/Ex t IR Out HDM I Ou t
Audi o Ou t
Line Coax Optical HDBaseT ™ In 12V DC
EXT-UHDA-HBTL-RX
4321
6 7 8 910 11 12 13
ID Name Description
1 This 3-position slide switch places the
During normal
operation, this switch should be in RS-232
Pass-Thru position.
2
for
more information.
3 HDCP Indicator
active HDMI signal contains HDCP encryption.
for more
information.
4 Power Indicator
for more information.
Controls, Connectors, and Indicators
15
Controls, Connectors, and Indicators
ID Name Description
5 This port can be used for extending
2-way RS-232 communications between
the Sender and the Receiver, for remote
control of the Sender, for Gefen Syner-G™
interface using an Rs-232 connection with
a computer. Connect Tx, Rx, and Ground
from an automation control device or an
connector. Please note that The Sender and
Receiver's Tx, Rx,and Ground pin-outs for
ensure proper operation, please follow the
pin-out of each connector as printed on each
unit's enclosure.
6 3.5mm mini-stereo jack. Connect an IR
to this port. Alternatively, connect a 3.5mm
mini-stereo connector from this port to the
output of an automation system with an
electrical IR output.
7 IR Out
the device to be controlled.
8 HDMI Out Use a Gefen HDMI cable to connect an
HDMI display to this port.
9
channels of audio de-embedded from
the HDMI signal, for use with outboard
audio cable from this port to the analog
16
Controls, Connectors, and Indicators
ID Name Description
10 Coaxial Digital Out This port provides up to 5.1 channels of
and Right channels of PCM digital audio
de-embedded from the HDMI signal, for
a coaxial digital audio cable with RCA
connectors from this port to the coaxial
11 Optical Digital Out This port provides up to 5.1 channels of
and Right channels of PCM digital audio
de-embedded from the HDMI signal, for use
connectors from this port to the optical
12
Connector
Connect a CAT-5e or better cable, up to the
recommended length for a given resolution,
from this port to the HDBaseT™ Out port on
This Receiver can send power
over the CAT-5 cable to a POH compliant
Sender unit. It can also receive power over the
CAT-5 cable from a POH compatible Sender
such as the EXT-UHDV-HBTLS-TX,but NOT
the EXT-UHDV-WP-HBTLS-TX.
13 12V DC In This power receptacle is used to connect the
included 12V DC power supply. As long as the
one power supply is required for the extender
system to operate.
17
Installation
Physical Installation
EXT-UHDA-HBTLA-TX:
1. -
ing brackets that can be attached to each side of the enclosure using the provided screws.
It can also be placed on a shelf.
2.
EXT-UHDA-HBTL-RX:
1. -
tures a pair of mounting brackets that can be attached to each side of the enclosure using
the provided screws.
2. When surface-mounting the Receiver, please secure it to the mounting surface using
18
Installation
Notes
1. The wiring diagram above shows cables and accessories that may not be included with the products.
distributor.
2. Power supply connections are not shown in the diagrams above.
Sample Wiring Diagram
EXT-UHDA-HBTL-RX
VGA CABLE
4K Ultra HD Source
EXT-UHDV-HBTLS-TX
Sender (Back)
VGA Source
RS-232 Automation
Control Device
or
Device-To-Be-Controlled
RS-232 Automation
Control Device
or
Device-To-Be-Controlled
Display
Powered Speakers
or Audio Amplifier
w/analog L/R input
Audio Amplifier
w/ coaxial digital input
Audio Amplifier
w/ optical digital input
HDMI CABLE
RS-232 CABLE
CAT-5e CABLE
3.5MM AUDIO CABLE
OPTICAL DIGITAL AUDIO
IR IN
IR OUT
COAXIAL DIGITAL AUDIO
EXT-UHDA-HBTL-RX
Receiver (Back) 12V DCLine InVGA In
HDMI In IR Out
RS232
IR In/Ext
Tx G Rx
EXT-UHDV-HBTLS-TX
HDBaseT™ Out
IR Extender
for source control
IR Emitter
to display
IR
Extender
for display
control
IR Emitter
to sources
EXT-UHDV-HBTLS-TX
19
• The unit is not powered. Check the power supply and the
LED Status
The Power, Auto, HDMI, and VGAPower, Link, and HDCP
indicators on the Receiver unit provide basic information on the current status of each unit.
Power Description
• The unit is powered.
Description
•
•
Description
• HDMI Input is selected.
• VGA input is selected.
Description
•
•
extended.
Description
• VGA Input is selected.
• HDMI input is selected.
Description
•
•
20
Scaler Functions and Picture Adjustments
VGA inputs. The input signal can be scaled to an array of resolutions, timing, and aspect ratio
Output aspect ratio automatically follows the source to maintain the best possible picture at
all times.
1 - 1024x768 60 Hz
2 - 1280x720 50 Hz
3 - 1280x720 60 Hz
4 - 1360x768 60 Hz
5 - 1920x1080 50 Hz
6 - 1920x1080 60 Hz
7 - 3840x2160 30 Hz
commands (Page 26
This manual suits for next models
1
Table of contents
Other Gefen Switch manuals
Gefen
Gefen DVIKVM-241SL User manual
Gefen
Gefen EXT-DVIKVM-841DL User manual
Gefen
Gefen VGA-145 User manual
Gefen
Gefen EXT-3GSDI-441 User manual
Gefen
Gefen 6x2 HDMI User manual
Gefen
Gefen EXT-MINIDVI-241N User manual
Gefen
Gefen EXT-DPKVM-841 User manual
Gefen
Gefen EXT-3GSDI-441 User manual
Gefen
Gefen HDMI 1.3 4x1 Switcher User manual
Gefen
Gefen GTV-HDMI1.3-441 User manual
Gefen
Gefen GTB-HD4K2K-442-BLK User manual
Gefen
Gefen EXT-DP-422DL User manual
Gefen
Gefen GTV-AUDDEC-N User manual
Gefen
Gefen EXT-UHDV-WP-HBTLS-TX User manual
Gefen
Gefen EXT-DVIK-MV-441 User manual
Gefen
Gefen EXT-MINIDVI-241N User manual
Gefen
Gefen SL Switcher User manual
Gefen
Gefen Digital Audio Switcher User manual
Gefen
Gefen RMT-2-CAT5 User manual
Gefen
Gefen EXT-DIGAUD-241 User manual
Popular Switch manuals by other brands
New Star
New Star NS-411KA user manual
Black Box
Black Box LBH21xA-H-SFP user manual
ARTESYN EMBEDDED TECHNOLOGIES
ARTESYN EMBEDDED TECHNOLOGIES ATCA-F125 Installation and use
Octava
Octava PRO HD Series installation guide
Kramer
Kramer VS-21HDCP user manual
Siemens
Siemens SIMATIC NET RUGGEDCOM RST916C installation manual
