gefran eView HD 101 Instruction Manual

OPERATING INSTRUCTIONS MANUAL
codice: 80587_ 02-2019 - ENG
This document is the property of GEFRAN and may not be reproduced or transferred to third parties without authorization.
eView HD
ATTENTION!
This manual must always be available to operators of the
devices described here.
Always make sure that you have the latest version of the
manual, which is available for free download from the GEFRAN
website (www.gefran.com).
Installers and/or maintenance personnel are required to read
this manual and to precisely follow the instructions contained
in it and in its attachments.
GEFRAN will not be liable for any damage to persons and/or
property, or to the product itself, caused by failure to follow
the instructions and observe the warnings given below.
This manual and its attachments may be freely reproduced
as long as they are not changed in any way and every copy
contains this warning and the declaration of ownership by
Gefran S.p.A.

280587_eView HD_02-2019_ENG
REVISION DOCUMENTS
DATE CODE UPDATE N. pages of the document
Copyright © 2018 Gefran Soluzioni
Subject to change without notice
The information contained in this document is provided for informational purposes only. While eorts were made to verify the accuracy of
the information contained in this documentation, it is provided “as is” without warranty of any kind.
Third-party brands and names are the property of their respective owners.
www.gefran.com/en/gefran-soluzioni

380587_eView HD_02-2019_ENG
TABLE OF CONTENTS
1. PRODUCT OVERVIEW................................................... 5
2. STANDARDS AND APPROVALS .................................. 5
3. TECHNICAL SPECIFICATIONS..................................... 7
4. TECHNICAL DATA.......................................................... 8
4.1. Dimensions................................................................ 9
4.2. Installation Environment ......................................... 10
4.3. Safety instruction .................................................... 10
4.4. Installation Procedure............................................. 10
5. CONNECTIONS............................................................ 11
5.1. Serial Port................................................................ 11
5.2. Ethernet Port ........................................................... 12
5.3. Optional plugin module........................................... 12
5.4. Optional plugin module installation procedure...... 13
6. POWER SUPPLY, GROUNDING AND SHIELDING..... 14
7. BATTERY ...................................................................... 15
8. SPECIAL INSTRUCTION FOR USE ............................ 15
9. GETTING STARTED ..................................................... 15

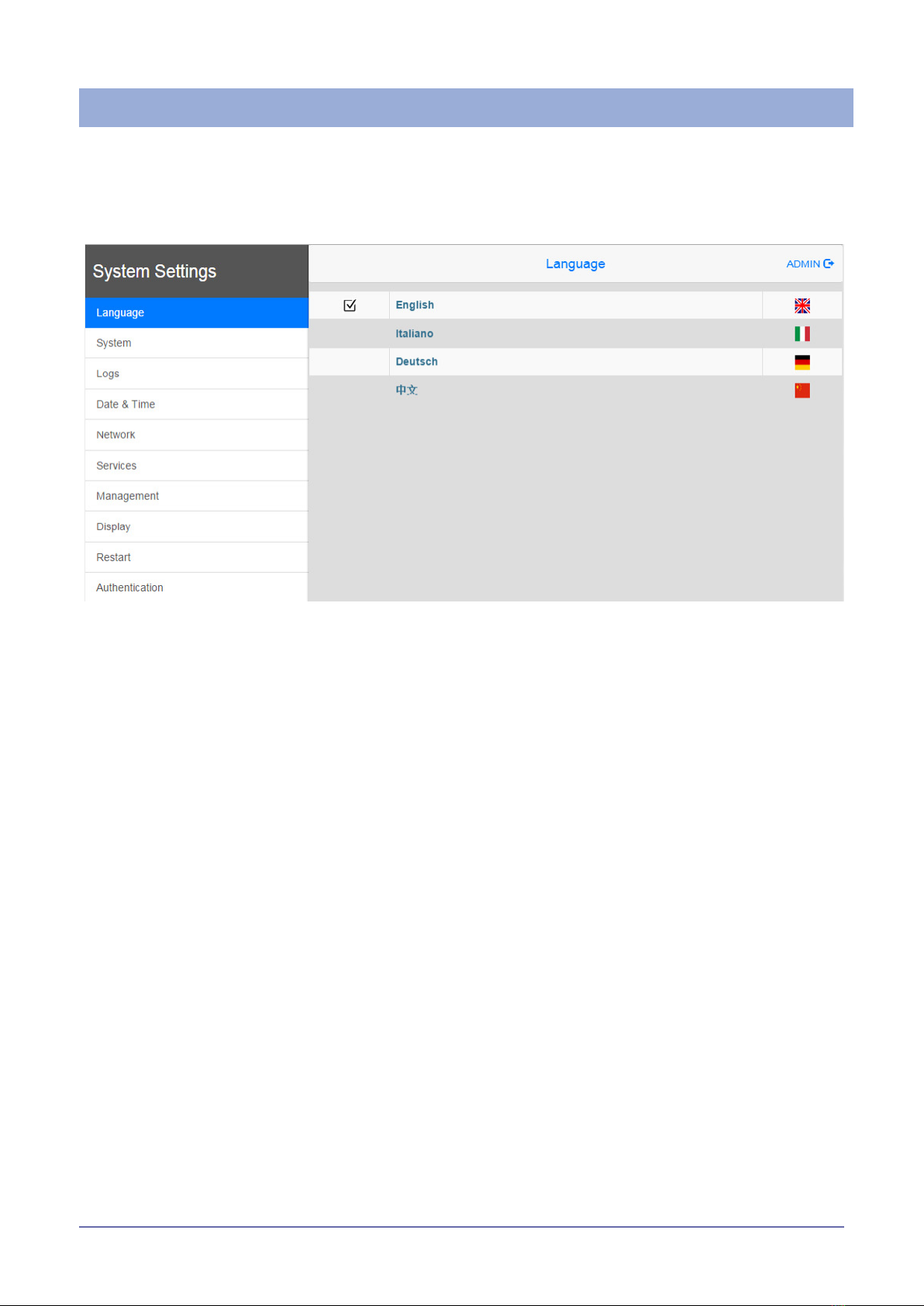

10. SYSTEM SETTINGS................................................... 16

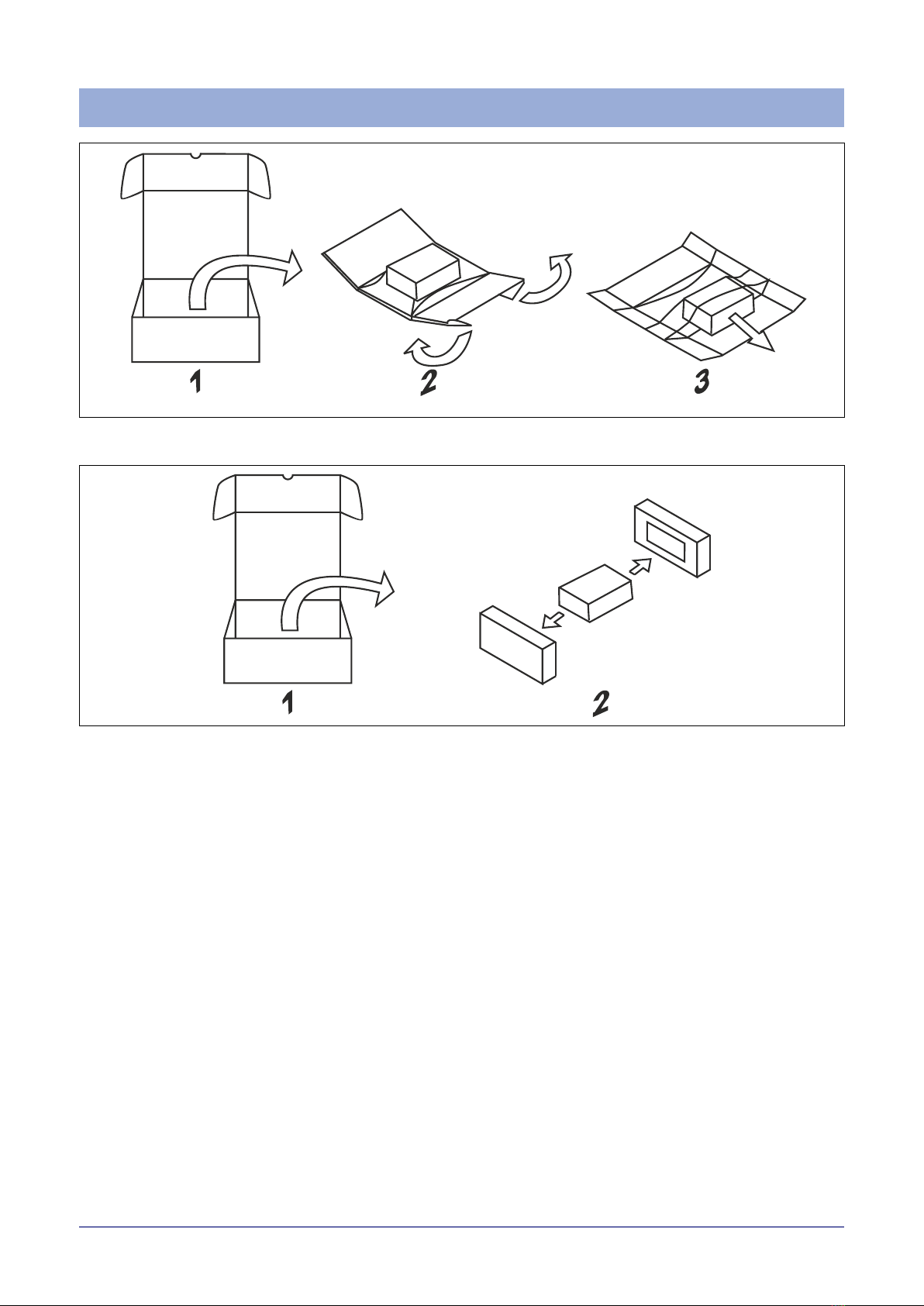

11. UNPACKING AND PACKING INSTRUCTIONS......... 18

480587_eView HD_02-2019_ENG
INTRODUCTION
The operational guidelines described below is information
which relates to the device, installation, transportation,
storage, assembly, use and maintenance.
This Operating Instruction describes the main features of the
Gefran Soluzioni srl operator panels. The Manual refers to the
following models:
The manual contains safety standards that must be respected
for the personal safety and to avoid damage.
Indications of attention are divided into three levels of severity:
DANGER: indicates a failure to observe safety
rules and such failure may cause death or serious
injuries.
SAFETY GUIDE
ATTENTION: indicates a failure to observe safety
rules and that deciency may cause damage.
CAUTION: indicates a failure to observe safety
rules and that deciency may cause defects to the
equipment or inconsistencies.
eView HD 070 Operator interface with TFT color 7” widescreen display multitouch projected capacitive touchscreen
eView HD 101 Operator interface with TFT color 10.1” widescreen display multitouch projected capacitive touchscreen
eView HD 156 Operator interface with TFT color 15.6” widescreen display multitouch projected capacitive touchscreen
eView HD 215 Operator interface with TFT color 21.5” widescreen display multitouch projected capacitive touchscreen

580587_eView HD_02-2019_ENG
1. PRODUCT OVERVIEW
eView HD HMI products combine state-of-the-art connectivity
features and top performance in a great design. Products have
been designed as IoT edge devices with the combination
of a powerful controller with networking capability (up to 3
Ethernet networks) and outstanding communication options
including client/server OPC UA. They are the ideal choice for
all demanding IoT edge applications in factory, marine and
building automation.
The glass projected capacitive touchscreen and the brilliant
displays with size up to 21.5” and resolution up to 1920x1080
guarantee great optical performance; with the support of
multitouch gesture programming they can create the most
natural human interfaces.
• eView HD products have been designed to run the
GF Designer HD software for powerful HMI applications.
• Gateway function with OPC UA Server and Client.
• Secure connectivity with Gefran Cloud and full network
separation.
• Powerful browser wih industry standard Web engines.
2. STANDARDS AND APPROVALS
The products have been designed for use in an industrial environment in compliance with the 2014/30/EU EMC Directive.
The products have been designed in compliance with:
EN 61000-6-4 CISPR 22 Class A
CISPR 16-2-3
EN 61000-6-2 EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
EN 61000-4-29
EN60945
IECEx
IEC 60079-0, Ed.6
IEC 60079-15, Ed.4
IEC 60079-31, Ed.2
IECEx: IECEx ULD 17.0019X
Ex nA IIC T5 Gc -20≤Tamb≤+60°C or 0≤Tamb≤+50°C
Ex tc IIIC T95°C Dc
ATEX
EN 60079-0: 2012+A11:2013
EN 60079-15: 2010
EN 60079-31: 2014
DEMKO 17 ATEX 1871X
II 3G Ex nA IIC T5 Gc -20≤Tamb≤+60°C or 0≤Tamb≤+50°C
II 3D Ex tc IIIC T95°C Dc
The installation of these devices into the residential, commercial and light-industrial environments is allowed only in the case
that special in measures are taken in order to ensure conformity to EN 61000-6-3.
The products are in compliance with the Restrictions on Certain Hazardous Substances (RoHS) Directive 2011/65/EU
In compliance with the above regulations the products are CE marked.

680587_eView HD_02-2019_ENG
Product Identication
The product may be identied through a plate attached to the rear cover. You will have to know the type of unit you are using
for correct usage of the information contained in the guide.
An example of this plate is shown in the gure below:
Note: the eView HD label is used as an example for eView HD Series
25050 Provaglio d’Iseo (BS) - ITALY
MADE IN ITALY
eView HD070-52-00
POWER SUPPLY: 24V= 0.70A
CODE: F073725
120408A04002000
AA00011FT000000561AA
Gefran Soluzioni srl
Via Sebina, 74
1816
This product contains a
battery. Dispose of the
battery according
to local regulations.
eView HD070-52-00
CODE: F073725
120408A04002000
25050 Provaglio d’Iseo (BS) - ITALY
MADE IN ITALY
AA00011FT000000561AA
Gefran Soluzioni srl
Via Sebina, 74
1816
Product model name eView HD070-52-00
Code: F073725
Year/week of production 1816
Serial Number AA00011FT000000561AA
Version id of the product 120408A04002000
Manufacturer address Gefran Soluzioni srl
Via Sebina 74
25050 Provaglio D’Iseo (Bs) - Italy
ATEX Marking DEMKO 17 ATEX 1871X
II 3G Ex nA IIC T5 Gc -20≤Tamb≤+60°C or 0≤Tamb≤+50°C
II 3D Ex tc IIIC T95°C Dc
IECEx Marking ECEx: IECEx ULD 17.0019X
Ex nA IIC T5 Gc -20≤Tamb≤+60°C or 0≤Tamb≤+50°C
Ex tc IIIC T95°C Dc

780587_eView HD_02-2019_ENG
3. TECHNICAL SPECIFICATIONS
Touchscreen technology Back-up battery Projected capacitive
3V 50mAh Lithium, rechargeable, not user-replaceable, model VL2330.
Fuse Automatic
Serial Port RS-232, RS-485, RS-422 software congurable
Flash 4GB for eView HD 070, eView HD 101,
8GB for eView HD 156, eView HD 215
RAM 1GB for eView HD 070, eView HD 101,
2GB for eView HD 156, eView HD 215
Hardware clock Clock/Calendar with back-up battery
Accuracy RTC (at 25°C) <100ppm
ENVIRONMENTAL CONDITIONS
Operating temperature
(surrounding air temperature)
-20 ÷ +60°C (vertical installation) Plug-in
modules and USB devices may limit max
temperature to +50°C
EN 60068-2-14
Storage temperature -20 ÷ +70°C EN 60068-2-1
EN 60068-2-2
EN 60068-2-14
Operating and storage humidity 5 ÷ 85 % RH not-condensing EN 60068-2-30
Vibrations 5 ÷ 9 Hz, 7 mm p-p
9 ÷ 150 Hz, 1 g
EN 60068-2-6
Shock ± 50 g, 11 ms, 3 pulses per axis EN 60068-2-27
Protection class Front panel IP66, Rear IP20 EN 60529
ELECTROMAGNETIC COMPATIBILITY (EMC)
Radiated disturbance test Class A CISPR 22
CISPR 16-2-3
Electrostatic discharge immunity test 8 kV (air electrostatic discharge)
4 kV (contact electrostatic discharge)
EN 61000-4-2
Radiated, radio-frequency,
electromagnetic eld immunity test
80 MHz ÷ 1 GHz, 10V/m
1,4 GHz ÷ 2 GHz, 3 V/m
2 GHz ÷ 2.7 GHz, 1 V/m
EN 61000-4-3
Burst immunity test ± 2 KV dc power port
± 1 KV signal line
EN 61000-4-4
Surge immunity test ± 0,5 KV dc power port (line to earth)
± 0,5 KV dc power port (line to line)
± 1 KV signal line (line to earth)
EN 61000-4-5
Immunity to conducted disturbances inducted
by radiofrequency eld
0.15 ÷ 80 MHz, 10V EN 61000-4-6
Power frequency magnetic eld immunity test Enclosure, 50/60Hz, 30A/m EN 61000-4-8
Voltage dips, short interruptions and voltage
variations immunity test
Port: AC mains; Level:
100% duration: 1 cycle and 250 cycles (50Hz);
1 cycle and 300 cycles (60Hz);
40% duration: 10 cycles (50Hz);
12 cycles (60Hz);
70% duration: 25 cycles (50Hz);
30 cycles (60Hz);
Phase: 0°-180°
Test executed on the 230Vac side of the
Gefran Soluzioni Srl Power Supply
EN 61000-4-11
Port: DC mains; Level:
0% duration: 10ms 20 spaces by 1s
Test executed on the 24Vdc of the EUT EN 61000-4-29
DURABILITY INFORMATION
Backlight service life
(LED type)
40000 Hrs. or more (Time of continuos operation until the brightness of
the backlight reaches 50% of the rated value when the surrounding air
temperature is 25°C) - see Note 1
Note 1: Extended use in environments where the surrounding air temperature is 40°C or higher may degrade backlight quality/
reliability/durability.

880587_eView HD_02-2019_ENG
4. TECHNICAL DATA
Model eView HD 070 eView HD 101 eView HD 156 eView HD 215
Display / Backlight TFT Color / LED
Colors 16M
Resolution 800X480 1280X800 1366X768 1920X1080
Diagonal (inches) 7” widescreen 10.1” widescreen 15.6” widescreen 21.5” widescreen
Dimming yes
Flash 4GB 8GB
SD card slot yes
RAM 1GB 2GB
Serial Port RS-232,RS-485, RS-422
software congurable
Ethernet port 2 10/100Mb, 1 10/100/1000Mb
2 10/100Mb
with integrated switch,
1 10/100/1000Mb
USB port 2 Host interface version 2.0 max. 500mA
Expansion slot 2 Optional Plugin
Battery rechargeable
Real Time Clock yes
Voltage 24Vdc (*)
Current rating
(at 24VDC) 0.7A 1.00A 1.20A 1.70A
Weight 1.3 Kg 1.7 Kg 4.1 Kg 6.1 Kg
(*) 10-32Vdc
For applications requiring compliance with EN 61131-2 and specically in reference to 10 ms voltage dips, the power supply
range voltage is 18-32Vdc.

980587_eView HD_02-2019_ENG
4.1. Dimensions
Cut out
MODEL A B C D E F
eView HD 070 187mm/7.36” 147mm/5.79” 176mm/6.90” 136mm/5.35” 47mm/1.85” 8mm/0.31”
eView HD 101 282mm/11.10” 197mm/7.80” 271mm/10.67” 186mm/7.32” 56mm/2.20” 8mm/0.31”
eView HD 156 422mm/16.60” 267mm/10.50” 411mm/16.18” 256mm/10.00” 56mm/2.20” 8mm/0.31”
eView HD 215 552mm/21.73” 347mm/13.66” 541mm/21.30” 336mm/13.22” 56mm/2.20” 8mm/0.31”

10 80587_eView HD_02-2019_ENG
4.2. Installation Environment
Avoid prolonged exposition to direct sunlight to avoid the risk
of overheating the device.
The equipment is not intended for installation in contact with
corrosive chemical compounds. Check the
resistance of the front panel to a specic compound before
installation.
Do not use tools of any kind (screwdrivers, etc.) to operate
the touch screen of the panel.
In order to meet the front panel protection classications,
proper installation procedure must be followed:
• the borders of the cutout must be at
• screw up each xing screw until the bezel corner get in
contact with the panel.
• the cutout for the panel must be of the dimensions indicated
in this manual.
The IP66 is guaranteed only if:
• max deviation from the plane surface to the cut-out: ±0.5mm
• thickness of the case where is mounted the equipment:
from 1,5mm to 6mm
• max surface roughness where the gasket is applied: ±120 um
A. eviewHD xx
B. Installation cut-out
4.3. Safety instruction
For all installation notes, please refer to the
Installation Guide provided with the product.
4.4. Installation Procedure
Place the xing brackets contained in the xing kit as shown
in gure
For all installation notes, please refer to the
Installation Guide provided with the product.

1180587_eView HD_02-2019_ENG
5. CONNECTIONS
eView HD 070 eView HD 101 eView HD 156 eView HD 215
1. USB Port V2.0, max. 500 mA - for maintenance only
2. Ethernet port 2 (10/100Mb)
3. Ethernet port 1 (10/100Mb)
4. Serial Port
5. Ethernet port 0 (10/100/1000Mb)
6. Power Supply
7. 2x Expansion slot for Plugin module
8. SD Card Slot
Figure 5.1
5.1. Serial Port
The serial port is used to communicate with the PLC or with
another type of controller.
Dierent electrical standards are available for the signals in
the PLC port connector: RS-232, RS-422, RS-485.
The serial port is software programmable. Make sure you
select the appropriate interface in the programming
software..
RS-232 RS-422, RS-485
Pin Description Pin Description
1 RX 1 CHB-
2 TX 2 CHA-
3 CTS 3 CHB+
4RTS 4CHA+
5+5V output 5+5V output
6 GND 6 GND
7 7
8 SHIELD 8 SHIELD
SERIAL PORT
To operate in RS-485 pins
1-2 and 3-4 must be connected
externally.
The communication cable must be chosen for the type of device being connected.

12 80587_eView HD_02-2019_ENG
5.2. Ethernet Port
The Ethernet port have two status indicators. Please see description in gure.
Yellow
OFF: Valid link has NOT been detected
ON: Valid link has been detected
Green
ON: No activity
BLINKING: Activity
5.3. Optional plugin module
eView HD panels have several optional plugin module, multiple modules congurations are possible..
Slot#2 and Slot#4 are available only if plugin module has the “bus extension connector”.

1380587_eView HD_02-2019_ENG
5.4. Optional plugin module installation procedure

1480587_eView HD_02-2019_ENG
6. POWER SUPPLY, GROUNDING AND SHIELDING
The power supply terminal block is shown in the gure below.
Figure 6.1
3 conductor 1,5mmq wire size minimum, minimum temperature conductor rating 105°C.
Note: Ensure that the power supply has enough power
capacity for the operation of the equipment.
The unit must always be grounded to earth with 1,5mmq wire
size minimum. Grounding helps limit the eects of noise due
to electromagnetic interference on the control system.
Earth connection will have to be done using either the
screw or the faston terminal located near the power supply
terminal block. A label helps identify the ground connection.
Also connect to ground the terminal 3 on the power supply
terminal block.
The power supply circuit may be oating or grounded. In the
latter case, connect to ground the power source common as
shown in gure (see below) with a dashed line. When using
the oating power scheme, note that the panes internally
connects the power common to ground with a 1MΩ resistor
in parallel with a 4,7nF capacitor.
The power supply must have double or reinforced insulation.
The suggested wiring for the power supply is shown below..
Figure 6.2
All the electronic devices in the control system must be properly grounded. Grounding must be performed according to
applicable regulations.

15 80587_eView HD_02-2019_ENG
7. BATTERY
These devices are equipped with rechargeable Lithium
battery, not user-replaceable.
The following information is maintained by the battery:
• hardware real-time clock (date and time)
Battery
Figure 7.1: eView HD 070, eView HD 101, eView HD 156, eView HD 215
8. SPECIAL INSTRUCTION FOR USE
- The equipment shall only be used in an area of not more
than pollution degree 2, as dened in IEC/EN 60664-1.
- The equipment shall be installed in an enclosure that
provides a degree of protection not less than IP 54 in
accordance with IEC/EN 60079-15.
- Transient protection shall be provided that is set at a level
not exceeding 140 % of the peak rated voltage value at the
supply terminals to the equipment.
- Install the HMI device according to the accompanying
installation instructions.
- Ground the HMI device according to the accompanying
installation instructions.
- Only qualied personnel may install the HMI device or
repair it.
- Ensure that the aeration holes are not covered.
- Care shall be taken not to allow layers of dust to form on the
graphic panel in a way that might cause the accumulation of
static charges. Keep the faceplate of the HMI device clean:
the equipment must be cleaned only with a soft cloth and
neutral soap product. Do not use solvents.
- This device should not be used for purposes and
methods other than indicated in this document and in the
documentation accompanying the product.
9. GETTING STARTED
eX Series 700 HMI products delivery conguration is based on
a loader. Use the services of the loader to install applications
on the device such as GF Designer HD runtime or browsers.
GF Designer HD Studio version V2.6 or higher is required. GF
Designer HD is a software tool that must be properly installed
on a computer running Microsoft Windows.
There are two options to transfer a GF Designer HD application
project to a HMI device:
Ethernet Connect the HMI device to the computer with
an Ethernet network. In GF Designer HD Studio
select the command Run/Download to target.
You may have to ensure that the proper rewall
policy has been congured in the computer to
allow GF Designer HD Studio to access the
network.
USB Create an Update Package using GF Designer
HD Studio and copy it to a USB Flash drive
ATTENTION
Dispose of batteries according to local
regulations.
Charge:
At rst installation must be charged for 48 hours.
When the battery is fully charged, it ensures a period of 3
months of data back-up at 25°C.
ATTENTION
This device cannot be disposed of as
a domestic waste but according to
WEEE European Directive 2012/19/EU

1680587_eView HD_02-2019_ENG
10. SYSTEM SETTINGS
eX Series 700 HMI products have a system settings interface
to allow conguration of system options.
The user interface of System Settings is based on HTML
pages accessible from the HMI screen or remotely using a
Web browser Chrome v44 or higher using port 443. To connect
enter the address https:// IP/machine_cong where IP is the
IP address of the HMI device. Default username is “admin”,
default password is “admin”. Use navigation menu on the left
side of the screen to browse through the available options.
The active item of menu is highlighted on the left side of the
screen. The right side shows related information and settings.
Depending on the size of the HMI screen, both menu and
content of selected item may be shown on screen at the
same time or not.
System Settings has two modes of operation:
User Mode
System Mode
GF Designer HD runtime is running or
the HMI device is in “factory default”
status.
GF Designer HD runtime is not running
or the HMI device has a software
failure.
System Mode includes all options
available in User Mode and additionally
includes commands dedicated to
system upgrade and recovery not
available when running in User Mode.
Activation of System Settings in User Mode:
Factory default
status
GF Designer HD
runtime running
Press “System Setting” button on the
HMI screen
Recall context menu and select
“System Settings”. To recall the
context menu click and hold any
unused area of the touchscreen for a
few seconds. Default hold time is 2
seconds.
Activation of Systems Settings in System Mode:
Normal
operation
If GF Designer HD runtime is not
running: Press “System Setting” button
on the device screen to recall System
Settings in User Mode. Select “Restart”
-> “Cong OS” to reboot in System
Mode.
If GF Designer HD runtime is running:
recall context menu and select
“System Settings”. To recall the
context menu click and hold any
unused area of the touchscreen for a
few seconds. Default hold time is 2
seconds to enter in System Settings in
User Mode. Select “Restart” -> “Cong
OS” to reboot in System Mode.
Recovery
operation
If device is not responsive, use the so-
called “tap-tap” procedure
This procedure consists in tapping
the surface of the touchscreen during
the device power-up phase. Tapping
frequency must be high.
You have to start tapping the
touchscreen as soon as power has
been applied to the device. When the
sequence has been recognized, the
system shows the message: “TAP-TAP
DETECTED”. At this point release
touch to boot in User Mode without
running GF Designer HD runtime or
press and hold few seconds (selecting
so “RESTART: CONFIG OS”) to boot in
System Mode.

1780587_eView HD_02-2019_ENG
System Settings includes options for basic settings of the
device:
Language
System
Congure language used for System
Setting menu only.
Show information about platform,
status and timers (like System on time,
backlight on time).
Logs Enable persistent log for BSP and
allows exporting it.
Date & Time
Network
Change the device date and time,
including time zone and NTP Server
Congure IP Address of Ethernet
interface and the other network
settings like DNS, Gateway, DHCP,
Hostname, routing and bridging.
Services Enable/disable services. Examples of
services are: OpenSSH server, Bridge,
Cloud, Router, SNMP and logging.
Management Update of BSP components (Main OS,
Cong OS, Boot loader, XLoader),
check for partitions consistence,
update of splash screen, information
about usage and size of partitions. The
update of Main OS is available only in
System Mode, the update of Cong OS
is only in User Mode.
Display Adjust display brightness, congure
automatic backlight turno and select
HMI orientation (90°, 180°, 270° and
360°).
Restart Restart the device. “Main OS” option
restarts the device in User Mode,
“Cong OS” option restarts the device
in System Mode showing System
Settings.
Authentication Congure password for administrator
(“admin”) and for the standard user
(“user”). Administrator has full access
to System Settings (updates of BSP
and other system components).
Standard user has some limitations.
Note: Additional informations on System Settings are
available in dedicated manual
https://www.gefran.com/gefrancloud/.

18 80587_eView HD_02-2019_ENG
11. UNPACKING AND PACKING INSTRUCTIONS
Figure 11.1: eView HD 070, eView HD 101
Figure 11.2: eView HD 156, eView HD 215
To repack the unit, please follow the instructions backwards.

1980587_eView HD_02-2019_ENG
NOTE

Gefran Soluzioni srl
Via Sebina 74 - 25050 Provaglio d’Iseo (BS) Italy
Tel. [phone] - Fax [phone] - [email protected]
http://www.gefran.com
www.gefran.com/en/gefran-soluzioni
