Genelec 5041A User manual

The Genelec 5041A is a dedicated
Active In-Wall subwoofer designed to
complement Genelec AIW25 Active In-
Wall loudspeakers and AIC25 Active In-
Ceiling loudspeakers. When the 5041A
is installed, all that can be seen of it is a
discreet little metal grille on the wall, but
its powerful and dynamic bass response
will leave no doubt about the presence of
a high quality subwoofer.
The 5041A extends
the system’s bass
response down to 35 Hz
with an upper cut-
off frequency of 95 Hz.
The 5041A has two 6.5” loudspeaker
drivers in a very slim (depth 82 mm /
31/4”) MDF enclosure and a separate 4U
RAM3 amplifier unit that can be installed
in the equipment rack using the optional
RM2 rack adapter. The RAM3 shares the
same dimensions as the RAM2 amplifier
that powers the AIW25 and AIC25 models
so one RM2 can take up to eight of these
amplifiers.
The audio connectors on the RAM3
amplifier include parallel XLR and RCA
input connectors and an XLR Link Out
connector for daisy-chaining multiple sub-
woofers together.
Adjustable input sensitivity provides
easy connection to all types of decoders.
Bass roll-off rate and crossover phase can
also be adjusted to suit different acousti-
cal environments and subwoofer position-
ing. Amplifier power switching can be set
to manual, automatic signal sensing or
remote controlled by a 12 V trigger volt-
age.
The 5041A packs a respectable punch
of 105 dB maximum SPL. If more sound
pressure is needed, coupling multiple sub-
woofers together using the Link Out chan-
nel gives an added 6 dB for a system of
two, 9.5 dB for three and 12 dB for four
subwoofers.
The 5041A subwoofer enclosure mount-
ing system uses adjustable brackets and
rubber springs to isolate the enclosure
from the wall structure.Thanks to this flex-
ible mounting, no vibration is transmitted
to the sheetrock or other parts of the wall
even at high playback levels.
A stealthy combination of one 5041A
and five AIW25’s can create a wonder-
fully dynamic and detailed soundstage for
small listening rooms. Contact your local
Genelec dealer for an audition and see
Genelec’s Home Theater website www.
genelec-ht.com for more information on
Genelec’s Home Theater loudspeaker
line.
Genelec 5041A
In-Wall Subwoofer
Data Sheet
5041A

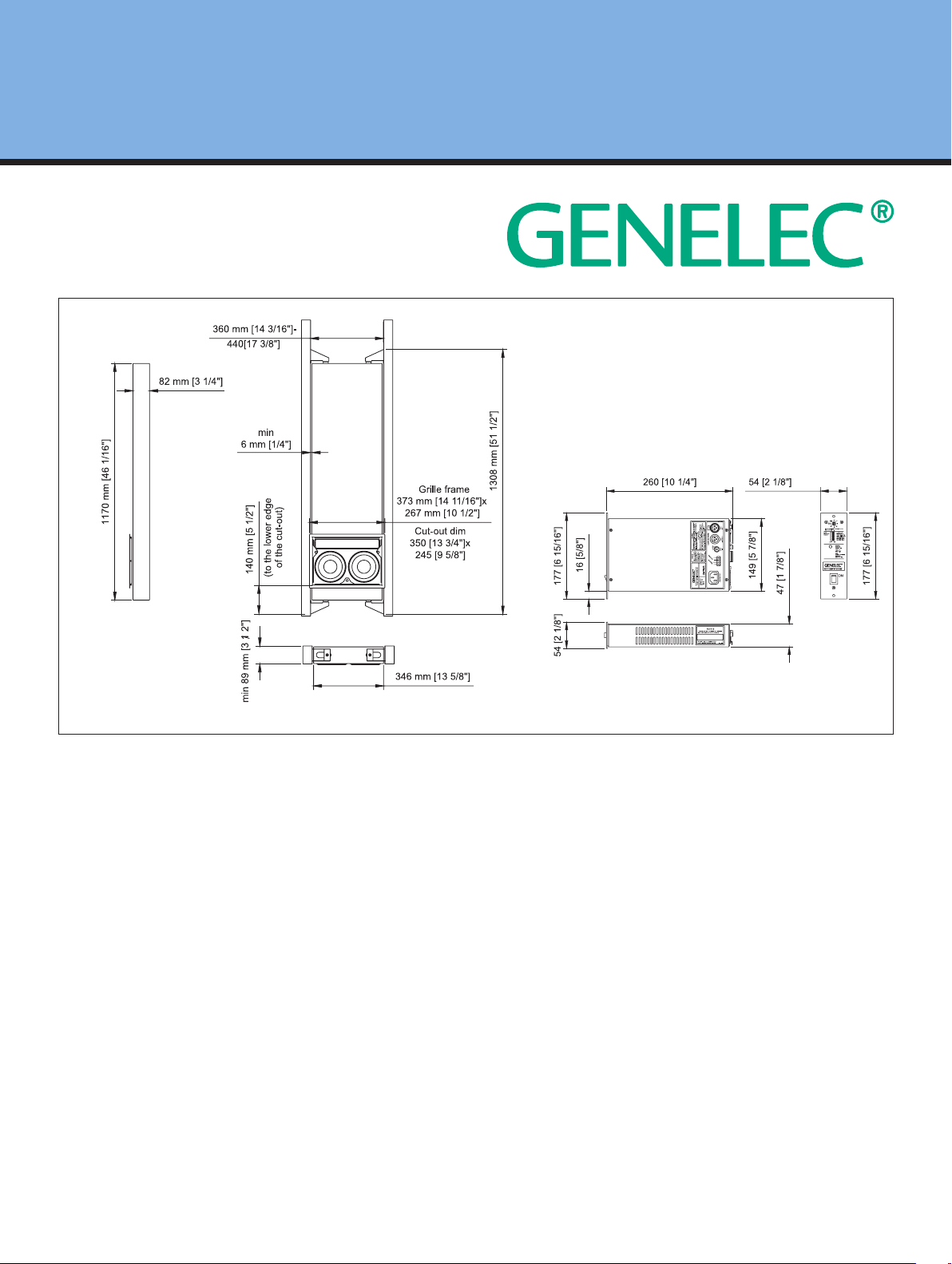

Main dimensions of the 5041A enclosure and RAM3 amplifier unit

5041A Data Sheet
Genelec Document BBA0079001. Copyright Genelec Oy 10.2008. All data subject to change without prior notice
International enquiries:
Genelec, Olvitie 5
FIN-74100, Iisalmi, Finland
Phone [phone]
Fax [phone]
Email [email protected]
In the U.S. please contact:
Genelec, Inc., 7 Tech Circle
Natick, MA 01760, U.S.A.
Phone [phone]
Fax [phone]
Email [email protected]
In China please contact:
Genelec China Representative Office
SOHO New Town, 88 Jianguo Road
D-1504, Chaoyang District
Beijing 100022, China
Phone [phone]
Fax [phone]
www.genelec.com
In Sweden please contact
Genelec Sverige
Ellipsvägen 10B
P.O. Box 5521, S-141 05 Huddinge
Phone [phone]
Fax [phone]
Email [email protected]
Amplifier Section
connectorS
SyStem SpecificAtionS
5041A
Free field frequency response (± 3 dB) 35 Hz...95 Hz
Maximum short term sine wave SPL output
averaged from 40 to 85 Hz, measured in half
space at 1 meter
105 dB
Maximum peak SPL output with random pink
noise, measured in half space at 1 meter
110 dB
Self generated noise level in half space at 1 m
on axis (A-weighted)
≤ 15 dB
Drivers 2 x 165 mm (6.5")
Weight
Subwoofer enclosure
Amplifier
15 kg (33 lb)
1.4 kg (3.1 lb)
Dimensions (see Figure 1)
Subwoofer enclosure
Height
Width
Depth
Amplifier
Height
Width
Depth*
*Note that the cable connectors require at
least 100 mm (4”) of space behind the
amplifier
1170 mm (461/16”)
346 mm (135/8”)
82 mm (31/4”)
177 mm (631/32”) (4U)
54 mm (21/8”)
260 mm (101/4”)
5041A
Amplifier short term output power
(Long term output power is limited by driver
unit protection circuitry)
125 W
Amplifier system THD at nominal output ≤ 0.05 %
Mains voltage 85-132 V or 170-265 V
according to region
Power consumption (average)
Stand by
Idle
Full output
8.5 VA
11 VA
150 VA
5041A
Input connector XLR female
pin 1
pin 2
pin 3
1, balanced
gnd
+
-
Input connector RCA female
pin 1
pin 2
1, unbalanced
gnd
+
LINK OUT connector XLR male
pin 1
pin 2
pin 3
1, balanced
gnd
+
-
Input impedance 10 kOhm
LINK OUT gain 0 dB
controlS
5041A
Input sensitivity +12 to –6 dBu
Phase matching control in 90° steps From 0 to -270°
Bass Roll-Off control operating range
in 2 dB steps
From 0 to -6 dB @ 35 Hz
Remote control Remote controlled
Standby/On switching by
12 V trigger
