Portable Generator Owner’s Manual
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Model No. 1305–0 (4200 Watt AC Generator) Manual No. B4242 Revision 2 (9/6/2000)
Visit our Generac website: www.generac-portables.com
4200WATT

Generac Portable Products 4,200 Watt Generator
2
EQUIPMENT
DESCRIPTION
The generator is an engine-driven, revolving field,
alternating current (AC) generator. It was designed to
supply electrical power for operating compatible electrical
lighting, appliance, tool and motor loads. This manual
contains information for a generator that operates
120 and/or 240 Volt, single phase, 60 Hz devices that
require up to 4,200 watts (4.2 kW) of power that pull up
to 35 Amps at 120 Volts or 17.5 Amps at 240 Volts.
CAUTION! Do Not exceed the generator’s
wattage/amperage capacity. Add up the rated watts
of all devices you are connecting to generator
receptacles at one time. This total should not be
greater than 4,200 watts. See “Don’t Overload the
Generator” on page 9.
The 4,200 watt portable generator has the following
features:
• 120/240 Volt, 20 Amp locking receptacle.
• 120 Volt 30 Amp locking receptacle.
• 120 Volt, 20 Amp duplex receptacle.
• Low Oil Shutdown: Automatically shuts down the engine
if oil drops below safe operation level.
• 1.6 gallon overhead fuel tank.
• The generator’s revolving field is driven at about
3,600 rpm by a Honda 8 h.p. engine.
DANGER! Do Not tamper with engine governed
speed. High operating speeds are dangerous and
increase risk of personal injury or damage to
equipment. The generator supplies correct rated
frequency and voltage only when running at proper
governed speed. Incorrect frequency and/or voltage
can damage some connected electrical loads.
Operating at excessively low speeds imposes a
heavy load at such reduced speeds, when adequate
engine power is not available, and may shorten
engine life.
SAFETY RULES
This generator set was designed and manufactured for
specific applications. Do Not attempt to modify the unit
or use it for any application it was not designed for. If you
have any questions about your generator’s application, ask
your dealer/distributor or consult the factory.
The manufacturer could not possibly anticipate every
circumstance that might involve a hazard. For that reason
warnings in the manual and warnings on tags or decals
affixed to the unit are not all–inclusive. If you intend to
handle, operate or service the unit by a procedure or
method not specifically recommended by the manufacturer,
first make sure that such a procedure or method will not
render this equipment unsafe or pose a threat to you and
others.
Read this manual carefully and become familiar
with your generator set. Know its applications, its
limitations and any hazards involved.
DANGER! You must isolate the generator from
the electric utility by opening the electrical system’s
main circuit breaker or main switch if this unit is
used for backup power. Failure to isolate the
generator from the power utility may result
in injury or death to electric utility workers
and damage to the generator due to a backfeed
of electrical energy. Whenever unit is providing
backup power, the electric utility must be notified.
DANGER! Generator exhaust gases contain
DEADLY carbon monoxide gas. Carbon
monoxide, if breathed in sufficient
concentrations, can cause unconsciousness or
death. Operate this equipment outdoors where
adequate ventilation is available.
The Emission Control System for this generator is
warranted for standards set by the Environmental
Protection Agency. For warranty information refer to the
engine owner’s manual.
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects, or other
reproductive harm.
WARNING:

Generac Portable Products 4,200 Watt Generator
3
• The generator produces a very powerful voltage that can
cause serious injury or death by electrocution. Never
touch bare wires or receptacles. Never permit a child
or any unqualified person to operate the generator.
•Never handle any kind of electrical cord or device while
standing in water, while barefoot or while hands or feet
are wet. Death or serious injury from electrocution may
result.
• Use a ground fault circuit interrupter (GFCI) in any damp
or highly conductive area (such as metal decking or steel
work).
•Never use worn, bare, frayed or otherwise damaged
electrical cords with the generator. Death, serious injury
and property damage from electrical shock may result.
•Gasoline is highly FLAMMABLE and its vapors
are EXPLOSIVE. Never allow smoking, open
flames, sparks or heat in the vicinity while
handling gasoline. Avoid spilling gasoline on a hot
engine. Comply with all laws regulating storage and
handling of gasoline.
•Do Not overfill the fuel tank. Always allow room for
fuel expansion. If tank is overfilled, fuel can overflow
onto a hot engine and cause a FIRE or an
EXPLOSION.
•Never store a generator with fuel in the tank where
gasoline vapors might reach an open flame, spark or pilot
light (as on a furnace, water heater, clothes dryer). FIRE
or an EXPLOSION may result.
• The unit requires an adequate flow of cooling air for its
continued proper operation. Never operate the unit
inside any room or enclosure where the free flow of
cooling air into and out of the unit might be obstructed.
Allow at least 2 feet of clearance on all sides of generator,
even while operating unit outdoors, or you could damage
the unit.
•Never start, or stop the unit with electrical loads
connected to receptacles with the connected devices
turned ON. Start the engine and let it stabilize before
connecting any electrical loads. Disconnect all electrical
loads before shutting down the generator.
•Do Not insert any object through cooling slots of the
engine. You could damage the unit or injure yourself.
•Never operate the generator:
in rain; in any enclosed compartment; when connected
electrical devices overheat; if electrical output is lost; if
engine or generator sparks; if flame or smoke is
observed while unit is running; if unit vibrates
excessively.
GROUNDING THE
GENERATOR
The National Electric Code requires the frame and
external electrically conductive parts of the generator be
properly connected to approved earth ground. Local
electrical codes may also require proper grounding of the
unit. For this purpose, a grounding wing nut (Figure 1) is
provided on the cradle.
Generally, connecting a No. 12 AWG (American Wire
Gauge) stranded copper wire to the grounding wing nut
and to an earth–driven copper or brass grounding rod
(electrode) provides adequate protection against electrical
shock. However, local codes may vary widely. Consult with
a local electrician for grounding requirements in your area.
Be sure to keep the ground wire attached while you
connect the electrode.
Properly grounding the generator helps prevent electrical
shock if ground fault conditions exists in the generator or
in connected electrical devices. Proper grounding also helps
dissipate static electricity, which often builds up in
ungrounded devices.

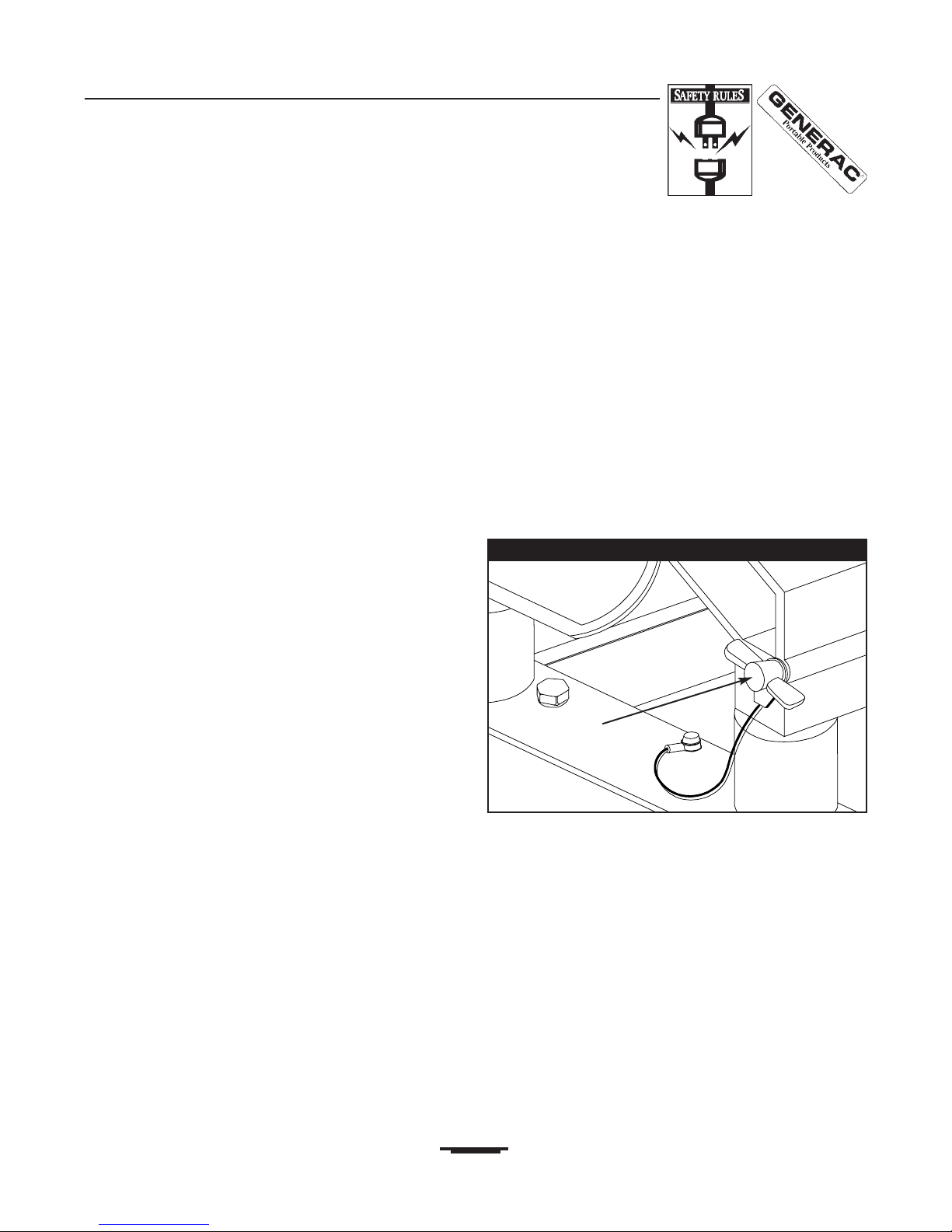

Figure 1 — Grounding Wing Nut
Grounding Wing Nut

Generac Portable Products 4,200 Watt Generator
4
120 Volt AC, 20 Amp Duplex Receptacle — May be
used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
120 Volt AC, 30 Amp Receptacle — May be used to
supply electrical power for the operation of 120 Volt AC,
30 Amp, single phase, 60 Hz electrical lighting, appliance,
tool and motor loads.
120/240 Volt AC, 20 Amp Receptacle — May be used
to supply electrical power for the operation of 120 and/or
240 Volt AC, 20 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
Circuit Breakers (AC) — Each receptacle is provided
with a push-to-reset circuit breaker to protect the
generator against electrical overload.
Fuel Tank — Capacity of 1.6 U.S. gallons (6 liters).
Grounding Wing Nut — Provides a tie-point for
connecting the generator frame to earth ground.
KNOW YOUR GENERATOR
Read this owner’s manual and safety rules before operating your generator.
Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Circuit Breakers (AC)
Fuel Tank
120 Volt AC, 30 Amp
Receptacle
120/240 Volt AC,
20 Amp Receptacle
120 Volt AC, 20 Amp
Duplex Receptacle Grounding Wing Nut

Generac Portable Products 4,200 Watt Generator
5
CARTON CONTENTS
Check all contents. If any parts are missing or damaged, call
the generator helpline at 1-800-270-1408. Review “Cold
Weather Operation” on page 7. Shipped with your
generator are:
• Main unit
• Engine and generator owner’s manuals
• Muffler exhaust deflector
BEFORE STARTING THE
ENGINE
Add Engine Oil
• Make sure unit is on a level surface.
• Follow the oil recommendations and oil fill instructions
given in the engine owner’s manual.
CAUTION! Any attempt to crank or start the
engine before it has been properly serviced with the
recommended oil results in an engine failure.
NOTE: The generator’s revolving field rides on a
pre–lubricated and sealed ball bearing that requires no
additional lubrication for the life of the bearing.
Add Gasoline
DANGER! Never fill fuel tank indoors. Never fill
fuel tank when engine is running or hot. Do Not
light a cigarette or smoke when filling the fuel tank.
DANGER! Do Not overfill the fuel tank. Always
leave room for expansion.
• Use regular UNLEADED gasoline in the generator.
Do Not use premium gasoline. Do Not mix oil with
gasoline. Do Not overfill the gas tank.
• Clean area around fuel fill cap; remove cap.
• Fill fuel tank with clean, fresh, unleaded gasoline. Be
careful not to overfill. Allow 1/2" of tank space for fuel
expansion, as shown in Figure 2.
• Install fuel cap and wipe up any spilled gasoline.
IMPORTANT: It is important to prevent gum deposits
from forming in essential fuel system parts such as the
carburetor, fuel filter, fuel hose or tank during storage.
Also, experience indicates that alcohol–blended fuels
(called gasohol, ethanol or methanol) can attract moisture,
which leads to separation and formation of acids during
storage. Acidic gas can damage the fuel system of an engine
while in storage. To avoid engine problems, the fuel system
should be emptied before storage of 30 days or longer. See
“Storage”. Never use engine or carburetor cleaner
products in the fuel tank or permanent damage may occur.
IMPORTANT: When running your unit in cold weather
be sure to shelter the unit from the wind.
Figure 2 — Typical Tank Expansion Space

Generac Portable Products 4,200 Watt Generator
6
OPERATING THE
GENERATOR
CAUTION! Never start or stop the unit with
electrical loads connected to the receptacles.
Starting the Engine
DANGER! Breathing hazard. Never run engine
indoors or in enclosed poorly ventilated areas.
Engine exhaust contains carbon monoxide, an
odorless and deadly gas.
WARNING! Burn hazard. Temperature of muffler
and nearby areas may exceed 150°F (65°C). Avoid
these areas.
• Unplug all electrical loads from generator receptacles
before starting the engine.
• Make sure the unit is in a level position.
• Move the fuel valve to the “ON” position (Figure 3).
• To start a cold engine, move the choke lever to the
“CLOSED” position. To restart a warm engine, leave
the choke lever in the “OPEN” position (Figure 4).
• Set the engine switch to the “ON” position (Figure 5).
• Grasp starter grip and pull slowly until you feel some
resistance. Then pull cord out with rapid full arm stroke.
Let rope return slowly. Do Not let rope “snap back”
against starter.
• If the choke lever has been moved to the “CLOSED”
position to start the engine, gradually move it to the
“OPEN” position as the engine warms up.
Connecting Electrical Loads
• Let engine stabilize and warm up for a few minutes after
starting.
• Plug in and turn on the desired 120 and/or 240 Volt AC,
single phase, 60 Hz electrical loads.
•Do Not connect 240 Volt loads to the 120 Volt duplex
receptacles.
•Do Not connect 3–phase loads to the generator.
•Do Not connect 50 Hz loads to the generator.
•DO NOT OVERLOAD THE GENERATOR. See
“Don’t Overload the Generator” on page 9.
Stopping the Engine
• Unplug all electrical loads from generator panel
receptacles. Never start or stop engine with electrical
devices plugged in and turned ON.
• Let engine run at no-load for several minutes to stabilize
the internal temperatures of engine and generator.
• Move engine switch to “OFF” position.
• Move the fuel valve to the “OFF” position.
Figure 3 — Fuel Valve
Figure 5 — Engine Switch
Figure 4 — Choke Positions
Choke Lever
Closed
Open
On
Off
Engine Switch
On
Off

Generac Portable Products 4,200 Watt Generator
7
Cold Weather Operation
Under certain weather conditions (temperatures below
40°F [4°C] and a high dew point), your Generac generator
may experience problems.
In an emergency, use the original shipping box as a
temporary shelter:
• Cut off all flaps.
• Cut out one of the long sides of the box to expose
exhaust side of unit. Ensure a minimum of two feet
clearance between open side of box and nearest object.
• Cut appropriate slots to access receptacles of unit.
• Start unit, then place box over it.
WARNING!: Remove shelter when temperature
is above 40°F [4°C].
For a more permanent shelter, build a structure that will
enclose three sides and the top of the generator:
• Make sure entire muffler-side of generator is exposed, as
shown in Figure 6.
NOTE: A typical unit is shown here - your unit will differ
in appearance.
• Ensure a minimum of two feet clearance between open
side of box and nearest object.
• Face exposed end away from wind and elements.
• Enclosure should hold enough heat created by the
generator to prevent problems.
RECEPTACLES
This generator is equipped with the following receptacles:
120 Volt AC, 20 Amp Duplex
Receptacle
Each of these outlets is protected against overload by
20 Amp push–to–reset circuit breakers. Use each outlet to
operate 120 Volt, 60 Hz, single phase loads requiring
2,400 (2.4 kW) watts at 20 Amps of current (Figure 7).
Figure 6 — Temporary Cold Weather Shelter
Figure 7 — 120 Volt, 20 Amp Duplex Receptacle
Wind

Generac Portable Products 4,200 Watt Generator
8
120/240 Volt AC, 20 Amp Locking
Receptacle
Use a NEMA L14-20 plug with this receptacle. Connect a
4-wire cord set rated for 250 Volts AC at 20 Amps (or
greater) (Figure 8). You can use the same 4-wire cord if
you plan to run a 120 Volt load.
This receptacle powers 120/240 Volt AC, 60 Hz, single
phase loads requiring up to 2,400 watts of power at
20 Amps for 120 Volts OR 4,200 watts of power (4.2 kW)
at 17.5 Amps for 240 Volts. The outlet is protected by a
push-to-reset circuit breaker.
120 Volt AC, 30 Amp Locking Type
Receptacle
Use a NEMA L5–30 plug with this receptacle. Connect a
3–wire cord set rated for 125 Volt AC loads at 30 Amps to
the plug (Figure 9).
Use this receptacle to operate 120 Volt AC, 60 Hz, single
phase loads requiring up to 3,600 watts (3.6 kW) of power
at 30 Amps. The outlet is protected by a 30 Amp
push–to–reset circuit breaker.
Figure 9 — 120 Volt, 30 Amp Locking Receptacle
Figure 8 — 120/240 Volt, 20 Amp Locking Receptacle

Generac Portable Products 4,200 Watt Generator
9
DON’T OVERLOAD THE
GENERATOR
Overloading a generator in excess of its rated wattage
capacity can result in damage to generator and to
connected electrical devices. Observe the following, to
prevent overloading the unit:
• Add up the total wattage of all electrical devices to be
connected at one time. This total should NOT be
greater than the generator’s wattage capacity.
• The rated wattage of lights can be taken from light bulbs.
The rated wattage of tools, appliances and motors can
usually be found on a data plate or decal affixed to the
device.
• If the appliance, tool or motor does not give wattage,
multiply 120 Volts times ampere rating to determine
watts (volts x amps = watts).
• Some electric motors, such as induction types, require
about three times more watts of power for starting than
for running. This surge of power lasts for only a few
seconds when starting such motors. Be sure you allow
for this high starting wattage when selecting electrical
devices to connect to your generator. First figure the
watts needed to start the largest motor. Add to that
figure the running watts of all other connected loads.
• A Wattage Reference Guide (Figure 10) is provided to
help you determine how many items the generator can
operate at one time.
Recreational/Home Uses
Tool/Appliance....................................................Watts
AM/FM clock radio.....................................................................50
Light bulb....................................................................................100
Fan................................................................................................200
20" color TV..............................................................................400
*Deep freezer............................................................................500
Personal computer and 15" monitor...................................800
*1/3 hp furnace fan blower.....................................................800
Microwave oven........................................................................800
*18 cu ft refrigerator...............................................................800
Sump pump..............................................................................1000
Electric skillet..........................................................................1250
*½ hp water well pump........................................................1400
*12,000 Btu window air conditioner.................................1400
Space heater............................................................................1800
Electric water heater.............................................................4000
Professional/Contractor Uses
Tool/Appliance....................................................Watts
*1/3 hp airless sprayer.............................................................600
3/8" hammer drill .....................................................................600
Variable speed Sawzall®..........................................................960
½" power drill.........................................................................1000
Quartz-halogen work light...................................................1000
Belt sander...............................................................................1200
7 ¼" circular saw ...................................................................1500
7 ¼" worm drive saw............................................................1600
*1½ hp air compressor ........................................................1800
*10" power miter saw...........................................................1800
6" bench grinder.....................................................................1800
*6" table planer.......................................................................1800
*10" table/radial arm saw .....................................................2000
Wire feed welder...................................................................2400
* allow 3 times listed watts for starting this device
Figure 10 — Wattage Reference Guide

Generac Portable Products 4200 Watt Generator
10
SPECIFICATIONS
Maximum Surge Watts . . . . . . . . . . . . . . . 5,250 Watts
Continuous Wattage Capacity . . . . . . . . . 4,200 Watts
Power Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.0
Rated Maximum Continuous Load Current
At 120 Volts . . . . . . . . . . . . . . . . . . . . . . . 35 Amps
At 240 Volts . . . . . . . . . . . . . . . . . . . . . . 17.5 Amps
Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-phase
Rated Frequency . . . . . . . . . . . . . . . . . . . . . . 60 Hertz
MAINTENANCE
RECOMMENDATIONS
The Owner/Operator is responsible for making sure that
all periodic maintenance tasks are completed on a timely
basis; that all discrepancies are corrected; and that the
unit is kept clean and properly stored. Never operate a
damaged or defective generator.
Engine Maintenance
See engine owner’s manual for instructions.
Generator Maintenance
Generator maintenance consists of keeping the unit clean
and dry. Operate and store the unit in a clean dry
environment where it will not be exposed to excessive
dust, dirt, moisture or any corrosive vapors. Cooling air
slots in the generator must not become clogged with
snow, leaves or any other foreign material.
Note: Do Not use a garden hose to clean the generator.
Water can enter engine fuel system and cause problems.
In addition, if water enters generator through cooling air
slots, some of the water will be retained in voids and
cracks of the rotor and stator winding insulation. Water
and dirt buildup on the generator internal windings will
eventually decrease the insulation resistance of these
windings.
To Clean the Generator
• Use a damp cloth to wipe exterior surfaces clean.
• Soft, bristle brush may be used to loosen caked on dirt
or oil.
• A vacuum cleaner may be used to pick up loose dirt
and debris.
• Low pressure air (not to exceed 25 psi) may be used to
blow away dirt. Inspect cooling air slots and opening on
generator. These openings must be kept clean and
unobstructed.
STORAGE
The unit should be started at least once every seven days
and allowed to run at least 30 minutes. If this cannot be
done and you must store the unit for more than 30 days,
use the following guidelines to prepare it for storage.
Generator Storage
• Clean the generator as outlined in “To Clean the
Generator” on this page.
• Check that cooling air slots and openings on generator
are open and unobstructed.
DANGER! Storage covers can be flammable. Do
Not place a storage cover over a hot generator.
Let the unit cool for a sufficient time before
placing the cover on the unit.
Engine Storage
See engine owner’s manual for instructions.
Other Storage Tips
•Do Not store gasoline from one season to another.
• Replace your gasoline can if it starts to rust. Rust
and/or dirt in a gasoline can cause problems when you
use that fuel with this unit.
• Store in clean and dry area.

Generac Portable Products 4,200 Watt Generator
11
TROUBLESHOOTING
Problem Cause Solution
Engine is running, but
no AC output is
available.
1. Circuit breaker is open.
2. Poor connection or defective cord set.
3. Connected device is bad.
4. Fault in generator.
1. Reset circuit breaker.
2. Check and repair.
3. Connect another device that is in good
condition.
4. Contact Generac service facility.
Engine runs good but
bogs down when
loads are connected.
1. Short circuit in a connected load.
2. Generator is overloaded.
3. Engine speed is too slow.
4. Shorted generator circuit.
1. Disconnect shorted electrical load.
2. See “Don’t Overload the Generator” on
page 9.
3. Contact Honda service facility.
4. Contact Generac service facility.
Engine will not start;
or starts and runs
rough.
1. Engine switch set to Off.
2. Dirty air cleaner.
3. Out of gasoline.
4. Stale gasoline.
5. Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. Water in gasoline.
8. Overchoking.
9. Low oil level.
10. Excessively rich fuel mixture.
11. Intake valve stuck open or closed.
12. Engine has lost compression.
1. Set switch to ON.
2. Clean or replace air cleaner.
3. Fill fuel tank.
4. Drain gas tank and fill with fresh fuel.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain gas tank; fill with fresh fuel.
8. Set choke to “OFF” position.
9. Fill crankcase to proper level.
10. Contact Honda service facility.
11. Contact Honda service facility.
12. Contact Honda service facility.
Engine shuts down
during operation.
1. Out of gasoline.
2. Low oil level.
3. Fault in engine.
1. Fill fuel tank.
2. Fill crankcase to proper level.
3. Contact Honda service facility.
Engine lacks power.
1. Load is too high.
2. Dirty air filter.
3. Engine needs to be serviced.
1. See “Don’t Overload the Generator” on
page 9.
2. Replace air filter.
3. Contact Honda service facility.
Engine “hunts” or
falters.
1. Choke is opened too soon.
2. Carburetor is running too rich or too
lean.
1. Move choke to halfway position till engine
runs smoothly.
2. Contact Honda service facility.

Generac Portable Products 4,200 Watt Generator
12
SCHEMATIC DIAGRAM

Generac Portable Products 4,200 Watt Generator
13

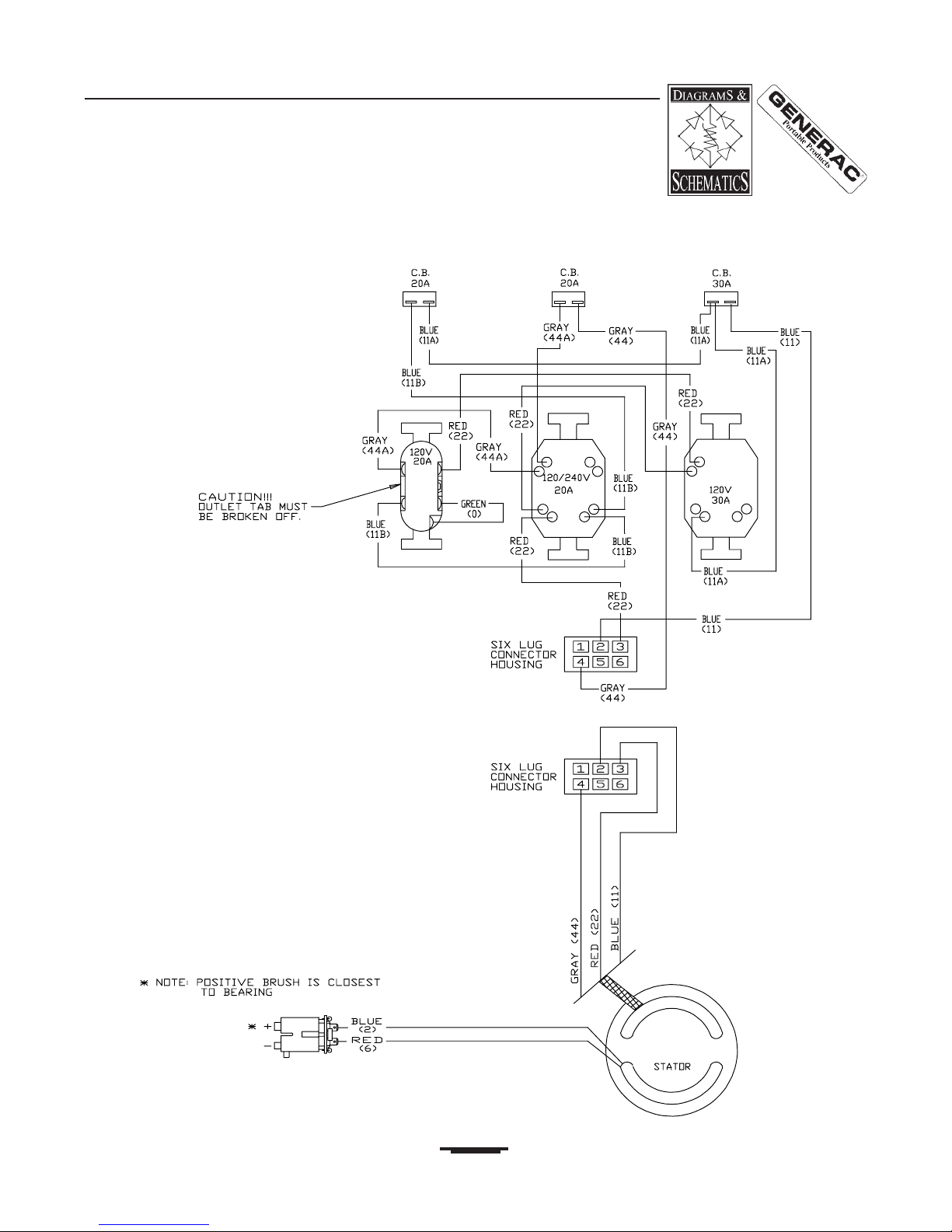

WIRING DIAGRAM

Generac Portable Products 4,200 Watt Generator
14
Item Part # Qty Description
1 NSP 1 ENGINE, Honda 8 hp
2 52858 6 NUT, M8-1.25 Flange Lock
3 70642 2 MOUNT, 45° Vibration
4 76222 2 SCREW, M8-1.25 x 40mm
5 AB4239 1 CRADLE
6 66365G 1 HOUSING, Adapter
7 66825C 1 CARRIER, Rear Bearing
8 26850 2 WASHER, 1/4" Shakeproof
9 86494 1 SCREW, M6 x 16mm Wing
10 84242 2 GROMMET, Plastic
11 86307 4 SCREW, 5/16"-24 x 3/4" SEMS
12 22695 1 CONNECTOR, 6-pin Male
13 86308C 4 BOLT, Stator
14 67022 1 GROMMET, Rubber
15 74908 4 SCREW, M5-0.8 x 10mm
16 B4871 1 COVER, Bearing Carrier
17 66849 2 SCREW, M5-0.8 x 15mm
Item Part # Qty Description
18 91825 1 ASSEMBLY, Brush & Bridge
Rectifier
19 25244 2 NUT, 5/16 - 18 Hex
20 22129 2 WASHER, M8 - 5/16 Lock
21 91844J 1 ASSEMBLY, Rotor
22 82857 2 MOUNT, Rubber
23 22769 1 WASHER, #10 Shakeproof
24 86292 1 SCREW, #10 Self-Drilling
25 B91859J 1 ASSEMBLY, Stator
26 81917 1 PIN, M4 x 10mm Roll
27 47480 1 BOLT, Rotor
28 96796 1 WASHER, Special
29 65791 1 BEARING
30 14353621 1 WIRE, Ground
31 B4702 1 DECAL, Engine Throttle
32 B4986 1 DECAL, Ground
EXPLODED VIEW AND PARTS LIST– MAIN UNIT

Generac Portable Products 4,200 Watt Generator
15
Item Part # Qty Description
1 B4245 1 PANEL, Control
2 75475 6 SCREW, M4 - 0.7 x 10mm
3 82881 3 WASHER, Internal Lock
4 82308 4 SCREW, Self Tapping
5 B2153 4 SCREW, No. 10 Self Drilling x
7/8"
6 23365 6 WASHER, No. 8 Serrated Lock
7 68868 1 RECEPTACLE, 120 Volt, 30 Amp
Locking
8 38150 6 WASHER, No. 8 Flat
Item Part # Qty Description
9 22264 6 WASHER, No. 8 Lock
10 51715 6 NUT, M4 0.7 Hex
11 68867 1 RECEPTACLE, 120/240 Volt,
20 Amp Locking
12 68759 1 OUTLET, 120 Volt, 20 Amp
Duplex
13 75207 2 CIRCUIT BREAKER, 20 Amp
14 75207A 1 CIRCUIT BREAKER, 30 Amp
15 81919 1 CONTROL PANEL, Back
16 22694 1 CONNECTOR, 6-Pin Male

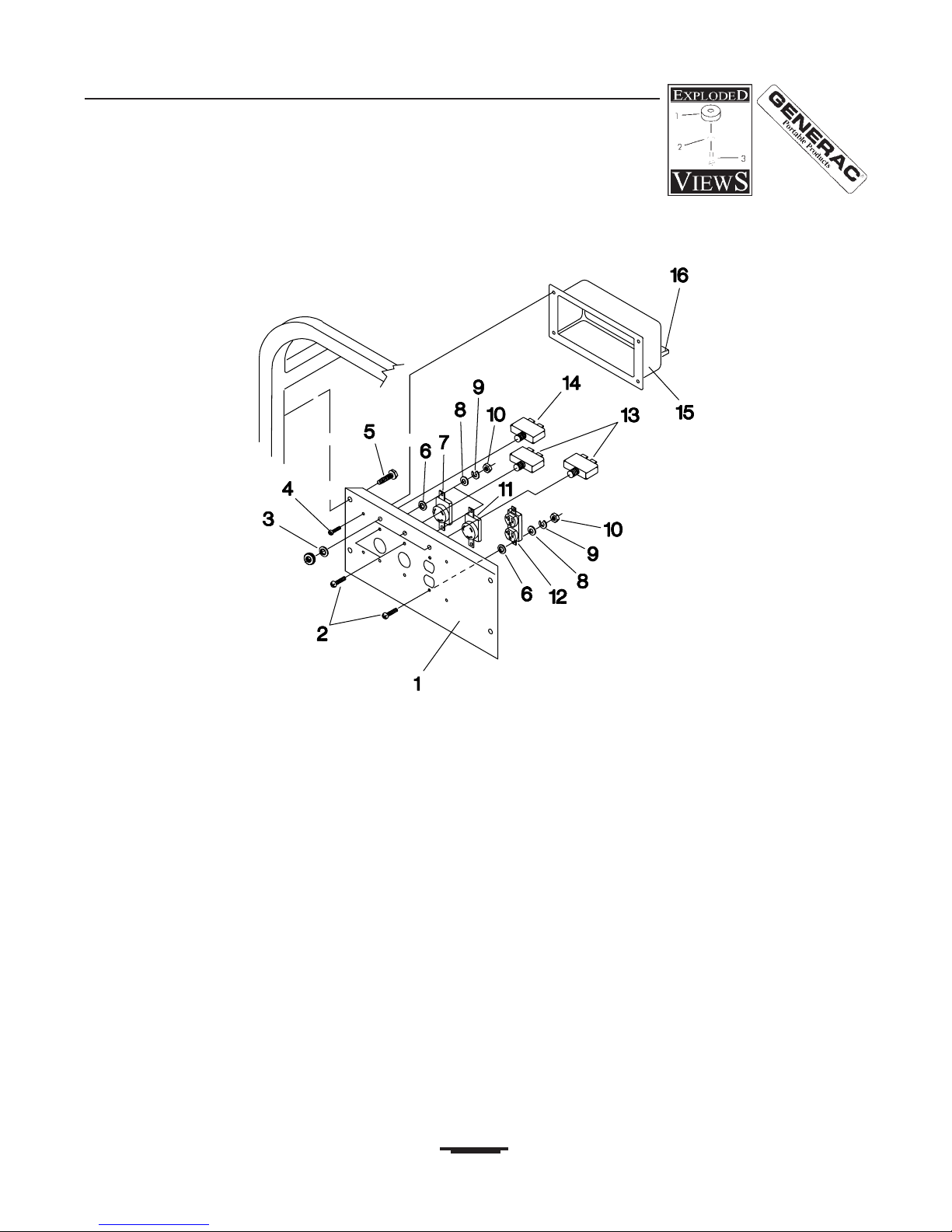

EXPLODED VIEW AND PARTS LIST– CONTROL PANEL

LIMITED WARRANTY
FOR PORTABLE GENERATORS
(EXCEPT GN ENGINE SERIES)
Generac Portable Products (hereafter referred to as the COMPANY) warrants to the original purchaser that its generator
will be free from defects in materials or workmanship for a period of one year* from the date of original purchase. This
warranty does not apply to units used for prime power in place of utility. This warranty does not include the gasoline
engine when furnished or attached because such engine is covered solely by the warranty of the manufacturer of the
engine. Starting batteries are not warranted by the COMPANY.
*NOTE: Rental units, demonstrators, commercial applications, such as construction or income producing, are warranted
for 90 days. Rental units, demonstrators, or commercial applications such as construction or utility which are resold are
not covered under warranty by the COMPANY. Any warranty, whether expressed or implied, rests solely with the seller.
During said warranty period, the COMPANY will, at its option, repair or replace any part which, upon examination by the
COMPANY is found to be defective under normal use and service. All transportation costs under warranty, including
return to the factory if necessary, are to be borne by the purchaser and prepaid by the purchaser. This warranty does not
include nominal maintenance and service and does not apply to a generator set, or parts, which have been subjected to
improper or unauthorized installation, misuse, negligence, accident, overloading, overspeeding, improper maintenance,
repair or storage so as, in the COMPANY's judgment, to adversely affect its performance and reliability.
THERE IS NO OTHER EXPRESS WARRANTY. THE COMPANY HEREBY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THOSE OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT PERMITTED BY LAW. THE DURATION OF
ANY IMPLIED WARRANTIES WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS
SPECIFIED IN THE EXPRESS WARRANTY. LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, OR
SPECIAL DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED TO THE EXTENT
PERMITTED BY LAW. THE COMPANY ALSO DISCLAIMS ANY RESPONSIBILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES SUCH AS THE LOSS OF TIME OR THE USE OF THE POWER
EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE FAILURE OF THE EQUIPMENT; AND ANY
IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusions or limitations of incidental
or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific
legal rights and you may also have other rights, which vary from state to state.
This warranty is effective for all products manufactured after June, 1998, and supersedes all prior warranties of the
COMPANY.
For service, contact your nearest COMPANY authorized warranty service facility or call 1-877-544-0982. Warranty
service can only be performed by a COMPANY authorized service facility. At the time of requesting warranty service,
evidence of original purchase date must be presented.
GENERAC PORTABLE PRODUCTS
Jefferson, Wisconsin U.S.A.
