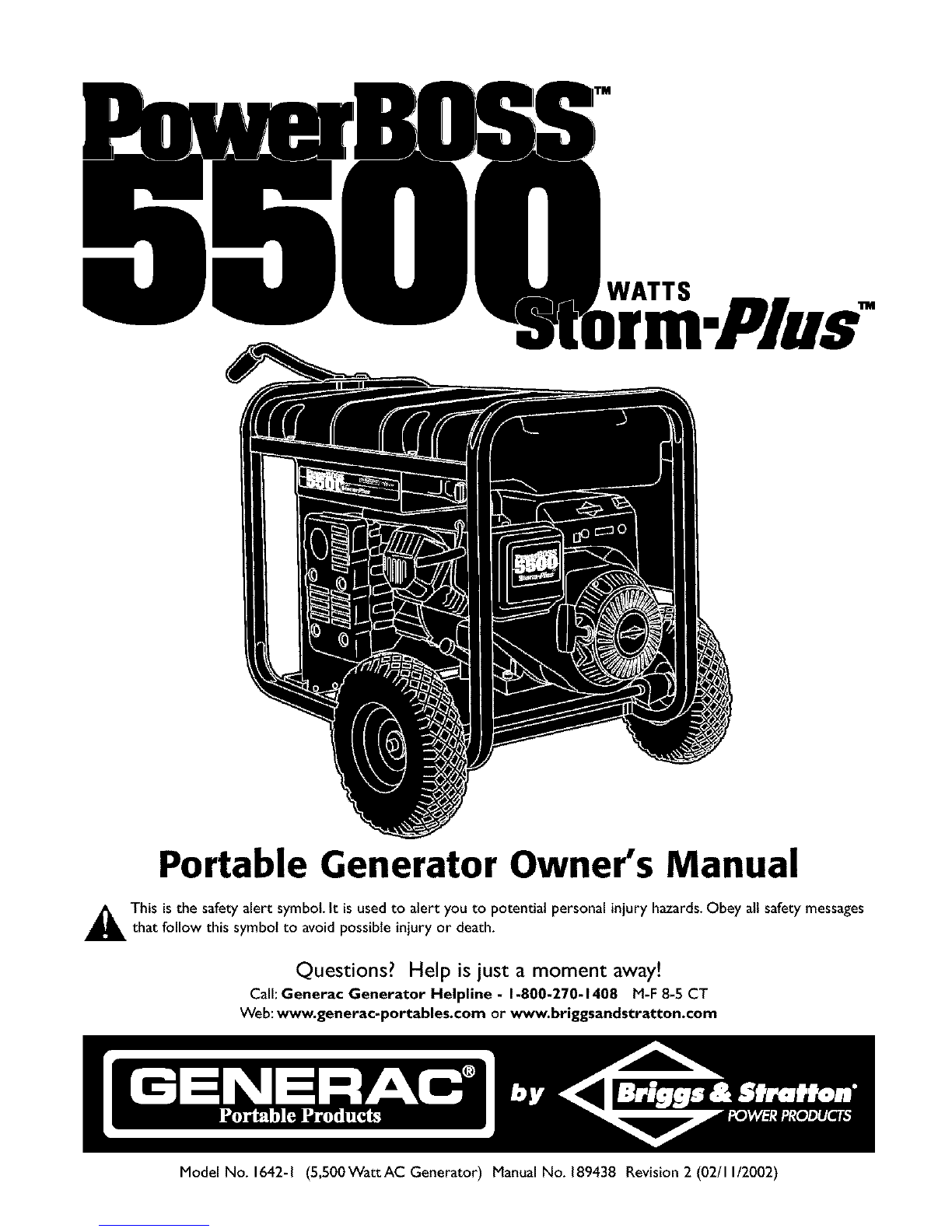

Generac Portable Products PowerBOSS Storm-Plus 5500 User manual

Portable Generator Owner's Manual
A his is the safety alert symbol. It isusedto alert you to potential personal injury hazards.Obey all safety messagesthat follow this symbol to avoid possible injury or death.
Questions? Help is just a moment away!
Call:Generac Generator Helpline - 1-800-270-1408 M-F 8-5 CT
Web: www.generac-portables.com or www.briggsandstratton.com
Model No. 1642-1 (5,500Watt AC Generator) Manual No. 189438 Revision 2 (02/I 1/2002)

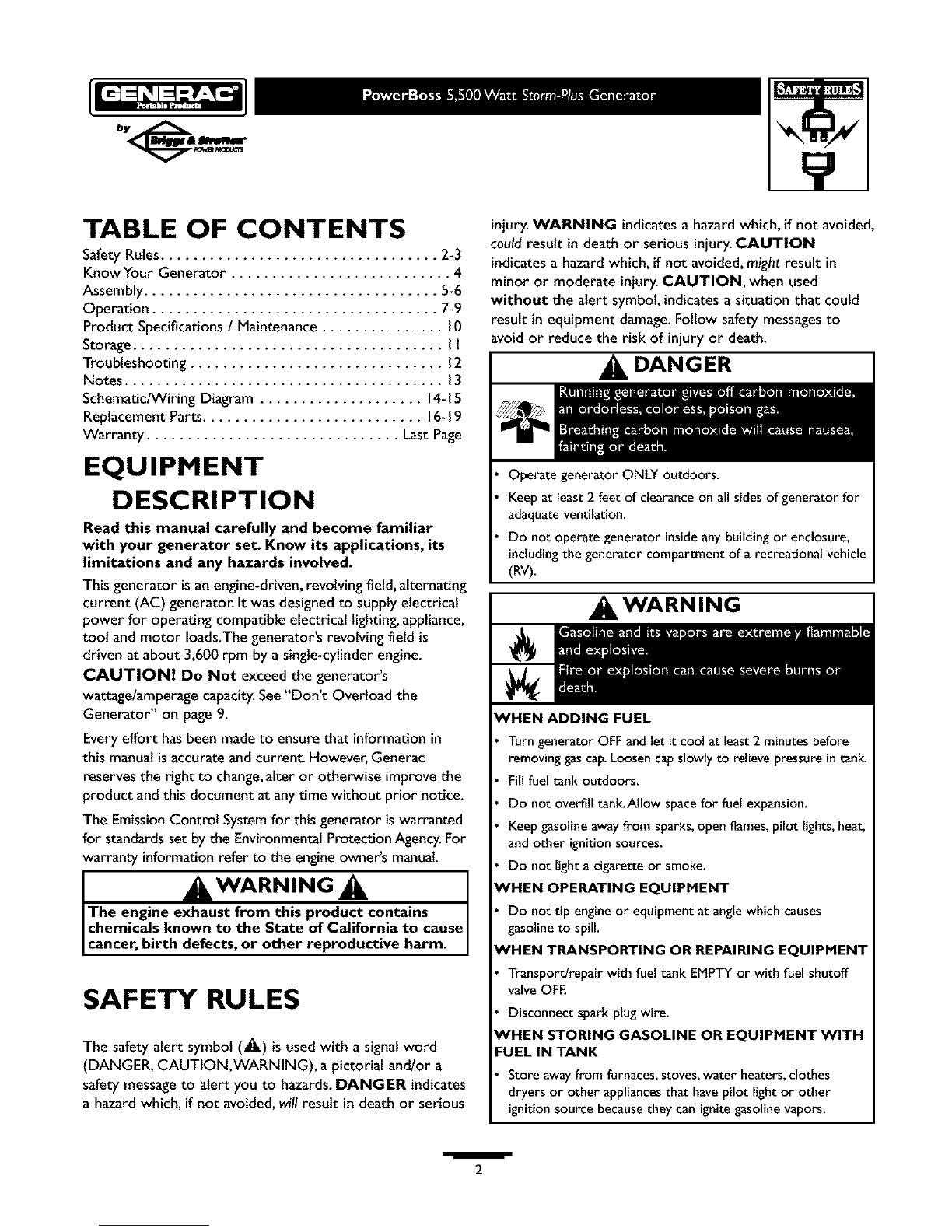

TABLE OF CONTENTS
SafetyRules.................................. 2-3
Know Your Generator ........................... 4
Assembly.................................... 5-6
Operation ................................... 7-9

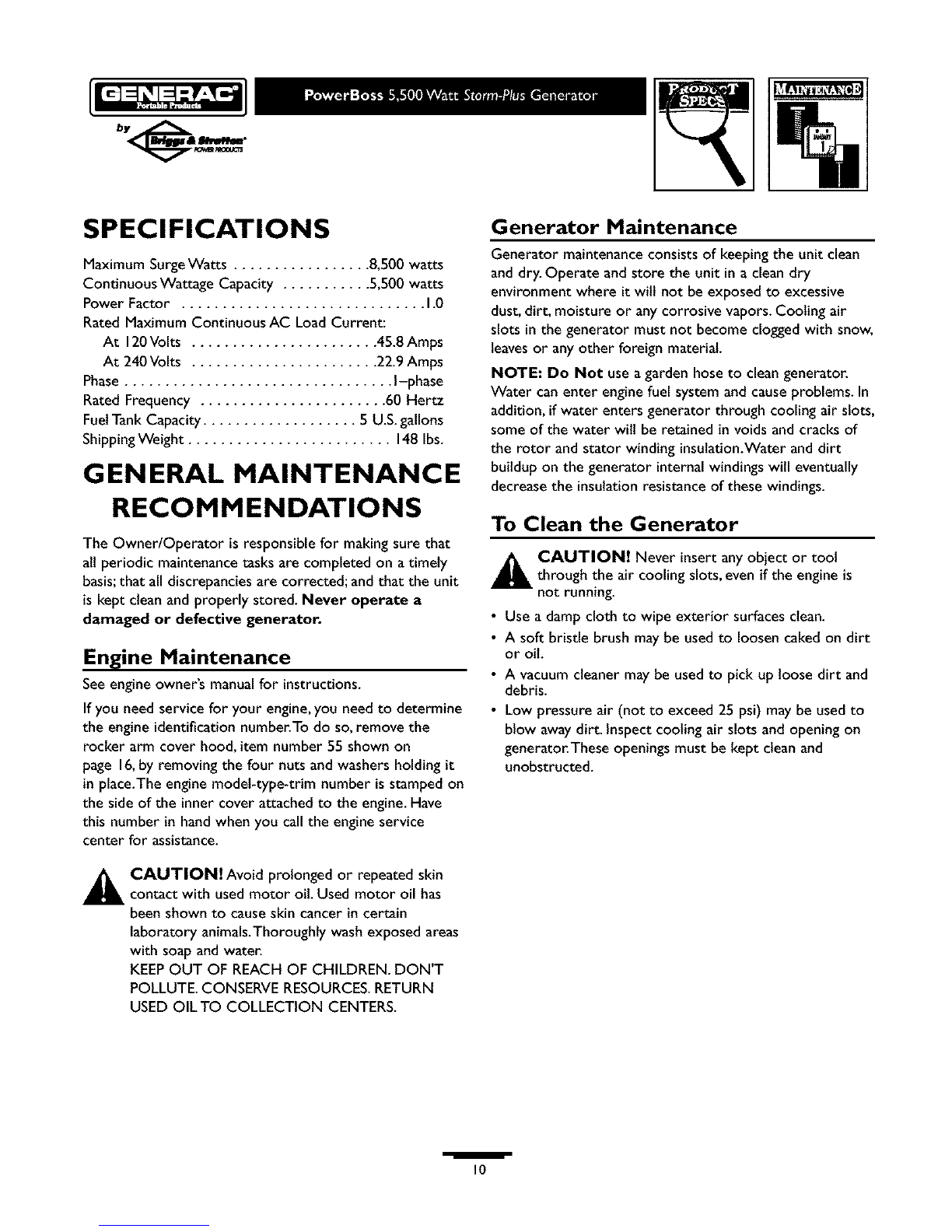

Product Specifications/Maintenance ............... l0

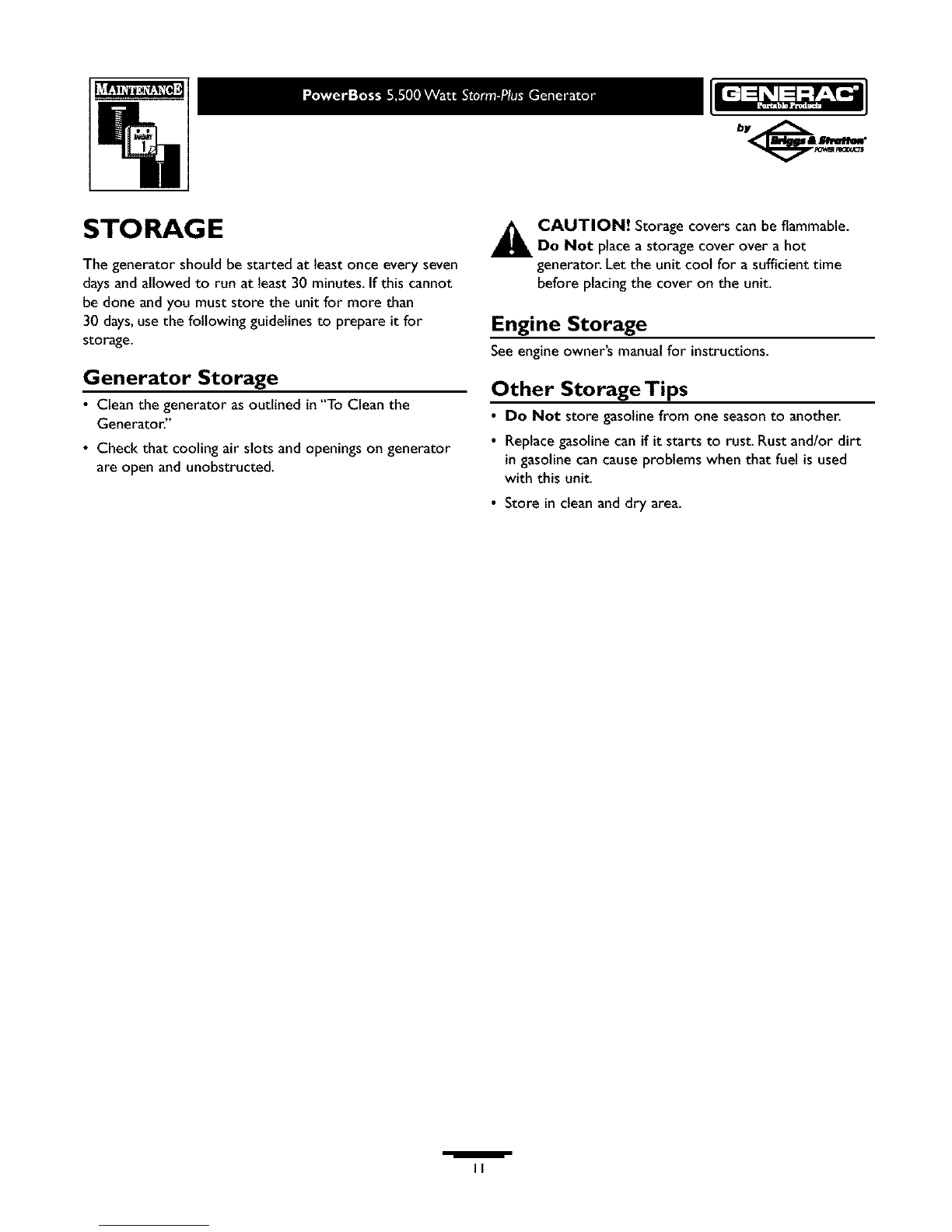

Storage...................................... I 1
Troubleshooting ............................... 12

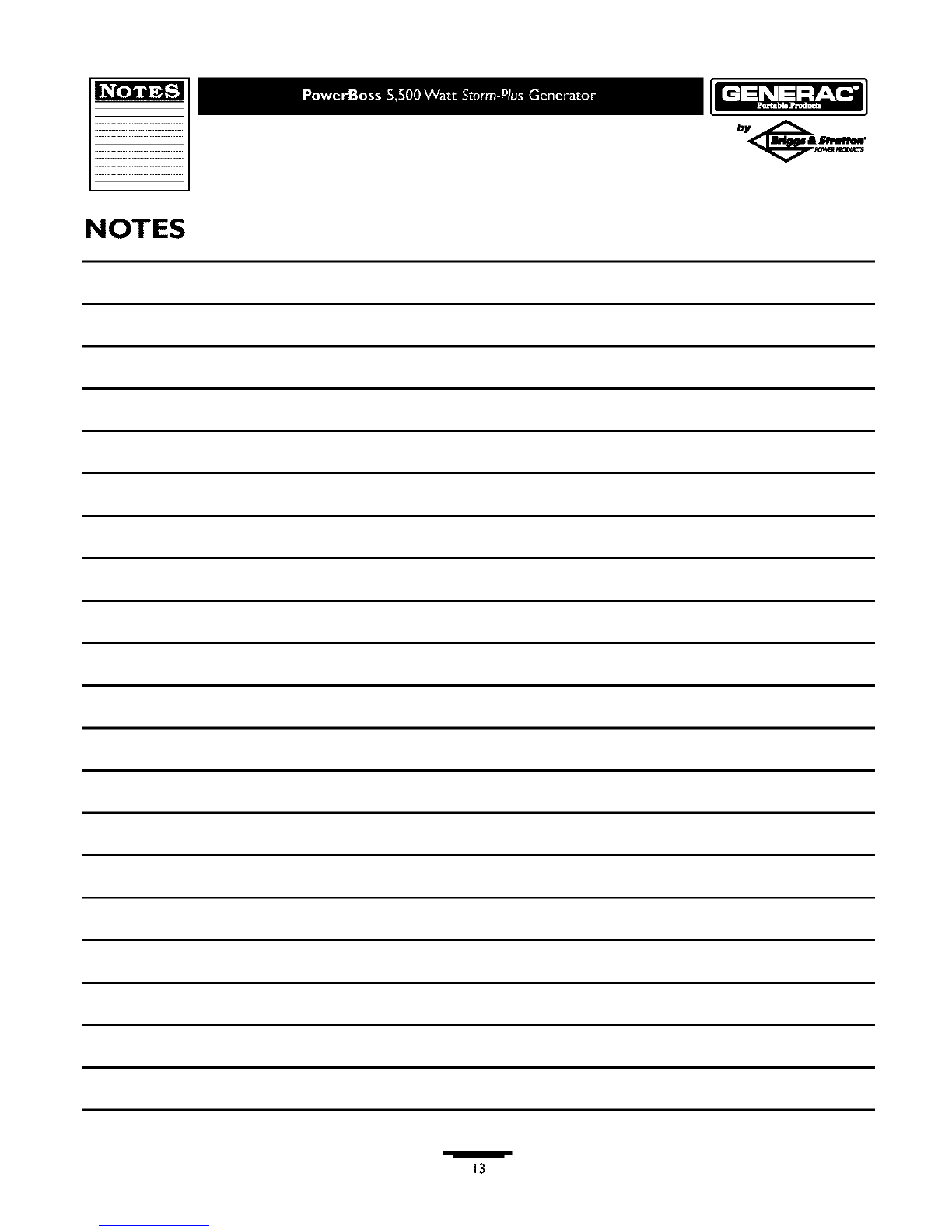

Notes ....................................... 13

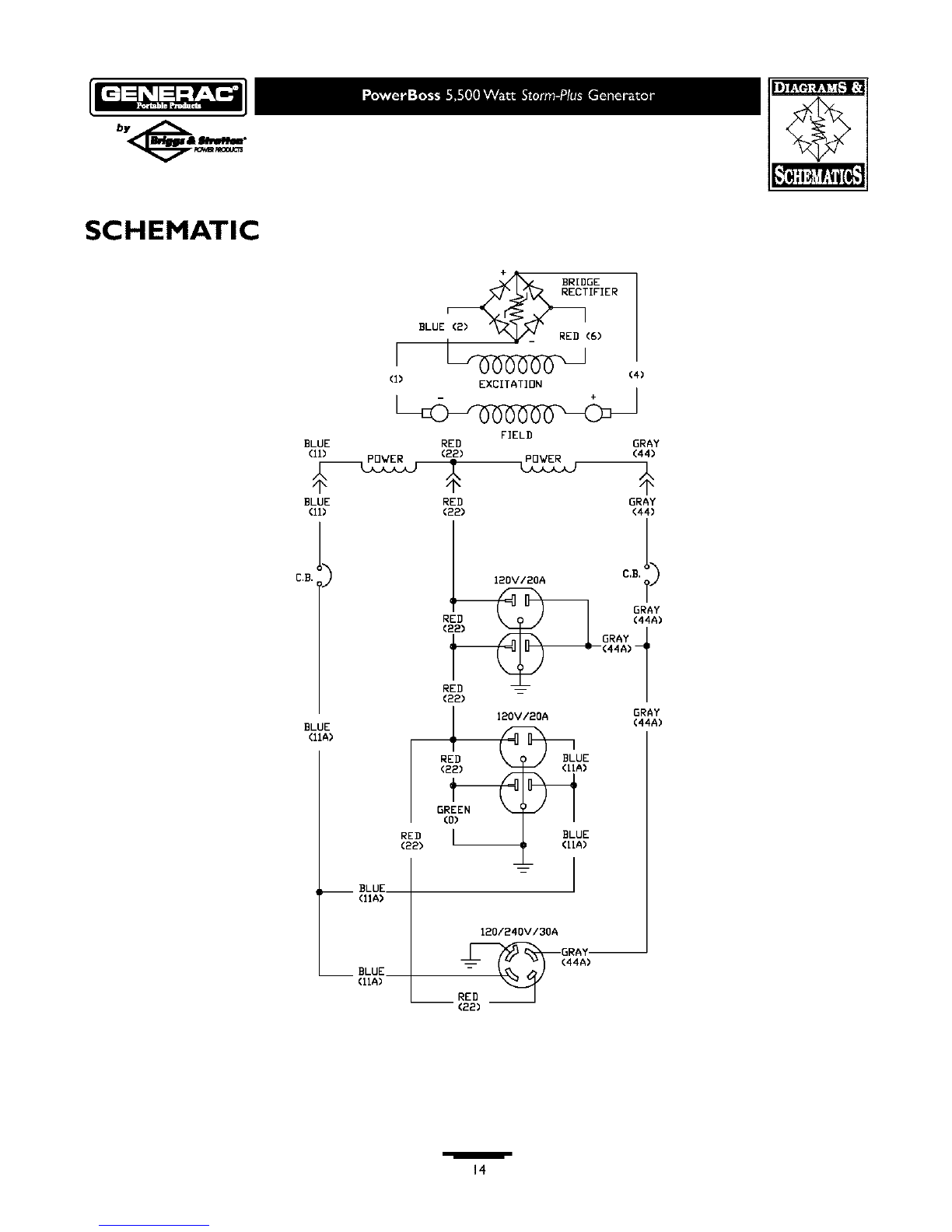

Schematic/V_iring Diagram .................... 14-15

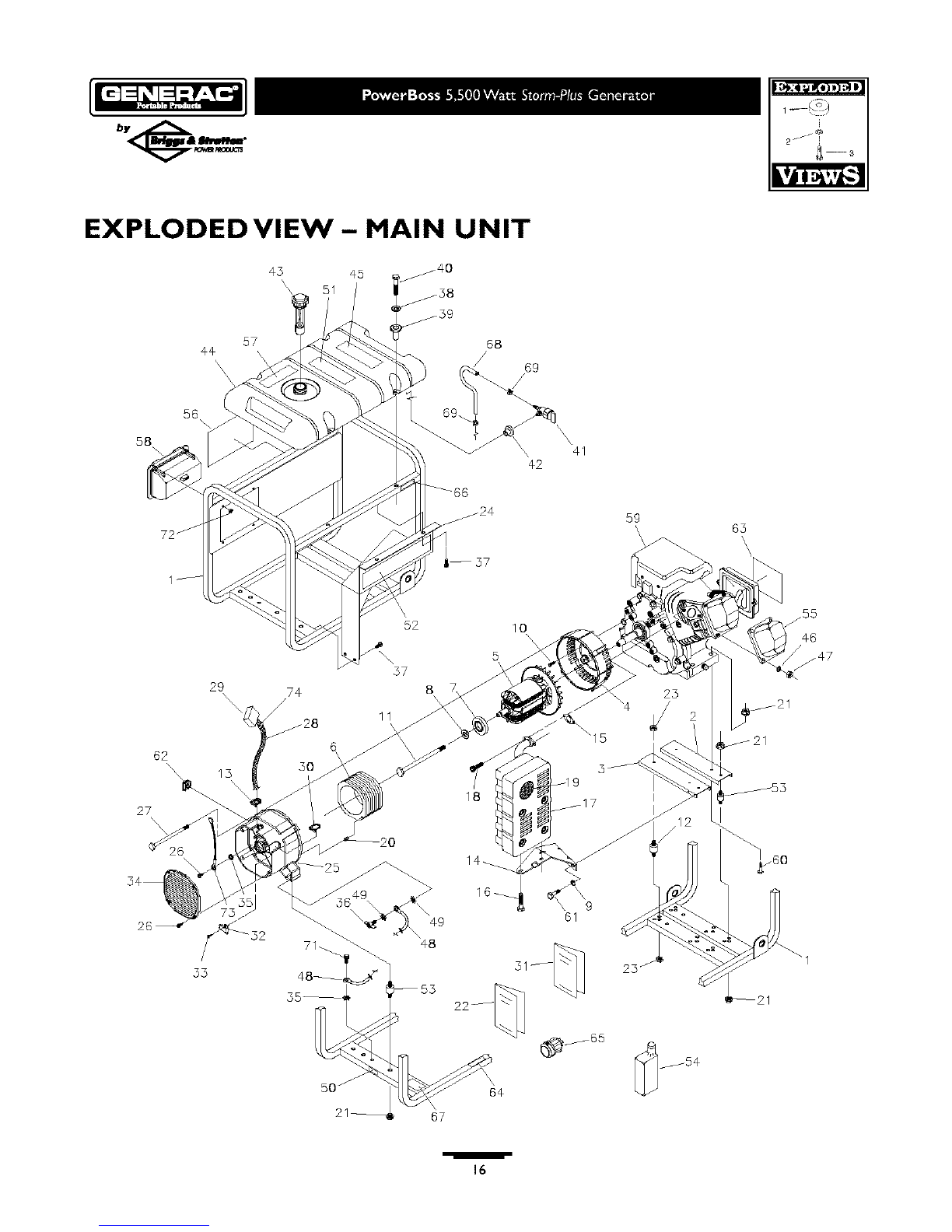

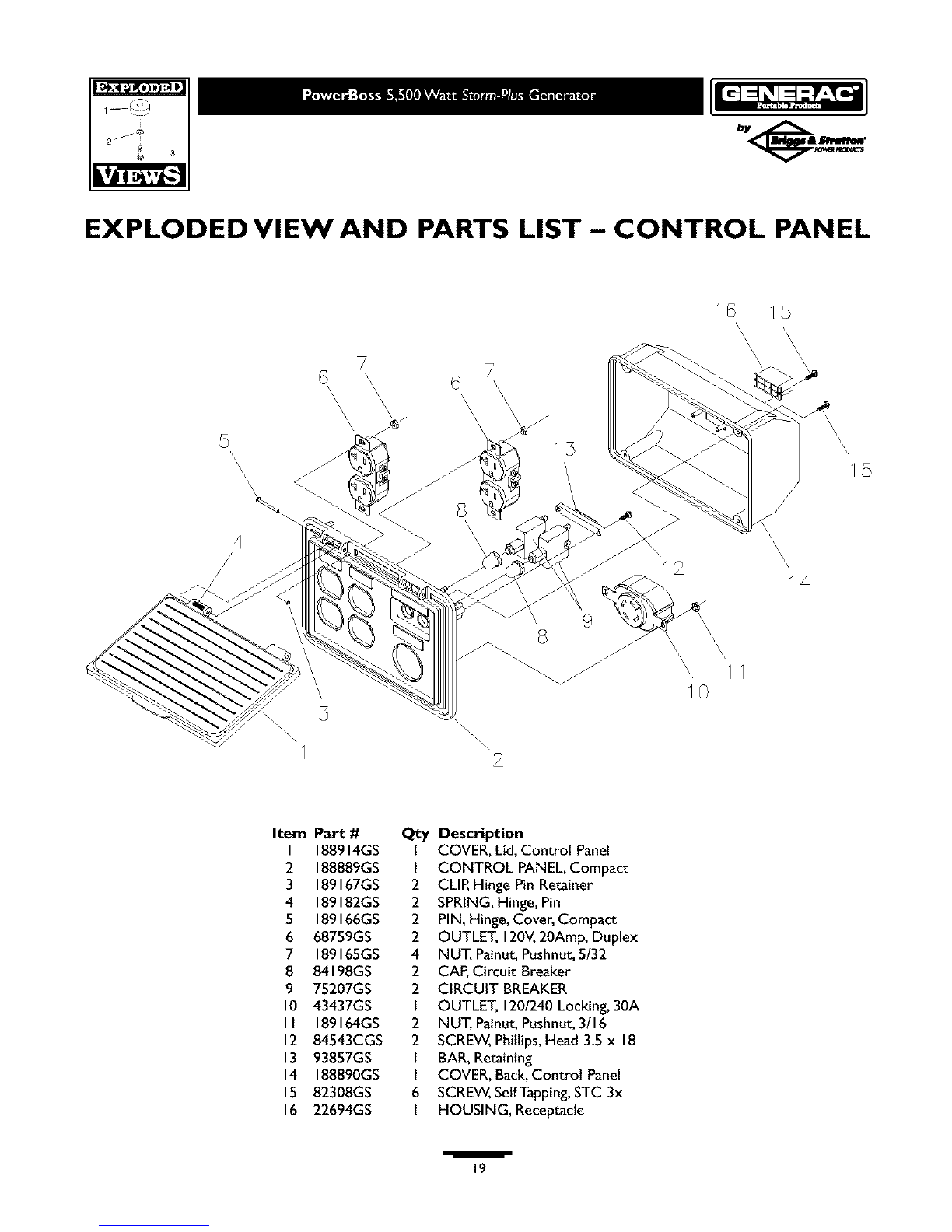

Replacement Parts........................... 16-19
Warranty ............................... Last Page
EQUIPMENT
DESCRIPTION
Read this manual carefully and become familiar
with your generator set. Know its applications, its
limitations and any hazards involved.
This generator isan engine-driven, revolving field,alternating
current (AC) generator. It was designedto supply electrical
power for operating compatible electrical lighting, appliance,
tool and motor loads.Thegenerator's revolving field is
driven at about 3,600rpm by asingte<ylinder engine.
CAUTION! Do Not exceed the generator's
wattage/amperage capacity.See"Don't Overload the
Generator" on page 9.
Everyeffort hasbeen madeto ensure that informationin
this manualisaccurateand current. However, Generac
reservesthe right to change,alter or otherwise improvethe
product andthis document at anytime without prior notice.
The EmissionControl Systemfor this generator iswarranted
for standardsset by the EnvironmentalProtection Agency.For
warranty informationrefer to the engineowner's manual.
WARNING
The engine exhaust from this product contains I
chemicals known to the State of California to cause
cancer, b rth defects, or other reproduct ve harm.
SAFETY RULES
The safety alert symbol (_.) isusedwith a signalword
(DANGER, CAUTION,WARNING), a pictorial and/or a
safety messageto alert you to hazards.DANGER indicates
a hazardwhich, ifnot avoided,will result in death or serious
injury.WARNING indicatesa hazardwhich,if not avoided,
couldresult in death or serious injury.CAUTION
indicates a hazardwhich, if not avoided,might result in
minor or moderate injury.CAUTION, when used
without the alert symbol, indicates a situation that could
result in equipment damage.Follow safety messagesto
avoid or reduce the risk of injuryor death.
DANGER
Operate generator ONLY outdoors.
Keep at least 2 feet of clearance on all sidesof generator for
adaquateventilation.
Do not operate generator insideany building or enclosure,
includingthe generator compartment of a recreational vehicle
(RV).
WARNING
WHEN ADDING FUEL
Turn generator OFF andlet it cool at [east2 minutes before
removing gascap.Loosen cap slowly to relieve pressure in tank_
Fillfuel tank outdoors.
Do not overfill tank.Allow spacefor fuel expansion.
Keep gasoline awayfrom sparks,open flames,pilot lights,heat,
and other ignitionsources.
Do not lightacigarette or smoke.
_/HEN OPERATING EQUIPMENT
Do not tip engine or equipment at anglewhich causes
gasolineto spill
'HEN TRANSPORTING OR REPAIRING EQUIPMENT
Transport/repair with fuel tank EMPTY or with fuel shutoff
valve OFE
Disconnect spark plug wire.
eVHEN STORING GASOLINE OR EQUIPMENT WITH
FUEL IN TANK
Store awayfrom furnaces,stoves,water heaters, clothes
dryers or other appliancesthat havepilot lightor other
ignitionsource becausethey can ignitegasolinevapors.
/2

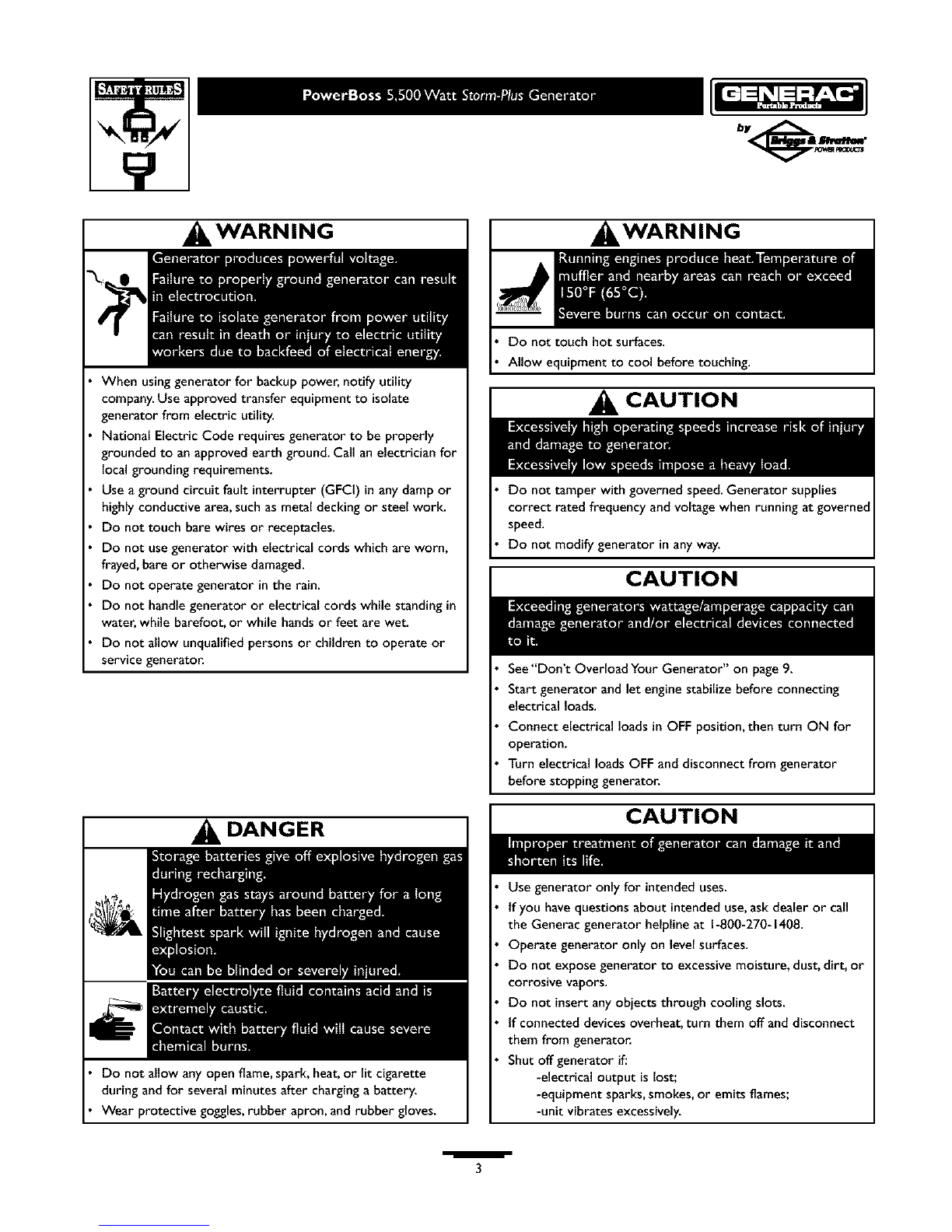

, WARNING
When usinggenerator for backup power,notify utility
company.Useapproved transfer equipment to isolate
generator from electric utility.
National Electric Code requires generator to be properly
grounded to an approved earth ground. Call an electrician for
localgrounding requirements.
Use a ground circuit fault interrupter (GFCt) in anydamp or
highly conductive area,such asmetal decking or steel work.
Do not touch bare wires or receptacles.
Do not use generator with electrical cords which are worn,
frayed,bare or otherwise damaged.
Do not operate generator in the rain.
Do not handle generator or electrical cords while standing in
water, while barefoot, or while handsor feet are wet.
Do not allow unqualified persons or children to operate or
service generator.
DANGER
Do not allow any openflame, spark, heat,or lit cigarette
during andfor several minutes after charging a battery.
Wear protective goggles,rubber apron, and rubber gloves.
, WARNING
Do not touch hot surfaces.
Allow equipment to cool before touching.
CAUTION
Do not tamper with governed speed.Generator supplies
correct rated frequency and voltage when running at governed
speed.
Do not modify generator in any way.
CAUTION
See"Don't Overload Your Generator" on page9.
Start generator and let engine stabilize before connecting
electrical loads.
Connect electrical loads in OFF position, then turn ON for
operation.
Turn electrical loads OFF and disconnect from generator
before stopping generator.
CAUTION
Use generator only for intended uses.
tf you have questions about intended use,ask dealer or call
the Generac generator helpline at 1-800-270-1408.
Operate generator only on level surfaces.
Do not expose generator to excessive moisture, dust, dirt, or
corrosive vapors.
Do not insert any objects through cooling slots.
tf connected devices overheat, turn them off and disconnect
them from generato_
Shut off generator if.'
-electrical output is lost;
-equipment sparks,smokes,or emits flames;
-unit vibrates excessively.
/3

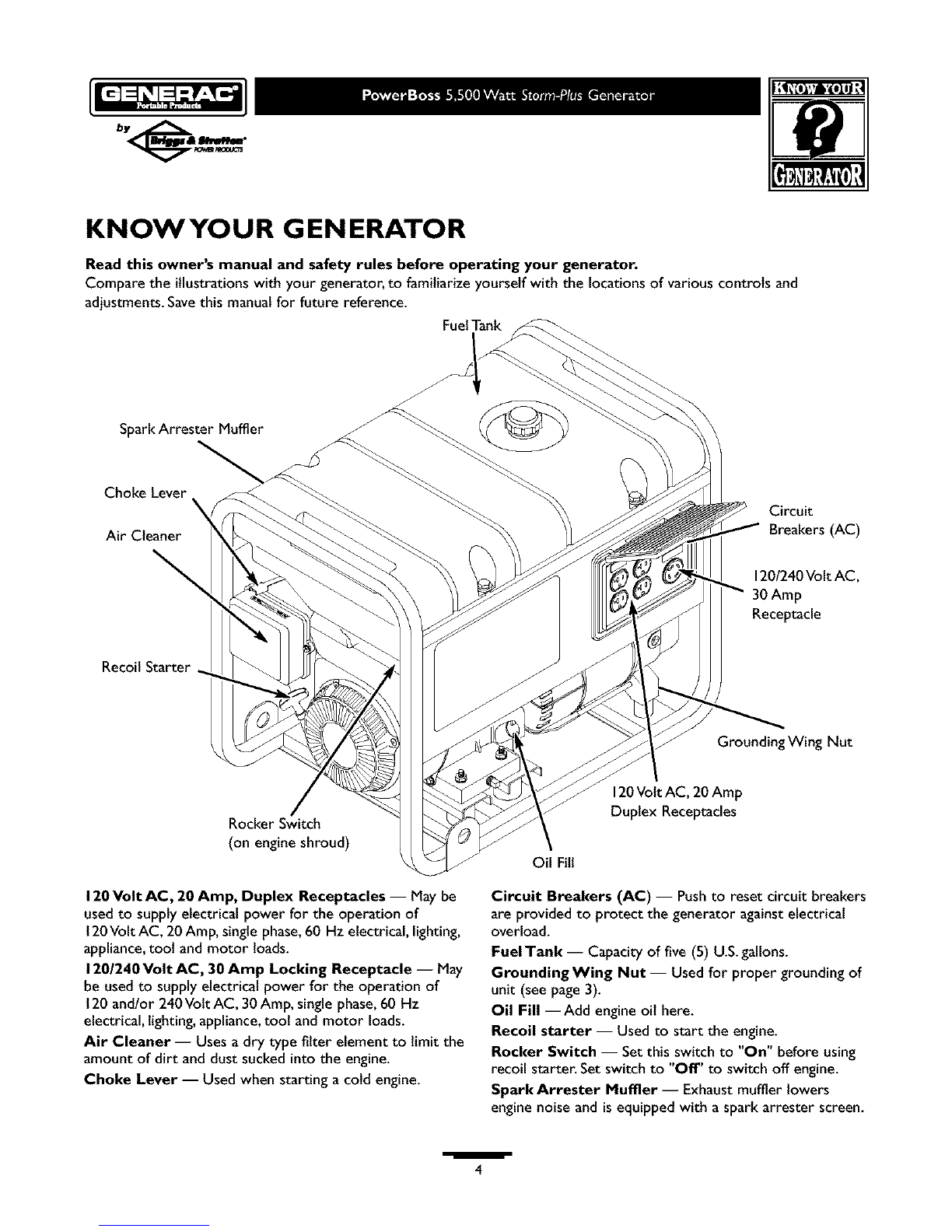

KNOWYOUR GENERATOR
Read this owner's manual and safety rules before operating your generator.
Comparethe illustrationswith your generator,to familiarize yourself with the locationsof variouscontrots and
adjustments.Savethis manualfor future reference. FuelTank
SparkArrester Muffler
Choke Lever
Air Cleaner
Circuit
Breakers (AC)
120/240Volt AC,
30 Amp
Receptacle
Recoil Starter
Grounding Wing Nut
Rocker Switch
(on engine shroud)
120Volt AC, 20 Amp, Duplex Receptacles -- May be
usedto supply electrical power for the operation of
120Volt AC, 20 Amp, singlephase,60 Hz electrical, lighting,
appliance,toot and motor loads.
120/240 Volt AC, 30 Amp Locking Receptacle -- May
be usedto supply electrical power for the operation of
120and/or 240Volt AC, 30Amp, singlephase,60 Hz
electrical, lighting,appliance,tool and motor loads.
Air Cleaner -- Uses a dry type filter element to limit the
amount of dirt and dust suckedinto the engine.
Choke Lever -- Used when starting a cold engine.
120Volt AC, 20 Amp
Duplex Receptacles
Oil Fill
Circuit Breakers (AC) -- Pushto reset circuit breakers
are provided to protect the generator againstelectrical
overload.
Fuel Tank -- Capacity of five (5) U.S.gallons.
GroundingWing Nut -- Used for proper grounding of
unit (seepage 3).
Oil Fill --Add engine oil here.
Recoil starter -- Used to start the engine.
Rocker Switch -- Set this switch to "On" before using
recoil starter. Set switch to "Off" to switch off engine.
Spark Arrester Muffler -- Exhaust muffler lowers
engine noise and is equipped with a spark arrester screen.
/4

Yourgeneratorrequiressomeassemblyandisreadyfor
useafterit hasbeenproperlyservicedwiththe
recommendedoilandfuel.
If you have any problems with the assembly of your
generator, please call the generator helpline at
1-800-270-1408.
IMPORTANT: Any attempt to run the unit before it has
been serviced with the recommended oil will result in an
engine failure.
REMOVE G EN ERATOR
FROM CARTON
•Set the carton on a rigid flat surfacewith "This Side Up"
arrows pointing upward.
• Carefully open the top flaps of the shippingcarton.
• Cut down corners at one end of carton from top to
bottom and laythat side of carton down flat
• Removeall packing material, carton fillers, etc.
• Removethe generator from the shipping carton.
CARTON CONTENTS
Check all contents. If anyparts are missingor damaged,call
the generator helpline at 1-800-270-1408.
• The generator
• Generator and engine owner's manuals
• Locking 30Amp plug
• Engineoil
• Wheel kit
INSTALL WHEEL KIT
IMPORTANT:This wheel kit is not intended for
over-the-road use.
To installyour wheel kit you need the followingtools:
• Two 13mm box, openend,or socket wrenches
Install Wheel Kit as follows:
I. Placethe bottom of the generator cradle on a flat,
even surface.Temporarily place uniton blocks to ease
assembly.
2. Slide axle through both axle mounting brackets on
cradle frame, as shown in Figure I.
Hex Nut FlatWasher
Support Leg
Hex Nut _
Screw
Axle
Wheel j/
Retaining Pin
/5

3. Slideawheel over the axle.
NOTE: Be sure to installboth wheelswith the air
pressure valve on the outboard side.
4. Retain wheel on axle with the retaining pin.You may
acidthe fiat washer if desired.
5. Repeat step 3 and 4 to secure second wheel.
6. Removethe temporary blocks.
7. To aid support leg assembly,rest generator on cradle,
engine end down.Attach the support leg with two
M8x 16mm cap screws and two locking hex nuts as
shown.
8. Use two 13mm wrenches to tighten leghardware.
Restgenerator on wheels and support leg.
9. Center the handle bracket on generator frame at
support leg end of cradle, asshown.
10. Attach handle bracket with two M8 x 45mm cap
screws and two locking hex nuts.
I I. Check that all fasteners are tight and the tires are
inflatedbetween 15-40 PSI.
BEFORE STARTING THE
ENGINE
Add Oil
CAUTION! Any attempt to crank or start the engine
before it hasbeen properly filled with the recommended
oil may result in an engine failure.
To fill your engine with oil:
• Placegenerator on a level surface.
• Follow the oil grade recommendations and oil fill
instructionsgiven in the engine owner's manual.
NOTE:The generator's revolving field rides on a
prelubricated and sealedbali bearing that requires no
additional lubrication for the life of the bearing.
Add Gasoline
_ARNING! Never fill fuel tank indoors.Never
fill fuel tank when engine isrunning or hot.Allow
unit to cool for two minutes before refueling. Do
Not lighta cigarette or smoke when filling the fuel
tank.
_ WARNING! Do Not overfill the fuel tank.
Always allow room for fuel expansion.
• Use regular UNLEADED gasoline with the generator
engine. Do Not use premium gasoline. Do Not mix oil
with gasoline.
• Clean area around fuel fill cap, remove cap.
• Slowly add unleaded regular gasoline to fuel tank. Be
careful not to overfill.Allow about 1.5" of tank space for
fuel expansion (Figure 2).
Fuel
......
• Install fuel cap and wipe up any spilled gasoline.
IMPORTANT: It is important to prevent gum deposits
from forming in essential fuel system parts, such as the
carburetor, fuel filter, fuel hose or tank during storage.Also,
experience indicates that alcohol-blended fuels (called
gasohol, ethanol or methanol) can attract moisture, which
leads to separation and formation of acids during storage.
Acidic fuel can damage the fuel system of an engine while in
storage.
To avoid engine problems, the fuel system should be
emptied before storage of 30 clays or longer. See "Storage"
on page I I. Never use engine or carburetor cleaner
products in the fuel tank or permanent damage may occur.
/6

GROUNDING THE
G EN ERATO R
The National Electrical Code requires that the frame and
external electrically conductive parts of this generator be
properly connected to an approved earth ground. Local
electrical codes mayalso require proper grounding of the
unit. For that purpose, a GROUNDING WING NUT is
provided on the generator end (Figure 3).
Wing Nut
I* Turn the fuel valve to the "On" position (Figure 4).
Place the choke lever in the "Choke" position
(Figure 5).
Generally,connecting a No. 12AWG (American Wire
Gauge) stranded copper wire to the grounding wingnut
and to an earth-driven copper or brass grounding rod
(electrode) provides adequate protection against electrical
shock. Be careful to keepthe grounding wire attached after
connecting the stranded copper wire. However, local codes
may vary widely.Consult with a local electrician for
grounding requirements in your area.
Properly grounding the generator helps prevent electrical
shock if aground fault condition exists in the generator or
in connected electrical devices.Proper grounding also helps
dissipate static electricity, which often builds up in
ungrounded devices.
OPERATING THE
G EN ERATO R
_AUTION! Never start or stop the engine with
electrical loadsconnected to the receptaclesAND
with the connected devices turned ON.
Starting the Engine
Disconnect alt electrical loadsfrom the generator. Use the
following start instruction steps by numerical order:
3. Setthe rocker switch to "On" position (Figure 6).
4. Grasp the recoil handle and pull slowly untilslight
resistance is felt.Then pull rapidly to start engine.
5. Move choke lever to "Run" position a short distanceat
a time over severalsecondsin warm weather or
minutes in cold weather.Let engine run smoothly before
eachchange.Operate with choke in "Run" position.
NOTE: If engine still fails to start after 3 pulls,check for
proper oil level in crankcase.This unit is equipped with a
low oil device which prevents the engine from being
started. Seeengine manual.
Refer to the engine owner's manual for more
detailed starting instructions.
/7

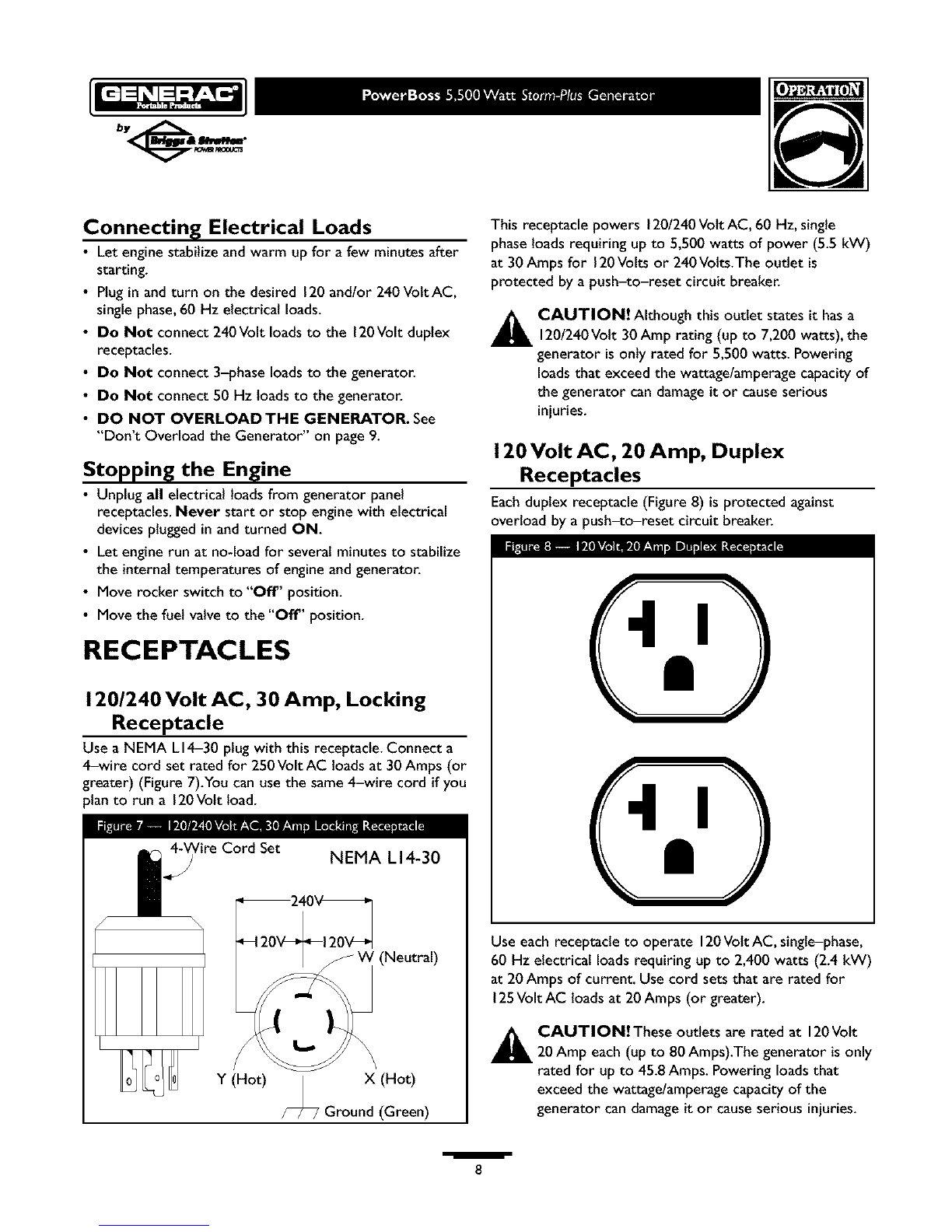

Connecting Electrical Loads
•Let engine stabilize and warm up for a few minutes after
starting.
• Plugin and turn on the desired 120and/or 240 VottAC,
single phase,60 Hz electrical loads.
•Do Not connect 240Volt loads to the 120Volt duplex
receptacles.
•Do Not connect 3_hase loadsto the generator.
•Do Not connect 50 Hz loads to the generator.
•DO NOT OVERLOADTHE GENERATOR. See
"Don't Overload the Generator" on page 9.
Stopping the Engine
• Unplug all electrical loads from generator panel
receptacles.Never start or stop engine with electrical
devices plugged in and turned ON.
• Let engine run at no-load for several minutes to stabilize
the internal temperatures of engine and generator.
• Move rocker switch to "Off' position.
• Move the fuel valve to the "Off' position.
RECEPTACLES
120/240 Volt AC, 30 Amp, Locking
Receptacle
Use a NEMA LI4-30 plug with this receptacle.Connect a
4-wire cord set rated for 250Volt AC loads at 30 Amps (or
greater) (Figure 7).You can usethe same 4-wire cord if you
_lanto run a 120Volt load.
NEMA LI4-30
' (Neutral)
Y (Hot) | X (Hot)
/
77_ Ground (Green)
This receptacle powers 120/240Volt AC, 60 Hz, single
phaseloads requiring up to 5,500 watts of power (5.5 kW)
at 30 Amps for 120Volts or 240Volts.The outlet is
protected by a push-to-reset circuit breaker.
_ CAUTION! Although this outlet states it hasa
120/240Volt 30 Amp rating (up to 7,200 watts), the
generator isonly rated for 5,500 watts. Powering
loadsthat exceed the wattage/amperage capacity of
the generator can damageit or causeserious
injuries.
120 Volt AC, 20 Amp, Duplex
Receptacles
Eachduplex receptacle (Figure 8) isprotected against
overload by a push-to-reset circuit breaker.
I
I
Use each receptacle to operate 120Volt AC, single-phase,
60 Hz electrical loadsrequiring up to 2,400 watts (2.4 kW)
at 20Amps of current. Use cord sets that are rated for
125Volt AC loads at 20Amps (or greater).
_CAUTION!These outlets are rated at 120Volt
20 Amp each (up to 80 Amps).The generator isonly
rated for up to 45.8Amps. Powering loads that
exceed the wattage/amperage capacity of the
generator can damageit or causeserious injuries.
/8

DON'T OVERLOAD YOUR
G EN ERATO R
Capacity
You must make sure your generator cansupply enough
rated (running) and surge (starting) watts for the itemsyou
will power at the sametime. Follow these simple steps:
I. Select the itemsyou wilt power at the same time.
2. Total the rated (running) watts of these items.Thisis
the amount of power your generator must produce to
keep your itemsrunning. SeeFigure 9.
3. Estimate how many surge (starting) watts you wilt
need.Surge wattage isthe short burst of power
needed to start electric motor-driven tools or
appliancessuch asa circular saw or refrigerator.
Becausenot all motors start at the sametime, total
surge watts can be estimated by addingonly the
item(s)with the highest additional surge watts to the
total rated watts from step 2.
Example:
Tool or Appliance
Window Air
Conditioner
Refrigerator
Deep Freezer
Television
Light (75 Watts)
Rated (Running)
Watts
1200
800
50O
500
75
3075 Total
Running Watts
Total Rated (Running)Watts = 3075
Highest Additional SurgeWatts = 1800
Total Generator Output Required = 4875
Additional Surge
(Starting)Watts
1800
1600
5O0
1800 Highest
SurgeWatts
Power Management
To prolong the lifeof your generator and attached devices,
it is important to take care when addingelectrical loadsto
your generator.There should be nothing connected to the
generator outlets before starting it's engine.The correct
and safeway to managegenerator power isto sequentially
add loadsasfollows:
I. With nothingconnected to the generator, start the
engine asdescribed in this manual.
2. Plugin and turn on the first load,preferably the largest
loadyou have.
3. Permit the generator output to stabilize (engine runs
smoothly and attached device operates properly.
4. Plug in and turn on the next load.
5. Again,permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
Never add more loadsthan the generator capacity.Take
specialcare to consider surgeloadsin generator capacity,
asdescribed above.
Tool or Appliance
Essentials
LightBulb - 75 watt
Deep Freezer
SumpPump
Refrigerator/Freezer - 18Cu. Ft.
Water Well Pump- I/3 HP
Heating/Cooling
Window AC - 10,000 BTU
Window Fan
FurnaceFanBlower - I/2 HP
Kitchen
Microwave Oven - 1000Watt
Coffee Maker
Electric Stove - SingleElement
Hot Plate
Family Room
DVD/CD Player
VCR
Stereo Receiver
Color Television - 27"
Personal Computer w/I 7" monitor
Other
SecuritySystem
AM/FM Clock Radio
GarageDoor Opener - I/2 HP
Electric Water Heater - 40 Gallon
DIY/Job Site
Quartz Halogen Work Light
Airless Sprayer - I/3 HP
Reciprocatin_ Saw
Electric Drill - I/2 HP
Circular Saw- 7 I/4"
Miter Saw- I0"
Table Planer - 6"
Table Saw/RadialArm Saw- I0"
Air Compressor - I-I/2 HP
Rated*
(Running)
Watts
75
500
8O0
8O0
1000
12O0
3OO
8O0
1000
1500
1500
25O0
Additional
Surge
(Starting)
Watts
500
1200
1600
20O0
1800
6O0
1300
100
100
450
5o0
8o0
18o
3O0
480 520
40O0
1000
600 1200
960 960
1000 1000
1500 1500
1800 1800
1800 1800
2000 2000
2500 2500
*Wattages listed are approximate only. Check toot or
appliance for actual wattage.
/9

SPECIFICATIONS
Maximum SurgeWatts ................. 8,500 watts
Continuous Wattage Capacity ........... 5,500 watts
Power Factor .............................. 1.0
Rated Maximum Continuous AC Load Current:
At 120Volts ....................... 45.8Amps
At 240 Volts ....................... 22.9Amps
Phase................................. I-phase
Rated Frequency ....................... 60 Hertz
FuelTank Capacity................... 5 U.S.gallons
ShippingWeight ......................... 148 Ibs.
GENERAL MAINTENANCE
RECOMMENDATIONS
The Owner/Operator is responsible for making sure that
all periodic maintenance tasks are completed on atimely
basis;that all discrepancies are corrected; and that the unit
is kept clean and properly stored. Never operate a
damaged or defective generator.
Engine Maintenance
See engine owner's manual for instructions.
If you need service for your engine, you need to determine
the engine identification number.To do so, remove the
rocker arm cover hood, item number 55 shown on
page 16, by removing the four nuts and washers holding it
in place.The engine model-type-trim number is stamped on
the side of the inner cover attached to the engine. Have
this number in hand when you call the engine service
center for assistance.
_i AUTION! Avoid prolonged or repeated skincontact with usedmotor oil. Used motor oil has
been shown to cause skin cancer in certain
laboratory animals.Thoroughly wash exposed areas
with soap and water.
KEEPOUT OF REACH OF CHILDREN. DON'T
POLLUTE.CONSERVERESOURCES.RETURN
USED OIL TO COLLECTION CENTERS.
Generator Maintenance
Generator maintenance consists of keeping the unit clean
and dry. Operate and store the unit in a clean dry
environment where it will not be exposed to excessive
dust, dirt, moisture or any corrosive vapors. Cooling air
slots in the generator must not become clogged with snow,
leaves or any other foreign material.
NOTE: Do Not use a garden hose to clean generator.
Water can enter engine fuel system and cause problems. In
addition, if water enters generator through cooling air slots,
some of the water wilt be retained in voids and cracks of
the rotor and stator winding insulation.Water and dirt
buildup on the generator internal windings will eventually
decrease the insulation resistance of these windings.
To Clean the Generator
_i AUTION! Never insertanyobject or tool
through the air cooling slots, even ifthe engine is
not running.
•Use a damp cloth to wipe exterior surfaces clean.
• A soft bristle brush may be used to loosen caked on dirt
or oil.
• A vacuum cleaner may be used to pick up loose dirt and
debris.
• Low pressure air (not to exceed 25 psi) may be used to
blow awaydirt. Inspect cooling air slots and opening on
generator.These openings must be kept clean and
unobstructed.
/10

STO RAG E
The generator should be started at least once every seven
days and allowed to run at least 30 minutes. If this cannot
be done and you must store the unit for more than
30 days,usethe following guidelinesto prepare it for
storage.
Generator Storage
•Clean the generator asoutlined in"To Clean the
Generator"
• Check that cooling air slots and openings on generator
are open and unobstructed.
_AUTION! Storage covers can be flammable.
Oo Not place a storage cover over ahot
generator. Let the unit cool for a sufficient time
before placingthe cover on the unit.
Engine Storage
Seeengine owner's manualfor instructions.
Other Storage Tips
•Do Not store gasolinefrom one seasonto another.
• Replacegasolinecan if it starts to rust. Rust and/or dirt
in gasolinecan causeproblems when that fuel is used
with this unit.
• Store in clean and dry area.
/II

TROUBLESHOOTING
Problem
Engine is running, but
no AC output is
available.
Engine runs good but
bogs clown when
loads are connected.
Engine will not start;
or starts and runs
rough.
Cause
I. Circuit breaker isopen.
2. Poor connection or defective cord set.
3. Connected device isbad.
4. Fault ingenerator.
I. Short circuit in a connected load.
2. Generator is overloaded.
3. Enginespeed istoo slow.
4. Shorted generator circuit.
I. Rocker switch set to "Off".
2. Fuelvalve is inthe "Closed" position.
3. Low oil level.
4. Dirty air cleaner.
5. Out of gasoline.
6. Stalegasoline.
7. Sparkplug wire not connected to
spark plug.
8. Badspark plug.
9. Water in gasoline.
10. Overchoking.
I I. Excessivelyrich fuel mixture.
12. Intake valve stuck open or closed.
13. Enginehaslostcompression.
I. Out of gasoline.
2. Fault in engine.
Solution
I. Resetcircuit breaker.
2. Check and repair.
3. Connect another device that is ingood
condition.
4. Contact Generac service facility.
I. Disconnect shorted electrical load.
2. See"Don't Overload the Generator" on
page9.
3. Contact Briggsservice facility.
4. Contact Generac service facility.
I. Setswitch to "On".
2. Turn fuel valveto the "Open" position.
3. Fill crankcaseto proper level.
4. Cleanor replace air cleaner.
5. Fillfuel tank.
6. Drain gastank and fill with fresh fuel.
7. Connect wire to spark plug.
8. Replacespark plug.
9. Drain gastank; fill with fresh fuel.
10. Setchoke to "Off" position.
I I. Contact Briggsservice facility.
12. Contact Briggsservice facility.
13. Contact Briggsservice facility.
I. Fillfuel tank.
2. Contact Briggsservice facility.
Engine shuts down
during operation.
I. Load istoo high. I. See"Don't Overload the Generator" on
page9.
Engine lacks power. 2. Dirty air filter. 2. Replaceair filter.
3. Engineneedsto be serviced. 3. Contact Briggsservice facility.
I. Choke isopened too soon. I.
Engine "hunts" or
falters. 2.
2. Carburetor is running too rich or too
lean.
Move choke to halfway position till engine
runs smoothly.
Contact Briggs service facility.
/12

NOTES
/13

÷
SCHEMATIC
BLUE
BLUE
(ii)
C.B.
BLUE
(114)
+ BRIOGE
RECTIFIER
BLUE_(6)
(I) EXCITATION
FIELD
RED GRAY
(44)
RED GR4Y
(22) (44)
120V/204 GRAY
¢444)
BLUE
4)
__BLUE (114)
BLUE (I14)
RED
(22>
RED
(22)
(0)
IBLUE
(I14)
m
12o/e4ov/3o4
R_ GR4Y-
(444)
(22)
I
14

÷
WIRING DIAGRAM
11 11A
CIRCUIT
BREAKER
44A--
AJ _ 120/24{
-- 11A
---22-
SIX LUG
CONNECTOR
HBUSING
D
CIRCUIT
BREAKER
IIA
44A -
11A IIA
IBOV
20A
NOTE: POSITIVE BRUSH IS CLOSEST TO BEARING
_+_ BLUE
I( RED (2)
(6)
l
88
rCARNING!
TAB MUST NOT BE BROKEN
CUSTOMER
GRBUNB LUO
RED--
(22) BLUE-_
(11)
BlX LUO
CONNECTOR
HOUSINO
/15

EXPLODED VIEW
43\\
57
44
\
56
- MAIN UNIT
69
\ 41
42
59\65
\
29
62\
\\_ 15
27
52
57
74 8
/11
_28 \
_49
71_ 48
35
lO
5
25
/55
46
_47
21
67
/16

PARTS LIST - MAIN UNIT
Item Part # Qty
I B188894GS
2 B92531GS
3 B92731GS
4 66365GGS
5 187746GS
6 187745GS
7 65791GS
8 96796GS
9 22129GS
I0 86307GS 4
II 99383GS I
12 92609GS 2
13 189127GS I
14 92532GS I
15 188551G5 I
16 66476GS 2
17 188213GS I
18 60706GS 2
19 83083GS I
20 81917GS I
21 67989GS 8
22 189438GS I
23 189160GS 4
24 JI89011GS I
25 SRV66825DGSI
26 74908GS 5
27 86308AGS 4
28 84409GS
29 22695GS
30 84242GS
31 188826GS
32 91825GS
33 66849GS
34 B4871GS
35 23762GS
36 86494GS
Description
CRADLE
SUPPORT,Engine
SUPPORT,Engine& Muffler
HOUSING, EngineAdapter
ASSEMBLY,Rotor (Inclds Item 7)
ASSEMBLY,Stator
BEARING
WASHER, M8 Flat
WASHER, M8 Lock
SCREW,5/16-24 x 3/4 SEMS
SCREW,5/16-24 x 7-3/8
MOUNT, Vibration
GROMMET,Rubber
BRACKET,Muffler
GASKET,Exhaust
SCREW,M6-1 x 12w/Lock
Washer
MUFFLER
SCREW,5/16 - 18x 3/4"
SCREEN,SparkArrest
PIN,4mm x 10 Roll
NUT, FlangeSerrated
MANUAL, Owners
NUT, 5/16-18, FlangedSerrated
SHIELD,Heat
CARRIER,Rear Bearing
TAPTITE,M5-0.8 x 10
BOLT,M6-1 x 145mm Stator
SLEEVING,Flexo,HW I/2" X
1.25ft
FASTEN,On TabHousing 6P
GROMMET,Plastic
MANUAL, Engine
ASSEMBLY,Brush Holder
TAPTITE,M5-0.8 x 16
COVER, Bearing Carrier
WASH ER,#10 Ext.Shakeproof
SCREW,M6-1.0 x 16Wing
Item Part # Qty
37 B2153GS 4
38 189155GS 4
39 188973GS 4
40 189156GS 4
41 80270GS I
42 78299GS I
43 85134GS I
44 188817GS I
45 189235GS I
46 22097GS 4
47 22127GS 4
48 14353621GS I
49 26850GS 2
50 B4986GS I
51 92982GS I
52 189153GS I
53 B5072GS 4
54 BB3061GS
55 187330GS
56 189025GS
57 188333GS
58 189157GS
59 NSP
60 39414GS 2
61 22142GS 2
62 67022GS
63 189186GS
64 77816GS
65 43438GS
66 73054GS
67 20566GS
68 190234GS
69 48031CGS 2
71 86292GS I
72 189164GS 4
73 189521AGS I
74 28739AGS I
Description
SCREW,# I0SelfDrilling
WASHER,Flat,6.6 x 21.6 x 1.9
GROMMET,Tank
HHCS, M6-1.0 x 25
VALVE,Tank
BUSHING, PlasticTank
CAP,Fuel Gauge
TANK, Fuel,5 Gallon (Includes
Items 41 & 42)
DECAL, Start Instructions
WASHER,Lock
NUT, I/4-20
WIRE, Ground
WASHER,M6 Shakeproof
DECAL, Ground, Green
DECAL, Danger
DECAL, Heat Shield
MOUNT, Vibration
BOTTLE,Oil, 28 oz
HOOD, Rocker Arm Cover
DECAL, Panel,Side
DECAL, GasFill
ASSEMBLY,Control Panel
ENGINE
HHCS, M8 - 1.25x 35
SCREW,5/16 - 18x 3/4"
GROMMET,Rubber
DECAL, Cover,Air Cleaner
DECAL, Hot Muffler
PLUG, 250V,30A
DECAL, Shut-Off, Fuel
DECAL, 1-800#
HOSE,Fuel,Formed
CLAMP
SCREW,# I0 SelfDrilling
NUT, Palnut,3/16"
WIRE, Ground, Panel
TIEWRAP
/17

EXPLODEDVIEWAND PARTS LIST-WHEEL KIT
1
\
Ic_
/
7
Item PaX #
I B4217GS
2 BI764GS
3 52858GS
4 39287GS
5 93693HGS
6 B4966GS
7 87005AGS
8 22247GS
9 42907GS
Qty Description
I ASSEMBLY,Handle
I LEG,Mounting
4 NUT, Locking Hex M8 - 1.25
2 HHCS, M8- 1.25x 45
I AXLE
2 WHEEL, 10"Diameter
2 PIN, Retaining
2 WASHER, Flat
2 HHCS, M8- 1.25x 16
/18

EXPLODED VIEW AND PARTS LIST- CONTROL PANEL
'\\\\\
6\\\\\\\\ j
\13
12
16
\\\
\\
I0
\\\\
15
Item Part #
I 188914GS
2 188889GS
3 189167GS
4 189182GS
5 189166GS
6 68759GS
7 189165GS
8 84198GS
9 75207GS
10 43437GS
II 189164GS
12 84543CGS
13 93857GS
14 188890GS
15 82308GS
16 22694GS
Qty Description
I COVER, Lid,Control Panel
I CONTROL PANEL,Compact
2 CLIP,Hinge Pin Retainer
2 SPRING,Hinge, Pin
2 PIN, Hinge, Cover,Compact
2 OUTLET, 120V,20Amp, Duplex
4 NUT, Patnut,Pushnut,5/32
2 CAP,Circuit Breaker
2 CIRCUIT BREAKER
I OUTLET, 120/240 Locking,30A
2 NUT, Patnut,Pushnut,3/16
2 SCREW,Phillips,Head 3.5 x 18
I BAR, Retaining
I COVER, Back,Control Panel
6 SCREW,SelfTapping,STC 3x
I HOUSING, Receptacle
/19

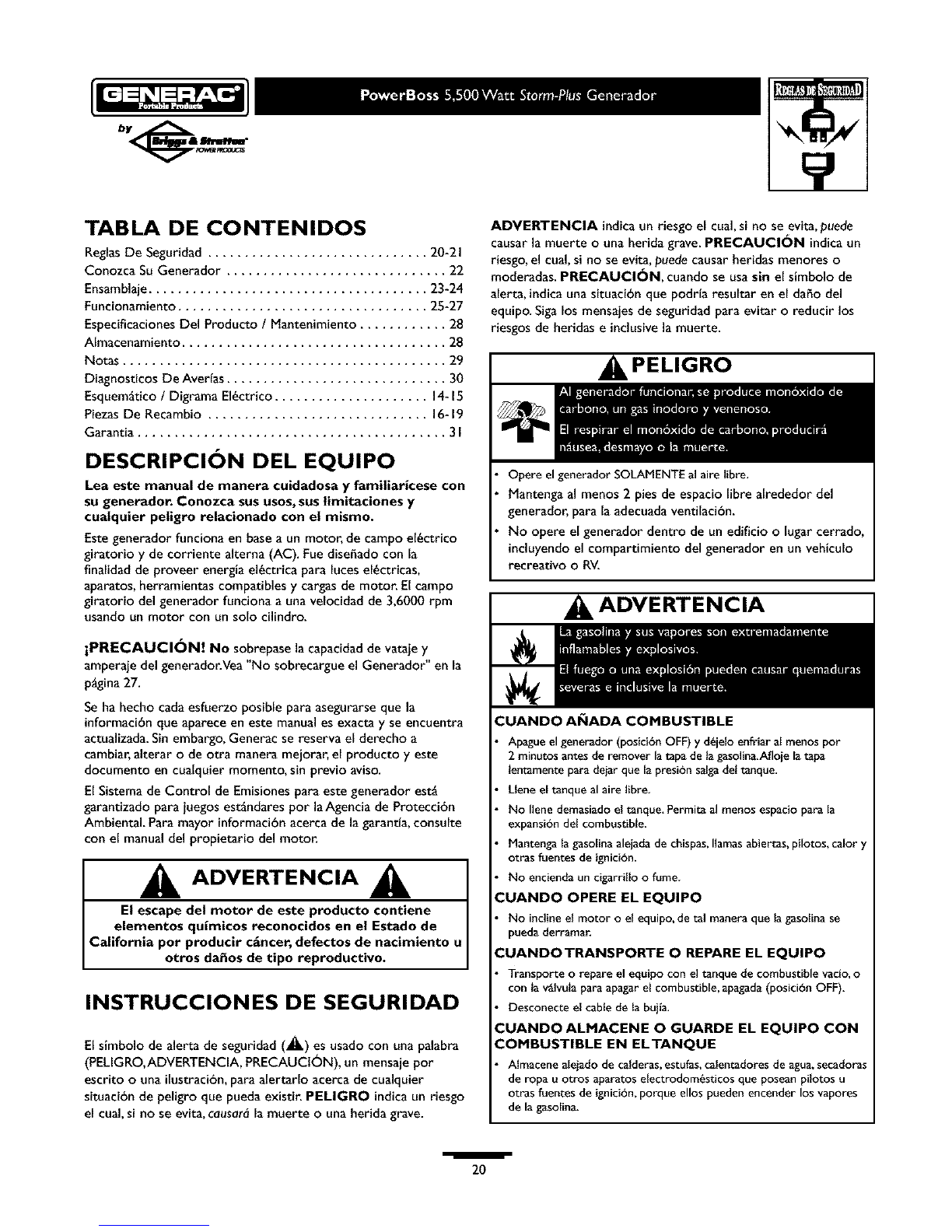

TABLA DE CONTENIDOS
ReglasDe Seguridad .............................. 20-21
Conozca Su Generador .............................. 22
Ensamblaje...................................... 23-24
Funcionamiento .................................. 25-27
EspecificacionesDel Producto /Mantenimiento ............ 28
AImacenamiento .................................... 28
Notas ............................................ 29
Diagnosticos De Averfas .............................. 30
Esquem_tico /Digrama El_ctrico ..................... 14-15
PiezasDe Recambio .............................. 16-19
Garantia .......................................... 31
DESCRIPCI( N DEL EQUIPO
Lea este manual de manera cuidadosa y familiaricese con
su generador. Conozca sus usos, suslimitaciones y
cualquier peligro relacionado con el mismo.
Este generador funciona en base a un motor, de campo el_ctrico
giratorio y de corriente alterna (AC). Fue disehado con la
finalidadde proveer energia el_ctrica para luces el_ctricas,
aparatos,herramientas compatibles y cargas de motor. Elcampo
giratorio del generador funciona a una velocidad de 3,6000 rpm
usando un motor con un solo cilindro.
iPRECAUCI_N! No sobrepase la capacidadde vata}ey
ampera}e delgenerador.Vea"No sobrecargue el Generador" en la
p_gina27.
Se ha hecho cadaesfuerzo posible para asegurarse que la
informacibnque aparece en este manual es exacta y se encuentra
actualizada.Sin embargo,Generac se reserva el derecho a
cambiar,alterar ode otra manera mejorar, el producto y este
documento en cualquier momento, sin previo aviso.
El Sistema de Control de Emisiones para este generador est_
garantizado para iuegos est_ndarespor laAgencia de Proteccibn
Ambiental. Para mayor informacibnacerca de la garantta,consulte
con el manual delpropietario del motor.
ADVERTENCIA u
El escape del motor de este producto contiene
elementos quimicos reconocidos en el Estado de
California pot producir c_ncer, defectos de nacimiento
otros da_os de tipo reproductivo.
INSTRUCCIONES DE SEGURIDAD
Elsimbolo de alerta de seguridad (_.) es usado con una palabra
(PELIGRO,ADVERTENCIA, PRECAUCI6N), un mensaje por
escrito ouna ilustracibn,para alertarlo acerca de cualquier
situacibn de peligro que pueda existir. PELIGRO indicaun riesgo
el cual,si no se evita, causar_la muerte ouna herida grave.
ADVERTENCIA indica un riesgo el cual, si no se evita, puede
causar la muerte o una herida grave. PRECAUCI_)N indica un
riesgo, el cual, si no se evita, puede causar heridas menores o
moderadas. PRECAUCI_)N, cuando se usa sin el simbolo de
alerta, indica una situacibn que podrta resultar en el daho del
equipo. Siga los mensajes de seguridad para evitar oreducir los
riesgos de heridas e inclusive la muerte.
PELIGRO
Opere elgener_dorSOLAMENTEalaire libre.
Mantenga al menos 2 piesde espacio libre alrededor del
generador, para la adecuadaventilacibn.
No opere el generador dentro de un edificio olugar cerrado,
incluyendoel compartimiento del generador en un vehiculo
recreativo oRV.
ADVERTENCIA
CUANDO AI_IADA COMBUSTIBLE
Apague el generador (posicibn OFF) y d_jelo enfriar al menos por
2 minutos antesde remover la tap_de la gasolina.Afloie _atapa
lentamente para deiar que {apresibnsalgadel tanque.
Liene el tanque al aire libre.
No Ilene demasiado eI tanque. Permita al menos espacio para la
expansibn del combustible.
Mantenga la gasolinaaleiada de chispas,llamasabiertas, pi{otos, calory
otras fuentes de ignicibn.
No encienda un cigarrillo o fume.
:UANDO OPERE EL EQUIPO
No incline el motor o el equipo, de tal manera que la gasoIina se
pueda derrama_
._UANDOTRANSPORTE OREPARE EL EQUIPO
Transporte o repare el equipo con el tanque de combustiblevat,o, o
con la v_lvuIa paraapagarel combustible,apagada(posici6n OFF).
Desconecte el cable de la bujla.
._UANDO ALMACENE OGUABDE EL EQUIPO CON
COMBUSTIBLE EN ELTANQUE
Aimacene aIeiado de calderas,estufas, calentadoresde agua,secadoras
de ropa u otros aparatos eiectrodom_sticos que poseanpilotosu
otras fuentes de ignici6n, porque ellos pueden encender los vapores
de la gasoIina.
/20
