Generac Power Systems 15 kW EcoGen Instruction sheet

Installation Guidelines
60 Hz Air–Cooled Generators
15 kW EcoGen™
SAVE THIS MANUAL FOR FUTURE REFERENCE
000918
Para español , visita: http://www.generac.com/service–support/product–support–lookup
Pour le français, visiter : http://www.generac.com/service–support/product–support–lookup
(000209a)
WARNING
This product is not intended to be used in
a critical life support application. Failure to
adhere to this warning could result in
death or serious injury.
Register your Generac product at:
WWW.GENERAC.COM
1–888–GENERAC
(888–436–3722)

Installation Guidelines For 60 Hz Synergy™ Generator
Use this page to record important information about your generator set.
Record the information found on your unit data label on this
page. For the location of the unit data label, see your
Owner’s Manual. The unit has a label plate affixed to the
inside partition, to the left of the control panel console.
When contacting an Independent Authorized Service Dealer
about parts and service, always supply the complete model
number and serial number of the unit.
Operation and Maintenance: Proper maintenance and care
of the generator ensures a minimum number of problems
and keeps operating expenses at a minimum. It is the
operator’s responsibility to perform all safety checks, to
make sure that all maintenance for safe operation is
performed promptly, and to have the equipment checked
periodically by an Independent Authorized Service Dealer.
Normal maintenance, service and replacement of parts are
the responsibility of the owner/operator and, as such, are not
considered defects in materials or workmanship within the
terms of the warranty. Individual operating habits and usage
may contribute to the need for additional maintenance or
service.
When the generator requires servicing or repairs, Generac
recommends contacting an Independent Authorized Service
Dealer for assistance. Authorized service technicians are
factory–trained and are capable of handling all service
needs.To locate the nearest Independent Authorized Service
Dealer, please visit the dealer locator at:
www.generac.com/Service/DealerLocator/.
Model:
Serial:
Prod Date Week:
Volts:
LPV Amps:
NG Amps:
Hz:
Phase:
Controller P/N:
(000005)
WARNING
California Proposition 65. This product contains or
emits chemicals known to the state of California to
cause cancer, birth defects, and other reproductive
harm.
(000004)
WARNING
California Proposition 65. Engine exhaust and some
of its constituents are known to the state of California
to cause cancer, birth defects, and other reproductive
harm.

Installation Guidelines for 60 Hz EcoGen™ Generator iii
Section 1: Safety Rules & General
Information
Introduction ..........................................................1
Read This Manual Thoroughly ....................................1
How to Obtain Service .................................................1
Safety Rules .........................................................2
General Hazards .........................................................2
Exhaust Hazards .........................................................3
Electrical Hazards .......................................................3
Fire Hazards ................................................................3
Explosion Hazards ......................................................4
General Rules .......................................................4
Before You Begin ........................................................4
NEC Requirements .....................................................5
Standards Index ..........................................................5
Section 2: Unpacking and Inspection
General .................................................................7
Required Tools .....................................................7
Unpacking ............................................................7

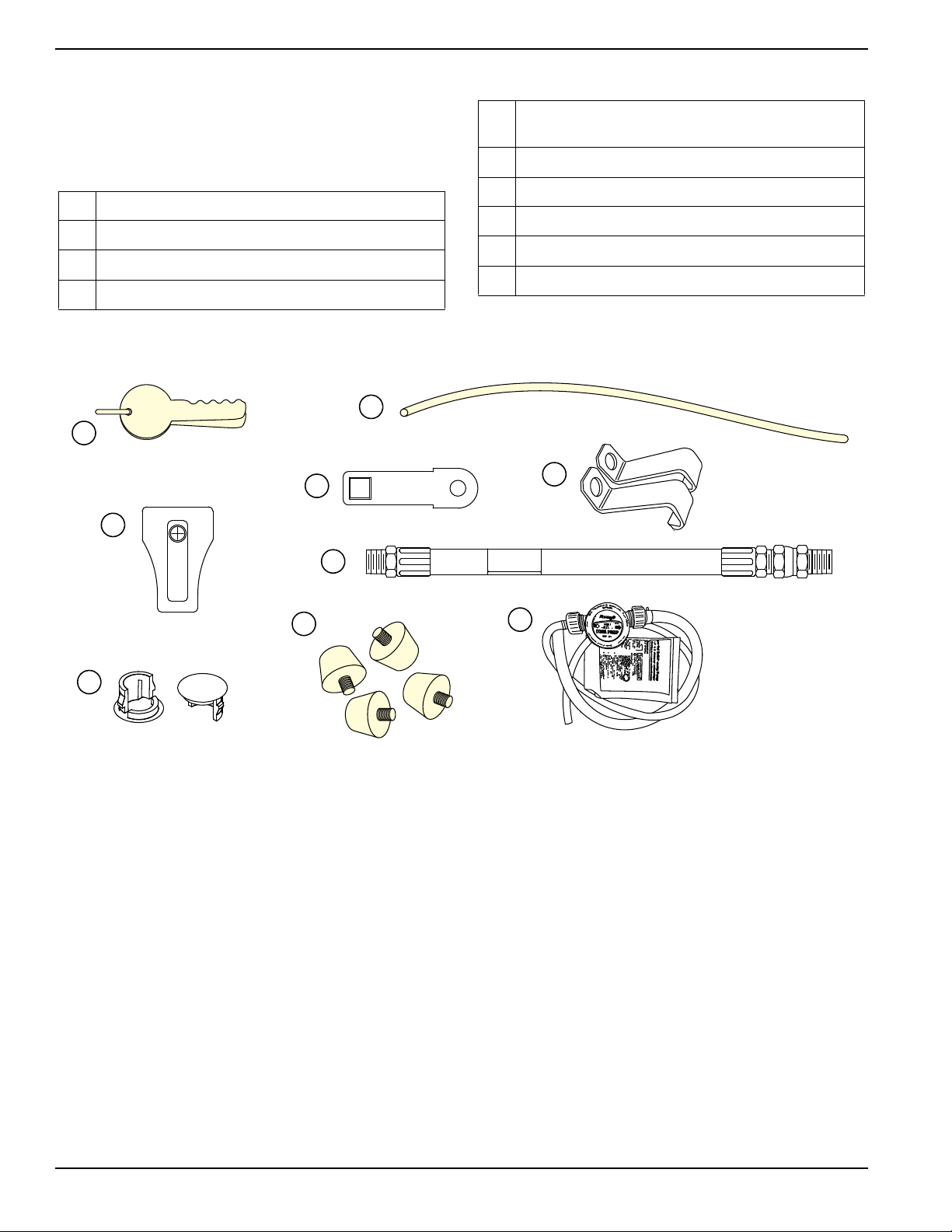

Parts Shipped Loose .........................................10
Section 3: Site Selection and Preparation
Site Selection .....................................................11
Installation Guidelines for Stationary Air–Cooled
Generators .............................................................12
Annex A — Explanatory Material ..............................12
Site Preparation .................................................13
Material Sufficient for Level Installation .....................13
Transportation Recommendations ............................13
Section 4: Generator Placement
Generator Placement .........................................15
Fascia Installation (If Applicable) .....................15
Section 5: Fuel Conversion/Gas
Connections
Fuel Requirements and Recommendations ....17
Fuel Conversion .................................................17
Fuel Consumption .............................................18
Fuel Line Sizing ................................................. 18
Natural Gas Pipe Sizing ............................................18
LP Vapor Pipe Sizing ................................................19
Pipe Sizing Summary ........................................ 19
Installing and Connecting Gas Lines .............. 19
Shutoff Valve .............................................................19
Flexible Fuel Line ......................................................20
Sediment Trap ...........................................................20
Checking Gas Line Connections ..................... 20
Natural Gas Vapor Installation (typical) .......... 21
LP Vapor Installation (typical) .......................... 22
Section 6: Electrical Connections
Generator Connections .................................... 23
Control Wiring ................................................... 23
Control Wiring Notes .................................................24
2–Wire Start Wire Connections .................................24
Main AC Wiring .................................................. 24
Automatic Voltage Regulator (AVR) Cooling
Fans .................................................................... 25
Battery Requirements ....................................... 25
Battery Installation ............................................ 25
Section 7: Control Panel/Start–Up/Testing
Preparing for Start-Up ....................................... 27
Control Panel Interface ..................................... 27
Using the AUTO/MANUAL/OFF Buttons ..................27
Generator Set–Up .............................................. 27
Before Initial Start–Up ....................................... 28
Engine Oil Recommendations ...................................28
Installation Wizard ............................................. 28
Menu Navigation ................................................ 30
Change Time and Date ...................................... 30
Programmable Timers ...................................... 30
Dealer Programmable ...............................................30
7.0.0.1 High Run Speed Timer ....................................... 30
USB Port for Firmware Updates ....................... 30
Activation ........................................................... 30
Cold Smart Start ................................................ 31
Table of Contents

Table of Contents
iv Installation Guidelines for 60 Hz EcoGen™ Generator
Interconnect System Self Test Feature ...........31
Before starting, complete the following: .................... 31
Check Manual Transfer Switch Operation .......31
Electrical Checks ...............................................34
Generator Tests Under Load ............................34
Checking Automatic Operation ........................34
Installation Summary ........................................35
Shutting Generator Down While Under Load ..35
Section 8: Troubleshooting
Engine Troubleshooting ...................................37
Generator Troubleshooting ..............................38
G-Flex™ Troubleshooting .................................39
Section 9: Accessories
Section 10: Diagrams
Installation Drawing (1 of 2) ..............................45
Installation Drawing (2 of 2) ..............................46
Off Grid Mode Application Schematic .............47
Oil Make Up System Schematic .......................48

Safety Rules & General Information
Installation Guidelines for 60 Hz EcoGen™ Generator 1
Section 1: Safety Rules & General Information
Introduction
Thank you for purchasing this compact, high-
performance, variable speed, air-cooled, engine-driven
stationary automatic standby generator set. Every effort
has been made to ensure that the information and
instructions in this manual are both accurate and
complete at the time of release. However, the
manufacturer reserves the right to change, alter, or
otherwise improve this product at any time without prior
notice.
In off–grid applications as a part of an alternative energy
system, the generator starts when the inverter/battery
charger detects the normal power source voltage has
dropped below a preset level. The generator powers the
inverter and, once the voltage level of the battery rises to
an acceptable level, the generator is shut down. Another
off–grid application would be for use in remote locations
such as for pumping water for a village or campground,
or for livestock.
The unit is factory installed in an all–weather metal
enclosure and is intended for outdoor installation
only. The generator can be operated using either natural
gas (NG) or vapor withdrawn liquid propane (LP).
NOTE: When properly sized, this generator is suitable
for supplying typical residential loads such as induction
motors (sump pumps, refrigerators, air conditioners,
furnaces, etc.), electronic components (computer,
monitor, TV, etc.), lighting loads and microwaves, or
loads less than 10 kW or 2 hp.
Read This Manual Thoroughly
If any portion of this manual is not understood, contact
the nearest Independent Authorized Service Dealer for
starting, operating and servicing procedures.
This manual must be used in conjunction with the
appropriate Owner’s Manual.
SAVE THESE INSTRUCTIONS: The manufacturer
suggests that this manual and the rules for safe operation
be copied and posted near the unit installation site.
Safety should be stressed to all operators and potential
operators of this equipment.
Throughout this publication and on tags and decals
affixed to the generator, DANGER, WARNING, and
CAUTION blocks are used to alert personnel to special
instructions about a particular operation that may be
hazardous if performed incorrectly or carelessly. Observe
them carefully. Their definitions are as follows:
NOTE: Notes provide additional information important to
a procedure or component.
These safety warnings cannot eliminate the hazards they
indicate. Observing safety precautions and strict
compliance with the special instructions while performing
the action or service are essential to preventing accidents.
The operator is responsible for proper and safe use of
the equipment. The manufacturer strongly recommends
that if the operator is also the owner, to read the Owner’s
Manual and thoroughly understand all instructions before
using this equipment. The manufacturer also strongly
recommends instructing other users to properly start and
operate the unit. This prepares them if they need to
operate the equipment in an emergency.
How to Obtain Service
When the generator requires servicing or repairs, contact
an Independent Authorized Service Dealer for
assistance. Service technicians are factory-trained and
are capable of handling all service needs. For assistance
locating a dealer, go to www.generac.com/Service/
DealerLocator/.
When contacting an Independent Authorized Service
Dealer about parts and service, always supply the
complete model number and serial number of the unit as
given on its data decal, which is located on the generator.
Refer to Owner’s Manual for decal location. Record the
model number and serial numbers in the spaces
provided on the inside front cover of this manual.
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
(000001)
DANGER
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
(000002)
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
(000003)
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.

Safety Rules & General Information
2Installation Guidelines for 60 Hz EcoGen™ Generator
Safety Rules
Study these SAFETY RULES carefully before installing,
operating or servicing this equipment. Become familiar
with this Installation Manual, the Owner’s Manual, and
with the unit. The generator can operate safely, efficiently
and reliably only if it is properly installed, operated and
maintained. Many accidents are caused by failing to
follow simple and fundamental rules or precautions.
The manufacturer cannot anticipate every possible
circumstance that might involve a hazard. The warnings
in this manual and on tags and decals affixed to the unit
are, therefore, not all–inclusive. If using a procedure,
work method, or operating technique the manufacturer
does not specifically recommend, verify that it is safe for
others. Also, make sure the procedure, work method or
operating technique utilized does not render the
generator unsafe.
General Hazards
(000190)
DANGER
Loss of life. Property damage. Installation must always
comply with applicable codes, standards, laws and
regulations. Failure to do so will result in death
or serious injury.
Automatic start-up. Disconnect normal power source
and render unit inoperable before working on unit.
Failure to do so will result in death or serious injury.
(000236)
DANGER
(000209a)
WARNING
This product is not intended to be used in
a critical life support application. Failure to
adhere to this warning could result in
death or serious injury.
WARNING
This unit is not intended for use as a prime power
source. It is intended for use as an intermediate power
supply in the event of temporary power outage only.
See individual unit specifications for required
maintenance and run times pertaining to use. (000247)
(000187)
WARNING
(000130)
WARNING
Accidental Start-up. Disconnect the negative battery
cable, then the positive battery cable when working
on unit. Failure to do so could result in death
or serious injury.
(000182)
WARNING
(000155)
WARNING
Only a trained and licensed electrician should perform
wiring and connections to unit. Failure to follow proper
installation requirements could result in death, serious
injury, and damage to equipment or property.
(000115)
WARNING
Moving Parts. Do not wear jewelry when
starting or operating this product. Wearing
jewelry while starting or operating this product
could result in death or serious injury.
(000111)
WARNING
Moving Parts. Keep clothing, hair, and
appendages away from moving parts. Failure
to do so could result in death or serious injury.
(000108)
WARNING
Hot Surfaces. When operating machine, do not
touch hot surfaces. Keep machine away from
combustibles during use. Hot surfaces
could result in severe burns or fire.
WARNING
Risk of injury. Do not operate or service this
machine if not fully alert. Fatigue can impair the
ability to service this equipment and could result
in death or serious injury. (000215)
(000146)
WARNING
Equipment and property damage. Do not alter
construction of, installation, or block ventilation for
generator. Failure to do so could result in unsafe
operation or damage to the generator.

Safety Rules & General Information
Installation Guidelines for 60 Hz EcoGen™ Generator 3
Inspect the generator regularly, and contact the nearest
Independent Authorized Service Dealer for parts needing
repair or replacement.
Exhaust Hazards
Electrical Hazards
Fire Hazards
WARNING
Injury and equipment damage. Do not use
generator as a step. Doing so could result in falling,
damaged parts, unsafe equipment operation,
and could result in death or serious injury. (000216)
Asphyxiation. Running engines produce
carbon monoxide, a colorless, odorless,
poisonous gas. Carbon monoxide, if not
avoided, will result in death or serious injury.
(000103)
DANGER
(000178a)
Asphyxiation. Always use a battery operated carbon
monoxide alarm indoors and installed according to
the manufacturer’s instructions. Failure to do so
could result in death or serious injury.
WARNING
WARNING
Fire hazard. Do not obstruct cooling and
ventilating airflow around the generator. Inadequate
ventilation could result in fire hazard, possible
equipment damage, death or serious injury. (000217)
(000144)
DANGER
Electrocution. Contact with bare wires,
terminals, and connections while generator
is running will result in death or serious injury.
(000150)
DANGER
Electrocution. Never connect this unit to the electrical
system of any building unless a licensed electrician
has installed an approved transfer switch. Failure to
do so will result in death or serious injury.
(000237)
DANGER
Electrical backfeed. Use only approved switchgear to
isolate generator from the normal power source.
Failure to do so will result in death, serious injury,
and equipment damage.
(000152)
DANGER
Electrocution. Verify electrical system is
properly grounded before applying power.
Failure to do so will result in death or serious
injury.
(000188)
DANGER
Electrocution. Do not wear jewelry while
working on this equipment. Doing so will
result in death or serious injury.
(000104)
DANGER
Electrocution. Water contact with a power
source, if not avoided, will result in death
or serious injury.
(000145)
DANGER
Electrocution. In the event of electrical accident,
immediately shut power OFF. Use non-conductive
implements to free victim from live conductor. Apply
first aid and get medical help. Failure to do so will
result in death or serious injury.
WARNING
Fire hazard. Do not obstruct cooling and
ventilating airflow around the generator. Inadequate
ventilation could result in fire hazard, possible
equipment damage, death or serious injury. (000217)
WARNING
Fire and explosion. Installation must comply
with all local, state, and national electrical
(000218)
building codes. Noncompliance could result in unsafe
operation, equipment damage, death or serious injury.
WARNING
Fire hazard. Use only fully-charged fire
(000219)
extinguishers rated “ABC” by the NFPA. Discharged or
improperly rated fire extinguishers will not extinguish
electrical fires in automatic standby generators.
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.

Safety Rules & General Information
4Installation Guidelines for 60 Hz EcoGen™ Generator
Comply with regulations the Occupational Safety and
Health Administration (OSHA) has established. Also,
verify that the generator is installed in accordance with
the manufacturer’s instructions and recommendations.
Following proper installation, do nothing that might alter a
safe installation and render the unit in noncompliance
with the aforementioned codes, standards, laws and
regulations.
Explosion Hazards
General Rules
•Follow all safety precautions in the Owner’s Manual,
Installation Guidelines manual and other documents
included with your equipment.
•Never energize a new system without opening all
disconnects and breakers.
•Always consult your local code for additional
requirements for the area in which the unit is being
installed.
Improper installation can result in personal injury and
damage to the generator. It may also result in the
warranty being suspended or voided. All the instructions
listed below must be followed including location
clearances and pipe sizes.
WARNING
required safety equipment could result in
death or serious injury. (000221)
Risk of electrocution. Refer to NFPA 70E for
safety equipment required when working with
with a live electrical system. Failure to use
(000147)
WARNING
Risk of Fire. Unit must be positioned in a
manner that prevents combustible material
accumulation underneath. Failure to do so
could result in death or serious injury.
(000192)
DANGER
(000151)
DANGER
Connection of fuel source must be done by a qualified
professional technician or contractor. Incorrect installation
of this unit will result in death, serious injury, and damage
to equipment and property damage.
(000174)
DANGER
Risk of fire. Allow fuel spills to completely dry
before starting engine. Failure to do so will
result in death or serious injury.
(000110)
WARNING
Risk of Fire. Hot surfaces could ignite
combustibles, resulting in fire. Fire could
result in death or serious injury.
(000190)
DANGER
Loss of life. Property damage. Installation must always
comply with applicable codes, standards, laws and
regulations. Failure to do so will result in death
or serious injury.
(000131a)
DANGER
Electrical backfeed. Use only approved switchgear to
isolate generator when electrical utility is the primary
power source. Failure to do so will result in death,
serious injury, and equipment damage.
(000182)
WARNING
WARNING
required safety equipment could result in
death or serious injury. (000221)
Risk of electrocution. Refer to NFPA 70E for
safety equipment required when working with
with a live electrical system. Failure to use
WARNING
Environmental Hazard. Always recycle batteries at an
official recycling center in accordance with all local
laws and regulations. Failure to do so could result in
environmental damage, death or serious injury.
(000228)

Safety Rules & General Information
Installation Guidelines for 60 Hz EcoGen™ Generator 5
Before You Begin
•Contact the local inspector or City Hall to be aware of
all federal, state and local codes that could impact
the installation. Secure all required permits before
starting the job.
•Carefully read and follow all of the procedures and
safety precautions detailed in the installation guide. If
any portion of the installation manual, technical
manual or other factory–supplied documents is not
completely understood, contact an Independent
Authorized Service Dealer for assistance.
•Fully comply with all relevant NEC, NFPA and OSHA
standards as well as all federal, state and local
building and electric codes. As with any generator,
this unit must be installed in accordance with current
NFPA 37 and NFPA 70 standards as well as any
other federal, state, and local codes for minimum
distances from other structures.
•Verify the capacity of the natural gas meter or the LP
tank in regards to providing sufficient fuel for both the
generator and other household and operating
appliances.
NEC Requirements
Local code enforcement may require that Arc Fault
Circuit Interrupters (AFCIs) be incorporated into the
transfer switch distribution panel. The Transfer Switch
provided with this generator has a distribution panel that
will accept AFCIs (pre–wired transfer switches only).
Siemens Part No. Q115AF – 15A or Q120AF – 20A can
be obtained from a local electrical wholesaler and will
simply replace any of the single pole circuit breakers
supplied in the pre–wired transfer switch distribution
panel.
Standards Index
Strictly comply with all applicable national, state and local
laws, as well as codes or regulations pertaining to the
installation of this engine–generator power system. Use
the most current version of applicable codes or standards
relevant to the local jurisdiction, generator used, and
installation site.
NOTE: Not all codes apply to all products and this list is
not all–inclusive. In the absence of pertinent local laws
and standards, the following publications may be used as
a guide (these apply to localities which recognize NFPA
and IBC).
1. National Fire Protection Association (NFPA) 70:
The NATIONAL ELECTRIC CODE (NEC) *
2.
NFPA 10: Standard for Portable Fire Extinguishers *
3. NFPA 30: Flammable and Combustible Liquids
Code *
4. NFPA 37: Standard for Stationary Combustion
Engines and Gas Turbines *
5. NFPA 54: National Fuel Gas Code *
6. NFPA 58: Standard for Storage and Handling Of
Liquefied Petroleum Gases *
7. NFPA 68: Standard On Explosion Protection By
Deflagration Venting *
8. NFPA 70E: Standard For Electrical Safety In The
Workplace *
9. NFPA 110: Standard for Emergency and Standby
Power Systems *
10. NFPA 211: Standard for Chimneys, Fireplaces,
Vents, and Solid Fuel Burning Appliances *
11. NFPA 220: Standard on Types of Building
Construction *
12. NFPA 5000: Building Code *
13. International Building Code **
14. Agricultural Wiring Handbook ***
15. Article X, NATIONAL BUILDING CODE
16. ASAE EP–364.2 Installation and Maintenance of
Farm Standby Electric Power ****
This list is not all–inclusive. Check with the Authority
Having Local Jurisdiction (AHJ) for any local codes or
standards which may be applicable to your jurisdiction.
The above listed standards are available from the
following internet sources:
*www.nfpa.org
** www.iccsafe.org
*** www.rerc.org Rural Electricity Resource Council P.O.
Box 309 Wilmington, OH 45177–0309
**** www.asabe.org American Society of Agricultural &
Biological Engineers 2950 Niles Road, St. Joseph, MI
49085
(000209a)
WARNING
This product is not intended to be used in
a critical life support application. Failure to
adhere to this warning could result in
death or serious injury.

Safety Rules & General Information
6Installation Guidelines for 60 Hz EcoGen™ Generator
This page is intentionally left blank.

Unpacking and Inspection
Installation Guidelines for 60 Hz EcoGen™ Generator 7
Section 2: Unpacking and Inspection
General
NOTE: After unpacking, carefully inspect the contents for
damage. It is advised to unpack and inspect the unit
immediately upon delivery to detect any damage that
may have occurred in transit. Any claims for shipping
damage need to be filed as soon as possible with the
freight carrier. This is especially important if the generator
will not be installed for a period of time.
•This standby generator set is ready for installation
with a factory supplied and pre–mounted base pad
and has a weather protective enclosure that is
intended for outdoor installation only.
•If any loss or damage is noted at time of delivery,
have the person(s) making the delivery note all
damage on the freight bill or affix their signature
under the consignor’s memo of loss or damage.
•If a loss or damage is noted after delivery, separate
the damaged materials and contact the carrier for
claim procedures.
•“Concealed damage” is understood to mean damage
to the contents of a package that is not evident at the
time of delivery, but is discovered later.
Required Tools
•General SAE and Metric hand tools
– Wrenches
– Sockets
– Screwdrivers
•Standard electrician’s hand tools
– Drill and bits for mounting and routing conduits
•4mm Allen wrench (for access to customer
connections)
•3/16 Allen wrench (test port on fuel regulator)
•Manometer (for fuel pressure checks)
•Meter capable of measuring AC/DC Voltage and
Frequency
•Meter capable of measuring AC Current
Unpacking
1. Remove cardboard carton.
2. See Figure 2-1. Remove the wood frame.
Figure 2-1. Crated Generator
3. See Figure 2-2. Remove bolts and pallet brackets
(A). Exercise caution when removing the
generator. Dragging it off the pallet will damage the
base. The generator must be lifted from the
wooden pallet to remove.
Figure 2-2. Generator on Pallet
4. See Figure 2-3.The lid will be locked. A set of keys
is attached to the circuit breaker box door with a
cable tie. Cut the cable tie to remove the keys. Use
the keys to open the lid of the generator.
000427
000426
A

Unpacking and Inspection
8Installation Guidelines for 60 Hz EcoGen™ Generator
Figure 2-3. Circuit Breaker Box and Keys
5. Cut the cable tie to remove the keys.
6. Use the keys to open the lid of the generator.
NOTE: The enclosed keys provided with this unit are
intended for service personnel use only.
7. There are two locks securing the lid, one on each
side (A in Figure 2-4). To properly open the lid,
press down, on the lid, above the side lock and
unlock the latch.
8. Repeat for the other side. If pressure is not applied
from the top, the lid may appear stuck.
NOTE: Always verify that the side locks are unlocked
before attempting to lift the lid.
9. Once the lid is open, remove the front access
panel by lifting it up and out.
NOTE: Always the lift the front access panel up before
pulling away from enclosure (B and C in Figure 2-4). Do
not pull the panel away from the enclosure before lifting
up (D in Figure 2-4)
Figure 2-4. Side Lock Location and Front Panel Removal
000932
A
A
B DC

Unpacking and Inspection
Installation Guidelines for 60 Hz EcoGen™ Generator 9
10. Perform a visual inspection for any hidden freight
damage. If damage is present, contact the freight
carrier.
Figure 2-5. Inspect for Damage
11. Figure 2-6 illustrates the following:
Figure 2-6. Customer Connection Area and Loose Parts Location
Figure 2-7. Rear of Generator
Figure 2-7 illustrates the following:
001374
A. Customer connection area (underneath and behind
the control panel)
B. Fuel regulator
C. Battery compartment
D. Positive (+) and Negative (–) Battery Cables
E. Location of “Parts Shipped Loose”
001375
A
B
C
E
D
001376
A
C
B
D
A. Main AC/Control Wiring hole for 3/4 inch conduit
B. Main AC/Control Wiring hole for 1–1/4 inch conduit
C. Fuel Inlet Connection
D. Base Fascia (if equipped)

Unpacking and Inspection
10 Installation Guidelines for 60 Hz EcoGen™ Generator
Parts Shipped Loose
See Figure 2-8. Parts shipped loose are located in a
clear plastic bag inside the battery compartment. The
flexible fuel line (6) is tied to either the battery wires or
the alternator can.
Figure 2-8. Parts Shipped Loose
A. Keys
B. Battery Terminal Cap
C. Main Line Circuit Breaker (MLCB) Terminal Caps
D. Wire Shielding to separate AC from DC control wires
E. Main Line Circuit Breaker (MLCB) Locking
Mechanism
F. Flexible Fuel Line
G. Rubber Mounts (only for units that include fascia)
H. Rear Mounting Brackets (2)
I. Oil Drain Pump Kit
J. Installation and Owner’s Manuals (not shown)
001461
A
B
C
D
E
F
G
H
I

Site Selection and Preparation
Installation Guidelines for 60 Hz EcoGen™ Generator 11
Section 3: Site Selection and Preparation
Site Selection
Figure 3-1. Installation Guidelines
See Figure 3-1. Install the generator set, in its protective
enclosure, outdoors, where adequate cooling and
ventilating air is always available. Consider these factors:
•The installation of the generator must comply strictly
with NFPA 37, NFPA 54, NFPA 58 and NFPA 70
standards.
•Install the unit where air inlet and outlet openings will
not become obstructed by leaves, grass, snow, etc. If
prevailing winds will cause blowing or drifting,
consider using a windbreak to protect the unit.
•Install the generator on high ground where water
levels will not rise and endanger it. It should not
operate in or be subjected to standing water.
•Allow sufficient room on all sides of the generator for
maintenance and servicing. This unit must be
installed in accordance with any codes that are in
place in your country or local jurisdiction for minimum
distances from other structures.
•Clearance from the ends and front of the generator
must be 3 ft (0.91 m). This includes shrubs, bushes
and trees. Clearance from the back of the generator
must be a minimum of 18 in (457 mm). Clearance at
000607
No operable windows or openings in the wall permitted
within 1.52 m (5 ft) from any point of the generator.
Top of Generator
3 ft (0.91 m)
5 ft
(1.52 m)
Existing Wall
18 in (457 mm)
Minimum Distance
5 ft (1.52 m)
Minimum Distance
5 ft (1.52 m)
Minimum Distance
These guidelines are based upon fire testing of
the generator enclosure and the manufacturer’s
requirement for air flow for proper operation.
Local codes may be different and more restrictive
than what is described here.
Allow sufficient room on all sides of the
generator for maintenance and servicing.
Clearance from the ends and front of the
generator must be 3 ft m (0.91). This includes
shrubs, bushes and trees. Clearance from the
back of the generator must be a minimum of 18
in (457 mm). Clearance at the top should be a
minimum of 5 ft (1.52 m) from any structure,
overhang or projections from the wall.
DO NOT install under wooden decks or
structures unless there is at least 5 ft (1.52 m)
of clearance above the generator.
Clearance from operable windows,
doors or any openings in the wall.
3 ft (0.91 m)
3 ft (0.91 m)
NOTE: Removable fence panels for servicing
cannot be placed less than 18 in (457 mm) in
front of the generator.
5 ft
(1.52 m)

Site Selection and Preparation
12 Installation Guidelines for 60 Hz EcoGen™ Generator
the top should be a minimum of 5 ft (1.52 m) from
any structure, overhang or projections from the wall.
•DO NOT install under wooden decks or structures
unless there is at least 5 ft (1.52 m) of clearance
above the generator.
•Install the unit where rain gutter downspouts, roof
run–off, landscape irrigation, water sprinklers or
sump pump discharge does not flood the unit or
spray the enclosure, including any air inlet or outlet
openings.
•Install the unit where services will not be affected or
obstructed, including concealed, underground or
covered services such as electrical, fuel, phone, air
conditioning or irrigation. This could affect Warranty
Coverage.
•Where strong prevailing winds blow from one
direction, face the generator air inlet openings to the
prevailing winds.
•Install the generator as close as possible to the fuel
supply to reduce the length of piping. REMEMBER
THAT LAWS OR CODES MAY REGULATE THE
DISTANCE AND LOCATION. In the absence of local
codes regarding placement or clearance, we
recommend following these guidelines.
•Install the generator as close as possible to the
transfer switch. REMEMBER THAT LAWS OR
CODES MAY REGULATE THE DISTANCE AND
LOCATION.
•The generator must be installed on a level surface.
The generator must be level within a 0.5 in (13 mm)
all around.
•The generator is typically placed on pea gravel,
crushed stone or a concrete pad. Check local codes
to see what type is required. If a concrete pad is
required, all applicable codes should be followed.
Installation Guidelines for Stationary Air–Cooled
Generators
See Figure 3-1. The National Fire Protection Association
has a standard for the installation and use of stationary
combustion engines. That standard is NFPA 37; its
requirements limit the spacing of an enclosed generator
set from a structure or wall.
NFPA 37, Section 4.1.4, Engines Located Outdoors:
Engines, and their weatherproof housings if provided,
that are installed outdoors shall be located at least 5 ft
(1.52 m) from openings in walls and at least 5 ft (1.52 m)
from structures having combustible walls. A minimum
separation shall not be required where the following
conditions exist:
1. The adjacent wall of the structure has a fire resis-
tance rating of at least one hour.
2. The weatherproof enclosure is constructed of
noncombustible materials and it has been
demonstrated that a fire within the enclosure will
not ignite combustible materials outside the
enclosure.
Annex A — Explanatory Material
A4.1.4 (2) Means of demonstrating compliance are by
means of full scale fire test or by calculation procedures.
Because of the limited spaces that are frequently
available for installation, it has become apparent that
exception (2) would be beneficial for many residential
and commercial installations. With that in mind, the
manufacturer contracted with an independent testing
laboratory to run full scale fire tests to assure that the
enclosure will not ignite combustible materials outside
the enclosure.
NOTE: Southwest Research Institute testing
approves 18 in (457 mm) installation minimum from
structure. Southwest Research is a nationally
recognized third party testing and listing agency.
The criteria was to determine the worst case fire scenario
within the generator and to determine the ignitability of
items outside the engine enclosure at various distances.
The enclosure is constructed of non–combustible
materials, and the results and conclusions from the
independent testing lab indicated that any fire within the
generator enclosure would not pose any ignition risk to
nearby combustibles or structures, with or without fire
service personnel response.
Figure 3-2. Southwest Research Institute Decal
The Southwest Research Institute Decal is located inside
the generator, next to the generator’s data decal.
http://www.swri.org/4org/d01/fire/listlab/listprod/director.htm
Based on this testing and the requirements of NFPA 37,
Sec 4.1.4, the guidelines for installation of the generators
listed above are changed to 18 in (457 mm) from the
back side of the generator to a stationary wall or building.
000609

Site Selection and Preparation
Installation Guidelines for 60 Hz EcoGen™ Generator 13
For adequate maintenance and airflow clearance, the
area above the generator should be at least 5 ft (1.52 m)
with a minimum of 3 ft (0.91 m) at the front and ends of
the enclosure. This would include trees, shrubs and
bushes. Vegetation not in compliance with these
clearance parameters could obstruct air flow. In addition,
exhaust fumes from the generator could inhibit plant
growth. See Figure 3-1 and the installation drawing
within the Owner’s Manual for details.
If the generator is not set to the OFF mode, it can crank
and start as soon as the battery cables are connected. If
the utility power supply is not turned off, sparking can
occur at the battery posts and cause an explosion.
Site Preparation
•Locate the mounting area as close as possible to the
transfer switch and fuel supply.
•Leave adequate room around the area for service
access (check local code), and place high enough to
keep rising water from reaching the generator.
•Choose an open space that will provide adequate
and unobstructed airflow.
•Place the unit so air vents won’t become clogged
with leaves, grass, snow or debris. Make sure
exhaust fumes will not enter the building through
eaves, windows, ventilation fans or other air intakes
(see Site Selection).
•Select the type of base, such as but not limited to
gravel or concrete, as desired or as required by local
laws or codes. Verify your local requirements before
selecting.
Material Sufficient for Level Installation
•See Figure 3-3. Dig a rectangular area
approximately 5 in (127 mm) deep [A] and about 6 in
(152 mm) longer and wider [B] than the footprint of
the generator. Fill with 4 in (102 mm) of pea gravel
[C], crushed stone or any other non–combustible
material sufficient for level installation. Compact and
level the material. A concrete pad can be poured if
desired or required. The pad should be 4–5 in (102–
127 mm) thick and extend 6 in (152 mm) beyond the
outside of the generator in all directions.
Figure 3-3. Compacted Gravel Pad
NOTE: If a concrete pad is required, follow all applicable
federal, state or local codes.
Figure 3-4. Poured or Pre–formed Concrete Pad
Transportation Recommendations
Use a two wheeled hand cart or metal rails to carry the
generator (including the wooden pallet) to the installation
site. Place cardboard between the hand cart and the
generator to prevent any damage or scratches to the
generator.
Automatic start-up. Disconnect normal power source
and render unit inoperable before working on unit.
Failure to do so will result in death or serious injury.
(000236)
DANGER
Asphyxiation. Running engines produce
carbon monoxide, a colorless, odorless,
poisonous gas. Carbon monoxide, if not
avoided, will result in death or serious injury.
(000103)
DANGER
000856
A
B
C
000611a

Site Selection and Preparation
14 Installation Guidelines for 60 Hz EcoGen™ Generator
This page intentionally left blank.

Generator Placement
Installation Guidelines for 60 Hz EcoGen™ Generator 15
Section 4: Generator Placement
Generator Placement
See Figure 4-1. All air–cooled generators come with a
composite pad. The composite pad elevates the
generator and helps prevent water from pooling around
the bottom of the generator. The generator and
composite pad can be placed on 4 in (102 mm) of pea
gravel that is compacted, or on a concrete pad. Check
local codes to see what type of site base is required. If a
concrete pad is required, all federal, state and local
codes should be followed. Place the generator on its
mounting pad and position correctly as per the
dimensional information given in Site Selection and
Preparation.
NOTE: Generator must be level within 0.5 in (13 mm).
NOTE: If the composite pad is removed for concrete
mounting, the fascia kit will not fit.
Figure 4-1. Composite Pad
See Figure 4-2. Four mounting points are provided for
securing the generator to concrete—two holes at the
inside front of the enclosure and two outside rear
mounting brackets.
NOTE: Use the template at the top of the generator
carton to mark the concrete pad for drilling of the two
front mounting holes. For dimensions of the two rear
mounting holes, see Installation Drawing (2 of 2). DO
NOT USE brackets from shipping pallet. Use stainless
steel brackets provided with loose parts.
Figure 4-2. Mounting Hole Location
Fascia Installation (If Applicable)
•Locate the four (4) threaded black rubber bumpers
located in the Owner’s Manual bag.
•See Figure 4-3. Remove the four (4) bumpers from
the bag and screw them into threaded holes located
inside the end pieces of the fascia (two each)
opposite one another (A).
•Once the bumpers are installed, snap one of the end
pieces into one of the front / rear pieces of fascia.
Repeat this action with the other two remaining
pieces of fascia.
NOTE: Do not assemble all four pieces together at this
point (B).
•Place both assemblies at the base of the generator
and fit the rubber bumpers into the lifting holes in the
generator base (C).
•Once aligned, snap together the two remaining
connection points.
Figure 4-3. Fascia Installation
000612
001377
000614
AB
C

Generator Placement
16 Installation Guidelines for 60 Hz EcoGen™ Generator
This page intentionally left blank.
