Owner’s Manual
50 Hz Air-Cooled Generator Sets
8 kVA to 13 kVA
SAVE THIS MANUAL FOR FUTURE REFERENCE
Register your Generac product at:
www.activategen.com
1-262-953-5155
This product is not intended
to be used in a critical life
support application.
ISO000209b
Original Instructions

ii Owner’s Manual for 50 Hz Air-Cooled Generator Sets
Use this page to record important information about your generator set.
Record the information found on your unit data label on this
page. See General Information for the location of the unit
data label. The unit has a label plate affixed to the inside
partition, to the left of the control panel console as shown in
Figure 2-1. See Operation for directions on how to open the
top lid and remove the front panel.
When contacting an Independent Authorized Service Dealer
(IASD) about parts and service, always supply the complete
model and serial numbers of the unit.
Operation and Maintenance: Proper maintenance and care
of the generator set ensures a minimum number of problems
and keeps operating expenses at a minimum. It is the
operator’s responsibility to perform all safety checks, to
make sure all maintenance for safe operation is performed
promptly, and to have the equipment checked periodically by
an IASD. Normal maintenance, service, and replacement of
parts are the responsibility of the owner/operator and are not
considered defects in materials or workmanship within the
terms of the warranty. Individual operating habits and usage
may contribute to the need for additional maintenance or
service.
When the generator set requires maintenance or service,
Generac recommends contacting an IASD for assistance.
Authorized service technicians are factory–trained and are
capable of handling maintenance and service needs. To
locate the nearest IASD, visit the dealer locator at:
www.generac.com/Service/DealerLocator/.
Model:
Serial:
Production Date:
Volts:
LPG Amps:
NG Amps:
Hz:
Phase:
Controller P/N:

Owner’s Manual for 50 Hz Air-Cooled Generator Sets iii
Original document - written in English.
EC Declaration of Conformity
Manufacturer: Generac Power Systems, Inc.
S45 W29290 Hwy 59
Waukesha, WI 53189 USA
Generac Power Systems, Inc. hereby declares that the machinery described below fulfils all the relevant provisions of the
Machinery Directive 2006/42/EC. The Machinery also conforms to the relevant provisions of Outdoor Noise Directive
2000/14/EC (as amended by Directive 2005/88/EC) Notified body: SNCH, 2a, Kalchesbruck L – 1852 Luxembourg and
the Electromagnetic Compatibility Directive 2014/30/EU.
Machinery Description: Generator Set
Model Number: Generac Model Numbers; G007144#, G007244#, G007145#, G007245#, G007146#
and G007246# (“#” – 0 to 9 for minor design changes)
The following standards have been complied with in part or in full as relevant:
Machinery Directive 2006/42/EC Harmonised Standards applied:
EN ISO 8528-13:2016 - Reciprocating internal combustion engine driven alternating current generating sets
IEC 60204-1:2010/AC:2010 - Electrical equipment of machines - Part 1: General requirements
ISO 12100:2010 - General principles for design - Risk Assessment and risk reduction, includes EN 14121:2007
Additional standards that have either been referred to or been complied with in part or in full as relevant:
ISO 8528-1:2005 - Reciprocating internal combustion engine driven alternating current generating sets
ISO 8528-5:2013 - Reciprocating internal combustion engine driven alternating current generating sets
IEC 60034-1:2010 - Rotating electrical machines – Part 1: Rating and performance
Harmonised Standards applied for Outdoor Noise Emission Directive 2000/14/EC:
ISO 8528-10:1998 – Reciprocating internal combustion engine driven alternating current generating sets
EN ISO 3744:2010 - Determination of sound power levels and sound energy levels of noise sources using sound pressure
Model number G007144# & G007244#: measured sound power level 94.0 dB(A), guaranteed sound power level 95 dB(A)
Model number G007145# & G007245#: measured sound power level 94.2 dB(A), guaranteed sound power level 95 dB(A)
Model number G007146# & G007246#: measured sound power level 94.8 dB(A), guaranteed sound power level 96 dB(A)
Harmonised Standards applied for Electromagnetic Compatibility Directive 2014/30/EU:
EN 55012:2007+A1:2009 – Vehicles, boats and internal combustion engines – Radio disturbance characteristics
EN 55014-1:2006 – Electromagnetic Compatibility – Requirements for household appliances, electric tools and similar
apparatus. Part 1 - Emission
EN 55014-2:2015 – Electromagnetic compatibility – Requirements for household appliances, electric tools and similar
apparatus. Part 2 - Immunity
EN 61000-3-2:2014 - Electromagnetic compatibility – Part 3-2: Limits – Limits for harmonic current emissions
EN 61000-3-3:2013 - Electromagnetic compatibility – Part 3-3: Limits – Limitation of voltage changes, voltage fluctuations
and flicker in public low-voltage supply systems.
A Technical file has been compiled in accordance with Part A of Annex VII of Machinery Directive 2006/42/EC and is available to the
European National authorities upon request.
Jeffrey Jonas Signature:
Staff Engineer-Certifications
Generac Power Systems, Inc.
S45 W29290 Hwy 59
Waukesha, Wisconsin, USA
This document was made at Generac Power Systems, Inc. at the address noted above on February 15, 2018

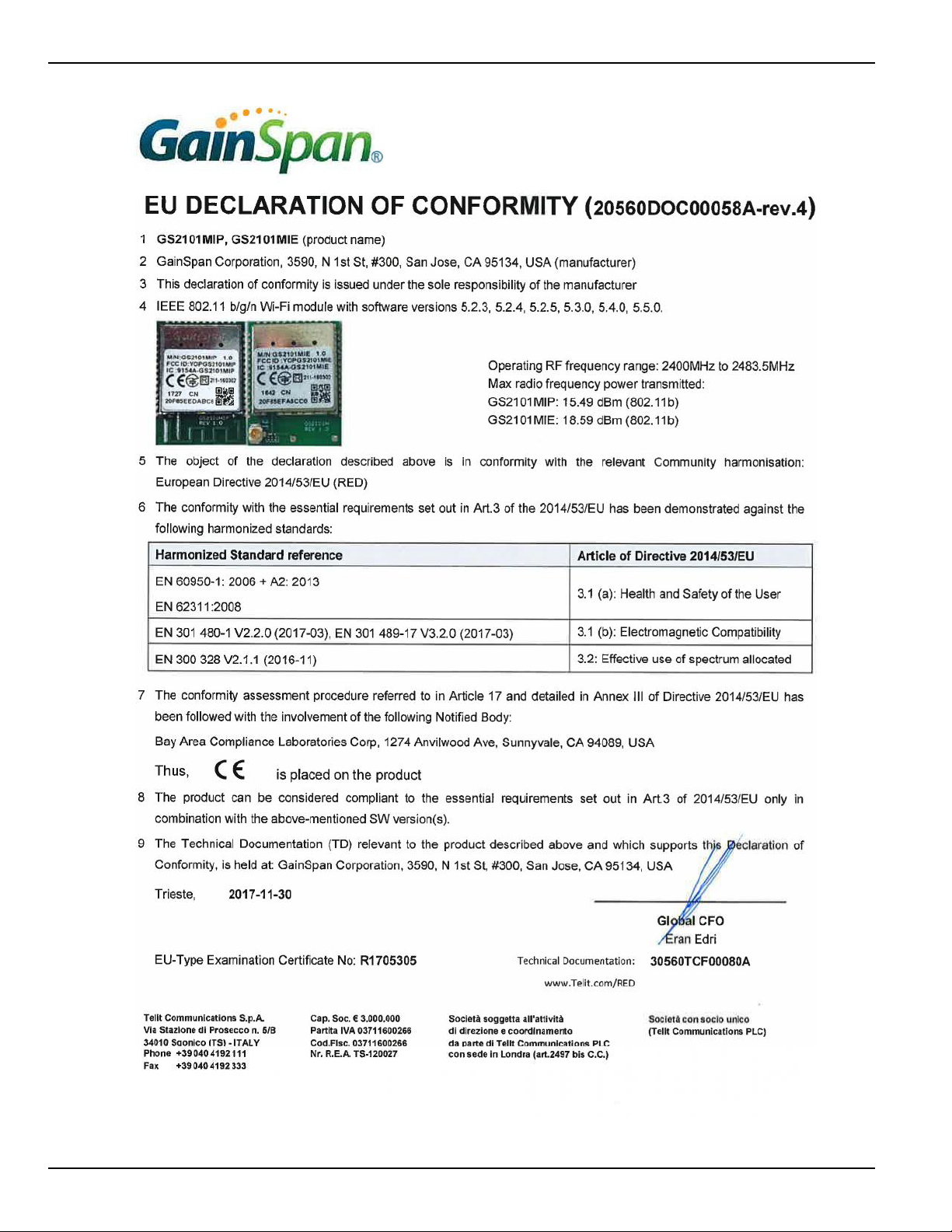

iv Owner’s Manual for 50 Hz Air-Cooled Generator Sets

Owner’s Manual for 50 Hz Air-Cooled Generator Sets v
Section 1: Safety Information
Introduction ..........................................................1
Safety Messages ..................................................1
Safety and Informational Decals ........................2
Safety Rules .........................................................5
General Safety ............................................................5
Installation ...................................................................6
Operation .....................................................................7
Maintenance ................................................................7

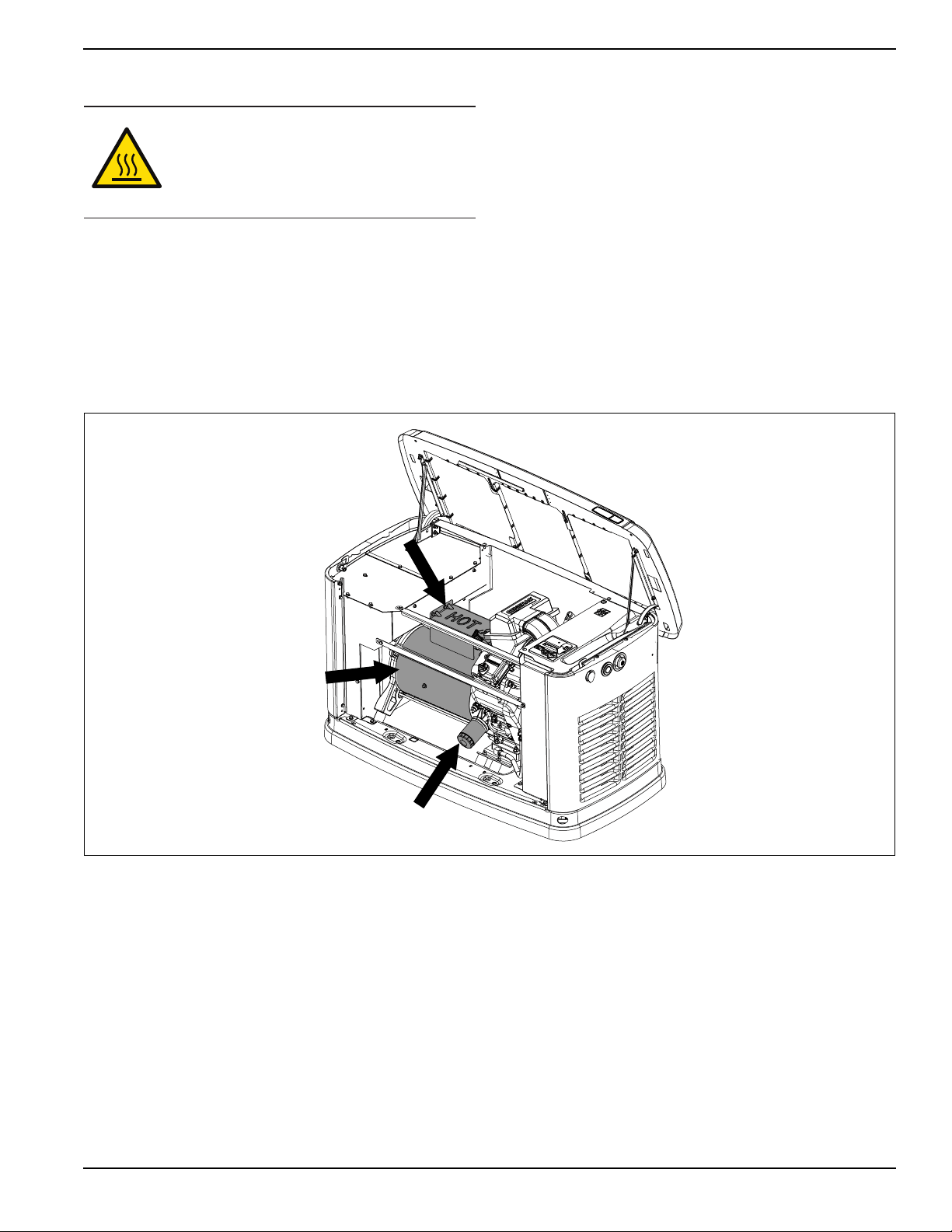

Hot Surfaces .........................................................9
Section 2: General Information
The Generator Set ..............................................11
Data Decals ........................................................12
Specifications ....................................................13
Generator Set ............................................................13
Engine .......................................................................14
Protection Systems ...........................................14
Emission Information ........................................14
Fuel Requirements ............................................15
Battery Requirements .......................................15
Battery Charger ..................................................15
Engine Oil Requirements ..................................15
Activating the Generator Set ............................15
Wi-Fi Module ......................................................15
Replacement Parts ............................................15
Accessories ........................................................16
Section 3: Operation
Site Prep Verification ........................................17
Generator Set Enclosure .................................. 17
Opening the Lid .........................................................17
Generator Main Line Circuit Breaker ...............17
LED Indicator Lights ..................................................18
Control Panel Interface .....................................18
Using the Control Panel Interface ....................18
Interface Menu Displays ................................... 19
The LCD Panel ..........................................................19
Menu System Navigation ..........................................20
Setting the Exercise Timer ............................... 22
Emergency Stop ................................................22
Operating Modes ...............................................23
Manual .......................................................................23
Auto ...........................................................................23
Exercise .....................................................................23
Manual Transfer Operation ...............................23
Transfer to Generator Set Power Source ..................23
Transfer to Mains Power Source ...............................24
Automatic Transfer Operation .......................... 24
Automatic Sequence of Operation ...................24
Mains (Utility) Power Failure .....................................24
Cranking ....................................................................24
Cold Smart Start ........................................................24
Load Transfer ............................................................25
Shutting Generator Set Down While Under Load
Or During A Mains Power (Utility) Outage ......25
Table of Contents

Table of Contents
vi Owner’s Manual for 50 Hz Air-Cooled Generator Sets
Section 4: Maintenance
Maintenance .......................................................27
Prepare Generator Set for Maintenance ..........27
Generator Set Enable/Disable Procedure ................. 27
Enclosure Panel Removal ......................................... 28
Remove Front Access Panel .................................... 28
Remove Intake Side Panel .......................................28
Performing Scheduled Maintenance ................29
Service Schedule ...............................................29
Maintenance Log ...................................................... 30
Checking Engine Oil Level ................................31
Engine Oil Requirements ..................................31
Changing the Oil and Oil Filter .........................31
Servicing the Air Cleaner ..................................32
Spark Plugs ........................................................32
Check and Adjust Valve Clearance ..................33
Check Valve Clearance ............................................ 33
Adjust Valve Clearance ............................................. 34
Battery Maintenance ..........................................34
Cleaning the Sediment Trap .............................36
Attention After Submersion ..............................36
Corrosion Protection .........................................36
Remove From, and Return To Service .............36
Remove From Service .............................................. 36
Return to Service ...................................................... 37
Decommissioning ..............................................37
Section 5: Troubleshooting / Quick
Reference Guide
Generator Set Troubleshooting ........................39
Quick Reference Guide .....................................40

Safety Information
Owner’s Manual for 50 Hz Air-Cooled Generator Sets 1
Section 1: Safety Information
Introduction
Thank you for purchasing this compact, high
performance, air-cooled, engine-driven generator set. It
is designed to automatically supply electrical power to
operate critical loads during a mains (utility) power
failure.
This unit is factory installed in an all-weather, metal
enclosure intended exclusively for outdoor installation.
This generator set will operate using either vapor
withdrawn liquid propane (LPG) or natural gas (NG).
NOTE: This generator set is intended to be used for
supplying typical residential loads such as induction
motors (sump pumps, refrigerators, air conditioners,
furnaces, etc.), electronic components (computer,
monitor, TV, etc.), lighting loads, and microwaves, when
sized properly.
This unit is also equipped with a Wi-Fi® module, which
enables the owner to monitor the generator set status
from anywhere he or she has Internet access.
NOTE: Wi-Fi® is a registered trademark of Wi-Fi
Alliance®.
If any portion of this manual is not understood, contact
the nearest Independent Authorized Service Dealer
(IASD) for starting, operating, and servicing procedures.
This manual must be used in conjunction with the
appropriate installation manual.
NOTE: SAVE THESE INSTRUCTIONS: The manufacturer
suggests this manual and the rules for safe operation be
copied and posted near the unit installation site. Safety
should be stressed to all operators and potential operators
of this equipment.
The information in this manual is accurate based on
products produced at the time of publication. The
manufacturer reserves the right to make technical
updates, corrections, and product revisions at any time
without notice.
Safety Messages
Throughout this publication and on tags and decals
affixed to the generator set, three types of safety
messages are used to alert personnel to special
instructions about a particular operation that may be
hazardous if performed incorrectly or carelessly. Observe
them carefully. Their definitions are as follows:
These safety messages cannot eliminate the hazards
they indicate. Observing safety precautions and strict
compliance with the special instructions while performing
the action or service are essential to preventing
accidents.
The operator is responsible for proper and safe use of
the equipment. The owner's manual contains important
safety information and instructions that the manufacturer
recommends owners and operators review before using
the equipment. In addition, anyone who may need to
operate the generator set in an emergency outage
situation should be instructed on how to properly start
and operate the unit to be prepared for such an event.
HAZARD WARNING
Yellow triangle with black border and
black symbol; indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
MANDATORY ACTION
Blue circle with white symbol; indicates
an action required to safeguard personal
health and / or avoid causing a
hazardous situation which could result in
death or serious injury.
PROHIBITION
Red ring with diagonal bar and black
symbol; indicates a prohibited action.
Performing the prohibited action may
cause a hazardous situation which could
result in death or serious injury.
—
NOTE
Notes provide additional information
important to a procedure or component.

Safety Information
2 Owner’s Manual for 50 Hz Air-Cooled Generator Sets
Safety and Informational Decals
This unit is equipped with safety and informational decals
displaying pictorial symbols. These symbols and decals
are described below. Locations are identified in Figure 1-
1 .
Contact an IASD for a replacement if a decal is missing,
damaged, or illegible.
ID Decal Description Meaning
A Oil Drain Oil drain location
B Positive Battery Cable •Electricity is present. Keep positive terminal covered
at all times when connected to battery.
•Read and understand the manual completely before
using this equipment.
•Identifies positive battery cable.
C Negative Battery Cable Identifies negative battery cable
D Fuel Selection Step 1: Unit set for Natural Gas (NG) operation.
Step 2: Press and rotate fuel selector 180° to change
fuel type.
Step 3: Unit set for Liquid Propane (LPG) operation.
NOTE: This decal is intended to be discarded after
installation and need not be replaced if missing.
E Shock Hazard / Read
The Manual
•Live components carrying potentially lethal voltages
may be accessible inside. Render the equipment
safe before attempting further access.
•Read and understand manual completely before
attempting further access.
F Burn Hazard /
Asphyxiation Hazard
•Surface may be hot. Do not touch when operating
equipment. After equipment shutdown, allow
sufficient time for surfaces to cool prior to contact.
•Carbon monoxide, a colorless odorless poisonous
gas, is emitted in engine exhaust while equipment is
running. Avoid inhalation of exhaust gases.
NG LP
NG
LPG
1
2
3

Safety Information
Owner’s Manual for 50 Hz Air-Cooled Generator Sets 3
G Activation •Activate the generator set before putting the unit into
operation.
•Read the manual for details.
H No User Serviceable
Parts
•Electricity is present at various locations inside this
enclosure.
•This equipment is designed for automatic operation
and may start at any time. Render the unit
inoperable before servicing.
•Battery is present. Wear appropriate protective gear.
•This equipment emits exhaust gases. Ensure proper
installation to prevent asphyxiation.
•Do not open the enclosure. There are no user-
serviceable parts inside. Contact an IASD.
•Read and understand the manual completely before
installing or operating this equipment.
•Do not smoke near this equipment.
•Do not allow open flames near this equipment.
J Read Owner’s Manual Read the manual for an explanation of this device.
K Lifting Point Install lifting attachments to this location and only this
location. Do not connect lifting device directly to the lift
point.
L Pinch Point Keep hands clear of these areas when installing the
front panel or closing the roof.
M1 See Data Decals.Model Data Decal Decal Location—8 kVA units
M2 See Data Decals.Model Data Decal Decal Location—10 kVA and 13 kVA units
NSee Data Decals.Fuel Data Decal Decal Location
PSound Power Level Guaranteed sound power level per Directive 2000/14/
EC. See Specifications for actual value.
QThreaded Connection Fuel inlet has a 1/2 in. NPT threaded connection.
WWW.ACTIVATEGEN.COM
12in.
NPT

Safety Information
4 Owner’s Manual for 50 Hz Air-Cooled Generator Sets

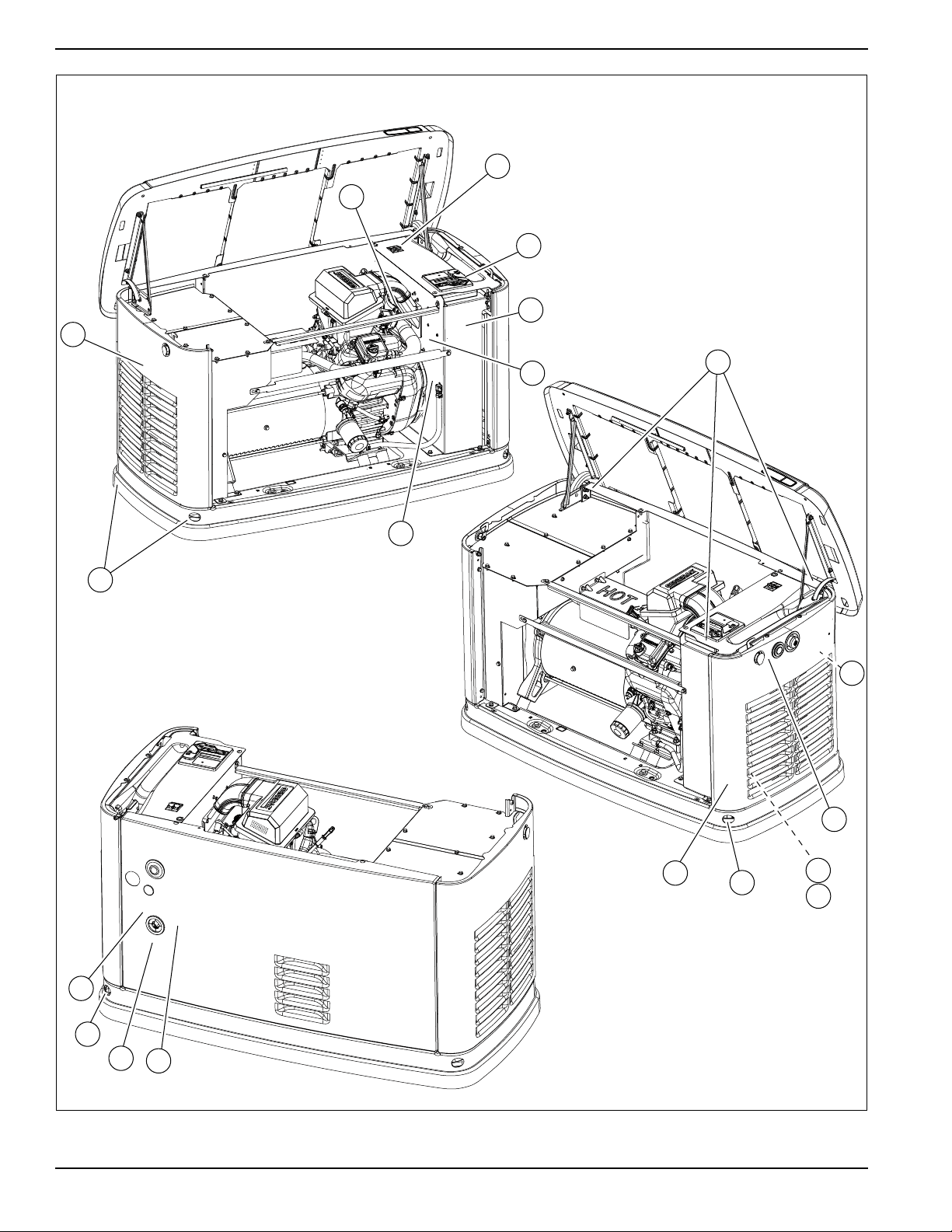

Figure 1-1. Safety Decals
A
B
C
E
F
H
J
K
G
D
L
E
M2
M1
P
N
Q
K
K
005771

Safety Information
Owner’s Manual for 50 Hz Air-Cooled Generator Sets 5
Safety Rules
Study these SAFETY RULES carefully before installing,
operating, or servicing this equipment. Become familiar
with this manual and with the unit. The generator set can
operate safely, efficiently, and reliably only if it is properly
installed, operated, and maintained. Many accidents are
caused by failing to follow simple and fundamental rules
or precautions.
The manufacturer cannot anticipate every possible
circumstance that might involve a hazard. The alerts in
this manual and on tags and decals affixed to the unit are
not all-inclusive. If using a procedure, work method, or
operating technique the manufacturer does not
specifically recommend, verify it is safe for others and
does not render the generator set unsafe.
General Safety
Hot surface. Keep equipment away from
combustible materials during operation.
Do not touch hot surfaces when operating
equipment. After equipment shutdown,
allow sufficient time for surfaces to cool
prior to contact. ISO000110
The enclosure provides protection against
hot surfaces inside the generator set. Hot
surfaces may be present if the generator set
has been operating under a large load.
Do not open the generator set enclosure
while the generator set is running. ISO000533
Read instruction manual.
Read and understand manual
completely before using this equipment.
ISO000100a
Refer to local codes and standards for
safety equipment required when working
with a live electrical system.
ISO000257
Only qualified service personnel may
install, operate, and maintain this
equipment.
ISO000182a
Follow all safety precautions in the
owner’s manual, installation manual,
and other documents included
with your equipment.
ISO000531
Verify the generator set is installed in
accordance with the manufacturer’s
instructions and recommendations.
ISO000539
Following proper installation, do nothing
that might alter a safe installation and
render the unit in noncompliance with
locally applicable codes, standards,
laws, and regulations.
ISO000540
Comply with regulations the local
agency for workplace health and
safety has established.
ISO000538
In the event of an electrical accident,
immediately shut power OFF. Use non-
conductive implements to free victim from
live conductor. Apply first aid and get
medical help. ISO000145
Use only fully-charged fire extinguishers
rated according to applicable industry
standards.
ISO000252
No open flames near equipment.
Flammable and explosive gases are
present inside this equipment.
ISO000529
Do not obstruct cooling and ventilating
airflow around the generator set.
ISO000217

Safety Information
6 Owner’s Manual for 50 Hz Air-Cooled Generator Sets
Installation
Do not stand on top of generator set
or use generator set as a step.
ISO000216
No smoking near equipment.
Flammable and explosive gases are
present inside this equipment.
ISO000528
User access prohibited. Do not open the
enclosure. No user serviceable parts
inside. Only qualified service personnel
may install, operate, and maintain this
equipment. Contact an IASD.
ISO000543
Installation must always comply
with applicable codes, standards,
laws, and regulations.
ISO000190
Only a trained and licensed electrician
should perform wiring and connections
to unit.
ISO000155a
Always use a battery operated carbon
monoxide alarm indoors and installed
according to the manufacturer’s
instructions.
ISO000178a
Connection of fuel source must be
completed by a qualified professional
technician or contractor.
ISO000151a
The generator set must be installed
and operated outdoors only.
ISO000525
Fuel and vapors are extremely
flammable and explosive. No leakage
of fuel is permitted. Keep fire and
spark away.
ISO000192
Use only approved switchgear to
isolate generator from the normal
power source.
ISO000237
Verify electrical system is properly
grounded before applying power.
ISO000152
Installation must comply with all
national and local electrical building
codes.
ISO000218
Unit must be positioned in a manner
that prevents combustible material
accumulation underneath.
ISO000147
Lift point. Install lifting attachments to
this location and only locations
identified as such. Do not connect
lifting device directly to the lift point.
ISO000532
Comply with regulations the local
agency for workplace health and
safety has established.
ISO000538

Safety Information
Owner’s Manual for 50 Hz Air-Cooled Generator Sets 7
Operation
Maintenance
Verify the generator set is installed in
accordance with the manufacturer’s
instructions and recommendations.
ISO000539
Following proper installation, do nothing
that might alter a safe installation and
render the unit in noncompliance with
locally applicable codes, standards,
laws, and regulations.
ISO000540
Never connect this unit to the electrical
system of any building unless a licensed
electrician has installed an approved
transfer switch.
ISO000150
Do not alter construction of, installation,
or block ventilation for generator set.
ISO000146
This product is not intended
to be used in a critical life
support application.
ISO000209b
Hot surface. Keep equipment away from
combustible materials during operation.
Do not touch hot surfaces when operating
equipment. After equipment shutdown,
allow sufficient time for surfaces to cool
prior to contact. ISO000108
Asphyxiating atmosphere. Carbon
monoxide, a colorless odorless poisonous
gas, is emitted in engine exhaust while
equipment is running. Avoid inhalation
of exhaust gases. ISO000103
Pinch point. Keep hands clear of
these areas when installing the
front panel or closing the roof.
ISO000526
Inspect the generator set regularly, and
contact the nearest servicing dealer
for parts needing repair or replacement.
ISO000524
This unit is not designed for use in
hazardous areas or explosive
atmospheres.
ISO000547
Keep clothing, hair, and appendages
away from moving parts.
ISO000111
This unit is not intended for use as a
prime power source. It is intended for use
as an intermediate power supply in the
event of a temporary power outage only.
ISO000247a
Do not wear jewelry when starting
or operating this product.
ISO000115
Batteries contain sulfuric acid and can
cause severe chemical burns. Wear
protective gear when working with
batteries.
ISO000138a
Electricity present. Keep positive
terminal covered at all times when
connected to battery.
ISO000530
Electricity present. Potentially lethal
voltages are generated by this equipment.
Render the equipment safe before
attempting repairs or maintenance.
ISO000187

Safety Information
8 Owner’s Manual for 50 Hz Air-Cooled Generator Sets
Automatic start-up. Disconnect mains
power and render the equipment
inoperable before attempting repairs
or maintenance.
ISO000191a
Do not open or mutilate batteries.
Batteries contain electrolyte solution
which can cause burns and blindness.
If electrolyte contacts skin or eyes,
flush with water and seek
immediate medical attention. ISO000163a
Avoid water contact with a power source.
ISO000104
Disconnect the negative battery cable,
then the positive battery cable, when
working on unit.
ISO000130
Disconnect battery ground terminal
before working on battery or
battery wires.
ISO000164
Always recycle batteries at an official
recycling center in accordance with
all local laws and regulations.
ISO000228
Batteries emit explosive gases while
charging. Keep fire and spark away.
ISO000548
Do not dispose of batteries in a fire.
Batteries are explosive. Electrolyte
solution can cause burns and blindness.
If electrolyte contacts skin or eyes,
flush with water and seek
immediate medical attention. ISO000162
Do not wear jewelry when starting
or operating this product.
ISO000115

Safety Information
Owner’s Manual for 50 Hz Air-Cooled Generator Sets 9
Hot Surfaces
The generator set enclosure provides protection against
hot surfaces inside the enclosure. Surfaces which may
be hot while the generator set is operating are identified
in Figure 1-2.
Follow the generator set shutdown procedure in
Shutting Generator Set Down While Under Load Or
During A Mains Power (Utility) Outage before opening
the enclosure. This allows adequate cooling to reduce
the risk of exposure to hot surfaces.
Figure 1-2. Hot Surfaces
The enclosure provides protection against
hot surfaces inside the generator set. Hot
surfaces may be present if the generator set
has been operating under a large load.
Do not open the generator set enclosure
while the generator set is running. ISO000533
006597

Safety Information
10 Owner’s Manual for 50 Hz Air-Cooled Generator Sets
This page intentionally left blank.

General Information
Owner’s Manual for 50 Hz Air-Cooled Generator Sets 11
Section 2: General Information
The Generator Set

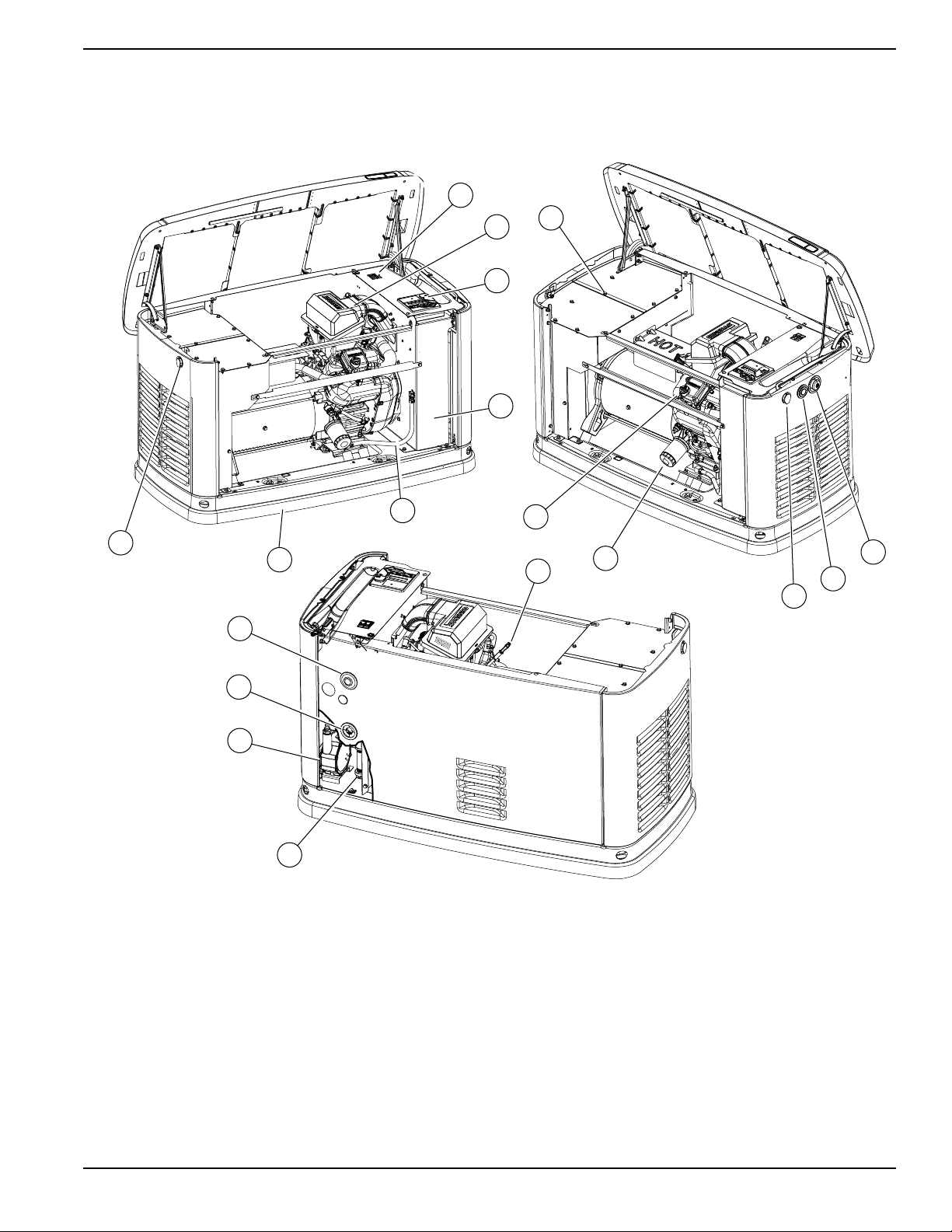

Figure 2-1. Components and Control Locations
A. Lock with Cover F. Oil Drain K. Status LED Indicators O. Sediment Trap
B. Main Line Circuit Breaker
(Generator Disconnect)
G. Composite Base L. Oil Filter P. Fuel Regulator
C. Airbox with Air Cleaner H. Exhaust Enclosure M. Oil Fill Cap Q. Fuel Inlet
D. Control Panel J. Emergency Stop N. Oil Dipstick R. Wi-Fi Module
E. Battery Compartment
(Battery not supplied)
A
C
E
B
D
H
A
L
M
N
O
P
Q
F
J
005622
K
G
R

General Information
12 Owner’s Manual for 50 Hz Air-Cooled Generator Sets
Data Decals
Two decals on the generator set provide information
about the unit itself and the required fuel inlet pressure
for proper operation.
Model Data Decal
1 Model Number
2 Serial Number
3 Item Number
4 Production Date
5 Volts
6 Number of Phases
7 Liquid Propane Vapor Amperage
8 Frequency
9 Natural Gas Amperage
10 Insulation Class
11 Power Factor
12 Controller Part Number
13 Country of Origin
14 Generator Duty Rating
15 Rated Ambient Temperature
16 Unbalanced Load Capacity
17 CE Conformity Marking
18 Generator Set Rated Power
19 Performance Class
20 Ambient Air Temperature
21 Degree of Protection
22 Approximate Mass
Fuel Inlet Pressure Decal
1 Serial Number
2 LPG Minimum Inlet Pressure
3 LPG Maximum Inlet Pressure
4 LPG Maximum Fuel Flow Rate
5 NG Minimum Inlet Pressure
6 NG Maximum Inlet Pressure
7 NG Maximum Fuel Flow Rate
1
2
3
4
5
7 8
10 11
12
14
15
16
18 19 20 21
22
13
9
6
17
1
2
5
6
7
3
4

General Information
Owner’s Manual for 50 Hz Air-Cooled Generator Sets 13
Specifications
Generator Set
Model 8 kVA 10 kVA 13 kVA
Rated Voltage 220
Alternate Voltage 230/240
Rated Maximum Load
Current (Amps) at Rated
Voltage*
36.4 45.5 59.1
Maximum Load Current
(Amps) at Alternate Voltage*
34.8 / 33.3 43.5 / 41.7 56.5 / 54.2
Main Circuit Breaker 40 A 50 A 63 A
Phase 1
Rated AC Frequency 50 Hz
Battery Requirement Group 26R, 12 Volts and 540 CCA Minimum (See Replacement Parts)
Enclosure Aluminum
Weight (kg / lb) 154.7 / 341 176.4 / 389 192.8 / 425
A-Weighted Sound
Pressure Level (LpA) 75 dB(A) 76 dB(A) 77 dB(A)
Sound Pressure
Measurement Uncertainty 1 dB(A)
A-Weighted Sound Power
Level (LwA) 94 dB(A) 94 dB(A) 95 dB(A)
Sound Power
Measurement Uncertainty 1 dB(A)
Normal Operating Range
This unit is tested in accordance to ISO 8528 standards with an operating temperature of -29 ºC
(20 ºF) to 50 ºC (122 ºF) For areas where temperatures fall below 0 ºC (32 ºF) a cold weather kit is
recommended. When operated above 25 ºC (77 ºF) there may be a decrease in engine power.
(Please reference the engine specifications section.
These generator sets are rated in accordance with ISO 8528, Reciprocating Internal Combustion Engine Driven Alternating Current Generating Sets–Safety.
* Natural gas ratings will depend on specific fuel joules / BTU content. Typical derates are between 10-20% off the LP gas rating.

General Information
14 Owner’s Manual for 50 Hz Air-Cooled Generator Sets
Engine
A detailed specification sheet for your particular generator set is available from your local Independent Authorized
Service Dealer (IASD) or at www.generac.com.
Protection Systems
The generator set may need to run for long periods of
time with no operator present to monitor the engine/
generator conditions. The generator set is equipped with
protection systems to automatically shut down the unit to
protect against potentially damaging conditions. Some of
these systems include:
Alarms:
Warnings:
The control panel contains a display which alerts the
operator when a fault condition occurs. The above list is
not all inclusive. See Operation for more information
about alarms and control panel operation.
NOTE: A warning will indicate a condition on the
generator set which should be addressed, but will not
shut the generator set down. An alarm will shut the
generator set down to protect the system from any
damage. In the event of an alarm, an owner can clear the
alarm and restart the generator set prior to contacting an
IASD. If the intermittent issue occurs again, contact an
IASD.
Emission Information
The engine used in this generator set is not certified to
United States EPA emission standards, or any other
emission standards. Sale or use of this generator set is
not legal in the U.S or any country which has emission
standards applicable to this product.
Model 8 kVA 10 kVA / 13 kVA
Type of Engine G-Force 500 Series G-Force 1000 Series
Number of Cylinders 2 2
Displacement 530 cc 999 cc
Cylinder Block Aluminum w/ cast iron sleeve
Recommended Spark Plug See Replacement Parts
Spark Plug Gap 0.76 mm (0.030 in) 1.02 mm (0.040 in)
Valve Clearance 0.05–0.1 mm
(0.002–0.004 in)
0.05–0.1 mm
(0.002–0.004 in)
Starter 12 VDC
Oil Capacity Including Filter Approx. 1.6 L (1.7 qt) Approx. 1.8 L (1.9 qt)
Oil Consumption Approx. 5-10 mL per hour (0.17–0.34 oz. per hour) at an average load of 50%
Recommended Oil Filter See Replacement Parts
Recommended Air Filter See Replacement Parts
Engine power is subject to and limited by such factors as fuel joules/BTU, ambient temperature and altitude. Engine power decreases about 3.5% for
each 304.8 m (1000 ft) above sea level, and also will decrease about 1% for each 6 °C (10 °F) above 15 °C (60 °F) ambient temperature.
•High Temperature
•Low Oil Pressure
•Overcrank
•Overspeed
•Overvoltage
•Undervoltage
•Overload
•Underspeed
•RPM Sensor Loss
•Controller Fault
•Wiring Error
•Stepper Overcurrent
•Emergency Stop
• Charger Warning
• Charger Missing AC
• Low Battery
• Battery Problem
•Exercise Set Error
•USB Warning
•Download Failure
