Generac Power Systems 1043-2 User manual

2700PSI
The Reliable Ones
High Pressure Washer
Owners Manual
Problems?
Questions?
Before taking your unit
back to the store,
call the pressure washer
helpline at
1-800-2 0-1408
M-F 8-5 CST
This pressure
washer is
equipped with an
Automatic Cool
Down System.
See page 12 for
details
GENERAC
This symbol points out important safety instructions, which, if not followed, could
endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in the manual before attempting to operate this unit.
Model No. 10432 (2 00 PSI High Pressure Washer) Manual No. B3241 Revision 0 ( /8/98)

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
2
CAUTION: Always disconnect spark plug wire and place wire where it cannot contact spark plug
to prevent accidental starting when setting up, transporting, adjusting or making repairs to your
high pressure washer.
 Engine exhaust gases contain DEADLY carbon
monoxi e gas. This angerous gas, if breathe
in sufficient concentrations, can cause
unconsciousness or even eath. Operate this
equipment only in the open air where a equate
ventilation is available.
 Gasoline is highly FLAMMABLE an its vapors
are EXPLOSIVE. Do not permit smoking, open
flames, sparks or heat in the vicinity while
han ling gasoline. Avoi spilling gasoline on a hot
engine. Allow unit to cool for 2 minutes before
refueling. Comply with all laws regulating storage
an han ling of gasoline.
 Use this pressure washer in areas away from
combustible materials, combustible fumes or
ust.
 The high pressure equipment is esigne to be
use with Generac authorize parts only. If you
use this equipment with parts that o not comply
with minimum specifications, the user assumes
all risks an liabilities.
 Some chemicals or etergents may be harmful
if inhale or ingeste , causing severe nausea,
fainting or poisoning.
 Do not allow CHILDREN to operate the pressure
washer at any time.
 Operate engine only at governe spee . Running
the engine at excessive spee s increases the
hazar of personal injury. Do not tamper with
parts which may increase or ecrease the
governe spee .
 Do not wear loose clothing, jewelry or anything
that may be caught in the starter or other rotating
parts.
 Before starting the pressure washer in col
weather, check all parts of the equipment an be
sure ice has not forme there.
 Units with broken or missing parts, or without
protective housing or covers shoul NEVER be
operate .
 The muffler an air cleaner must be installe an
in goo con ition before operating the pressure
washer. These components act as spark arrestors
if the engine backfires.
 Check the fuel system for leaks or signs of
eterioration such as chafe or spongy hose,
loose or missing clamps or amage tank or cap.
Correct all efects before operating the pressure
washer.
 Do not spray flammable liqui s.
 Never aim the gun at people, animals or plants.
 The high pressure stream of water that this
equipment pro uces can pierce skin an its
un erlying tissues, lea ing to serious injury.
 High pressure spray can cause paint chips or
other particles to become airborne an fly at high
spee s.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects, or other reproductive harm.
WWAARRNNIINNGG::
Important!  Safety Rules  Important!

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
3
 Always wear eye protection when you use this
equipment or when you are in the vicinity where
the equipment is in use.
 Never move the machine by pulling on the high
pressure hose. Use the han le provi e on the
top of the unit.
 Always be certain the spray gun, nozzles an
accessories are correctly attache .
 Never use a spray gun which oes not have a
trigger lock or trigger guar in place an in working
or er.
 Use a respirator or mask whenever there is a
chance that vapors may be inhale . Rea all
instructions with the mask so you are certain it
will provi e the necessary protection against
inhaling harmful vapors.
 High pressure spray may amage fragile items
inclu ing glass. Do not point spray gun at glass
when in the high pressure spray mo e.
 Keep the hose connecte to machine an the
spray gun while the system is pressurize .
Disconnecting the hose while the unit is
pressurize is angerous.
 Hol the spray gun firmly in your han s before
you start the unit. Failure to o so coul result in
an injury from a whipping spray gun. Do not leave
the spray gun unatten e while the machine is
running.
 The cleaning area shoul have a equate slopes
an rainage to re uce the possibility of a fall ue
to slippery surfaces.
 Keep water spray away from electric wiring or fatal
electric shock may result.
 Do not secure trigger gun in the pull-back (open)
position.
 Do not by-pass any safety evice on this machine.
 The muffler an engine heat up uring operation
an remain hot imme iately after shutting it own.
Avoi contact with a hot muffler or engine or you
coul be severely burne .
 Operate an store this unit on a stable surface.
 Never allow any part of the bo y to come in
contact with the flui stream. DO NOT come in
contact with a flui stream create by a leak in
the high pressure hose.
 High pressure hose can evelop leaks from wear,
kinking, abuse, etc. Water spraying from a leak
is capable of injecting material into skin. Inspect
hose each time before using it. Check all hoses
for cuts, leaks, abrasions or bulging of cover, or
amage or movement of couplings. If any of
these con itions exist, replace hose imme iately.
Never repair high pressure hose. Replace it with
another hose that meets minimum pressure rating
of your pressure washer.
Important!  Safety Rules  Important!

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
4
CONGRATULATIONS on your purchase of a
GENERAC high pressure washer. It has been
esigne , engineere an manufacture to give you
the best possible epen ability an performance.
Shoul you experience any problem you cannot
easily reme y, please contact your nearest
GENERAC Authorize Service facility, or call the 1-
800 number liste on the front of this manual. We
have competent, well-traine technicians an the
proper tools to service or repair this unit.
Please rea an retain this manual. The instructions
will enable you to assemble an maintain your high
pressure washer properly.
CUSTOMER
RESPONSIBILITIES
 Rea an observe the safety rules.
 Follow regular sche ule in maintaining, caring for
an using your high pressure washer.
 Follow the instructions un er Customer
Responsibilities an Storage sections of this
Owner's Manual.
PRODUCT
SPECIFICATIONS
Pressure Washer Specifications
Outlet Pressure . . . . 2700 psi
Flow Rate . . . . . . . . . 2.5 gallons per minute (gpm)
Detergent Mix . . . . . . Use un ilute etergent
approve for pressure
washers
Water Supply . . . . . . Not to excee 140°F
Temperature
Automatic Cool . . . . Will cycle when water
Down System reaches 140°-145°F
Engine specifications
Engine Model . . . . . . GN-220
Rated Horsepower . . 7.8
Displacement . . . . . . 220cc
Spark Plug
Type . . . . . . . . RC-12YC
Set Gap To: . . 0.030 inch (0.76mm)
Gasoline Capacity . . 4.2 U.S. quarts
Oil . . . . . . . . . . . . . . . SAE 30
In the State of California a spark arrestor is require
by law (Section 4442 of the California Public
Resources Co e). Other states may have similar
laws. Fe eral laws apply on fe eral lan s.
NOTE: The spark arrestor must be maintaine in
effective working or er by the owner/operator.
You can or er a replacement spark arrestor through
your authorize Generac service facility. See Engine
Owners Manual for part number.
Model Number 1043-2
Serial Number
Date of Purchase
The mo el an serial numbers will be foun on a
ecal attache to the pressure washer. recor both
serial number an ate of purchase an keep in a
safe place for future reference.

KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various
controls an a justments. Save this manual for future reference.
Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
5
Pump  Develops high pressure.
Spray Gun  Controls the application of water an
chemical onto cleaning surface with trigger evice.
Inclu es safety latch.
Chemical Valve Handle  The han le allows you to
select the high pressure spray or the chemical spray
(locate on the wan ).
Dual Element Air Cleaner  Uses a ry type filter
element an foam pre-cleaner to limit the amount of
irt an ust that gets in the engine.
Water Inlet  Connection for gar en hose.
Dual Lance  Must be connecte to the spray gun.
High Pressure Hose  Connect one en to water
pump an the other en to spray wan .
High Pressure Outlet  Connection for high pressure
hose.
Spark Arrestor Muffler  Exhaust muffler lowers
engine noise an is equippe with a spark arrestor
screen, a USDA man ate for engine use in national
forests an parks.
Goggles  Always use the enclose goggles or other
eye protection when running your pressure washer.
Automatic Cool Down System  Cycles water
through pump when water reaches 140°-145°F. Warm
water will discharge from pump onto base of unit.
This system prevents internal pump damage.
Gas Tank  Fill with regular unlea e gasoline.
Chemical Concentration Knob  A just concentra-
tion of chemical here.
Pressure Control Knob  A just pressure output
here.
Primer Bulb  Use for starting a col engine.
Spray Gun
Chemical Valve Handle
High Pressure Hose
Goggles
Dual Element
Air Cleaner
Gas Tank
Water Inlet
Pump equippe with
Automatic Cool Down System
High Pressure Outlet
Pressure Control
Knob
Spark Arrestor
Muffler
Primer Bulb
Dual Lance
Chemical
Concentration Knob

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
6
ASSEMBLY
Rea entire owners manual before you attempt to
assemble or operate your new pressure washer.
Your new pressure washer has been assemble at
the factory with the exception of those parts left
unassemble for shipping purposes.
REMOVE PRESSURE
WASHER FROM CARTON
 Remove parts box inclu e with pressure washer.
 Slice two corners at gui e han le en of carton
from top to bottom so the panel can be fol e own
flat, then remove all packing material.
 Roll pressure washer out of carton.
CARTON CONTENTS
Items in the carton inclu e:
 Main Unit
 Manual Bag
 Owners Manual
 Engine Owners Manual
 Nozzle Cleaning Kit
 ORing Maintenance Kit
 Parts Box (which inclu es the following):
 Vi eo
 Wireform
 Goggles
 Spray Gun
 Dual Lance
 High Pressure Hose
 Han le
 Han le Parts Bag (which inclu es the following):
 2 carriage bolts
 2 knobs
If any of the above parts are missing or amage , call
the pressure washer helpline at 18002 01408.
PREPARING THE
PRESSURE WASHER
FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or amage ,
call the Pressure Washer Helpline at 1-800-2 0-1408.
To prepare your pressure washer for operation you
will nee to perform these tasks:
 Attach the han le an attach the wire form that
hol s high pressure hose an spray gun.
 Connect high pressure hose to the spray gun an
the pump an connect water supply to the pump.
 A oil to engine crankcase.
 A fuel to fuel tank.
Attach the Handle
 Place the han le onto the bottom the han le
supports alrea y connecte to the main unit. Make
sure the holes in the han le align with the holes in
the han le supports (Figure 1).
Note: It may be necessary to move the han le
supports from si e to si e in or er to align the han le
so it will sli e over the han le supports.
Figure 1 — Attach the top of the handle to the
bottom of the handle.
Make sure
the holes in
the handle
supports
are aligned
with the
holes in the
handle.
Handle
Handle
Supports

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
7
ASSEMBLY
 Insert the carriage bolts from the outsi e through
the holes on the han le an attach the plastic
knobs on the insi e. Tighten the knobs by han
(Figure 2).
 Insert the wire support with the longer arm positione
on the left. From this view (from rear of unit), the hook
resembles a J (Figure 3) .
Add Engine Oil
IMPORTANT: Any attempt to crank or start the
engine before being properly service with the
recommen e oil will result in an engine failure.
Note: When a ing oil to the engine crankcase, use
only high quality etergent oil rate with API service
classification SF,SG, SH or SH/CD rate SAE 30
weight. Select the oils viscosity gra e accor ing to
your expecte operating temperature. Do Not Use
SAE 10W40 Oil.
Although multi-viscosity oils (5W30, 10W30, etc.)
improve starting in col weather, these multi-viscosity
oils will result in increase oil consumption when use
above 32°F. Check your engine oil level more
frequently to avoi possible amage from running
low on oil.
 Place pressure washer on a level surface.
 Clean area aroun oil fill an remove yellow oil fill
cap (Figure 4).
 Pour oil into the oil fill opening until it reaches the
top of the oil fill hole. DO NOT OVERFILL.
 Install yellow oil cap, han tighten securely.
Note: Check Oil Often During Engine Breakin.
Add Gasoline
DANGER! Never fill fuel tank indoors.
Never fill fuel tank when engine is running
or hot. Do not smoke when filling fuel tank.
WARNING! Never fill fuel tank completely
full. Fill tank to about 1/2" below the bottom
of the filler neck to provide space for fuel
expansion. Wipe away any fuel spillage
from engine and equipment before starting.
The manufacturer recommen s fresh, clean unlea e
automotive gasoline.
 Use clean fuel an store in approve containers.
Use clean fill funnels. Never use stale gasoline
left over from last season or gasoline store for long
perio s.
Figure 3 — Fit wire form on handle.
Figure 4 — Add oil to engine crankcase. Do not
attempt to start engine without
adding oil.
Figure 2 — Insert the carriage bolts and attach
the knobs.
col er 32°F warmer
5W30 SAE 30
Yellow
Oil Fill Cap

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
8
ASSEMBLY
 Clean area aroun fuel fill cap. Remove cap
(Figure 5).
 A UNLEADED gasoline, slowly, to fuel tank.
Use a funnel to prevent spillage.
 Install fuel cap an wipe up any spille gasoline.
Connect Hose and Water
Supply to Pump
IMPORTANT: You must assemble wan an attach
all hoses before you start engine. Starting engine
without all hoses connecte an water supplie will
amage pump.
 Uncoil high pressure hose an attach the en of the
hose with the threa e en to the base of the spray
gun (Figure 6). Tighten by han .
 Attach other en of high pressure hose to the high
pressure outlet on the pump (Figure 7). Tighten by
han .
 Before you connect your gar en hose to the water
inlet, inspect the water inlet screen (see Figure 8).
Clean the screen if it contains ebris or have it
replace if amage . Do not run the pressure
washer if the water inlet screen is damaged.
 Connect gar en hose to water inlet. Tighten firmly
by han (Figure 8).
 Turn on the water (open valve completely).
 Squeeze trigger on gun to purge pump system of
air an impurities. Squeeze until a stea y stream
appears.
Figure 7 — Connect high pressure hose to
pump.
Figure 6 — Connect high pressure hose
to spray gun.
Figure 8 — Connect the garden hose to water
inlet and turn ON the water.
Figure 5 — Add gasoline to fuel tank.
Gas Cap
Connect High Pressure
Hose Here
Connect Garden
hose here.
Check Screen
for Damage.
Connect high
pressure hose
here

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
9
ASSEMBLY
WARNING! Before starting the pressure
washer, be sure you are wearing adequate
eye protection.
 Attach ual lance to spray gun. Tighten by han
(Figure 9).
CHECKLIST BEFORE
STARTING ENGINE
If you have reache this point, look back over the
assembly to see if you have performe all of the
following.
 Check for properly tightene hose connections
(high pressure an water supply) an for tight
connections an that there are no kinks, cuts, or
amage to the high pressure hose, or gar en hose.
 Check that oil has been a e to proper level in
engine crankcase before trying to start the pressure
washer.
 A proper gasoline to fuel tank.
 Provi e proper water supply (not to excee 140°F).
 Be sure to rea Safety Rules an Operation
sections before using the pressure washer.
Figure 9 — Connect nozzle extension to spray
gun.

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
10
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
1-800-2 0-1408.
How to Start Your Engine
The best way to start your engine-powere pressure
washer for the first time is to follow these instructions
step-by-step. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit i le for at least a ay.
 This pressure washer requires a water source that
flows at least 2.5 gallons per minute. Do not attempt
to siphon water from a non-pressurize container.
Place the pressure washer close enough to an
outsi e water source so that no more than 50' of
gar en hose is nee e .
 Check that the high pressure hose is tightly
connecte to the spray gun an to the pump. See
ASSEMBLY section for illustrations.
 Connect the gar en hose to water inlet on the
pressure washer pump an turn the water valve on
all the way.
IMPORTANT: Do not run pump without the water
supply connecte an turne on. You must follow this
caution or the pump will be amage .
 Place the Run/Stop switch to Run.
 Press the primer bulb 3 times, waiting 2 secon s
between each push
Note: For a warm engine, o not prime.
 Squeeze the trigger on the spray gun to relieve air
pressure cause by turning on the water. Water will
spew out the gun in a thin stream. Continue to hol
trigger until you have a stea y stream of water an
no air remains.This will make it easier to pull start
the engine. Release the trigger.
 Apply the safety latch to the spray gun trigger
(Figure 11).
 Grasp rope han le an pull slowly until you feel
some resistance. Then pull cor rapi ly to
overcome compression, prevent kickback an start
the engine. Let rope return to starter slowly.
If after 3 pulls the engine fails to start, isengage the
spray gun safety latch, squeeze the trigger to relieve
water pressure, re-engage the spray gun safety latch
an pull the recoil starter han le rapi ly (Max. 3
pulls).
How to Stop Your Pressure
Washer
 Move the Run/Stop switch to Stop.
 Simply shutting off the engine will not release
pressure in the system. Squeeze trigger on the
spray gun to relieve pressure in the hose.
Note: A small amount of water will squirt out when
you release the pressure.
Figure 11 — Safety Latch.
Safety Latch On

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
11
How to Use the Dual Lance and
Adjust Pressure
You now shoul know how to START your pressure
washer an how to STOP it. The information in this
section will tell you how to a just the pressure an
apply etergent or any other cleaning chemicals.
DANGER! Never put hands in front of
nozzle.
 Locate on the si e of the pump is a pressure
control knob. You can increase an ecrease the
pressure of the spray by turning the knob clockwise
or counterclockwise respectively (Figure 12).
 Point the nozzle towar the groun an squeeze
the trigger to test the pressure. Be careful not to
spray your feet.
 For most effective cleaning, keep spray nozzle
between 8 to 24 inches away from cleaning
surface.
 If you get spray nozzle too close, especially using
high pressure, you may amage the cleaning
surface.
 Do not get closer than 6 inches when cleaning
automobile tires.
Applying Detergent
IMPORTANT: Use soaps designed specifically for
pressure washers. Househol etergents coul
amage the pump.
To apply detergent follow these steps:
 Prepare the etergent solution as require by the
job.
 Hang the etergent solution on J hook of the
wireform on the han le.
 Place small filter en of the chemical injecting tube
into the etergent container (Figure 13).
CAUTION: Keep the plastic injector tube
from coming in contact with the hot
muffler. This will damage the plastic tube.
When inserting the filter into a cleaning
agent bottle, route the tube so as to keep
it from inadvertently contacting the hot
muffler.
 A just chemical concentration knob for esire
chemical concentration.
 Open the chemical valve han le fully on the lance
by turning it counterclockwise (Figure 14).
IMPORTANT: Detergent cannot be applie without
the water source turne on.
Figure 12 — Pressure control knob.
Figure 13 — Insert the small filter into container
of cleaning solution.
Figure 14 — Chemical valve handle.
Pressure Control Knob
Chemical
Concentration
Knob

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
12
 Make sure gar en hose is connecte to water inlet.
Check that high pressure hose is connecte to
spray gun an pump (see ASSEMBLY), an start
engine.
 Apply etergent to a ry surface, starting from the
bottom an working up to avoi streaking.
 Allow the etergent to soak in for 3-5 minutes
before washing an rinsing. Reapply to prevent
surface from rying.
 For washing, start at lower portion of area to be
washe an work upwar , using long, even,
overlapping strokes.
Pressure Washer Rinsing
WARNING: Be extremely careful if you
must use the pressure washer from a
ladder, scaffolding or any other relatively
unstable location. Pressure in a running
washer builds as you climb. When you
press the trigger, the recoil from the initial
spray could force you to fall. The high
pressure spray could also force you to fall if
you are too close to the cleaning surface.
For Rinsing:
 Remove the chemical injector hose from the
chemical bottle to stop etergent from flowing.
Spray until the etergent has cleare from the gun.
 Turn the chemical valve han le clockwise fully until
it stops. This puts the gun into high pressure mo e.
 Keep the spray gun a safe istance from the area
you plan to spray.
 Apply a high pressure spray to a small area an
then check the surface for amage. If no amage
is foun , you can assume it is okay to continue
cleaning.
 Start at top of area to be rinse , working own with
same overlapping strokes as you use for cleaning.
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for 3-5
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach a
temperature between 140145°F. When the water
reaches this temperature, the automatic cool own
system engages an cools the pump by discharging
the warm water onto the ground. This system
prevents internal amage to the pump.

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
13
GENERAL MAINTENANCE
RECOMMENDATIONS
The warranty of the high pressure washer oes not
cover items that have been subjecte to operator
abuse or negligence. To receive full value from the
warranty, operator must maintain high pressure
washer as instructe in this manual.
 Some a justments will nee to be ma e
perio ically to properly maintain your high pressure
washer.
 All a justments in the Service an A justments
section of the engine owners manual shoul be
ma e at least once each season.
 Once a year you shoul clean or replace the spark
plug, clean or replace the air filter an check the
gun an wan assembly for wear. A new spark plug
an clean air filter assure proper fuel-air mixture
an help your engine run better an last longer.
BEFORE EACH USE
 Check engine oil level.
 Check water inlet screen for amage.
 Check high pressure hose for leaks.
 Check etergent inlet hose an filter for amage.
 Check gun an wan assembly for leaks.
PRESSURE WASHER
MAINTENANCE
Check and Clean Inlet Screen
Examine screen on the water inlet. Clean if the
screen is clogge or replace if screen is amage .
Check High Pressure Hose
High pressure hose can evelop leaks from wear,
kinking, or abuse. Inspect hose each time before
using it. Check for cuts, leaks, abrasions or bulging of
cover, amage or movement of couplings. If any of
these con itions exist, replace hose imme iately.
DANGER: Water spraying from a leak is
capable of injecting material into skin.
Inspect hose each time before using it.
Never repair a high pressure hose. Replace
it with another hose that meets the
maximum pressure rating of your pressure
washer.
Check Detergent Hose
Examine the filter on the etergent hose an clean if
clogge . Hose shoul fit tightly on barbe fitting.
Examine hose for leaks or tears. Replace the filter or
hose if either is amage .
Check Gun and Wand
Examine hose connection to gun an make sure it is
secure. Test trigger by pressing it an making sure it
springs back into place when you release it. Put safety
latch in on position an test trigger. You shoul not be
able to press trigger.
Purge Pump of Air and
Contaminants
To remove the air from the pump, follow these
steps:
 Set up the pressure washer as escribe in the
ASSEMBLY section an connect the water supply.
 Remove the ual lance from the gun.
 Squeeze the trigger on the gun an hol .
To remove any contaminants from the pump,
follow these steps:
 Set up the pressure washer as escribe in the
ASSEMBLY section, an connect the water supply.
 Remove the ual lance from the spray gun.
 Start the engine accor ing to instructions in
OPERATION section.
 Squeeze the trigger on the spray gun an hol .
 When the water supply is stea y an constant,
engage the safety latch an refasten the ual lance.
Cleaning Chemical Injector Hose
If you have use the chemical injector hose you must
flush it with clean water before stopping the engine.
To clean the chemical injector hose:
 Place the small filter en of the chemical injector
hose in a bucket of clean water.
 Open the chemical valve han le fully on the lance
by turning it counterclockwise. This puts the gun in
low pressure.
 Squeeze the spray gun trigger for 1 - 2 minutes to
flush the chemical injector hose.
 Shut off the engine.
Important: Simply shutting OFF engine will not release
pressure in the system. When engine has shut
down, squeeze the trigger on the gun to relieve the
pressure in the hose.

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
14
Nozzle Maintenance
If the nozzle on the ual lance becomes restricte or
clogge with foreign materials, such as irt, excessive
pump pressure may evelop. If this nozzle becomes
partially clogge , it can cause a pulsing sensation
uring use. This generally is not a pump relate
problem, but rather a clogge or partially restricte
nozzle.
If the nozzle becomes clogge or partially restricte ,
imme iately clean the nozzle with the kit inclu e
with your pressure washer by following these
instructions:
 Shut off the engine an turn off the water supply.
 Press trigger to relieve pressure.
 Separate the ual lance from the gun.
 Use the wire inclu e in the kit (Figure 15) or a
small paper clip to free the foreign materials
clogging or restricting the nozzle.
Figure 15 — Removing and cleaning nozzle.
 Remove a itional ebris by back flushing water
supply through ual lance (Figure 16). Back flush
between 30 to 60 secon s. Back flush both lances
by turning chemical valve han le.
Figure 16 — Backflushing the nozzle.
 Reconnect the ual lance to the spray gun.
 Reconnect the water supply, turn on the water, an
start the engine.
 Test the pressure washer by operating with nozzle
in the high an in the low position.
ENGINE MAINTENANCE
See the Engine Owners Manual for instructions on
how to properly maintain the engine.
SERVICE AND
ADJUSTMENTS
See the Engine Owners Manual for instructions on
how to properly service an a just the engine

Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
15
PREPARING THE UNIT FOR
STORAGE
Water shoul not remain in the unit for long perio s of
time. Se iments of minerals can eposit on pump
parts an freeze pump action. If you o not plan to
use the pressure washer for more than 30 ays,
follow this proce ure:
1.Flush chemical injector hose by placing the injector
filter into a pail of clean water while running
pressure washer an squeezing the spray gun
trigger with the ual lance in low pressure mo e.
Flush for two minutes.
2.Shut off the engine an let it cool, then remove all
hoses.
3.Place Run/Stop Switch in STOP position.
4.Empty the pump of all liqui s by pulling recoil
han le about 6 times. This shoul remove most of
the liqui in the pump.
NOTE: To protect unit from freezing temperatures,
raw R. V. Antifreeze flui into pump by pouring
Antifreeze flui into a 3-foot section of gar en hose
connecte to inlet a apter an pulling recoil han le
twice.
5.Store in a clean, ry area.
STORING THE ENGINE
See the engine Owners manual for instructions on
how to properly store the engine.

Troubleshooting Points
Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
16
Problem Cause Correction
Pump has following problems: 1. Lance in low pressure mode. 1. Adjust chemical valve handle to
failure to produce pressure, erratic high pressure.
pressure, chattering, loss of pressure, 2. Water inlet is bloc ed. 2. Clear inlet.
low water volume. 3. Inadequate water supply. 3. Provide adequate water flow.
4. Garden hose is in ed or lea ing. 4. Straighten garden hose, patch lea .
5. Clogged inlet hose strainer. 5. Chec and clean water inlet screen.
6. Water supply is over 140°F. 6. Provide cooler water supply.
7. Outlet hose is bloc ed or lea s. 7. Clear bloc s in outlet hose.
8. Gun lea s. 8. Replace gun.
9. Nozzle is obstructed. 9. Clear nozzle.
10. Pump is faulty. 10. Contact Generac service facility.
Detergent fails to mix with spray. 1. Chemical injector hose is not submerged. 1. Insert chemical line into deter
gent.
2. Chemical injector hose is clogged. 2. Clean or replace filter/chemical
injector hose.
3. Nozzle is in high pressure mode. 3. Push nozzle forward for low
pressure mode.
4. Chemical concentration nob is closed. 4. Open chemical concentration nob.
Engine runs well when not spraying Engine speed is too slow. Contact Generac service facility.
but bogs down when the trigger is
squeezed.

Troubleshooting Points
Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
17
PROBLEM CAUSE CORRECTION
Engine will not start; or starts 1. Low oil level. 1. Fill cran case to proper level.
and runs rough. 2. Dirty air cleaner. 2. Clean or replace air cleaner.
3. Out of gasoline. 3. Fill fuel tan .
4. Stale gasoline. 4. Drain gas tan ; fill with fresh fuel.
5. Spar plug wire not connected 5. Connect wire to spar plug.
to spar plug.
6. Bad spar plug. 6. Replace spar plug.
7. Water in gasoline. 7. Drain gas tan ; fill with fresh fuel.
8. Excessively rich fuel mixture. 8. Contact Generac service facility.
9. Inta e valve stuc open or closed. 9. Contact Generac service facility.
10. Engine has lost compression. 10. Contact Generac service facility.
Engine shuts down during operation. 1. Out of gasoline. 1. Fill fuel tan .
2. Low oil level. 2. Fill cran case to proper level.
Engine lac s power. Dirty air filter. Replace air filter.
Engine hunts or falters. Engine not operating properly. Contact Generac service facility.

18
Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones

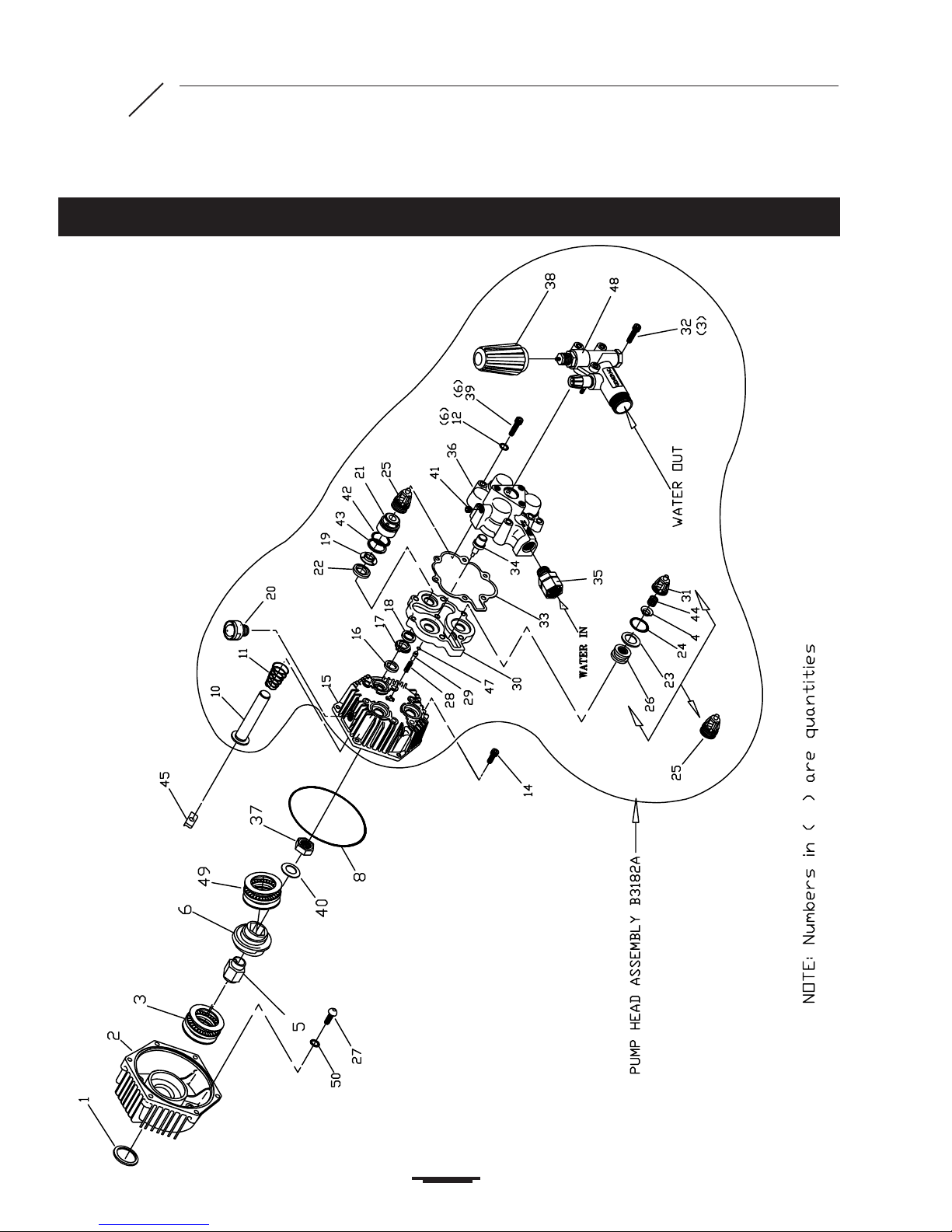

Drawing No. B3242
Exploded View  Main Unit

1 A1040D 1 HOSE, 4-1/2 Chemical Clear
2 A1041 1 FILTER, Chemical Hose
3 70453 1 TAG, Warning Oil
4 97178 2 KNOB, Han le 1/4 - 20 PW
5 31669 2 BOLT, 1/4 - 20 x 1-3/4 Carriage
6 B1210 1 TAG, Start Instructions
7 99583 8 NUT, Flange Lock 5/16-18
8 B1982 1 BUMPER
9 97054 1 TAG, Pres. A just
10 B1288 1 TAG, PW Breather Cap
11 B1232 1 CLAMP, Hose 7/16 Dia.
12 21786 1 DECAL, Danger
13 91682B 1 DECAL, Recoil
14 45771 7 NUT, M8 - 1.25 Hex
15 22129 7 LOCKWASHER, M8
16 21217 2 MOUNT, Rubber Shock
17 74031 .001 QT., Liqui Neoprene
18 97100 1 CAP, H.P. A aptor
19 97098 1 CAP, Gar en Hose Inlet
20 B2043 7 BOLT, 5/16-18 x 1-3/4 Carriage
21 N/A 1 ASSEMBLY, Pump
(see pump explo e view)
22 NSP 1 ENGINE, ENGB2219
23 B1983 1 HANDLE
24 B1631A 1 BILLBOARD, Plastic
25 B1932 1 DECAL, Instructions
26 B1981 2 SUPPORT, Han le
27 B2192 1 DECAL, Generac
28 B1760 2 ASSEMBLY, 10" Tire & Wheel
29 75402 2 PUSHNUT, .50 Dia.
30 AB1770 1 BASE
31 52858 3 NUT, M8 1.25 Locking
32 42909 2 HHCS, M8 1.25 x 30
33 50190 2 WASHER, M8 Flat
34 27007 2 MOUNT, Donut Type Vibration
35 20566 1 DECAL, Generac #1-800
36 B2150 1 HOOK , Gun
37 B1990 1 DECAL, Logo
38 52857 2 NUT, M6 1.0 Locking
39 20707 1 BRACKET, Pump Support
40 21216 2 MOUNT, Rubber Shock
41 38750 2 HHCS, M6 1.0 x 30
42 91630 1 HOSE, High Pressure
43 87815 1 GOGGLES, Saftey
44 B2140C 1 LANCE, Dual
45 B1862 1 GUN, High Pressure
46 B2203 1 KIT, Han le Fastening
47 B2508 1 KIT, Cleaning
48 B1460 2 CAP, Vinyl (black)
49 B2168A 1 HANGER, Hose, Gun, Jug
50 40976 2 SHCS, M8 1.25 x 20
51 22145 1 WASHER, Flat - M8
52 89476 1 GASKET, Exhaust
53 83208 1 BRACKET, Muffler
54 66476 2 HHCS, M6 1.0 x 12
55 83071 1 MUFFLER
56 39414 1 HHCS, M8 - 1.25 x 35
57 48031C 3 CLAMP, Hose
58 96193 1 VALVE, Fuel Shut Off
59 96001 4 BOLT, M6 - 1.0 x 21 Lg. Shoul er
60 96002 4 BUSHING, Tank
61 94994 1 TANK, 1 Gal Fuel
62 95549 1 CAP, Fuel
63 30340 1 HOSE, Fuel - 1/4" I.D.
64 21545 1 SHIELD, Heat
65 B2516 1 CAP, Vinyl (black)
66 67989 1 NUT, M8 Flange Serrate
67 B3062 1 KIT, O-RIng
68 B3241 1 MANUAL
19
Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
Item Part # Qty. Description Item Part # Qty. Description
Parts List  Main Unit

20
Generac 2700PSI High Pressure Washer
GENERAC
The Reliable Ones
Exploded View  Pump
Drawing No. B3181
