Double Insulated Electric Pressure Washer
Owner’s Manual
GENERAC
Model No. 1455-0 (1400 PSI Electric Pressure Washer) Manual No. 185708 evision 3 (5/25/2000)
Visit our Generac website: www.generac-portables.com
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
The Reliable Ones
1400PSI
Problems?
Questions?
Before taking your unit
back to the store,
call the pressure washer
helpline at
1-800- 70-1408
M-F 8-5 CT

Generac Portable Products 1,400 PSI Electric Pressure Washer
2
EQUIPMENT DESCRIPTION
CONGRATULATIONS on your purchase of a
GENE AC electric pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
This manual contains information for an electric
pressure washer that operates at 1,400 PSI at a flow
rate of 1.5 gallons per minute. This high quality system
features a cart, pump with pressure activated
start/stop system, GFCI power cord, turbo nozzle,
utility brush, foamer bottle, safety goggles, 25 high
pressure hose, and more.
Please read and retain this manual. The instructions
will enable you to assemble your unit and maintain
your pressure washer properly.
Every effort has been made to ensure that the
information in this manual is both accurate and
current. However, Generac reserves the right to
change, alter or otherwise improve the product and its
documentation at any time without prior notice.
Should you experience any problem you cannot easily
remedy, call the pressure washer helpline at
1-800- 70-1408.
CUSTOMER
RESPONSIBILITIES
 ead and observe the safety rules.
 Follow regular schedule in maintaining, caring for
and using your electric pressure washer.
 For off-season storage, review Storage on
page 11.
SAFETY RULES
WARNING! isk of injury or injection  Do Not
discharge stream at persons.
WARNING! isk of injury or injection  Unit
will start spraying when trigger is squeezed if
On/Off switch is in On position. Point spray
gun in safe direction.
WARNING! To reduce the risk of
electrocution, keep all connections dry and off
the ground. Do Not touch the plug with wet
hands.
DANGER! isk of Explosion  Do Not spray
flammable liquids.
 ead all instructions before using this product.
 To reduce risk of injury, close supervision is
necessary when a product is used near children.
Do Not allow children to operate the pressure
washer at any time.
 Stay alert. Watch what you are doing.
Do Not operate the product when fatigued or under
the influence of alcohol or drugs.
 Keep operating area clear of all persons.
Do Not overreach or stand on unstable support.
Keep good footing and balance at all times.
Do Not by-pass any safety device on this machine.
 Inspect cord before every use. Do Not use if cord is
damaged.
Do Not touch plug with wet hands.
 For outdoor household use only.
 Locate this pressure washer in areas away from
combustible materials, combustible fumes or dust.
Do Not leave the spray gun unattended while the
unit is connected to power.
 Before starting the pressure washer in cold weather,
check all parts of the equipment and be sure ice has
not formed there.
 Units with broken or missing parts, or without
protective housing or covers should Never be
operated.
 Always wear eye protection when you use this
equipment or when you are in vicinity where the
equipment is in use.
 Use a respirator or mask whenever there is a
chance that vapors may be inhaled. ead all
instructions with the mask so you are certain the
mask will provide the necessary protection against
inhaling harmful vapors.

Generac Portable Products 1,400 PSI Electric Pressure Washer
3
 Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea, fainting
or poisoning. The harmful elements may cause
property damage or severe injury.
 Keep water spray away from electric wiring or fatal
electric shock may result.
 High pressure stream of water that this equipment
produces can pierce skin and its underlying tissues,
leading to serious injury and possible amputation.
 High pressure spray can cause particles to become
airborne and fly at high speeds.
 Inspect hose each time before using it. Water
spraying from a leak is capable of injecting material
into skin. Check all hoses for cuts, leaks, abrasions
or bulging of cover, or damage or movement of
couplings. If any of these conditions exist, replace
hose immediately. Never repair high pressure hose.
eplace it with another hose that exceeds maximum
pressure rating of your pressure washer.
Never move the machine by pulling on the high
pressure hose. Use the handle provided on the cart
or top of the unit.
 Keep the hose connected to machine and the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
Never aim spray gun at people, animals or plants.
 High pressure spray may damage fragile items
including glass. Do Not point spray gun at glass
when in the high pressure mode.
 Hold the spray gun firmly in your hand when you
use unit. Failure to do so could result in an injury
from a whipping spray gun.
 Operate and store this unit on a stable surface.
 Know how to stop the product and bleed the
pressure quickly. Be thoroughly familiar with
controls.
 Store in a clean, dry and frost-free room.
 Follow the maintenance instructions specified in the
manual.
Extension Cords
We Do Not recommend the use of extension cords
with this device. If it is necessary to use one, however,
then you must use only extension cords that are
approved for outside use. These extension cords are
identified by a marking ACCEPTABLE FO USE
WITH OUTDOO APPLIANCES. Also observe the
following specifications:
Cable Length: Wire Gauge:
Up to 25 feet (8m) 14 AWG
50 feet (15m) 12 AWG
Ground Fault Circuit Interrupter
Protection
To provide protection from the risk of electrical shock,
this electric pressure washer is equipped with a
ground fault circuit interrupter (GFCI). ead the

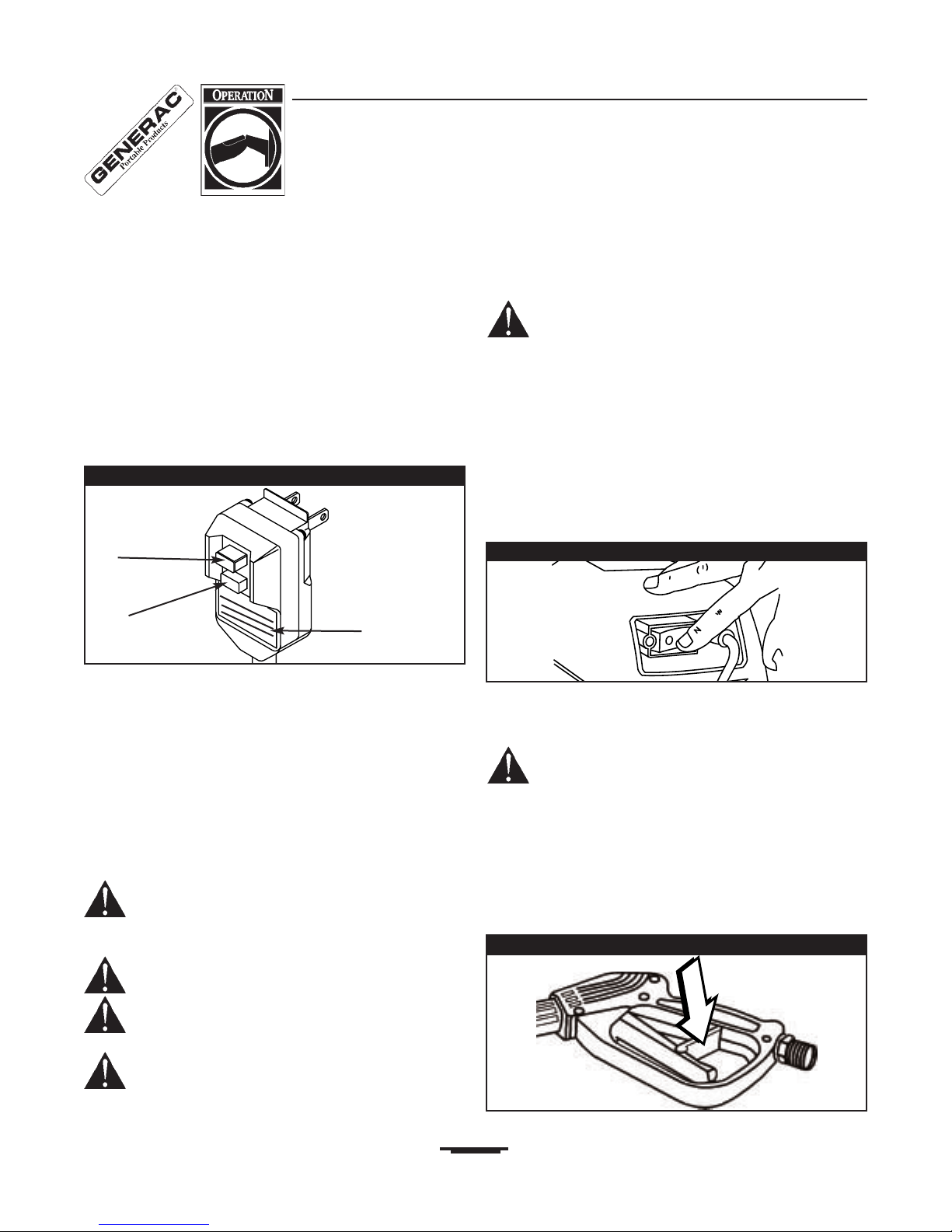

instructions on the plug for use or see Before Starting
Pressure Washer on page 8. The GFCI device will
disconnect both power conductors to the load circuit in
the event of an interruption in either or both supply
circuit power conductors. If power is interrupted in the
line, the GFCI provides protection even if neutral is
also grounded at the load.
IMPORTANT: The GFCI device will not automatically
reconnect the circuit to the load after power is
restored. After correcting any shorting problem, you
must manually press the reset button to restore power
to the pressure washer.
Servicing of a DoubleInsulated
Appliance
In a double-insulated product, two systems of
insulation are provided instead of grounding. No
grounding means is provided on a double-insulated
product, nor should a means for grounding be added
to the product.
Servicing a double-insulated product requires extreme
care and knowledge of the system, and should be
done only by qualified service personnel. eplacement
parts for a double-insulated product must be identical
to the parts they replace. A double-insulated product is
marked with the words Double Insulation or Double
Insulated. This symbol   is marked on the product.

Generac Portable Products 1,400 PSI Electric Pressure Washer
4
Bayonet Adapter (not shown)  Connector
accommodates the connection of a utility and rotating
brush to the spray gun.
Foamer  Used to apply detergent. Mixes water and
detergent in outlet water flow.
Goggles (not shown)  Always wear eye protection
when operating your pressure washer.
Grip Start System  Pressing and releasing the
spray gun trigger starts and stops the electric motor in
the pressure washer.
High Pressure Hose  Connect ends to spray gun
and high pressure outlet.
High Pressure Outlet  Connection for high pressure
hose.
Master On/Off Switch  This switch ONLY enables
the Grip Start system to function.
QuickConnect (not shown)  Allows rapid
connection of your garden hose to the water inlet.
Spray Gun  Controls the application of water onto
cleaning surface with trigger device. Includes safety
latch.
Turbo Nozzle/Wand  Always attached to wand.
Allows you to clean or rinse surfaces at high pressure.
You cannot apply detergent using the turbo nozzle.
Utility Brush  Attaches to the spray gun with the
bayonet adapter. Use this brush to scrub a variety of
surfaces.
Water Inlet  Connection for garden hose.

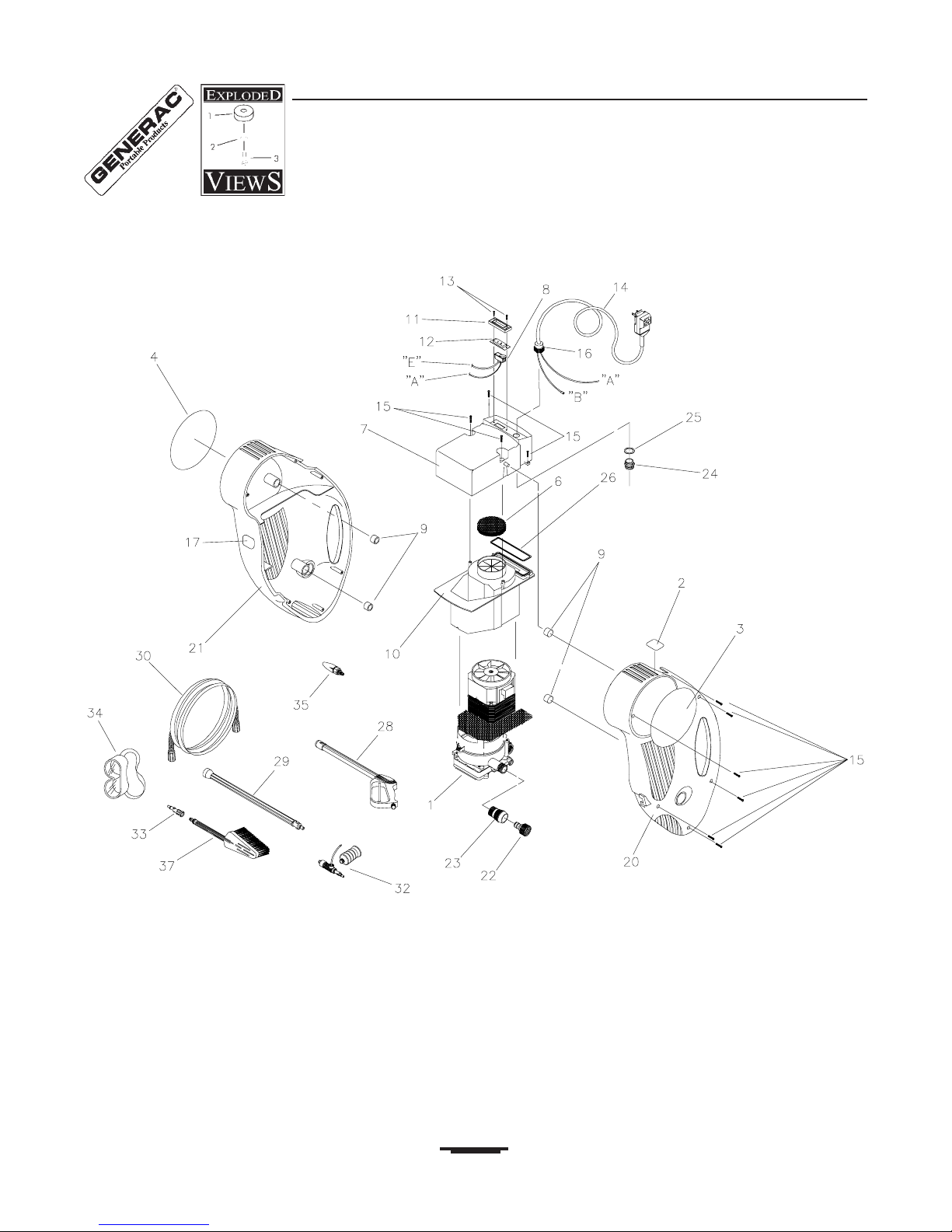

KNOW YOUR HIGH PRESSURE WASHER
Read the owners manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future use.
Spray Gun
Grip Start System
Master On/Off Switch
High Pressure Outlet
High Pressure Hose
Water Inlet
Utility Brush
Turbo Nozzle/
Wand
Foamer

Generac Portable Products 1,400 PSI Electric Pressure Washer
5
REMOVE PRESSURE
WASHER FROM CARTON
 emove main unit.
 emove cart base.
 emove parts box.
CARTON CONTENTS
The following parts are shipped loose with your
pressure washer:
 Main unit
 Cart base
 Owners manual
 Parts box (includes items listed below)
 Safety glasses
 Oring kit
 Spray gun
 Foamer bottle
 Turbo nozzle/wand and utility brush
 High pressure hose
 Cart hardware parts bag
 Cart handle, axle, wheels, and wire form
 Garden hose quick connect fittings
 Bayonet adapter
Become familiar with each piece before assembling
the pressure washer. Check all contents against the
illustration on page 4. If any parts are missing or
damaged, call the pressure washer helpline at
1-800- 70-1408.

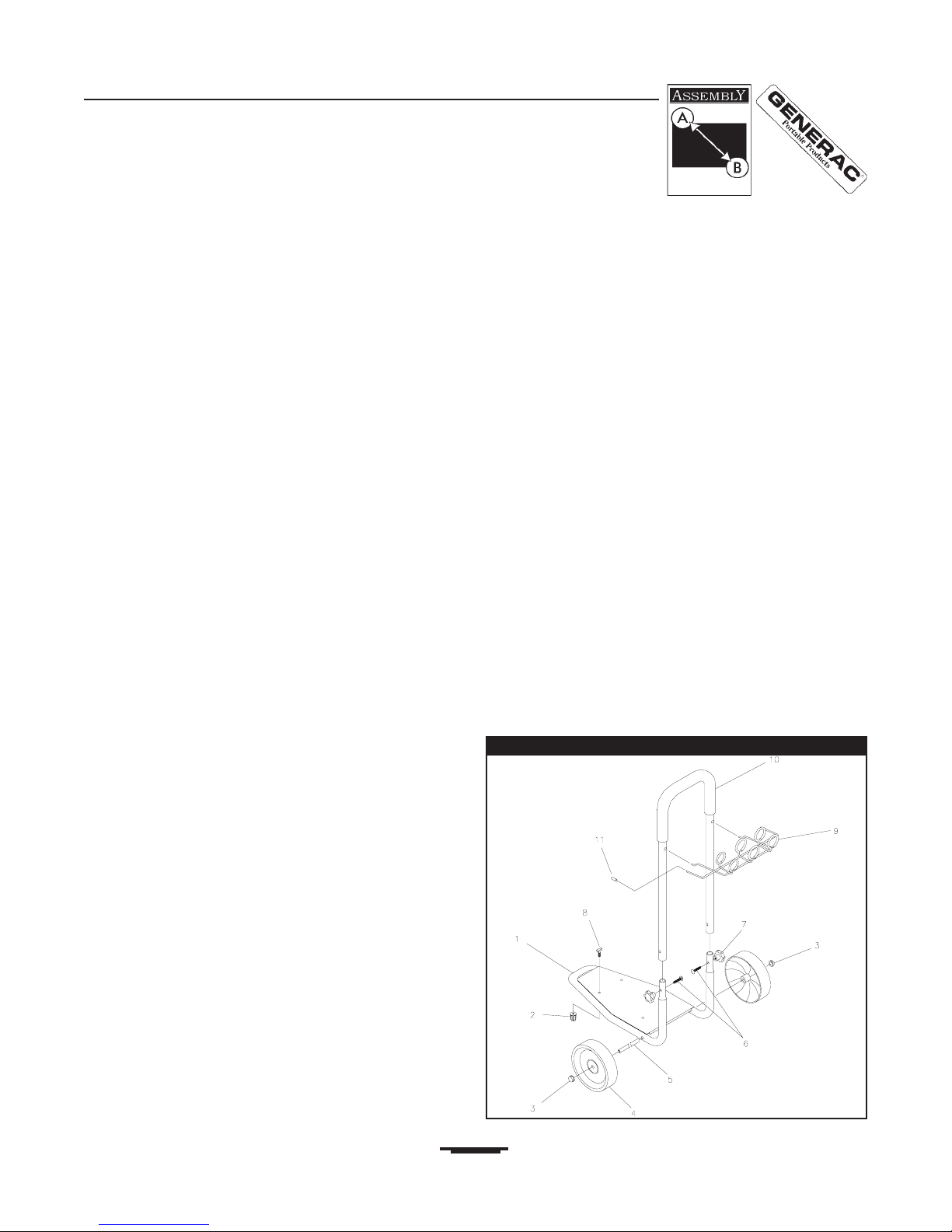

CART ASSEMBLY
To assemble your cart you need the following
tools:
 Hammer
 Adjustable Wrench
 Phillips Screwdriver
 Wood Block

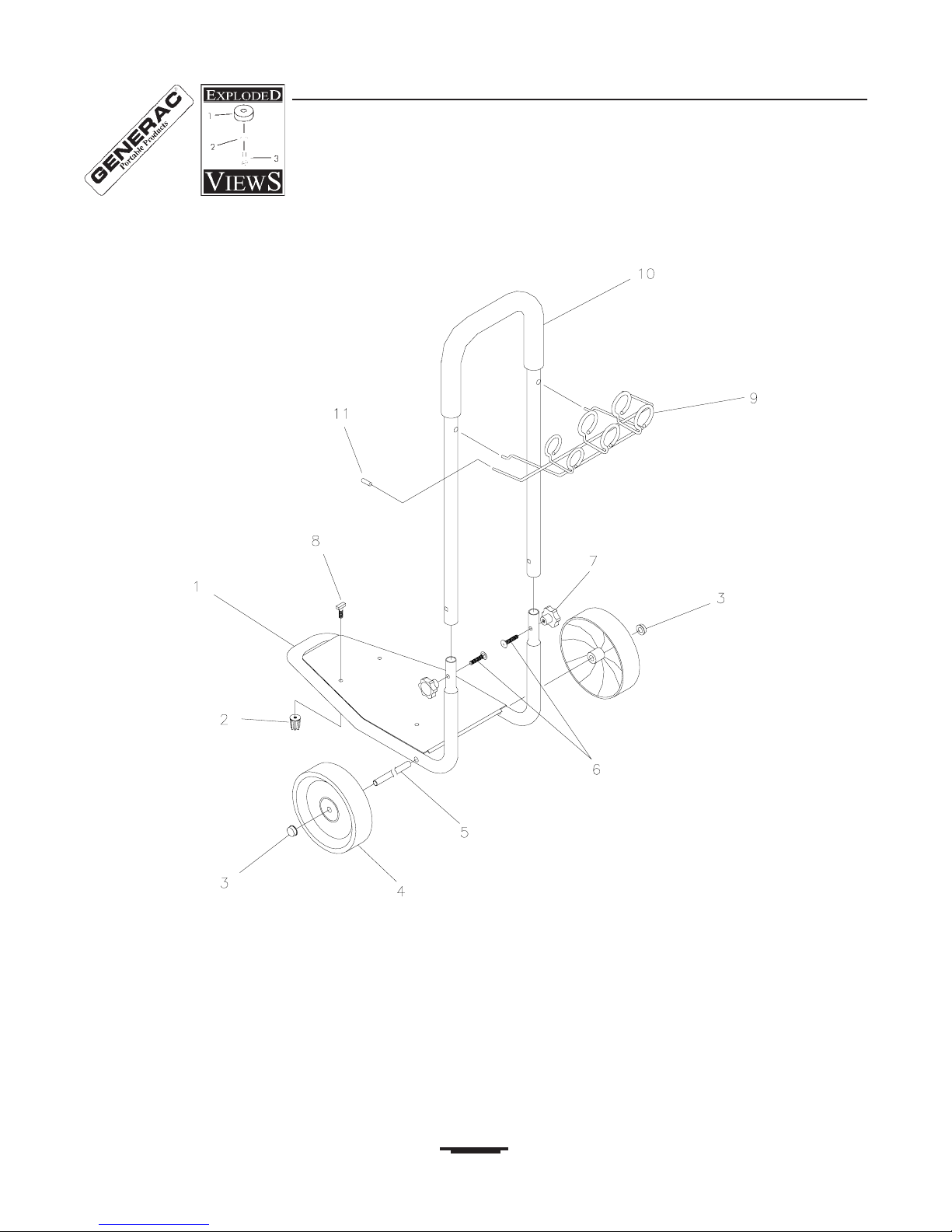

Assemble cart as follows (refer to Figure 1):
1. Place wood block (not supplied) on hard surface.
2. Place axle (Item 5) on wood block and tap axle
cap (Item 3) onto axle.
3. Install wheel (Item 4) on axle with raised hub away
from axle cap and insert axle through mounting
holes on cart base.
4. Turn cart base on its side, resting axle cap on
wood block.
5. Install wheel (Item 4) on axle with raised hub
toward cart base. Tap axle cap (Item 3) onto axle.
6. With the holes highest in the cart handle (Item 10)
positioned to the rear of the unit, attach the handle
to the cart base. Use one carriage bolt (Item 6)
and one knob (Item 7) on each side of handle
(note bolt insertion direction).
7. Slide two T-Head bolts (Item 8) into slots on
bottom of pressure washer unit.
8. Align bolts on pressure washer to holes on cart
base. Tighten to cart base with wing nuts (Item 2).
9. Insert wire frame accessory holder (Item 9) into
rear cart handle holes as shown.
10. Insert the two vinyl caps (Item 11) onto the ends
of the wire frame accessory holder.
Figure 1  Cart Assembly

Generac Portable Products 1,400 PSI Electric Pressure Washer
6
PREPARING PRESSURE
WASHER FOR USE
 Unwind the high pressure hose and attach it to
spray gun (Figure 2).
 Attach the high pressure hose to the high pressure
outlet and tighten by hand (Figure 3).
 Included with this unit is a quick-connect fitting that
you must attach to the water inlet and your garden
hose. You can install the male connector by hand
but you may need to use an adjustable wrench to
tighten it (Figure 4).
 Check the screen on the female connector. Make
sure it is clean and check for damage. If you see
any damage in the screen, Do Not use that
female connector. Call the pressure washer
helpline to order a replacement.
 Attach the female quick connect to your garden
hose.
 Attach garden hose to the water inlet using the
quickconnect. The quickconnect should lock in
place. (Figure 5).
 Attach turbo nozzle or foamer bottle to spray gun as
desired. See the sections Applying Detergent with
Foamer (page 6) and How to Use the Turbo
Nozzle (page 7).
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
1-800- 70-1408.
Applying Detergent With Foamer
Pressure washers are useful cleaning tools designed
to clean almost any surface in two easy steps.
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could
damage the pump.
NOTE: Never use garden hose inlet to siphon
detergent or wax.
DANGER! You must attach all hoses and the
spray gun before you start the motor.
WARNING! Before removing any spray gun
accessory, be sure to turn off the pressure
washer and relieve pressure by pressing the
trigger. You could be injured if you try to
remove an accessory if the pressure washer is
running and there is pressure in the system.
Male Quick-Connect
Female Quick-Connect
Figure 5 - Connect Garden Hose to Water Inlet
Figure 3 - Attach Hose to High Pressure Outlet
Figure 2  Attach Hose to Spray Gun
Figure 4 - Install Quick-Connect

Generac Portable Products 1,400 PSI Electric Pressure Washer
7
 First, apply an appropriate detergent/solvent solution
to penetrate and loosen grime. Apply detergent at
low pressure to avoid splashing, overspraying
and waste. Leave the solution on surface for 3 to
5 minutes to allow solution to work. eapply as
necessary to keep surface from drying.
 The second step involves cleaning the surface you
have prepared with the pressure washer and then
rinsing it clean.
To apply detergent follow these steps:

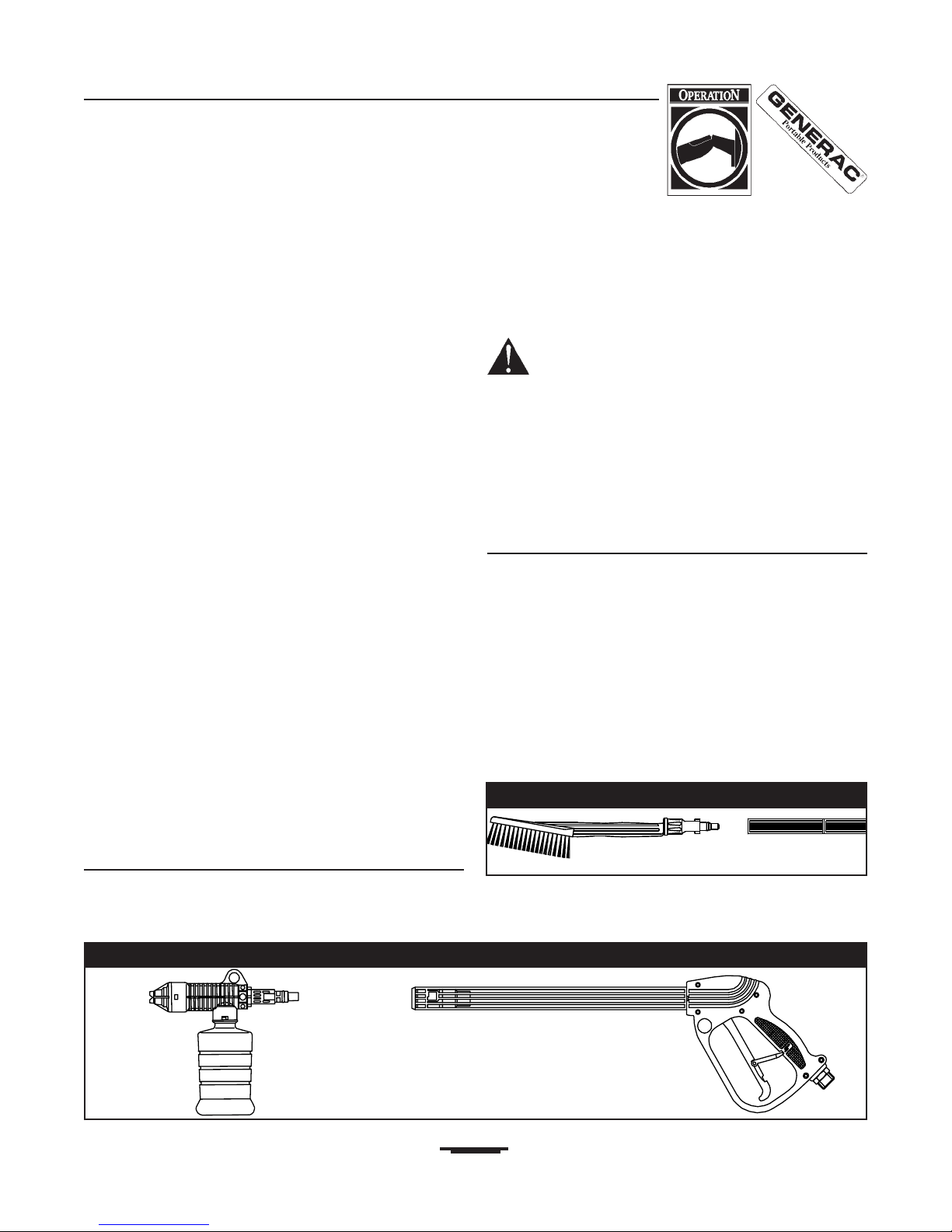

 Detach the turbo nozzle/wand from the spray gun.
 emove the bottle from the foamer.
 Align the locking tabs on the foamer with the
grooves in the spray gun. Push inward and twist
clockwise to lock in place (Figure 6).
NOTE: Make sure that when you lock the foamer into
place, have the hose that goes to the foamer bottle
hanging downward.
 Prepare your detergent solution as required by the
manufacturer and fill bottle with the solution.
 Attach bottle onto foamer making sure the bottle
hangs down.
 Start washer and apply detergent to a dry surface,
starting from the bottom and working up.
 To rinse, YOU MUST stop the pressure washer,
remove the foamer and connect the turbo nozzle/
wand.
NOTE: Detergents are most effective applied to a dry
surface.
How to Use the Turbo Nozzle
The turbo nozzle rotates the high pressure stream in a
rapid circular pattern. The high pressure spray is most
effective when the tip of the wand is held between 8 to
24 inches from the surface being cleaned.
Always start the turbo nozzle at a distance, gradually
getting closer to the surface until you get the cleaning
force you want.
CAUTION! The turbo nozzle produces an
extremely high pressure spray which is capable
of removing paint and cutting holes through
surfaces if held too close. Always make sure
the surface you will clean will not be damaged
by the high pressure spray by testing in a
hidden area.
NOTE: You cannot apply detergent with the turbo
nozzle.
How to Use the Utility Brush
The utility brush allows you to scrub surfaces with
water filtering through the bristles.
To attach the utility brush to the spray gun:
 Tighten the bayonet adapter to the brush base.
 emove the turbo nozzle/wand from the spray gun if
attached.
 Attach the brush with the bayonet adapter to the
spray gun by aligning the locking tabs on the adapter
with the grooves in the spray gun. Push the brush
inward and twist clockwise to lock in place (Figure 7).
NOTE: You must use the bayonet adapter to attach
the brush to the spray gun.
Figure 7 - Attaching Utility Brush to Spray Gun
Figure 6 - Connect Foamer to Spray Gun

Generac Portable Products 1,400 PSI Electric Pressure Washer
8
BEFORE STARTING
PRESSURE WASHER
To operate the unit you must do the following
every time you use your unit:
 Press the units master ON/OFF switch to the OFF
position.
 Plug unit into an electrical circuit rated for 120 Volts
AC at 15 Amps.
 Press the Reset button on the plugs GFCI
(Figure 8).
 Press the Test button. The red indicator on the
reset button should appear.
 Press Reset button again. The unit is ready to use.
IMPORTANT: Do Not use your electric pressure
washer if the GFCI test fails.
STARTING YOUR
PRESSURE WASHER
DANGER! To reduce risk of electrocution,
keep all connections dry and off the ground.
Do Not touch plug with wet hands.
WARNING! Never put hands in front of spray.
CAUTION! Spray gun kicks back. Grasp spray
gun with both hands when spraying.
WARNING! isk of injury  Do Not discharge
stream at persons or animals.
 Check that high pressure hose is attached to pump
outlet and the spray gun.
 Connect the garden hose to the water inlet.
WARNING! There MUST be at least ten feet
of unrestricted garden hose between the
pressure washer inlet and any flow shut off
device, such as a Y shut-off connector or other
convenience-type water shut-off valve. Damage
to pressure washer resulting from disregarding
this warning will not be covered by the
warranty.
 emove any accessories connected to the spray
gun.
 Press the units master ON/OFF switch to the OFF
position (Figure 9).
 Turn ON water. Water supply should not exceed
104°F. Use a cold water source.
WARNING! Never leave the pressure washer
unattended while it is plugged into an electrical
outlet and while water is supplied to the
machine.
 Squeeze trigger on spray gun until you have a
steady stream of water (approximately 12 minutes).
This will purge air from the system.
 Adjust the safety latch on spray gun to ON position
(Figure 10).
eset
Test Operating
Instructions
Figure 9 - Master Switch On /Off
Figure 10 - Safety Latch Engaged
Figure 8 - GFCI Power Cord

Generac Portable Products 1,400 PSI Electric Pressure Washer
9
 econnect desired accessories.
 Turn the master switch to ON position.
 Place safety latch in OFF position and squeeze
trigger on spray gun. Pump will start and water
should stream from the nozzle.
CAUTION! Water must be supplied to the
pump before turning unit on! The pump will run
without water supplied, resulting in pump
damage that is not covered by the warranty.
STOPPING YOUR
PRESSURE WASHER
 The pressure washer motor runs only when the
trigger is engaged. To stop the pressure washer,
release trigger and the motor will shut OFF.
DANGER! eleasing the trigger will shut off
the motor but does not shut off electrical power
to the unit.
 Press the Master ON/OFF switch so it is in the OFF
position.
 Turn off water supply.
 Squeeze the trigger on the spray gun to relieve built
up pressure in the unit.
 Disconnect GFCI plug from outlet and coil power
cord.
SIPHONING
Do Not siphon your water supply. Connect only to
household water supply.
TIPS
Never leave the pressure washer unattended while
it is plugged into an electrical outlet and while water
is supplied to the machine.
Never use the garden hose inlet to siphon detergent
or wax.
 If you have the nozzle too far away, the cleaning will
not be as effective.
SPECIFICATIONS
Pressure . . . . . . . . . . . . . .1400 PSI
Flow Rate . . . . . . . . . . . . .1.5 GPM
Water Supply
Temperature . . . . . . . . . . .Not to exceed 104°F
Motor . . . . . . . . . . . . . . . . Brush Type
Rated Voltage . . . . . . . . . 120 Volts AC
Current . . . . . . . . . . . . . . .14 Amps

Generac Portable Products 1,400 PSI Electric Pressure Washer
10
GENERAL MAINTENANCE
RECOMMENDATIONS
The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence. To receive full value from the
warranty, operator must maintain high pressure
washer as instructed in this manual.
BEFORE EACH USE
Check and Clean Quick-Connect
Screen
emove quick-connect and examine inlet screen on
the female connector. Clean if it is clogged or replace
if it is damaged in any way.
Check High Pressure Hose
High pressure hose can develop leaks from wear,
kinking, abuse. Inspect hose each time before using it.
Check for cuts, leaks, abrasions or bulging of cover, or
damage or movement of couplings. If any of these
conditions exist, replace hose immediately.
DANGER! Water spraying from a leak is
capable of injecting material into skin. Never
repair a high pressure hose. eplace a bad
hose with a hose that exceeds the maximum
pressure rating of your pressure washer.
Check Spray Gun and Wand
Examine hose connection to spray gun and make sure
it is secure. Test trigger by pressing it and making
sure it springs back into place when you release it. Put
safety latch in ON position and test trigger. You should
not be able to press trigger.
Check GFCI
 Press the units master ON/OFF switch to the OFF
position.
 Plug unit into an electrical circuit rated for 120 Volts
AC at 15 Amps.
 Press the Reset button on the plugs GFCI.
 Press the Test button. The red indicator on the
reset button should appear.
 Press Reset button again for use.
IMPORTANT: Do Not use your electric pressure
washer if above test fails.
O-Ring Maintenance
Your pressure washer uses o-rings to keep hose and
spray gun connections tight and leak-free. Through the
normal operation of your unit, these o-rings may
become worn or damaged.
Provided with your pressure washer is an O ing
Maintenance Kit which includes replacement o-rings,
rubber washer and water inlet filter. efer to the
instruction sheet provided in the kit to service your
units o-rings. Note that not all of the parts in the kit
will be used on your unit.
Parts in the ORing Kit include:
 O ing (Light Blue), p/n B2688, for the male
accessory connections of the power foamer and
utility brush (Figure 11).
 O ing (Light Green), p/n B2264, for the turbo
nozzle (Figure 12).
Figure 11 - O- ing for Male Accessory Connections of
Power Foamer and Utility Brush
Figure 12 - O- ing for Turbo Nozzle

Generac Portable Products 1,400 PSI Electric Pressure Washer
11
 O ing ( ed), p/n B2726, for the bayonet adapter
(Figure 13).
 ubber Washer, p/n B2385, for the inside of the
garden hose connector (Figure 14).
 Water Inlet Screen (p/n B2384) for the garden hose
connector (Figure 15).
 O ing (Yellow), p/n B2264, for the ends of the high
pressure hose (Figure 16).
To remove a worn or damaged ORing:
 Use a small flathead screwdriver to get underneath
the o-ring and pry it off.
STORAGE
Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on pump
parts and freeze pump action. After each time you
are finished using your pressure washer, follow this
procedure:
 Switch the Master ON/OFF switch to OFF, unplug it,
then remove all the hoses.
 Coil the high pressure hose and inspect it for
damage. Cuts in the hose or fraying of it could result
in leaks and loss of pressure. Should any damage
be found, replace the hose. Do Not attempt to repair
a damaged hose.
 Wipe off and coil your GFCI power cord.
 Drain water from hose and properly store it to
prevent cuts and general wear.
 Store the pressure washer and its components in an
area which will be above freezing temperatures.
Store in a clean, dry, frost-free room.
Figure 15 - Water Inlet Screen for Inside Garden Hose
Connector
Figure 13 - O- ing for Bayonet Adapter
Figure 14 - ubber Washer for Inside Garden Hose
Connector
Figure 16 - O- ing for Ends of High Pressure Hose

Generac Portable Products 1,400 PSI Electric Pressure Washer
12

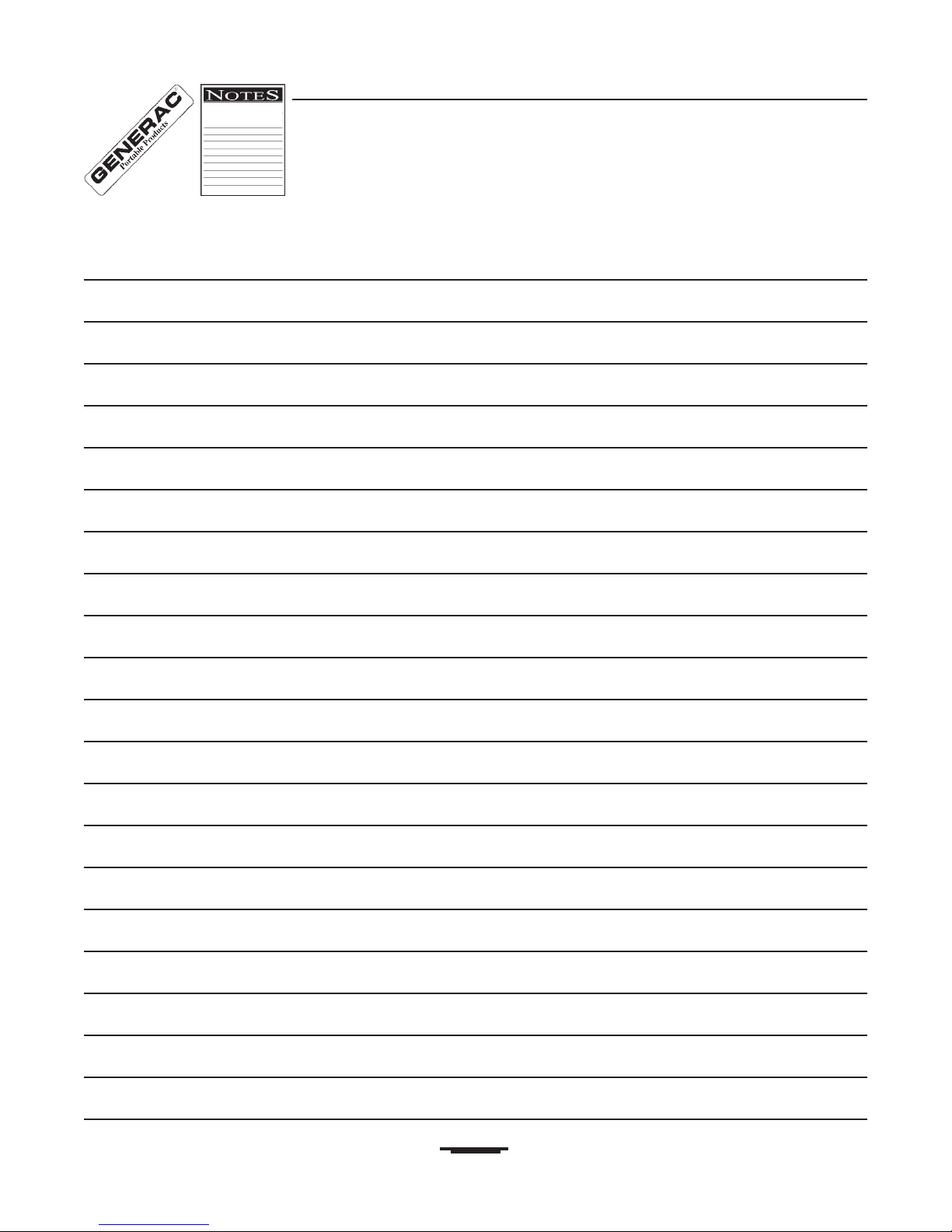

NOTES

Generac Portable Products 1,400 PSI Electric Pressure Washer
13
Problem Cause Correction
Pressure washer will not
start. No electrical power is available. Check cable, power socket, GFCI plug
and fuse/circuit breaker. eset GFCI.
Pressure washer does not
start when trigger is
activated.
1. Trigger not open.
2. Main power switch not in ON
position.
3. Electrical defect.
1. Open trigger.
2. Turn main power switch on.
3. Contact Generac service facility.
Pressure washer does not
produce pressure.
1. Pump is sucking air.
2. Water filter clogged.
3. Pump is defective.
1. Water hose must be minimum1/2"
diameter. Make sure water supply is
ON. Make sure water supply is clean.
Check all connections for leaks or
blockage.
2. Clean filter.
3. Contact Generac service facility.
High pressure spray is
irregular.
1. Water supply inadequate.
2. Air in pump system.
1. Turn ON water to full position. Check
connections for leaks or blockage.
2. emove any accessories and press
trigger until steady stream of water is
present.
No foam or detergent from
accessories.
1. Detergent in foamer bottle is
fully diluted.
2. Foamer is defective.
1. Drain diluted liquid and add detergent
to foamer bottle.
2. Contact Generac service facility.
Unit does not shut off when
trigger is released.
1. Air in pump system.
2. Inadequate water supply.
1. emove any accessories and press
trigger until steady stream of water is
present.
2. Make sure water is turned on fully.
Unit turns on and off
(cycles) when the trigger is
pressed.
Clogged spray nozzle. emove nozzle and operate with gun
only. If cycling persists, contact Generac
service facility. If cycling ceases replaces
spray nozzle with new.
TROUBLESHOOTING

Generac Portable Products 1,400 PSI Electric Pressure Washer
14
EXPLODED VIEW  UNIT
14

Generac Portable Products 1,400 PSI Electric Pressure Washer
15
PARTS LIST  UNIT
Item Part # Qty. Description
1 N/A 1 ASSY., Motor and Pump (see pages 16-17)
2 B1415 1 DECAL, Circuit
3 185917 1 DECAL, Unit
4 185946 1 DECAL, Instructions
6 98806 1 FOAM, Air In, Fan-end
7 97893 1 HOUSING, Switch and Cord
8 20984 1 SWITCH, ocker 16A
9 98801 4 MOUNT, ubber
10 B1566 1 COVE , Motor
11 20985 1 ENCLOSU E, ocker Switch Boot
12 20986 1 BOOT, ocker Switch
13 84543B 2 SC EW, 3.5mm x 12mm Plastite
14 B5597 1 CO D, Power w/ GFCI
15 84358 10 SC EW, #6-19 x .75 mm Plastite
16 99349 1 ST AIN ELIEF, Cord
17 NSP 1 DECAL, ETL
20 21334 1 HOUSING, Inlet
21 21335 1 HOUSING, Outlet
22 21265 1 QUICK DISCONNECT, Male
23 96016 1 QUICK DISCONNECT, Female
24 A1484 1 NUT, Strain elief Lock
25 A1485 1 SEAL ING, Strain elief
26 97835 1 "O" ING, Hsg Seal, dia. 82.2 x 2.62mm
28 21336 1 GUN, Spray
29 21337 1 WAND, Extension
30 B3337 1 HOSE, High Pressure
32 B1935 1 FOAME
33 B1051 1 ADAPTE , Accessories
34 87815 1 GOGGLES, Safety
35 B1300D 1 NOZZLE, Turbo
37 88185 1 B USH, Utility

Generac Portable Products 1,400 PSI Electric Pressure Washer
16
EXPLODED VIEW  PUMP/MOTOR
a
a

Generac Portable Products 1,400 PSI Electric Pressure Washer
17
PARTS LIST  PUMP/MOTOR
Item Part # Qty. Description
1 B1514 1 ASSY, Motor Complete
2 40945 3 BOLT, SHCS M6-1.0 x 20mm
3 97835 1 "O" ING, Hsg Seal, dia. 82.2
x 2.62mm
4 20610 2 WASHE , Brg dia. 35 x 55 x
3mm
5 97822 1 BEA ING, Ndle Thrust dia. 35
x 52mm
6 B2663 1 ASSY., Cam/Gear
7 97826 1 WASHE , Brg dia. 40 x 60 x
1mm
8 97824A 1 BEA ING, Needle dia. 40 x
60mm
9 97825 1 WASHE , Brg dia. 36 x 60 x
6mm
10 97833 1 SHAFT, Idler Axial Cam
11 97830 3 ETAINE , Piston Spring
12 97832 3 PISTON, dia. 15 x 65mm
13 99503 3 SP ING, Piston eturn
14 A1495 2 TAPTITE, M4-0.7x10mm SW
MTG
15 21055 1 G OMMET, ubber
16 28739A 1 TIE, Wrap
17 20138 1 SWITCH, Auto
18 20928 1 HOUSING, Auto-Switch
19 B3660 1 SP ING, P.A.S.S.
20 B3568 1 PISTON ASSY, P.A.S.S.
21 21126 1 ING, Backup dia. 26.0 Id
22 21125 1 "O" ING dia. 25.07 Id x 2.62
Cs [.103"]
Item Part # Qty. Description
23 20217 1 STOP, Piston eturn
24 21124 1 ING, Backup dia. 4.34 Id x
1.24
25 20218 1 CAP, etainer
26 21123 1 "O" ING dia. 3.68 Id x 1.78
Cs [.070"]
27 B1124 1 CAP, Inlet
28 97855 1 "O" ING, dia. 6.5 x 2.01mm
29 97100 1 CAP, High Pressure
30 B3570 1 HOUSING, Piston
31 93680 3 SEAL, Oil-piston dia. 15 TC4
32 97831 3 SPACE , Pilot
33 97929 1 SP ING, Check Valve
34 B3569 1 VALVE, Shuttle
37 97841 3 CAP, Check Valve
38 97840 3 "O" ING, Hi-press dia. 15.6 x
1.78mm
39 B1449 6 ASSY., Check Valve
40 97934 7 "O" ING, Chk Valve dia. 12.4
x .78mm
41 76353A 1 PLUG, Taper dia. 5.4
42 97852 1 BALL, dia. 3/16" Pop-off Valve
43 B2240 1 SC EW, Lock Socket
44 A1130 1 SP ING, Pop-off Valve
45 B1960 1 SEAT, Ball
46 40946 4 BOLT, SHCS M6- 1.0 x 35mm
48 B3571 1 PUMP, Head
49 93667 3 SEAL, Piston "U" Cup
50 B2020 1 O- ING, 3.68 I.D. x 1.78 CS
ELF

Generac Portable Products 1,400 PSI Electric Pressure Washer
18
EXPLODED VIEW AND PARTS LIST  CART
Item Part # Qty. Description
1 BB2446 1 BASE, Cart
2 21497 2 NUT, M6 Plastic Wing
3 75402B 2 CAP, Axle
4 B2238 2 WHEEL
5 B2215 1 AXLE
6 B3083 2 BOLT, Carriage, M6 x 1.0 x 30
7 21865 2 KNOB, Handle
8 21498 2 BOLT, M6 T-Head (to fit in unit housing)
9 B2212 1 ACCESSO Y, Holder
10 B2611 1 HANDLE, Cart
11 B1459 2 CAP, Vinyl Black

Generac Portable Products 1,400 PSI Electric Pressure Washer
19
NOTES

LIMITED PRESSURE WASHER WARRANTY
GENE AC PO TABLE P ODUCTS (hereafter referred to as the COMPANY) warrants to the original retail
purchaser, the pressure washer manufactured by the COMPANY to be free from defects in material and
workmanship for the period(s) set forth below from the date of original purchase. This warranty is not transferable.
The term original purchaser means the person for whom the pressure washer is originally purchased.
Warranty Schedules
Electric Power Washer 1 year (does not apply to commercial or rental applications)
CONSUME * COMME CIAL*
All Other Engine-driven Engine: Warranted solely by Warranted solely by
Engine Manufacturer Engine Manufacturer
Pump: 1 year 90 days
* NOTE: For the purpose of this warranty consumer use means personal residential household use by
original purchaser. Commercial use means all other uses, including rental, construction, commercial
and income producing purposes. Once a pressure washer has experienced commercial use, it shall
thereafter be considered a commercial use pressure washer for the purposes of this warranty.
During said warranty period, the COMPANY will, at its option, repair or replace any part which, upon examination
by the COMPANY or COMPANY-Authorized Dealers, is found to be defective under normal use and service**. All
transportation costs under warranty, including return to the factory if necessary, are to be borne by the purchaser
and prepaid by the purchaser.
** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and
replacement to perform well. This warranty does not cover repair when normal use has exhausted the life
of a part or pressure washer pump.
This warranty does not include: Used products and demonstration equipment. Parts, such as GUNS, HOSES,
WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing,
etc. Pumps which have been run without water supplied. Damage or malfunctions resulting from: accidents,
abuse, modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance
such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).
THIS WA ANTY IS IN PLACE OF ALL OTHE WA ANTIES, EXP ESS O IMPLIED,
SPECIFICALLY, THE COMPANY MAKES NO OTHE WA ANTIES AS TO ME CHANTABILITY
O FITNESS FO A PA TICULA PU POSE. THE DU ATION OF ANY IMPLIED WA ANTIES
WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PE IOD AS SPECIFIED IN THE
EXP ESS WA ANTY. LIABILITY FO CONSEQUENTIAL, INCIDENTAL, O SPECIAL
DAMAGES UNDE ANY AND ALL WA ANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES A E
A DI ECT ESULT OF THE COMPANY'S NEGLIGENCE. THE COMPANY ALSO DISCLAIMS ANY
ESPONSIBILITY FO INCIDENTAL O CONSEQUENTIAL DAMAGES SUCH AS THE LOSS OF
TIME O THE USE OF THE POWE EQUIPMENT, O ANY COMME CIAL LOSS DUE TO THE
FAILU E OF THE EQUIPMENT: AND ANY IMPLIED WA ANTIES A E LIMITED TO THE
DU ATION OF THIS W ITTEN WA ANTY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state.
For service, see your nearest COMPANY-Authorized warranty service facility or call 1-877-544-0982. Warranty
service can be performed only by a COMPANY-Authorized service facility. This warranty will not apply to service
at any other facility. At the time of requesting warranty service, evidence of original purchase date must be
presented.
Generac Portable Products
Jefferson, Wisconsin U.S. A.
