General International MS3003 Parts list manual

MS3003 man v.170130
SETUP & OPERATION MANUAL
Model #
General International Power Products, LLC
6243 Industrial Parkway
Whitehouse, OH 43571 USA
General International Power Products Ltd.
8360 Champ d’Eau
Montréal, QC H1P1Y3 Canada
website: www.gipowerproducts.com
FEATURES
●Precision cuts with laser
alignment system
●Comfortable horizontal
D-Handle
●Bevel cuts up to 45 degrees
left
●Miter cuts up to 45 degrees
left and right
●10 in. saw blade with
carbide-tipped teeth
●Powerful 15 A motor
●With:
• Adjustable cut-depth for
dadoes
• Shaft lock for trouble-free
blade changes
• Easy-access motor brushes
●Includes:
• Dust bag
• Hold down clamp
• Table side extension bars
• Rear stabilization bar
SPECIFICATIONS
●120 V ~ 60 Hz 15 A motor
●No-load speed: 4400 rpm
●Maximum cut capacity:
5.25" x 3" (135 x 75 mm)
● ETL certication
●Net weight:
24 lb. (11 kg)
MS3003
10 inch
Compound Miter Saw
3150598

ENGLISH
2
THANK YOU
for choosing this General International machine. This tool has been
carefully tested and inspected before shipment and if properly used and
maintained, will provide you with years of reliable service. To ensure
optimum performance and trouble-free operation, and to get the most
from your investment, please take the time to read this manual before
assembling, installing and operating the unit.
The manual’s purpose is to familiarize you with the safe operation, basic
function, and features of this tool as well as the set-up, maintenance and
identication of its parts and components. This manual is not intended
as a substitute for formal woodworking instruction, nor to offer the user
instruction in the craft of woodworking. If you are not sure about the safety
of performing a certain operation or procedure, do not proceed until you
can conrm, from knowledgeable and qualied sources, that it is safe to do so.
Once you’ve read through these instructions, keep this manual handy for
future reference.
GENERAL®INTERNATIONAL
WARRANTY
All component parts of General®International products are carefully
inspected during all stages of production and each unit is thoroughly
inspected upon completion of assembly.
2-YEAR LIMITED WARRANTY
All products are warranted for a period of 2 years (24 months) from the
date of purchase. General®International agrees to repair or replace any
part or component which upon examination, proves to be defective in
either workmanship or material to the original purchaser during this 2-year
warranty period, subject to the “conditions and exceptions” as listed below.
Repairs made without the written consent of General International will void
the warranty.
DISCLAIMER
The information and specications in this manual pertain to the unit as
it was supplied from the factory at the time of printing. Because we are
committed to making constant improvements, General International
reserves the right to make changes to components, parts or features of
this unit as deemed necessary, without prior notice and without obligation
to install any such changes on previously delivered units. Reasonable care
is taken at the factory to ensure that the specications and information in
this manual corresponds with that of the unit with which it was supplied.
However, special orders and “after factory” modications may render some
or all information in this manual inapplicable to your machine. Further, as
several generations of this tool model and several versions of this manual
may be in circulation, if you own an earlier or later version of this unit, this
manual may not depict your machine exactly. If you have any doubts or
questions contact your retailer or our support line with the model and serial
number of your unit for clarication.
TO FILE A CLAIM
To le a claim under our Standard 2-year Limited Warranty, all defective
parts, components or machinery must be returned freight or postage
prepaid to General®International, or to a nearby distributor, repair center
or other location designated by General®International. For further details
contact our service department: USA toll-free [phone] or (419)
877-5234 / Canada toll-free [phone] or [phone] or through
our website: www.gipowerproducts.com.
Along with the return of the product being claimed for warranty, a copy of
the original proof of purchase and a “letter of claim” must be included (a
warranty claim form can also be used and can be obtained, upon request,
from General®International or an authorized distributor) clearly stating
the model and serial number of the unit (if applicable) and including
an explanation of the complaint or presumed defect in material or
workmanship.
CONDITIONS AND EXCEPTIONS
This coverage is extended to the original purchaser only. Prior warranty
registration is not required but documented proof of purchase, i.e. a copy
of original sales invoice or receipt showing the date and location of the
purchase as well as the purchase price paid, must be provided at the time
of claim.

ENGLISH
3
170130
Warranty does not include failures, breakage or defects deemed after
inspection by General®International to have been directly or indirectly
caused by or resulting from; improper use, or lack of or improper
maintenance, misuse or abuse, negligence, accidents, damage in
handling or transport, or normal wear and tear of any generally considered
consumable parts or components.
Repairs made without the written consent of General®International will
void all warranty.
READ ALL INSTRUCTIONS
BEFORE OPERATING
SAVE THESE INSTRUCTIONS
Before attempting to operate your new tool, please read these instructions
thoroughly. You will need these instructions for the safety warnings,
precautions, assembly, operation, maintenance procedures, parts list and
diagrams. Keep your invoice with these instructions. Write the invoice
number on the inside of front cover. Keep the instructions and invoice in a
safe, dry place for future reference.
THE WARNINGS, CAUTIONS AND INSTRUCTIONS discussed
in this instruction manual cannot cover all possible conditions or
situations that could occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.
IMPORTANT SAFETY
INSTRUCTIONS
The purpose of safety symbols is to attract your attention to possible
hazards. The safety symbols, and the explanations with them, deserve
your careful attention and understanding. The safety warnings do not, by
themselves, eliminate any danger. The instructions or warnings they give
are not substitutes for proper accident prevention measures.
DANGER! Indicates an imminently hazardous situation which, if not
avoided, will result in serious injury or death.
WARNING! Indicates an imminently hazardous situation which, if not
avoided, could result in serious injury or death.
CAUTION: Indicates an imminently risky situation which, if not avoided,
could result in minor injuries or slight injury. It may also be used to notify
the user to remain alert regarding unsafe practises which may cause
property damage.

ENGLISH
4
WARNINGS AND CAUTIONS
1.KEEP WORK AREA CLEAN.
Cluttered areas invite injuries.
2.CONSIDER WORK AREA ENVIRONMENT.
Don’t use bench tools in damp, wet, or poorly lit locations. Don’t
expose your tool to rain. Keep the work area well lit. Don’t use tools in
the presence of ammable gases or liquids.
3.KEEP CHILDREN AND BY STANDERS AWAY.
All children should be kept away from the work area. Don’t let them
handle machines, tools or extension cords. Visitors can be a distraction
and are difcult to protect from injury.
4.GROUNDED TOOLS
must be plugged into an outlet that itself is properly installed and
grounded. Grounding provides a low-resistance path to carry electricity
to ground away from the operator, should the tool malfunction
electrically. Do not remove the grounding prong from the plug or alter
the plug in any way. If in doubt as to whether the outlet is properly
grounded according to code, check with a qualied electrician.
5.GUARD AGAINST ELECTRIC SHOCK.
Prevent body contact with grounded surfaces: pipes, radiators, ranges,
and refrigerator enclosures. When your body is grounded the risk of
electric shock increases. When working wherever “live” electrical wires
may be encountered, try to ascertain whether there is a danger of
shock. Even so, DO NOT TOUCH ANY METAL PARTS OF THE TOOL
while using it. Hold the tool only by the plastic grip to prevent electric
shock if you contact a live wire.
6.DO NOT ABUSE THE CORD.
Never carry your bench tool by the cord or pull on the cord to unplug it.
Protect the cord from potential sources of damage: heat, oil & solvents,
sharp edges, or moving parts. Replace damaged cords immediately.
7.WHEN WORKING OUTDOORS,
USE AN OUTDOOR-RATED EXTENSION CORD. An extension cord
rated for outdoor use must be marked “W-A” or “W”.
8.DO NOT EXPOSE ELECTRICAL BENCH TOOLS TO MOISTURE.
Rain or wet conditions can cause water to enter the tool and lead to
electric shock.
9.USE PROPER EXTENSION CORD.
Make sure your extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry the current
your product will draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating. Table 1 shows
the correct size to use depending on the cord length and name plate
amperage rating. If in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
Total Extension Cord Length
Amp Rating
Feet Meters Feet Meters Feet Meters Feet Meters
25 8 50 15 100 30 125 40
3 - 10 amp 18 ga. 16 ga. 14 ga. 14 ga.
10.1 - 12 amp 16 ga. 16 ga. 14 ga. 14 ga.
12.1 - 16 amp 14 ga. 12 ga. Not Recommended
Use only UL or CSA approved extension cords
10.STORE IDLE EQUIPMENT.
Store equipment in a dry area to inhibit rust. Equipment also should be
in a high location or locked up to keep out of reach of children.
11.DON’T FORCE THE TOOL.
It will do the job better and more safely at the rate for which it was
intended.
12.USE THE RIGHT TOOL.
Don’t force a small tool or attachment to do the work of a larger
industrial tool. Don’t use a tool for a purpose for which it was not
intended.

ENGLISH
5
170130
13.DRESS PROPERLY.
Don’t wear loose clothing or jewelry; they can be caught in moving
parts. Protective, non-electrically conductive gloves and non-skid
footwear are recommended when working. Wear protective hair
covering to contain long hair and keep it from harm.
14.USE EYE PROTECTION.
Use a full-face mask if the work you’re doing produces metal lings,
dust or wood chips. Goggles are acceptable in other situations. Wear
a clean dust mask if the work involves creating a lot of ne or coarse
dust.
15.SECURE WORK.
Use clamps or a vise to hold the work. It’s safer than using your hands
and it frees both hands to operate the tool.
16.DON’T OVERREACH.
Keep proper footing and balance at all times. Do not reach over or
across machines that are running.
17.MAINTAIN TOOLS WITH CARE.
Keep tools sharp and clean for better and safer performance. Follow
instructions for lubricating and safe performance. Follow instructions
for lubricating and changing accessories. Keep handles dry, clean and
free from oil and grease.
18.AVOID UNINTENTIONAL STARTING.
Be sure the switch is in the OFF position before plugging in.
19.ALWAYS CHECK AND MAKE SURE TO REMOVE
ANY ADJUSTING KEYS OR WRENCHES before turning the tool
on. Left attached, these parts can y off a rotating part and result in
personal injury.
20.DO NOT USE THE TOOL
IF IT CANNOT BE SWITCHED ON OR OFF. Have your tool repaired
before using it.
21.DISCONNNECT THE PLUG FROM POWER BEFORE
MAKING ANY ADJUSTMENTS. Changing attachments or accessories
can be dangerous if the tool could accidentally start.
22.STAY ALERT.
Watch what you are doing & use common sense. Don’t operate any
tool when you are tired.
23.CHECK FOR DAMAGED PARTS.
Before using this tool, any part that is damaged should be carefully
checked to determine that it will operate properly and perform its
intended function. Check for alignment of moving parts, binding of
moving parts, breakage of parts, mountings, and other conditions that
may affect its operation. Inspect screws and tighten any ones that
are loose. Any part that is damaged should be properly repaired or
replaced by an authorized service center unless otherwise indicated
elsewhere in the instruction manual. Have defective switches replaced
by an authorized service center. Don’t use the tool if switch does not
turn it on and off properly.
24.REPLACEMENT PARTS.
When servicing, use only identical replacement parts.
25.SERVICE AND REPAIRS
should be made by qualied repair technicians at an authorized repair
center. Improperly repaired tools could cause serious shock or injury
SAFETY PRECAUTIONS FOR
COMPOUND MITER SAW
●WOOD ONLY. This tool is designed for woodcutting only.
●DAMAGED OR WARPED SAW BLADES SHOULD NOT BE USED.
They are out of balance and could cause further damage to the saw
and possible personal injury.
●USE ONLY WITH GUARD IN PLACE. The guard protects you, the
operator, from cutting debris as well as from broken pieces of the blade
if it breaks in use.

ENGLISH
6
●REPLACE THE KERF PLATE INSERTS WHEN WORN. Excessive
tear-out increases the likelihood of injury from ying debris. When
setting the saw at a new angle, check that due to some mis-alignment,
the blade does not cut into the table insert, rear fence, or another part
of your saw.
●CONNECT YOUR MITER SAW TO A DUST COLLECTING DEVICE
IF POSSIBLE. If not, use the dust bag that comes with the tool and
empty it regularly.
●USE A SAWBLADE SUITED TO THE CUTTING JOB AND
MATERIAL TO BE CUT.
●ALWAYS USE TABLE EXTENSIONS AND CLAMPS TO SUPPORT
THE MATERIAL WHEN SAWING LONG WORK PIECES.
●DON’T START THE SAW WITH THE BLADE IN CONTACT WITH
ANY SURFACE. The saw head may bounce up or kick back violently
and cause injury.
●IF MAKING A CUT USING ONE HAND TO HOLD THE SAW,
ENSURE THE FREE HAND IS CLEAR OF THE CUTTING AREA.
LASER SAFETY
To reduce the risk of injury:
1. Do not stare directly at the laser beam. Eye damage may occur if you
deliberately stare into the beam.
2. The laser light beam used in this system is Class II with maximum 1 mW
and 650 nm wavelengths. AVOID DIRECT EYE EXPOSURE.
3. The laser must be used and maintained in accordance with the
manufacturer’s instructions:
●Never aim the beam at any person or an object other than the
workpiece.
●Do not project the laser beam into the eyes of others.
●Always ensure the laser beam is aimed at a workpiece without
!WARNING !
CALIFORNIA PROPOSITION 65
This product or its power cord may contain chemicals, including lead,
known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contain chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
─Lead from lead-based paints
─Crystalline silica from bricks and cement and other masonry products
─Arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals, work in a
well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to lter out
microscopic particles.
WEAR PROTECTIVE GEAR.

ENGLISH
7
170130
reective surfaces as the laser beam could be projected into your eyes
or the eyes of others.
Use of controls or adjustments or performance of procedures other than
those specied herein may result in hazardous radiation
exposure.
FUNCTIONAL DESCRIPTION
A Left side table extension
B Hold-down clamp retainer
C Rear stabilizer bar
D Hold-down clamp
ne height adjustment
E Hold-down clamp
coarse height adjustment
F Saw bevel locking lever
G Saw bevel angle indicator
H Laser aperture
I Saw head lock knob
J Dust port
K Blade guard retraction arm
L Carry handle
M Horizontal cutting handle
N Trigger button
O Motor brush cap
P Arbor lock button
Q Retractable blade guard
R Miter angle lock lever
S Fence
T Right side table extension
U Extension set screw
V Bevel angle scale
W Miter setting handle
X Miter angle indicator
Y Miter angle scale
Z Dado stopper plate

ENGLISH
8
ASSEMBLY
REMOVE ALL THE PARTS FROM THE BOX
Your Compound Miter Saw is fully assembled in the carton with the
exception of some small accessories.
Check to ensure everything you need is included:
●3 extensions- one for each side and one for use as a rear stabilizer
●hold-down clamp assembly
●dust bag
●4 rubber foot pads
●2 AA batteries.
WARNING! Always disconnect the tool from power source before
making any adjustments, storing, servicing, or changing accessories.
Such preventive safety measures reduce the risk of starting the tool
accidentally.
●Unlock the saw from its various storage and shipping positions.
●To disengage the cutting head from its shipping and storage position,
push down lightly on it and pull out the spring-loaded head locking
button on the left side shown at I, g.1. Turn it a quarter turn until the
pin in the shaft rests in the small groove to hold the button out.
●Ensure the table lateral extensions, rear stabilizer, hold-down clamp,
and dust bag are properly attached.
TABLE EXTENSIONS
Two table side extensions (A & T, g.1 & 2) are included with your saw to
help support longer pieces of material.
●Each ts into two holes on the left or right side of the saw table and is
fastened with a set screw.
●The two extensions can be slid completely into the saw base for
convenient storage or can be extended to widen the supported area.
●A similar rear stabilizer bar slides into the back of the saw, also
fastened with a set screw, to prevent it tipping backward.

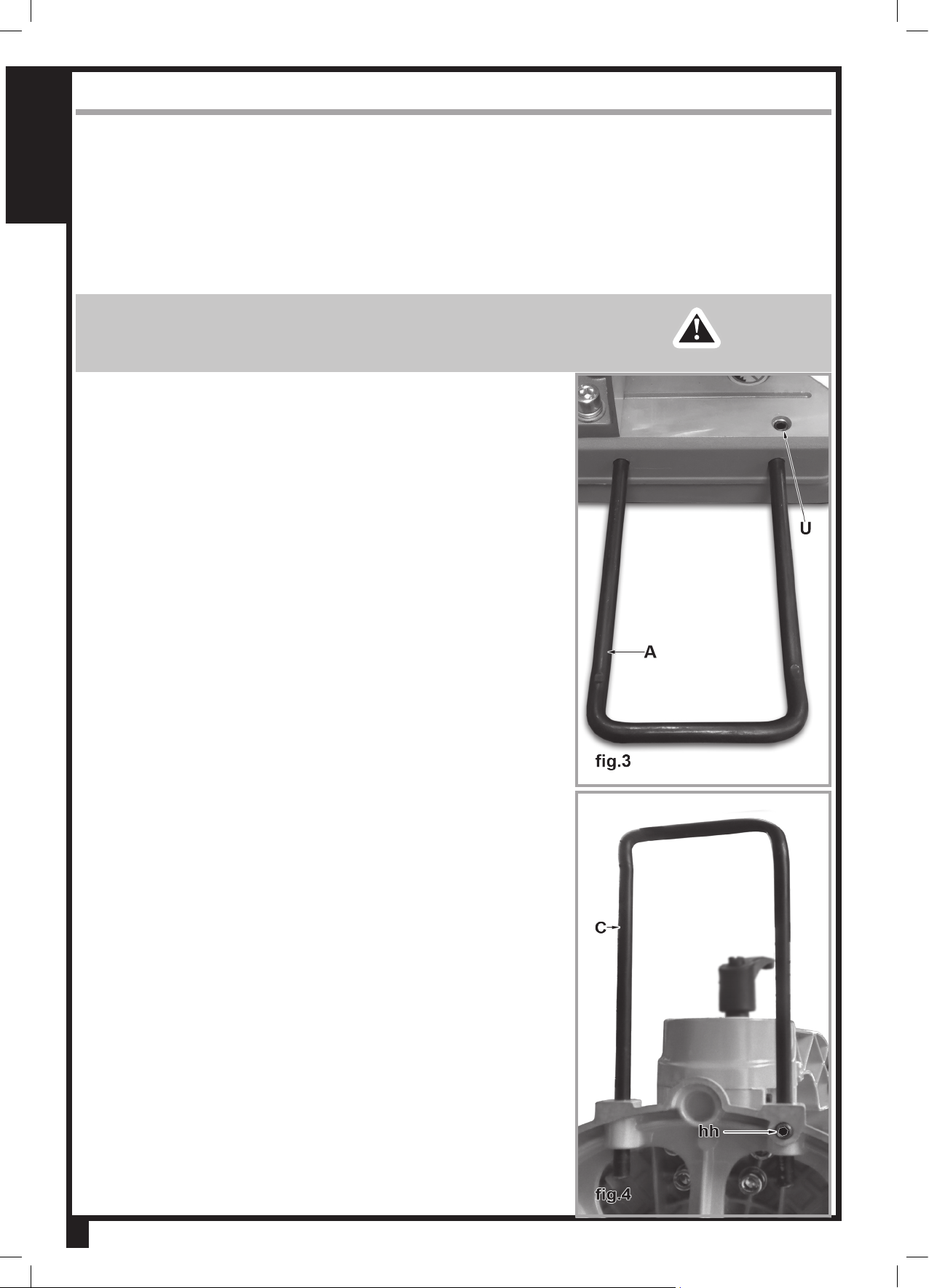

1. Install the lateral extensions (A & T, g.3), sliding each one, with the end
curved upward, into the double holes at the left and right sides of the
table. The extensions must be fastened in place by tightening the 4 mm
hex set screw (U) recessed into the top of the table bed.
2. The rear stabilizer is slid with the end curved downward into similar
holes let into the table base at the back. It must be fastened in place by
tightening a 4 mm hex set screw on the underside of the saw base (hh,
g.4).

ENGLISH
9
170130
3. Attach the rubber foot pads onto the feet of the saw base.
HOLD-DOWN CLAMP ASSEMBLY:
1. The hold down clamp included can be installed in either of the two holes
positioned just behind the fence at both the left and right ends.
2. Slide the shaft into the hole and then tighten the hold-down clamp
retention screw (B, g.1 & 2). Grooves around the shaft allow the screw
to hold the shaft from moving vertically while allowing it to rotate for
easy clamp positioning.
• You can adjust the height and position of the clamping arm according
to the thickness and shape of the workpiece with the knob at the
back top.
• Place the workpiece on the table tightly against the fence and slide it
to the desired cutting position.
• Tighten the hold-down clamp ne height adjustment knob (D, g.1 &
2) to secure the workpiece.
LASER

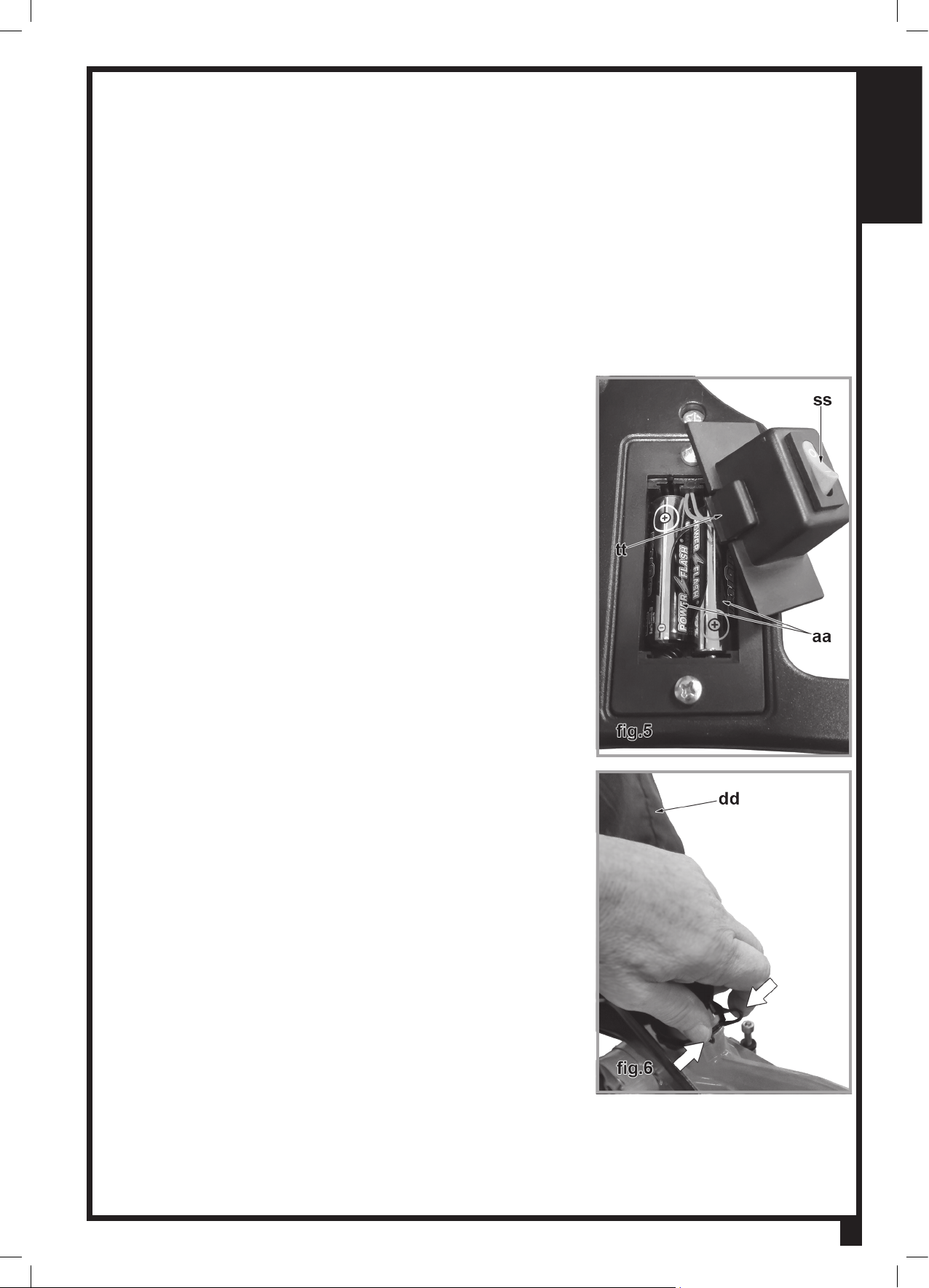

1. Locate the red laser switch (ss, g.5) on the top surface of the handle
assembly, to the right of the carry handle.
2. Press in the retention tab (tt, g.5) and lift the switch/cover off the laser
battery compartment.
3. Insert the 2 AA batteries into the compartment as shown.
4. Re-install the switch/cover.
SAWDUST COLLECTION
You can operate this machine more safely and conveniently with a dust
collector.
1. Connect a dust collection system hose (not included) to the dust
collection port nozzle on the back of the metal guard (J, g.1).
2. If a dust collector is not available or convenient, use the included dust
bag and t it to the dust collection port at the back of the guard.
3. Attach the dust bag (dd, g.6) over the dust port by squeezing the
springs in the bag’s opening.
4. Whenever the dustbag is half full, remove it and zip open the bag at the
bottom. Clean out the sawdust completely.
●Be sure all screws are fastened, and all adjusting keys and wrenches
are removed.

ENGLISH
10
OPERATING PROCEDURES
POWER SOURCE CONNECTION
POWER REQUIREMENTS
This tool is designed to operate on a properly grounded 120 volt, 60 Hz,
single phase alternating current (AC) power source fused with a 15 amp
time delayed circuit breaker. It is recommended that a qualied electrician
verify the ACTUAL VOLTAGE at the receptacle into which the tool will be
plugged and conrm that the receptacle is properly grounded. The use of
the proper circuit size can eliminate nuisance circuit breaker tripping when
using your tool.
CAUTION: DO NOT OPERATE THIS TOOL if the ACTUAL power
source voltage is less than 105 volts AC or greater than 132 volts AC.
Contact a qualied technician if this problem exists. Improper
performance, and/or, damage to the tool will result if operated on
inadequate, or excessive power.
CONNECT TO POWER SOURCE
Consult a qualied electrician for proper installation of receptacle at the
source of power. This tool must be grounded while in use to protect the
operator from electrical shock. If you are not sure if your outlet is properly
grounded, have it checked by a qualied electrician. Make sure the tool is
turned OFF when connecting the power cord to a properly grounded 120
Volts, 60 Hz, single phase, 15 amp power source.
USING YOUR SAW
After unpacking, reading the instructions, attaching the machine to the
workbench, and checking that all attachments are correctly installed, you
can use your saw.
WARNING: Be sure to wear appropriate protective equipment. For your
safety, remove chips, small pieces, etc. from the table top before
operation.
START UP
1. Connect the saw to power.
2. While pressing downward on the horizontal cutting handle, retract the
saw head lock knob and turn it 1/4 turn to hold the locking pin in its
retracted position. Release pressure on the handle, allowing the saw
head to move to the raised position, assisted by the spring.
3. Turn on the laser cutting guide, using the switch on the top surface of
the handle assembly (M, g.1 & 2).
4. Squeeze the trigger button (N, g.1 & 2) in the handle to start the saw
with the cutting head in the raised position and the blade fully enclosed
in the retractable blade guard (Q, g.1 & 2).
5. Allow the motor to bring the sawblade up to full speed.
6. To begin cutting, push down on the cutting head using the horizontal
cutting handle. As you lower it, the transparent blade guard will retract.
WARNING: The workpiece must be placed and held rmly against the
fence and table.
7. After cutting, allow the head to come back up. The blade guard closes
automatically.
8. The saw will stop when you release the trigger switch in the handle.
9. Turn the laser off when it is not in use, to conserve the batteries.
10.For storage, press the saw head downward and turn the saw head lock
knob 1/4 turn and allow it to extend and hold the saw head down.

ENGLISH
11
170130
MODES OF USE
Use of the laser cut guide in any of the following procedures is useful, but
optional.
CHOP CUT
1. Lock the head in the upright, 0º bevel position using the slip-lock saw
bevel locking lever (F, g.1 & 2).
2. Using the miter angle lock lever (R, g.1 & 2), lock the table rotation at
0º miter.
3. Switch the machine on with saw head raised and wait until the saw
blade reaches its maximum speed.
4. Press the handle downwards slowly. Allow the blade to cut through the
material. Do not force the tool.
5. After you have nished cutting, release the trigger button and wait until
the saw blade stops completely, then raise the handle.
This is a good setting for simple crosscuts.
MITER CUT
1. Lock the head in the upright, 0obevel position using the slip-lock bevel
adjustment lever (F, g.1 & 2).
2. Loosen the miter angle lock lever (R, g.1 & 2),and using the miter
setting handle (W, g.1 & 2), rotate the table up to 45o to the left or right.
The table will encounter positive stops at 0°, 15°, 22.5°, 30°& 45°.
3. Use the miter angle lock lever, screwing it tight to lock the table at the
desired angle, especially at those angles between the indexed positive
stops.
4. Switch the machine on and wait until the saw blade reaches its
maximum speed.
5. Press the handle downwards slowly. Allow the blade to cut through the
material. Do not force the tool.
6. After you have nished cutting, release the trigger switch and wait until
the saw blade stops completely, then raise the handle.
This is a good setting for simple angle cuts.
COMPOUND CUT
1. Loosen the miter angle lock lever (R, g.1 & 2),and using the miter
setting handle (W, g.1 & 2), rotate the table up to 45° to the left or right.
The table will encounter positive stops at 0°, 15°, 22.5°, 30°& 45°.
2. Use the miter angle lock lever, screwing it tight to lock the table at the
desired angle, especially at those angles between the indexed positive
stops.
3. Unlock the head from the upright, 0 degree bevel position using the
slip-lock bevel adjustment lever (F, g.1 & 2) and angle it to any desired
position from 0° to 45° left, according to the bevel scale (V, g.1 & 2),
then lock it in place.
4. Switch the machine on and wait until the saw blade reaches its
maximum speed.
5. Press the handle downwards slowly. Allow the blade to cut through the
material. Do not force the tool.
6. After you have nished cutting, release the trigger switch and wait until
the saw blade stops completely, then raise the handle.
This setting is for the more complex beveled angle cuts.
NOTE: At some extreme positions, the hold-down clamp should be
moved to the right side of the table to prevent it interfering with the
movement of the cutting head. Always check before making the cut if
there is any potential interference from the clamp or any other part of the
machine.
NOTE: Even though the miter and bevel angles are marked on the
machine, it is always a good idea to check them by making a trial cut.

ENGLISH
12
SETTING DADO CUTS
This saw can be used to cut grooves (dados) in the workpiece, rather than
cut right through. The saw head is lowered only part way and while held in
that position, a cut is made.
1. This dado depth is engaged when the dado stopper plate (Z, g 7 & 8) is
swung down and engages the dado depth adjust screw (da, g.7 & 8).
2. To set the depth to which the blade will cut during this operation, pull the
dado stopper plate down from its resting position. (g.8)
3. Push the handle down completely, to its lowest position, and notice that
now the dado depth adjustment screw is what limits the downward travel
of the sawhead.
4. Turn the dado depth adjustment screw with a 5 mm hex wrench so that
the saw blade teeth at their lowest point are above the table surface at a
height corresponding with the desired depth of the dado.
5. Tighten the knurled locking nut (kk, g.7 & 8) on the shank of the dado
depth adjustment screw to lock its setting.
6. Test the depth of the dado by making a trial cut in a piece of scrap
material.
7. Adjust as necessary.
NOTE: This saw is not designed to be used with a true dado blade. In
order to make wide dado cuts, use a standard (1/8” thick) blade and
make multiple adjacent cuts at the set depth or make a cut on each side
and remove the material in between manually.
MAINTENANCE
MOUNTING AND REMOVING THE
BLADE
WARNING: Before replacing the saw blade always unplug the tool.
Make sure that the spindle speed diameter and saw blade bore match.
Only use sharp and undamaged saw blades. Cracked or bent saw
blades must be replaced immediately.
1. Lock the head of the machine in its highest, upright position.
2. From the left side of the saw, rotate the lower saw blade guard (gg,
g.9) counter-clockwise until the hex socket head blade bolt (bb, g.9)
that holds the blade is exposed.

ENGLISH
13
170130
3. Press in the blade lock button located at the front of the motor housing,
and keep it depressed.
4. With a 6 mm hex wrench (hh, g.11), loosen the blade bolt (turning it
clockwise) and remove it.
NOTE: this bolt has a left hand thread.
To remove it, you must turn it clockwise.
5. Remove the underlying washer, the outer ange and the old saw blade.
6. Clean the bolt, washer, inner and outer anges.
7. Place a new saw blade with the teeth pointing in the direction of rotation
onto the inner ange and saw blade shaft. (See the arrow on the upper
blade guard).
8. Place the outer ange on the saw blade shaft.
9. Engage the lock knob, mount the washer and blade bolt. Tighten it by
turning it counter-clockwise.
10.Lower the saw blade guard.
ADJUSTING CUTTING CAPACITY
WARNING: Before any adjustments, disconnect the machine from the
power source.
This machine has been set by the manufacturer at the maximum cutting
capacity for a 10” saw blade. If the diameter of the blade diminishes
because of sharpening, adjust the machine per the following instructions:
1. Push the handle down completely, to its lowest position.
2. Turn the kerf depth adjustment screw (cc, g.12) with a 5 mm hex wrench
so that the saw blade teeth are slightly below the table surface in line with
the front surface of the fence.
3. Be sure the saw is disconnected from power. Turn the saw blade
by hand, and pressing the handle to its lowest position, check the saw
blade does not contact anything below the table. If necessary, you can
adjust upward very slightly.
4. Tighten the hex locking nut (nn, g.12) on the shank of the kerf depth
adjustment screw to lock its setting.
REPLACING THE CARBON BRUSHES
WARNING: Prior to inspection or saw maintenance, turn off power
switch and disconnect plug from power source.
1. Remove and check the carbon brushes regularly.
2. Use a screwdriver to remove the brush holder caps.
3. Replace brushes when they are excessively chipped or wear down to
the limit (1/4) mark (g.4).
4. Take out the worn carbon brushes, insert new ones and secure the
brush holder caps.
5. Both carbon brushes should be replaced at the same time.
6. Keep the carbon brushes clean and free to slip in the holders.

ENGLISH
14
CALIBRATION OF CUT
Each degree of error in your miter or bevel cut setting is magnied when
translated across the width of the cut you are making. Precision cuts, as
any veteran woodworker will tell you, will be more successful if a piece of
scrap wood is used to make a test cut rst. This saw is equipped with quick
stops for easy angle adjustment, but they are designed to aid in rough
carpentry.
To increase the accuracy of the saw’s miter settings, you can make some
ne adjustments.
NOTE: When making cuts, ensure that all hold-down clamps are tight
and angle adjustment settings are locked in. This will reduce errors
produced by slippage, both in the material and in the saw settings.
ADJUSTMENT OF MITER ANGLE
1. The fence is secured with four 6 mm hex socket head bolts.
2. Loosen these bolts, and the fence will slide. It can be rotated a small
distance in either direction.
3. With a square, calibrate the fence at 90 degrees to the line of cut at the
0 degree quick stop and re-tighten the bolts.
Once the fence is square to the blade, the red miter degree indicator can
be adjusted to indicate the exact angle in the following way:
1. Loosen the philips head screw and re-set the indicator
to read exactly 0 degrees.
2. Re-tighten the screw.
ADJUSTMENT OF BEVEL ANGLE
1. At the rear of the saw, on the right side of where the arm pivots is a hex
socket head depth setting screw that limits the 45° bevel.
2. Loosen the locking nut and adjust the screw with a 5 mm hex key to
adjust the stop point to be correct at 45 degrees of bevel.
3. Check the settings with a square against the blade.
4. Re-tighten the locking nut once the angles are correct.
Once the bevel is correct, the bevel degree indicator at the back can be
adjusted to indicate the exact angle in the following way:
1. Loosen the cross head screw and re-set the indicator to read exactly 0
degrees when the vertical stop is contacted.
2. Re-tighten the screw.
PREVENTIVE MAINTENANCE
Keep your tool in good condition by adopting a regular maintenance
program.
WARNING: Prior to inspection or saw maintenance, turn off power
switch and disconnect plug from power source.
●Before each use, examine the general condition of your tool.
●Inspect blades, switches, tool cord and extension cord for damage.
●Check for loose screws, misalignment, binding of moving parts,
improper mounting, broken parts, and any other condition that may
affect its’ safe operation.
●If abnormal noise or vibration occurs, turn the tool off immediately and
have the problem corrected before further use.
●Do not use a damaged tool.
●Never disassemble the tool or try to do any rewiring on the tool’s
electrical system.
●Keep the vents clear of dust and debris. This will help prevent possible
electrical shorts and ensure proper cooling.

ENGLISH
15
170130
●Keep the tool housing and handle clean and free of oil and grease
using mild soap and a damp (not wet) cloth. Use only mild soap
and damp cloth to clean your tool since certain cleaning agents and
solvents are harmful to plastics and other insulated parts. Some of
these harmful solvents include: gasoline, turpentine, lacquer thinner,
paint thinner, chlorinated cleaning solvents, ammonia, and household
detergents containing ammonia.
●The table kerf plate inserts should be replaced if damaged to reduce
the risk of chips lodging in the slot and catching in the blade.
●If the tool is to be stored for any length of time, remove the batteries
from the laser battery compartment to prevent damage to the device.
●Lubrication is done at the factory and with the exception of the slide
bearings, should not be necessary again under normal use.
●An authorized repair center should do any repairs, modication, or
maintenance that involve disassembling the saw.
●Any damage to the tool should be corrected at an authorized repair
center. Contact General International for all repairs.
WARNING! Never use ammable or combustible solvents
around tools.
WARNING! To reduce the risk of injury, electric shock and damage to
the tool, never immerse your tool in liquid or allow liquid to ow
inside the tool.

ENGLISH
16

MS3003 man v.170130
MANUEL D’INSTRUCTIONS ET D’ASSEMBLAGE
Modèle #
General International Power Products, LLC
6243 Industrial Parkway
Whitehouse, OH 43571 USA
General International Power Products Ltd.
8360 Champ d’Eau
Montréal, QC H1P1Y3 Canada
site Web : www.gipowerproducts.com
CARACTÉRISTIQUES
●Guide laser pour des coupes
précises
●Poignée confortable en «D»
horizontale
●Coupes en biseau jusqu’a 45
degrés à gauche
●Coupes d’onglet jusqu’a 45
degrés à gauche et à droite
●Lame de scie de 10 po à
pointes au carbure
●Moteur puissant de 15
ampères
●Avec :
• Réglage de coupe pour
engravure
• Facilité d’accès aux balais de
moteur
• Blocage de l’arbre pour un
changement de lame sans
difculté.
●Comprend :
• Sac à poussière
• Étau
• Rallonges latèrales de table
• Support de scie arrière
SPÉCIFICATIONS
●Moteur : 120 V ~ 60 Hz 15 A
●Vitesse sans charge :
4 400 tr/min
●Capacité de coupe maximale :
5,25 x 3 po (135 x 75 mm)
●Homologué ETL
●Poids net :
24 lb (11 kg)
MS3003
Scie à onglets
combinée de 10 po
3150598

FRANÇAIS
18
NOUS VOUS REMERCIONS
d’avoir choisi une machine de General International. Cette outil a été
soigneusement testée et inspectée avant de vous être expédiée, et
moyennant une utilisation et un entretien adéquats, elle vous procurera
un service able pendant de nombreuses années. An d’obtenir un
rendement optimal et une utilisation sans problème, et d’optimiser
votre investissement, veuillez prendre le temps de lire ce manuel avant
d’assembler, d’installer et d’utiliser l’unité.
Ce manuel vise à vous familiariser avec l’utilisation sécuritaire, les
fonctions élémentaires et les caractéristiques de cette scie ainsi qu’avec
le réglage, l’entretien et l’identication de ses parties et composantes. Il
n’est pas conçu pour remplacer un enseignement théorique sur le travail
ni pour offrir à l’utilisateur une formation en la matière. En cas de doute
concernant la sécurité d’une opération ou d’une procédure, demandez
l’aide d’une personne qualiée avant d’entamer le travail.
Une fois que vous avez lu ces instructions, conservez ce manuel aux ns
de consultation ultérieure.
GARANTIE DE
GENERAL®INTERNATIONAL
Toutes les composantes des machines de General®International sont
soigneusement inspectées durant chacune des étapes de production, et
chaque unité est inspectée en profondeur une fois l’assemblage terminé.
GARANTIE STANDARD
LIMITÉE DE 2 ANS
En raison de son engagement envers la qualité et la satisfaction du
consommateur, General®International accepte de réparer ou de remplacer
toute pièce qui, suite à l’examen, se révèle défectueuse quant aumatériel
et au ni d’exécution pour une période de 2 ans (24 mois) suivant la date
d’achat. Pour se prévaloir de la garantie, l’acheteur doit retourner toutes
les pièces défectueuses port payé à General®International.
Les réparations effectuées sans le consentement écrit de General®
International annuleront la garantie.
CLAUSE DE NON-RESPONSABILITÉ
L’information et les caractéristiques présentées dans ce manuel se
rapportent à la machine telle qu’elle est sortie de l’usine au moment de
mettre sous presse. En raison de son souci d’amélioration constante,
General International se réserve le droit de modier des composantes, des
pièces ou des caractéristiques de la machine si cela est jugé nécessaire,
sans préavis et sans obligation d’effectuer ces modications sur les
machines déjà vendues. On prend soin de s’assurer à l’usine que les
caractéristiques et l’information présentées dans ce manuel correspondent
à la machine avec laquelle il est fourni.
Toutefois, en raison de commandes spéciales et de modications
réalisées “hors de l’usine,” une partie ou la totalité de l’information
contenue dans ce manuel peut ne pas s’appliquer à votre machine. De
plus, comme il se peut que plusieurs générations de ce modèle d'outil et
plusieurs versions de ce manuel soient en circulation, il est possible que
ce manuel ne décrive pas exactement votre machine si vous possédez
une version antérieure ou ultérieure. Si vous avez des doutes ou des
questions, veuillez communiquer avec votre détaillant ou notre ligne de
soutien technique et mentionner le numéro de modèle et de série de votre
machine an d’obtenir des éclaircissements.
DEMANDE DE RÉCLAMATION
Pour présenter une demande de réclamation en vertu de notre Garantie
Standard Limitée de 2 ans, ou en vertu de notre Garantie Limitée à Vie,
toute pièce, composante ou machinerie défectueuse doit être retournée,
port payé, à General® International, ou encore à un distributeur, un centre
de réparation ou tout autre emplacement situé près de chez vous et
désigné par General®International. Pour plus d’informations ou si vous
avez besoin d’aide pour remplir une demande de réclamation, contactez
notre département de service. USA : numéro sans frais [phone]
ou [phone] / Canada : numéro sans frais [phone] ou
[phone] ou sur notre site Web : www.gipowerproducts.com.
Une copie de la preuve d’achat originale ainsi qu’une lettre (un formulaire

FRANÇAIS
19
170130
de réclamation de garantie peut vous être fourni sur demande par
General® International ou par un distributeur agréé) spéciant clairement le
modèle et le numéro de série de l’unité (si applicable), et faisant état de la
plainte ou du défaut présumé, doivent être jointes au produit retourné.
CONDITIONS ET EXCEPTIONS
Cette couverture ne s’applique qu’au premier acheteur. Un enregistrement
préalable de la arantie n’est pas requis. Par contre, une preuve d’achat –
soit une copie du coupon de caisse ou du reçu original, sur lequel gurent
la date et le lieu d’achat ainsi que le prix payé – doit être fournie lors de la
réclamation.
La Garantie ne couvre pas les défaillances, bris ou défauts qui, après
examen par General®International, sont considérés comme étant
directement ou indirectement causés par ou résultant de: une utilisation
incorrecte, un entretien inadéquat ou l’absence d’entretien, un usage
inapproprié ou abusif, la négligence, un accident, des dommages survenus
durant la manutention ou le transport, ou encore l’usure normale ou la
détérioration des pièces et composantes considérées, de façon générale,
comme étant des consommables.
Les réparations effectuées sans le consentement écrit de General®
International annuleront toute garantie.
LISEZ TOUTES LES INSTRUCTIONS
AVANT L’UTILISATION
CONSERVEZ CES INSTRUCTIONS
Avant d’essayer de faire fonctionner votre nouvel outil, veuillez lire
les instructions au complet. Vous aurez besoin de ces instructions
pour les avertissements de sécurité, les précautions, l’assemblage, le
fonctionnement, les procédures d’entretien, la liste des pièces et les
schémas des pièces. Gardez votre facture avec ces instructions. Écrivez
votre numéro de facture à l’intérieur de la page couverture. Gardez les
instructions ainsi que la facture dans un endroit sûr et sec pour référence
future.
LES AVERTISSEMENTS, LES PRÉCAUTIONS ET LES
instructions discutés dans ce manuel ne peuvent pas couvrir toutes les
conditions et les situations qui pourraient survenir. L’utilisateur se doit de
comprendre que le bon sens ainsi que la prudence sont des facteurs qui
ne peuvent être incorporés dans ce produit, mais peuvent être fournis
par l’utilisateur lui-même.
REGLES DE SÉCURITÉ ET
DIRECTIVES
L’objectif des symboles de sécurité est d’attirer votre attention sur les
risques potentiels. Les symboles de sécurité, ainsi que les explications les
accompagnant, nécessitent votre attention et votre compréhension. Les
avertissements de sécurité n’éliminent pas d’eux-mêmes tous les dangers.
Les instructions ou les avertissements qu’ils donnent ne sont pas un
remplacement aux mesures de prévention d’accident appropriées.
DANGER! Indique une situation à risque imminent, laquelle si elle n’est pas
évitée, causera de sérieuses blessures ou la mort .
AVERTISSEMENT! Indique une situation à risque imminent, laquelle si
elle n’est pas évitée, pourrait causer de sérieuses blessures ou la mort.
ATTENTION: Indique une situation à risque imminent, laquelle si elle
n’est pas évitée, peut causer des blessures mineures ou des blessures
légères. Il peut aussi être utile de demeurer alerte au sujet des pratiques
non sécuritaires qui pourraient causer des dommages à la propriété.

FRANÇAIS
20
AVERTISSEMENTS
1. CONSERVEZ L’AIRE DE TRAVAIL PROPRE.
Le désordre invite les blessures.
2. SOYEZ CONSCIENT DE VOTRE ENVIRONNEMENT DE TRAVAIL.
Ne pas utiliser les outils motorisés dans des endroits humides,
mouillés ou insufsamment éclairés. Ne pas exposer vos outils à la
pluie. Conservez l’aire de travail bien éclairée. Ne pas utiliser les outils
en présence de gaz ou de liquides inammables.
3. CONSERVEZ LES ENFANTS ET LES SPECTATEURS À L’ÉCART.
Tous les enfants doivent être tenus à l’écart de l’aire de travail. Ne
leur permettez pas de toucher les machines, les outils ou les cordes
de rallonge. Les visiteurs peuvent causer une distraction et on doit les
protéger contre les blessures corporelles.
4. LES OUTILS MIS À LA TERRE
doivent être branchés dans une prise qui elle-même a été installée et
mise à la terre adéquatement. Si l’outil avait un problème électrique, la
mise à la terre offre un cheminement de faible résistance transportant
l’électricité à la mise à la terre loin de l’opérateur. Ne jamais enlever la
broche de mise à la terre ou modier la che. En cas de doute quant
à l’installation appropriée de la mise à la terre, consultez avec un
électricien qualié.
5. PRÉVENEZ LES CHOCS ÉLECTRIQUES.
Éviter le contact de votre corps avec les surfaces mises à terre :
tuyaux, radiateurs, cuisinières et réfrigérateurs. Si votre corps est mis
à la terre, le risque de choc électrique est augmenté. Si vous effectuez
des travaux dans les secteurs où des ls électriques sous tension
pourraient être touchés, tentez de déterminer s’il y a un risque de choc
électrique. Mais en toute circonstance, NE PAS TOUCHER AUCUNE
PARTIE MÉTALLIQUE DE L’OUTIL durant son usage. Toujours tenir
l’outil par la poignée en plastique pour prévenir les chocs électriques
en cas de contact avec un l sous tension.
6. NE PAS ABUSER LE CORDON.
Ne jamais transporter votre outil par le cordon ou tirer sur le cordon
pour le débrancher. Protégez le cordon des sources potentielles de
dommage : La chaleur, l’huile et les solvants, les rebords aiguisés
ou les pièces mobiles. Remplacez les cordons endommagés
immédiatement.
7. POUR LE TRAVAIL À L’EXTÉRIEUR,
TOUJOURS UTILISER UNE CORDE DE RALLONGE HOMOLOGUÉE
POUR L’USAGE À L’EXTÉRIEUR. Une corde de rallonge homologuée
pour usage à l’extérieur doit porter la marque « W-A » ou « W ».
8. NE PAS EXPOSER LES OUTILS ÉLECTRIQUES À L’HUMIDITÉ.
La pluie ou les conditions humides peuvent causer l’inltration d’eau
dans l’outil et il peut alors y avoir un risque de choc électrique.
9. ASSUREZ-VOUS QUE LA CORDE DE RALLONGE
que vous utilisez est de calibre sufsant pour sa longueur.
Longueur totale de la rallonge
Calibre en
ampères
Pieds Mètres Pieds Mètres Pieds Mètres Pieds Mètres
25 8 50 15 100 30 125 40
3 à 10 A cal 18 cal 16 cal 14 cal 14
10,1 à 12 A cal 16 cal 16 cal 14 cal 14
12,1 à 16 A cal 14 cal 12 Non recommendé
Utilisez seulement des rallonges homologuées UL ou CSA
10. REMISEZ L’ÉQUIPEMENT QUI N’EST PAS UTILISÉ.
Remisez l’équipement dans un endroit sec pour empêcher la rouille.
L’équipement devrait aussi être remisé dans un endroit haut ou sous
clé, hors d’atteinte de la portée des enfants.
11. NE PAS FORCER L’OUTIL.
Il fera un meilleur travail, de manière plus sécuritaire, au rythme pour
lequel il est conçu.
12. UTILISEZ L’OUTIL APPROPRIÉ.
Ne pas forcer un petit outil ou un accessoire à faire le travail d’un outil
industriel plus gros. Ne pas utiliser un outil à une n pour laquelle il n’a
pas été conçu.
