Genexis FiberTwist Series User manual

XGS
FiberTwist Series
Installation Guide

LED oveview
Power
Green – system ok
Green (blinking) – booting  irmware download
O – power o
Uplink
Green – link ok
Green (blinking) – link establishing
O – no link
TV
Green – TV signal ok
Green (blinking) – insuicient input signal
O – no TV signal

LED dim buton
Dim LEDs – press and release repeatedly to
dim LEDs
Unlock buton
Remove FiberTwist XGS – press and
hold while wisting counterclockwise
Buton oveview
Reset
buton
LAN pots
ONOFF
switch
Power pot
Pot oveview
ONOFF switch
Switch ON – lip the switch to ON
Switch OFF – lip the switch to OFF
Reset buton (recessed)
Reboot – shot press (up to  seconds)
Factoy reset – long press (more than
 seconds)
TV pot

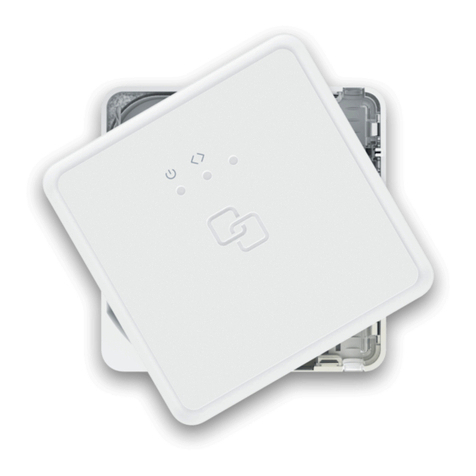

FiberTwist XGS is installed on an FTUBracket
Box contents
• Genexis FiberTwist XGS
• Power adapter
• Labels (self-adhesive)
Label
More information can be found on the
product label which is positioned on the
botom of the active device.
Preparation
Ensure there is a power socket
within reach of where the device
is being installed.
Important: Instructions need to be
followed precisely and uninterrupted. This
minimizes the risk of damage (a severe
degradation of signal qualiy) to the iber
optic connectors
Various translations of this document (if available) and additional product information can be
foundon htps:genexis.euproductibewistdownloads
Installation guide
Remove Blind Cover or active device (if present)
. Press and hold the unlock buton (on the right side of the Blind Cover or active device).
. Rotate the Blind Cover or active device counterclockwise till it blocks.
. Remove the Blind Cover or active device from the baseplate (FTUBracket) by pulling
it towards yourself.
. Store the Blind Cover or active device in a safe place.

Remove dust cap
. Take the FiberTwist XGS out of the box.
. The dust cap is connected to the red string located on the rear of the FiberTwist XGS.
. Remove the dust cap by pulling the red string.
. Store the dust cap in a safe place.
Twist!
. Place the FiberTwist XGS on the FTUBracket as shown in the picture below.
. Rotate clockwise until it clicks into place.
. Make sure the FiberTwist XGS is aligned squarely on the FTUBracket.
Your FiberTwist XGS is now installed!

Connecting the FiberTwist
. If required, connect your television  set-top box to the TV pot with a coax cable.
. If required, connect your personal devices to the LAN pots via an RJ nework cable.
A CAT cable or beter is recommended.
. Connect the supplied power adapter to the FiberTwist and plug the adapter into a
power socket.
. Press the ONOFF buton to power on the device.
The FiberTwist is a Class  laser product.
If at some point in the future it becomes necessay to uninstall the FiberTwist, please
place the Blind Cover back on the FTUBracket immediately and put the dust cap back
on the FiberTwist.
Company Name
Genexis Netherlands B.V.
Company Address
Lodewijkstraat a
 AC Eindhoven
The Netherlands
Name and title of authorized person
Maaten Egmond, CTO
Signature of authorized person
Place of issue Date of issue
Eindhoven --
The Netherlands
Hereby, Genexis Netherlands B.V. declares that the radio equipment ype FiberTwist XGS is
in compliance with Directive EU, Directive EC, Directive EU and
Delegated Directive .
The full text of the EU declaration of conformiy is available at the following internet addresses:
htps:genexis.euredt-xgs
EU Declaration of Conformiy

Revision . - Februay  - Copyright ©  Genexis Netherlands B.V. All rights reseved.
Genexis assumes no responsibiliy for any inaccuracies in this document. Genexis reseves the right
to change, modify, transfer, or othewise revise this publication without notice.
