Genie NVRX4 User manual

MODELS:
NVRX4, NVRX8, NVRX16
Network Video Recorder
User Manual

2
Cautions
Explanation of Graphical Symbols
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
CAUTION
Changes or modifications not approved by the manufacturer will void the warranty of the
product.
Using an incompatible battery may increase the risk of fire or explosion. Replace only with the
same or equivalent type battery recommended by the manufacturer.
Discard used batteries according to manufacturer’s instructions.
This% symbol% indicates% the% presence% of% important% operating% and% maintenance%
(servicing)%instructions%in%the%literature%accompanying%the%product.%
This%symbol%indicates%the%presence%of%“dangerous%voltage”%within%the%product’s%
enclosure%that%may%be%of%sufficient%magnitude%to%constitute%a%risk%of%electric%
shock,%property%damage,%personal%injury,%or%death.%

3
These Precautions must be followed for Safety Reasons
Warning
•Do not use if the unit emits smoke.
•Do not disassemble the unit.
•Do not place any heavy or sharp objects on the unit.
•Do not place on an uneven surface.
•Do not expose to shock or vibration.
•Do not move the unit when it is powered on.
•Do not block nor allow dust to accumulate in the air vents.
•Do not restrict airflow of the unit; doing so can damage the unit.
•Only qualified and experienced personnel should perform installation and servicing.
•Turn off the power to the NVRX when connecting Cameras, Audio or Sensor Cables.
•The manufacturer is not responsible for any damage caused by improper use of the
product or failure to follow instructions for the product.
•The manufacturer is not responsible for any problems caused by or resulting from the
user physically opening the NVRX for examination or attempting to repair the unit.
•It is strongly recommended that the 48V POE connector is inserted into NVRX before
mains power is applied to the adaptor.
About this User Guide
Before operating the unit, please read this user guide thoroughly and retain it in a safe place
for future reference.

4
Product Components
Please make sure the following components are included:
NVRX Unit
Remote Control
Battery 1.5V (AAA x 2EA)
Quick User Guide
Mouse for NVR
Software & Manual CD
HDD Power & SATA Cable
Rack Mount (X 2EA) & Screws (X6EA)
Adaptor (DC12V 5A for NVR)
& Power Cable
Adaptor (DC48V 2A for NVR)
& Power Cable
Audio Cable for NVR (Optional)

5
Specification
MODEL
NVRX4
NVRX8
NVRX16
Video
Input
IP Camera
4
8
16
Max. Bit Rate
20Mbps
40Mbps
Resolution
Max. 1920x1080
Output
Main Monitor
VGA and HDMI
Sub Monitor
CVBS (BNC)
Audio
Input
IP Cam Audio
4
8
16
Local (RCA)
4
8
16
Output
Local Output
1 (RCA)
Audio Codec
G.711
Event
Sensor In
IP Cam Sensor
4
8
16
Local Input
4 (Terminal Block)
Local Alarm Output
(Terminal Block)
1
Motion Detection
(from IP Camera)
Yes
Serial
RS-232C
Yes
RS-485
Yes
Network
Private
(IP Camera, Auto Connection)
4 Port POE
8 Port POE
LAN
(IP Camera, Remote Access)
10/100 Base-T
10/100/1000 Base-T
Protocols
TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP,
ONVIF
Recording
Compression
H.264 (Baseline, Main, High Profile)
Resolution
& Frame
Rate
D1
120fps
240fps
480fps
1280x720
120fps
240fps
480fps
1920x1080
120fps
240fps
480fps
Recording Mode
Continuous / Motion / Sensor / Schedule / Manual
Pre Recording
Max. 20 Minutes
Post Recording
Max. 60 Seconds
Playback
Search
Quick Search, Date/Time, Event, Archive, Log
Multi-Decoding
1, 4
1, 4, 8
1, 4, 8, 16
Playback Speed
x0.25, x0.5, x2, x4, x8, x16, x32, x64
Backup
Media
USB Drive, External HDD, DVD-R, Network
File Format
BMP, AVI, Proprietary Format
Huge Backup
Yes (Max. 24 hours)
Storage
HDD
1HDD Max Size
2Tb
3Tb

6
Internal HDDs
2
e-SATA
1
USB
Front
1
Rear
1
User I/F
Input Method
Front Buttons, IR, Mouse, Keyboard Controller
Features
Dynamic DNS
Yes (Free DDNS)
Digital Zoom
Yes
DLS (Day Light Saving)
Yes
NTP (Network Time Protocol)
Yes
S.M.A.R.T
Yes
Internal Beep
Yes
Multi-Language
Yes
eMail Notification
Yes
Network
Access
3G Mobile
iPad / iPhone / Android
Web Viewer
Windows (IE, Chrome, Firefox, Safari), MAC (TBD)
PC Client
Windows CMS (64 channels) Mac single site client
Remote Setup and Upgrade
Yes
Power
Power Supply Voltage
DC 12V 5A + 48V 1A
(POE)
DC 12V 5A + 48V 2A
(POE)
Temperature
Operation Temperature
+5°C ~ +40°C)
Storage Temperature
-10°C ~ +50°C
Weight
Unit Weight
Approximately 6Kg
Dimensions
W x H x D
380mm x 340mm x 72mm
*Please note that specifications and unit exterior design are subject to change without notification.

7
Table of Contents
1. Main Features...................................................................................................................................9%
2.%Initial Boot-up Process .................................................................................................................. 9%

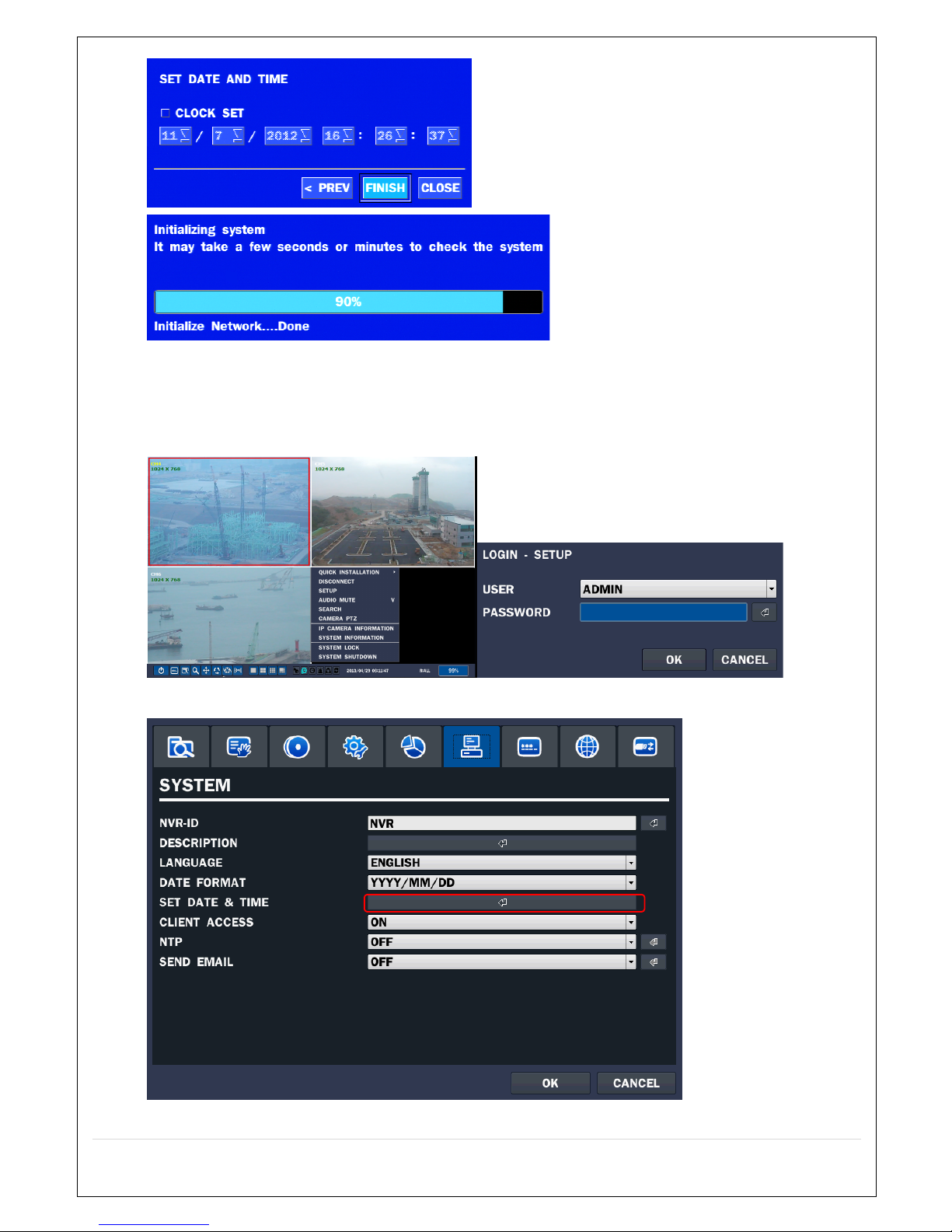

2-1. Initial Boot up and Basic Time Setup ................................................................................. 9%
2-2. Setting Daylight Saving Time............................................................................................. 10%

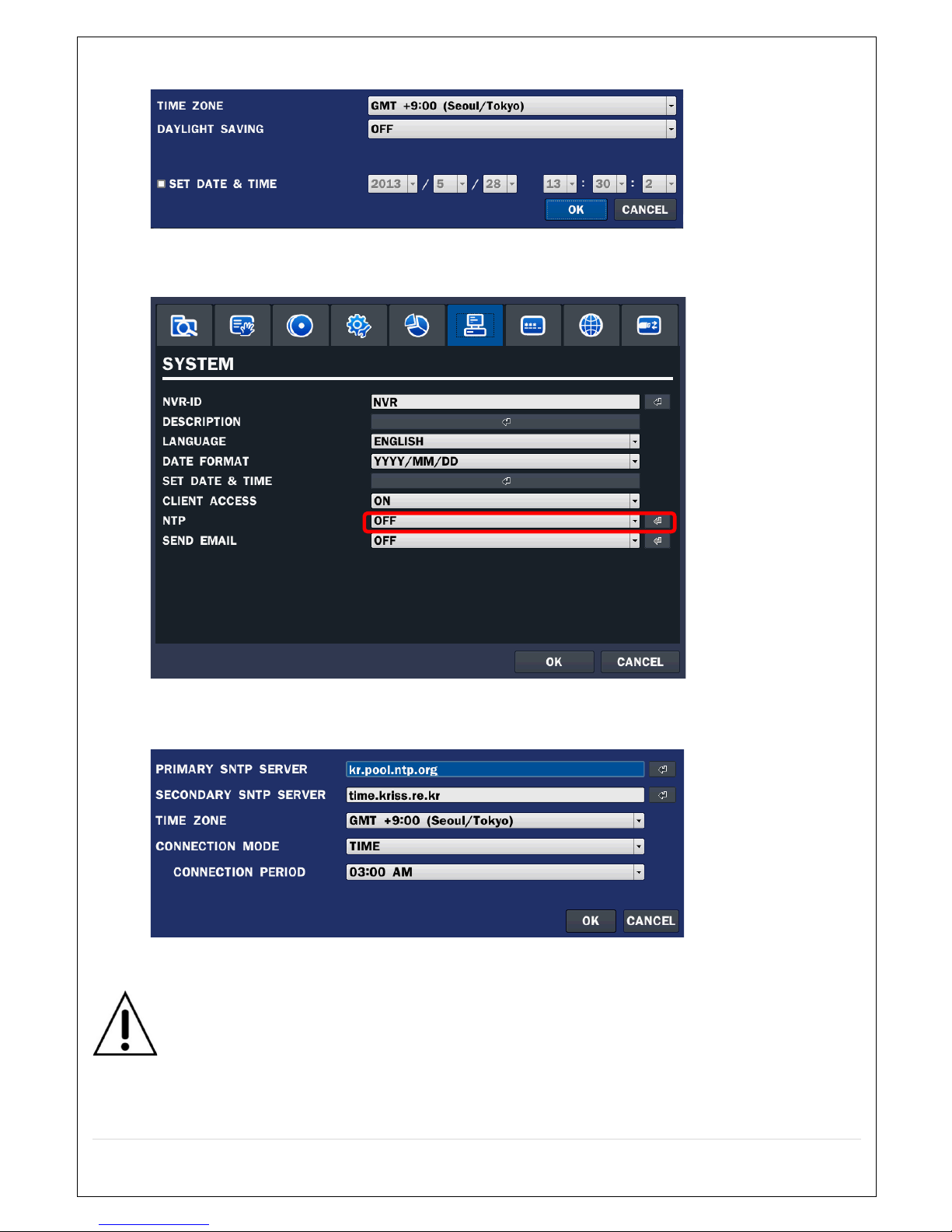

2-3. Setting NTP (Network Time Protocol)............................................................................... 11%
2-4 QUICK INSTALLATION .......................................................................................................... 12%
2-5 POE Port Setup ....................................................................................................................... 14%
2-6%Non POE Port Setup........................................................................................................... 16%
2-7%IP Camera SETUP (Through Web Viewer Page)........................................................... 16%
2-8%Dual Streaming................................................................................................................... 17%
3.%Front and Rear Panels .................................................................................................................18%
3-1. Front Panel ............................................................................................................................. 18%
3-2. Connectors ............................................................................................................................. 19%

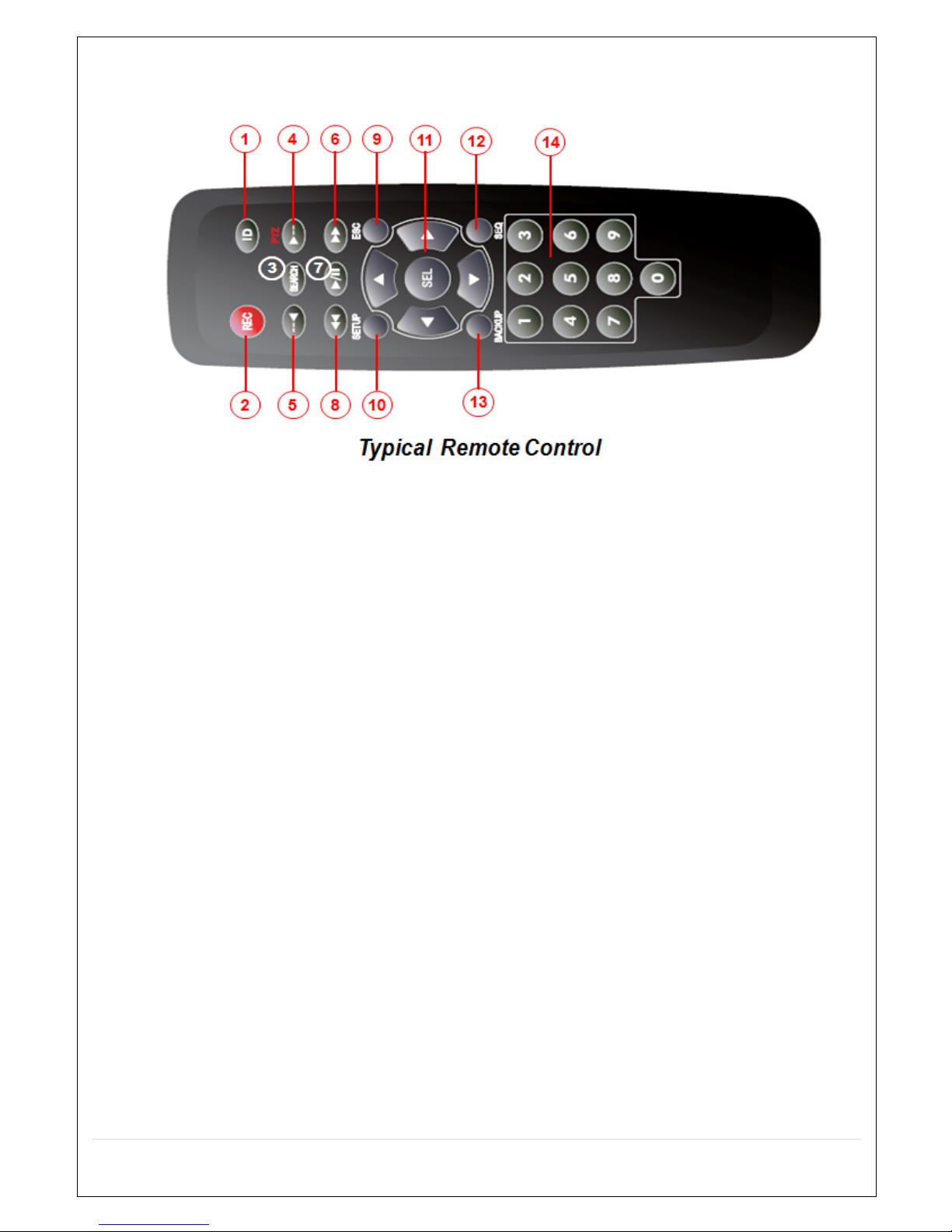

3-3. Remote Control ..................................................................................................................... 20%
4.%Setting up the NVRX.................................................................................................................... 21%
4-0. Setup – Main Live Screen ................................................................................................... 21%
4-1. Setup – IP Camera ............................................................................................................... 22%
4-1-1. SCAN Menu ........................................................................................................................ 23%
4-1-2. ONVIF SETUP Menu.......................................................................................................... 25%
4-2. Setup – Display..................................................................................................................... 26%
4-3. Setup – RECORD Mode........................................................................................................ 27%
4-3-1. Recording Schedules ........................................................................................................ 29%
4-4. Setup – DEVICE Mode ......................................................................................................... 30%
4-4-1. Alarm-Out........................................................................................................................... 31%
4-5. Setup – STORAGE Mode...................................................................................................... 32%
4-6. Setup – SYSTEM Mode......................................................................................................... 33%
4-7. Setup – SECURITY Mode..................................................................................................... 37%

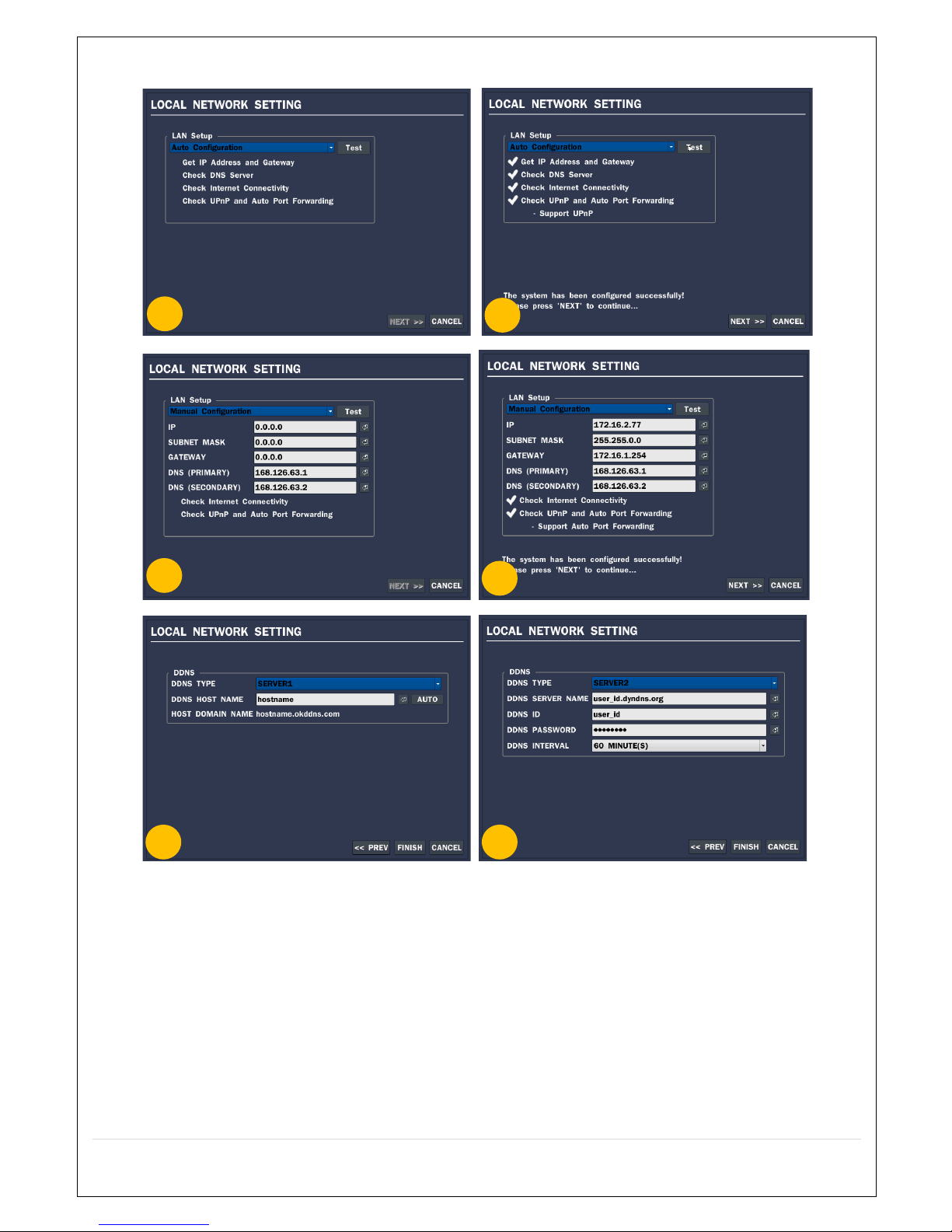

4-8. Setup – NETWORK Mode..................................................................................................... 39%
4-8-1. Network Types................................................................................................................... 40%
4-8-1-1. DHCP ............................................................................................................................... 40%
4-8-3. Network Port and Web Port ............................................................................................ 41%
4-9. Setup - CONFIG Mode ......................................................................................................... 42%
4-9-1. Firmware Upgrade ............................................................................................................ 43%
5.%Live, Search and Playback.......................................................................................................... 43%
5-1. Live View ................................................................................................................................ 43%
5-2. Digital Zoom in Live and Playback Screen ...................................................................... 48%
5-3. SEARCH Screen..................................................................................................................... 48%
5-3-1. QUICK Search.................................................................................................................... 49%
5-3-2. Time Line Search .............................................................................................................. 50%
5-3-3. Event Search...................................................................................................................... 51%

8
5-3-4. Go To First Time................................................................................................................ 51%
5-3-5. Go To Last Time ................................................................................................................ 51%
5-3-6. Go To Specific Time.......................................................................................................... 51%
5-3-7. Archive List......................................................................................................................... 52%
5-3-8. Log List................................................................................................................................ 52%
5-4. Play Mode ............................................................................................................................... 53%
6. Back Up ........................................................................................................................................... 54%
6-1. Video Backup onto USB Flash Drive during playback ................................................... 54%
6-2. Transferring Still Images or Video from the ARCHIVE List .......................................... 55%
6-3. Playback of Backup Video ................................................................................................... 56%
6-3-1. AVI Format ......................................................................................................................... 56%
6-5-2. NSF Format ........................................................................................................................ 56%
7. Network Access Using the NVRX Network Viewer..................................................................57%
7-1. Overview................................................................................................................................. 57%
7-2. PC Requirements .................................................................................................................. 57%
7-3. Installation of the Program................................................................................................. 58%
7-4. Live Window........................................................................................................................... 59%
7-4-1. Main User Interface .......................................................................................................... 59%
8. Network Access Using the Web-Browser Viewer .................................................................... 60%
8-1. Remote Setup via Web Browser ........................................................................................ 62%
8-1-1. IP Camera........................................................................................................................... 63%
8-1-2. System ................................................................................................................................ 63%
8-1-3. Record ................................................................................................................................. 64%
8-1-4. Device ................................................................................................................................. 65%
8-1-5. STORAGE ............................................................................................................................ 66%
8-1-6. SYSTEM............................................................................................................................... 67%
8-1-7. SECURITY ........................................................................................................................... 68%
8-1-8. NETWORK ........................................................................................................................... 69%
8-1-9. Remote Upgrade ............................................................................................................... 69%
9. Network Access Using the Smart Phone Viewer ..................................................................... 70%
9-1. App Viewer for iPhone ......................................................................................................... 70%
9-1-1. Live ...................................................................................................................................... 70%
9-1-2.PTZ Control.......................................................................................................................... 72%
9-1-3. Playback.............................................................................................................................. 73%
9-2. App Viewer for Android Phone ........................................................................................... 74%
9-2-1. Live ...................................................................................................................................... 74%
9-2-2. Playback.............................................................................................................................. 75%
9-2-3.PTZ Control.......................................................................................................................... 76%
APPENDIX: Network Connection – LAN ......................................................................................... 77%
APPENDIX: Network Connection – Internet and DDNS ............................................................. 79%
APPENDIX: E-SATA CONNECTION..................................................................................................81%

9
1. Main Features
Automatic IP Camera Detection and Connection (Plug & Play)
Easy Record, Copy and Setup
Easy Search by Thumbnail Preview
Easy Copy
Easy Network
Easy IP Camera Setup
Individual Channel Operation
Covert Camera Operation Provides Enhanced Security and Administrator Control
Dynamically Programmable Recording Priority, Motion Detection, Alarms and Schedule
Simple and Easy Graphic User Interface
Simple Scheduler
HDMI Output
VGA Output
Password to Secure Installation Authorisation
USB 2.0 Port for video Clip Export and Firmware Upgrade via USB Flash Drive
Exclusive File Format Backup and Player
Variety of Ways to Access the NVRX Across a Network - Access via CMS Network Client
Software -Windows Multi-Site and Mac Single Site, Web-Viewer, and Mobile Viewer for
Apple and Android
S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology for HDD)
2. Initial Boot-up Process
2-1. Initial Boot up and Basic Time Setup
1. During the first boot up, the following logo is displayed.
2. After the logo changes, select the language and set date and time; as specified below.

10
2-2. Setting Daylight Saving Time
To enable the Daylight Saving feature/NTP synchronisation, take the following steps.
1. Enter SETUP mode. The default Username is “ADMIN” and Password is “1111”.
2. Go to SETUP > SYSTEM > DATE & TIME SETUP

11
3. Select ON from the DAYLIGHT SAVING dropdown menu.
2-3. Setting NTP (Network Time Protocol)
1. SETUP > SYSTEM > NTP SETUP > ON
2. Select the correct TIME ZONE.
NOTE: If you want the unit to automatically synchronise to the local time, the Time
Zone must be correctly set to your local time zone.

12
2-4 QUICK INSTALLATION
Quick installation Menu for NVRX and IP Camera Quick installation (right click on the Main
Screen).
2.4.1 Help Users to Setup IP Camera Settings
①Select the Channel to configure.
②Select the Camera Manufacturer and then click on the scan button; this scans the
network for any cameras from the particular manufacturer.
③Select on the desired Camera from the list, and then check on register.
④If necessary, click on Preview to Preview the camera, or Setup to change camera settings.
1
2
3
4

13
2.4.2 Help User to Setup NETWORK setting (Using an Internet Connection)
①Select YES when setting the network using an internet connection.
②Select Auto Configuration (DHCP) or Manual Configuration (STATIC) and then click
the TEST Button. It automatically sets up the network for the system (NVR).
③Setup DDNS setting. DDNS (Dynamic Domain Name System) allows a DNS name
to be constantly synchronised with a dynamic IP address. It allows the use of a
dynamic IP address to be associated with a static domain name.
④Click Finish to save the setup.
1
2
4
5
3
6

14
2-5 POE Port Setup
2.5.1 Connecting the Cameras
Private Network
IP Camera (Plug and Play)
WAN
Clients
IP Camera
Router
LAN
Switch Hub
Clients

15
The following IP Camera settings are recommended for optimum connection with the NVRX
Setup
Items
Default
Value
Description
Network
Type
DHCP
The IP Camera must act as a DHCP client for “Plug and Play”
Encoding
Type
CBR
CBR is recommended because of the internal buffer strategy of the NVRX
Series
Resolution
1280x720
The maximum performance of the NVRX Series is 1080p@192fps or
720p@400fps.
To increase frame rate, lower the resolution to 1280x720
Frame
Rate
25fps
The maximum performance of the NVRX Series is 720p@400fps
Therefore 25fps per channel is recommended (25fps x 16=400fps)
Bit Rate
2Mbps
The maximum throughput of the NVRX Series is 40Mbps
Therefore 2Mbps per channel is recommended (2 x 16=32Mbps)
Sub
Stream
CIF
512Kbps
For Dual Streaming, the sub stream should be turned on
And, for proper streaming through the WAN connection,
CIF@512Kbps or a lower bitrate per channel is recommended
•The NVRX Series features a "Plug and Play" function with a POE Switch.
•The “Plug and Play” functionality requires the IP Camera to be in DHCP mode.
•The NVRX automatically assigns an IP Address to the IP Camera (10.20.30.11 ~
10.20.30.254).
•The NVRX models automatically map the camera on the POE Port to the corresponding
NVR channel number.
With the NVRX Models, DO NOT connect a router to the POE Ports to connect an IP
Camera. The NVRX will not be able to find and connect to the camera. The LAN Port
can be connected to a router, but not the POE Ports.

16
2-6 Non POE Port Setup
2.6.1 Connecting the Camera
①The NVRX Series features a "Plug and Play" function (on board POE Switch included)
②Setting up cameras can be done through the Quick Installation menu
2-7 IP Camera SETUP (Through Web Viewer Page)
The NVRX allows remote access to the IP Cameras through an "IP Camera Setup" menu.
The PC Web Client features the "IP Camera Setup" menu that can be accessed remotely.
LAN
Clients

17
①Click the mouse right button
②Select “IP Camera Setup”.
③Select Channel Number.
④It lanuches the camera’s own setup page.
In order for the web pages to launch from the “IP Camera Setup” menu, when accessed from
the WAN, Ports 59011 to 59254 on the router must be port forwarded to the NVRX. The local
address of the NVRX can be found in the system information.
2-8 Dual Streaming
High Quality (Main Profile) Video Stream is used for both Recording and Live Display.
High Quality (Main Profile) Video Stream can be viewed through the network, when
selected.
Normal (Secondary) Quality Video Stream is used by default when viewing through the
network.
Network Clients
Monitoring
IP Camera
HDD
Displaying
Recording
High/Normal
Selection
Network
High Quality Video Stream (Full HD)
Normal Quality Video Stream (D1/CIF)

18
3. Front and Rear Panels
3-1. Front Panel
Front LED’s and Ports of NVRX Series
Name
Description
a. POWER
LED light is on when power is applied to the system.
b. HDD
LED light is on when the system is recording video data.
c. LAN
LED light is on when network to the connecting.
d. ALARM
LED light is on when alarm output is turned on
e. USB PORT
This USB port for archiving footage into a USB device. (USB 2.0
connector)
!
"
#
$
%

19
3-2. Connectors
①GROUND: Use for ground port
②POE POWER: DC48V input (NVRX Series)
③POE PORTS: NVRX4 (4 Port POE), NVRX8/16 (8 Port POE)
④AUDIO IN: 4 Connectors for Audio Input
⑤AUDIO OUT: 1 Connector for Audio Output
⑥CVBS OUT: MAIN – Composite Video Output
⑦HDMI OUT: HDMI output port, Connector to the HDMI Monitor, (1280x720, and 1920x1080)
⑧VGA OUT: Connector for VGA Monitor. Main Video Output
⑨RS232C: POS Interface (Future Development)
⑩AUDIO Port : Audio input connections for channels 5-8 or 5-16 through an external cable
(8/16CH Only)
⑪E-SATA: 1 External SATA Terminal
⑫USB PORT: Connector for USB Mouse or USB flash memory
⑬ETHERNET PORT1: RJ-45 Connector for LAN Connection, used for Internet Connection
⑭SENSOR IN, ALARM OUT, RS-485: 4 sensor inputs, 1 alarm output and RS-485 for PTZ
⑮POWER: DC12V input
&
Do not power this system on before all the connections are completed.
&Make sure all the connections are properly secured. Faulty connection may result in
the system being damaged.
1
1
2
10
9
6
5
4
3
2
5
6
7
7
8
8
3
11
11
12
12
13
13
14
14
15
15
NVRX4
NVRX8/16
4

20
3-3. Remote Control
①ID: To set the remote control ID.
②REC: To start and stop manual recording.
③SEARCH: To go to the SEARCH menu.
④F/ADV:
During playback – To move the playback position 60 seconds forward.
During Pause – To move the playback position 1 frame forward.
⑤F/REW:
During playback – To move the playback position 60 seconds back.
During Pause – To move the playback postion 1 frame back.
⑥FF: To fast forward the recording.
⑦PLAY/PAUSE: To play or to pause the recording in playback mode.
⑧REW: To rewind the recording.
⑨ESC:
During setup – To retun to the preivous menu screen.
During Playback – To exit playback mode.
System lock – To lock a system when pressing ESC button for 5 seconds.
System unlock – To unlock a system when pressing ESC button for 5 seconds.
⑩SETUP: To open the SETUP menu.
⑪Direction buttons: To move menu items or select a channel.
⑫SEQ: To start auto sequencing the screen in full screen mode (Toggle).
⑬BACKUP: To start a backup operations in live or playback mode.
⑭0~9: To select channel (1,2,3,..) or to enter a NVRX ID number or use as number key.
