Gentec TFT3500 User manual

Knee Operated Valve
TFT3500
Foot Operated Valve
TFT3600 / TFT3700
Straight Shower Valve
TFT1010
Adjustable Shower Valve
TFT1010ADJ
Shower Control Valve
TFT1015KIT
Shower Mixer Control Valve
TFT1016KIT
INSTALLATION
MANUAL
FLOSTOP VALVES

2
Contents
Product Features 3
Product Range 4
Technical Drawings 6
Unit Components 8
Wall Mounted Showers Installation 10
Outlet Installation 12
Knee Valve Installation 13
Pedal Valve Installation 14
Single Temp Straight Valve 15
Time Adjustment Instructions 16
Maintenance 17
Product Warranty 18

3
www.gentecaustralia.com.au
Flostop Valves by Gentec
The hydraulically operated time flow tapware will enhance your facility by
providing high-level hygiene and extensive energy and water savings. Various fixed
time delays are available. As well as an adjustable time delay of 0 - 40seconds
is supplied with some products.
Infection control features
12 - 16 second timed flow run time
complies with food preparation
regulations
Installation and servicing
For durability please ensure to install
all parts including strainers, flow
regulators
Usage features
Hands Free products available.
Adjustable timing via adjustment
screw for 0 - 40 seconds
Application
Food commercial premises,
healthcare accessible areas, child
care facilities, sports facilities.
The FLOSTOP Soft close, timed flow product range is anti-vandal and has
been designed to withstand heavy use in any commercial application for over
1.000.000 cycles of operation.











WM74513
AS/NZS3718
ApprovalMark

4
Product Range
TFT3600 / TFT3600 KIT
FLOOR / WALL MOUNTED FOOT OPERATED VALVE
* KIT WITH SPOUT AVAILABLE
TFT1010 TFT1010ADJ
SINGLE TEMPERATURE STRAIGHT VALVE SINGLE TEMPERATURE STRAIGHT VALVE WITH
ADJUSTABLE CARTRIDGE

5
www.gentecaustralia.com.au
TFT3500 / TFT3500KIT
KNEE OPERATED VALVE
* KIT WITH SPOUT AVAILABLE
TTFT1016KIT TFT1015 KIT
SHOWER MIXER VALVE WITH INWALL
STAINLESS STEEL BOX.
SINGLE TEMPERATURE SHOWER VALVE
WITH INWALL STAINLESS STEEL BOX.

6
Technical Drawings
TFT3500
KNEE OPERATED VALVE
TFT1010 TFT1010ADJ
SINGLE TEMPERATURE STRAIGHT SHOWER
VALVE
SINGLE TEMPERATURE STRAIGHT SHOWER
VALVE WITH ADJUSTABLE CARTRIDGE
GENTECH AUSTRALIA PTY. LTD.
68
61
45.5
6.5
G1/ 2"
30.5
37.5
64.5
325
G1/ 2"
33
37.5
G1/2”
95
37.5
ø35
80 ø61
C
M
Y
CM
MY
CY
CMY
K
TFT1010.pdf 1 15/8/19 10:05 am
*Pressure exceding 450 kPa will void warranty

7
www.gentecaustralia.com.au
*Pressure exceding 450 kPa will void warranty *Regular service must be carried out on the product to avoid product failure.
TFT3600 / TFT3700
FLOOR / WALL MOUNTED FOOT OPERATED VALVE
TFT1015KIT
SINGLE TEMPERATURE SHOWER VALVE
WITH IN-WALL STAINLESS STEEL BOX.
SHOWER MIXER VALVE WITH INWALL
STAINLESS STEEL BOX.
GENTECH AUSTRALIA PTY. LTD.
54
42
30
36
35
50.5
G 1/2"
17
15
41
53.5
236
182.5
G 1/2"
GENTECH AUSTRALIA PTY. LTD.
107
50.5
17
15
41
53.5
12.5
186.6
35
G1 / 2"
54
42
30
36
35
130
G 1/2”
G 1/2”
ø36
ø20
35 41
ø30
130
119
6830
200 200
68
G 1/2”
107
129
119
Ø30
Ø15-G1/2”M
Ø35
37
96
81.5
81.5
10.7

8
KNEE OPERATED VALVE
TFT1015KIT
Unit components
*Pressure exceding 450 kPa will void warranty

9
www.gentecaustralia.com.au
No. Description Qty
01 Headvalve Holder 1
02 Plastic Lever 1
03 Flat Brass Spacer 1
04 Spring 1
05 Cartridge 1
06 Flow Cup 1
07 Valve Body 1
KNEE OPERATED VALVE
*Pressure exceding 450 kPa will void warranty *Regular service must be carried out on the product to avoid product failure.
No. Description Qty
08 Fixing Screws 2
09 Flange 1
10 Wall plugs 2
11 Strainer
Important Note
For the Maintenance
Instructions see Pag. 17.
OPERATION REQUIREMENTS
Pressure / Temperature Value
Min Continuous Flow
Working Pressure 150kPa
Max Continuous Flow
Working Pressure 450kPa
Optimum Flow Working
Pressure 350Kpa
Max Static Pressure 450kPa
Min Continuous Working
Temperature 5°
Max Continuous Working
Temperature 50°
No. Description Qty
01 Plastic Cover ring 1
02 Cover Plate 1
03 Grub Screws 2
04 Fixing Screws. 4
05 Adjustment Cover. 1
06 Mixer Body 1
07 Wall fixing Screws 4
08 InWall Box 1
09 Wall Plug 4
STRAIGHT SHOWER VALVE
TFT1015KIT

10
Installation Instructions
WALL-MOUNTED SHOWER KITS
TFT1015 KIT, TFT1016 KIT
Before connecting water to the valve, ensure
to flush the line and remove all debris from
the line.
All fixtures must be installed with isolation
valves and accessible.
Working pressure must be between 150 and
450kPa.
For direct ablution Temperatures will need to
be between 7ºC to 45ºC.
Wall mounting the product
1. Mount the stainless box into the wall
firmly.
2. Screw the main valve into the box and
locate the outlet in the vertical position.
Product performs best at 350kPa.
Note: Ensure the button on the valve body
is aligned with the water flow direction.
(Pointing to the water outlet)
3. All screwed fittings connected to the
valve must be easily dismantled so the
main valve can be removed.
It is recommended to use flat union
connections.
4. Ensure to finish the stainless steel
box flush with the finished wall this
includes tiles , waterproofing, etc
*Use 350Kpa pressure reduction valve for extended life and beer operation
Water Inlet
Water Outlet

11
www.gentecaustralia.com.au
5. To finish off the installation, fit rubber to
the stainless-steel front cover plate
6. Push the black frame on to the stainless
box using 4 screws provided and tighten
against the wall.
7. The stainless-steelcoverplate comeswith
two grub screws. Push the cover plate over
the button against the black cover seal,
then screw the two grub screw in place
to secure the stainless steel cover plate.
8. For the TFT1016KIT only, screw in
levers for hot and cold controls and use
Lockseal to secure. Connect hot (left)
and cold (right) water on each side of the
mixer.
• Compliance
The mixer handle is a blender valve only
and not a thermostatic mixing valve.
Wall Installation Diagram
WALL-MOUNTED SHOWER KITS
TFT1015 KIT, TFT1016 KIT
We recommend to have the shower
mounted at 2.1 meters high. Gentec
offers two options for shower heads
fixed head and adjustable head
Do not pressurise the product
above 450kPa. If pressure testing
is done above 450kPa, excessive
pressure can damage the operation
of the timing.
*Regular service must be carried out on the product to avoid product failure.
Important note

12
Installation Instructions
*Use 350Kpa pressure reduction valve for extended life and beer operation
A. Please flush out new pipe work prior to
connecting the new tapware.
B. All tapware should be installed with
isolation valves.
C. The valves are suitable for high pressure
applications where cold water supply
pressures are at a minimum of 150Kpa
and a maximum of 450 Kpa
Important Note for all units
Tapware must be installed to the
requirements of AS/NZS 3500 by a
qualified plumber. Your mixer comes to
you already factory assembled and tested.
We do not recommend the dismantling
of any internal part of the mixer. The
mixers are factory tested and sealed
so as to give the best performance.
Outlet installation instructions
for TFT3500KIT and TFT3600KIT
1. Allow for a 25mm hole for the water
outlet.
2. Remove the back nut and washers from
the outlet.
3. Insert the 15mm thread through the
basin/sink then fix the back nut and
washers in place.
4. Connect the flexible hose from the
valve outlet to the spout inlet.Connect
the water supply to operate.

13
www.gentecaustralia.com.au
Knee Valve Installation
1. Place the flat brass nipple spacer on
the spring. Ensure the nipple is facing
towards the knee valve wand
2. Slide the head valve holder over the knee
valve wand and screw on to the cartridge.
Mounting the knee valve to the wall:
3. Screw on the knee valve body to the
flange.
4. Use the 2 holes on the flange to mount
the knee valve to the wall.
5. Screw the flange and knee valve into
place using the necessary screws to
mount firmly onto the wall.
Ensure the arrow on the knee valve
body figure (2) is facing up when
connected to the water inlet and
outlet
6. Place the filter in the water inlet and
use flat union connectors to prevent
damaging the strainer.
7. Do not over-tighten the cartridge.
Important Information
Ensure the brass nipple spacer (figure
1) is fitted securely facing the right
side to prevent any leaking
Product should be mounted free of
obstructions.
Do not modify the product.
Figure 1
Figure 2
*Regular service must be carried out on the product to avoid product failure.
KNEE OPERATED VALVE
TFT3500, TFT3500KIT

14
Installation Instructions

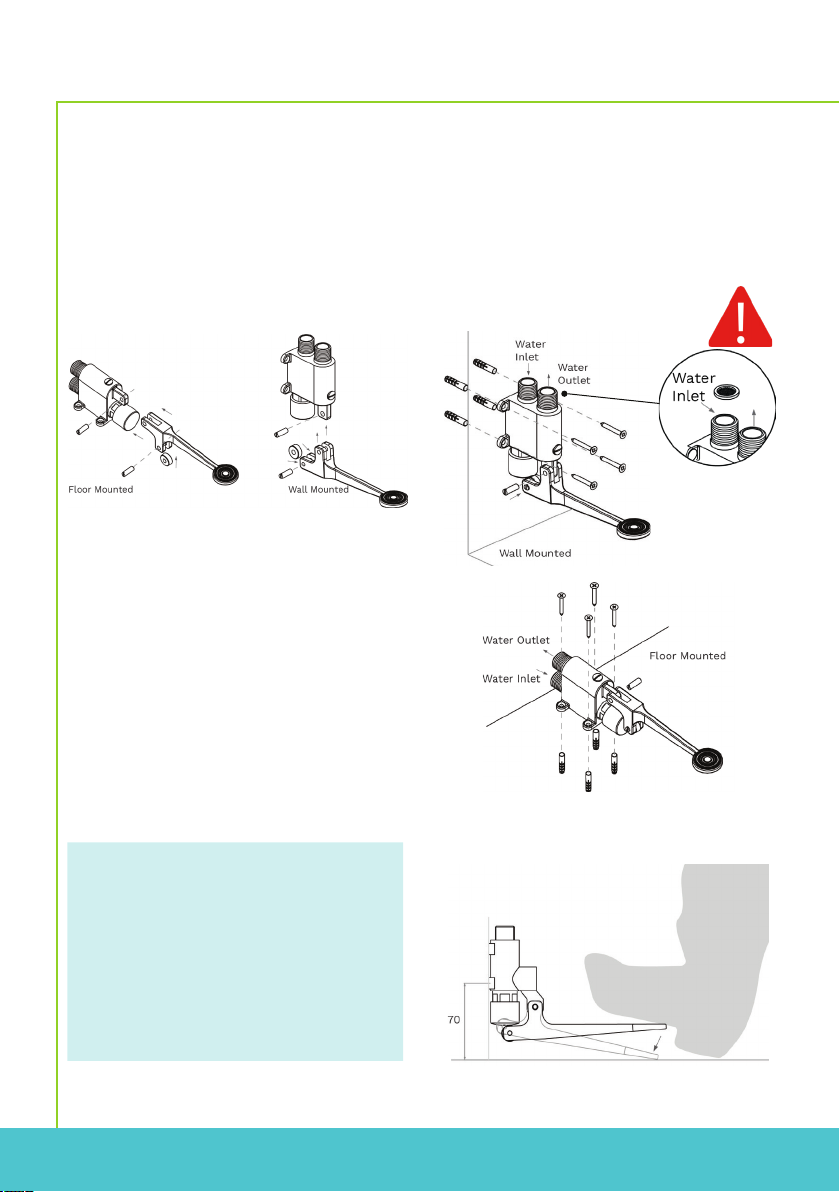

Foot Valve Installation
Choose the position that suits better (floor or
wall mounted)
Convert the pedal valve from floor
mounted to wall mounted:
1. Remove the screw on the pedal lever.
2. Reverse the pedal lever as shown in
Figure 1.
3. Mount the unit securely ( floor or wall) to
prevent any movement while operating
the valve
4. Use the 4 mounting screws to screw the
pedal valve into place.
How to adjust timing:
For time delay adjustment see page 17
Important note
We recommend to have the Foot Pedal
mounted at no higher than 70mm high
from the floor. (Figure 2)
Ensure the inlet strainer (figure 3) is
fied securely.
Figure 2
Figure 3
Figure 1
FOOT OPERATED VALVES
TFT3600, TFT3700
*Use 350Kpa pressure reduction valve for extended life and beer operation

15
www.gentecaustralia.com.au
1. Flush the new pipe prior to installation
2. Install the strainer.
3. Screw the valve body to the flange
4. Measure and mark the two holes using
the fixing flange for drilling into the wall.
5. Ensure the arrow on the valve body is
facing the dicrection of the outlet.
6. Connect the water inlet and outlet.
7. Push into the button the colour indicator
for hot or cold water.
Note
The difference between the TFT1010
and the TFT 1010ADJ is the cartridge.
The TFT 1010 ADJ has an adjustable
cartridge. For the time ajustment
instructions see pag. 17
*Regular service must be carried out on the product to avoid product failure.
SINGLE TEMPERATURE STRAIGHT VALVES
TFT1010, TFT1010ADJ
TFT1010ADJ

16
•To adjust the timing you will need to use
the allen key provided (1.2mm)
•Turning the screw in clockwise will
reduce the run time.
•Turning the screw anti clockwise will
increase the run time
Fixed Timing Adjustment
Please contact GENTEC before changing
flow cups
Our Flostop range is available in the following
fixed timing options
These options are available upon request
and are factory installed. *Refer to the chart
below
Changing the flow cup yourself may void the
product warranty.
ADJUSTABLE CARTRIDGE (0 TO 40 SECONDS)
This option is suitable for the following references: TFT1010ADJ,
TFT3600, TFT1015KIT, TFT1016KIT
Time Adjustment
*Use 350Kpa pressure reduction valve for extended life and beer operation
FCC. Description
TFT9050 Flow cup 4 - 6 Sec
TFT9052 Flow cup 8 - 12 Sec
TFT9053 Flow cup 12 - 16 Sec
TFT9054 Flow cup 40 Sec

17
www.gentecaustralia.com.au
Maintenance
SPARE PARTS
Code Description
TFT9010 Cartridge to fit TFT1010
TFT9069 Adjustable Cartridge
TFT9300 Knee Operated Wand
TFT9304 Knee Operated Cartridge
TFT9050 Flow Cup 4 - 6
TFT9052 Flow Cup 8 - 12
TFT9053 Flow Cup 12 - 16
TFT9054 Flow Cup 40 sec
O Ring Kit service
For the following steps, a qualified plumber
must be in charge of the maintenance and
handling of the tapware in order to keep
product Warranty. The damage on parts after
dismantling a product would not be covered
by the warranty.
First start by shutting off the main water
supply.
1. Remove the head valve using a shifter
on the flats and remove the cartridge.
2. Undo the stopper
3. Set aside the crown ring
4. Set aside the head valve from the stem
5. Remove the washer Gaco from the head
valve and replace with the new washer
gaco.
6. Remove the Gaco from the stopper and
replace it with the new washer Gaco
7. Remove the “O” Ring and replace it with
the new “O” Ring
8. Remove the “o” Ring and replace it with
the new “O” Ring
9. Using the existing crown ring place it
back into the head valve
10. Place the stem through the head valve
11. Apply a drop of Loxeal to the thread of
the stem
12. Replace the stopper, ensure the “O” Ring
is in place, then tighten the stopper. Do
not overtighten.
13. Fit the handle and cartridge back into
the body and tighten.
Do not overtighten.
Important note
Over thightening might cause the
crown ring to move, this could cause
malfunction of the cartridge.
Gaco

18
Warranty
GENTEC PRODUCT QUALITY WARRANTY
You have purchased a quality product from GENTEC
Australia Pty Ltd ABN 581 552 50285 ). This product
is covered by a 10 year replacement product
warranty and a 24 month warranty on spare parts
and labour.
1. Warranty
1.1 This warranty is given by the Principal subject to
the terms and conditions set out in this document.
1.2 The Principal warrants that the Goods are
free from defects in materials and workmanship
for the time period specified for the Goods in
the Product Index. If Your Goods are found to be
defective within that time, we will repair or replace
the Goods.
1.3 This warranty does not cover accidental
damage, wear and tear, consequential or incidental
loss, or any damage caused by You, including if
the Goods were not installed in accordance with
the manufacturer’s instructions, the PCA and AS/
NZS3500.
1.4 You are required to service the Goods regularly.
Failure to do so may cause this warranty to be
voided.
2. Procedure
2.1. If you consider that the Goods are defective,
you must cease use of the Goods immediately
and provide notice to the Principal in writing as
soon as is reasonably practicable after discovering
the alleged defect.
2.2. The notice referred to in clause 2.1 must state
the following:
2.2.1 the alleged defective Goods;
2.2.2 what the alleged defects are;
2.2.3 where the Goods are located;
2.2.4 when the Goods were purchased
2.2.5 the invoice number relating to the
purchase of the Goods;
2.2.6 whether the main water to the unit is able
to be turned off;
2.2.7 include pictures of the alleged defect; in a
reasonable time.
2.2.8 completed credit card authorisation in the
form set out in Schedule 2 to these conditions
accepting liability in accordance with clause 2.6
if the product is not faulty.
2.3 The Principal will, on receipt of a notice in
accordance with clause 2.2, issue a case number
for the investigation of the alleged defective
Goods.
2.4 In the event that the Goods are to be returned
to the Principal You may bring or send them to
one of our service locations or sites. If the cost of
returning the goods to us is significant because of
the nature of the failure or because of the size or
height of the goods, the Principal will collect the
goods from you within a reasonable time of You
providing notice in accordance with clause
2.2. If the cost of returning the Goods to us is
not significant, you are responsible for this cost
(although, you are entitled to compensation for
reasonably foreseeable costs incurred because
of the defect, including the cost of returning the
goods to us for repair, replacement or return).
2.5 In the event that the Principal or its agent are
required to inspect the Goods at the location
of their use or storage, You will, on reasonable
notice, allow the Principal to inspect the allegedly
defective Goods at the location of their use or
storage.
2.6 You are responsible for Your expenses relating
to a warranty claim, except as otherwise provided
for in this document. If the Principal is required
to attend Your site to inspect the Goods, and
it is found that there is no defect or the defect
has been caused by the circumstances listed in
clause 1.3, You will be responsible for the Principal’s
reasonable costs of attending Your site. Where
reasonably possible, we will notify you to give you
the option of paying for a repair or replacement

19
www.gentecaustralia.com.au
(however, we have no obligation to do so). We
will also provide you with all relevant information
associated with obtaining a repair or replacement
of the good (including the costs involved and how
the repair or replacement will be performed).
2.7 If the Principal agrees that the Goods are
defective, they will be replaced or repaired within
a reasonable time.
2.8 You have a duty to mitigate your loss in relation
to a warranty claim. You must notify the Principal
of major failures of the Goods within 3 business
days of you becoming aware of such major failure.
If you fail to notify us within this timeframe,
then we disclaim all liability for consequential or
indirect loss as well as losses of revenue or profits.
2.9 For the avoidance of doubt, it is in the
Principal’s sole discretion as to whether or not the
Goods are defective and therefore covered by the
warranty provided in this document. Any invoices
for services or replacement products will not
be paid for by the Principal without prior written
authorisation.
3. Mandatory Warranties
3.1 The Goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund
for a major failure and compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the Goods repaired
or replaced if the Goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
4. Exclusion of Warranties and Limitation of
Liability
4.1. Except as may be set out in this document
and the Quote, the Principal make no express
warranties or representations in relation to the
Goods or their delivery.
4.2. To the full extent permitted by law, the
Principal:
4.2.1 excludes all implied warranties and
conditions under statute or general law as to
merchantability, description, quality, suitability,
fitness for purpose or otherwise;
4.2.2 is not liable for loss of profit, indirect,
consequential or incidental loss, damage or
injury in connection with the Goods;
4.2.3 is not liable for the labour costs
associated with replacing the Goods;
4.2.4 is not be liable for any transport or
freight costs in relation to any warranty claim
and the repair or replacement of the Goods;
4.2.5 limits its liability in connection with
the Goods (however arising, whether in tort,
contract or otherwise) at its option and sole
discretion to:
4.2.5.1 replace the Goods or the supply of its
equivalent;
4.2.5.2 repair the Goods;
4.2.5.3 pay for the cost of replacing the Goods
or acquiring their equivalent; or
4.2.5.4 pay for the cost of having the Goods
repaired.
4.3 The warranties given by the Principal will not
apply in the event of defects, failures or other
matters regarding the goods where due to:
4.3.1 an act, default, omission or representation
made by some other person, excluding Gentec
or its manufacturer (for example, damage
caused by the misuse or mistreatment of the
good by the customer or someone else);
4.3.2 without limitation to (4.3.1) above, a failure
to install the goods in accordance with any
plumbing codes of practice prescribed by
an Australian Federal or State Government
body or organisation (including regulators),
any plumbing codes of practice generally or
any guidelines or instructions issued by the
Principal in relation to the Goods; or
4.3.3 a cause independent of human control
that occurs after the goods left our control.
4.4 Any of the warranties given by the Principal
may be voided by failing to comply with the
directions set out in the various user manuals
or other instructional material provided to You by

Warranty
MAR-IM-TFTV01-MB-041219
[e-mail]
www.gentecaustralia.com.au
P: [phone]
F: [phone]
Unit 6 20-28 Rickey St,
Mascot, Sydney, NSW 2020
the Principal in relation to specific Goods.
4.5 However, nothing in this clause will prevent
You from exercising any rights which You may
have under the Competition and Consumer Act
2010 or any other law which cannot by law be
excluded or modified by agreement.
5. Notices
5.1 Any notice in connection with this
document must be given in writing.
5.2 Any notice in connection with this
document is taken to be received:
5.2.1 if hand-delivered, on delivery;
5.2.2 if faxed, at the local time (in a place
of receipt of that fax) which then equates
to the then time at which the fax is sent as
shown on the transmission report which is
produced by the machine from which that
fax is sent and which confirms transmission
of that fax in its entirety unless that local
time is not a Business Day, or is after 5pm
on a Business Day, in which case that
communication will be deemed to have
been received at 9am on the next Business
Day;
5.2.3 if emailed, at the local time (in a place
of receipt of that email) which then equates
to the then time at which the email is sent
as shown on the transmission report which
is produced by the computer from which
that email is sent and which confirms
transmission of that email in its entirety
unless that local time is not a Business Day,
or is after 5 pm on a Business Day, in which
case that communication will be deemed
to have been received at 9 am on the next
Business Day; and
5.2.4 if posted, seven (7) days after being
placed in the post; unless a later date is
specified in it, and takes effect on the date
it is taken to be received.
5.3 The address for any notice to be
delivered to the Principal is as follows:
