Geo BJ 150 User manual

OPERATION AND
MAINTENANCE MANUAL

2
CONTENTS
INTRODUCTION ..................................................................................................................................................3
GENERAL INFORMATION .................................................................................................................................4
SAFETY NOTES...................................................................................................................................................7
SPECIFICATIONS............................................................................................................................................ 12
.............................................................................................................................................................................. 14
ASSEMBLY......................................................................................................................................................... 15
OPERATOR REQUIREMENTS....................................................................................................................... 34
MAINTENANCE................................................................................................................................................. 36
PARTS DRAWINGS AND LISTS .................................................................................................................. 25

3
INTRODUCTION
GEO wants to thank you for having chosen one of its products.
The technological evolution and the new request of the agricultural world have pushed our
firm to a continue improvement, focused on the product, on the quality of the materials and
on the quality of work.
The present manual contains the description of the machine and the necessary instructions
to correctly use it, along with the instructions for an ordinary and periodic maintenance of
the shredder.
Such manual is subdivided in easily recognizable chapters for a practical consultation.
The indications in the present manual are addressed to a professional user, who must have
specific knowledge about the driving modalities of the tractor with which the machine is
connected. The user has to be authorized, instructed and opportunely trained.
We recommend you to use only original spare parts and accessories.
The use of non-original parts could be dangerous reducing the duration and the
performances of the machine as well as the decay of the warranty.
In the case of doubt about the interpretation of the subjects illustrated in this handbook, we
suggest you to contact the dealer who will be ready to assist you whenever you need it.

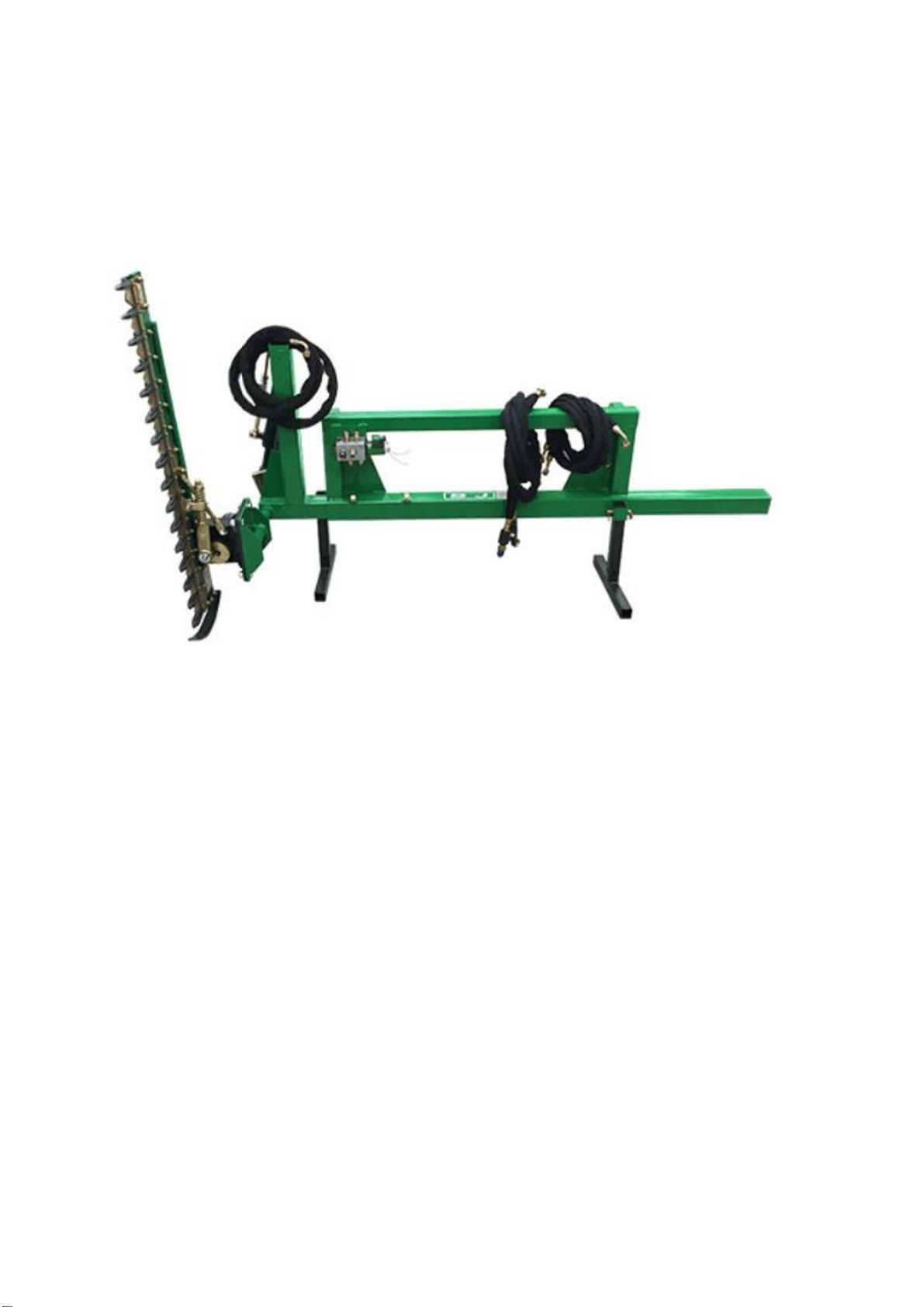

This hydraulic reach mower bar is with three size cutting bar for cutting hedges and
bushes. Simple control of the rotation of the second arm makes it possible to work both on
right and left hand side of tractor. The innovative reversible frame enables assembly of the
machine to either the back or front without need for any particular alteration

4
GENERAL INFORMATION
Information about the manual
The using prescriptions shown in this handbook must be carefully observed to obtain the
best performances, to assure the greatest duration of the different parts and to avoid
damages to the machine and accidents to the operator. lt is advised the careful reading of
the present handbook, to deepen the knowledge of the MOWER BAR, before starting to use
it.
The present manual is to be considered an integral part of the machine, it must go with the
machine in case of resale and till its demolition.
Some illustrations in this manual show particulars or accessories that could be different from
those of your machine, some component could have been removed to assure the clearness
of the illustrations.
The subjects dealt in this handbook are those expressly requested by the
"CE/98/37directive" and by the relatives technical standards.
On the machine are inserted apposite pictograms, which the operator will take care to
maintain in perfect visual state and to replace when they are not more readable.
This Handbook has been written following the effective regulations at the moment of
its printing. It is an integral part of the machine and must go with the machine with the
Declaration of Conformity in case of resale.

5
2 IDENTIFICATION OF THE MACHINE

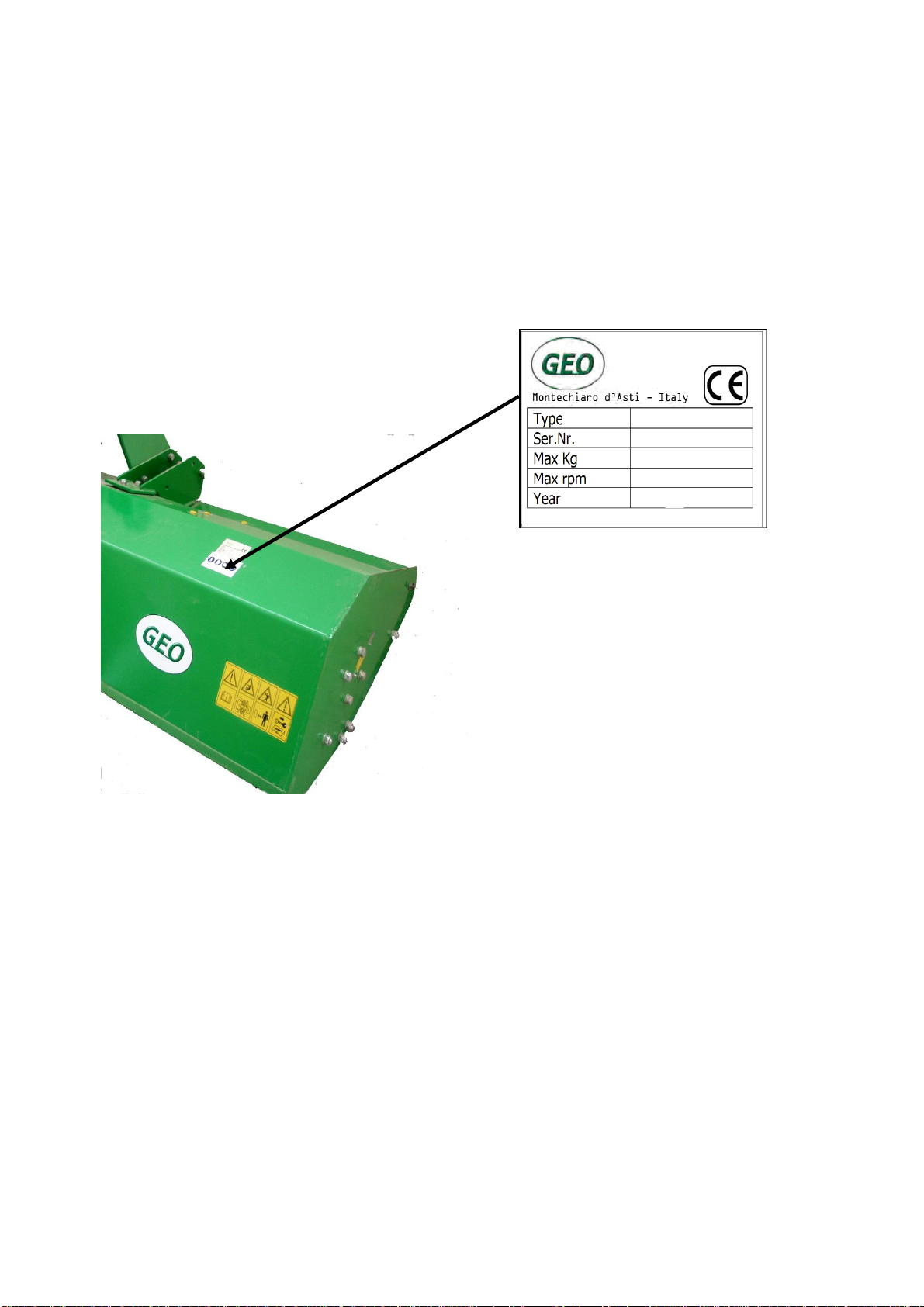

You will find on frame of each machine: the EC mark and a plate reporting the information
about the constructor, the model and the serial number, the year of construction, the weight.
EC Identification plate

6

7
Operator Safety Instructions and Practices
WARNING: Engine exhaust and certain vehicle components contain or emit chemicals.
WARNING: Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to cause cancer, birth defects or other
reproductive harm. (SG-31)
WARNING: The rotating parts of this machine continue to rotate even after it has been turned off.
The operator should remain in his seat for 60 seconds after the brake has been set, the tractor turned
off, and all evidence of rotation has ceased.
WARNING: Never crawl under a raised Implement supported solely by the Tractor 3-Point hitch.
Release of the control lever or mechanical failure will result in the Implement falling and
possible injury or death. Always securely block up the Implement before crawling
underneath to perform repairs and service.
WARNING: Never operate the Tractor or Implement until you have read and completely understand this
Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual or on the
Tractor and Implement. Learn how to stop the tractor engine suddenly in an emergency.
SAFETY NOTES
WARNING: Never allow inexperienced or untrained personnel to operate the Tractor
and Implement without supervision. Make sure the operator has fully read and understood the manuals prior
to operation. The operator and all support personnel should wear hard hats, safety shoes, safety glasses,
and proper hearing protection at all times for protection from injury including injury from items that may be
thrown by the equipment.
CAUTION PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS!
Tractors with or without an Implement attached can often be noisy enough to cause permanent hearing
loss.
We recommend that you always wear hearing protection if the noise in the Operator’s position exceeds
80db. Noise over 85db over an extended period of time will cause severe hearing loss. Noise over 90db
adjacent to the Operator over an extended period of time will cause permanent or total hearing loss.
NOTE: Hearing loss from loud noise [from tractors, chain saws, radios, and other such sources close to
the ear] is cumulative over a lifetime without hope of natural recovery
DANGER KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement
and possible serious injury or death. Never allow children to play on or around Tractor or Implement. Children
can slip or fall off the Equipment and be injured or killed. Children can cause the Implement to shift or fall
crushing themselves or others. (

8
DANGER NEVER use drugs or alcohol immediately before or while operating the Tractor and Implement.
Drugs and alcohol will affect an operator’s alertness and coordination and therefore affect the operator’s
ability to operate the equipment safely. Before operating the Tractor or Implement, an operator on prescription
or over-the-counter medication must consult a medical professional regarding any side effects of the
medication that would hinder their ability to operate the Equipment safely.
DANGER NEVER knowingly allow anyone to operate this equipment when their alertness or coordination is
impaired. Serious injury or death to the operator or others could result if the operator is under the influence of
drugs or alcohol.
Prolonged operation may cause operator boredom and fatigue affecting safe operation.
Take scheduled work breaks to help prevent these potentially impaired operating
conditions. Never operate the Implement and Tractor in a fatigued or bored mental state
which impairs proper and safe operation.
WARNING Use extreme caution when getting onto the Implement to perform repairs, maintenance
and when removing accumulated material. Only stand on solid flat surfaces to ensure good footing.
Use a ladder or raised stand to access high spots which cannot be reached from ground level.
Slipping and falling can cause serious injury or death.
WARNING Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves
and hose connections. Relieve hydraulic pressure before performing maintenance or repairs. Use
gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can
cause serious injury from burns or scalding. (
DANGER DO NOT operate this Implement on a Tractor that is not properly maintained. Should
a mechanical or Tractor control failure occur while operating, immediately shut down the Tractor
and perform repairs before resuming operation. Serious injury and possible death could occur
from not maintaining this Implement and Tractor in good operating condition.
WARNING Avoid contact with hot surfaces of the engine or muffler. Use gloves and eye protection
when servicing hot components. Contact with a hot surface or fluid can cause serious injury from
burns or scalding.
Do not put hands or feet under mower decks. Blade Contact can result
in serious injury or even death. Stay away until all motion has stopped
and the decks are securely blocked up.
DANGER Always keep a careful lookout and use extreme care when working around utility and
municipal obstructions. Never allow the Mower to contact any utility, municipal, or other
type structure. Clearly mark all mowing obstructions and consult local utility providers for
a safe code of operation.

9
DANGER Do not operate the implement while wearing loose fitting clothing. Entanglement of
the clothing with the rotating elements can result in serious injury or even death. Stay clear of
all rotating elements at all times.
Equipment Operation Safety Instructions and Practices
WARNING Never leave the Tractor and Implement unattended while the Implement is in the lifted position.
Accidental operation of lifting lever or a hydraulic failure may cause sudden drop of unit with
injury or death by crushing. To properly park the implement when disconnecting it from the
tractor, lower the stand and put the retaining pin securely in place, or put a secure support
under the A-Frame. Lower the implement carefully to the ground. Do not put hands or feet
under lifted components.
WARNING Use extreme care when lowering or unfolding the implement’s wings. Make sure no
bystanders are close by or underneath the wings. Allow ample clearance around the
implement when folding or unfolding the wings. Use extreme caution around buildings or
overhead power lines.
DANGER This Implement is wider than the Tractor. Be careful when operating or transporting
this equipment to prevent the Implement from running into or striking sign posts, guard rails,
concrete abutments or other solid objects. Such an impact could cause the Implement and
Tractor to pivot violently resulting in loss of steering control, serious injury, or even death.
Never allow the Implement to contact obstacles.
DANGER Be sure you have adequate knowledge of the property you will be working on. Take time
to make yourself aware of any area underground lines or cables. Contact with buried lines or cable
could result in serious injury or death
WARNING Do not operate Mower if excessive vibration exists. Shut down the Tractor engine.
Inspect the Mower to determine the source of the vibration. If Mower blades are
missing or damaged replace them immediately. Do not operate the mower until the blades have been
replaced and the Mower operates smoothly. Operating the Mower with excessive vibration can result in
component failure and broken objects to be thrown outward at very high velocities. To reduce the possibility
of property damage, serious injury, or even death, never allow the Mower to be operated with blades
missing. (SFL-4)
WARNING Operate this Equipment only with a Tractor equipped with an approved rollover-
protective system (ROPS). Always wear seat belts. Serious injury or even death could result from falling off
the tractor--particularly during a turnover when the operator could be pinned under the ROPS.
DANGER BEFORE leaving the tractor seat, always engage the brake and/or set the tractor transmission
in parking gear, stop the engine, remove the key, and wait for all moving parts to stop. Place the tractor
shift lever into a low range or parking gear to prevent the tractor from rolling. Never dismount a Tractor
that is moving or while the engine is running. Operate the Tractor controls from the tractor seat only.
DANGER Never allow children or other persons to ride on the Tractor or Implement. Falling off can result
in serious injury or death
DANGER Never allow children to operate, ride on, or come close to the Tractor or
Implement.
Do not mount or dismount the Tractor while the tractor is moving. Mount
the Tractor only when the Tractor and all moving parts are completely
stopped. (SG-12)
DANGER Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result in
injury or death. Read the Tractor operators manual for proper starting instructions. (SG-13)
DANGER Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel are explosive and
their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams
from breaks in the line could penetrate the skin and cause tissue damage including gangrene. To check for
a hose leak, SHUT the unit ENGINE OFF and remove all hydraulic pressure. Wear oil impenetrable gloves,
safety glasses and use Cardboard to check for evidence of oil leaks. If you suspect a leak, REMOVE the
HOSE and have it tested at a Dealer. If oil does penetrate the skin, have the injury treated immediately by a
physician knowledgeable and skilled in this procedure. (SG-15)
DANGER Never run the Tractor engine in a closed building or without adequate ventilation. The
exhaust fumes can be hazardous to your health. (SG-23)

10
WARNING Operate the Tractor and/or Implement controls only while properly seated in the Tractor
seat with the seat belt securely fastened around you. Inadvertent movement of the Tractor or
Implement may cause serious injury or death.
WARNING In case of mechanical difficulty during operation, place the transmission in the
park position, set the parking brake, shut down all power, including the engine and remove
the key. Wait until all rotating motion has stopped before dismounting.
DANGER Do Not operate this equipment in areas where insects such as bees may attack you and/or
cause you to lose control of the equipment. If you must enter in such areas, use a tractor
with an enclosed Cab and close the windows to prevent insects from entering. If a tractor
cab is not available, wear suitable clothing including head, face, and hand protection to
shield you from the insects. Attacking insects can cause you to lose control of the tractor,
which can result in serious injury or death to you or bystanders. Never dismount a moving
tractor.
DANGER Mow only in conditions where you have clear visibility in daylight or with adequate artificial
lighting. Never mow in darkness or foggy conditions where you cannot clearly see at least 100
yards(90 m) in front and to the sides of the tractor and mower. Make sure that you can clearly see
and identify passersby, steep slopes, ditches, drop-offs, overhead obstructions, power lines, debris
and foreign objects. If you are unable to clearly see these type of items discontinue mowing
DANGER There are obvious and hidden potential hazards in the operation of this
Mower. REMEMBER! This machine is often operated in heavy brush and in heavy weeds. The Blades of
this Mower can throw objects if shields are not properly installed and maintained. Serious injury or even
death may occur unless care is taken to insure the safety of the operator, bystanders, or passersby in the
area. Do not operate this machine with anyone in the immediate area. Stop mowing if anyone is within 100
yards of mower
DANGER The rotating parts of this machine have been designed and tested for rugged use.
However, the blades could fail upon impact with heavy, solid objects such as metal guard rails and concrete
structures. Such impact could cause the broken objects to be thrown outward at very high velocities. To
reduce the possibility of property damage, serious injury, or even death, never allow the cutting blades to
contact such obstacles.
WARNING Extreme care should be taken when operating near loose objects such as gravel, rocks, wire,
and other debris. Inspect the area before mowing. Foreign objects should be removed from the site to
prevent machine damage and/or bodily injury or even death. Any objects that
cannot be removed must be clearly marked and carefully avoided by the operator. Stop mowing immediately
if blades strike a foreign object. Repair all damage and make certain rotor or blade carrier is balanced
before resuming mowing.
WARNING Many varied objects, such as wire, cable, rope, or chains, can become entangled in
the operating parts of the mower head. These items could then swing outside the housing at
greater velocities than the blades. Such a situation is extremely hazardous and could result in
serious injury or even death. Inspect the cutting area for such objects before mowing. Remove
any like object from the site. Never allow the cutting blades to contact such items.
DANGER Mow at the speed that you can safely operate and control the tractor and mower.
The correct mowing speed depends on terrain condition and grass type, density, and height of
cut. Normal ground speed range is from 2 to 5 mph(3-8 kph). Use slow mowing speeds when
operating on or near steep slopes, ditches, drop-offs, overhead obstructions, power lines, or
when debris and foreign objects are to be avoided.
Avoid mowing in reverse direction when possible. Check to make sure there are no
persons behind the mower and use extreme care when mowing in reverse. Mow only at a
slow ground speed where you can safely operate and control the tractor and mower.
Never mow an area that you have not inspected and removed debris or foreign material.
DANGER Do not mow with two machines in the same area except with Cab tractors with the windows
closed
WARNING Follow these guidelines to reduce the risk of equipment and grass fires
while operating, servicing, and repairing the Mower and Tractor:
-Equip the Tractor with a fire extinguisher in an accesible location.

11
-Do Not operate the Mower on a Tractor with an underframe exhaust.
-Do Not smoke or have an open flame near the Mower and Tractor.
-Do Not drive into burning debris or freshly burnt areas.
-Ensure slip clutches are properly adjusted to prevent excessive slippage and plate heating. -
Never allow clippings or debris to collect near drivelines, slip clutches, and gearboxes.
Periodically shut down the Tractor and Mower and clean clippings and collected debris from
the mower deck.
The Mower is designed for certain mowing applications and is rated to cut up to a specific
size vegetation (see Mower Standard Equipment and Specifications). DO NOT use this
mower to cut vegetation above the Mower’s rated capacity or to cut any type of nonvegetative
material. Only operate this Mower on a properly sized and equipped Tractor.
Operating this Mower in an application for which it is not designed and/or operating the
Mower with the wrong size Tractor can cause Mower component damage and equipment
failure resulting in possible serious injury or death. (SGM-14)
Do not operate or pull the mower into standing water. When uplift or fan type mower blades
contact water they can be severely deflected downward causing possible failure of blade
resulting in serious boldly injury to the operator or bystanders. (SGM-15)
Use extreme caution when raising the Mower above ground level. Stop the Blades from
turning when the Mower is raised and passersby are within 100 yards. Raising the
Mower exposes the Cutting Blades which creates a potentially serious hazard and can
cause serious injury by objects thrown from the Blades or by contact with the Blades.
Connecting or Disconnecting Implement Safety Instructions and Practices
Rotary Mowers are capable under adverse conditions of throwing objects for great distances (300 feet or
more) and causing serious injury or death. Follow safety messages carefully.
STOP MOWING IF PASSERSBY ARE WITHIN 100 YARDS UNLESS:
-Front and Rear Deflectors, Chain Guards, or Bands are installed and in good, workable
condition;
-Mower sections or Wings are running close to and parallel to the ground without exposed
Blades;
-Passersby are outside the existing thrown-object zone;
-All areas have been thoroughly inspected and all foreign material such as rocks, cans,
glass, and general debris has been removed.
NOTE: Where there are grass and weeds high enough to hide debris that could be struck
by the blades, the area should be: inspected and large debris removed, mowed at an
intermediate height, inspected, closely with any remaining debris being removed, and
mowed again at desired final height. (This will also reduce power required to mow, reduce
wear and tear on the Mower drivetrain, spread cut material better, reduce streaking, and
make the final cut more uniform). (SRM-01)
WARNING Do not turn so sharp or lift mower so high to produce a severe "knocking" of the
Driveline which will cause accelerated wear and breakage of drive train components and could
result in possible injury from the separated Driveline sections. (SRM-04)
Do not let the Blades turn when the Mower Deck is raised for any reason, including clearance or for turning.
Raising the Mower deck exposes the Cutting Blades which creates a potentially serious hazard and could
cause serious injury or even death from objects thrown from the Blades.
Transporting Safety Instructions and Practices
Always shut the Tractor completely down, place the transmission in park, and set the
parking brake before you or anyone else attempts to connect or disconnect the Implement
and Tractor hitches
WARNING Be particularly careful when transporting the Implement with the Tractor. Turn curves or go
up hills only at a low speed and using a gradual steering angle. Rear mounted implements move the
center of gravity to the rear and remove weight from the front wheels. Make certain, by adding front
ballast, that at least 20% of the tractor’s weight is on the front wheels to prevent rearing up, loss of
steering control or Tractor tip-over. Slow down on rough or uneven surfaces to prevent loss of
steering control which could result in property damage or possible injury. Do not transport unless 3-

12
Point lift lever is fully raised and in the latched transport position. Dropping implement in transport can
cause serious damage to the tractor and/or Implement and possibly cause the operator or others to
be injured or killed.
WARNING Allow sufficient clearance for the Implement to swing outward while turning.
Implements carried behind the Tractor will swing outside the tire path when making turns.
Contacting a solid object while turning will cause equipment damage and possible injury. (S3PT-20)
WARNING Be aware of the operating conditions. Do not operate the Tractor with weak or faulty
brakes or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance
increases: use extreme care and reduce your speed. When operating in traffic always use the
Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out
for the other guy.
Be particularly careful when transporting the Implement using the tractor. Turn curves or
go up or down hills only at a low speed and at a gradual steering angle. Make certain that
at least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow
down on rough or uneven surfaces.
Maintenance and Service Safety Instructions and Practices
Your driving vision may be reduced or impaired by the tractor, cab, or implement. Before
driving on public roadways identify any limited vision areas, and make adjustments to your
operating position, mirrors, and the implement transport position so that you can clearly see
the area where you will be traveling, and any traffic that may approach you. Failure to
maintain adequate vision of the public roadway and traffic can result in serious injury or
even death.
WARNING Always maintain the safety signs in good readable condition. If the safety signs are missing,
damaged, or unreadable, obtain and install replacement safety signs immediately. (SG-5) WARNING Do
not modify or alter this Implement. Do not permit anyone to modify or alter this Implement, any of its
components or any Implement function.
Never work under the Implement, the framework, or any lifted component unless the Implement is
securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious
injury or even death.
Never attempt to lubricate, adjust, or remove material from the Implement while it is in
motion or while tractor engine is running.

SPECIFICATIONS
•Connection: Euro-hitch
•Drive mower bar: hydraulic
•Cutting width: 1.200 – 1.500 – 1.800 mm
•Brush cutting diameter (max.): 2-4 cm
•Sideshift: 800 mm
•Working speed: 2 - 4 km/h
•Hydraulic connections: 1x double acting
•Hydraulic oil pressure: 155-240 bar
•Required hydraulic flow: min. 30 l/min
•Weight (without trimmer weight): ca. 110 kg
•Weight trimmer head only: 62 kg
•Weight packaging: ca. 190 kg
•Dimensions packaging: 1950x740x450 mm

15
12
ASSEMBLY
General information:
Read and ensure you understand the full
assembly instructions before you begin
assembling your machine.
The machine is delivered ex works in
transport configuration. Always use tools,
appliances, and lifting equipment of
suitable size and power for installation.
Always use 2 people to lift, move and
assemble the machine. Wear suitable
protective clothing such as safety shoes,
safety goggles and protective gloves.
Observe the safety precautions as
described in chapter "Safety" of these
operating instructions. Verify all screws and
nuts are fitted correctly when assembling
the machine. When opening the wooden
crate, beware of sharp edges on the locking
mechanisms.
Please note when beginning machine
assembly:
- Clear the area of nearby persons,
particularly children.
- Use suitable lifting equipment to
move or raise the pallet/machine.
- Keep the load close to the ground.
- Move the device to the assembly site.
- Ensure there is enough room to
safely assemble the device and
access it from all sides.
Other important information:
Connecting the electromagnetic control
valve (switches over between sickle bar
blade drive and vertical sickle bar
adjustment) requires a 12 V connection on
your machine.
You will further need lugs to make the
connection and a cable extension for the
specific 12V socket on your machine. A
changeover switch (e.g. pressure or toggle
switch) is also required to be able to operate
the electromagnetic control valve correctly.
This is not included with the machine, since
the connections on the machine are too
specific and cannot be mass produced.
Various machines may already be factory
equipped with this function. The switch itself
must have the following functions: The
sickle bar adjustment (horizontal and
vertical direction) must respond when
pushing the switch, meaning the hydraulic
cylinder is being actuated. After releasing
the switch the electromagnetic control valve
then redirects the hydraulic oil flow back to
the hydraulic motor to power the blades.
Verify all hydraulic connections and
screw connections are seated correctly
and tight during installation and prior to first
use, and regularly before use. Once
installed, verify the hydraulic hoses are
connected properly and tighten as
necessary. When doing so, please
remember the THS-180 also has a
mechanical lateral adjustment and ensure
the hydraulic hoses are able to work
properly when fully extended, they must not
be crushed.
The control block for the electromagnetic
valve typically comes with the flow regulator
connected. If once the machine is fully
assembled you notice during the first test
run the switch doesn’t work as described in
the sections above, reverse

16
the terminals on the connected cable clamps.
(Push/Position A = cylinder
control, Release/Position B = hydraulic motor)

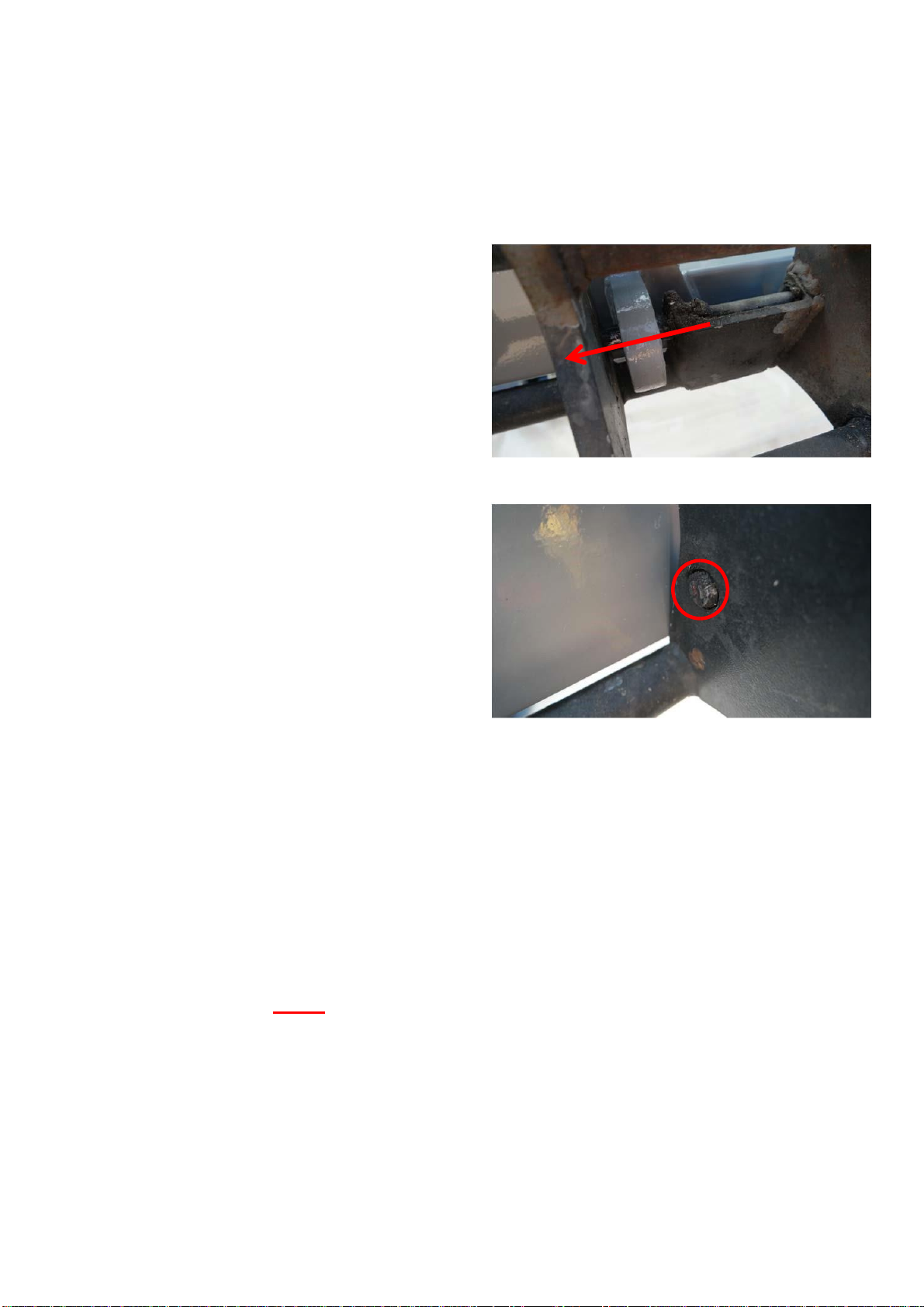

Fig. A control valve with power cables
Fig. B Cable lugs connected

17
1. Remove transport packaging
Remove the transport packaging When
opening the steel crate, beware of sharp
edges on the locking mechanisms.
2. Scope of delivery
Remove all of the wood packaging and protective
film. Remove all loose parts and put them aside
for later use. Verify the delivery is complete, see
Figures 4 to 7. Always be careful not to crush or
damage the hydraulic lines.
Important note:
The transport box may contain more bolts,
nuts, washers, etc. than required for initial
installation. This is intentional and not a
defect in quality.
Fig. 5 Scope of delivery
3. Attaching European attachment to the
machine
Fig. 4 Open crate
Fig. 6 Sickle bar and European attachment
Fig. 7 Fastening materials

18
Connection your machine with the European attachment and secure with the locking mechanism
(Fig. 8 to 10).
Fig. 8 Attach
Fig. 9 Secure and lock
4. Assembling the sickle bar frame
Attach the sickle bar frame and the lever arm as
shown in Fig. 11 to 18. Never grease the bar of
the axle or the taper socket will not work correctly.
The taper socket must be screwed in in the
correct tightening sequence 1 to 6 for the
screws as shown in figure 16. This will
normally be needed 3 to 4 times. After
tightening screw 6, screw 1 will have
loosened again. You will need to
repeat this until screw 1 is tight, then
retighten all screws until all screws
feel tight. To loosen the taper socket,
loosen all 6 screws and screwing 3 of
these into different bores.
Fig. 10 Secured attachment

19
Be sure the to secure the cutter bar against
dropping during installation.
Note the specified angles to allow the cutter
bar to rotate properly during operation.

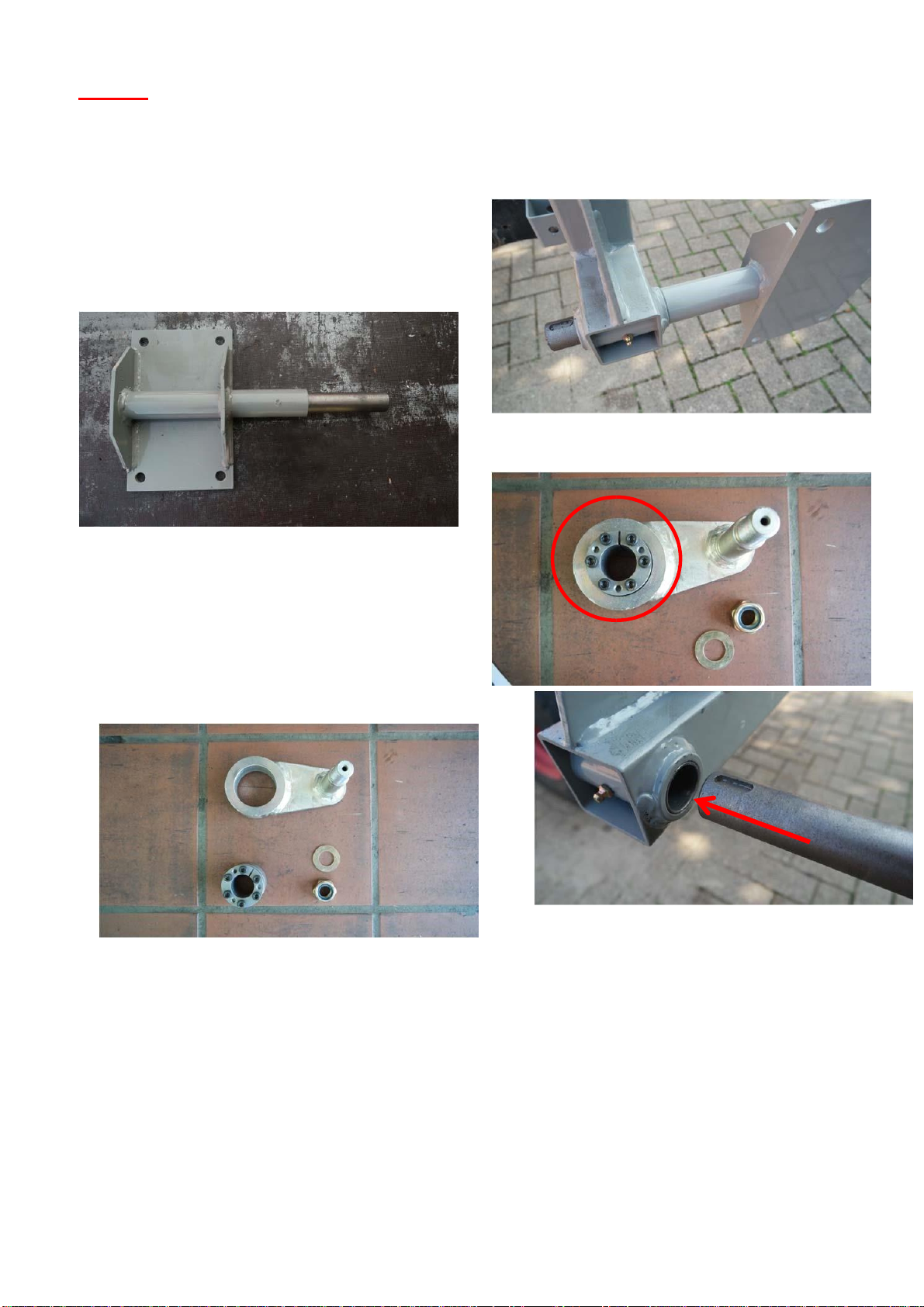

Fig. 12 Accessories and taper socket
Fig. 13 Correct position
Fig. 15 Taper socket installed
Fig. 11 Flange with axle
Fig. 14 Attached frame

20
During the following steps 5 and 8, be
sure the sickle bar is installed in the
upright position as shown in figure 18
(“protruding slightly"). The angle can be
adjusted via the lever arm using the taper
socket. If it doesn’t fit straight away it may
need to be
readjusted with the taper
socket.

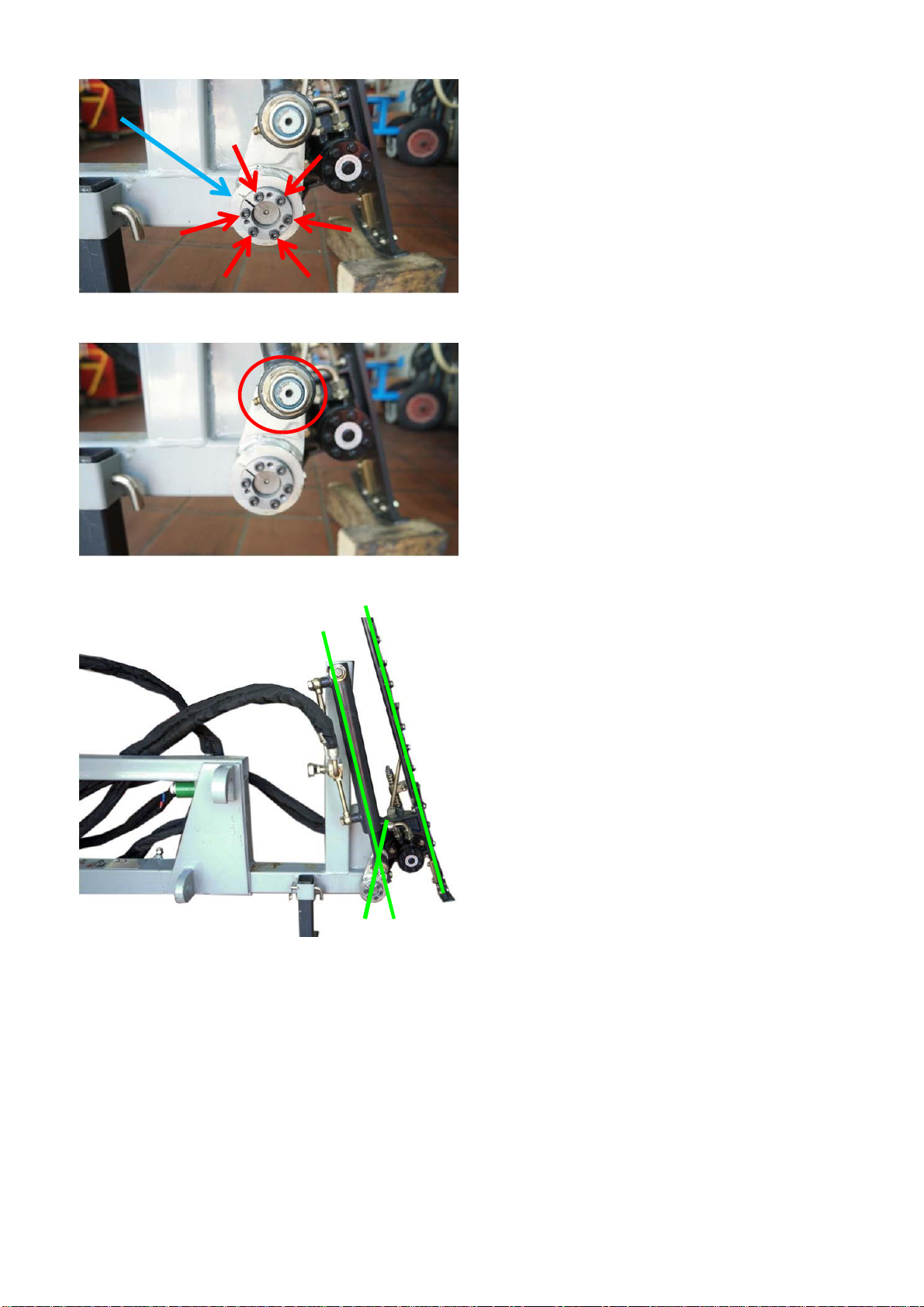

Fig. 17 Hydraulic cylinder attached
Fig. 18 Information: note the angle
Fig. 16 Sequence 1-6 (retighten 3x!)
1
2
3
4
5
6
Groove
