Geovent HVU Elite User manual

INSTRUCTION MANUAL
www.geovent.com
Version 1.0 23.11.2023
HIGH VACUUM
HVU ELITE

2

3
Contents
1.0 Introduction ..............................3
2.0 Safety ..................................3
2.1 General safety .......................... 3
2.2 Danger .................................3
3.0 Machine overview ........................ 4
3.1 Description ............................. 4
3.2 Intended use ............................ 4
3.3 Machine specifications .................... 4
3.3.1 Design ............................... 4
3.3.2 Technical data ......................... 4
4.0 Transport, handling and storage . . . . . . . . . . . . . 4
5.0 Assembly, installation and start of operation ... 5
5.1 Location ............................... 5
5.2 Installation ............................. 5
5.3 Control and test of the security system ........5
6.0 Commissioning .......................... 5
6.1 After installation ......................... 5
7.0 Control, test and maintenance .............. 5
7.1 Control ................................ 5
7.2 Maintenance .............................5
7.3 Replacing filter............................6
8.0 Cleaning ................................7
9.0 Troubleshooting ......................... 7
10.0 Dismantling, disabling and scrapping ........ 7
11.0 Dimensions ............................ 7
12.0 Liability ............................... 8
13.0 Declaration of conformity ................. 8
14.0 Spare part list .......................... 9
1.0 Introduction
This manual is made and designed in order to facilitate
the best and most secure interaction with the product.
The manual is relevant for people involved in transpor-
tation, stocking, installation, using, maintaining and all
other thinkable interaction with the product.
The manual must be read in full and understood before
interacting with the product.
When the manual has been read and understood in full,
the table of contents can be used to find the relevant
information in each case.
The product is manufactured by:
Geovent A/S
Hovedgaden 86
DK-8861 Løgstrup
DENMARK
Tel.: [phone]
E-mail: [email protected]
www.geovent.com
This manual is to be used for all interactions with the
product including: Transportation, stocking, installation,
operation and maintenance.

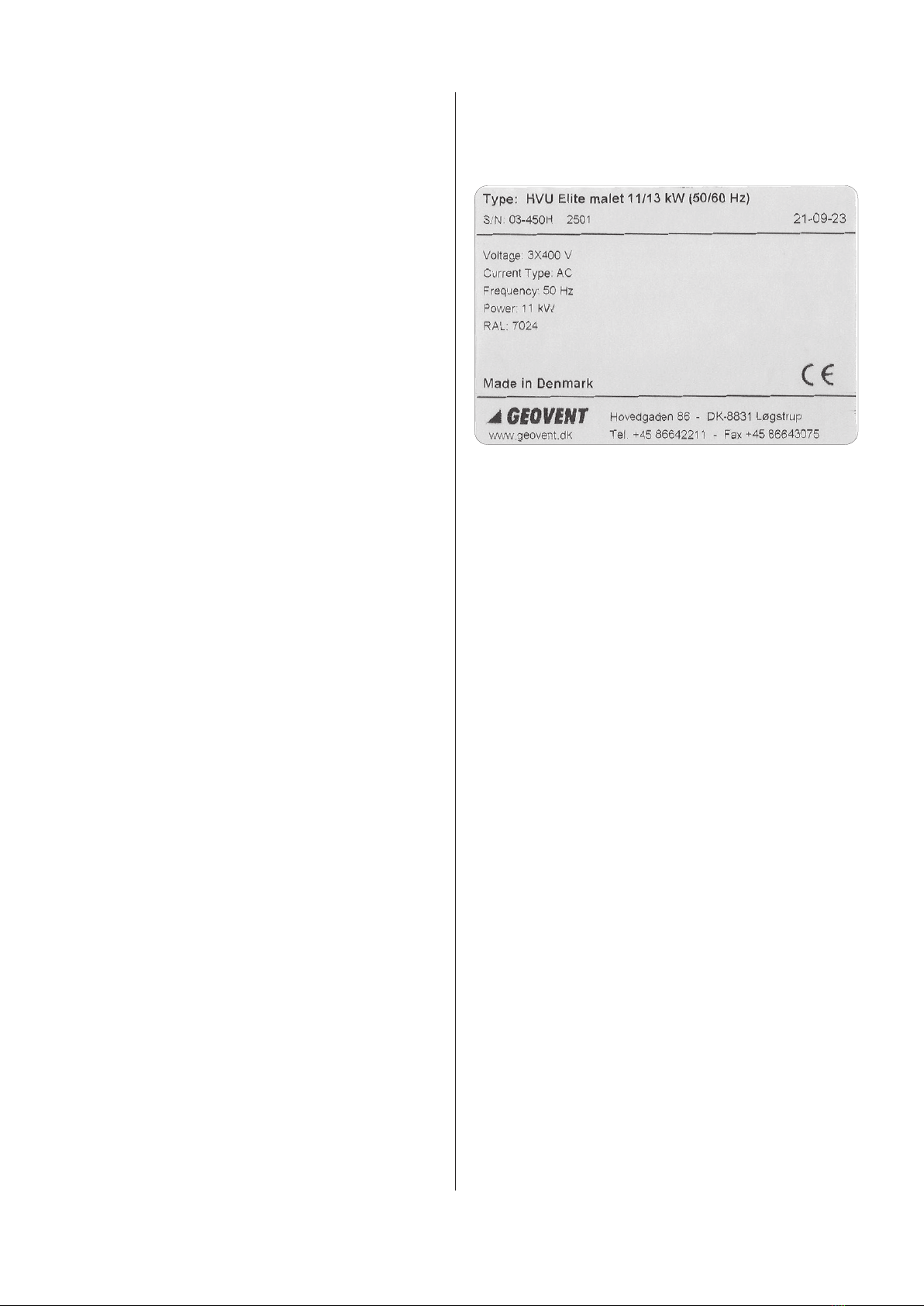

This product is marked with: (example)
2.0 Safety
2.1 General safety
Carefully read this manual before use and observe the
safety instructions in order to avoid injuries!
Keep this manual in a safe place!
Secure that all users of the product have read this ma-
nual and that they follow the instructions as described.
Observe all instructions marked on the product!
Observe the indications of the manufacturer.
Never use the product if you are in doubt about how it
works or what you should do.
When doing maintenance follow the instructions in chap-
ter 7.0.
Do not modify the product or use spare parts from other
suppliers than Geovent, as this may hamper the product
and the function.
2.2 Danger
You must wear safety gloves when handling or using the
product to protect your hands from scratches etc.
Be aware that the product may tilt when you move it.
You must handle the product with care and tie it safely to
the truck or the fork lift when it is in transport.
Follow the instructions in chapter 7.0 when the product
is maintained.
When handling the product be sure that the there is no
risk for the installer, and secure that there are no people
around the product, secure that the product cannot fall
down risking to injure persons or subjects.

4
The product is not to be used in areas categorised as
ATEX zones, e.g. with dust from aluminium, flour, wood,
and other mediums that present an explosion hazard.
If a repair is not possible you should dispose of the product.
Please follow the instruction for disposal in chapter 10.0.
3.0 Machine overview
3.1. Description
Geovent HVU Elite is a compact high vacuum unit for
collecting dust, smoke and other particles. The unit is
prepared for outdoor use.
3.2 Intended use
The Geovent High Vacuum Unit is used, among other
things, for vacuuming during car preparation and for e.g.
grinding dust extraction.
The unit is equipped with a two-stage  lter cyclone with a
compressed air cleaning system. Filtration degree of
99.9%.
Geovent HVU Elite is suitable for use in connection with
vacuuming cars at service stations, EV charging sta-
tions, etc., where control and payment systems can be
integrated.
The unit can e.g. be used for extraction of grinding dust
from hand-held rotary sanders,  xed belt sanders and
bench grinders, brake dust from cars and trucks as well
as general workplace cleaning etc.
3.3 Machine specifications

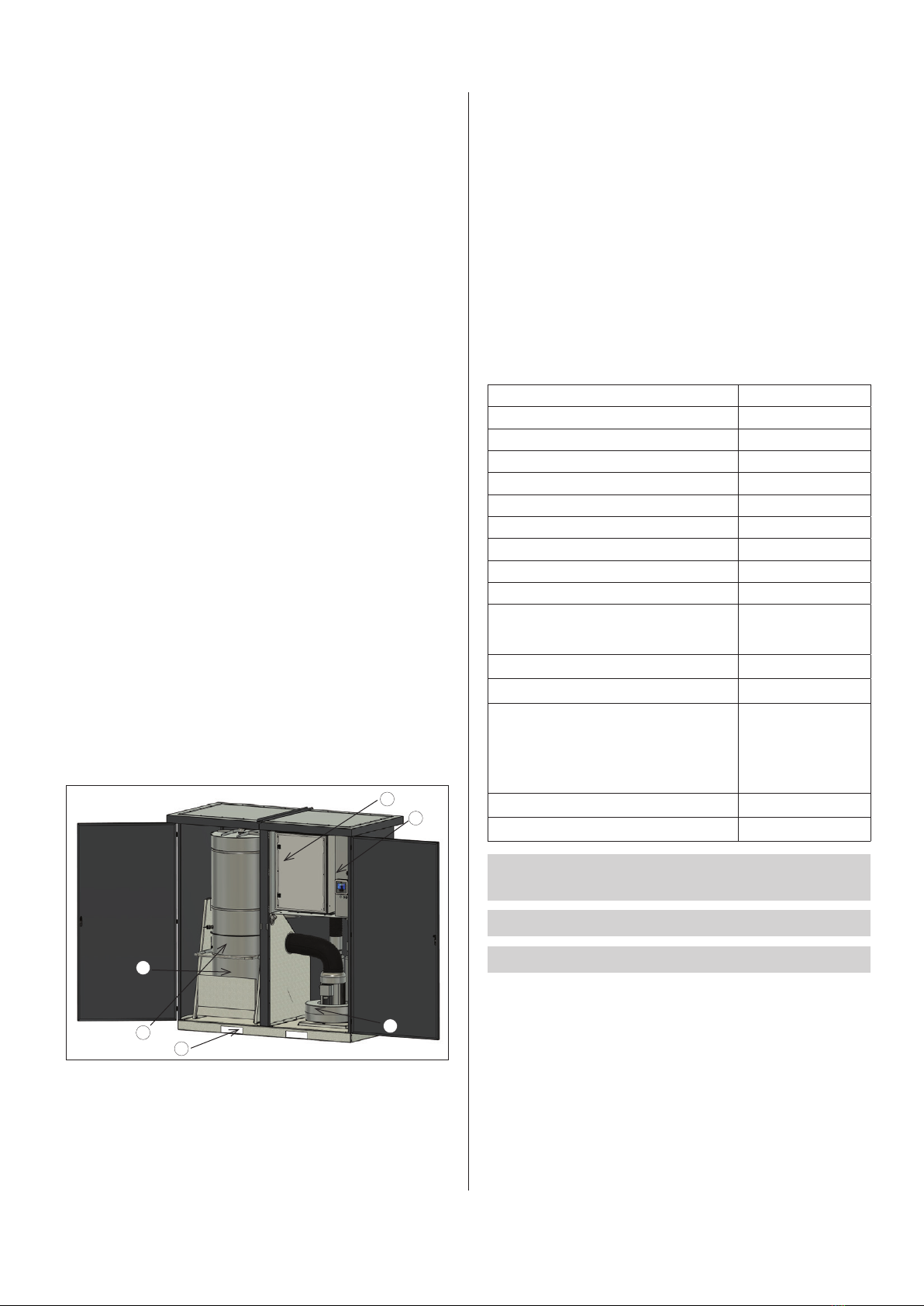

3.3.1 Design
A Filter cyclone
B Control panel with automatic start/stop and filter clea-
ning
C Frequency inverter
D Side channel blower
E 150L collection bucket
F Frame prepared for lifting with e.g. a forklift
Enclosure: Painted and galvanized steel plate.
Filter media: Antistatic aluminum coated polyester  lter
with 99.9%  ltration ef ciency. Life expectancy in normal
use: 4,000-8,000 hours.
Motor/side channel blower: IP 55 standard motor with
side channel blower in cast aluminum. Life expectancy
in normal use: 20,000 hours.
Automation: Control panel in steel cabinet IP 54.
3.3.2 Technical data
Dimensions
Drive power 11-13 kW
Connection voltage 400V
Nominal frequency 50Hz
Nominal current 21,6 A
Circuit breaker 50A
Protection class IP 54
Max. vacuum 30000 Pa
Max. volume fl ow 1085 m3/h
Max. number of suction points 12
Collection container 150L
Dimensions L x B x H
(including  lter unit) 2140x1070x2202
Total weight 685 kg
Installation location Outdoors
Min. spatial requirement
around the product
1 m front and on
the left side 0.5
meters backward
and the right side
Operation Front
Outlet ø127 mm
Temperature of extracted air Max. 40°C
Ambient temperature -15°C - +40°C
Temperature control panel 5 - 40°C
Relative humidity must be <90%
The device is noise reduced. The noise from the device
may vary depending on the temperature of the device
and its surroundings and the connections used.
4.0 Transport, handling and storage
During transport in a truck or in another means of trans-
portation the product must be securely packed in a box
or a pallet and covered with a water proff material.
The product must be securely stowed in the truck so that
it will neither tilt nor shift during transport.
A
B
D
C
F
E

5
During transport over a short distance e.g. in a stock or
a factory, the product can be moved by means of a for-
klift or a stabeler.
When moved it must be secured that the product does
not tilt or shift. And it must be secured that the limitations
of the means of transportation is not exceeded.
The product must be placed in a dry place and covered
securely, in order to secure that moist, metal parts or
other substances do not damage the product.
It is not allowed to place anything on top of the product.
5.0 Assembly, installation and start of
operation
5.1 Location
Before installing the product, ensure that an optimal lo-
cation is chosen. Is there enough space for the product?
Is there space for maintenance and filter changes?
Place the product on a level and stable base (e.g. a con-
crete concrete floor) and secure it.
Avoid as far as possible bends immediately after the out-
let, as this could reduce the performance of the product.
5.2 Installation
The following installation should only be carried out by a
trained installer.
5.2.1 Installation
Procedure:
1. Place the HVU on a solid foundation (e.g. a concrete
floor) where there is no possibility for vibrations to be
transmitted.
2. The piping is connected to the HVU.
Remember to seal the joint with sealant and/or tape!
3. The entire system/piping should always be thorough-
ly inspected for leaks. Leaks must be sealed. The sy-
stem must not be used for the following 24 hours.
4. The connection of the HVU’s electrical components
should only be carried out by an authorized electri-
cian. Detailed description follows below.
5. For connection options, see separate panel documen-
tation (located in the panel).
Compressed air:
6. There is a water separator and pressure reduction
built into the unit.
Control panel
Before putting into service:
During transportation, the control panel is exposed to
vibrations etc. In addition, dust may enter the cabinet.
During installation and commissioning, dust may also
enter the cabinet.
Therefore, before the control panel (and the installation
it is part of)
part of) is put into use, all components should be checked
for dust, which should be removed.
The checklist below can be used:
1. Visual inspection.
2. Clean/vacuum the control panel if necessary. Do not
blow compressed air into the control panel.
3. Check/tighten the electrical connections with the cor-
rect torque according to the manufacturer’s instructi-
ons.
4. Check all cables for correct cable termination.
The above must be carried out in voltage free condi-
tion.
5. Verification. Perform measurements and tests accor-
ding to EN60 204-1, chapter 18.
6. Main circuits are checked individually.
7. Check that the control circuits are functioning corre-
ctly.
8. Check for correct signals from sensors and measuring
equipment.
MulitBox IV factory settings:
Setpoint 1 7,000 Pa
Disable alarm ON
P-factor 0.001
I-factor 0.001
DP Sens 40kPA ON
Setpoint settings
If you want to make changes to the setpoints, you can
use the menu.
Click on the setpoint 1 icon and change the value.
Click the checkmark to accept and click yes to save the
changes.
Settings
Page 1/7
Language English
Setpoint 1 (Pa) 7.000
Setpoint 2 (Pa) 1.000
Setpoint 3 (Pa) 1.400

6
5.3 Checking and testing the system
After installation, check if there is any vibration or sound
disturbance.
Check that the whole system is completely tight. In case
of squeaking, the leakage should be localized and sea-
led with sealant.
It is recommended to check whether the HVU delivers
the air volume for which the system is dimensioned.
Therefore, measure the air flow and make sure that it
6.1 After installation
Check the installation according to chapter 5.3.
7.0 Control, test and maintenance
7.1 Control
Check the installation according to chapter 5.3.
7.2 Maintenance
The entire system should be inspected at least once a
year by a qualified service technician.
For all work on electrical installations, the safety switch
MUST be disconnected and locked BEFORE starting
work.
Periodic maintenance:
• All electrical parts should be checked annually.
• The side channel blower is in principle maintenance
free due to the factory sealed special ball bearings.
Replacement of worn bearings should only be carried
out by a qualified service technician.
Control panel
Periodic check:
The control panel should be subjected to a control panel
test at least once a year.
The checklist below can be used:
1. The control panel MUST be voltage free BEFORE
starting any maintenance work.
2. Visual inspection, both internally and externally.
3. Clean the control panel, both inside and out, being
careful, especially around vents and  lters.
4. Inspect the electrical connections for discoloration
due to high temperature. (May occur as a result of
increased resistance due to a poor/loose connection)
If discoloration is found, clean the contact points and
make the connection correctly. Replace the compo-
nent if necessary.
5. Check/tighten the electrical connections with the cor-
rect torque according to the manufacturer’s instruc-
tions.
6. Tighten the mechanical connections.
7. Inspect for damage to the paint and repair if neces-
does not exceed the motor’s ampere rating.
Vacuum protection
The valve is roughly adjusted at the factory.
The valve must be readjusted at the installation.
Adjusting the Vacuum fuse
Adjust so that the valve does not open during normal
operation, but opens when blocked.
Adjust to loosen or tighten the spring.
6.0 Commissioning
The HVU must not run for longer periods (max. 15-30
min.) without open outlets in the duct system, otherwise
the side channel blower will overheat and break down.
If necessary, use the built-in start/stop function.
After use, it is recommended to keep a fl ap open for 1-5
seconds, so that particles are sucked away from the ver-
tical piece, and thus do not fall down the next time the
system is used.

7
sary.
8. Check switches and circuit breakers.
9. Maintain adequate IP rating: Inspect gaskets for dam-
age and replace it if necessary.
10. In general, each component should be maintained
according to the manufacturer’s instructions.
11. Verication. Perform measurements and tests ac-
cording to EN60 204-1, chapter 18.
12. SRP/CS: Check all safety-related parts of the control
system. Note: SRP/CS should be checked more of-
ten than once a year.
13. If components that are part of the SRP/CS have
exceeded their expected lifetime, they must be re-
placed - regardless of their condition.
14. If the control panel has been exposed to extreme
conditions (e.g. due to lightning, re, water dam-
age), all defective material must be replaced and the
above procedure performed.
7.3 Replacing filter

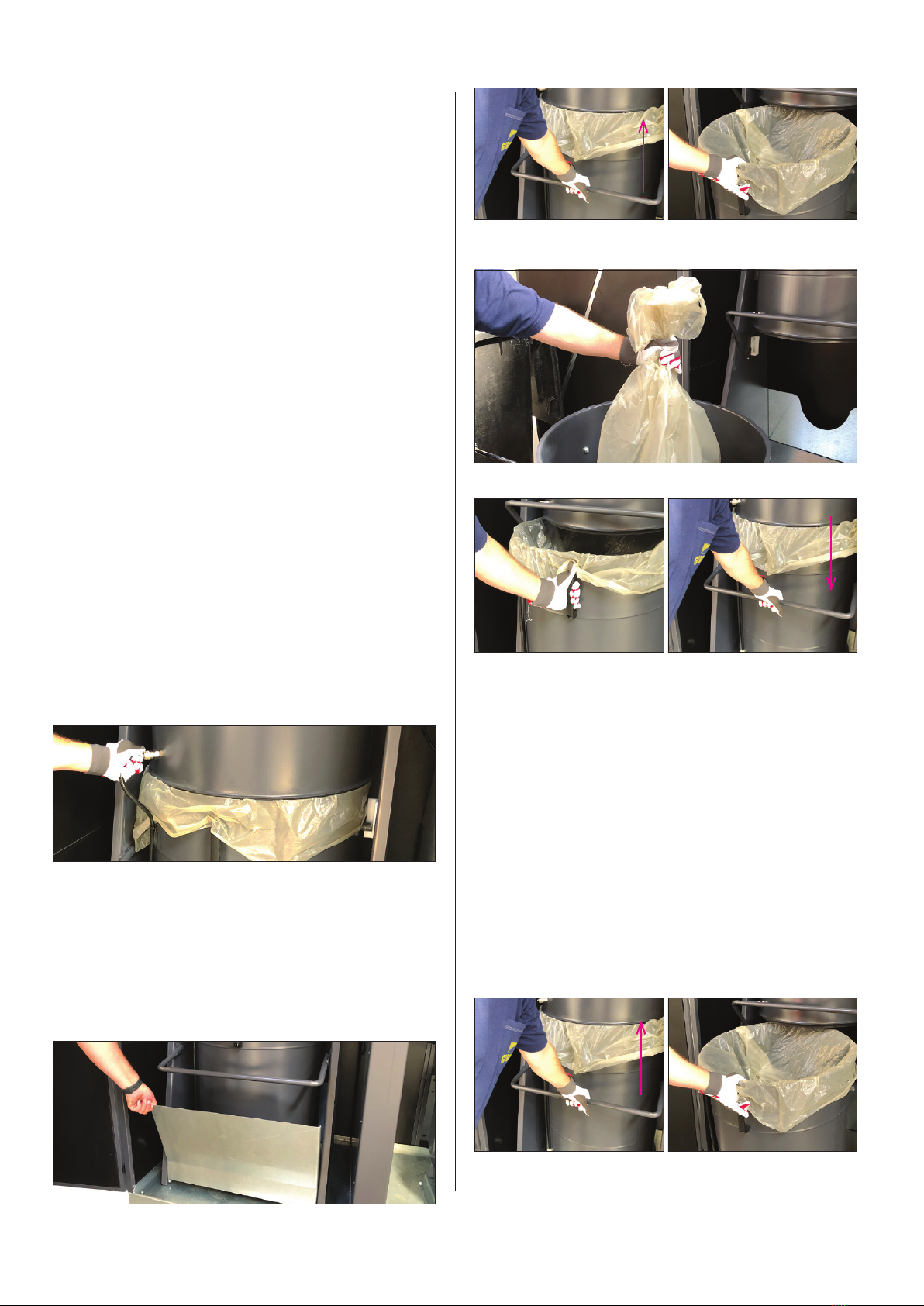

7.3.1 Emptying of bucket
Emptying of the collection bucket should be done when
it is approx. 2/3 full, otherwise it can strain the filter me-
dium.
If the bucket contains sharp or very heavy items, the bag
may tear before it is full. Change it in good time so that
the bag does not tear when the bucket is emptied.
Procedure:
1. Disconnect the power at the breaker switch. It should
be ensured that the curcuit breaker cannot be acti-
vated during service.
2. Disconnect/remove the compressed air connection.
3. Wait 5 minutes for the dust to settle in the bucket.
4. Before dismantling the dusty filter or emptying the
bucket, it is important that the service technician wears
the necessary personal safety measures, such as re-
spiratory protection and gloves that comply with rele-
vant regulations for working with contaminated dust.
5. Take the ramp down.
6. Lift up the handle and pull the bucket out of the cabi-
net.
7. Empty the bucket, then seal the bag securely.
8. Insert a new bag. Slide the bucket back under the
cyclone, press the handle down to lift the bucket up
under the cyclone again.

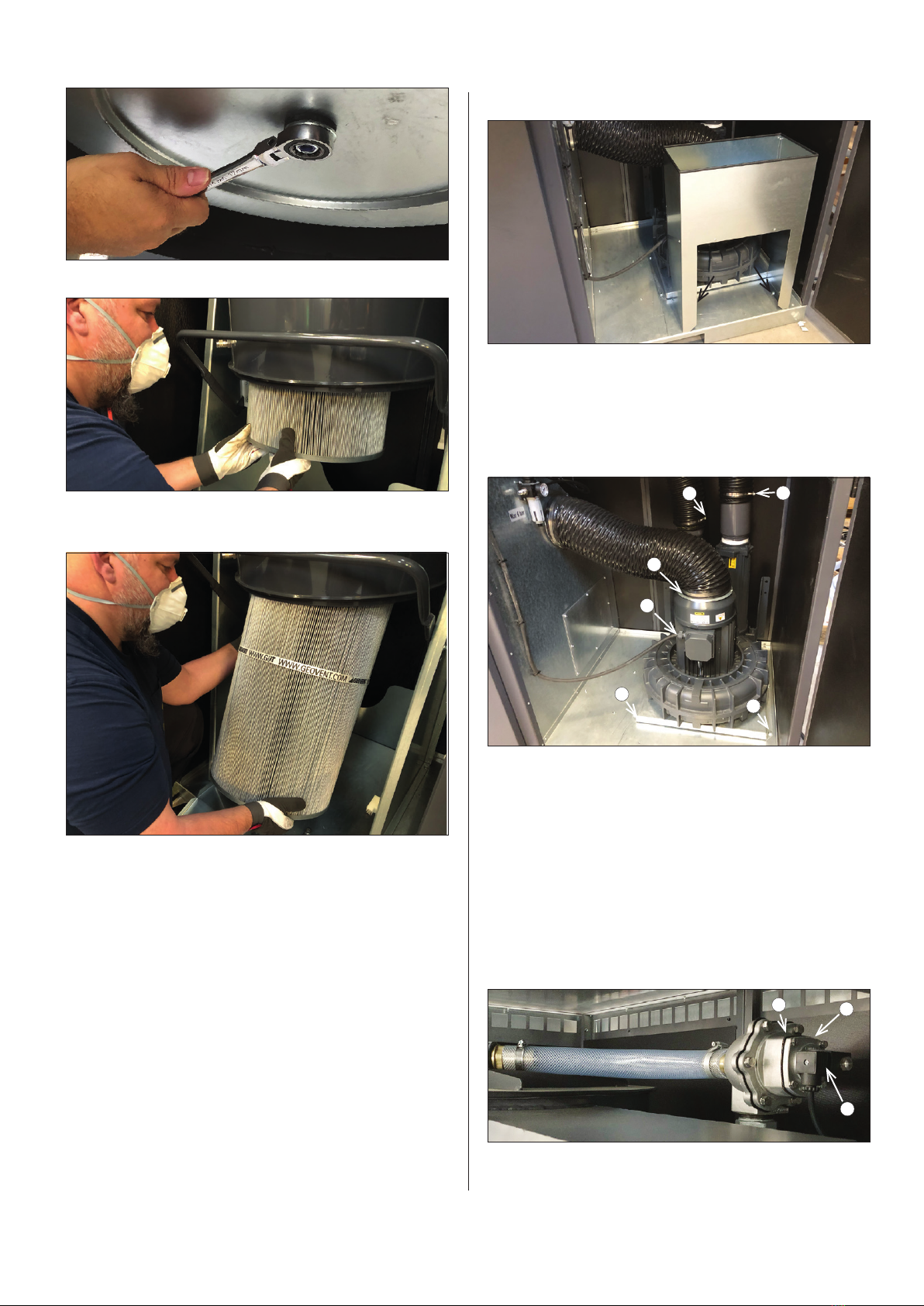

7.2.2 Replacing the lter media
The filter media should be replaced after approx. 4,000-
8,000 hours of operation or max. 4 years. This depends,
for example, on the load on the filter.
1. Disconnect the power at the repair switch. Ensure that
the switch cannot be activated during service.
2. Before dismantling the filter cartridge, it is important
that the service technician wears the necessary per-
sonal safety measures, such as a respirator and glo-
ves that comply with the working environment autho-
rity’s regulations for working with contaminated dust.
1. Lift the handle and pull out the bucket.

8
7.2.3 Repairing the side channel blower
1. Stop the unit and disconnect the power supply.
2. Remove the 2 M6 bolts holding the accessory contai-
ner in front of the vacuum unit.
3. Lift the accessory container out.
4. Remove the cooling hose at the top of the engine.
5. Remove the hoses on the inlet and outlet.
6. Remove the power cable from the side channel blower.
7. Remove the 4 M8 bolts from the base of the side
channel blower.
8. Place a pallet or similar up to the base and pull the
side channel blower onto the pallet.
7.2.4 Repairing the solonoid valve
If the solenoid valve is not functioning properly, it will
most frequently be the coil (A), connector (B) or the val-
ve (C) that needs to be replaced.
2. Remove the M10 nut at the bottom of the cyclone.
3. Carefully pull down the contaminated filter cartridge
and place it in a suitable waste bag, which is then
sealed securely.
4. Insert the new filter cartridge into the cyclone and tigh-
ten with the M10 nut.
5. Slide the bucket back under the cyclone, press down
the handle to lift the bucket up under the cyclone
again.
6. Send the contaminated filter cartridge for destruction
according to local rules and regulations.
CA
B
7
4
6
5
5
7

9
8.0 Cleaning
The outside of the product is cleaned with a vacuum
cleaner or a cloth.
9.0 Troubleshooting
In the event that problems occur, the following items
should be reviewed:
Air volume or pressure is less than stated
• Incorrect running direction of the fan wheel.
May be due to incorrect electrical installation.
Double check the direction of rotation. Switch the 2
phases if necessary.
• Leaky duct system.
• Poor inlet/outlet options close to the side channel blow-
er can reduce performance (e.g. 90° bend before inlet)
• Damaged wheel.
• The rotation speed is set too low.
• If the temperature differs significantly from the labora-
tory measurements where the temperature was 20°C
with an atmospheric pressure of 101.4 kPa.
• The dampers are not adjusted correctly.
• The duct or the unit is blocked by e.g. a screwdriver.
Vibrations and noise
• The foundation is not level/stable.
• External elements have entered the unit/duct system.
• Damaged wheel or motor.
• The wheel is loose.
• The wheel is running in the wrong direction.
• Loose bolts or screws.
The motor is overloaded
•Motor is wired incorrectly.
• Defective motor - contact your!
10.0 Dismantling, disabling and scrapping
Deactivate the product by disconnection the electrical
mains. Dismantle compressed air pipes and other pipes
or wires etc. and dispose of it according to local regula-
tions.
Clean the collection bucket and remove the filter cartrid-
ges as described in chapeter 7.3.
Before dismantling the product it is important that the
service technician wears the necessary personal safe-
ty measures, such as respiratory protection and gloves
that comply with the relevant regulations for working
with contaminated dust.
The inside of the product must be cleaned by means of
a vacuum cleaner with a filter which suits the purpose.
Dismantle the metallic parts by unscrewing screws and
bolts. Afterwards cut the larger pieces into smaller pie-
ces and dispose of it according to local regulation.
Dismantle plastic parts and dispose of it according to
local regulations.
Dismantle the electronics, wires and cables and put the-
se into a suitable bag. Afterwards dispose of it according
to local regulations.
The packing material must be sorted according to local
regulations in order to be able to reuse the material.

10

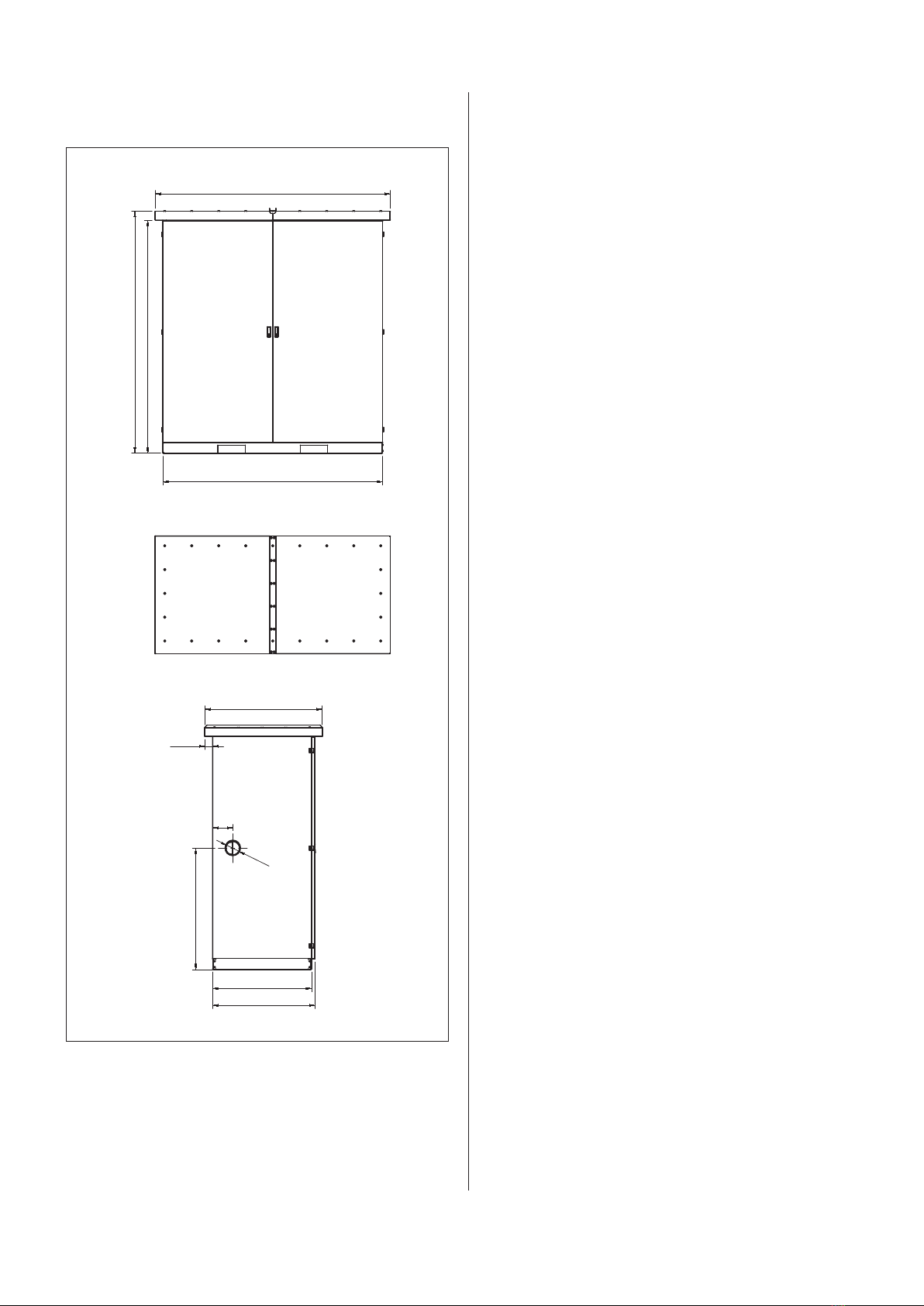

11.0 Dimensions
HVU Elite
12.0 Liability
Warranty
Geovent A/S grants a warranty for products, which are
defective, when it can be proved that the defects are due
to poor manufacture or materials on the part of Geovent.
The warranty comprises remedial action (reparation or
exchange) until one year after the date of shipment.
No claims can be made against Geovent A/S in relation
to loss of earnings or consequential loss as a result of
defects on products from Geovent.
Wear on parts such as filter cartridges and hose is not
included in the warranty.
User liability
In order for Geovent to be capable of granting the decla-
red warranty, the user/fitter must follow this instruction
manual in all respects.
Under no circumstances may the products be chan-
ged in any way, without prior written agreement with
Geovent A/S.
Please refer to the current sales and delivery conditions
at www.geovent.com
1
A
2345678
1 2 345678
B
C
D
E
F
A
B
C
D
E
F
Any reproduction or use of this drawing is
prohibited without written consent from GEOVENT.
General tolerances
Sheet metal: ISO 2768-mk
Machined parts: ISO 2768-fh
Revision:
Lifecycle:
Created by:
Created: Surface finish:
Drawing No.
Material:
Item No:
Scale:
Part No:
Description:
03-450
Dan Christensen 1:20
24-08-2023
RAL 7024 ----
----
---- ---- ----
----
----
---- ---- ----
HVU Elite
Default units are mm.
2000
900
930
1070
2140
2122
2202
1105
183
Ø127
72
1
A
2345678
1 2 345678
B
C
D
E
F
A
B
C
D
E
F
Any reproduction or use of this drawing is
prohibited without written consent from GEOVENT.
General tolerances
Sheet metal: ISO 2768-mk
Machined parts: ISO 2768-fh
Revision:
Lifecycle:
Created by:
Created: Surface finish:
Drawing No.
Material:
Item No:
Scale:
Part No:
Description:
03-450
Dan Christensen 1:20
24-08-2023
RAL 7024 ----
----
---- ---- ----
----
----
---- ---- ----
HVU Elite
Default units are mm.
2000
900
930
1070
2140
2122
2202
1105
183
Ø127
72

11
13.0 Declaration of conformity
The manufacturer: GEOVENT A/S
HOVEDGADEN 86
DK-8831 LØGSTRUP
Hereby declares that:
The product: HVU
Model: HVU Elite
Complies with the relevant parts of the following directi-
ves and standards:
Directive 2006/42 / EC of the European Parliament and
of the Council of 17 May 2006 on machines and amen-
ding directives 95/16 / EC.
This declaration is no more valid if changes are made to
the product by others than the manufacturer.
Authorized to collect the technical file:
Lise Cramer
Date: 23.11.2023
Position: Director
Name: Thomas Molsen
Signature: ____________________________
14.0 Spare part list
Art. No. Description
03-265 Filter cartridge HVU Elite ø400x800
mm
13-700A MultiBox for high vacuum 30 kPa
0-10V
03-810AF Relief valve
03-457 Plastic bags for collection bin
1000x1000 mm, 10 pieces per roll

HOVEDGADEN 86 • DK-8831 LØGSTRUP
([phone] • [email protected]
