GeoVision GV-Fisheye GV-FE110 User manual

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
GV-FE110/GV-FE420/GV-FE520 User's Manual
GV-Fisheye IP Camera H.264
FE110420520TIV109-A

© 2012 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice. Note: no SD/SDHC card slot or local storage function
for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows XP
are registered trademarks of Microsoft Corporation.
February 2012

i
Preface
Welcome to the GV-Fisheye IP Camera User’s Manual.
The GV-Fisheye IP Camera has three models with different resolutions. This Manual is
designed for the following models and firmware versions:
Model Model Number Firmware Version
GV-FE110 V1.08
GV-FE420 V1.09
Fisheye Camera
GV-FE520 V1.09

ii
Contents
Naming and Definition ............................................................vi
Note for Recording.................................................................vii
Chapter 1 Introduction ..........................................................1
1.1 Key Features ............................................................................................................1
1.2 Packing List ..............................................................................................................3
1.3 System Requirement ................................................................................................4
1.4 Optional Accessories................................................................................................6
1.5 Physical Description .................................................................................................7
1.6 Installation ................................................................................................................9
1.6.1 Hard Ceiling Mount .......................................................................................10
1.6.2 In-Ceiling Mount............................................................................................11
1.6.3 Standard Wall Mount and Ground Mount...................................................13
1.7 Optional Installation ................................................................................................14
1.7.1 Tilting Wall Mount.......................................................................................14
1.7.2 Wall Pendant Mount...................................................................................19
1.8 Connecting the Data Cable ....................................................................................22
Chapter 2 Getting Started ...................................................24
2.1 Installing on a Network ...........................................................................................24
2.1.1 Checking the Dynamic IP Address.............................................................25
2.1.2 Assigning an IP Address ............................................................................27
2.2 Configuration Basics...............................................................................................28
Chapter 3 Accessing the Camera.......................................29
3.1 Accessing Your Surveillance Images .....................................................................29
3.2 Functions Featured on the Main Page ...................................................................30
3.2.1 The Live View Window..............................................................................31
3.2.2 Fisheye View..............................................................................................33
3.2.3 The Control Panel of the Live View Window ..............................................37
3.2.4 Snapshot of a Live Video ...........................................................................41
3.2.5 Video Recording.........................................................................................41
3.2.6 Wide Angle Lens Dewarping......................................................................42
3.2.7 Picture-in-Picture and Picture-and-Picture View ........................................43

iii
3.2.8 Object Tracking ..........................................................................................45
3.2.9 Alarm Notification .......................................................................................47
3.2.10 Video and Audio Configuration ................................................................48
3.2.11 Remote Configuration ..............................................................................48
3.2.12 Camera Name Display .............................................................................49
3.2.13 Image Enhancement ................................................................................49
3.2.14 I/O Control................................................................................................50
3.2.15 Visual Automation ....................................................................................51
3.2.16 Network Status.........................................................................................51
Chapter 4 Administrator Mode ...........................................52
4.1 Video & Motion .......................................................................................................54
4.1.1 Video Settings ............................................................................................54
4.1.2 Motion Detection ........................................................................................58
4.1.3 Privacy Mask..............................................................................................60
4.1.4 Text Overlay...............................................................................................61
4.1.5 Tampering Alarm........................................................................................62
4.1.6 Visual Automation ......................................................................................64
4.2 I/O Control ..............................................................................................................65
4.2.1 Input Settings .............................................................................................65
4.2.2 Output Settings ..........................................................................................66
4.3 Events & Alerts .......................................................................................................67
4.3.1 E-mail .........................................................................................................67
4.3.2 FTP ............................................................................................................69
4.3.3 Center V2 ...................................................................................................71
4.3.4 VSM ...........................................................................................................73
4.3.5 Backup Center ...........................................................................................75
4.3.6 Video Gateway / Recording Server............................................................77
4.3.7 ViewLog Server..........................................................................................79
4.3.8 RTSP..........................................................................................................80
4.4 Monitoring...............................................................................................................81
4.5 Recording Schedule ...............................................................................................82
4.5.1 Recording Schedule Settings.....................................................................82
4.5.2 I/O Monitoring Settings...............................................................................83
4.6 Remote ViewLog ....................................................................................................84
4.7 Network ..................................................................................................................85
4.7.1 LAN ............................................................................................................85
4.7.2 Advanced TCP/IP.......................................................................................87

iv
4.7.3 IP Filtering ..................................................................................................90
4.7.4 SNMP Setting.............................................................................................91
4.8 Management...........................................................................................................92
4.8.1 Date and Time Settings..............................................................................92
4.8.2 GPS Maps Settings....................................................................................94
4.8.3 Storage Settings.........................................................................................96
4.8.4 User Account..............................................................................................98
4.8.5 Log Information ..........................................................................................99
4.8.6 System Log ..............................................................................................100
4.8.7 Tools ........................................................................................................101
Chapter 5 Recording and Playback .................................103
5.1 Recording .............................................................................................................103
5.2 Playback...............................................................................................................103
5.2.1 Playback Using the Memory Card............................................................104
5.2.2 Playback over Network ............................................................................105
5.2.3 Access to the Recorded Files through FTP Server..................................106
5.2.4 Playback of Daylight Saving Time Events................................................107
Chapter 6 Advanced Applications ...................................108
6.1 Upgrading System Firmware ................................................................................108
6.1.1 Using the Web Interface...........................................................................109
6.1.2 Using the IP Device Utility........................................................................110
6.2 Backing Up and Restoring Settings......................................................................112
6.2.1 Backing Up the Settings...........................................................................112
6.2.2 Restoring the Settings..............................................................................113
6.3 Restoring to Factory Default Settings...................................................................114
6.4 Verifying Watermark .............................................................................................115
6.4.1 Accessing AVI Files .................................................................................115
6.4.2 Running Watermark Proof........................................................................115
6.4.3 The Watermark Proof Window .................................................................116

v
Chapter 7 DVR Configurations .........................................117
7.1 Setting Up IP Cameras.........................................................................................119
7.1.1 Customizing the Basic Settings................................................................122
7.2 Remote Monitoring with Multi View ......................................................................123
7.2.1 Connecting to the IP Camera...................................................................123
7.3 Remote Monitoring with E-Map ............................................................................124
7.3.1 Creating an E-Map for the IP Camera......................................................124
7.3.2 Connecting to the IP Camera...................................................................125
Chapter 8 CMS Configurations.........................................126
8.1 Center V2 .............................................................................................................126
8.2 VSM......................................................................................................................129
8.3 Dispatch Server ....................................................................................................130
Specifications .......................................................................131
Camera .........................................................................................................................131
Optics Lens ...................................................................................................................131
Operation ......................................................................................................................132
Network .........................................................................................................................133
Mechanical....................................................................................................................133
General .........................................................................................................................134
Power over Ethernet .....................................................................................................134
Web Interface................................................................................................................135
Application.....................................................................................................................135
Appendix ...............................................................................136
A. Settings for Internet Explore 8 ..................................................................................136
B. RTSP Protocol Support ............................................................................................137
C. The CGI Command ..................................................................................................137
D. Supported Firmware for Flash Memory ....................................................................138

vi
Naming and Definition
GV-System GeoVision Analog and Digital Video Recording Software. The GV-
System also refers to Multicam System, GV-NVR System, GV-
Hybrid DVR System and GV-DVR System at the same time.

vii
Note for Recording
The GV-Fisheye IP camera is designed to work with GV-System, a hybrid or digital video
management system. Normally, the images are recorded to the memory card inserted in the
camera. Once the camera is connected to GV-System for video management or its Live
View (Figure 3-3) is accessed through the Web browser, recording to the memory card will
be stopped and GV-System will take over the recording. When the connection between the
camera and GV-System is interrupted, the recording to the memory card will be resumed to
back up the images on the camera.

Introduction
1
1
Chapter 1 Introduction

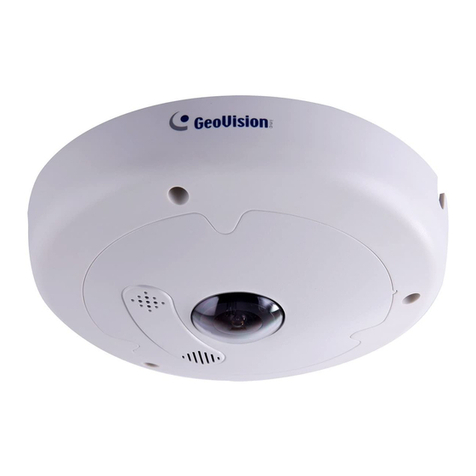

The GV-FE110/GV-FE420/GV-FE520 is a fisheye camera that allows you to monitor all
angles of a location using just one camera. The distorted hemispherical image of the fisheye
camera will be converted into the conventional rectilinear projection.
Without installing any software, you can watch live view and utilize functions such as motion
detection, privacy mask, and alert notification through the Web interface using an IE browser.
In addition, the GV-Fisheye IP Camera seamlessly integrates with the GV-System, providing
advanced monitoring and video management features.
1.1 Key Features
•1.3 MP / 4 MP / 5 MP progressive scan CMOS for GV-FE110/GV-FE420/GV-FE520
•H.264, MPEG4 and MJPEG video compression for GV-FE110 and H.264 and MJPEG
video compression for GV-FE420/GV-FE520
•Electronic day and night function (except GV-FE110)
•Provides 360° and 180° panorama view
•No mechanical moving parts
•Micro SD/SDHC Card Slot
•Virtual PTZ function
•Auto Pan function
•Object tracking
•Built-in Web server for monitoring through IE browser
•Different angle of view controllable by multiple users at the same time
•Up to 15 fps at 1280 x 1024 for GV-FE110, 15 fps at 2048 x 1944 for GV-FE420 and
10 fps at 2560 x 1920 for GV-FE520
•Built-in microphone and speaker
•One sensor input and alarm output
•DC 12V / AC 24V / PoE
•Playback from any view angle and zoom level
•Privacy mask to cover parts of the image that should not be viewable

2
•Visual automation
•Tampering alarm
•Text overlay
•28 languages on web interface

Introduction
3
1
1.2 Packing List
•Camera Body
•Support Bracket x 3
•Camera Cover (Hard Ceiling Mount)
•Camera Cover (In-Ceiling Mount)
•Screw (Hard Ceiling Mount) x 3
•Screw (In-Ceiling Mount) x 3
•Torx Wrench
•Plastic Screw Anchor x 3
•3-Pin Terminal Block
•GV-Fisheye IP Camera Software DVD
•GV-NVR Software DVD
•DC 12V Power Adapter
•Installation Sticker
•GV-NVR Quick Start Guide

4
1.3 System Requirement
To operate the camera through a web browser, make sure your PC has good network
connection, and meet the following system requirement:
GV-FE110
32-bit Windows XP / Vista / 7 / Server 2008
OS
64-bit Windows 7 / Server 2008
GV-System Version GV-System V8.4.0.0 with patch files or later
Browser Internet Explorer 7.x or later
GV-FE420
32-bit Windows XP / Vista / 7 / Server 2008
OS
64-bit Windows 7 / Server 2008
GV-System Version GV-System V8.4.0.0 with patch files or later
Browser •Internet Explorer 7.x or later
•Firefox
•Google Chrome
•Safari
Note: For GV-FE420, 32-bit operating system is only supported in V8.5.0.0 or later.
GV-FE520
32-bit Windows XP / Vista / 7 / Server 2008
OS
64-bit Windows 7 / Server 2008
GV-System Version GV-System V8.5.0.0 or later
Browser •Internet Explorer 7.x or later
•Firefox
•Google Chrome
•Safari

Introduction
5
1
Note:
1. If you are using Microsoft Internet Explorer 8.0, additional settings are required.
Please refer to Settings for Internet Explorer 8 in Appendix A.
2. When using non-IE browsers,
a. The following functions are not supported: Motion Detection, Tampering Alarm,
Visual Automation, Text Overlay, Two-Way Audio, and GPS map settings. To see
the functions available on live view windows using non-IE browsers, see Figure 3-4.
b. RTSP streaming must be enabled. By default, RTSP streaming is enabled. See
4.3.8 RTSP to see more details on RTSP settings.

6
1.4 Optional Accessories
Optional devices can expand your camera’s capabilities and versatility. Contact your dealer
for more information.
Model Number Name Details
Dimension: ø 159.1 x 40.5 mm /
ø 6.3 x 1.6 in
Tilt angle: 0-20 °
GV-Mount904 Tilting Wall Mount Bracket
Weight: 400 g / 0.88 lb
Dimensions: ø 185.51 x 150.35 mm /
7.3 x 5.9 in
GV-Mount903 GV-FE Series Dome Housing
Weight: 700 g / 1.54 lb
Dimensions (L x W x D):
225 x 140 x 250 mm /
8.9 x 5.5 x 9.8 in
GV-Mount200 Wall Pendant Tube
Weight: 900 g / 1.98 lb
Dimensions (L x W x D):
197.67 x 109 x 274.25 mm /
7.8 x 4.3 x 10.8 in
GV-Mount201 Wall Pendant Tube
Weight: 600 g / 1.32 lb
Dimensions (L x W x D):
193.08 x 98 x 310.5 mm /
7.6 x 3.9 x 12.2 in
GV-Mount202 Wall Pendant Tube
Weight: 600 g / 1.32 lb
GV-PA191 Power over Ethernet (PoE)
Adapter
The GV-PA191 is a Power over Ethernet
(PoE) adapter designed to provide power
to the IP device through a single Ethernet
cable.

Introduction
7
1
1.5 Physical Description
To access the Default button, LED indicators, and micro SD card slot, unscrew the three
screws indicated below and then remove the outer shell of the camera.
Figure 1-1

8
You can now access the Default button, LED indicators, and the micro SD card slot.
6
5
7
8
2
4
3
1
Figure 1-2
No. Name Function
1 Lens Rotates the lens to adjust focus.
2 Speaker Talks to the surveillance area from the local computer.
3 Microphone Receives the sound from the camera.
4 Default Button Resets all configurations to default factory settings. See 6.3
Restoring to Factory Default Settings.
5 Micro SD Card Slot Inserts a micro SD/SDHC memory card to store recorded data.
6 Network status LED Indicates the network status.
7 Power status LED Indicates whether the camera is powered on or off.
8 System status LED Indicates whether the system is booted successfully or not.

Introduction
9
1
1.6 Installation
The GV-FE110/GV-FE420/GV-FE520 is designed to be mounted on the ceiling, wall or
ground. There are two ways to mount the camera on the ceiling, Hard Ceiling Mount and In-
Ceiling Mount. Make sure the ceiling has enough strength to support the fisheye camera.
Hard Ceiling Mount In-Ceiling Mount
Wall Mount Ground Mount
Figure 1-3
Note: GV-FE110 / GV-FE420 / GV-FE520 is designed for indoor use only.

10
1.6.1 Hard Ceiling Mount
1. Place the installation sticker on the ceiling board. The 3 red dots indicate the location of
the screws.
Figure 1-4
2. At the 3 red dots, drill a hole slightly smaller than the plastic screw anchors provided.
3. Insert the 3 plastic screw anchors in the drilled holes.
4. Secure the fisheye camera with the 3 hard ceiling mount screws provided.
Figure 1-5
5. Place the camera cover for hard ceiling mount on top of the camera and tighten the
screws with the torx wrench provided.
Figure 1-6
