GeoVision GV-EDR2700 Series User manual

Quick Start Guide
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Cube Camera
Mini Fixed Dome
Mini Fixed Rugged Dome
Target Mini Fixed Dome
Target Mini Fixed Rugged Dome
ICH265HISI2V10-B
GV-IPCam

Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Safety Notice
The GV-IPCAM uses a Lithium battery as the power supply for its internal
real-time clock (RTC). The battery should not be replaced unless required!
If the battery does need replacing, please observe the following:
•Danger of Explosion if battery is incorrectly replaced
•Replace only with the same or equivalent battery, as recommended by
the manufacturer
•Dispose of used batteries according to the manufacturer's instructions

© 2018 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note: no memory card slot or local
storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc.
July 2018

Contents
Options ..............................................................................iv
Creating GV-IP Camera’s Login Credentials..................vi
Note for USB Storage and WiFi Adapter .......................vii
Note for Installing Camera Outdoor............................. viii
Chapter 1 Mini Fixed Dome (Part I) & Mini Fixed
Rugged Dome.................................................................... 1
1.1 Packing List................................................................................4
1.2 Overview....................................................................................6
1.2.1 GV-MFD120 / 130 / 320................................................6
1.2.2 GV-MFD1501 Series / 2401 Series / 2501 Series / 3401
Series / 5301 Series................................................................8
1.2.3 GV-MDR .....................................................................10
1.3 Installation................................................................................13
1.3.1 GV-MFD Series...........................................................13
1.3.2 GV-MDR Series ..........................................................15
1.4 Connecting the Camera...........................................................20
1.4.1 Wire Definition.............................................................20
1.4.2 Power and Network Connection .................................21
1.4.3 Vehicle Installation......................................................22
1.5 Loading Factory Default...........................................................23
1.5.1 Using the Web Interface .............................................23
1.5.2 Directly on the Camera ...............................................24
Chapter 2 Mini Fixed Dome (Part II) ............................. 25
2.1 Packing List..............................................................................26
2.2 Overview..................................................................................27
i

2.3 Installation................................................................................29
2.4 Connecting the Camera...........................................................32
2.4.1 Wire Definition.............................................................32
2.4.2 Voltage Load Expansion (Optional)............................33
2.5 Loading Factory Default...........................................................34
2.5.1 Using the Web Interface .............................................34
2.5.2 Directly on the Camera ...............................................34
Chapter 3 Target Mini Fixed Dome............................... 35
3.1 Packing List..............................................................................36
3.2 Overview..................................................................................37
3.2.1 GV-EFD2700 ..............................................................39
3.3 Installation................................................................................41
3.4 Connecting the Camera...........................................................44
3.4.1 I/O Connector..............................................................45
3.4.2 Voltage Load Expansion (Optional)............................46
3.5 Loading Factory Default...........................................................47
3.5.1 Using the Web Interface .............................................47
3.5.2 Directly on the Camera ...............................................47
Chapter 4 Target Mini Fixed Rugged Dome ................ 48
4.1 Packing List..............................................................................49
4.2 Overview..................................................................................51
4.2.1 GV-EDR2700..............................................................52
4.3 Installation................................................................................53
4.4 Connecting the Camera...........................................................60
4.5 Loading Factory Default...........................................................61
4.5.1 Using the Web Interface .............................................61
4.5.2 Directly on the Camera ...............................................61
Chapter 5 Cube Camera ................................................ 63
5.1 Packing List..............................................................................64
5.2 Overview..................................................................................65
ii

5.3 Installation................................................................................66
5.4 Connecting the Camera...........................................................68
5.5 Loading Factory Default...........................................................69
5.5.1 Using the Web Interface .............................................69
5.5.2 Directly on the Camera ...............................................69
Chapter 6 Advanced Cube Camera.............................. 70
6.1 Packing List..............................................................................71
6.2 Overview..................................................................................72
6.3 Installation................................................................................74
6.4 Connecting the Camera...........................................................76
6.5 Loading Factory Default...........................................................77
6.5.1 Using the Web Interface .............................................77
6.5.2 Directly on the Camera ...............................................77
Chapter 7 Accessing the Camera................................. 78
7.1 System Requirement ...............................................................78
7.2 Accessing the Live View..........................................................79
7.2.1 Checking the Dynamic IP Address .............................80
7.2.2 Configuring the IP Address.........................................82
7.2.3 Configuring the Wireless Connection..........................84
7.3 Adjusting Image Clarity............................................................87
Chapter 8 The Web Interface ........................................89
Chapter 9 Upgrading System Firmware ...................... 92
iii

Options
Optional devices can expand your camera’s capabilities and versatility.
Contact your dealer for more information.
Device Description
Power Adapter
The power adapter is available for all Mini Fixed
Dome, Cube Camera, and Advanced Cube Camera.
Contact your sales representative for the countries
and areas supported.
GV-PA191 PoE
Adapter
The GV-PA191 PoE adapter is designed to provide
power and network connection to the cameras over
a single Ethernet cable.
GV-POE Switch
The GV-POE Switch is designed to provide power
along with network connection for IP devices. The
GV-POE Switch is available in various models with
different numbers and types of ports.
GV-Mount
Accessories
The GV-Mount Accessories provide a
comprehensive lineup of accessories for installation
on ceiling, wall corner and pole. For details, see GV-
Mount Accessories Installation Guide.
GV-WiFi Adapter
The GV-WiFi Adapter is a plug-and-play device
designed to connect the camera to wireless network.
The product complies with IEEE 802.11 b/g/n (Draft
3.0) standards for wireless networking.
Note: Only compatible models and firmware
versions support GV-WiFi Adapter
iv

Device Description
Plastic PG21
Conduit
Connector
The plastic PG21 conduit connector is used for
running the wires of Target Mini Fixed Rugged
Dome through a 1/2” conduit pipe.
The connector is not supported by GV-EFD2700 /
4700 Series and GV-MFD2700 / 4700 Series.
GV-Relay V2
The GV-Relay V2 is supported by GV-EFD2700
Series and GV-MFD2700 / 4700 Series. The GV-
Relay V2 is designed to expand the voltage load of
GV IP devices. It provides 4 relay outputs, and each
can be set as normally open (NO) or normally closed
(NC) independently as per your requirement.
v

Creating GV-IP Camera’s Login
Credentials
The default Administrator and Guest accounts are no longer supported by
firmware V1.14 or later. When purchasing a new camera or performing
factory resetting, you need to set up a login username and password for
the camera.
1. Download and install GV-IP Device Utility from the company
website.
2. On the GV-IP Device Utility window, click to search for your GV-
IP camera.
3. Double-click your GV-IP camera in the GV-IP Device Utility list. This
dialog box appears.
4. Click the Change Username and Password tab to type a new
username and password. Note that the new password must meet
the password strength requirements.
5. Optionally click Upgrade all devices to use the same username
and password on all other devices.
vi

Note for USB Storage and WiFi
Adapter
Mind the following limitations and requirements for using USB storage and
GV-WiFi Adapter:
1. The USB hard drive must be of 2.5’’ or 3.5’’, version 2.0 or above.
2. The USB hard drive’s storage capacity must not exceed 2TB.
3. USB flash drives and USB hubs are not supported.
4. External power supply is required for the USB hard drive.
5. To connect a GV-WiFi Adapter, make sure it is connected before the
camera is powered on.
vii

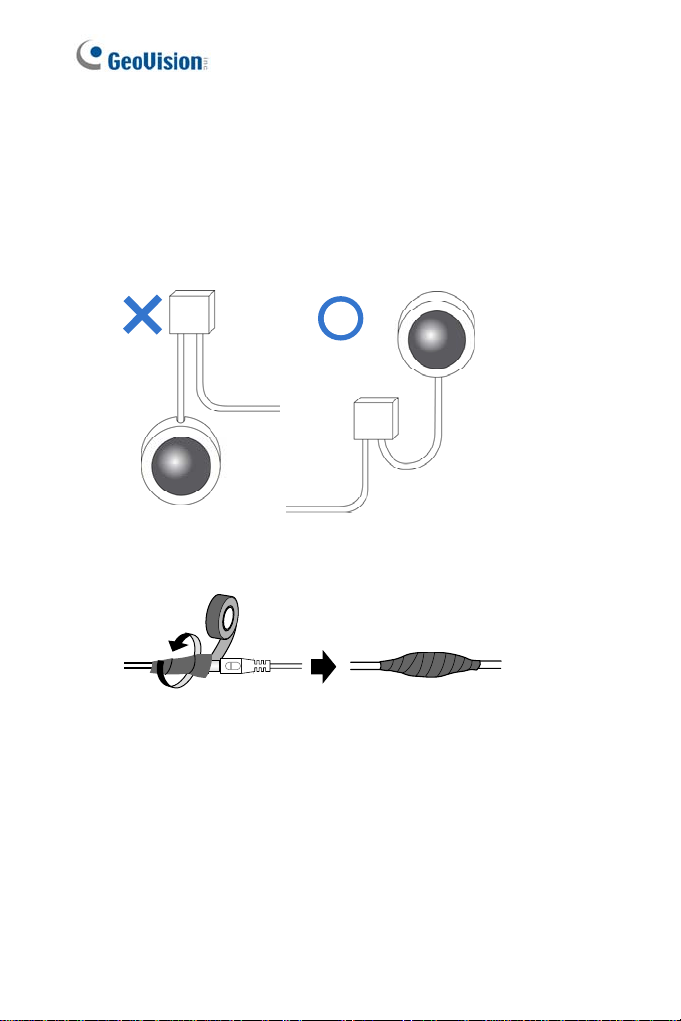

Note for Installing Camera Outdoor
When installing Mini Fixed Rugged Dome outdoor, be sure that:
1. The camera is set up above the junction box to prevent water from
entering the camera along the cables.
2. Any PoE, power, audio and I/O cables are waterproofed using
waterproof silicon rubber or the like.
3. The silica gel bag loses its effectiveness when the dry camera is
opened. To prevent the lens from fogging up, replace the silica gel bag
every time you open the camera, and conceal the gel bag in camera
within 2 minutes of exposing to open air.
viii

Mini Fixed & Rugged Dome
1
1
Chapter 1 Mini Fixed Dome (Part I)
& Mini Fixed Rugged Dome
The Mini Fixed Dome (GV-MFD) and Mini Fixed Rugged Dome (GV-MDR)
are fixed, mini-sized ceiling-mount network cameras.
The GV-MDR series is designed for outdoor surveillance, conforming to
IK10 and IP67 standards. The camera is adjustable in 3 axis (pan, tilt and
rotate) and can be connected through PoE.
The GV-MFD series is designed for indoor surveillance. Adjustable in 2
axis (pan and tilt), the camera also supports PoE.
The super low lux models can provide color live view in near darkness
and the WDR Pro models can process scenes of contrasting intensity of
lights.

Mini Fixed Dome (GV-MFD)
Model No. Specifications Description
GV-MFD120 Fixed Iris, f: 4 mm, F/1.5, 1/3’’ M12
Mount
1.3 MP Low Lux,
H.264, Color
GV-MFD130
GV-MFD320
Fixed Iris, f: 2.54
mm, F/2.8, 1/2.5’’
M12 Mount
1.3 MP / 2 MP / 3
MP / 5MP, H.264,
Color
GV-MFD1501-0F
GV-MFD2401-0F
GV-MFD2501-0F
GV-MFD3401-0F
GV-MFD5301-0F
Fixed Iris, f: 2.8 mm,
F/2.0, 1/3’’ M12
Mount
GV-MFD1501-1F
GV-MFD2501-1F
Fixed Iris, f: 4 mm,
F/1.5, 1/3’’ M12
Mount
GV-MFD1501-2F
GV-MFD2401-2F
GV-MFD2501-2F
GV-MFD3401-2F
GV-MFD5301-2F
Fixed Iris, f: 8 mm,
F/1.6, 1/3’’ M12
Mount
GV-MFD1501-3F
GV-MFD2401-3F
GV-MFD2501-3F
GV-MFD3401-3F
GV-MFD5301-3F
Fixed Iris, f: 12 mm,
F/1.6, 1/3’’ M12
Mount
GV-MFD1501-4F
GV-MFD2401-4F
Fixed Iris, f: 2.1 mm,
F/1.8, 1/3’’ M12
Mount
GV-MFD1501-5F
GV-MFD2401-5F
GV-MFD2501-5F
GV-MFD3401-5F
GV-MFD5301-5F
Fixed
Lens
Fixed Iris, f: 3.8 mm,
F/1.8, 1/3’’ M12
Mount
1.3 MP Super
Low Lux / 2 MP /
2 MP Super Low
Lux / 3 MP / 5
MP, H.264, Color
2

Mini Fixed & Rugged Dome
1
Model No. Specifications Description
GV-MFD2501-6F
GV-MFD3401-6F Fixed
Lens
Fixed Iris, f: 2.3mm,
F/2.2, 1/3’’ M12
Mount
2 MP Super Low
Lux / 3 MP WDR
Pro, H.264, Color
Mini Fixed Rugged Dome (GV-MDR)
Model No. Specifications Description
GV-MDR220
GV-MDR320
GV-MDR520
Fixed Iris, f: 2.54
mm, F/2.8, 1/2.5’’
M12 Mount
2 MP / 3 MP / 5MP,
H.264, Color
GV-MDR1500-1F
GV-MDR3400-1F
GV-MDR5300-1F
Fixed Iris, f: 2.8
mm, F/2.0, 1/3’’
M12 Mount
GV-MDR1500-2F
GV-MDR3400-2F
GV-MDR5300-2F
Fixed
Lens
Fixed Iris, f: 3.8
mm, F/1.8, 1/3’’
M12 Mount
1.3 MP super low
lux / 2 MP WDR
Pro / 2 MP super
low lux / 3 MP
WDR Pro / 5 MP,
H.264, Color
3

1.1 Packing List
GV-MFD
•Mini Fixed Dome
•Torx Wrench
•Self Tapping Screw x 2
•Screw Anchor x 2
•Cable stopper
•2-pin terminal block (for GV-MFD120 / 130 / 320)
•Short-Body RJ-45 Plug (for GV-MFD1501 series / 2401 series /
2501 series / 3401 series / 5301 series)
•USB / Audio Y-cable (for GV-MFD1501 series / 2401 series /
2501 series / 3401 series / 5301 series)
•Power Adapter
•Download Guide
•Warranty Card
Note: The power adapter can be excluded upon request.
4

Mini Fixed & Rugged Dome
1
GV-MDR
•Mini Fixed Rugged Dome
•Torx Wrench
•Self Tapping Screw x 2
•Screw Anchor x 2
•Cable stopper
•Cable Connector
•Installation sticker
•Silica gel bag x 2
•Adhesive Tape for Silica Gel Bag x 2
•Ferrite core for vehicle installation
•Download Guide
Note:
1. The power adapter can be excluded upon request.
2. When purchasing GV-MDR1500 / 3400 / 5300, choose one of the
two LAN connector types (for motor vehicles or for general use). For
details, see LAN Connector, 1.2.3 GV-MDR.
5

1.2 Overview
1.2.1 GV-MFD120 / 130 / 320
1 2 43
5
67
Figure 1-1
No. Name Description
1 Default Button Resets the camera to factory default. For
details, see 1.5 Loading Factory Default.
2 Lens Receives image inputs.
3 Tilt Screw Loosens the screw to adjust tilt angle.
4 Microphone Provides one-way audio.
5 Pan Screw Loosens the screw to pan.
6

Mini Fixed & Rugged Dome
1
No. Name Description
6 LED Indicators See LED Indicators below.
7 Memory Card Slot Inserts a micro SD card (SD/SDHC,
version 2.0 only, Class 10) to store
recording data.
LED Name Description
1. Link Turns on when the network is connected.
2. ACT Turns on when data are being transmitted.
3. PWR Turns on when power is on.
4. SW RDY (Status) Turns on when the system is ready.
7

1.2.2 GV-MFD1501 Series / 2401 Series / 2501 Series /
3401 Series / 5301 Series
1
2
3
4
5
8
9
6
7
Figure 1-2
No. Name Description
1 Microphone Receives sound.
2 Pan Screw Loosens the screw to pan.
3 Lens Receives image inputs.
4 Tilt Screw Loosens the screw to adjust tilt angle.
5 Default Button Resets the camera to factory default. For
details, see 1.5 Loading Factory Default.
6 DC 5V Power Port Connects to power.
7 LAN / PoE Connects to a 10/100 Ethernet or PoE.
8 Memory Card Slot Inserts a micro SD card (SD/SDHC,
version 2.0 only, Class 10) to store
recording data.
9 USB and Audio Out Connects to a GV-WiFi Adapter/USB hard
drive and a speaker through the supplied Y
cable.
8

Mini Fixed & Rugged Dome
1
1
2
3
4
Figure 1-3
LED Name Description
1. Link Turns on (green) when the network is connected.
2. ACT Turns on (orange) when data are being transmitted.
3. Status Turns on (red) when the system is ready.
4. Power Turns on (green) when power is on.
Note: For details on limitations and requirements of the USB port, refer
to Note for USB Storage and WiFi Adapter at the beginning of this
manual.
9
