GeoVision GV-EBL110-2F User manual

Hardware Manual
GV-IPCam H.264
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Bullet Camera
Ultra Bullet Camera
Target Bullet Camera
ICH264TG2V10

© 2015 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note: no memory card slot or local
storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows
XP are registered trademarks of Microsoft Corporation.
September 2015

Bullet Camera (Part I)
1
Contents
Options ...............................................................................3
Note for Adjusting Focus and Zoom................................4
Note for Installing Camera Outdoor.................................5
Note for Closing the Bullet Camera Cover......................6
7
8
9
11
12
15
16
18
23
27
31
32
33
35
36
38
40
47
49
Note for Recording ............................................................
Note for Waterproofing Failures.......................................
Chapter 1 Bullet Camera (Part I)......................................
1.1 Packing List............................................................................
1.2 Features.................................................................................
1.3 Overview ................................................................................
1.4 Installation..............................................................................
1.4.1 Connecting the Camera.............................................
1.4.2 Adjusting the Angles ..................................................
1.4.3 Adjusting Lens and Inserting a Memory Card.............
1.4.4 Installing the Sun-Shield Cover..................................
1.5 Loading Factory Default..........................................................
Chapter 2 Bullet Camera (Part II)...................................
2.1 Packing List............................................................................
2.2 Features.................................................................................
2.3 Overview ................................................................................
2.4 Installation..............................................................................
2.5 Connecting the Camera..........................................................
Chapter 3 Ultra Bullet Camera.......................................
1

3.1 Packing List............................................................................51
52
54
56
61
63
66
67
68
69
70
72
75
75
76
77
3.2 Features.................................................................................
3.3 Overview ................................................................................
3.4 Installation..............................................................................
3.4.1 Waterproofing the Cable ............................................
3.4.2 Connecting the Camera.............................................
3.5 Loading Factory Default..........................................................
Chapter 4 Target Bullet Camera....................................
4.1 Packing List............................................................................
4.2 Features.................................................................................
4.3 Overview ................................................................................
4.4 Installation..............................................................................
4.5 Connecting the Camera..........................................................
4.5.1 Wire Definition ...........................................................
4.5.2 Power Connection......................................................
4.6 Loading Factory Default..........................................................
2

Bullet Camera (Part I)
1
Options
Optional devices can expand your camera’s capabilities and versatility.
Contact your dealer for more information.
Device Description
Power Adapter
The power adapter is available for all Bullet Camera,
Ultra Bullet Camera (except GV-BL2511-E / 5311-E),
and Target Bullet Camera. Contact your sales
representative for the countries and areas supported.
GV-PA191 PoE
Adapter
The GV-PA191 PoE adapter is designed to provide
power and network connection to the cameras over a
single Ethernet cable.
GV-Relay V2
The GV-Relay V2 is designed to expand the voltage
load of GV IP devices. It provides 4 relay outputs, and
each can be set as normally open (NO) or normally
closed (NC) independently as per your requirement.
GV-POE Switch
The GV-POE Switch is designed to provide power
along with network connection for IP devices. The
GV-POE Switch is available in various models with
different numbers and types of ports.
GV-Mount
Accessories
The GV-Mount Accessories provide a comprehensive
lineup of accessories for installation on ceiling, wall
corner and pole. For details, see GV-Mount
Accessories Installation Guide on the Software DVD.
3

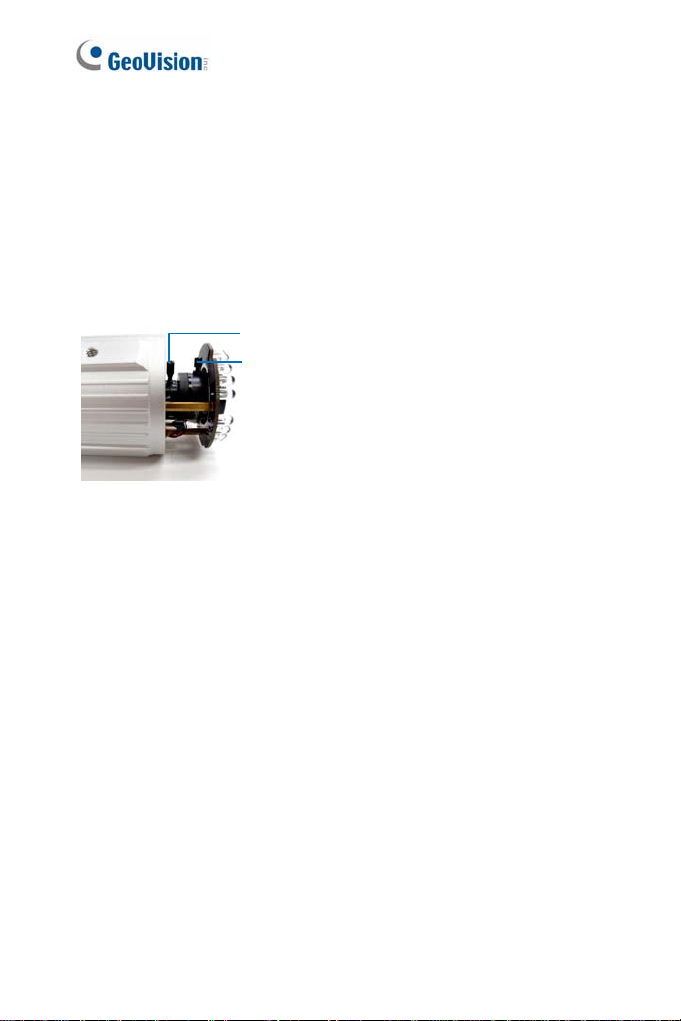

Note for Adjusting Focus and Zoom
When adjusting the Focus and Zoom Screws on Bullet Camera, do not
over tighten the Focus and Zoom screws. The screws only need to be as
tight as your finger can do it. It is not necessary to use any tools to get
them tighter. Doing so can damage the structure of lens.
For example,
Zoom Screw
Focus Screw
Bullet Camera
The maximum torque value for all the zoom and focus screws is 0.049 N.m
4

Bullet Camera (Part I)
1

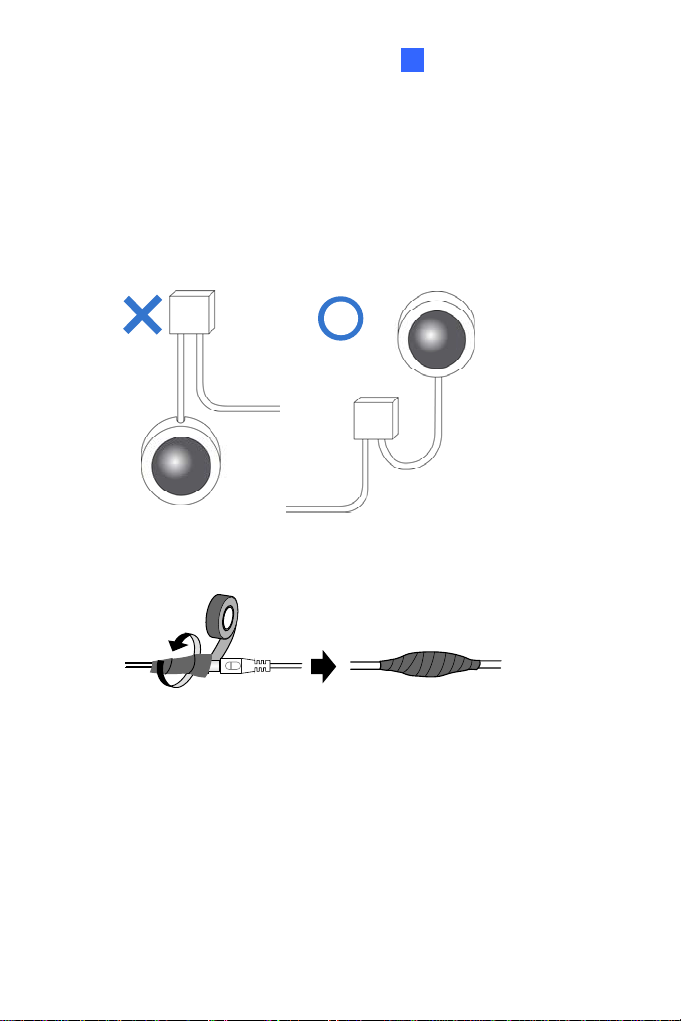

Note for Installing Camera Outdoor
When installing the cameras outdoor, be sure that:
1. The camera is set up above the junction box to prevent water from
entering the camera along the cables.
2. Any PoE, power, audio and I/O cables are waterproofed using
waterproof silicon rubber or the like.
3. The silica gel bag loses its effectiveness when the dry camera is
opened. To prevent the lens from fogging up, replace the silica gel
bag every time you open the camera, and conceal the gel bag in
camera within 2 minutes of exposing to open air.
5

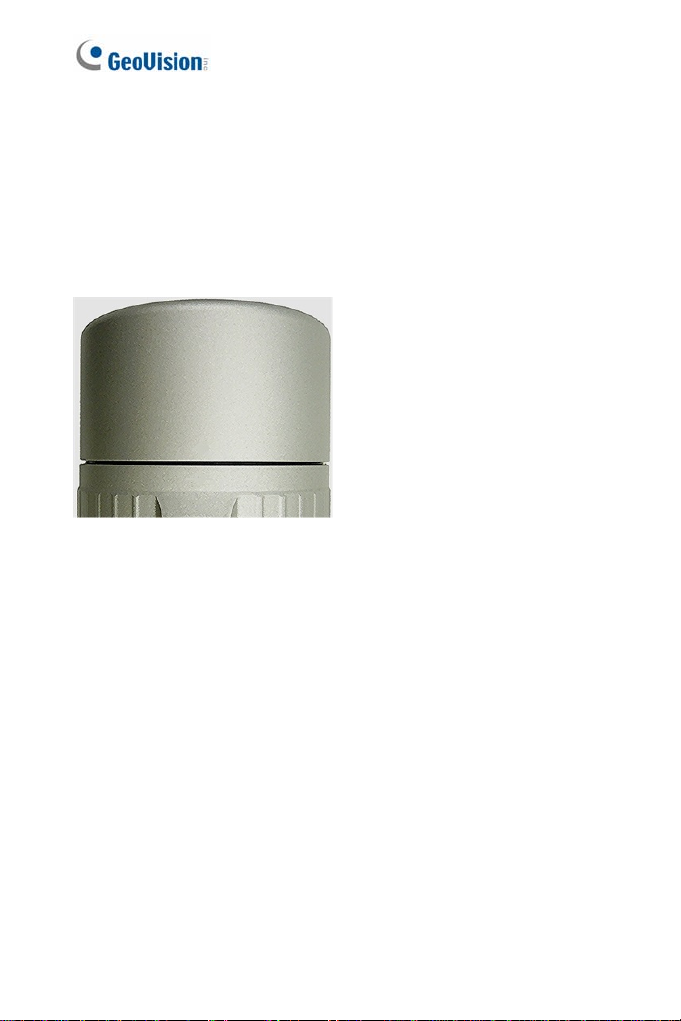

Note for Closing the Bullet Camera
Cover
To ensure that the camera performs its full capacity against water and dust,
tightly close and lock the camera cover as indicated below.
6

Bullet Camera (Part I)
1
Note for Recording
1 By default, the images are recorded to the memory card inserted in
the GV-IP Camera H.264 (except GV-IR Arctic Box Camera and
Target Series, which are not equipped with a memory card slot).
Make sure the Write recording data into local storage option (see
4.1.1 Video Settings, GV-IPCam H.264 Firmware Manual) is enabled.
If this option is disabled, the camera will stop recording to the memory
card while the live view is accessed through Web browsers or other
applications.
2 Mind the following when using a memory card for recording:
Recorded data on the memory card can be damaged or lost if
the data are accessed while the camera is under physical shock,
power interruption, memory card detachment or when the
memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
The stored data can be lost if the memory card is not accessed
for a long period of time. Back up your data periodically if you
seldom access the memory card.
Memory cards are expendable and their durability varies
according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card
annually.
Replace the memory card when its read/write speed is lower
than 6 MB/s or when the memory card is frequently undetected
by the camera.
3 It is recommended to use memory cards of the following setting and
specifications:
Apply a battery backup (UPS) to avoid power outage.
Use Micro SD card of MLC NAND flash, Class 10 for better
performance.
7

Note for Waterproofing Failures
To avoid waterproofing failures, do not open the screw on the camera body.
1. The screw on Ultra Bullet Camera
2. The screw on Target Bullet Camera
8

Bullet Camera (Part I)
1
Chapter 1 Bullet Camera (Part I)
The Bullet Cameras are specifically designed for outdoors and are
weatherproof (IP66 or IP67). They are equipped with IR LEDs for infrared
illumination in night vision applications. The models described in this
chapter use auto iris, which allows for automatic control of exposure.
The WDR Pro models enhance the image by processing contrasting
intensity of light. The super low lux models can produce color live view in
near darkness. The motorized varifocal lens models allow the user to
adjust the focus and zoom through the Web interface.
9

Model No. Specifications Description
GV-BL120D 1.3 MP, H.264, Low Lux
GV-BL130D 1.3 MP, H.264
GV-BL220D 2 MP, H.264
GV-BL320D 3 MP, H.264
GV-BL1500 1.3 MP, H.264, Super
Low Lux
GV-BL2400 2 MP, H.264, WDR Pro
GV-BL2500 2 MP, H.264, Super Low
Lux
GV-BL3400
Varifocal
lens
Auto Iris, f: 3 ~ 9
mm, F/1.2, 1/2.7’’
ø 14 mm Lens
Mount
3 MP, H.264, WDR Pro
GV-BL1210 1.3 MP, H.264, Low Lux,
3X Optical Zoom
GV-BL2410 2 MP, H.264, WDR Pro,
3X Optical Zoom
GV-BL3410
Auto Iris,
f: 3 ~ 9 mm,
F/1.2, 1/2.7’’
ø 14 mm Lens
Mount 3 MP, H.264, WDR Pro,
3X Optical Zoom
GV-BL5310
Motorized
varifocal
lens Auto Iris,
f: 4.5 ~ 9 mm,
F/1.2, 1/2.7’’
ø 14 mm Lens
Mount
5 MP, H.264, 2X Optical
Zoom
10

Bullet Camera (Part I)
1
1.1 Packing List
Bullet Camera
Self Tapping Screw x 3
Plastic Screw Anchor x 3
Torx Wrench x 2
Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screw x 2,
Plastic Screw Spacer x 2 and Hexagon Screw x 2)
Silica Gel Bag x 2
2-Pin Terminal Block
Power Adapter
GV-IPCAM H.264 Software DVD
GV-NVR Software DVD
Warranty Card
Note: The power adapter can be excluded upon request.
11

1.2 Features
Image sensor
Camera Model Image Sensor
GV-BL120D / 1210 1/3’’ progressive scan low lux CMOS
GV-BL1500 / 1510 1/3’’ progressive scan super low lux
CMOS
GV-BL130D / 220D / 320D
GV-BL5310 1/2.5’’ progressive scan CMOS
GV-BL2400 / 2410
GV-BL3400 / 3410 1/3.2’’ progressive scan CMOS
GV-BL2500 / 2510 1/2.8’’ progressive scan super low
lux CMOS
Dual streams from H.264 or MJPEG
Frame rate
Camera Model Frame Rate
GV-BL120D / 130D
GV-BL1210
GV-BL1500 / 1510 30 fps at 1280 x 1024
GV-BL220D / 2400 / 2410
GV-BL2500 / 2510 30 fps at 1920 x 1080
GV-BL320D/ 3400 / 3410 20 fps at 2048 x 1536
GV-BL5310 10 fps at 2560 x 1920
Day and night function (with removable IR-cut filter)
Megapixel lens
Motorized varifocal lens for remote focus/zoom adjustment
(GV-BL1210 / 1510 / 2410 / 2510 / 3410 / 5310 only)
Wide Dynamic Range Pro (GV-BL2400 / 2410 / 3400 / 3410 only)
Ingress protection
(IP66 for GV-BL120D / 130D / 220D / 320D)
12

Bullet Camera (Part I)
1
(IP67 for GV-BL1500 / 2400 / 2500 / 3400 and GV-BL1210 / 1510 /
2410 / 2510 / 3410 / 5310)
Vandal resistance (IK10 for metal casing for all models except
GV-BL120D / 130D / 220D / 320D)
Two-way audio
One sensor input and alarm output
Micro SD card slot (SD/SDHC) for local storage
NAS recording
Recording assigned by GV-Edge Recording Manager (Windows &
Mac)
Cable-concealed bracket preventing cable from being cut
DC 12V / AC 24V / PoE (IEEE 802.3af)
Intelligent IR
Maximum IR distance
Camera Model Maximum IR Distance
GV-BL120D / 130D / 220D / 320D 15 m (50 ft)
GV-BL1210 / 5310 40 m (131 ft)
GV-BL2400 / 2410
GV-BL2500 / 2510
GV-BL3400 / 3410 50 m (164 ft)
GV-BL1500 / 1510 70 m (230 ft)
3D noise reduction (GV-BL1500 / 1510 / 2500 / 2510 only))
2D noise reduction (for all models except super low lux models)
Defog
Motion detection
Tampering alarm
Visual automation
Text overlay
Privacy mask
IP address filtering
13

Smart Phone and 3GPP support
31 languages on Web interface
ONVIF (Profile S) conformant
14

Bullet Camera (Part I)
1

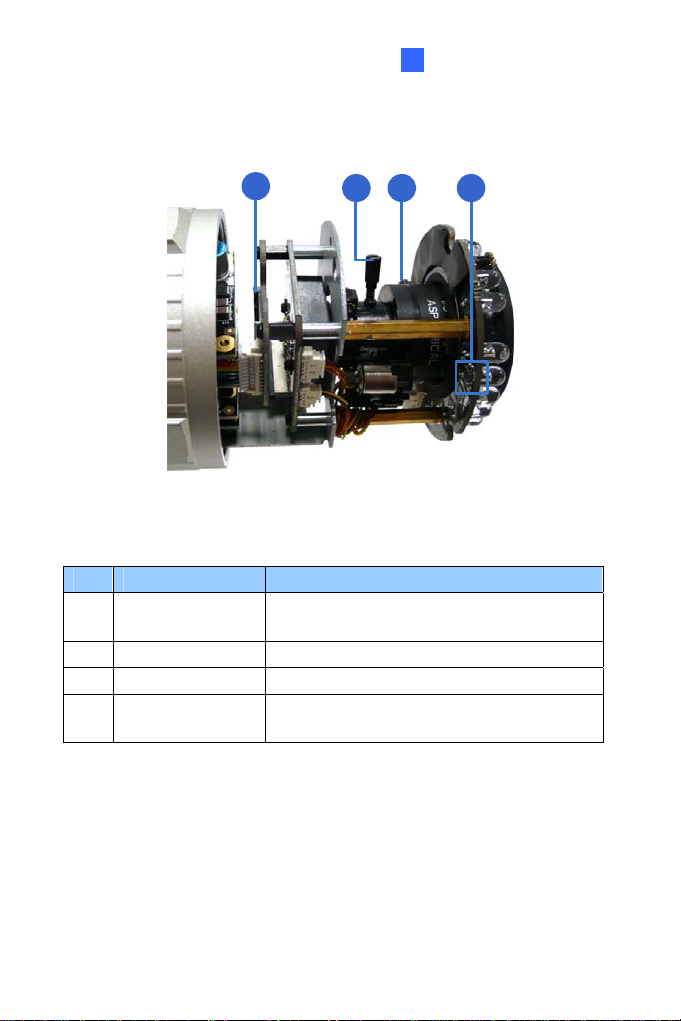

1.3 Overview
12 3 4
Figure 1-1
No. Name Description
1 Memory Card Slot Receives a micro SD card (SD/SDHC,
version 2.0 only, Class 10).
2 Zoom Screw Holds the zoom lens in place.
3 Focus Screw Holds the focus lens in place
4 Default Button Resets all configurations to factory default.
For details, see 1.5 Loading Factory Default.
15

1.4 Installation
These instructions describe the basic installation of the Bullet Camera.

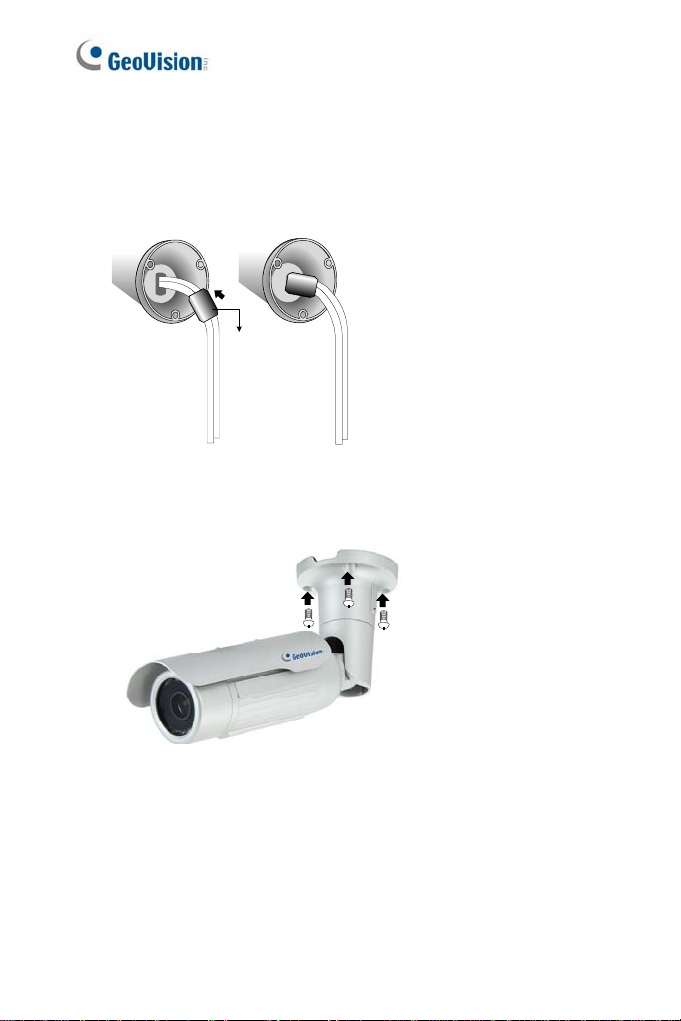

3. Slide the cable clamp to the camera base.
Cable Clamp
Figure 1-2
4. Install the Bullet Camera to the wall.
Figure 1-3
5. Remove the protection sticker from the camera’s cover
6. Connect the power, network and other wires to the Bullet Camera.
See 1.4.1 Connecting the Camera.
16

Bullet Camera (Part I)
1
7. Access the live view. For details, see 2.1. Accessing the Live View,
GV-IPCam H.264 Firmware Manual.
8. Adjust angles of the camera body based on the live view. Three
shafts can be adjusted. See 1.4.2 Adjusting the Angles.
9. Loosen the camera’s cover, adjust the focus of the camera and
optionally insert a micro SD card (SD/SDHC, version 2.0, Class 10)
into the SD card slot. See 1.4.3 Adjusting Lens and Inserting a
Memory Card.
10. Fasten the camera’s cover.
11. Install the sun-shield cover to the Bullet Camera. For details, see
1.4.4 Installing the Sun-Shield Cover.
17

1.4.1 Connecting the Camera
Wire Definition for Auto Iris Models

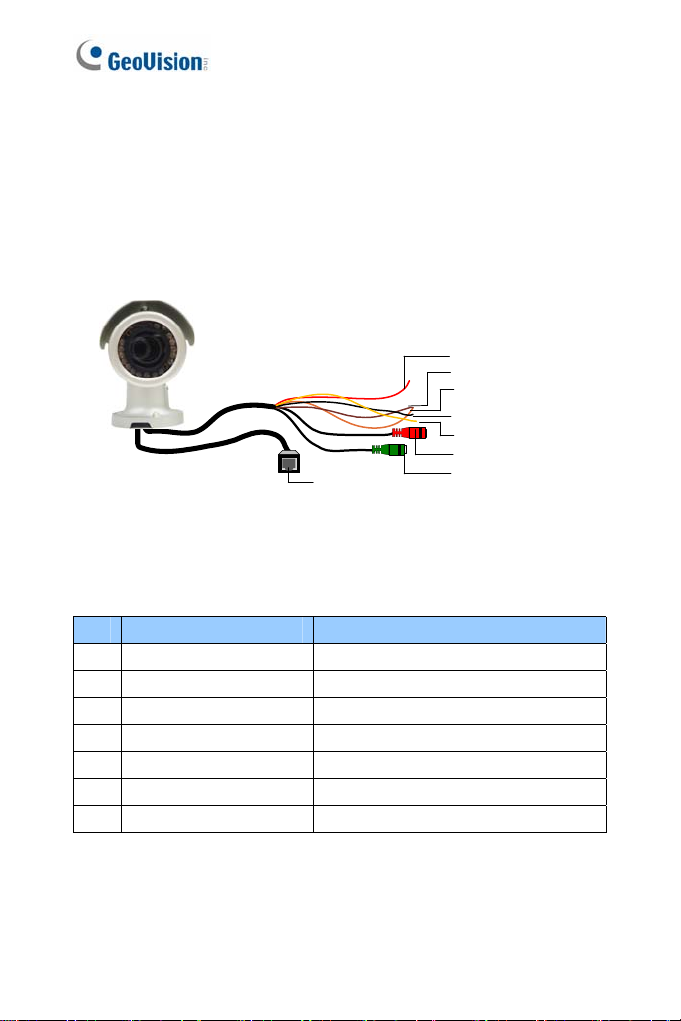

The 7-Pin Data Cable provides connections for power, ground, 1 sensor
input, 1 alarm output, audio input and audio output. The wires are
illustrated and defined below:
Ethernet (PoE)
Digital In (Red)
DC 12V+ / AC 24V + (Brown)
Digital Out (Orange)
DC 12V- / AC 24V - (Black)
GND (Yellow)
Audio In (Red)
Audio Out (Green)
Figure 1-4
No. Wire Color Definition
1 Red Digital In
2 Brown DC 12V+ / AC 24V+
3 Orange Digital Out
4 Black DC 12V- / AC 24V-
5 Yellow Ground
6 Red RCA Audio in
7 Green RCA Audio out
18
