Quick Start Guide
GV-IP Speed Dome
GV-SD2322-IR
GV-SD2722-IR
GV-SD3732-IR

© 2020 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, inwhole or inpart,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
Note: No memory card slot or local storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc.
June 2020

i
Contents

Note for Connecting to GV-VMS / DVR / NVR......................................ii
Note for Recording...............................................................................iii
Note for Installing Camera Outdoor....................................................iv
1. Introduction ....................................................................................1
1.1 Packing List........................................................................................................... 1
1.2 Optional Accessories............................................................................................. 2
1.3 Overview................................................................................................................ 2
2. Installation ......................................................................................3
3. Connecting the Camera .................................................................7
4. Accessing the Camera...................................................................9
4.1 Web Browser......................................................................................................... 9
4.2 Looking Up the Dynamic IP Address.....................................................................10
4.3 Configuring the IP Address...................................................................................11
5. The Web Interface.........................................................................12
5.1 PTZ Control Panel................................................................................................15
6. Upgrading System Firmware.......................................................18
7. Restoring to Factory Default........................................................19
7.1 Using the Web Interface .......................................................................................19
7.2 Directly on the Camera.........................................................................................20

ii
Note for Connecting to GV-VMS / DVR / NVR
The GV-IP Speed Dome is designed to work with GV-VMS / DVR / NVR, a video management
system. Note the following when the camera is connected to GV-VMS / DVR / NVR:
Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the
GV-VMS / DVR / NVR will override the resolution set on the camera’s Web interface. You can
only change the resolution settings through the Web interface when the connection to the
GV-VMS / DVR / NVR is interrupted.

iii
Note for Recording
Mind the following when using a memory card for recording:
Recorded data on the memory card can be damaged or lost if the data are accessed
while the camera is under physical shock, power interruption, memory card detachment
or when the memory card reaches the end of its lifespan. No guarantee is provided for
such causes.
The stored data can be lost if the memory card is not accessed for a long period of time.
Back up your data periodically if you seldom access the memory card.
Memory cards are expendable and their durability varies according to the conditions of
the installed site and how they are used. Back up your data regularly and replace the
memory card annually.
To avoid power outage, it is highly recommended to apply a battery backup (UPS).
For better performance, it is highly recommended to use Micro SD card of MLC NAND
flash, Class 10.
Replace the memory card when its read/write speed is lower than 6 MB/s or when the
memory card is frequently undetected by the camera.

iv
Note for Installing Camera Outdoor
When installing the camera outdoor, be sure that:
1. The camera is set up above the junction box to prevent water from entering the camera
along the cables.
2. Any power, audio and I/O cables are waterproofed using waterproof silicon rubber or the
like.
3. The screws are tightened and the cover is in place after opening the camera cover.

Introduction
1
1
1. Introduction
Welcome to the GV-IP Speed Dome Quick Start Guide. In the following sections, you will
learn the basic installations and configurations. For a detailed user manual, see the GV-IP
Speed Dome User’s Manual on the company website.
1.1 Packing List
IR IP Speed Dome
24V AC Power Adapter
M4 Hex Key
Waterproof Rubber Set
Waterproof Guidelines
Download Guide
Warranty Card

2
1.2 Optional Accessories
Optional devices can expand the capabilities and versatility of your camera. Contact your
dealer for more information.
Name Details
GV-Mount Accessories The GV-Mount Accessories provide a comprehensive lineup
of accessories for installation on ceiling, wall and pole. For
details, see GV-Mount Accessories Installation Guide.
1.3 Overview
2
1
No. Name Function
1. Default Button Resets all configurations to default factory settings. See 7.
Restoring to Factory Default.
2. Micro SD Card Slot Inserts a micro SD card (SDHC/SDXC, Class 10) to store
recording data.

Installation
3
2
2. Installation
You can separately purchase optional mounting accessories to mount your GV-IP Speed
Dome on a wall, ceiling or pole. Make sure the wall is strong enough to support the camera
and the mount. For details, see GV-Mount Accessories Installation Guide.
Required Items
GV-Mount210 (purchased required)
Wall screws x 4 (user-prepared)
Note: GV-SD2722-IR / SD3732-IR supports a series of Intelligent functions, which work best
when the installation abides by specific requirements. See 4.6.1 Recommended Scenario,
Chapter 4, GV-IP Speed Dome User’s Manual for details.
1. Unscrew the back cover of the camera.

4
2. Insert the micro SD card into the slot, and secure the back cover of the camera.
Note: Be sure to format the memory card on the camera’s Web interface (Setup > Storage
> Storage).
3. Place the pendant tube on the wall, and mark the position of the screw holes.
4. Drill holes on the wall, and secure the pendant tube to the wall with 4 self-prepared screws.
5. Attach the safety lock of the camera to the pendant tube.

Installation
5
2
6. Thread the data cable through the pendant tube.
7. Attach the camera to the pendant tube, rotate the camera until it is locked into position, and
secure the indicated screws.
8. Insert the pendant mount screws and tighten with the supplied M4 hex key.

6

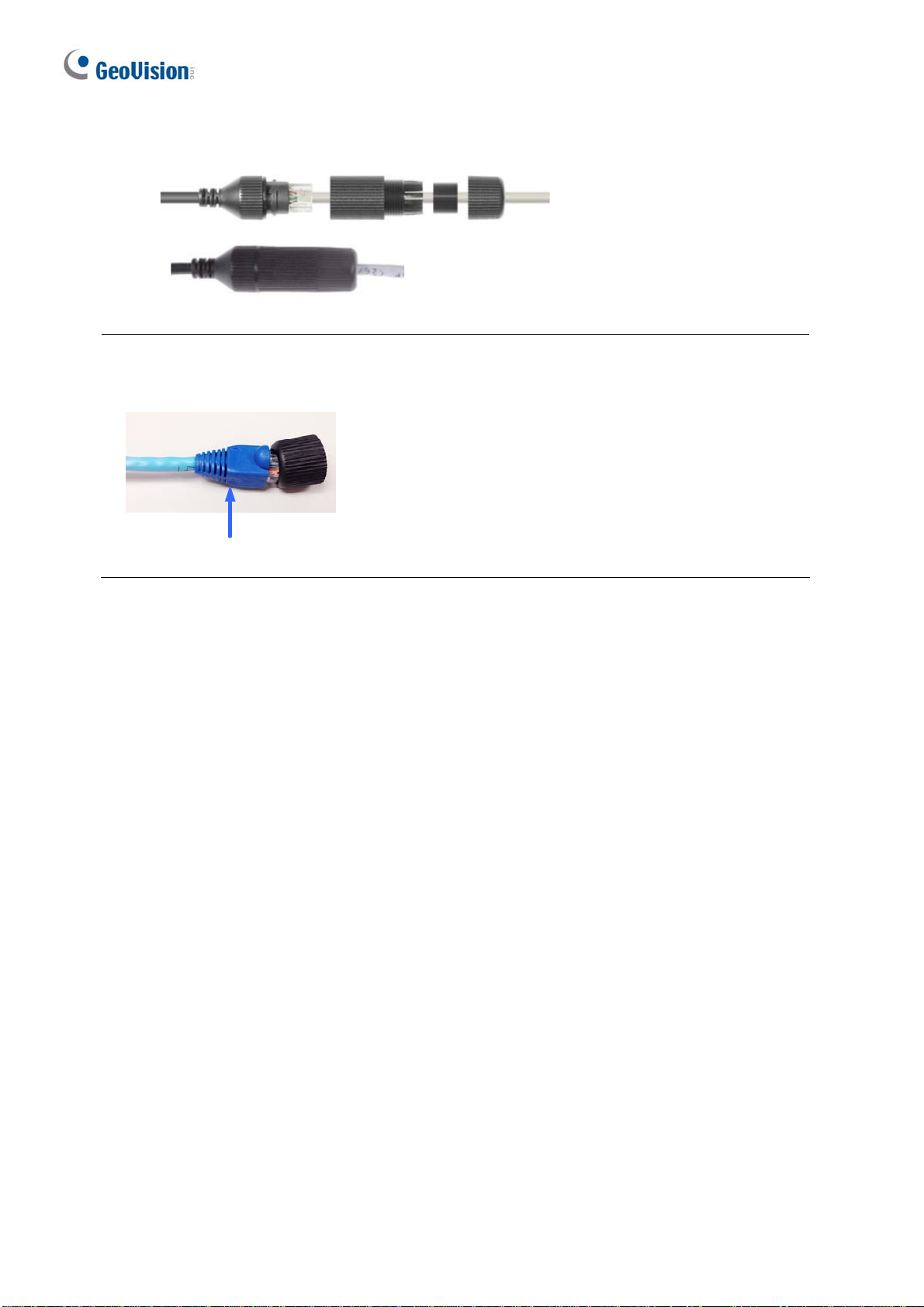

9. Thread the Ethernet cable through the waterproof rubber set as shown below.
Note: The size of RJ-45 connector must be within 14 mm to go through the waterproof
rubber set.
Unfit size of RJ45 Connector

Connecting the Camera
7
3
3. Connecting the Camera
The camera comes with a data cable that allows you to connect the camera to the power
adapter, microphone, speaker, and I/O devices.
1. Connect the supplied power adapter to the 3-pin terminal block. Either of the red or black
cables can be used for anode (+) and the cathode (-).
Power Adaptor
2. Connect a standard network cable to the Ethernet cable of the camera.
3. Optionally connect the TV-out (BNC) cable to a monitor. The TV-out function can be used
during installation to adjust the camera image.
4. Optionally connect I/O devices, speaker and microphone to the camera. You can connect
up to 2 alarm inputs and 1 output device. See the Wire Definition section below.
Each time the camera is powered on, it will perform a self-test to check the Pan/Tilt/Zoom (PTZ)
function. After the self-test, you can operate the camera.
Note: If you are using your own power adapter, you may need to ground the camera using
the yellow cable (GND) on the 3-pin terminal block.

8
Wire Definition
No. Wire Definition
1 Brown Audio in
2 Brown / White GND
3 Green Audio out
4 Green / White GND
5 Gray Alarm IN 1
6 Purple Alarm IN 2
7 Black GND
8 Orange Alarm In -
9 Orange / White Alarm Out +
10 Yellow RS-485 – (only for GV-SD2722-IR / SD3732-IR)
11 Yellow / Black RS-485 + (only for GV- SD2722-IR / SD3732-IR)

Accessing the Camera
9
4
4. Accessing the Camera
4.1 System Requirements
Once installed, your camera is accessible over the network. Make sure your PC has good
network connection, and meet the following requirement:
CPU Intel Core i5-4670, 3.40 GHz
Memory DDR3 8 GB RAM
On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later
required)
Web Browsers Internet Explorer 11.0 or above
Google Chrome
Mozilla Firefox
Safari
Note:
1. Some functions are not available on non-IE browsers; e.g. Local Settings (see 4.1.2
Local Settings in the User’s Manual) is not supported by Google Chrome.
2. Only H.264 codec is supported for live view on non-IE browsers.

10
4.2 Looking Up the Dynamic IP Address
By default, when the camera is connected to LAN with a DHCP server, it is automatically
assigned with a dynamic IP address. Follow the steps below to look up its IP address.
Note:
1. The computer you use to configure the IP address must be under the same LAN with
your camera.
2. Multilingual Web interface is only supported by GV-SD2722-IR / SD3732-IR.
3. By default, the Administrator’s username is admin and cannot be modified.

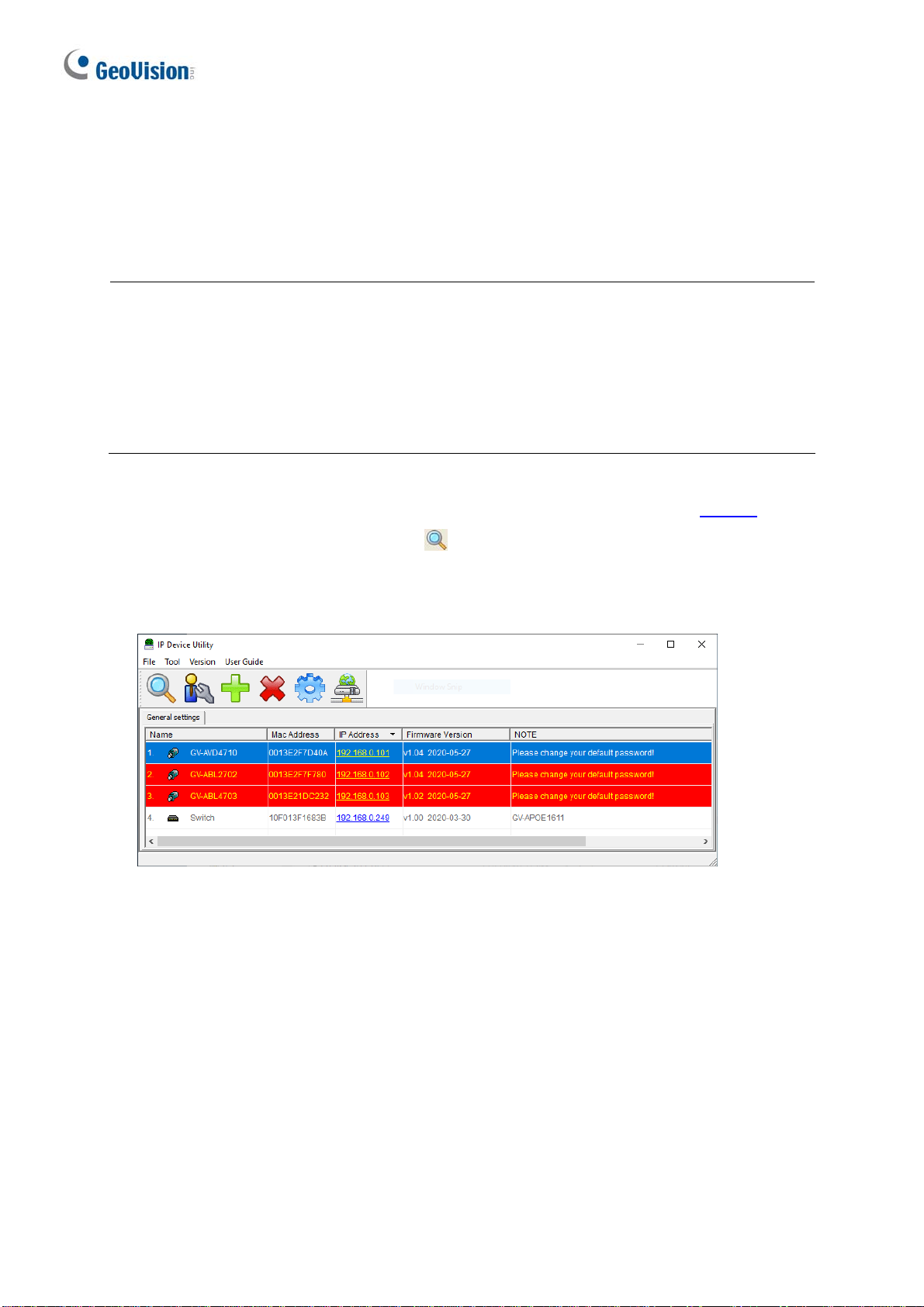

1. Download and install the GV-IP Device Utility program from the company website
2. On the GV-IP Utility window, click the button to search for the IP devices connected in
the same LAN. Click the Name or Mac Address column to sort.
3. Find the camera with its Mac Address, click on its IP address.
4. For the first-time users, you will be requested to set up a password.
5. Type a new password and click OK.
6. Type your username and password on the login page and click Login.

Accessing the Camera
11
4

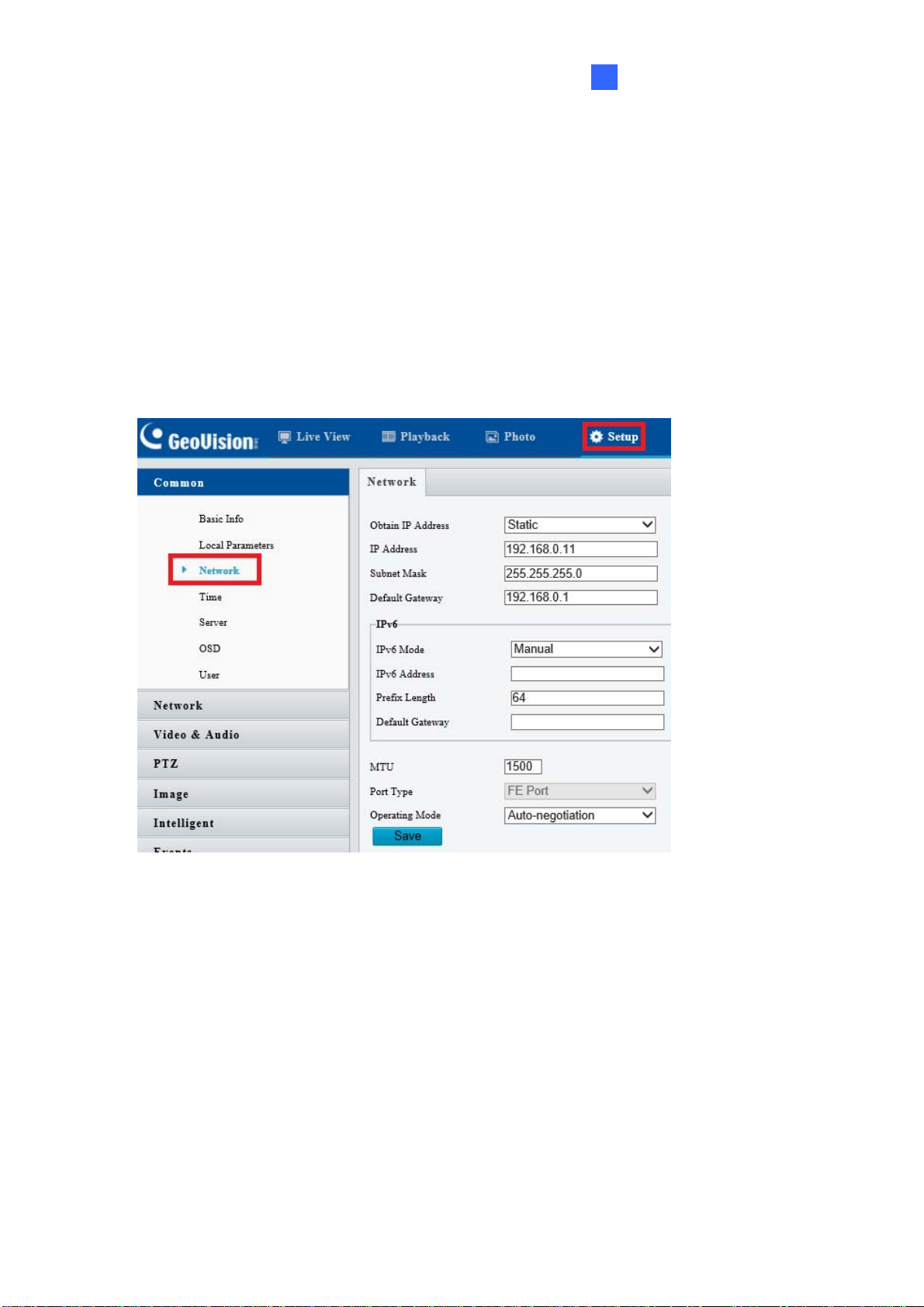

4.3 Configuring the IP Address
If the camera is connected to LAN without a DHCP server, the default IP address will be
192.168.0.10. Follow the steps below to modify the IP address to avoid IP conflict with other
GV-IP devices on the same LAN.
1. Open your web browser, and type the default IP address 192.168.0.10.
2. Type your username and password. Click Login.
3. Click Setup, select Common in the left menu and select Network.
4. Select Static IP from the IP Obtain Mode drop-down list.
5. Enter the IP address, subnet mask, and default gateway address. Make sure that the IP
address of the camera is unique in the network.
6. Click Save.

12

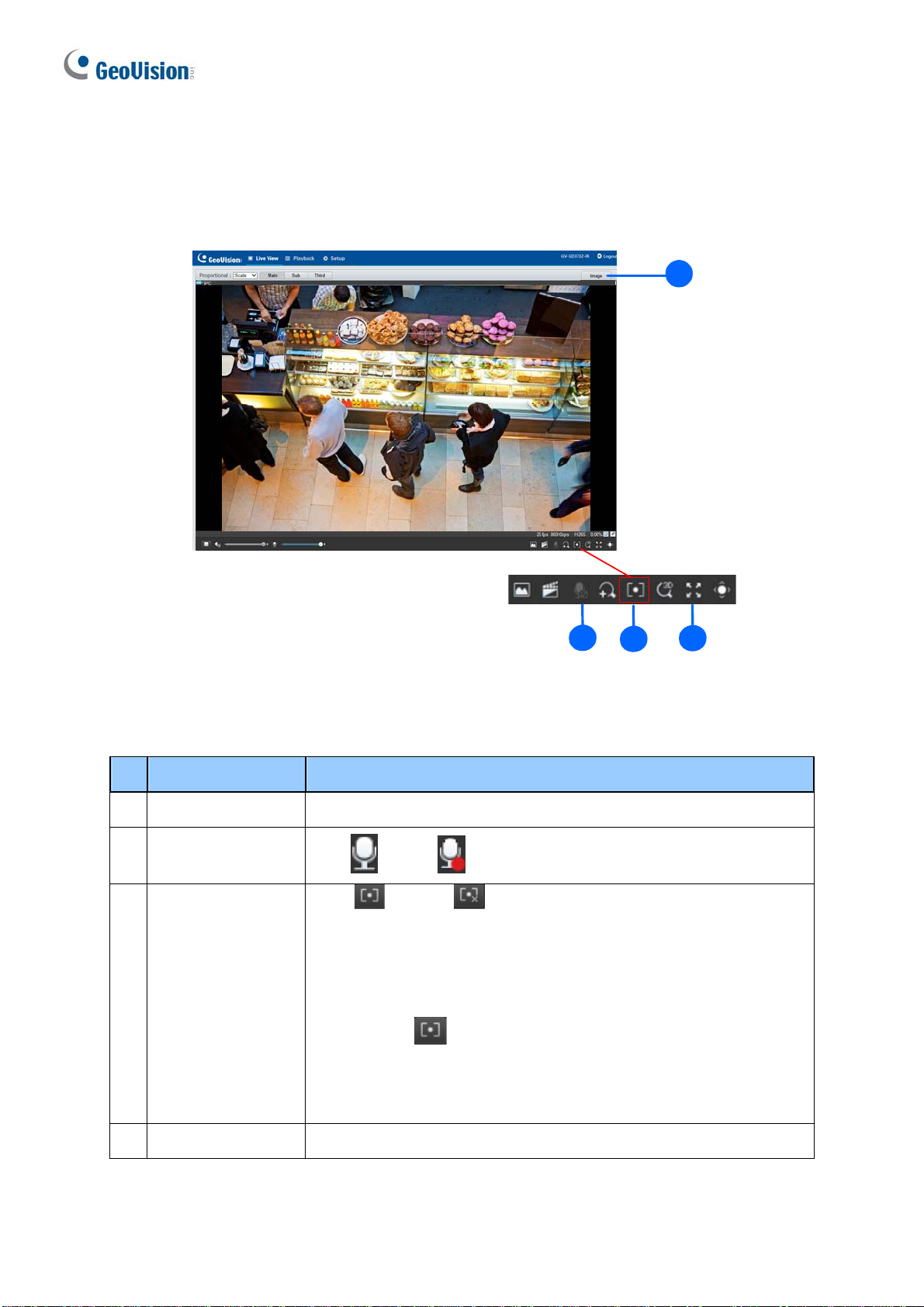

5. The Web Interface
Once you log in the Web interface, you will see the live view as shown below.
For GV-SD2322-IR
No. Name Function
1 Proportional
Set the display ratio of the image.
Scale: display images by 16:9.
Stretch: display images by window size.
Original: display images in its original size.
2 Live Stream Select a live video stream: main stream, sub stream or third
stream.
3 Image Open the image setting page.
4 Full Screen Mode Display in full screen mode.
5 Play/Stop Play or stop live video.

The Web Interface
13
5
6 Volume Adjust the audio output volume on the PC.
7 Microphone Adjust the microphone volume on the PC during audio
communication between the PC and the camera.
8 Snapshot Take a snapshot of the current image displayed on the PC.
9 Local Recording Start or stop local recording.
10 Audio
Communication Start or stop audio communication between the PC and
the camera.
11 Digital Zoom Start or stop digital zoom.
12 3D Positioning Start or stop 3D positioning (optical zoom).
13 PTZ control panel Show or hide the PTZ control panel. -- See 5.1 PTZ
Control Panel.
14 Reset the packet loss rate to zero.
15 Display packet loss rate and bit rate information in the bottom.
Note:
1. The paths for saving snapshots and local recordings are set in System Configuration.
2. The buttons (No. 14 and No. 15) will appear on the floating toolbar after you move the
mouse cursor on a live view window.

14
For GV-SD2722-IR / SD3732-IR
1
1
3
24
Figure 2-5
No. Name Function
1 Image Open the image setting page. -- See 4.5.1 Image.
2 Two-way Audio Start or stop two-way audio.
3 Area Focus
Start or stop area focus.
By activating this function, you can set the camera focus based on
a defined area of the live view. To activate Area Focus, follow the
steps below:
Step 1: Click on the toolbar.
Step 2: Click and drag on the live view to specify an area. The
focus of the live view changes to the specified area.
4 Full Screen Mode Display in full screen mode.
For more detailed functions, refer to For GV-SD2322-IR, 5. The Web Interface.
