GeoVision GV-IPCam H.264 Series User manual

Hardware Manual
GV-IPCam H.264
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Vandal Proof IP Dome
Target Vandal Proof IP Dome
ICH264TG2V10

© 2015 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note: no memory card slot or local
storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows
XP are registered trademarks of Microsoft Corporation.
September 2015

Content
Content ................................................................................i
Options ..............................................................................iii
v
vi
1
3
4
6
8
9
15
18
18
20
21
22
23
25
28
30
Note for Adjusting Focus and Zoom...............................
Note for Installing Camera Outdoor...............................
Chapter 1 Vandal Proof IP Dome (Part I)........................
1.1 Packing List..............................................................................
1.2 Features...................................................................................
1.3 Overview ..................................................................................
1.4 Installation................................................................................
1.4.1 Hard-Ceiling Mount......................................................
1.4.2 In-Ceiling Mount.........................................................
1.5 Connecting the Camera..........................................................
1.5.1 Wire Definition ...........................................................
1.5.2 Power Connection......................................................
1.5.3 Voltage Load Expansion (Optional)............................
1.6 Loading Factory Default..........................................................
Chapter 2 Vandal Proof IP Dome (Part II).....................
2.1 Packing List............................................................................
2.2 Features.................................................................................
2.3 Overview ................................................................................
i

2.4 Installation..............................................................................32
43
45
45
45
47
48
49
52
54
56
67
68
2.4.1 Installation of Weatherproof Shield.............................
2.5 Connecting the Camera..........................................................
2.5.1 Power Connection......................................................
2.5.2 I/O Device Connections .............................................
2.6 Loading Factory Default..........................................................
Chapter 3 Target Vandal Proof IP Dome.......................
3.1 Packing List............................................................................
3.2 Features.................................................................................
3.3 Overview ................................................................................
3.4 Installation..............................................................................
3.5 Connecting the Camera..........................................................
3.6 Loading Factory Default..........................................................
ii

Options
Optional devices can expand your camera’s capabilities and versatility.
Contact your dealer for more information.
Device Description
Power Adapter The power adapter is available for all Vandal Proof
IP Dome. Contact your sales representative for the
countries and areas supported.
GV-PA191 PoE
Adapter
The GV-PA191 PoE adapter is designed to provide
power and network connection to the cameras over
a single Ethernet cable.
GV-POE Switch
The GV-POE Switch is designed to provide power
along with network connection for IP devices. The
GV-POE Switch is available in various models with
different numbers and types of ports.
GV-Mount
Accessories
The GV-Mount Accessories provide a
comprehensive lineup of accessories for installation
on ceiling, wall corner and pole. For details, see GV-
Mount Accessories Installation Guide on the
Software DVD.
iii

Device Description
GV-Relay V2
The GV-Relay V2 is designed to expand the voltage
load of GV IP devices. It provides 4 relay outputs,
and each can be set as normally open (NO) or
normally closed (NC) independently as per your
requirement.
Metal PG21
Conduit
Connector
The metal PG21 conduit connector is used for
running the wires of GV-VD1530 / 2430 / 2530 /
3430, GV-VD1540 / 2440 / 2540 / 3440 / 5340 and
GV-VD2540-E / 5340-E and GV-EVD2100 / 3100
through a 3/4” conduit pipe.
Weatherproof
Shield
The weatherproof shield is made for GV-VD1530 /
2430 / 2530 / 3430, GV-VD1540 / 2440 / 2540 /
3440 / 5340, and GV-VD2540-E / 5340-E to protect
the camera from rain and snow.
iv

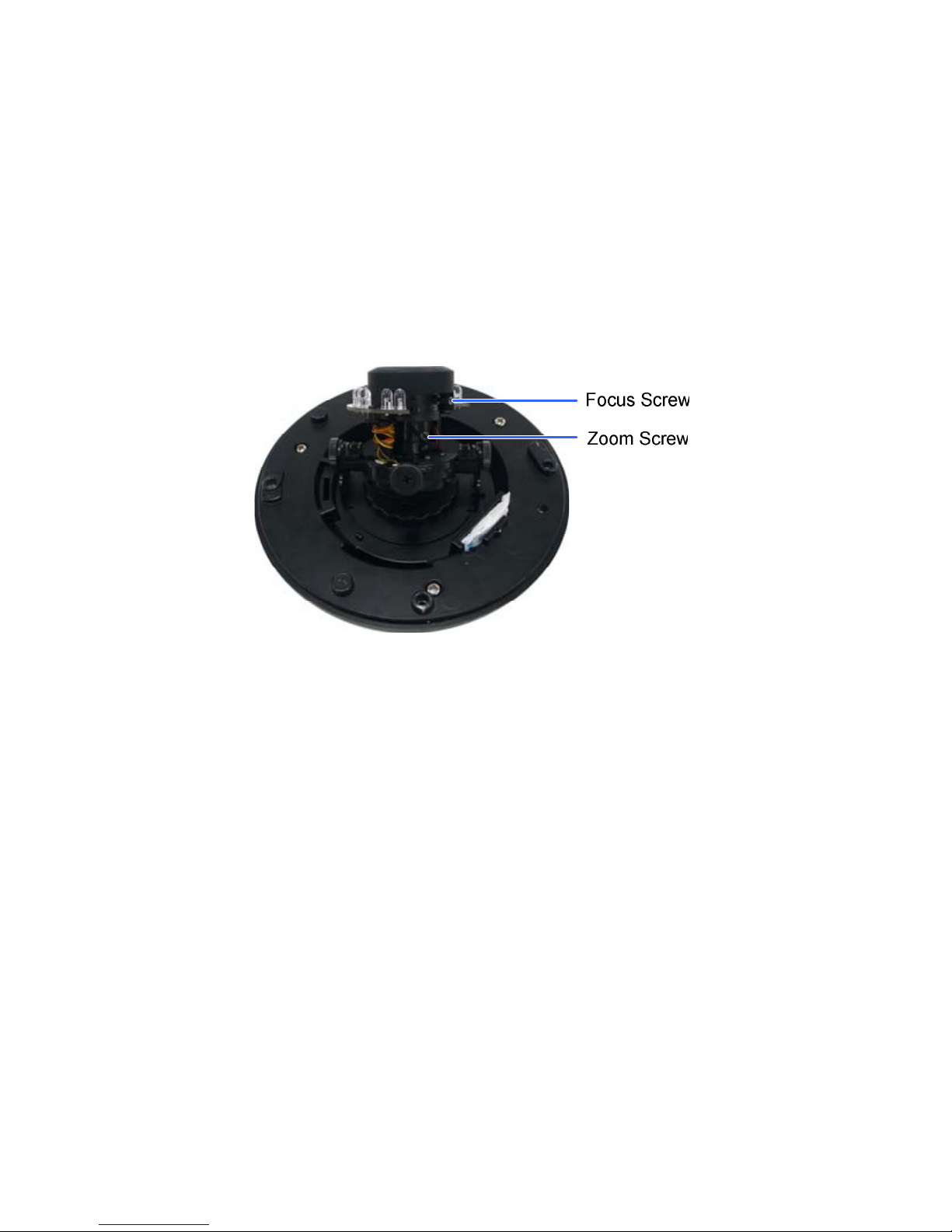

Note for Adjusting Focus and Zoom
When adjusting the Focus and Zoom Screws, do not over tighten the
Focus and Zoom screws. The screws only need to be as tight as your
finger can do it. It is not necessary to use any tools to get them tighter.
Doing so can damage the structure of lens.
The maximum torque value for all the zoom and focus screws is 0.049 N.m
v

Note for Installing Camera Outdoor
When installing the camera outdoor, be sure that:
1. The camera is set up above the junction box to prevent water from
entering the camera along the cables.
2. Any PoE, power, audio and I/O cables are waterproofed using
waterproof silicon rubber or the like.
vi

3. After opening the camera cover, ensure the screws are tightened
and the cover is in place.
4. The silica gel bag loses its effectiveness when the dry camera is
opened. To prevent the lens from fogging up, replace the silica gel
bag every time you open the camera, and conceal the gel bag in
camera within 2 minutes of exposing to open air.
