Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Features
Routes four Ultra Hi-Def sources to two Ultra HD displays simultaneously.
Supports resolutions up to Ultra HD 4K x ‘K (3840 x 2160 @ 30 Hz) and 1080p Full HD (HDMI 1.4V)
Supports 36 bit Deep Color
Supports PCM, Dolby Digital , and DTS Digital Surround
Audio SPDIF (Coaxial and optical) signal output and Output A signal is simultaneous.
Support HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution
Input port 1 is compliant with MHL2.0 specification
Support CEC function (including Input port 1-4 and Output A)
Support HDMI 1.4 ARC (Audio return channel) RX (Output A)
3DTV pass-through
IR remote control
Surface-mounting ears
Package Contents
1x HDMI Matrix
1x IR Remote control
2x wall/rack mounts
1x 5V/2A DC Adapter
1x User Manual
1
TM TM R
EGE-MX42
4 by 2 HDMI Matrix Manual Version: Release 1013

2
1
2
8
9
10
3
4
5
6
7
1 2 45
810
9
3 6 7
11 12
11
12
SPECIFICATIONS
Operating Temperature Range -5 to +35°C(+23 to +95°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Bandwidth frequency 10.2Gbps
Input ports 4xHDMI(female)
Output ports 2xHDMI outputs, 1xOptical audio otput, 1xCoaxial audio otput
Resolution outputs up to 4Kx2K(3840x2160@30Hz)
Dimensions(LxWxH) 28x230x87mm
Power consumption 5W(MAX)
Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG
Net Weight 510g

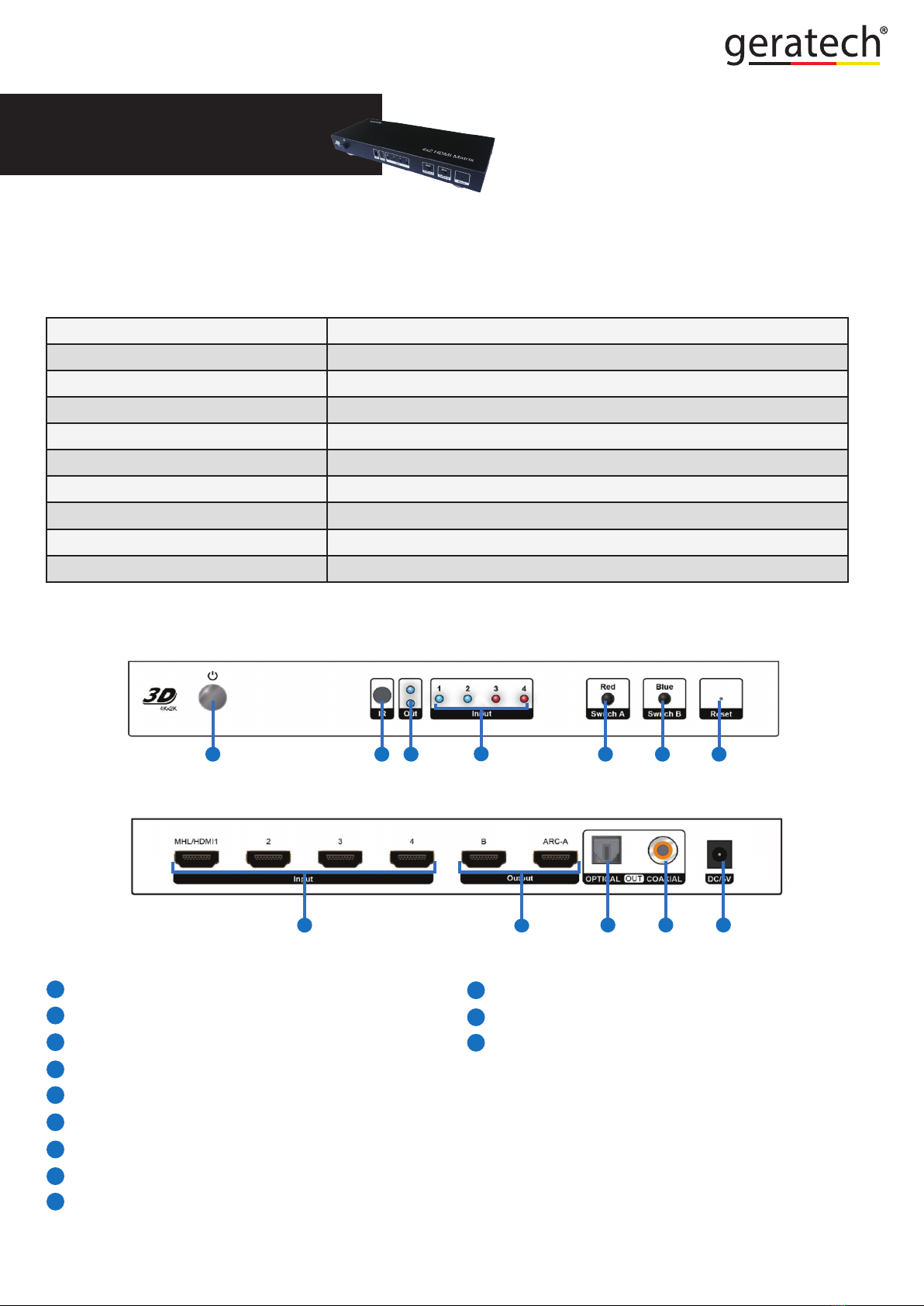

PANEL DESCRIPTIONS
Front Panel
Rear Panel
Power switch S/PDIF audio out: Optical
IR Receiver Window S/PDIF audio out: Coaxial
Indicator of HDMI outputs Power input
Indicator of HDMI Inputs
Output A Select Button
Output B Select Button
Reset Buton
HDMI input ports
HDMI output ports
EGE-MX42
4 by 2 HDMI Matrix Manual Version: Release 1013

Remote Control

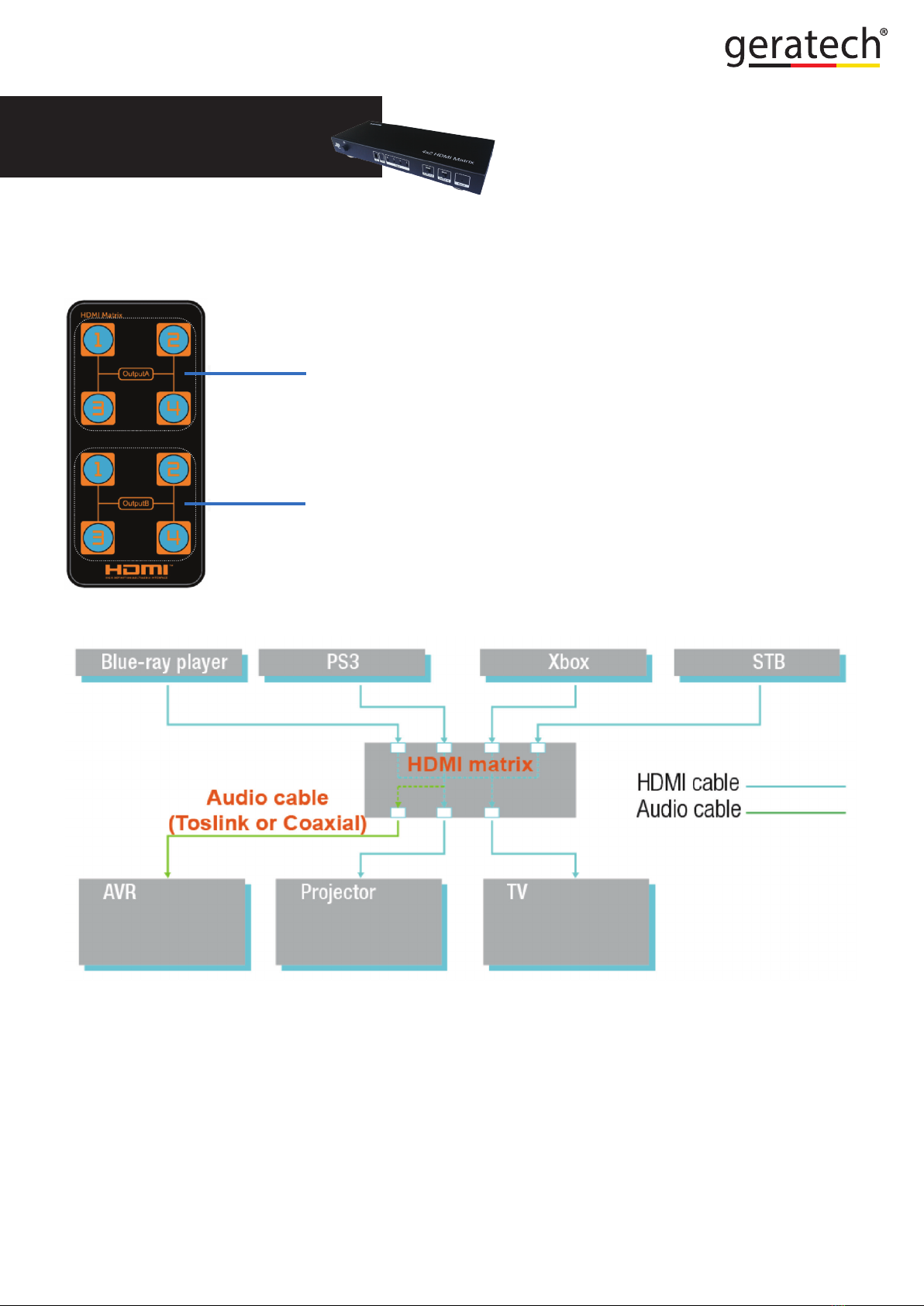

Connection Diaram
Audio Return Channel (ARC)
ARC enables a source which connected to a display to route the source audio to an AV Receiver or Ampli-
fier.

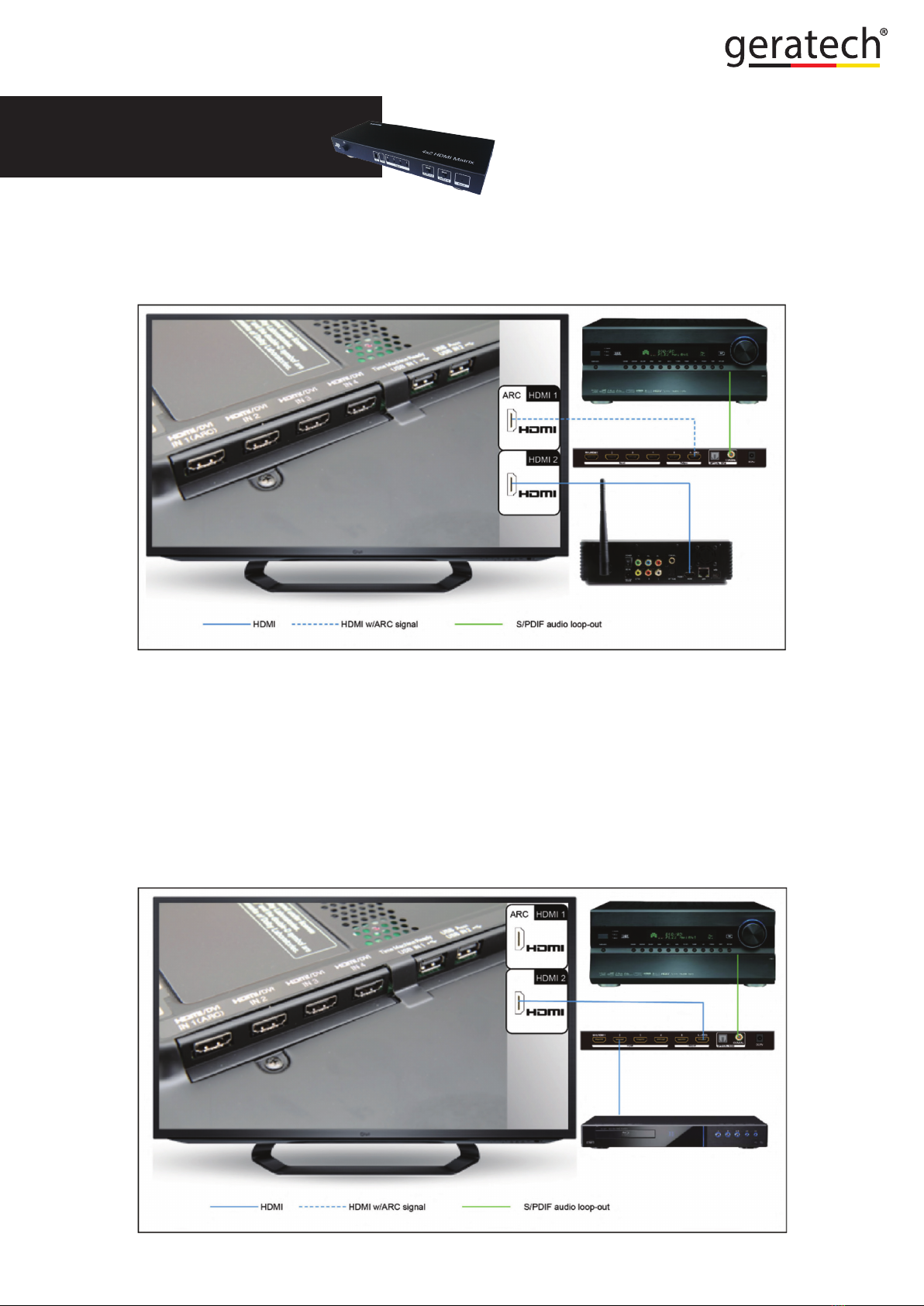

Steps
1) Make sure the display supports ARC
2) Connect the output port A of HDMI Matrix to HDMI 1 (ARC port) of the display (TX)
3) Connect the source to HDMI 2 of the display.
3
Output A selection. Numbers correspond with the HDMI outputs
Output B selection. Numbers correspond with the HDMI outputs
EGE-MX42
4 by 2 HDMI Matrix Manual Version: Release 1013

4
CONNECTING AND OPERATING
1) Connect the HDMI input source (such as HD-DVD/ PS3 /STB etc.) into transmitter over HDMI cable.
2) Connect the output of transmitter and input of receiver over CAT5E or CAT6 cable.
3) Connect the HDMI oustput (such as: HD-LCD/D-DLP) into receiver over HDMI cable.
4) Connect yhe IR TX cable into ‘‘IRTX’’ port of the transmitter; Connect the IR RX cable into IR RX
4) Connect the S/PDIF output port (Optical port or Coaxial port) to an AV Receiver or Amplifier.
Matrix Source Audio Isolate
1) Connect the source with HDMI Matrix
2) Connect the HDMI matrix to HDMI2 of Display.
3) Connect the S/PDIF output port (Optical port or Coaxial port) to an AV receiver or Amplifier. The
source audio can be isolated and transported by the S/PDIF port of AV receiver or Amplifier.
Note: Make sure ARC function of TV is turned off when isolating the audio from the source.
Note: HD audio formats are not supported through S/PDIF. eg. Dolby TrueHD or DTS-HD Master Audio
