geratech EGE-12VS User manual

geratech®
RS-232 SERVICE 1
EGE-12VS
1×2 HDMI 4K2K Video Scaler

RS-232 SERVICE 1
EGE-12VS
1×2 HDMI 4K2K Video Scaler
RS-232 SERVICE 1
RS-232 SERVICE 1
RS-232 SERVICE 1
RS-232 SERVICE 1

1
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Geratech assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Geratech assumes no responsibility for any inaccuracies
that may be contained in this document. Geratech also makes no
commitment to update or to keep current the information contained
in this document.
Geratech
reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means —
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise —without express written permission and consent from
Geratech
© Copyright 2012 by Geratech
All Rights Reserved.
Version 1.0 December 2010
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

2
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YYSUMMARY OF CHANGE
RDV1 29/10/13 Preliminary Release

3
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
CONTENTS
1. Introduction ................................ ............ 1
2. Applications ................................ ........... 1
3. Package Contents ................................ . 1
4. System Requirements ............................ 1
5. Features ................................ .................. 1
6. Hardware Description ............................ 2
6.1 Front Panel .......................................... 2
6.2 Rear Panel .......................................... 3
6.3 OSD MENU .......................................... 4
7. Connection Diagram ............................. 6
8. Specications ................................ ......... 7

4
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
1. INTRODUCTION
The 1 by 2 HDMI Scaler is designed to scale both 4K2K and non -4K2K
HDMI signal into 1080p and also, bypass 4K2K signal out on to 4K2K
display. Allowing all types of HDMI source signal to be display on HDTV/
Monitor. With friendly and simple design which allows user with direct
viewing on inpu t resolution and output signal up to 2 simultaneous
HDMI. The 1 by 2 HDMI Scaler is your best media between HD and
Ultra HD signal.
2. APPLICATIONS
• Ultra HDMI source displaying on standard LED TV/monitor
• Ultra HDMI source displaying on 4K2K TV/Panel
• Examining if display supports 4K2K
• Examining if source supports 4K2K
3. PACKAGE CONTENTS
• 1 x 1 by 2 HDMI Scaler
• 1 x 5V/2.6A DC Power Supply
• 1 x User Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as DVD/Blu -ray(4K2K) player and output
HDMI (4K2K) TV/display.
5. FEATURES
• Supports HDMI 4K2K signal bypass
• Supports HDMI signal bypass
• Simultaneous HDMI outputs
• Friendly and simple to use

5
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
6. HARDWARE DESCRIPTION
The following sections describe the hardware components of the unit.
6.1 Front Panel
HDMI OUTHDMI IN
SERVICE
2
DC 5V
SCALER BYPASS
HDMI OUT/SCALER: This slot is to connect with HDMI TV/display for
output AV displaying with resolution up to 1080p.
BYPASS: This slot is to connect with HDMI TV/display with or without
4K2K specication for output AV displaying according to input
source signal setting.
Input Source SCALER OUTPUT BYPASS OUTPUT
1080p 1080P1080P
4K2K 1080P4K2K
Note: Displaying HDMI 4Kx2K contents, equivalent source signal and
HDMI cable are required on BYPASS output connection.
HDMI IN: Connect from HDMI source equipment such as Blu-ray/
DVD player with or without 4K2K signal.
SERVICE 2: This slot is reserved for factory use only.
4K2K / 1080P LED: These LED will illuminate according to input
source signal’s resolution when both LED are illuminating it state
the input source’s signal does not belong to 4K2K/1080P@24.
DC 5V IN: Connect 5V DC power supply into the unit and connect
the adaptor to an AC outlet.

6
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
6.2 Rear Panel
RS- 232
SERVICE
1
POWER
BYPASS
4K2K
MENU
XGA
- + ENTER
720p
RS-232: This slot is reserve for factory use only.
SERVICE 1: This slot is reserve for factory use only.
POWER LED: This LED will illuminate when the device is connected
with power supply.
BYPASS 4K2K: This LED will illuminate when the input signal contains
with 4K2K resolution.
MENU: Press this button to enter into OSD menu.
- /+: Press this button to scroll down/up the menu selection. Press
“ -“ with “ENTER” button to switch SCALER output resolution to 720p
instantly or press “+” with “ENTER” button to switch SCALER output
resolution to XGA instantly.
ENTER: Press this button to enter or conrm the selection.
geratech EGE-12VS

7
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
6.3 OSD MENU
1st Layer 2nd Layer 3rd Layer 4th Layer
Setting
Contrast 0~100
Brightness 0~100
FineTune
Hue 0~100
Saturation 0~100
Sharpness 0~100
NR
O/
High/
Middle/
Low
Exit
Color
Red 0~100
Green 0~100
Blue 0~100
Exit
Output
Setting
Size Full/Over Scan/Under Scan/Letter
Box/Pan Scan/Best Fit
Resolution
640x480/60,800x600/60,1024x768/
60,1280x1024/60,1600x1200/60,
1366x768/60,1680x1050/60,1920x
1200/60,1280x800/60,1440x900/60
,1400x1050/60,1600x900/60,480i/
480p/720p60/1080i60/1080p60
/576i/576p/720p50/1080i50/108
0p50/
Native
Exit
OSD Setting H-Position 0~100
V -Position 0~100

8
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
TimerOut 5~100
Background 0~100
Display Info/On/O
Exit
Factory
Setting
Reset No/Yes
Exit
Information Input …x…
Output …x…
Version x.xx
Exit

9
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler

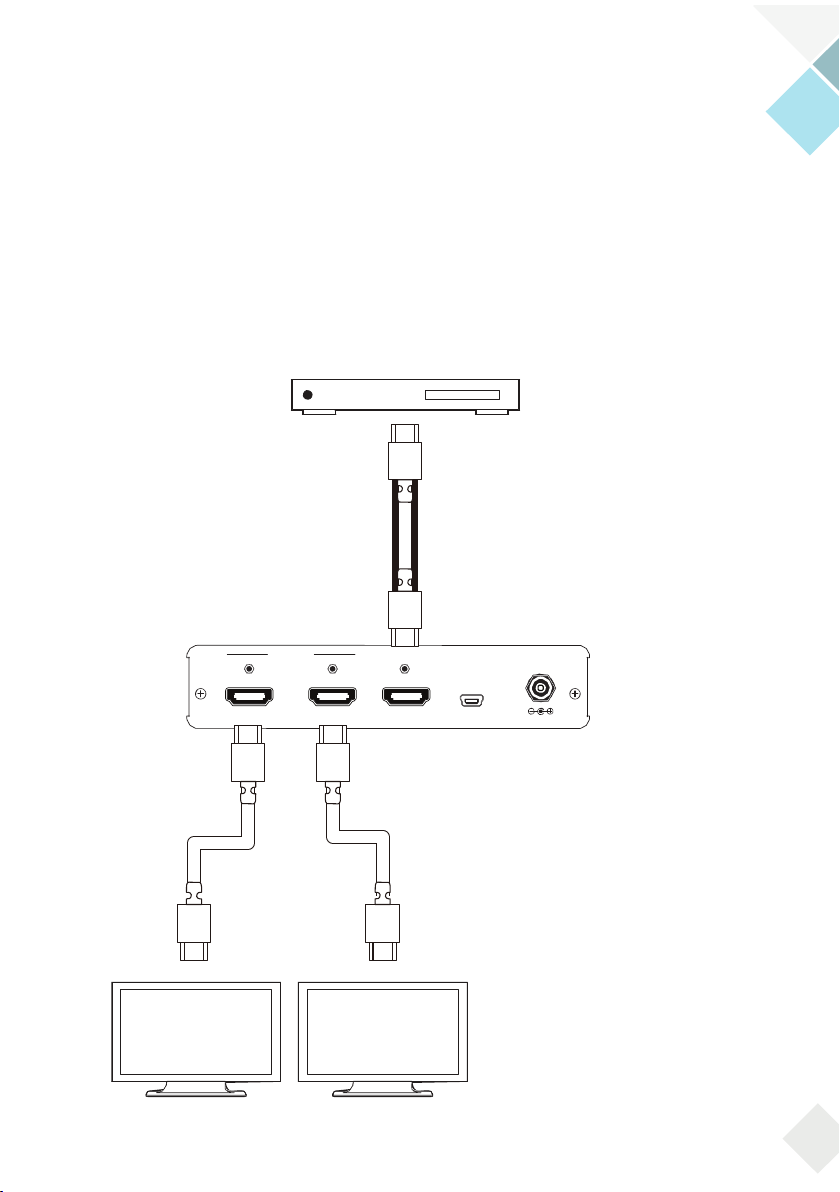

7. CONNECTION DIAGRAM
DVD or Blu -ray Player
HDMI OUT HDMI IN
SERVICE
2
DC 5V
SCALER
BYPASS
HD TV HD TV

10
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
8. SPECIFICATIONS
Video Frequency 300MHz/9Gbps
Input Ports 1x HDMI,
2x USB (Service only),
1 x RS -232 (Service only)
Output Ports 2 x HDMI
HDMI Cable Distance In 15M, Out 15M@1080p/8bit, In 10M, Out
10M@1080p/12bit, In 5M, Out 10M@4K2K
Power Supply 5V / 2.6A DC (US/EU standards, CE/FCC/
UL certied)
ESD Protection Human body model:
±8kV (air -gap discharge)
±4kV (contact discharge)
Dimensions (mm) 145(W) x 160.5(D) x 30 (H)/ Jacks Excluded
145(W) x 167(D) x 30 (H)/Including Jacks
Weight(g) 488
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity 20 ~ 90% RH (non -condensing)
Power Consumption 7.7W

11
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
HDMI Supported Resolutions Input Output
640x480@60 VV
640x480@72 V
640x480@75 V
720x480@60 V
720x480i@60 V
720x576i@50 VV
720x576p@50 VV
800x600@56 V
800x600@60 VV
800x600@72 V
800x600@75 V
1024x768@60 VV
1024x768@70 V
1024x768@75 V
1280x720@60 V
1280x720p@60 V
1280x800@60 VV
1280x1024@60 VV
1440x1050@60 V
1600x1200@60 VV
1920x1080@60 V
1920x1080i@50 VV
1920x1080i@60 VV
1920x1080p@23.97 VV
1920x1080p@24 VV
1920x1080p@25 VV
1920x1080p@29.97 VV
1920x1080p@30 VV
1920x1080p@50 VV

11
www.geratech.com.tr
EGE-12VS
1×2 HDMI 4K2K Video Scaler
1920x1080p@60 VV
1920x1200@60(RB) VV
