1. INTRODUCTION
With support for the transmission of 6G video (resolutions up to 4K2K@60Hz Ultra HD,
and HDCP 2.2) through High Speed HDMI cables, this HDMI Audio Converter with Dolby®
Digital/DTS® 2.0+Digital Out Decoder allows an HDMI audio signal to be de-embedded
and simultaneously split to both digital and analog audio outputs providing high quality
audio and video performance. This unit allows you to make the most out of your audio
signal when relaying it to external speakers or to further extend the audio pathway to
another location.
2. APPLICATIONS
• Home entertainment installation
• Audio extraction and extension.
• Connect to non-HDMI AV receivers or wider audio systems
3. PACKAGE CONTENTS
• 1 x HDMI 2.0 with HDCP 2.2 Audio Converter with Dolby Digital and DTS 2.0+ Digital
Out Decoder
• 1×5 V/2.6 A Power Adaptor
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
HDMI equipped source device and display (TV/monitor) and/or amplier/active speakers
with analog or digital audio connection cables.

HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
2
5. FEATURES
• HDMI 6G video (resolutions up to 4K2K@60Hz with YUV444) and HDCP2.2 compliant
• HDMI 1080p video with 12-bit 'Deep Color', 3D video, and HDCP1.4 compliant
• Dolby Digital Decoder technology embedded
• DTS 2.0+Digital Out Decoder technology embedded
• Integrated digital interpolator lter and Digital-to-Analog Converter (DAC)
• Supports HDTV resolutions up to 4K2K (3840×2160@24/25/30, 4096×2160@24/25/30,
3840×2160@50/60 with YUV444 & 4096×2160@50/60 with YUV444)
• Supports simultaneous audio output on HDMI, analog L/R, Coaxial and Optical outputs
• Supports Dolby Digital sampling rates up to 48kHz
• Supports DTS sampling rates up to 96kHz
• Supports LPCM input sampling rates up to 96kHz
• Supports coaxial and optical output audio sampling rates up to 96kHz
• Supports de-embedding the audio signal from an HDTV’s ARC (Audio Return Channel)
connection
6. OPERATION CONTROLS AND FUNCTIONS

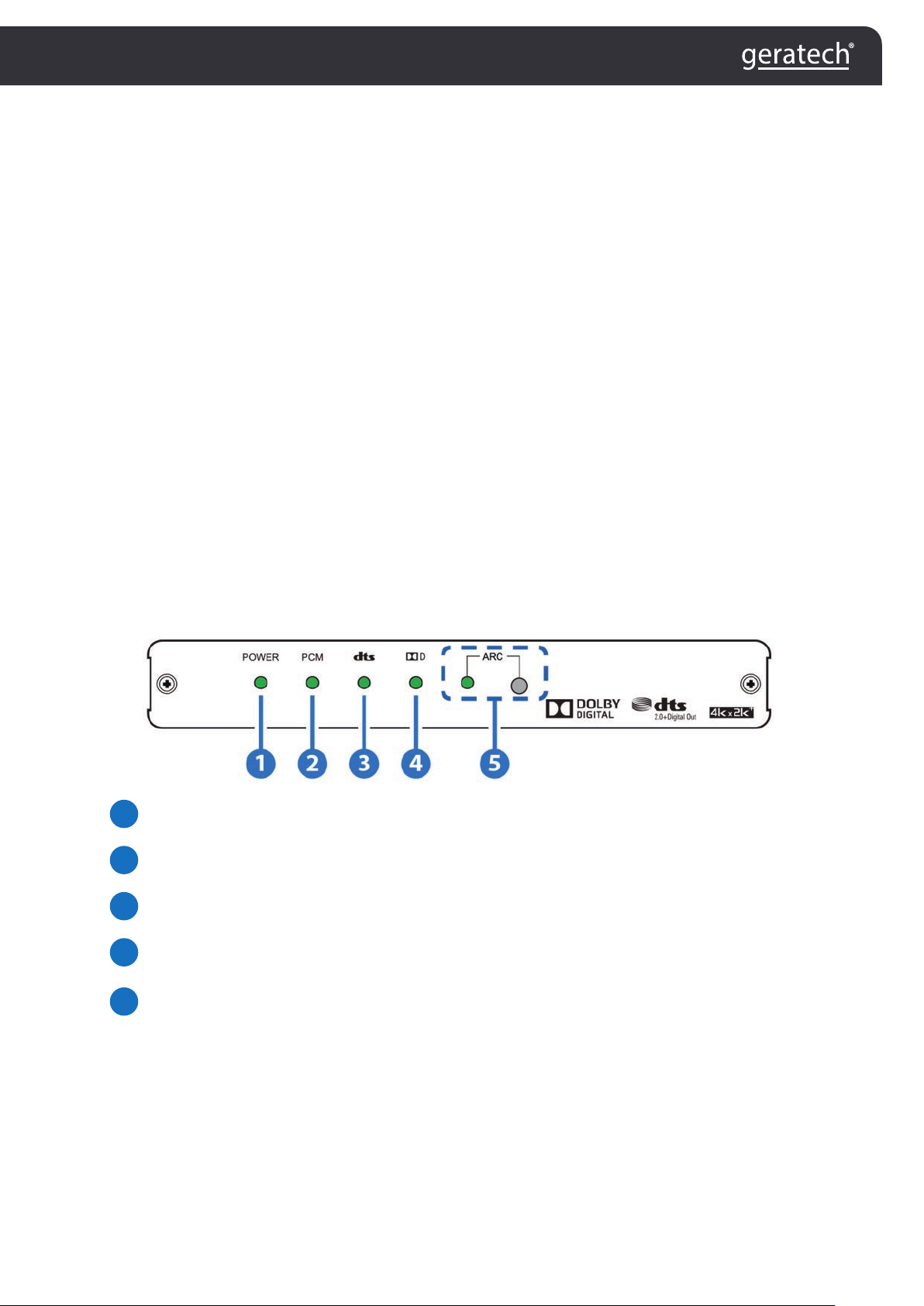

6.1 Front Panel
POWER:
This LED will illuminate when the unit is connected to an active power
supply.
PCM LED: This LED will illuminate when the audio source is encoded in LPCM
2CH audio format.
DTS LED: This LED will illuminate when the audio source is encoded in DTS
2.0+Digital Out audio format.
Dolby LED: This LED will illuminate when the audio source is encoded in Dolby
Digital audio format.
ARC Button & LED: Use this button to select the HDMI ARC (Audio Return
Channel) function. Push this button to enable the HDMI ARC function, the LED will
turn on; push this button again to disable the HDMI ARC function, the LED will turn
off. When no ARC source is detected, the unit will automatically switch back to the
HDMI input.
2
3
4
5
1

HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
3
1

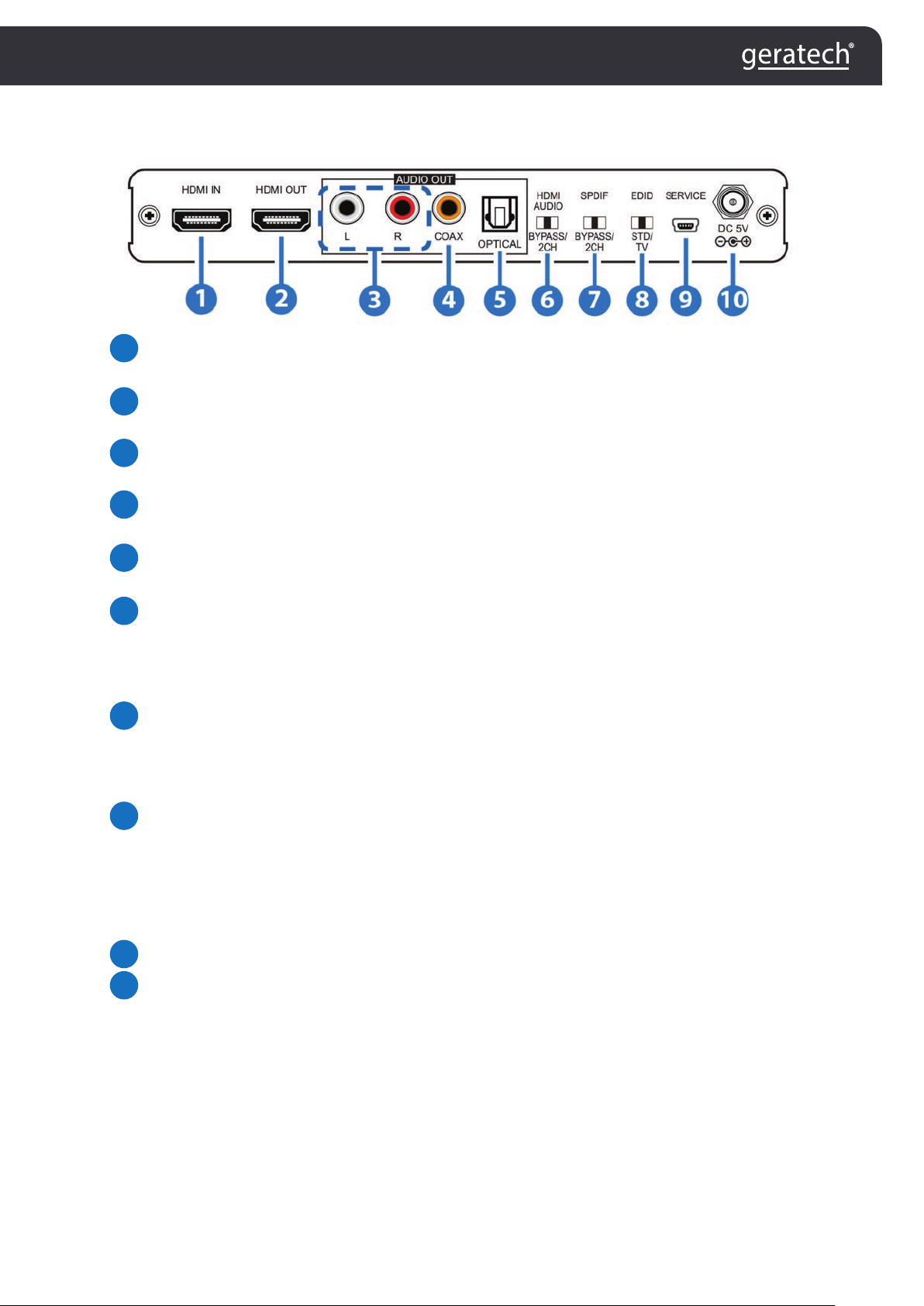

6.2 Rear Panel
HDMI IN: Connect to an HDMI source device such as a blu-ray player, settop
box or any HDMI equipped source device.
HDMI OUTPUT: Connect to an HDMI Ultra HD display (TV/monitor) or UHD AV
receiver for video and audio output.
L/R OUTPUT: Connect to the analog line-level input of an amplier or active
speakers for audio output.
COAX OUTPUT: Connect to the digital optical input of an AV receiver for audio
output.
OPTICAL OUTPUT: Connect to the digital coaxial input of an AV receiver for audio
output.
HDMI AUDIO BYPASS/2CH: Use this switch to select the audio format of the HDMI
output. Switch to 'BYPASS' to allow the audio to pass-through from the HDMI input
port; switch to '2CH' to enable audio decoding and LPCM 2CH down-mixing of
Dolby Digital or DTS audio signals from the HDMI audio source.
SPDIF BYPASS/2CH: Use this switch to select the audio format of the Coaxial and
Optical outputs. Switch to 'BYPASS' to allow the audio to pass-through from the
HDMI input port; switch to '2CH' to enable audio decoding and LPCM 2CH
downmixing of Dolby Digital or DTS audio signals from the HDMI audio source.
EDID STD/TV: Use this switch to select the EDID mode, 'STD (Standard) mode' or
'TV mode'. When in 'TV mode', the unit will automatically detect and store the EDID
settings of the display connected to the HDMI output. If there is no picture or a
distorted image, please switch to 'STD mode' which will use video up to 1080p at
60Hz and audio up to LPCM 2CH at 48kHz, Dolby Digital 5.1CH and DTS 5.1CH.
SERVICE: Manufacturer use only.
DC 5V: Connect the adaptor included in the package to an AC wall outlet for power
supply.
2
3
9
6
7
8
5
10
4

HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
4

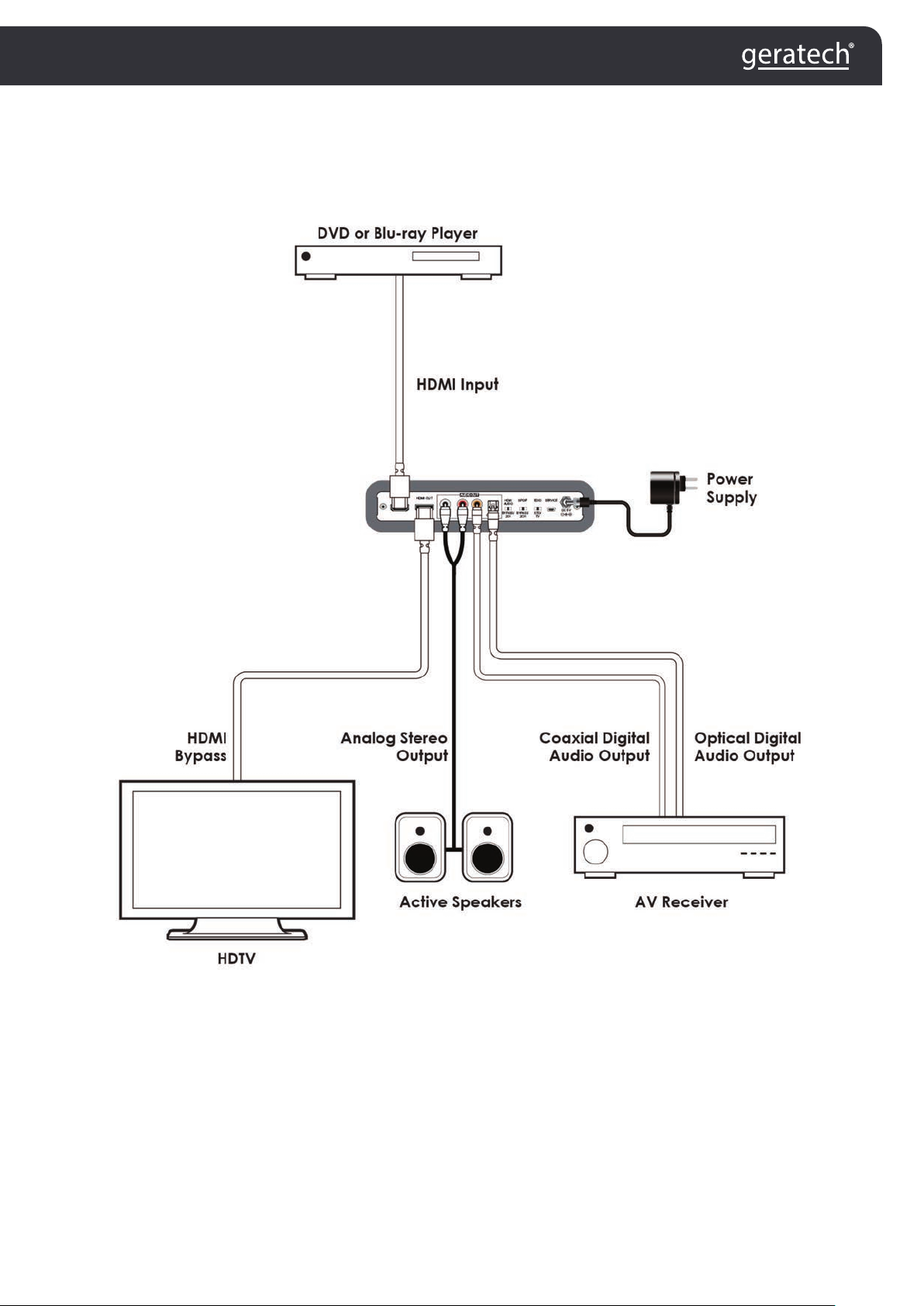

7. CONNECTION DIAGRAM

HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
5
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 600 MHz/6 Gbps
Input Ports 1×HDMI, 1×USB (Service only)
Output Ports 1×HDMI, 1×Coaxial, 1×Optical,
1×L/R (2 RCA)
HDMI Cable Length Input: 10m@1080p, 3m@4K2K
Output: 10m@1080p, 3m@4K2K
Power Supply 5 V/2.6 A DC
(US/EU standards, CE/FCC/UL certied)
ESD Protection
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions 180 mm (W)×104 mm (D)×25mm (H)/Jacks Excluded
180mm (W)×112.75 mm (D)×25 mm (H)/ Jacks Included
Weight 374g
Chassis Material Metal
Color Black
Operating Temperature 0 °C~40 °C / 32 °F~104 °F
Storage Temperature −20 °C~60 °C / −4 °F~140 °F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 5.06W

HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
6
8.2 Video Resolutions
HDMI/DVI RESOLUTIONS INPUT OUTPUT
640×480@60/72/75/85 √ √
720×400@85 √ √
800×600@56/60/72/75/85 √ √
1024×768@60/70/75/85 √ √
1280×720@60 √ √
1280×768@60/75/85 √ √
1280×800@60 √ √
1360×768@60 √ √
1440×900@60 √ √
1600×900@60 √ √
1600×1200@60 √ √
1920×1080@60 √ √
1920×1200@60 √ √
1440×576i@50 √ √
1440×[email protected]/60 √ √
720×[email protected]/60 √ √
720×576p@50 √ √
1280×720p@50/59.94/60 √ √
1920×1080i@50/59.94/60 √ √
1920×[email protected]/24/25/29.97/30/50/59.94/60 √ √
3840×2160@24/25/30/50/60 (YUV444) √ √
4096×2160@24/25/30/50/60 (YUV444) √ √
3840×2160@60 (YUV420) √ √
4096×2160@60 (YUV420) √ √

HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD
7
8.3 Audio Support Specication
Input
Level/
Freq.
Output
Output
Level
Vrms
db±10%
THD+N Frequency
Response SNR >90db Crosstalk <-90dB
HDMI
0dB/1kHz
48~96kHz
Analog 2 Vrms < 0.01% ±1 dBFS >104dB <-110dB
Coaxial 0 dB < 0.00001% ±1 dBFS >141dB <-164dB
Optical 0 dB < 0.00001% ±1 dBFS >141dB <-163dB
HDMI 0 dB < 0.00001% ±1 dBFS >141dB <-164dB
8.4 Input to Output Audio Format
Audio
Input
Input
Format
Analog
L/R
Audio Output
HDMI S/PDIF
Switch Status Switch Status
BYPASS 2CH BYPASS 2CH
HDMI
LPCM
2CH
Analog
2CH LPCM 2CH LPCM
2CH
LPCM
2CH
LPCM
2CH
Dolby
Digital
Decoded
Lt/Rt
Bitstream
Pass-through
LPCM Lt/
Rt
Bitstream
Pass-through
LPCM Lt/
Rt
DTS Decoded
Lt/Rt
Bitstream
Pass-through
LPCM
Lo/
Ro
Bitstream
Pass-through
LPCM Lo/
Ro
HDMI
ARC
LPCM
2CH
Analog
2CH
HDMI Pass-throug
LPCM 2CH LPCM
2CH
Dolby
Digital
Decoded
Lt/Rt ARC
Bitstream
Pass-through
LPCM Lt/
Rt
DTS Decoded
Lt/Rt
LPCM Lo/
Ro
9. ACRONYMS
ACRONYM COMPLETE TERM
DTS Digital Theater System
DVI Digital Visual Interface
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protectionl
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA Wide Ultra Extended Graphics Array

HDMI 2.0 with HDCP2.2 Audio Converter with
Dolby Digital and DTS 2.0+ Digital Out Decoder
EGE-6UHD-AUD

www.egerate.com www.geratech.eu
