Geringhoff Rota-Disc User manual

Operating instructions
Rota – Disc*
Corn header
Carl Geringhoff – Vertriebsgesellschaft mbH & Co. KG
Gersteinstraße 18, D – 59227 Ahlen
Tel. ++49-2382-9814-0, Fax ++49-2382-981440
E-Mail: [email protected] Internet: www.geringhoff.de
E –BA-RD-03

Content
General
Certificate of conformity EC 02 / 000
General safety arrangements 01 / 020
Introduction 01 / 000
To the customer 01 / 010
Warning label (pictograms) 01 / 030
Corn header
Contrate gearing speed change 09 / 600
Couplers between the stripping plates 09 / 640
Corn header to mount 09 / 120
Corn header drive 09 / 160
Corn header to unpack 09 / 000
Cross belt auger / feeding 09 / 720
Cut-off block 10 / 210
Divider noses to mount 09 / 320
Drive coupler folding corn headers 09 / 280
Gathering chains 09 / 520
Gearing and oil control 09 / 560
Hydraulic connections to mount 09 / 200
Hydraulic function of folding corn headers 09 / 240
Mounting arrangements on combine 09 / 080
Operation and function of monitor 09 / 440
Overload protections and sliding clutches 09 / 800
Stripping plate adjustment 09 / 480
Trial run 09 / 680
Weights 09 / 040
Rota Disc* Corn header
Knife disk shaft 10 / 100
Stripping rotors 10 / 200
Stubble cutter / stripper 10 / 000
Maintenance and Care
Maintenance and care 10 / 300
Help in case of malfunctions
Cross belt auger 10 / 915
Drive 10 / 905
Hydraulics 10 / 900
Stripping unit 10 / 910
Special equipment
Corn ear saver 35 / 050
Change speed gear 35 / 010
Change speed gear 35 / 005
Lodged maize augers
Sunflower harvester 35 / 000
Special tools
Chain tension tool 36 / 000
Starting torque for screws 36 / 100
Puller for rotor bearing 36 / 000
Wiring diagrams etc.
Wiring diagram combine lighting 36 / 500
Wiring diagram hydraulics folding headers 36 / 300
00-001

Introduction
These operating instructions describe the most
essential working steps for a safe handling and use
of the Geringhoff products.
Read these instructions and observe the safety
notes.
A regular maintenance and care will help to keep
the value of the product and to ensure a trouble-
free use over many years to your benefit.
Tell us about your experience made with the
machine to enable us to put it into practice. The
partnership with our customers is very important to
us and will contribute to our common success.
01 / 000

To the customer
We thank you for the confidence placed in us on
the purchase of a Geringhoff product.
Hereunder you’ll find some important information
for the use of these operating instructions:
• When using the operating instructions, we
recommend using also the spare part
catalogue for gaining an in-depth
understanding of essential details.
• Note the most important data of your
machine in the fields provided. That makes
it easier to you answering the questions of
your supplier.
Machine no.:_______________________
Machine type.:_______________________
Year of construction:__________________
Row distance:_____________________
Working width/ Number of row units: _____
Combine type.:___________________
• The series no. is on the typeplate left on
the supporting frame.
• The operating instructions contain the
international standard SI-measures.
• Right and left means always towards travel
and/or working direction.
• If you are in need for spare parts, keep the
required data available and get in touch
with your dealer.
• Do only us original Geringhoff spare
parts.
• Send the completed consignment note
directly to the manufacturer. This
information is very important for potential
guarantee claims. Failing which, these
potential claims cannot be handled.
• Do not make any modifications on
important, load-bearing and safety-relevant
elements. The manufacturer does not
assume any guarantee for damages
resultant therefrom.
01 / 010

General safety arrangements
To prevent accidents, follow strictly these
operating instructions and warning notes on
the
machine.
Before starting the machine, check it for operational
dependability and traffic safety!
Apart from these operating instructions, follow also the
current safety instructions!
The warning signs and labels give important notes for
the safe operation of the machine and serve to your
and the health of others!
Prior to starting the works, make yourself familiar with
all operating elements and functions.
Check the driving characteristics, steering and braking
behaviour.
No riders unless sitting on the provided places.
When working on the machine, the provided supporting
devices must be used.
Admissible axle loads and total weight must absolutely
be observed.
Before the start-up, all guards and maintenance holes
to close.
Whilst the machine is running, keep off the dangerous
area.
Maintenance and repairing works to be performed only
with Diesel motor cut off.
On public roads the legal provisions to observe.
All machines have a valid ABE or EBE governing the
road transport licensing regulations.
If required, additional headlights for the road transport
to mount.
(see road transport licensing regulations)
The instructions of the combine manufacturer for the
operation with headers to follow.
01 / 020

Warning label (pictograms)
ISO 11684
Prior to performing maintenance and repairing
works, the motor to turn off and the key to withdraw! It’s only allowed to go into the dangerous zone
when the lifting cylinder safety is put in!
Keep off the dangerous zone between During the operation guards must not
header and machine! be opened or removed!
Whilst motor is running, guards never to Whilst the motor is running, guards must not be
open or remove! opened or removed!
Keep a sufficient safety distance to the header. Never go into the slewing range of
Prior to maintenance works or clearing of cloggings the machine!
header to switch off, motor to stop and key to
withdraw!
01 / 030

EG-Konformitätserklärung
02 / 000
EG-Konformitätserklärung
02 / 000

Rota – Disc* corn header
Rota – Disc*
We reserve the right of making modifications
for the sake of progress.
Sizes and weights are approximate values and refer each to
the standard versions of the different header types.
Due to the great number of header models and combines
this list cannot show all the different illustrated variants.
For this reason, we hope you will understrand the general
sense of the wordings, which requires a sufficient basic
knowledge of the carrier machine.
RD / 000

Corn header to unpack
09 / 000
Scope of supply / state at time of supply
Subject to model and type the header can be supplied in
horizontal position or upright on a shipping crate.
Each consignment is accompanied by a detailed and type-
referred packing list.
Packages attached to the header to remove.
Check the scope of supply!
Check the supplied row distance!
Ensure the safe standing of the
machine!
Remove the shipping crate

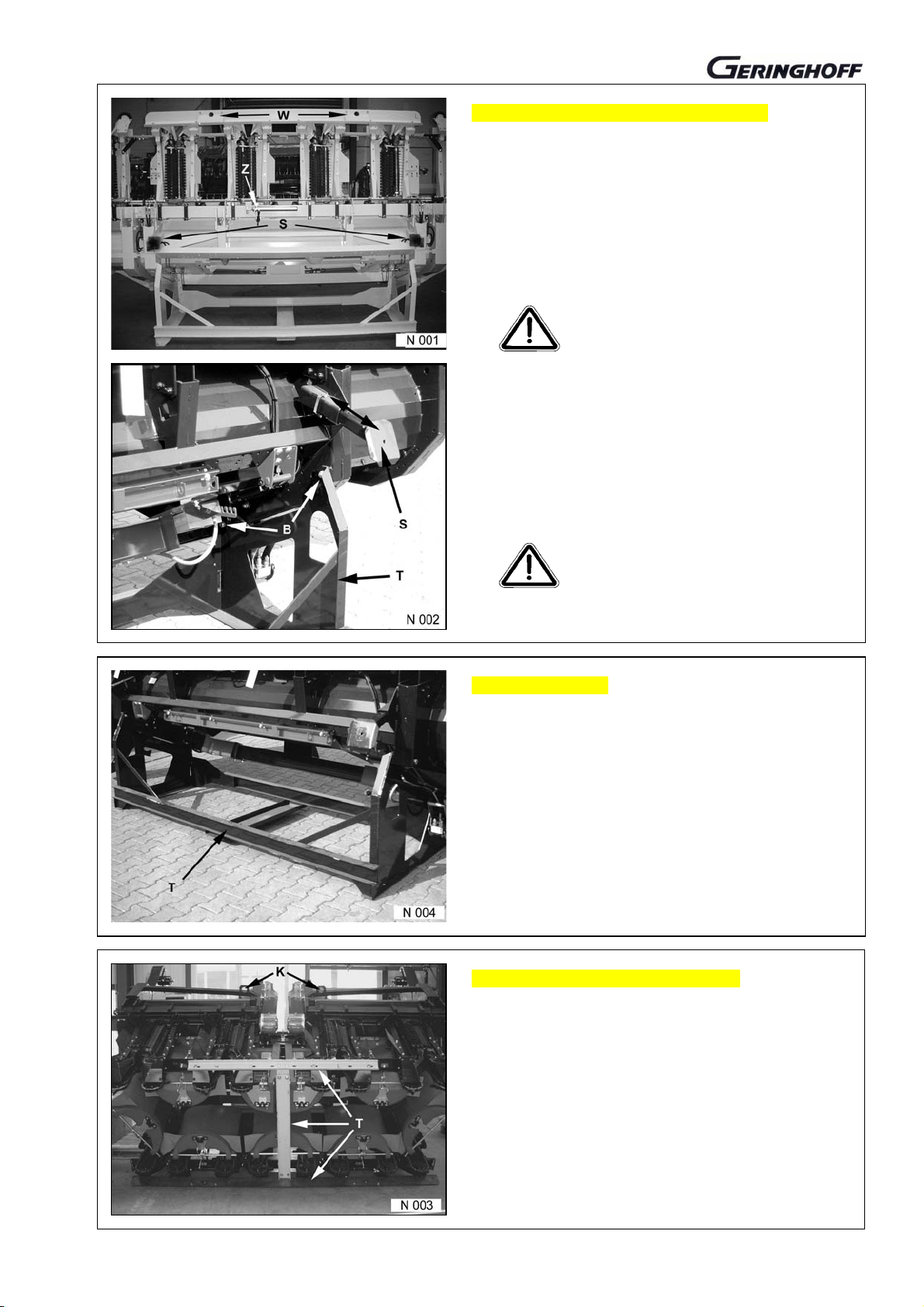

Extend the supports (S). Move the hoist to the bottom side
of the header.
Suitable chains or belts to attach to the drawbar eyes (W),
slightly to lift and hoist slowly to move away from the
header.
Header carefully to lower considering the tilting angle.
Use hoist, which is strong enough!
Do not go into the dangerous zone!
Follow the instructions for hoists!
Remove screws (B) and shipping crate.
Further use of the trestle
The trestle (T) is recommended to be stored for a later use.
Possible after-season and service works are to be
performed easier with the machine standing in upright
position.
Folding corn headers to lift by crane
Folding headers are possibly supplied without shipping
crate (T).
For the transport with hoists only provided eyes (L) and
location on the front transport angle (S) to be used.
If required, transport protection to remount.
Before mounting the header to the combine, transport
protection to remove (S).
Protection to remove only when the header stands on firm
ground.

Corn header to unpack
09 / 040

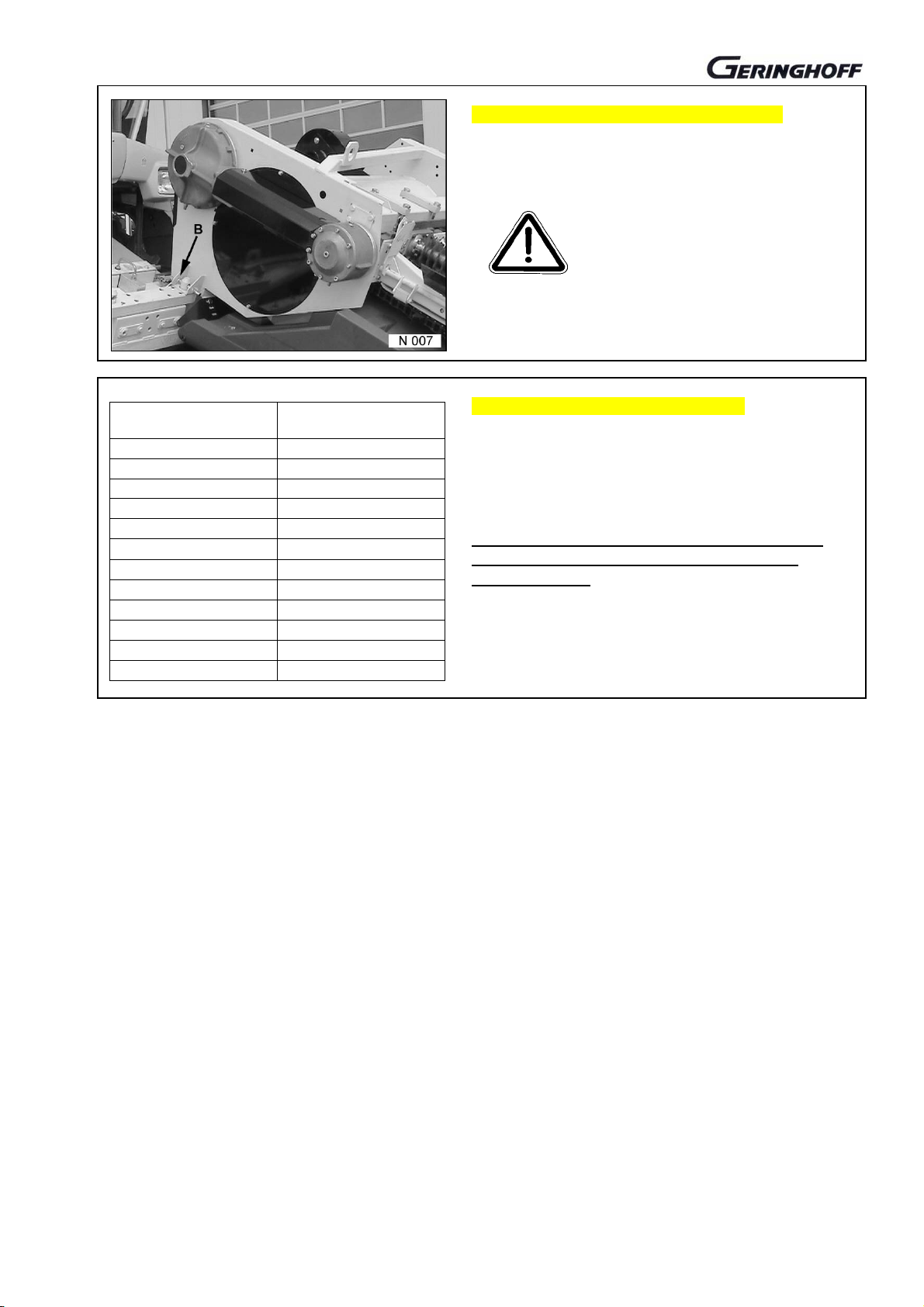

Corn header Approximate weight
in kg
4-rows 1290
5-rows 1640
6-rows 1975
6-rows (folding) 2250
7-rows (folding) 2400
8-rows 2520
8-rows (folding) 3025
9-rows 2750
9-rows (folding) 3250
12-rows 3650
12-rows (folding) 4150
Take a hoist, which is strong enough
The weight of the different header models to be learnt from
the opposite table.
Follow the instructions for the use of hoists!
The exact weight of the different headers is
indicated well visible on the typeplate of
each machine!
Transport protection folding corn headers
A
part from the transport protection as shown in pictu
r
e
N 003, folding corn headers from 8 rows are fitted with an
additional protection (B) on the frame.
Bolts (B) not to remove before
definite placing down of the
header and removing of the hoist.
When using the hoist again, locking bolt (B) must be put in
before.

Assembly preparations on the combine
09 / 080
Front protection on gathering channel
The standard front protection (S) on top of the feeding
chain and the stripping angles (A) on the gathering
channel front are to be dismounted.
The corn header itself is fitted with a special front
protection.
When working on the combine, the
Diesel motor must be turned off!
Assembly preparations gathering channel
The feeding chain, its tension and the distance to the
channel bottom is to be adjusted according to the
instructions of the manufacturer.
(See combine manual)
Prior to the first mounting of the header, the anti-lowering
device of the gathering channel to check. Never to
perform works on the header without using this device.
On all service works on the mounted
header, lowering lock to activate!
Additional headlights
Some combine models require to mount additional
headlights for the road travel, see the scope of supply of
the header.
A
wiring diagram is enclosed to the headlight set. A
position switch must be used for changing between
standard and additional headlights!
Instructions of the TÜV-expertise to observe!
General terminal connecting diagram on page 36 / 500
f¤r alle Md Typen
Gegr¤ndet 1880
leuchten des M╠hdreschers
und des Frontschutzes m¤s-

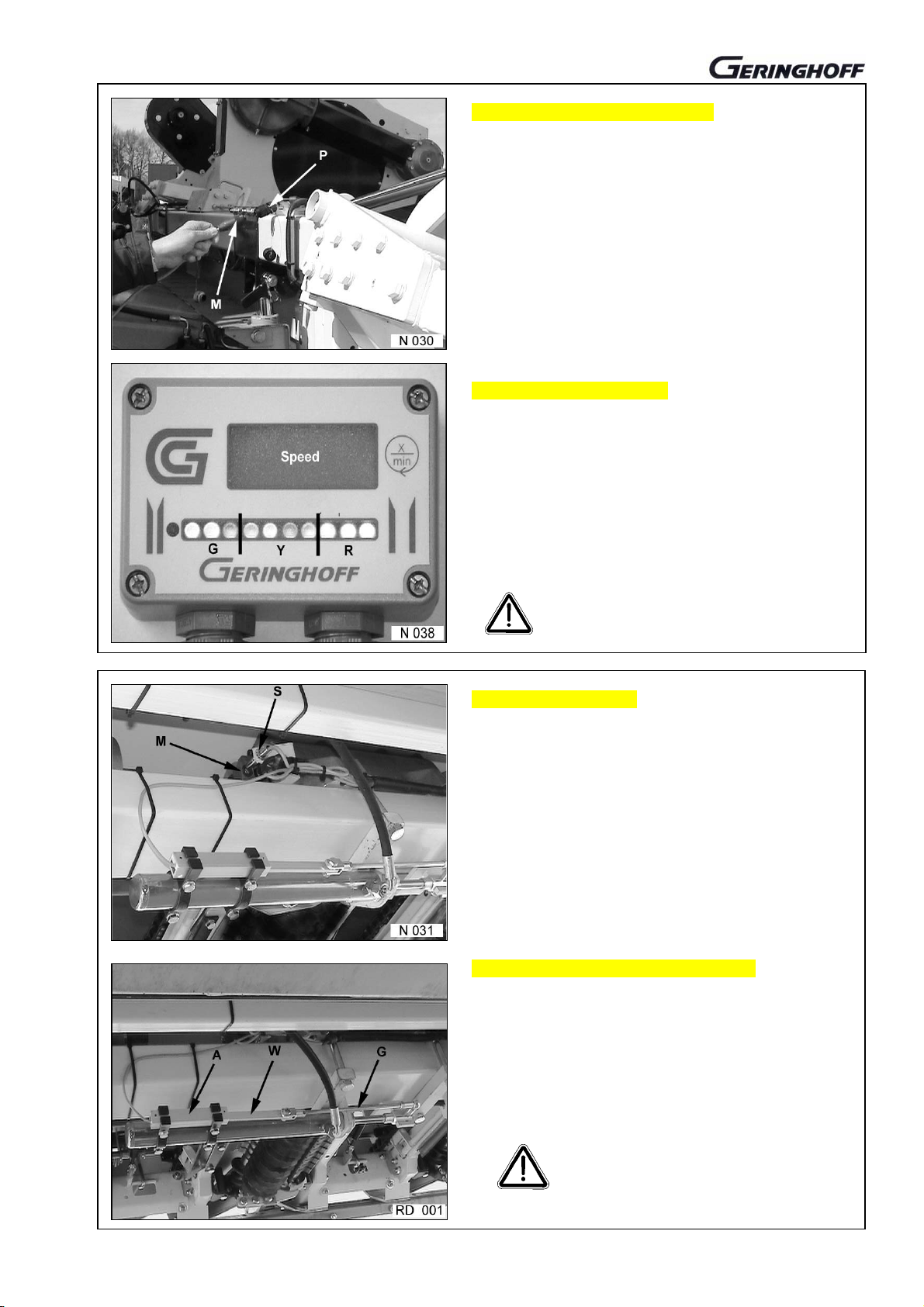

Monitor
Display unit (M) to mount well readable but without visual
obstruction on top of the fittings.
The 12 V current is supplied independent of the ignition
lock via the plug (Z). (fuse max. 10 Amp.).
Connecting cable (S) right below with seal (T) to lead out
of the cabin bottom. Ensure that the cable is long enough
outside the cabin.
The monitor reads both the speed of the header and the
position of the stripping plates (P) via a changing number
of diodes.

Mounting of the corn header
09 / 120
Adaptation to the combine
The corn header is to be placed down on the supports (C).
Check the correctness of the adaptation parts. Fur further
information, see spare part catalogue 3061000 from
picture table 60/..
Combine to move to the header.
Header with the gathering channel to lift.
Correct seat of the adaptation parts (A) to check.
Persons are not allowed to stay
between comb between combine
and header during the mounting
process.
Corn header to lock on gathering channel
Corn header to secure against
unwanted lowering by u lowering!
Use locking mechanism
on the hydraulic cylinders!
The header (R) to be mounted to the points and devices
of the combines as provided.
Corn headers always slowly to lower to the ground to
keep
unwanted forces away from the locking.
Follow the instructions of the combine manufacturer!
Additional lifting cylinder
Subject to the size and weight of the corn header, one or
two additional hydraulic cylinders (Z) may be required.
The combine manufacturer holds the corresponding kits
ready.
Subject to the design of the corn header and carrying
capacity of the different combines, the steering axle may
require using additional weights and the tires being filled
with water.
Follow the instructions of the combine manufacturer and
TÜV-expertise
Additional counterweights
Subject to the weight of the mounted corn header,
additional loading weights may be required for being
mounted to the steering axle of the combine.
The dimensions of these additional weights are to be
learnt from the road permit, combine manual or TÜV-
expertise of the corn header.
The road transport licensing
roads must regulations must
absolutely be followed.

Corn header drive
09 / 160

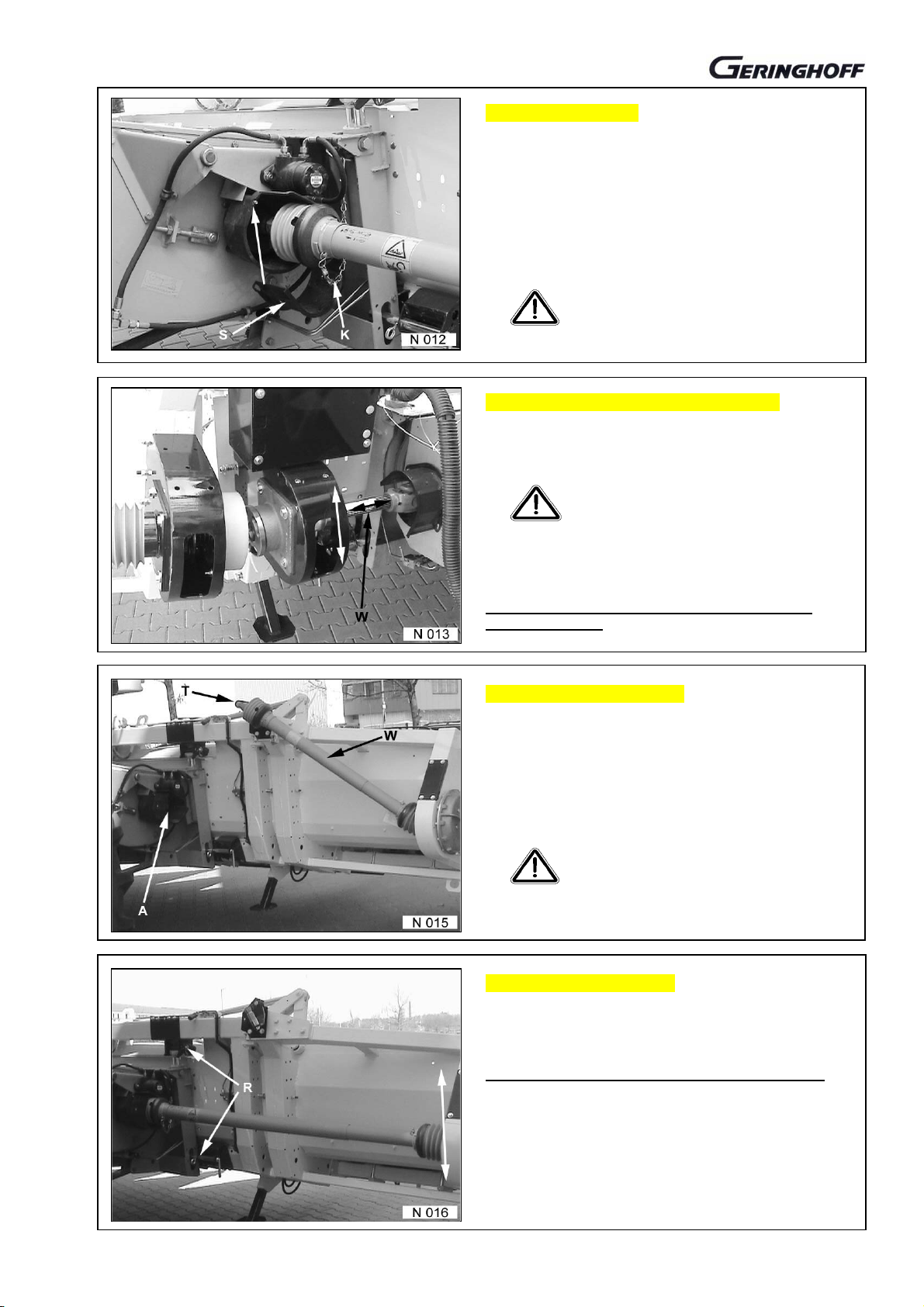

Drive with PTO-shaft
Unfolding corn heads are driven by a simple PTO-shaft on
the right side.
Subject to the combine models, they can also be driven on
the left side, e.g. machines > 6 rows.
PTO-shaft protection to prevent from turning via chain (K).
If the combine is fitted with a pivoting shield, overlapping to
be checked in extended state.
Protective devices (S) to be checked
prior to start-up. Do not open or
remove them during operation.
Folding headers with PTO-shaft coupler
Check the PTO-shaft between coupler and channel
connection for sufficient overlapping. If required, pivoting
shield to actuate.
The heel compensation of some
models requires to be blocked.
On RD600F / RD800FB e.g. to John Deere series 20... /
22... + WTS / STS / CTS with PTO-shaft coupler, the
pivoting shield must be blocked ( follow the instructions).
Hillside combines cannot be operated with automatic
PTO-shaft coupler.
Drive for hillside combines
A
ll hillside combines are directly driven by PTO-shafts (W)
to be slipped on by hand.
Certain combine-header combinations require wide angle
or even special PTO-shafts.
Instructions absolutely to follow and PTO-shaft design to
consider.
Prior to start up, check pivoting
range and PTO-shaft length. Check
for sufficient overlapping.
The fastening (T) of the PTO-shaft is for transport.
Use of the pivoting shield (heel compensation)
On principle, the pivoting shield of the combine can be
used combined with the majority of the corn headers
without any limitation, unless otherwise specified.
The instructions of the combine manufacturer to follow!
PTO-shaft length to check in all positions.
If required, special locks (R) to mount to upper adapter
frame and secure.
A
lways trial run to conduct!
Instructions for PTO-shaft drives to observe!

Hydraulic connections
09 / 200
Multicoupler
If the combine is fitted with a multicoupler (optional), the
header should be fitted likewise.
The suitable coupler (optional) can be added to the supply.
The operation to be made according to the instructions of
the combine manufacturer.
When checking the functions, keep off
the dangerous zone.
Tightness to check!
In case of leakages the conditions for
environmental protection to follow !
Connection via control valve coupler
Some combine makes require using a control valve
coupler (M) for connecting the header.
The respective headers are fitted accordingly as
standard.
The operation to be made according to the instructions of
the combine manufacturer.
When checking the functions, keep off
the dangerous zone.
Tightness to check!
In case of leakages the conditions for
environmental protection to follow!
Connection via simple screw and/or slip-on
couplers
If only simple slip-on and/or screw couplings are available,
first double and simple-acting lines are to mark.
The simple-acting line is to connect to the line of the
stripping plate adjustment.
The double-acting lines serve to the control of the folding
process of the respective headers.
Establish a safe connection to allow the oil flowing !
Lines to mark and always immediately to connect so that
the working purpose remains unchanged!
Hydraulic actuation of the folding process
Reel:
“ Lifting and lowering ” = stripping plates “ open and
closed ”
Reel horizontal adjustment: (optional)
“ forward and backward ” = folding process “ open and
closed ”
When checking the functions, keep
off the dangerous zone.
Tightness to check!
In case of leakages the conditions for
environmental protection to follow.

Hydraulic functions of folding corn headers
09 / 240
Folding process (from transport in working position)
Reel horizontal adjustment of the combine to actuate until
the header has reached its working position.
Keep off the dangerous zone!
Keep off the working range of the
header! header!
Valve actuation not to finish until 10 seconds after complete
closing of the cover shields (to assure the locking function).
Machine to run idle to get the drive coupler engaged.
Locking
Once the header is completely open in working position,
the locking (B) is automatically activated.
If the header is not completely open in working position, to
troubleshoot.
(see help in case of malfunctions, page 10 / 900)
There are possibly foreign substances hindering the
function.
Bolt (B) must completely extend in locked state.
Check drive coupler! Cams are spring-loaded and turn off
unless cam and opening in driving plate are not in line!

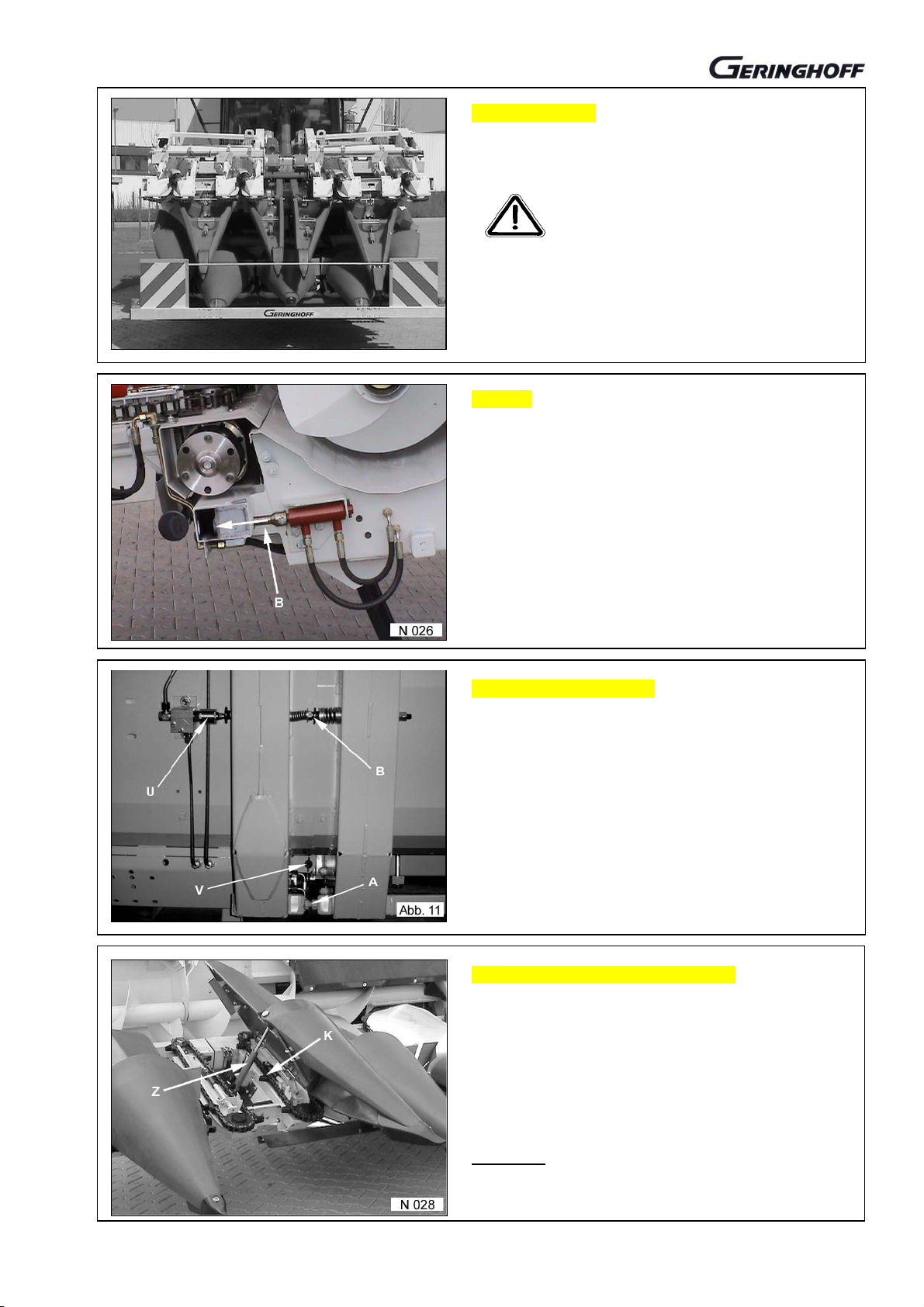

Control valve for locking
The locking (V) is triggered by the valve (U) and closes
only if the header has really reached its working position.
If the locking is not activated despite of sitting closely on
the stop screws (A), on-off valve (U) to readjust with screw
(B), if required!
If required, stop screws on the bottom frame and locking
bolts (V) to readjust.
Automatically closing cover shields
Cover shields (A) close only after complete extension of the
locking bolt.
Failing which, to troubleshoot.
Factory adjustment has been checked. Corrections are in
general not required.
Folding process is not finished until the cover shields are
completely closed.
Attention!
Machine not to run with opened shields. Hydraulic cylinder
(Z) would get in contact with the gathering chain.

Drive coupler folding headers
09 / 280
Drive coupler folding headers
The drive coupler, if any, ensures an automatic coupling of
the PTO-shaft drive.
Prior to start-up and then in regular intervals the correct
osition of the coupling halfs to check.p
Check the protective devices (S) for correct fitting.
Machine always to let idle.
Persons to keep off the dangerous
zone!
Drive coupler 6-row folding headers
The coupling half mounted to the folding element is
adjusted only via the protective tube (R).
If the coupling halves must be readjusted, screws (S) to
loosen and protective tube to displace accordingly.
Parallel fitting of the coupling halves absolutely to assure.
The coupling halves to axially regulate only via spacers (Z)
below the bearing.
Correct fitting of the protective ring (G) to ensure.
Header with drive couplers on both sides
From a certain number of rows the headers are fitted with a
both-sided drive.
If the coupling halves require an axial regulation, spacers
(Z) only to use on the marked positions.
The radial adjustment is made on the bearing points b
y
displacing the bearings into the bores provided.
The parallel fitting of the coupling halves absolutely to
ensure.
Maintenance and care
Coupling washers (S + B + K) to be slightly greased in
regular intervals.
Sliding parts of the respective coupling halfs once to
dismount prior to start working and sliding parts to grease.
A
xial fastening screw carefully to tighten with standard
torque.
Header drive not to set into operation
if the header is in collapsed state.
Risk of accident on the coupling halfs!

Divider noses to mount
09 / 320
Selection of the divider noses for mounting
Divider noses with bore (D)
The supplied center divider noses differ only by a bore
(D) about 18 mm Ø if the header has been supplied with a
transport protection.
These center divider noses are to mount right and left (T)
from the center (M) for receiving the transport protection.
Corn header to lift and secure via
support on the lifting cylinders against
unwanted lowering!
Mounting of the center divider noses
Shield to open by throwing over the lever (H) and slightly to
press upwards from the centerings to the stop of the gas
pressure spring.
Shields may jump upwards by gas
pressure cylinder!
Tube (R) to remove once unscrewed the axial screwing (S).
Tube to put in provided bore of the divider nose and shield.
Screwing to tighten.
Divider nose to lift and setting bar (E) to hang into the
support (A). Safety bolt (B) to mount and secure by cotter
pin.
Shield strongly to press down for closing and to check that
locking pin hooks in. Via lever (H) shield to close with
moderate prestress. If required, locking hook to readjust.
Mounting of outer divider
The same procedures as with the center divider noses.
Risk of bruising when mounting
shields and divider noses !
The divider noses are adjusted via the screw (E).

Divider noses to mount
09 / 360
The center divider noses to mount to the shields
Only possible with the hydraulic connection already mounted.
Start folding process. If folding shields are open, procedure
to stop.
Motor to turn off !
Corn header to secure against
unwanted lowering!
Mounting procedure of the divider noses is the same as for
the other center noses.
The divider noses are adjusted via the screw (E).
Adjustment of the divider noses
Protection against lowering to remove.
Header to lower to a ground distance of about 10 cm on an
even surface.
Divider noses with screw (E) to adjust such that their
distance to the ground is 2 cm (normal adjustment).
On the harvest of lodged maize and if the combine sinks
into the deep ground, the noses are to lower deeper.
Attention!
In case of an extremely lower adjustment, ensure that the
divider noses don’t get in touch with the gathering chains!
Mounting of the increased shield
For transport size and package reasons the
increased side shield is supplied unpacked.
It is mounted to the outer bodywork into the provided
threaded bores (G).
Attention!
A
ll screws of the plastic parts normally to tighten to prevent
the bores from being damaged.
The harvest can be made on option even without these
increases.
Bores to drill for transport protection
If divider noses have been mixed up on assembly or
supply, the required bores can be drilled into the both
center divider noses on the site.
Directly behind the divider nose top plate an 18 mm Ø bore
to drill only into the upper plastic surface.
The respective center divider noses are selected according
to the specifications of the transport protection or to picture
N 017 on page 09 / 320.

Road transport
09 / 400
Front protection
Unfolding headers up to a transport width of 3,0 m are
fitted with an unlighted transport protection.
A
ll foldable headers up to a transport width of 3,3 m are
fitted with a lighted transport protection.
The connection is made via a standard socket which, if
not available, must be mounted on or below the driver
stand.
The outer unfolding center divider noses are provided
with bores for locking the transport protection.
(see page: divider noses to mount, page 09 / 320)
Front protection with lighting connection
on multicoupler and/or control valve unit
In certain combine makes the lighting connection for the
front protection is integrated into the general supply line
(M) to the header.
- The front connection is then connected to the
socket (E).
- If required, the front protection is connected via
another individual connection.
Instructions of the combine manufacturer to follow!
Transport on public roads
It’s not allowed to transport the corn header on public
roads without transport protection.
The maximum admissible height of the slewing arm of the
ejecting channel on the transport on public roads is about
0,45 m as measured on the front protection (H) and is
determined for each machine in the separate licensing
documents.
Road transport licensing and
TÜV-regulations as well as instructions
of the combine manufacturer absolutely
m to observe.
A TÜV-expertise is enclosed to
each machine.

Operation and function of monitor
09 / 440
Monitor to connect to the header
Plug-type connector of the monitor cable coming from the
driver cabin to connect right with the header coupler.
Current supply to activate as described on page 09 / 080
Speed indication on monitor reads „ O “.
If the machine is running on operational conditions, a value
of about 720 - 750 r/min is indicated.
The speed indication allows to reliably evaluate the state
and load of the combine against the header.
Dropping speeds signal either an insufficient belt tension or
overload of the combine drive.
Stripping plate adjustment
Subject to the position of the stripping plates, a certain
number of green (G), yellow (Y) or red (R) diodes light up.
The more the stripping plates are open, the more diodes
are lighting up.
The number of the flashing diodes is only to be seen
on the monitor. Before the start-up, the proportion of
the flashing diodes to the position of the stripping
plates as a function of the harvest conditions is to be
determined.
Prior to checking, Diesel motor
to turn off! Keep your hands off the
stripping plates!
Recording tachometer
The recording tachometer (S) is located between two rows
on the drive connection claw of the Centaflex-coupler.
The distance between the magnetic switch (S) to the
magnet (M) and/or claw should at least be 1,5 mm and at
max. 2,5 mm.
Rheostat of stripping plate adjustment
The rheostat (A) and the slider (W) should be cleaned in
regular intervals.
Via the axial adjustment of the spindle (G) and by
displacing the position of the rheostat (A), the indication of
the diodes allows individually to be changed.
Electric supply lines to be checked in regular intervals.
Prior to checking, Diesel motor to
turn off!
Header to be secured against
unwanted lowering!
