GermAway 201105 User manual

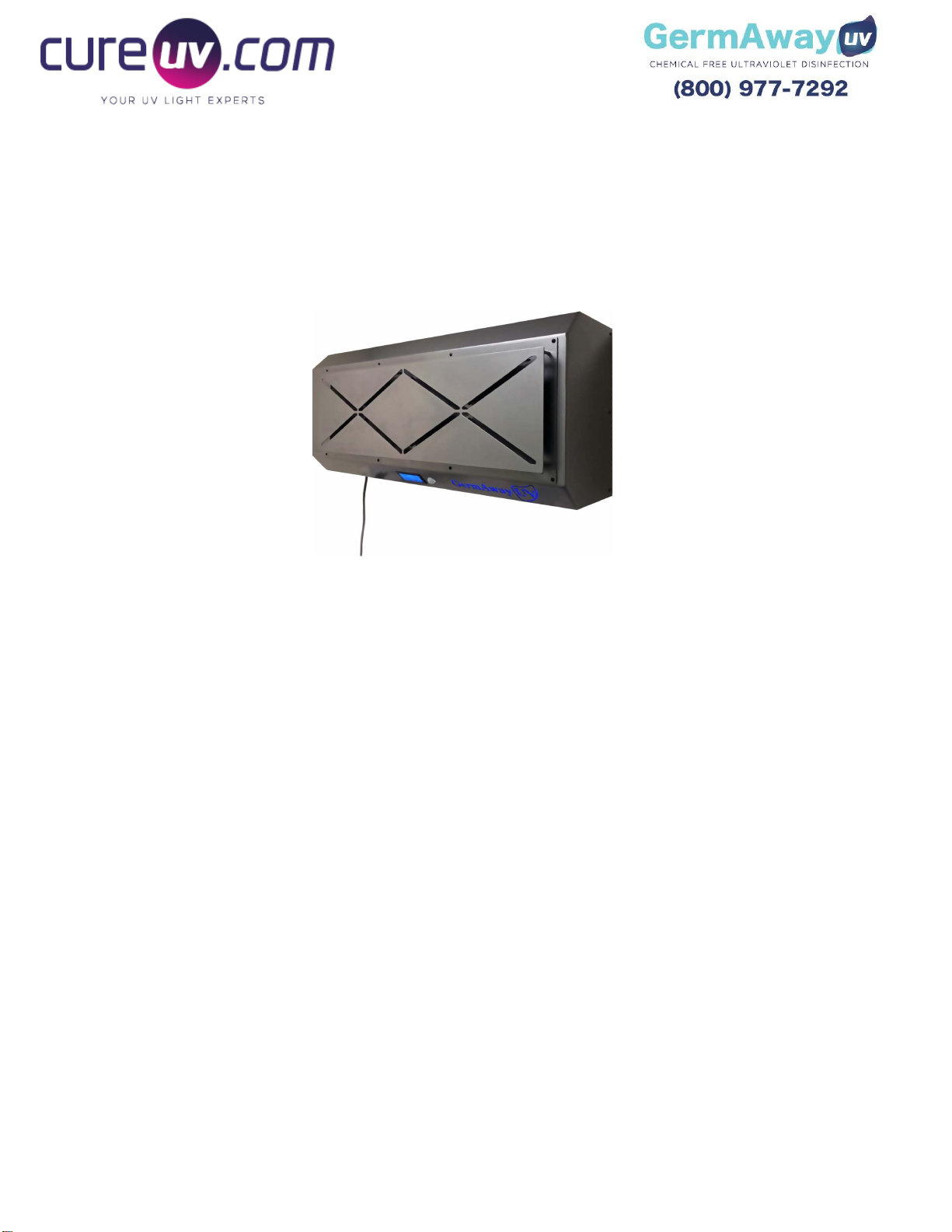

Centurion High Occupancy 240 Watt Ultraviolet Air
Sanitizer and Disinfection System Operation Manual
SKU: 201105

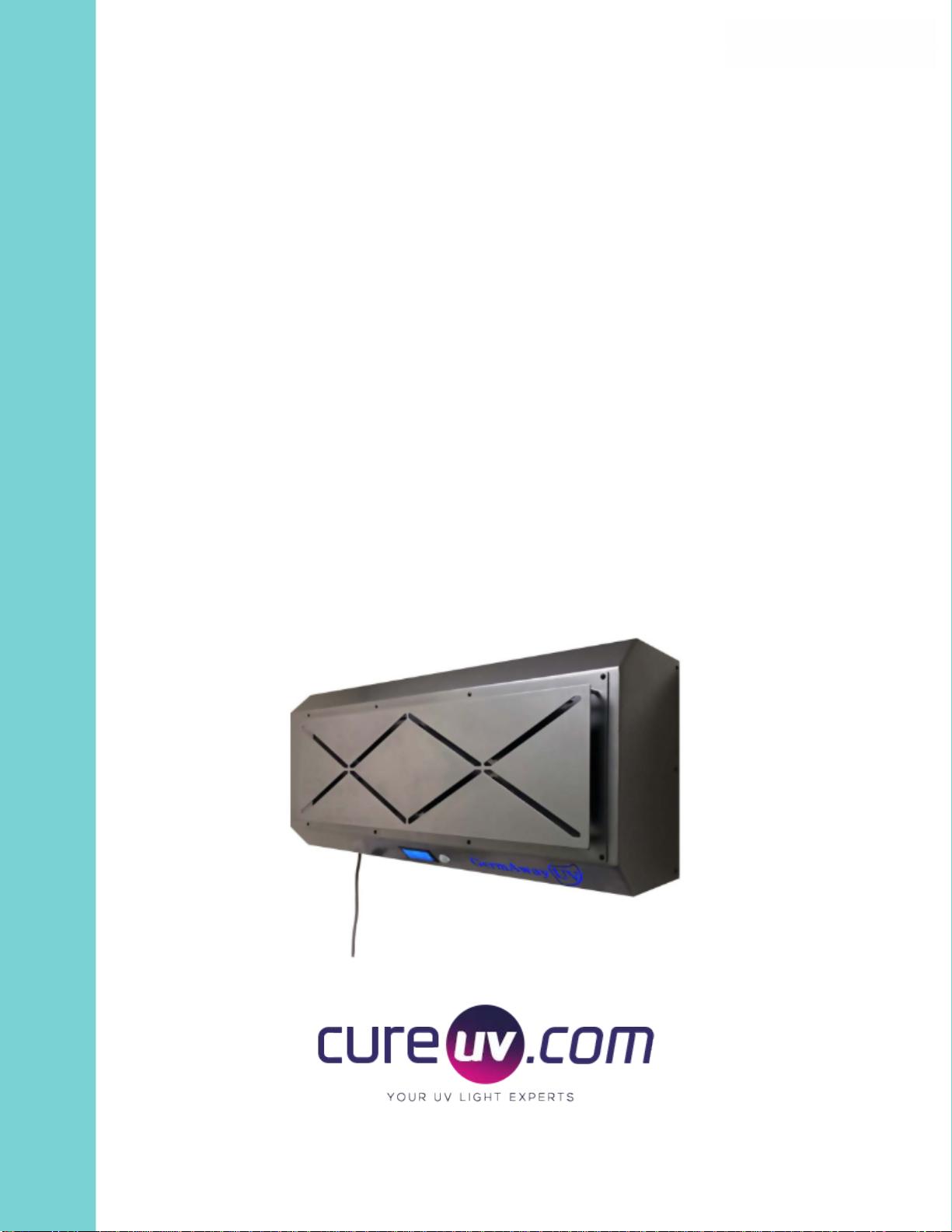

The Centurion is a state of the art device utilizing a cross-flow filtration
system and UV-C germicidal bulbs to catch and eradicate nearly all viral
particles, germs, bacteria, and other contaminants from the air without risk
of UV light exposure to you or your clients. A premiere SMART device, the
Centurion offers web enabled application to control, schedule, and monitor
the air in any given space right from your smartphone!
5 YEAR
WARRANTY

GermAwayUV Centurion Mounting Instructions
Installing into Wooden Studs:
Before you get started on your GermAwayUV Centurion installation, here are a few
things you’ll want to have on hand:
Items Needed:
•Stud Finder: For drywall installation, make sure you’re mounting to a stud for
proper support.
•Power Drill: We highly recommend using a power drill to speed things up for this
project.
•3/32” Standard Drill Bit: Use this drill bit to make pilot holes in the drywall and
stud, which you’ll drill your mounting screws into.
•4 x Zinc-Plated Steel, Number 10 Size, 2-1/2" Long (included)
•Number 2 Phillips Head Screwdriver.
•Level: Use a level to make sure your GermAwayUV Centurion is, well, level.
•Painters Tape (optional): When you find your wall studs, mark them with a little
piece of painters tape. This is much easier to see than a pencil mark, and you won’t
have to write on your wall—that’s always a bonus in our book.
•A friend or colleague (optional): Each GermAwayUV Centurion weighs over 50 lbs
and is big, heavy and awkward to lift. It’s best to have a friend or colleague available
to help manipulate the unit.
How to wall mount your GermAwayUV Centurion into Wooden Studs.
1. Decide where you want to position the Unit.
2. Locate the wall studs using a stud finder. Move your stud finder across the wall
until it indicates it has found a stud. When it does, mark it with some painters tape
so you remember the position.
(Mount unit at a minimum of 7 feet from the floor)
5 YEAR
WARRANTY

3. Mark and drill your pilot holes. These are the small holes that will allow your
mounting screws to enter the wall. You’ll probably want a partner for this.
•Hold the GermAwayUV mounting bracket up to the wall. Use a level to
make sure it’s straight.
•Using a pencil, make light marks where you’ll drill the holes to attach it to
the wall.
•Attach the 3/32” drill bit to your drill, and drill holes where you marked
using the mount.
4. Attach the mounting bracket to the wall. Hold your mount to the wall and drive
the 4 #10 screws (included) into the pilot holes you made in the previous step.
Drive them until the lag screws are snug against the mounting plate.
5. Attach the GermAwayUV Centurion to the mounting plate.
•With a helper, lift the Centurion over the mounting plate and hood the
receiving slots onto the pegs at the top of the mounting plate.
•Carefully guide the Centurion down so that it becomes flush against the
mounting plate.
•Use a Philips Head screwdriver to tighten the safety bolts into the bottom of
the Centurion so that it attaches itself to the bottom of the mounting plate.
This will further secure the unit to the wall.
5 YEAR
WARRANTY

Installing into Concrete:
Before you get started on your GermAwayUV Centurion installation, here are a few
things you’ll want to have on hand:
Items Needed:
•Power Drill: We highly recommend using a power drill to speed things up for this
project.
•5/32” Tapcon Drill Bit: Use this drill bit to make pilot holes in the concrete, which
you’ll drill your mounting screws into.
•4 x 3/16” x 2 ¼” Star Head Concrete Anchors
•T-25 Driver Bit: Use this bit to drive the concrete anchors into the concrete.
•Level: Use a level to make sure your GermAwayUV Centurion is, well, level.
•Painters Tape (optional): When you find your wall studs, mark them with a little
piece of painters tape. This is much easier to see than a pencil mark, and you won’t
have to write on your wall—that’s always a bonus in our book.
•A friend or colleague (optional): Each GermAwayUV Centurion weighs over 50 lbs
and is big, heavy and awkward to lift. It’s best to have a friend or colleague available
to help manipulate the unit.
How to wall mount your GermAwayUV Centurion into Concrete
1. Decide where you want to position the Unit.
2. Mark and drill your pilot holes. These are the small holes that will allow your
mounting screws to enter the wall. You’ll probably want a partner for this.
•Hold the GermAwayUV mounting bracket up to the wall. Use a level to
make sure it’s straight.
•Using a pencil, make light marks where you’ll drill the holes to attach it to
the wall.
5 YEAR
WARRANTY

•Attach the 5/32” drill bit to your drill, and drill holes where you marked
using the mount.
3. Attach the mounting bracket to the wall. Hold your mount to the wall and drive
the 4 concrete anchors into the pilot holes you made in the previous step. Drive
them until the concrete anchors are snug but DO NOT OVERTIGHTEN.
4. Attach the GermAwayUV Centurion to the mounting plate.
•With a helper, lift the Centurion over the mounting plate and hood the
receiving slots onto the pegs at the top of the mounting plate.
•Carefully guide the Centurion down so that it becomes flush against the
mounting plate.
•Use a Philips Head screwdriver to tighten the safety bolts into the bottom of
the Centurion so that it attaches itself to the bottom of the mounting plate.
This will further secure the unit to the wall.
Phone: [phone]
2801 Rosselle St, Jacksonville, FL, 32205
Web store: www.cureUV.com
5 YEAR
WARRANTY

Bulb Installation and Replacement
Step 1: Remove Front Door with Filter by unscrewing 8 captive screws.
Step 2: Release the bulb from the socket by pushing the red button on bulb the
socket. Take out bulb by sliding away from socket and releasing bulb from bulb
clips as shown. Repeat the process for all bulbs. Inverse the process for
installing the bulbs.
To install lamp carefully and FIRMLY push down into lamp socket until an
AUDIBLE CLICK is heard. Repeat the process for all bulbs.
5 YEAR
WARRANTY

Using the Centurion System
1. To power on your Centurion device, activate the “ON/OFF”switch on
the front of the machine, which will make an audible click when
activated.
Note: The only way to turn the Centurion device off is by physically switching the power
button, the remote controlled “Stop” button is to halt the Centurion’s sanitation cycle.
2. The display screen will illuminate, allowing you access to 16 control
options—switch between these using the “Up” and “Down” arrows
on the physical remote.
3. When preferred option is selected, use the “Right” or “Left” arrows to
change its settings and press “OK”.
After initial device set up, the Centurion can also be controlled using a WIFI
enabled Smart device app.
5 YEAR
WARRANTY

Menu Options Overview:
1.Motion Clean (ON/OFF)
Allows you to enable/disable the device’s Motion Clean sensor, which makes the machine kick
on and run a 30-minute cycle whenever someone enters the room—ensuring air circulation.
2.Fan Speed
Allows you to pick one of four fan speeds: Low, Medium, High, and Maximum. The device
defaults to Medium.
3.Duration
Controls how long the fan will run (10 min, 15min, 20min, 25min, or 30 min maximum)
4.Beeper (ON/OFF)
Controls the Centurion’s audio indicator beeping noises as a user moves between and selects
options. Not an indicator of cycle duration or completion.
5.WIFI control
Enables/disables the device’s ability to be used by a Smart device. To enable, select option and
press “Ok” on the remote.
6.WIFI Setup
This option sets up your Smart device’s ability to connect with the Centurion and displays WIFI
name, SSID, and a timer countdown. (Before attempting, review the Smart App Setup
information.)
7-10. UV Bulb Locations and Total Run Time
Allows user to locate each bulb—Top Left (TL), Bottom Left (BL), Top Right (TR), Bottom Right
(BR)—and see their total run time, as well as reset these times when bulbs are replaced.
11. Filter Run Time
Allows user to see the filter’s run time and reset it upon replacement of filter.
12. Bulb Diagnostics
Shows which bulbs are functioning or damaged.
13. Machine run time
Total time the machine has been run.
14. Serial number
Displays the devices serial number.
15. Firmware software info
Alerts user to new App updates.
16. WIFI Info (Connected Network)
Changes when connected to a network this option will show IP address, name, and signal
strength.
5 YEAR
WARRANTY

Centurion WIFI Setup & App Overview
1. Download the App from IOS Marketplace or Google Play Store
1.1. You can search “GermAway UV Smart Control”
1.2. QR for IOS
1.3. QR for Android
5 YEAR
WARRANTY

2

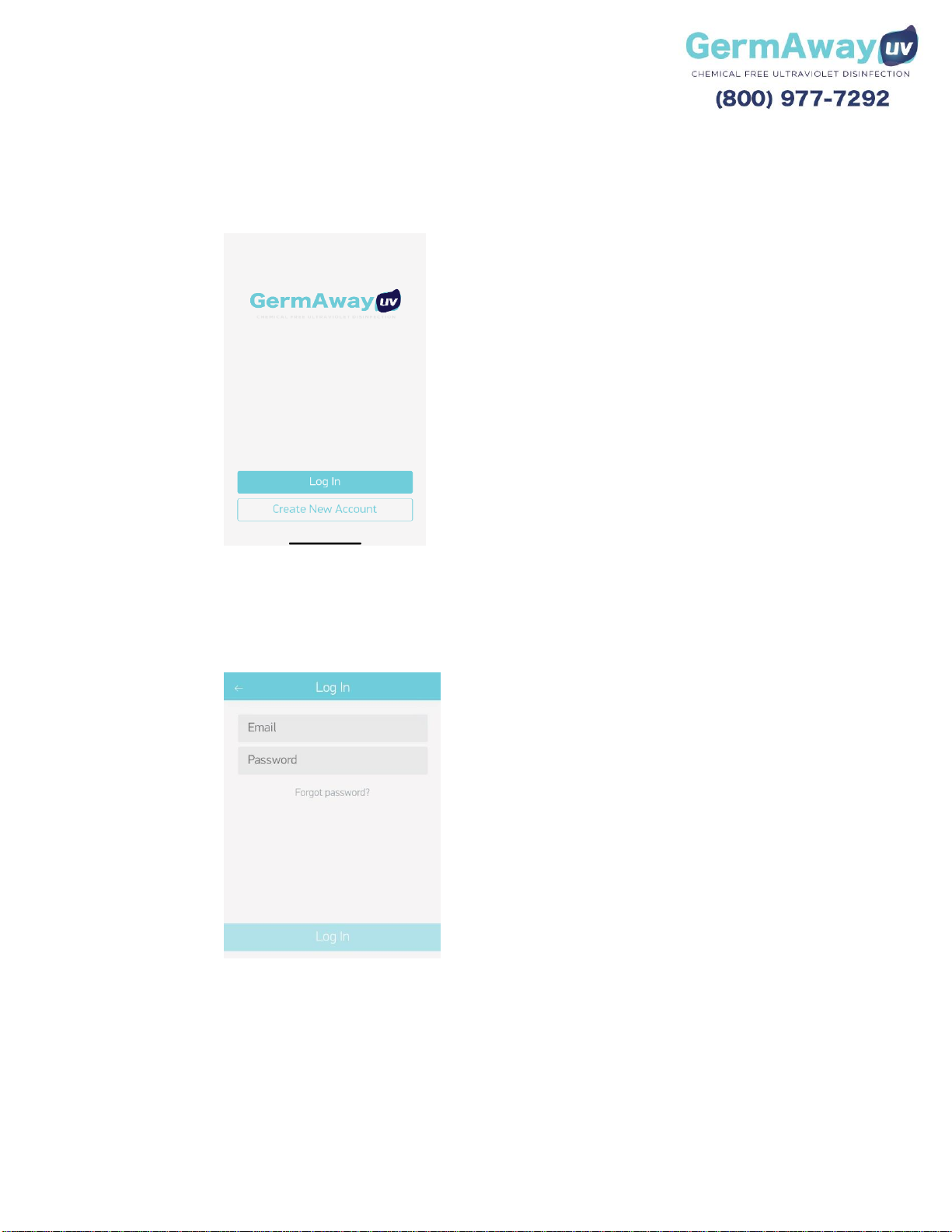

2. Once the app is installed your first screen will look like this
example.
2.1.
2.2. Please login or create and account
3. Login with your newly created account
3.1.
3.2. Enter with email and password
5 YEAR
WARRANTY

3

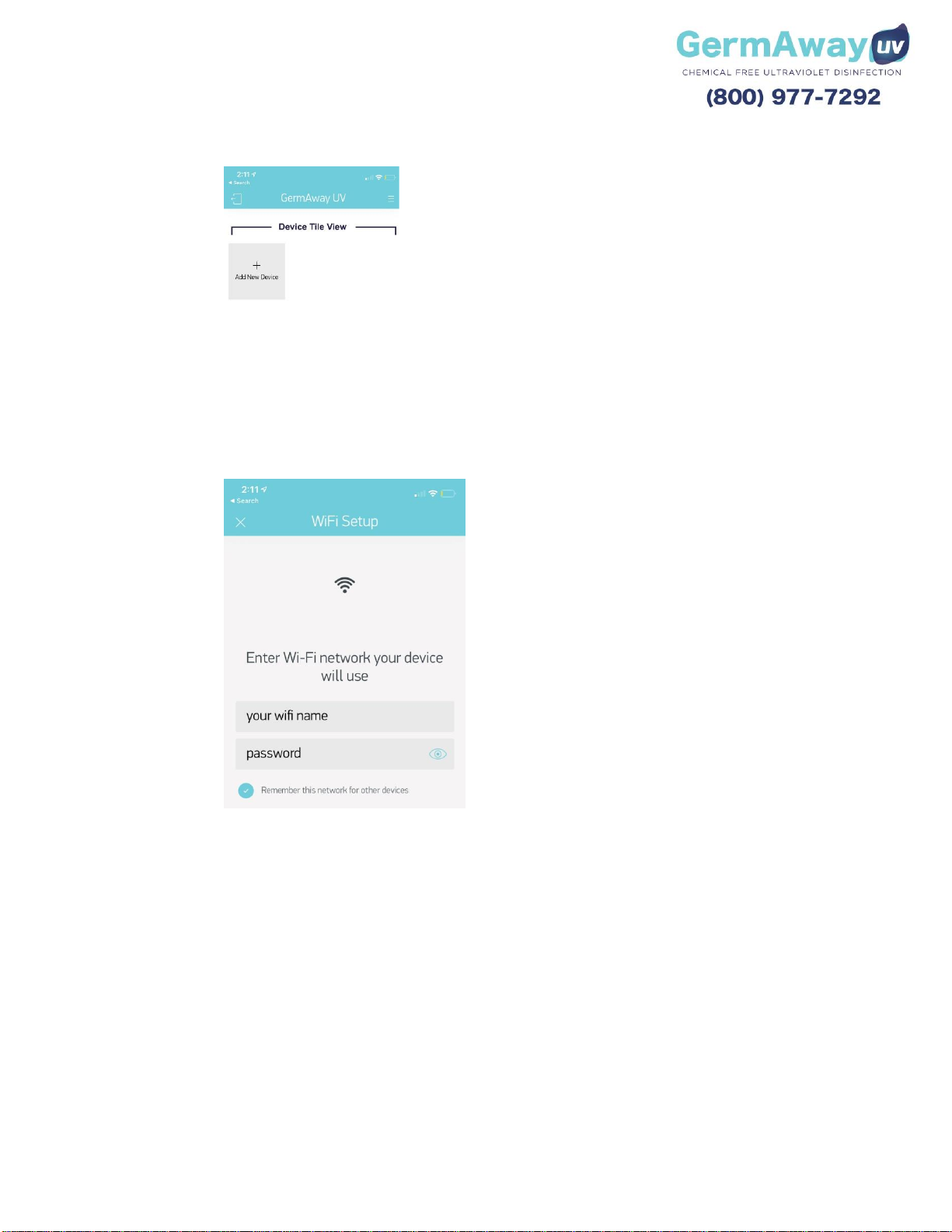

4. ou will now be on the home screen of the app
4.1.
4.2. Select “+ Add New Device”
5. This will be the next page and the start of setting up a centurion
5.1.
5.2. Enter the credential (Only required for first device)
5.2.1. Must use EXACT for Wi-Fi name and password
5.2.2. Both are case sensitive
5.3. Select continue once credentials are entered
5 YEAR
WARRANTY

4

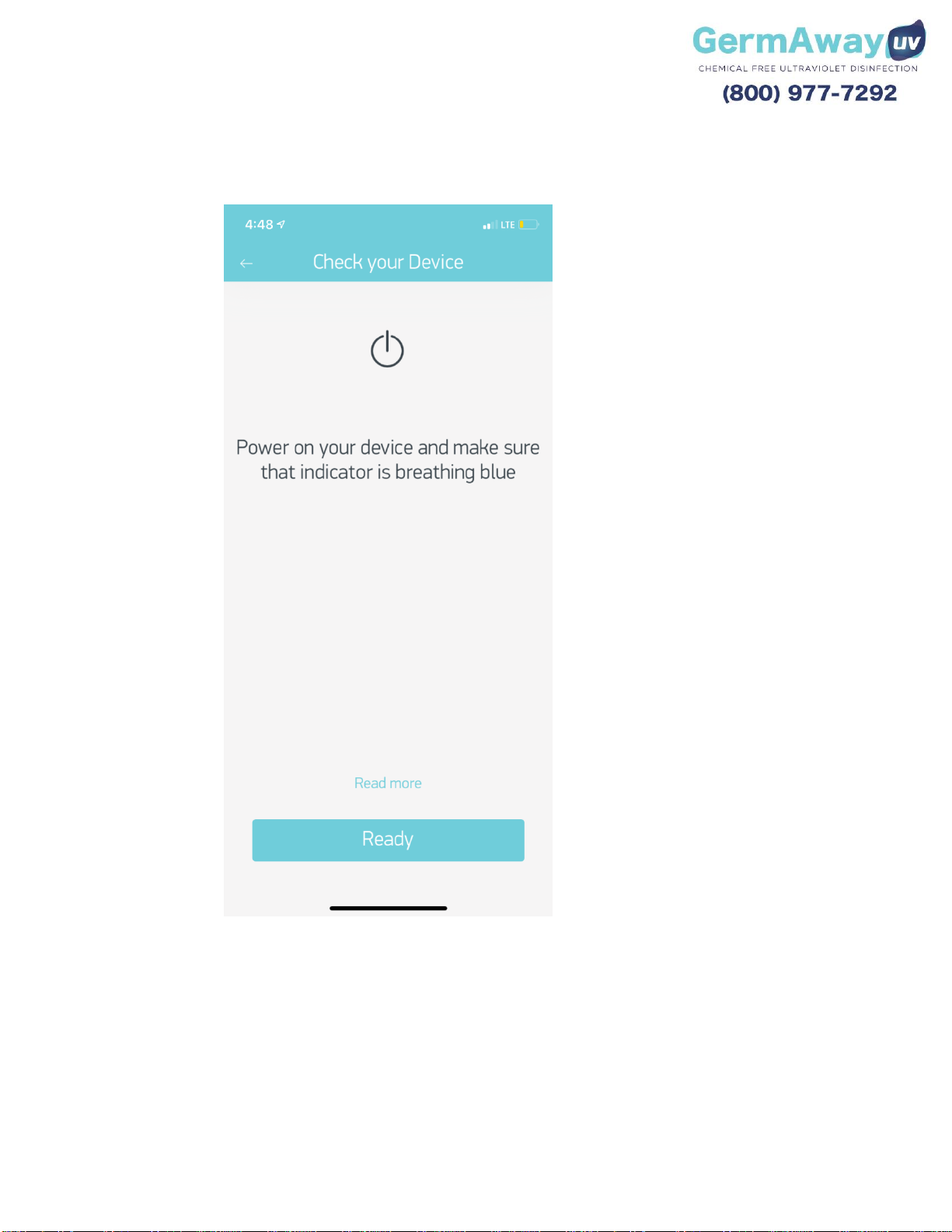

6. The next page after Wi-Fi will be this example
6.1.
6.2. Do not hit ready until the next few steps.
6.2.1. Place your mobile device to the side
5 YEAR
WARRANTY

5

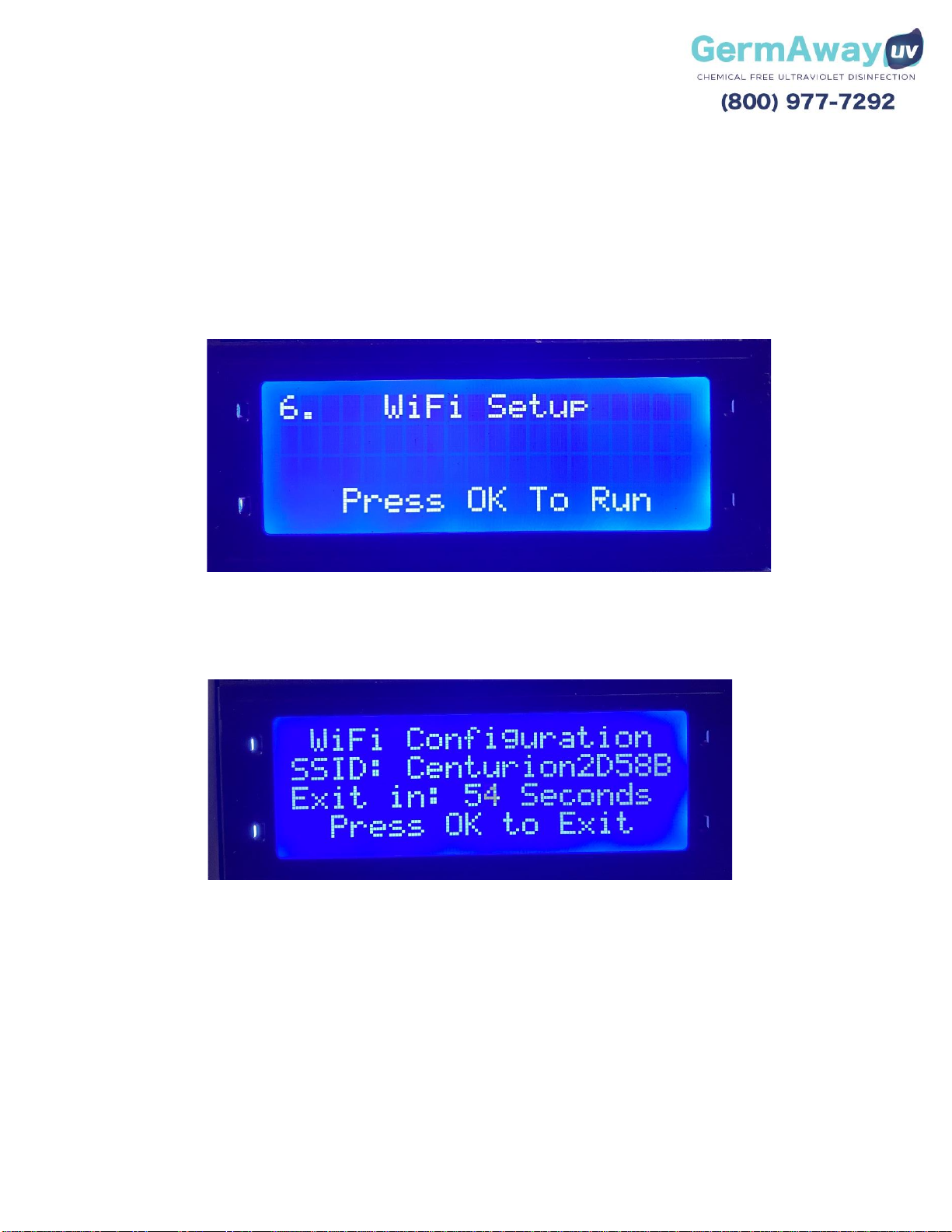

6.3. You will need to begin the Wi-Fi setup on the centurion via
the included black remote.
6.3.1. Turn on the Centurion
6.3.2. Use the up and down on the black remote
6.3.3. Navigate to page 6 Wi-Fi Setup
6.3.4. Hit OK on the Remote
6.3.5. You will have 1 minute to connect your phone to the
device for pairing
6.3.5.1. Pick up your mobile device
6.3.5.2. Do NOT close the “GermAway UV Smart Conrol App”
5 YEAR
WARRANTY

6
6.3.5.3. Leave the app open and go to WIFI Setup as if you are
connecting to a new network
6.3.5.4. Select the “CenturionXXXXX”Device
5 YEAR
WARRANTY

7
6.3.5.5. Your mobile device should now both look like this
6.3.5.5.1.
6.3.5.5.2.
5 YEAR
WARRANTY

8
7. Once you see Device Connected on the centurion please navigate
back to “GermAway UV Smart Conrol App”
7.1.
7.2. You may now hit ready
5 YEAR
WARRANTY

9

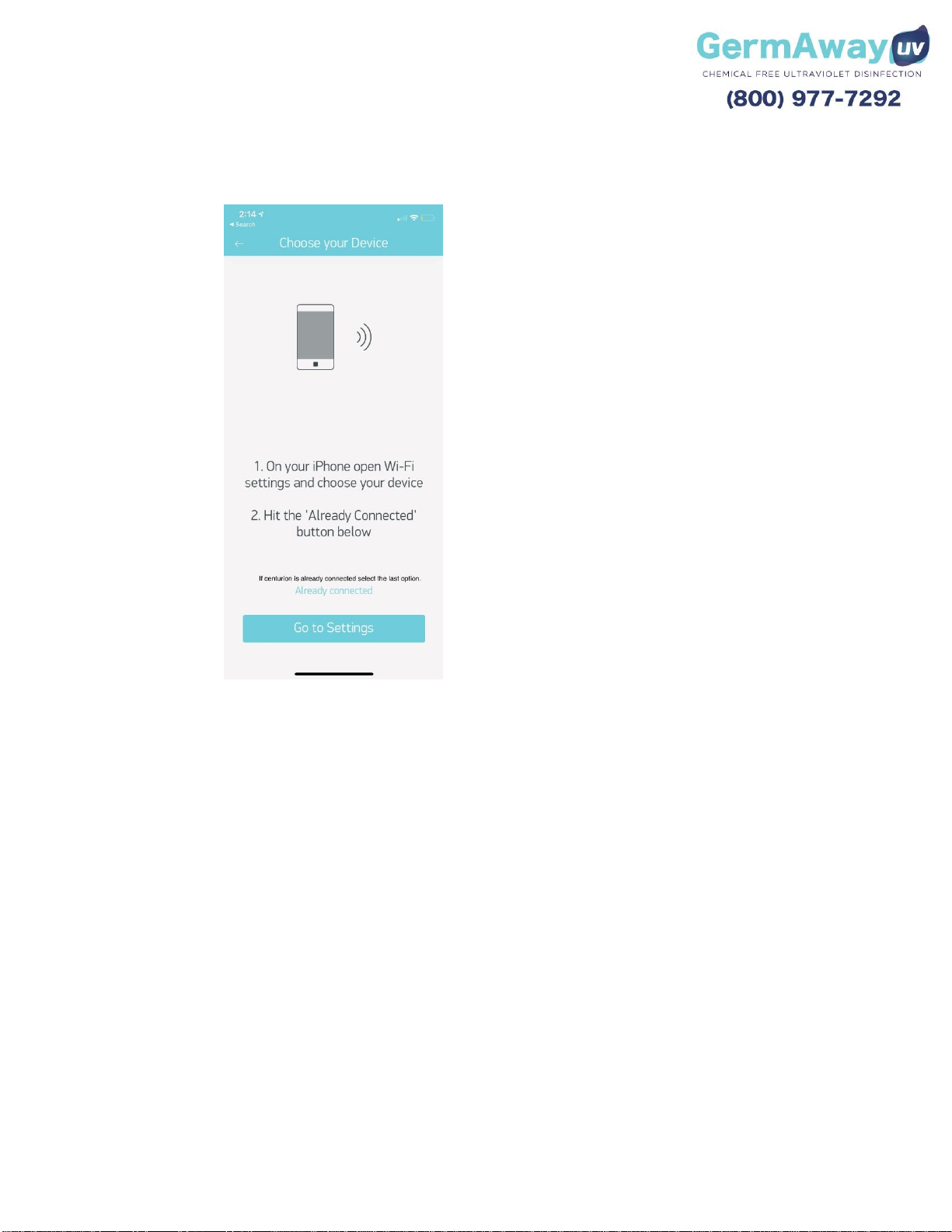

8. You will proceed to this page
8.1.
8.1.1. If the centurion still reads “Device Connected”you
can select “already connected”and the device will begin
connecting to Wi-Fi
8.1.1.1.1. If the centurion reads nothing you can go back
to steps 6.2 WI-FI setup
5 YEAR
WARRANTY

10
9. If everything is correct and the system connects you will see this
example
9.1.
9.1.1. This means the device is working on connecting
9.1.2. If it fails it will notify you otherwise the app will
continue
5 YEAR
WARRANTY

11
9.2.
9.2.1. If you see this page congratulations! Create a name
such as the location and hit finish.
10. Once finished it will take you to the home page
10.1.
5 YEAR
WARRANTY

12
11. From the home page to enter the device controls *HOLD your
finger on the device*
12. You may now begin operating your new centurion!
12.1.
12.2. Continue on for App Control Overview or hit the help button
for in App details.
