GFA ELEKTROMAT SG 186F User manual

f
Installation Instructions
ELEKTROMAT
SI 260.5-80,00
Model: 10005218 10012
-en-
Status: 26.03.2021

2
GfA ELEKTROMATEN GmbH & Co. KG
Wiesenstraße 81
D-40549 Düsseldorf
www.gfa-elektromaten.de
[email protected]

3
Table of contents
1General safety information .............................................................................................. 4
Safe operation ......................................................................................................................... 4
2Technical Data ................................................................................................................ 6
3Integrated safety brake ................................................................................................... 7
4Mechanical installation .................................................................................................... 8
5Electrical installation ..................................................................................................... 12
6Limit switch adjustment ................................................................................................. 13
7Motor connection .......................................................................................................... 14
8Alternative motor connection ......................................................................................... 14
9Limit switch connection ................................................................................................. 15
10Emergency manual operation (hand chain operator) ..................................................... 16
11Completion of commissioning / testing .......................................................................... 18
12Declaration of incorporation / Declaration of conformity ................................................. 21

Symbols
Warning - Potential injury or danger to life!
Warning - Danger to life from electric current!
Note - Important information!
▶ Requirement - Required action!
Schematic representations are based on product examples. Deviations from delivered
products are possible.

4
1General safety information
Specified use
The drive unit is intended for vertically moving doors that need to be secured against
dropping. A safety brake is integrated into the gearbox. The drive unit must be mounted
directly on the shaft of the door.
The drive unit must be protected against moisture and aggressive environmental
conditions (such as corrosive substances). The drive units are only suitable for indoor use.
Appropriate protective measures must be taken for outdoor installation. The drive unit is
not intended for hazardous areas. The values specified in the technical data of the drive
unit must not be exceeded. The safe operation can only be ensured if used as specified.
Target audience of these installation instructions
These installation instructions are geared towards qualified persons trained in the handling
of door systems. Expert knowledge, relevant skills and practical experience are what set
apart qualified persons. They are capable of safely carrying out the tasks involving
installation, maintenance and modernisation according to the instructions.
Safe operation
The safe operation of the product can only be ensured if it is used as specified. Follow the
installation instructions. Observe all specifications, especially warnings, when installing the
product in the overall system. GfA is not liable for damage resulting from non-observance
of the installation instructions. The resulting overall system must be reassessed for its
safety in accordance with applicable standards and directives (e.g. CE marking). These
installation instructions refer only to a part of the overall system and are not sufficient as
the sole instructions for the overall system. The installer of the system must prepare the
instructions for the overall system.
We recommend entering the danger area of the system only when the drive unit is at a
standstill.

5
Warning - Failure to follow these installation instructions may result in severe injury or death.
Please read these instructions before using the product.
Keep these instructions handy.
Include these instructions when passing on the product to third parties.
Warning - Danger from improper use of the product!
Do not let children operate the product unsupervised or use as a toy.
Warning - Danger to life from incorrect installation!
Work carried out improperly may result in death or severe injury from electrical
current or falling parts.
Allow only competent people to carry out the work.
Disconnect all cables from the power supply.
Observe valid regulations and standards.
Use suitable tools.

6
2Technical Data
Type SG 186F
Output torque 2600 Nm
Output speed 5 rpm
Output shaft / hollow shaft 80,00 mm
Locking torque moment 8255 Nm
Safety brake (testhouse/approval number) 11-003301-PR
Maximum output speed open / close
for frequency inverter operation 5 / 5 rpm
Supply voltage 3~ 400 V
Operating current 3,90 A
Operating frequency 50 Hz
Power factor cos φ 0,76
Maximum movement per hour 6 h-1
Hand forces 182 N
Class of protection IP 65
Limit switch range
(maximum revolutions of output shaft / hollow shaft) 10
Braking torque spring-loaded brake 100 Nm
Braking voltage 103-130 V DC
Rectifier type EGR 230/103
Temperature range -10 / +40 (+60) °C
1) When using a temperature range of +40°...+60°C use half of maximum movements per hour.

7
3Integrated safety brake
A safety brake is integrated into the gearbox of this ELEKTROMATEN. The safety brake
protects against the door dropping due to breakage or wear of the gear teeth. The safety
brake works regardless of the mounting position, speed and rotating direction. It is
maintenance-free. The specification of the locking torque and the approval number of the
safety brake are available in the technical data of these instructions.
Warning - Danger of the door dropping!
If you need to apply more than the permissible force of 390N (according to DIN EN
12604/DIN EN 12453) to move the door by emergency manual operation, this
indicates a stalling on the drive unit or door. Releasing the stalling may cause the
door to drop.
Adopt a secure position.
For drive units with brake, the emergency manual operation must be carried out
against the closed brake.

8
4Mechanical installation
Requirements
The permissible loads on walls, mountings, connection and transmission elements must not
be exceeded even for maximum holding or locking torque (▶ observe technical data).
Connection elements

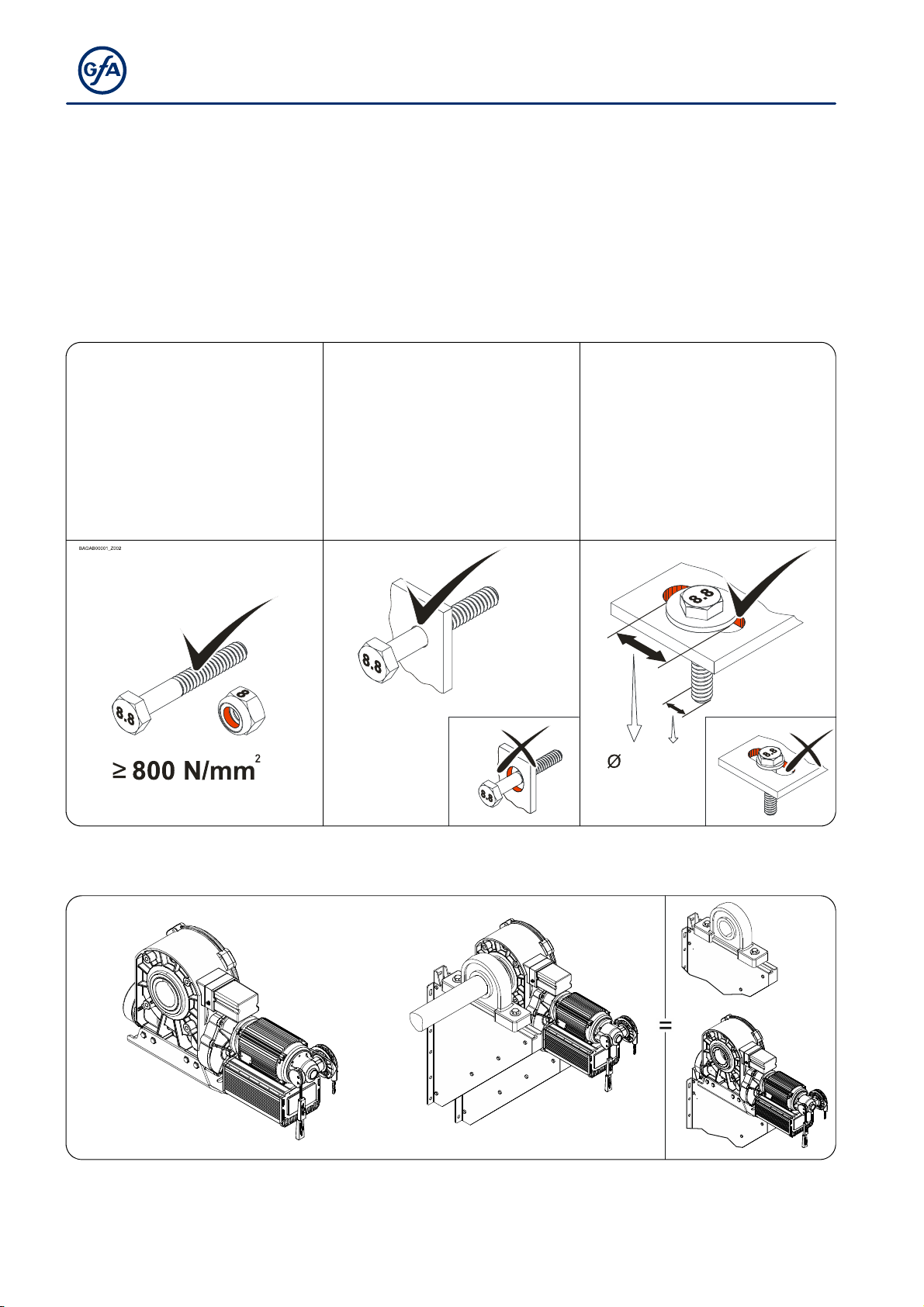

▶ Use self-locking
connection elements with
a minimum strength of
800 N/mm2 (8.8).
▶ Use a screw that
precisely fits the hole.
▶ Use adequately
dimensioned washers for
elongated holes.
BAGAB00002_Z002 BAGAB 00003_Z002
3 : 1
Permissible mounting positions
BAGAC07001_Z003
+

9
Mounting

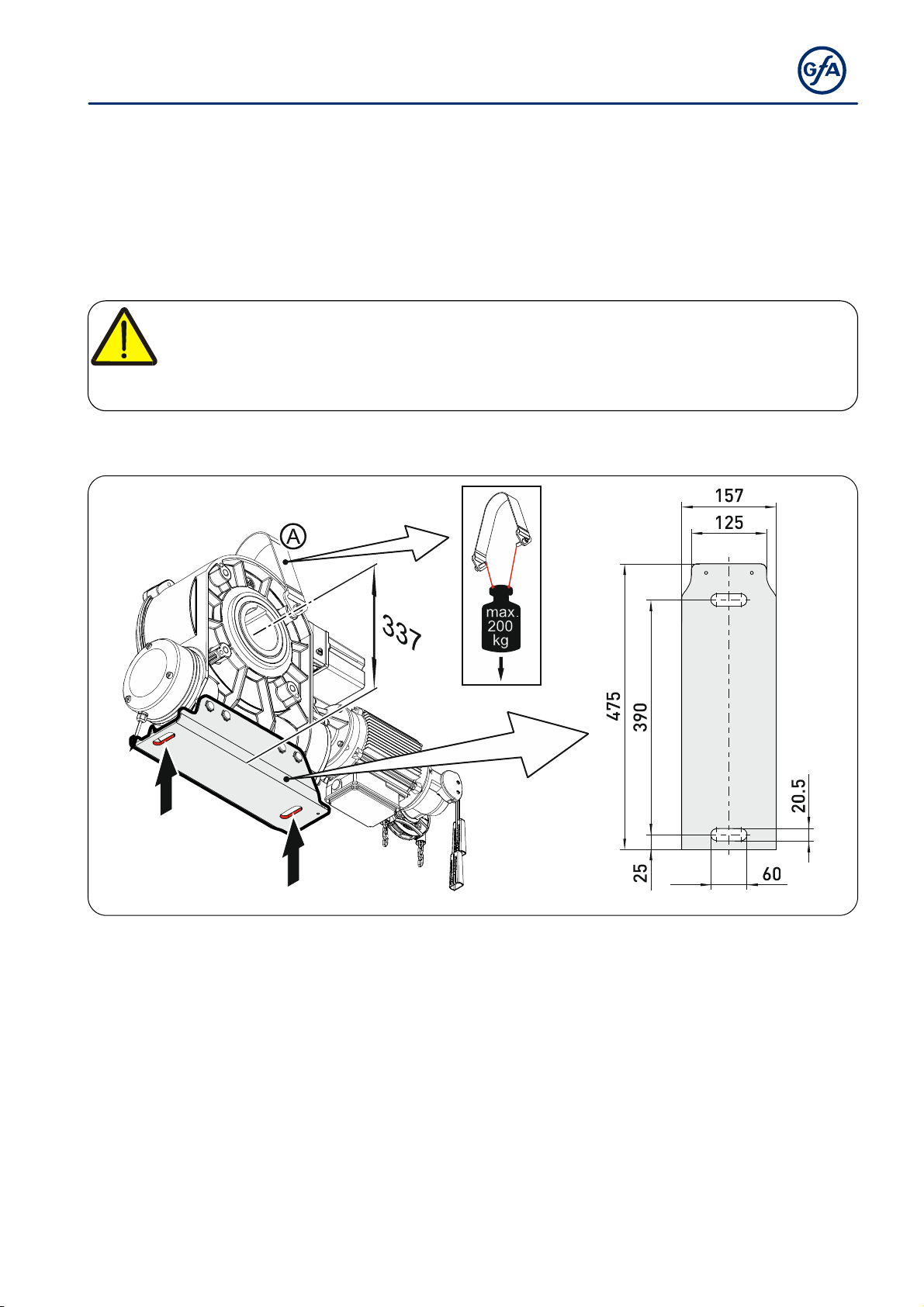

2 elongated holes are provided for mounting.
▶ Installation is only permitted with an additional torque mount (Ⓑ).
Warning – Injury or danger to life possible!
Check installation aid (Ⓐ) before each use and replace it in case of damage.
BAGAD07001_Z003

10
Installation
The following descriptions refer to a door which is not further defined. The door
manufacturer's specifications must also be observed.
Warning – Injury or danger to life possible!
Use a lifting device with sufficient load-carrying capacity for installation tasks.

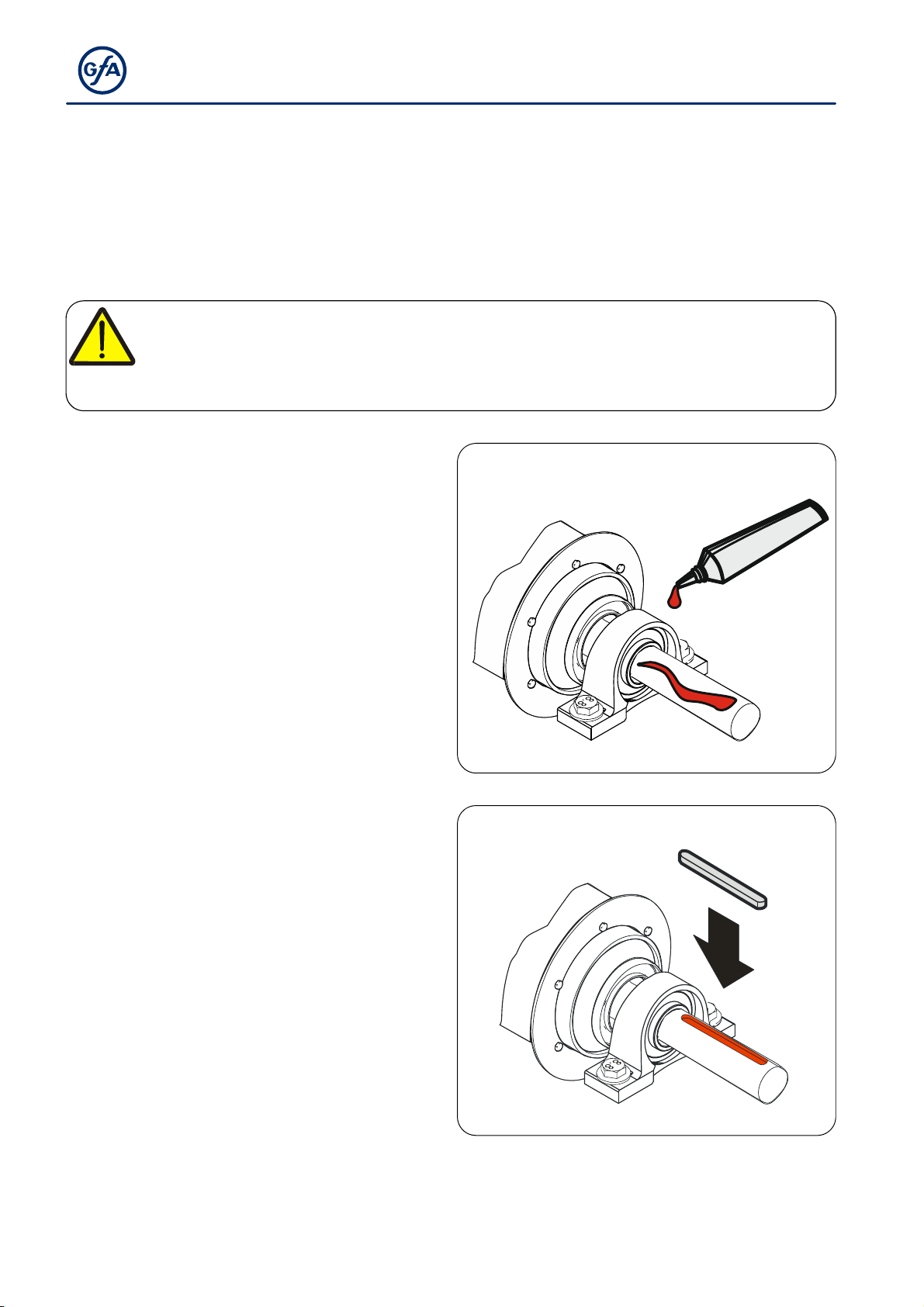

▶ Completely grease the door shaft.
BAGAE03003_Z002
▶ Mount the key.
BAGAE03004_Z001

11

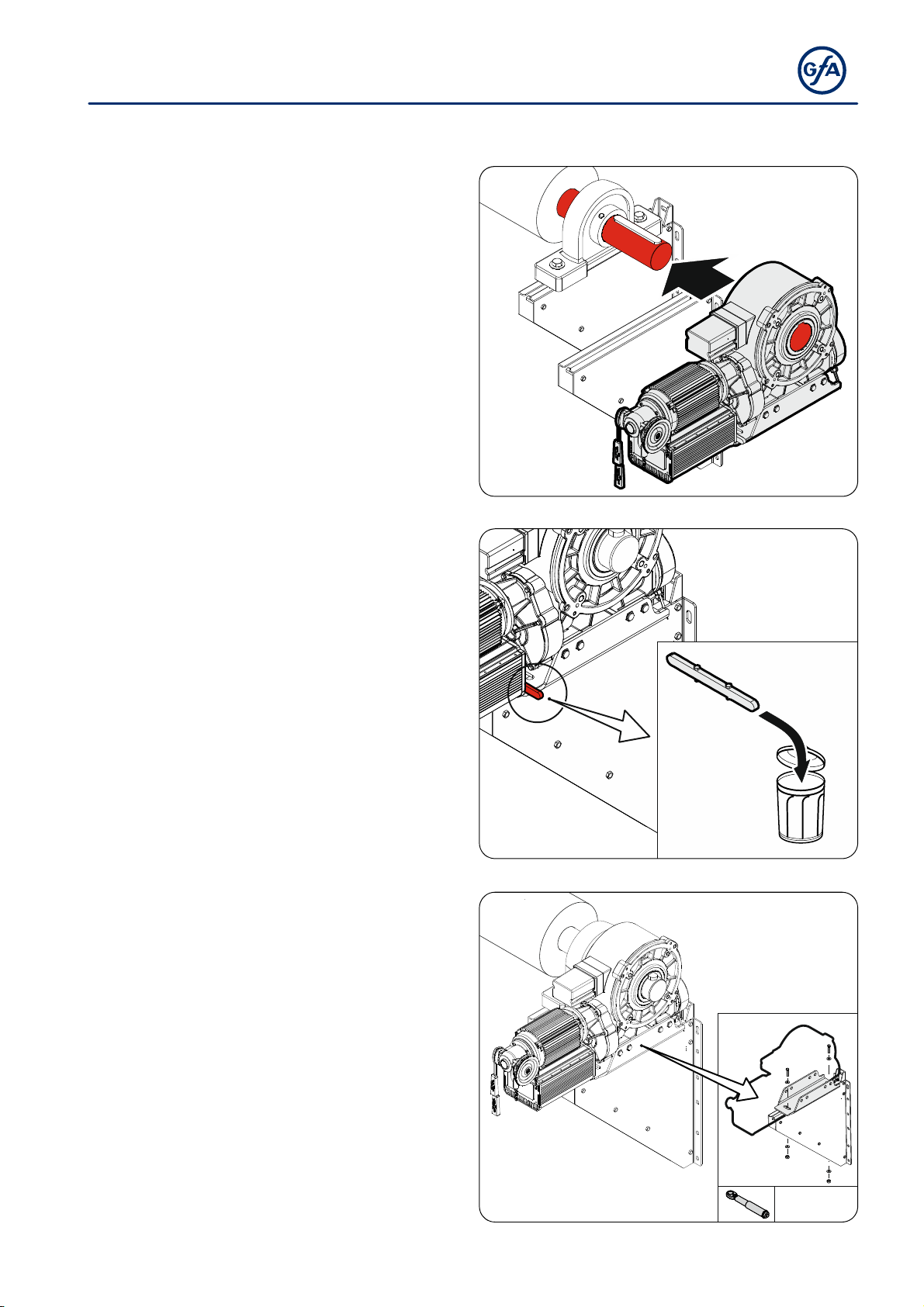

▶ Attach the drive unit.
BAGAE07003_Z001
▶ Remove transport protection.
BAGAE07004_Z002
▶ Tighten all connection elements (M20) with
a torque of 380 Nm. Install all further
connection elements according to the
specifications of the door manufacturer.
BAGAE07005_Z002
380 Nm

12
5Electrical installation
Warning - Danger to life from electric current!
Switch the mains OFF and check that the cables are de-energised
Observe the applicable regulations and standards
Make a proper electrical connection
Use suitable tools
Performing electrical installation

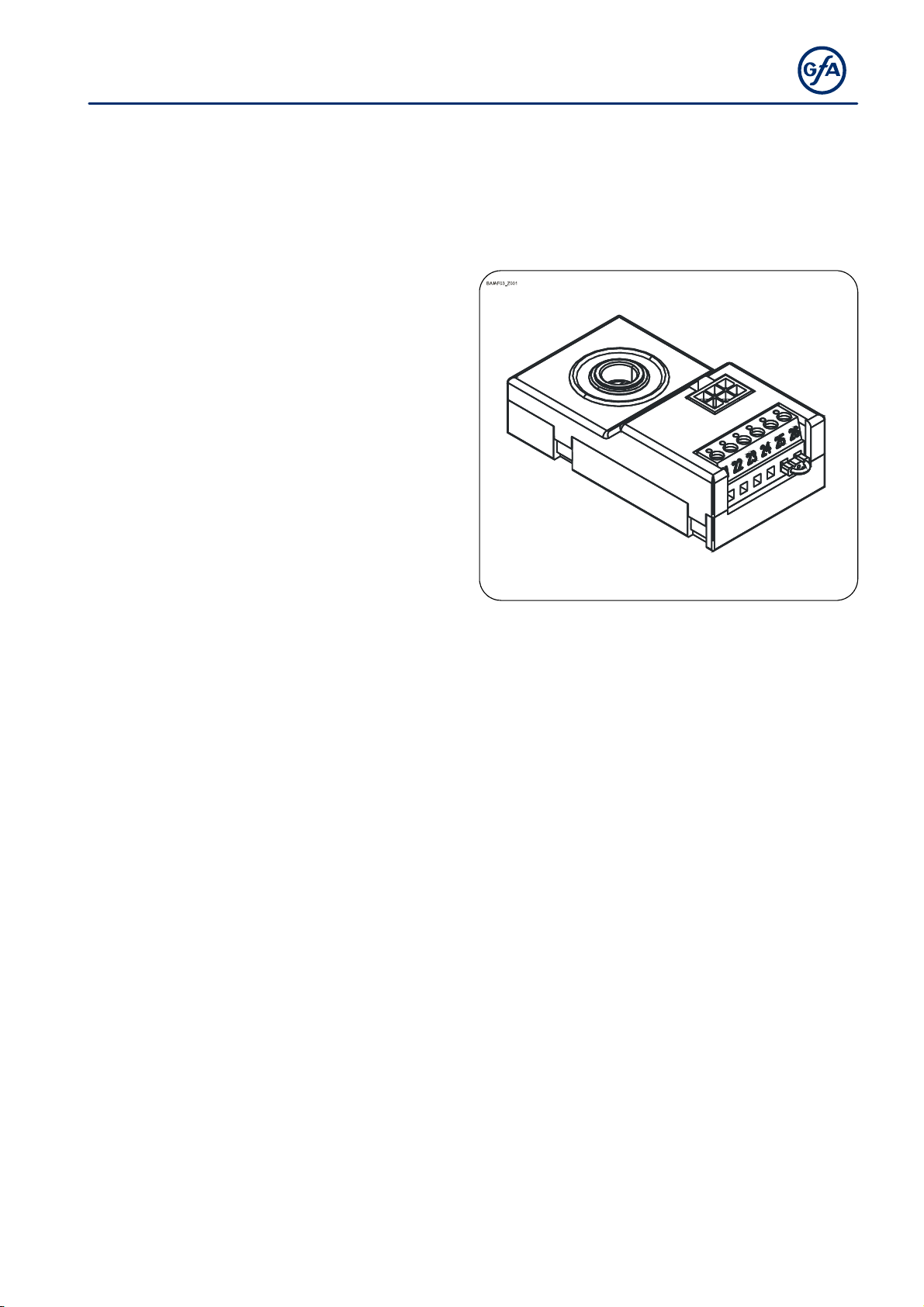

Remove the cover. Insert the motor plug. Insert the limit switch plug.
BAHAC13_Z001
Completing the electrical installation
Mount the cable entries and/or cable glands.

13
6Limit switch adjustment
The adjustment of the final limit positions OPEN and CLOSE is described in the instructions
for the door control panel.

14
7Motor connection
G1 Rectifier EGR
M1 Motor
X13 Motor plug
Y1 Spring applied brake
8Alternative motor connection
G1 Rectifier EGR
M1 Motor
X13 Motor plug
Y1 Spring applied brake

15

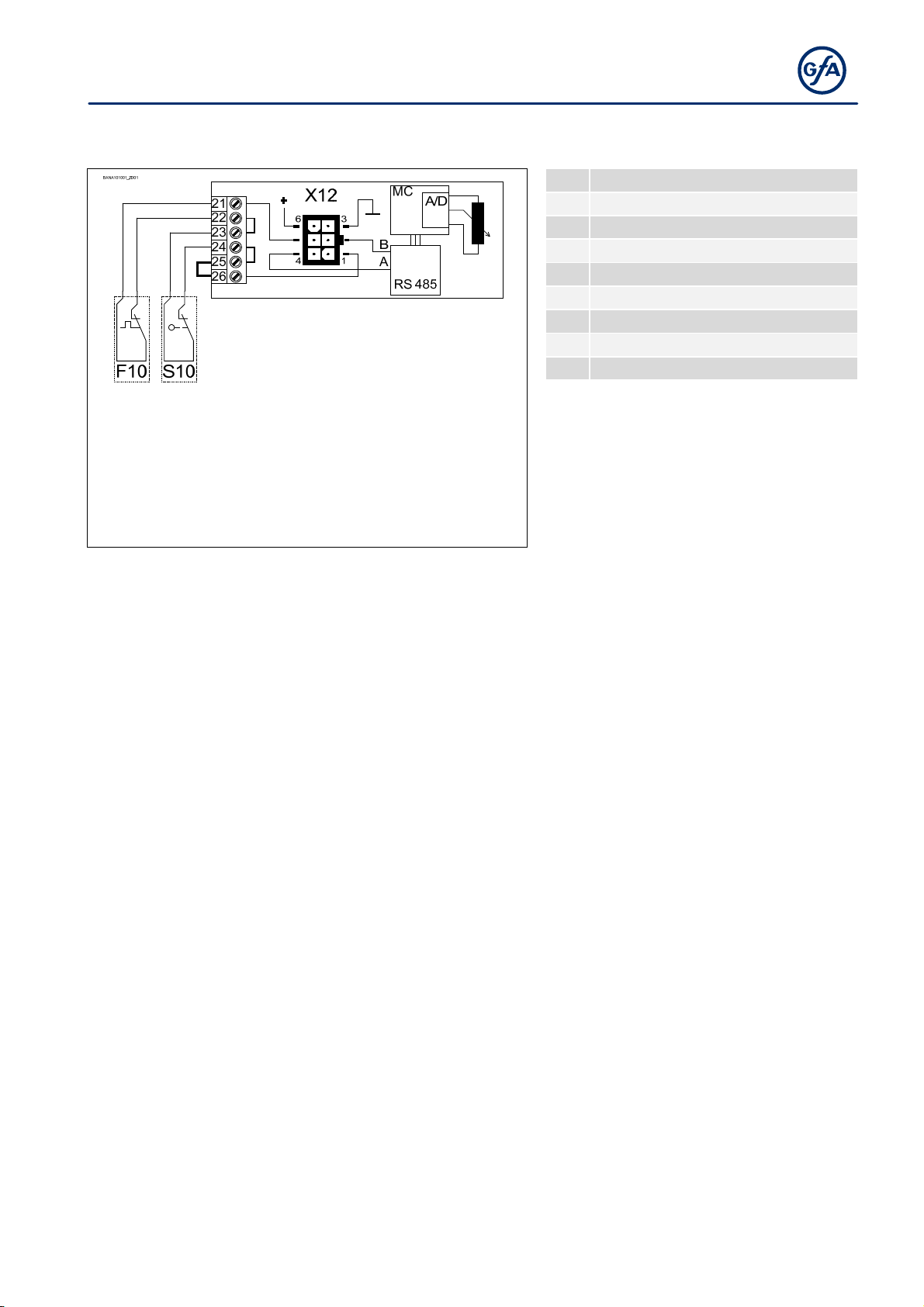

9Limit switch connection
F10 Thermal contact
S10 Emergency manual operation
X12 DES connection
1 Safety circuit
2 Channel B (RS485)
3 Ground
4 Channel A (RS485)
5 Safety circuit
6 Supply voltage

16
10 Emergency manual operation (hand chain operator)
Emergency manual operation is designed for opening or closing the door without power
supply. Its activation interrupts the control voltage. Electrical operation is no longer possible.
Warning – Injuries due to incorrect operation!
Switch off voltage.
Adopt a secure position.
For drive units with brake, the emergency manual operation must be carried out
against the closed brake.
Warning - Danger of the door dropping!
If you need to apply more than the permissible force of 390N (according to DIN EN
12604/DIN EN 12453) to move the door by emergency manual operation, this
indicates a stalling on the drive unit or door. Releasing the stalling may cause the
door to drop.
Adopt a secure position.
For drive units with brake, the emergency manual operation must be carried out
against the closed brake.
Caution – Damage to components!
Do not move the door beyond the final limit positions.

17
Switch on by pulling the red handle. Open or
close by pulling the chain. Switch off by
pulling the green handle.

18
11 Completion of commissioning / testing
Check the following components and after that, mount all covers.
Gearbox
Check drive unit for oil loss (a few drops are not critical). Protect output shaft permanently
against corrosion.
Safety brake in the gearbox
The safety brake requires no maintenance or inspection.
Warning – Danger of the door dropping
In the case of a gearbox damage, the internal safety brake is triggered to prevent the
door from dropping. The gearbox stalls.
Releasing the stalling may cause the door to drop!
Block the door for pedestrians and vehicles.
Do not release the stalling. Do not use the emergency manual operation.
Secure the door against dropping. Please observe the specifications of the door
manufacturer.
The drive unit needs replacement. Please observe the specifications of the door
manufacturer.
Mounting
Check all mounting elements (consoles, torque brackets, screws, retaining rings etc.) for
tightness and impeccable condition.
Electric wiring
Check connection cables and cables for damage or pinches. Check screw and plug
connections for correct seating and electrical contact.

19
Emergency manual operation
Function to be checked in a de-energised state. Carry out functional test only between final
limit positions.
Limit switches
Check the final limit positions by opening and closing the door completely. The safety zone
must not be reached.
Brake
Warning – Injury or danger to life possible!
Carry out brake test. Overrun depends on the door and its equipment. The
manufacturer's specifications must be observed.
The brake release for doors without counter-balancing may only be used in the
CLOSE final limit position.
Warning – Injury or danger to life possible!
Service life of the brake - replacement of the entire brake in the case of:
Operation with mains supply after 250,000 door cycles
Operation with frequency inverter after 1,000,000 door cycles
Degree of protection IP65i must be used in environments that may change the friction
coefficient of the brake pad (atmospheres with oil, solvents, cleaning agents, etc.).

20
Entire drive unit
Note!
Have the drive checked annually by a specialist.
Shorter inspection interval for frequently used doors.
Observe the applicable regulations and standards.
